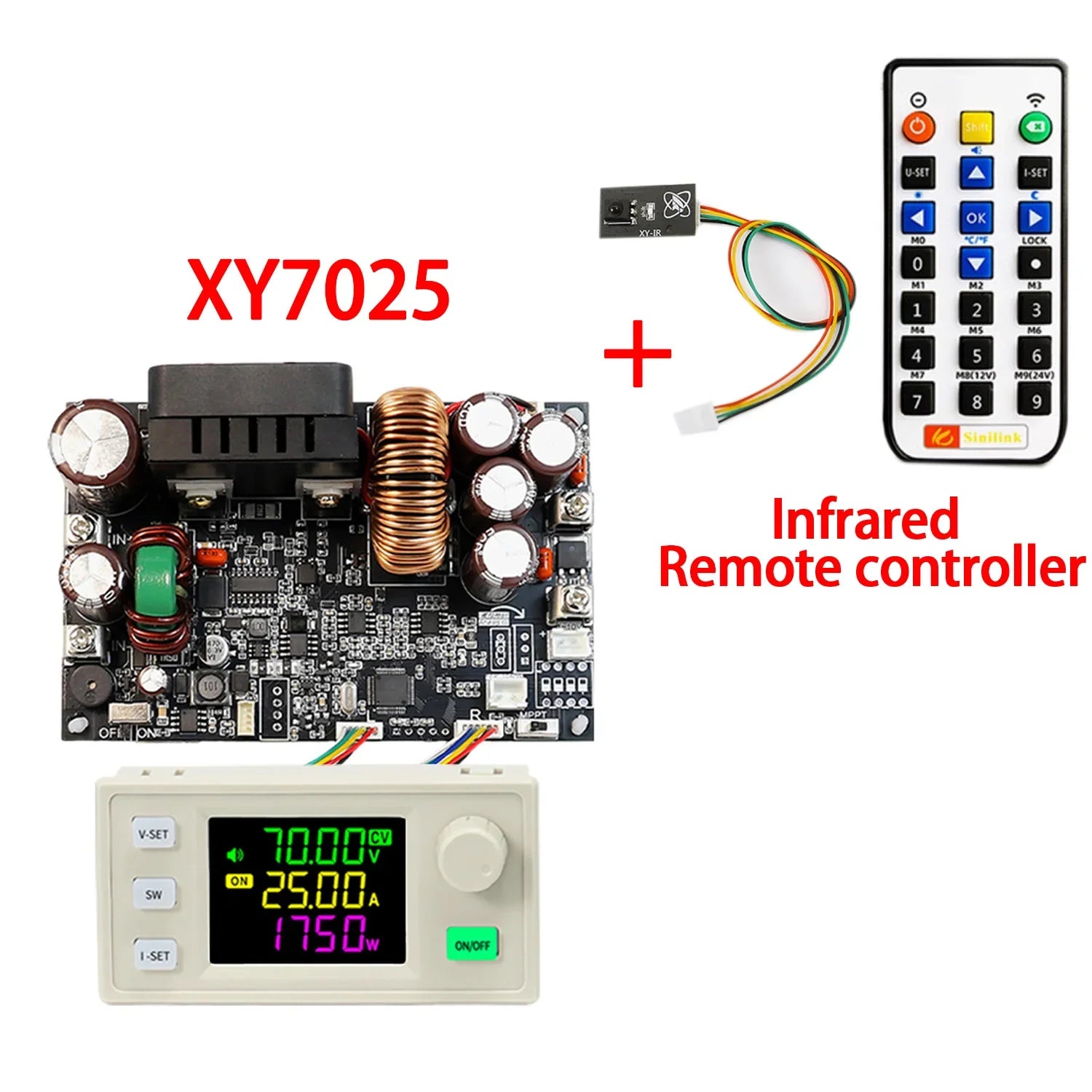

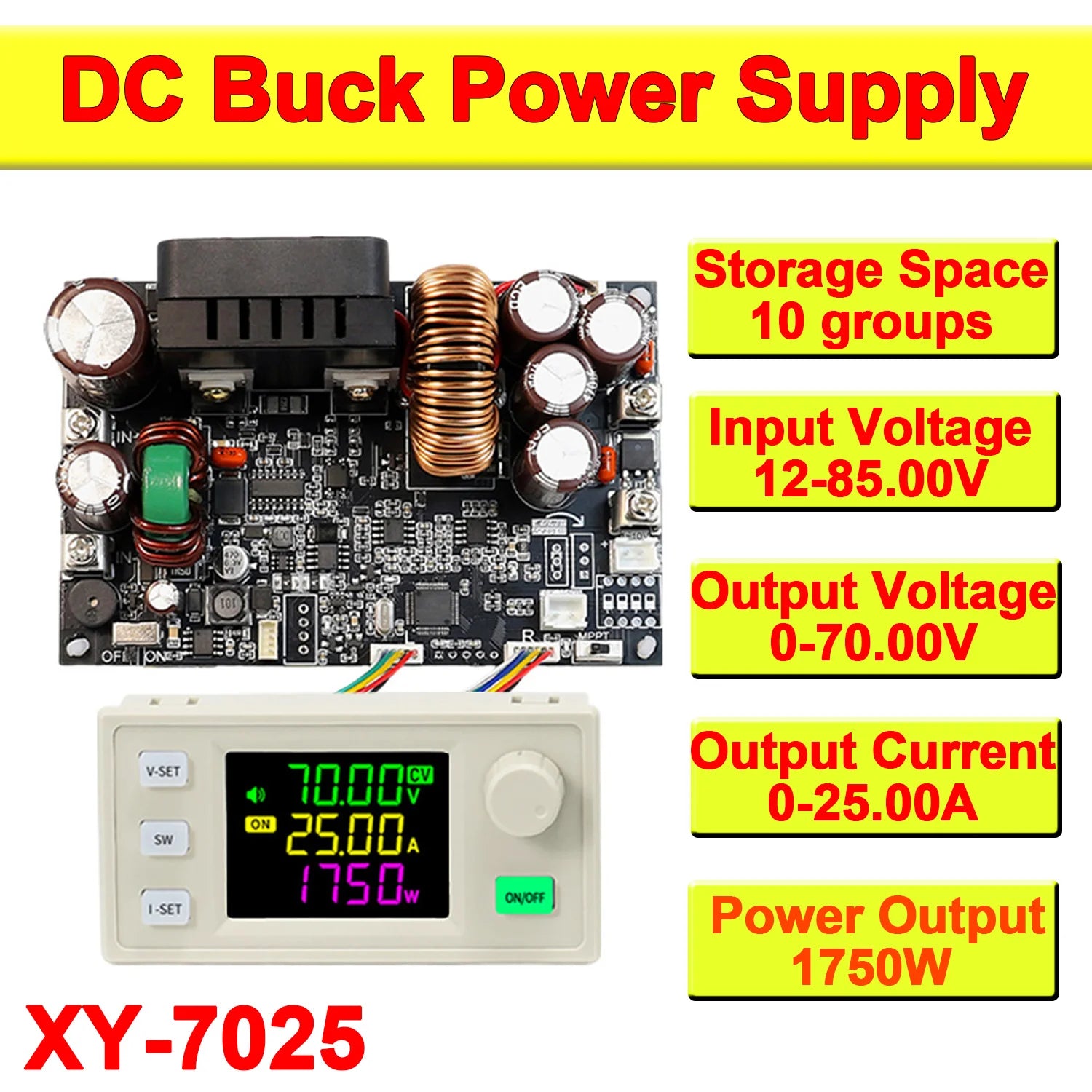

XY7025 70V/25A/1750W CNC Stabilized Voltage Power Supply Buck Converter CC CV Constant Voltage Constant Current Step-Down Module
Product parameters
Product Name: CNC DC step-down power supply
Input voltage: 12.00~85.00V
Product Model: XY7025
Output voltage: 0~70.00V
Output current: 0~25.00A
Voltage accuracy: ± 0.5%+1 word
Output power: 1750W
Current accuracy: ± 0.5%+3 words
Voltage resolution: 0.01V
Current resolution: 00.01A
Storage data group: 10 groups

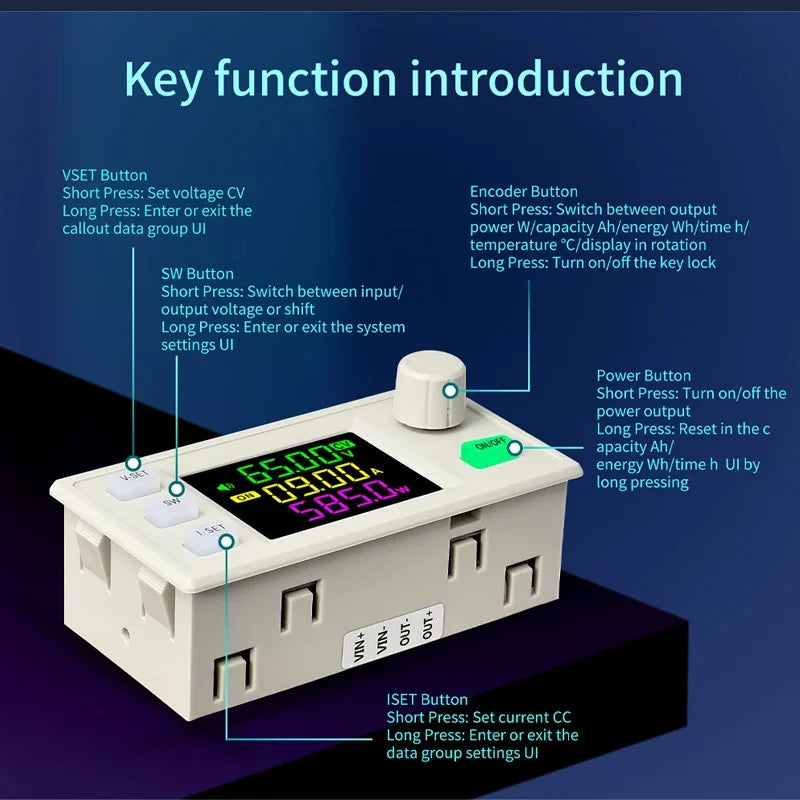

Number of keys: 5

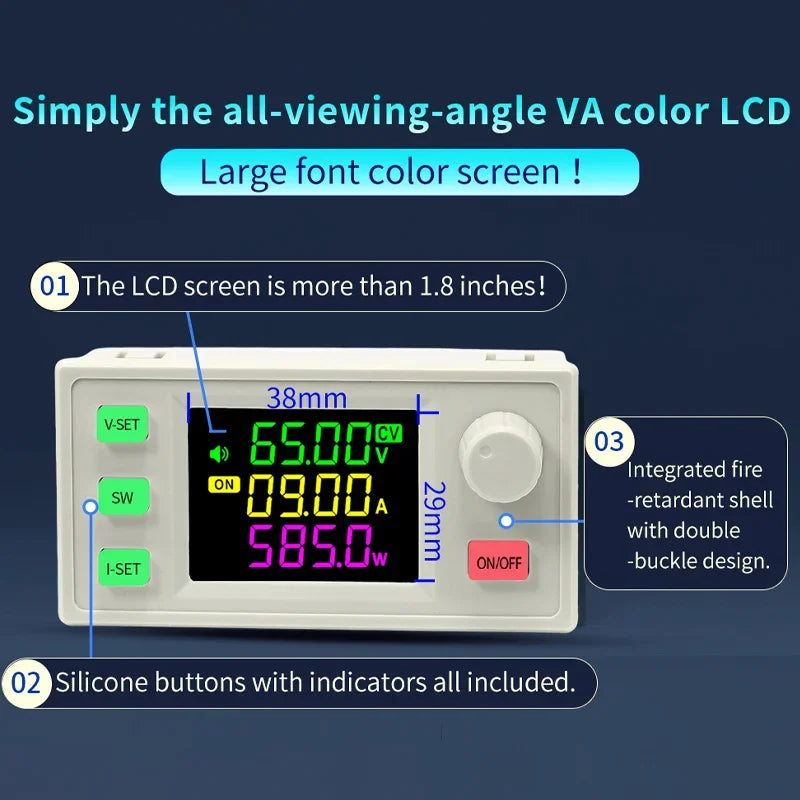

Screen size: larger than 1.8-inch LCD, with a visible range of 38 * 29mm
Conversion efficiency: around 95%
MPPT function: Supports MPPT solar charging

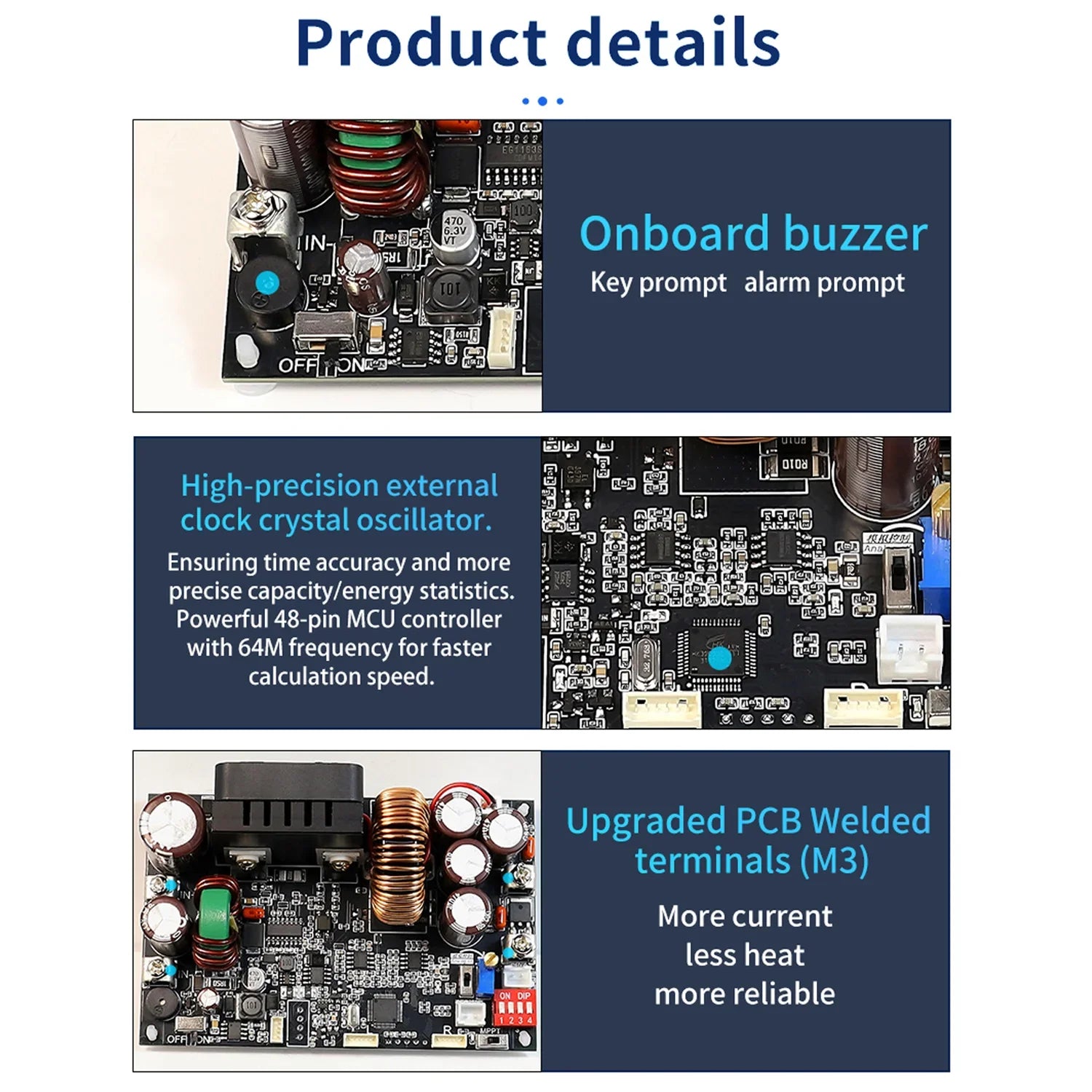

Buzzer: Yes
Soft Start: Yes
Typical output ripple value: vpp-150mv

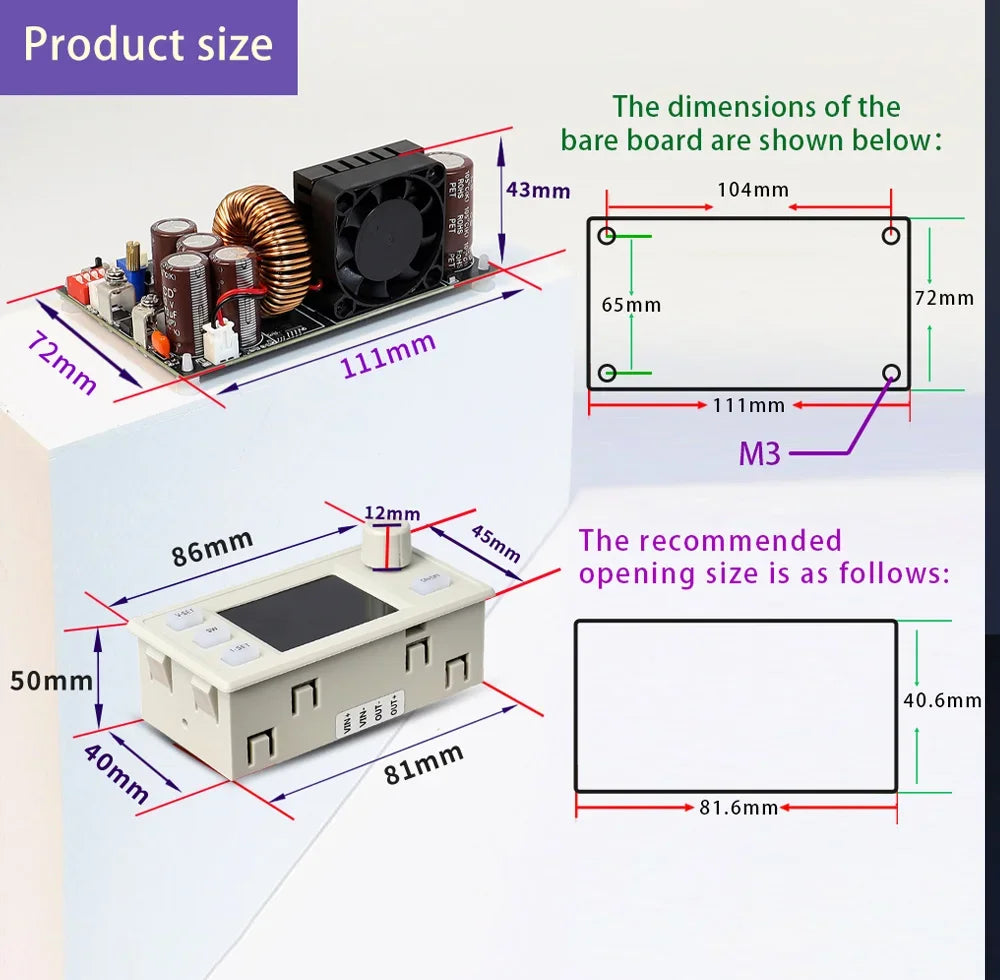

Bare board size: 111 * 72 * 45mm
Bare board packaging: 142 * 107 * 46mm
Finished product packaging: 172 * 95 * 60mm
Bare board weight: Net weight 203g, including packaging 230g
Finished product weight: Net weight 250g, including packaging 310g
