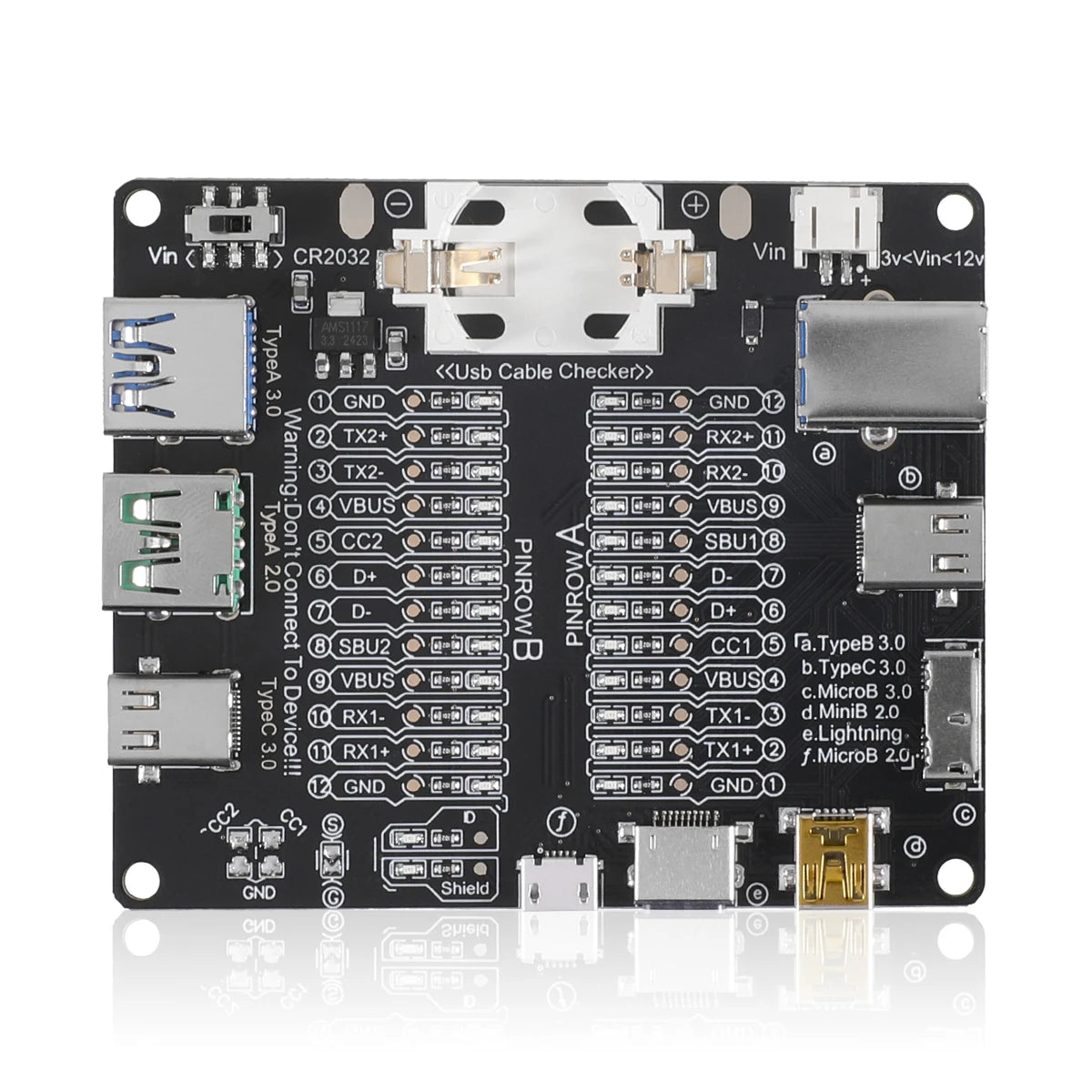

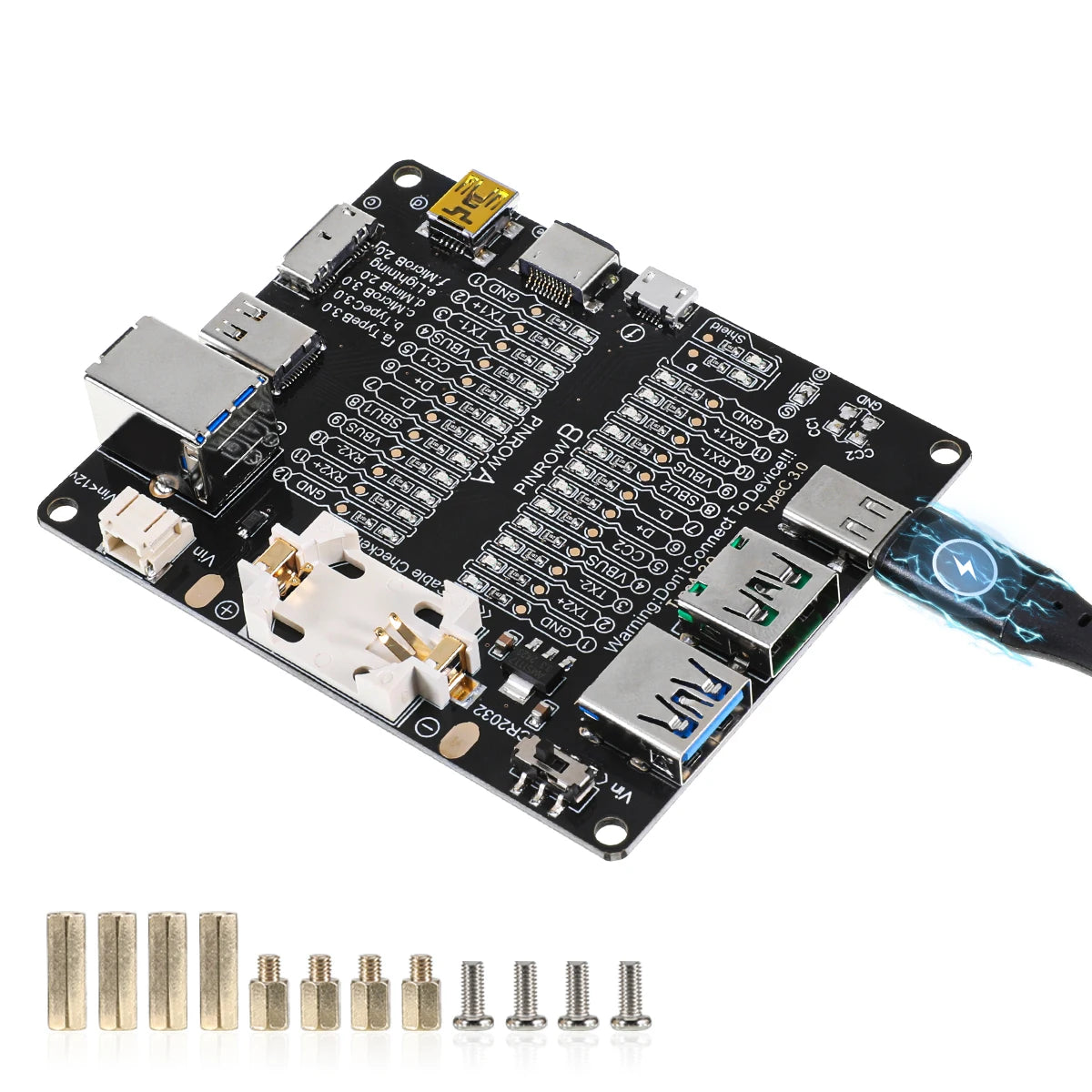

USB Cable Tester Type-C Type-B Micro Short Circuit Switch Test Board Data Cable Anomaly Detection For iOS Android Test Board

Description:

USB Line Tester: The compact size and LED indicators make it easy to test USB cables. Supports two power supply modes for versatile use

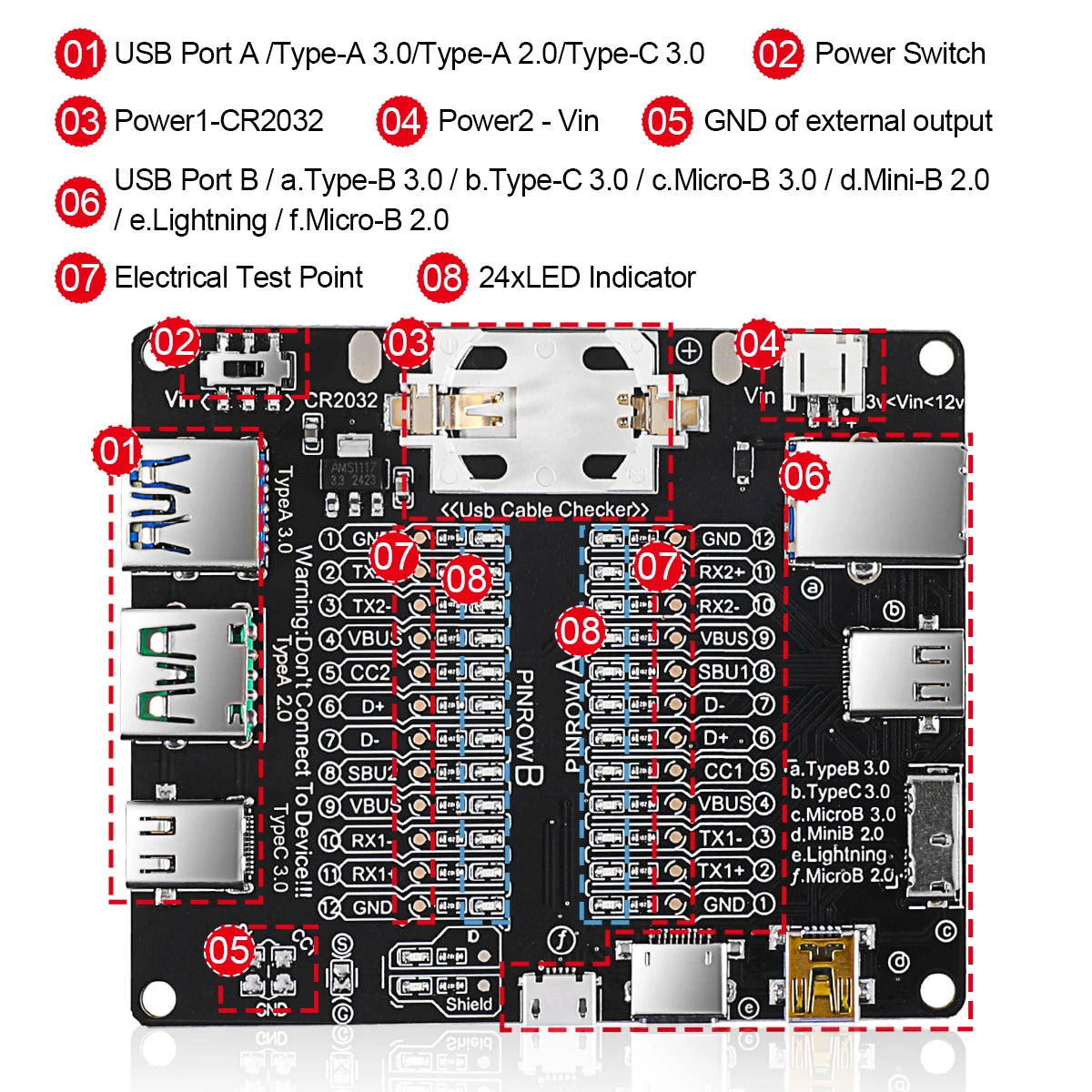

Data Line Test Board: Simple and intuitive for easy testing of USB cables. LED indicators display function and connection status

Cable Checker: Test board tool suitable for iOS and Android devices. LED indicators show connection status for quick troubleshooting

Short Circuit On-off Switch: Reliable tool for testing USB cable connections. LED indicators provide clear on cable function

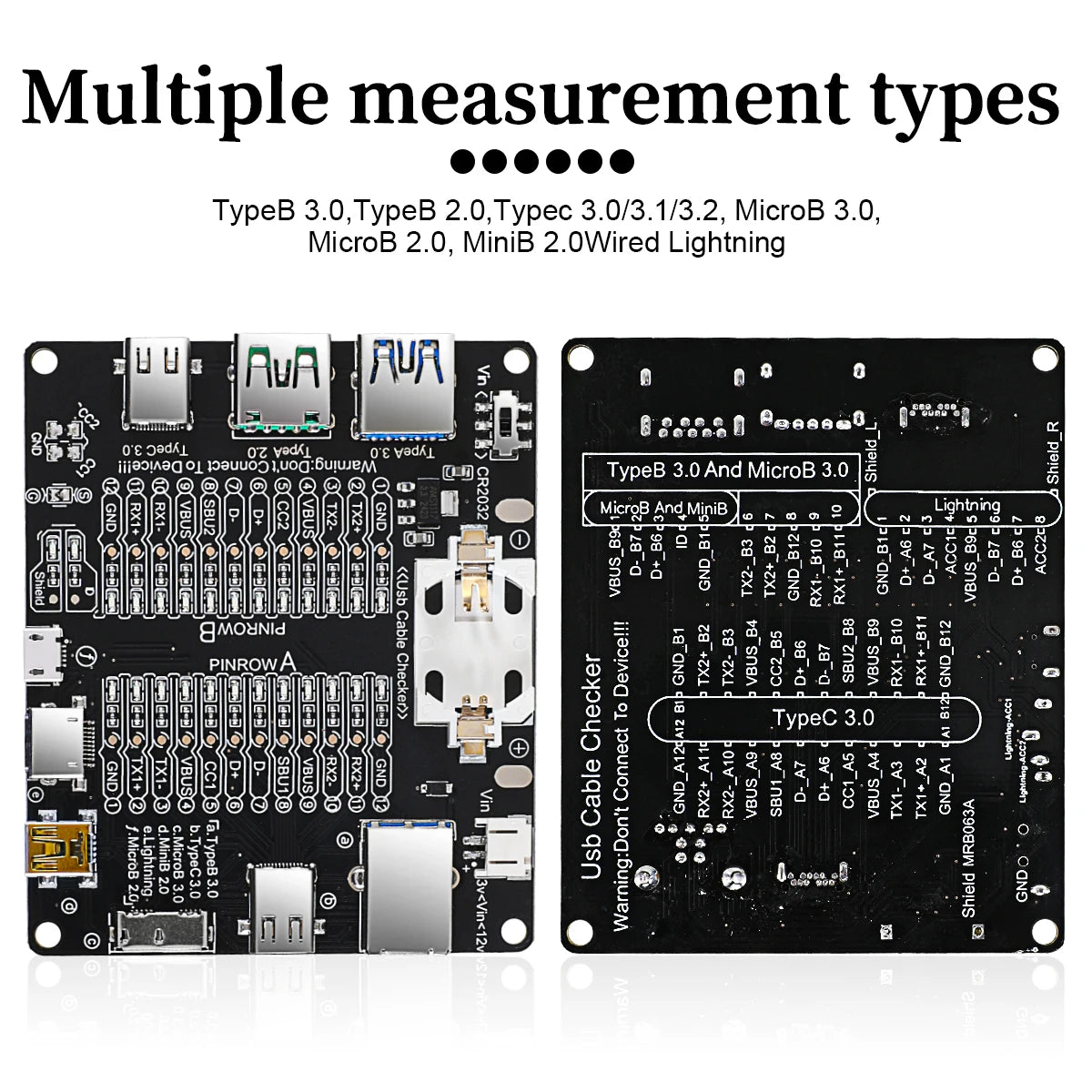

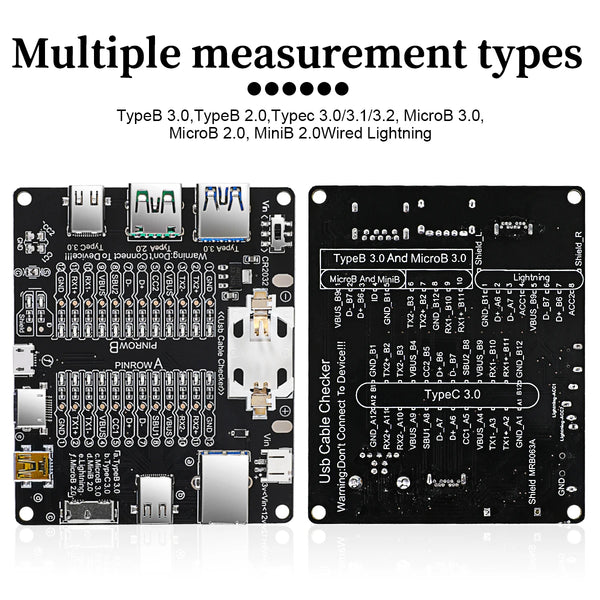

Type-C Type-B: Insert both ends of the cable into the connectors to check the connection status. Compact for easy storage and portability

Specification:

Color: black.

Material: PCB.

Size: Approx 10*10*2CM/3.94*3.94*0.79inch.

Note:

There might be a bit color distortions due to different computer resolutions.

There might be a slight errors due to different hand measurement.

Package Includes:

Without housing:

1* data line detection board

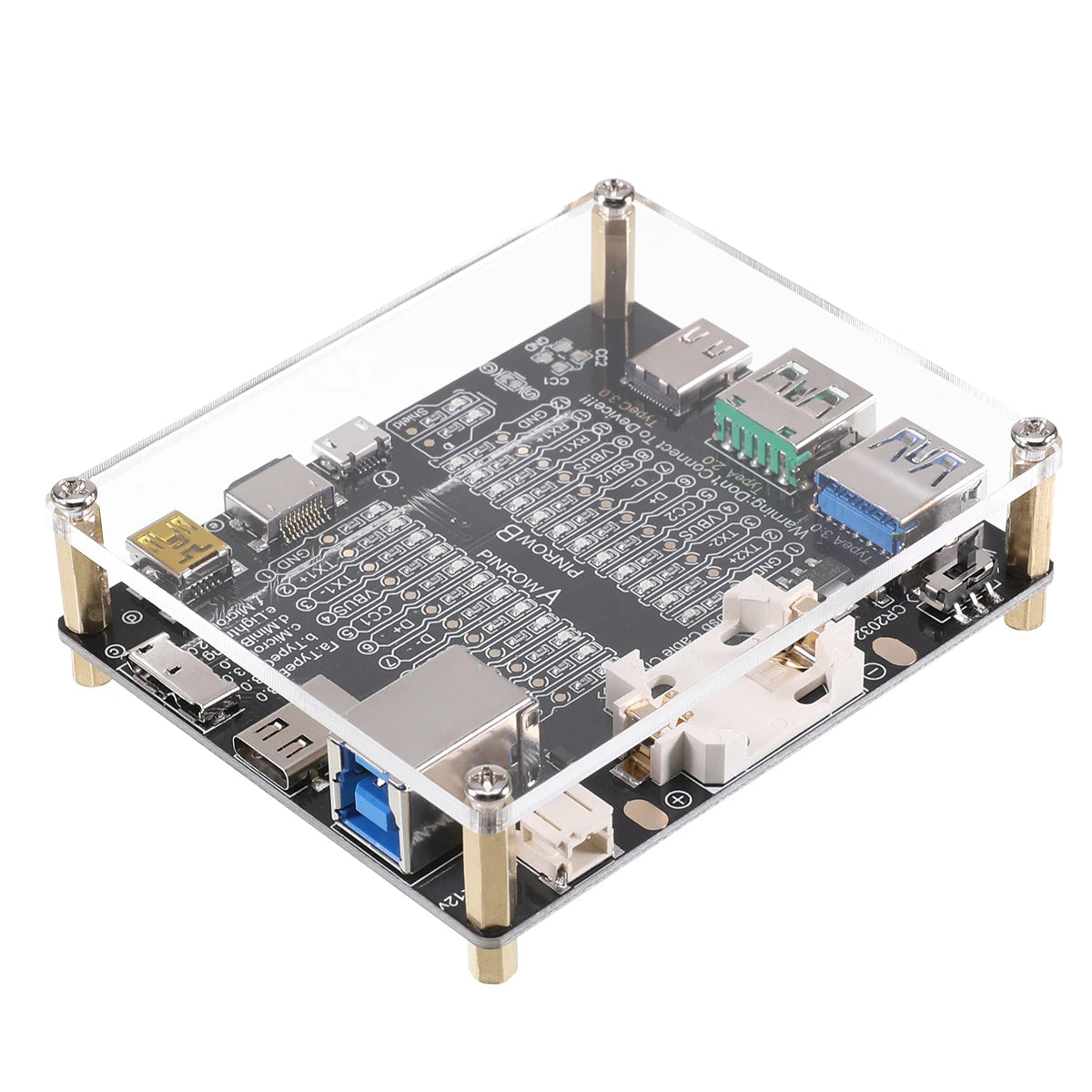

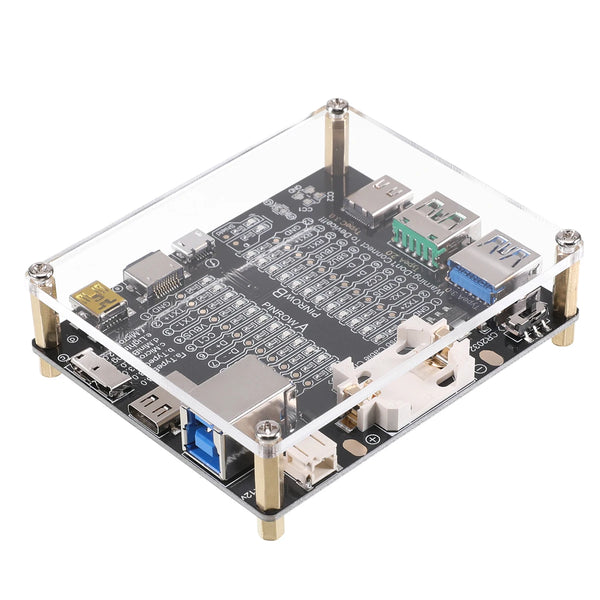

With housing:

1* data line detection board

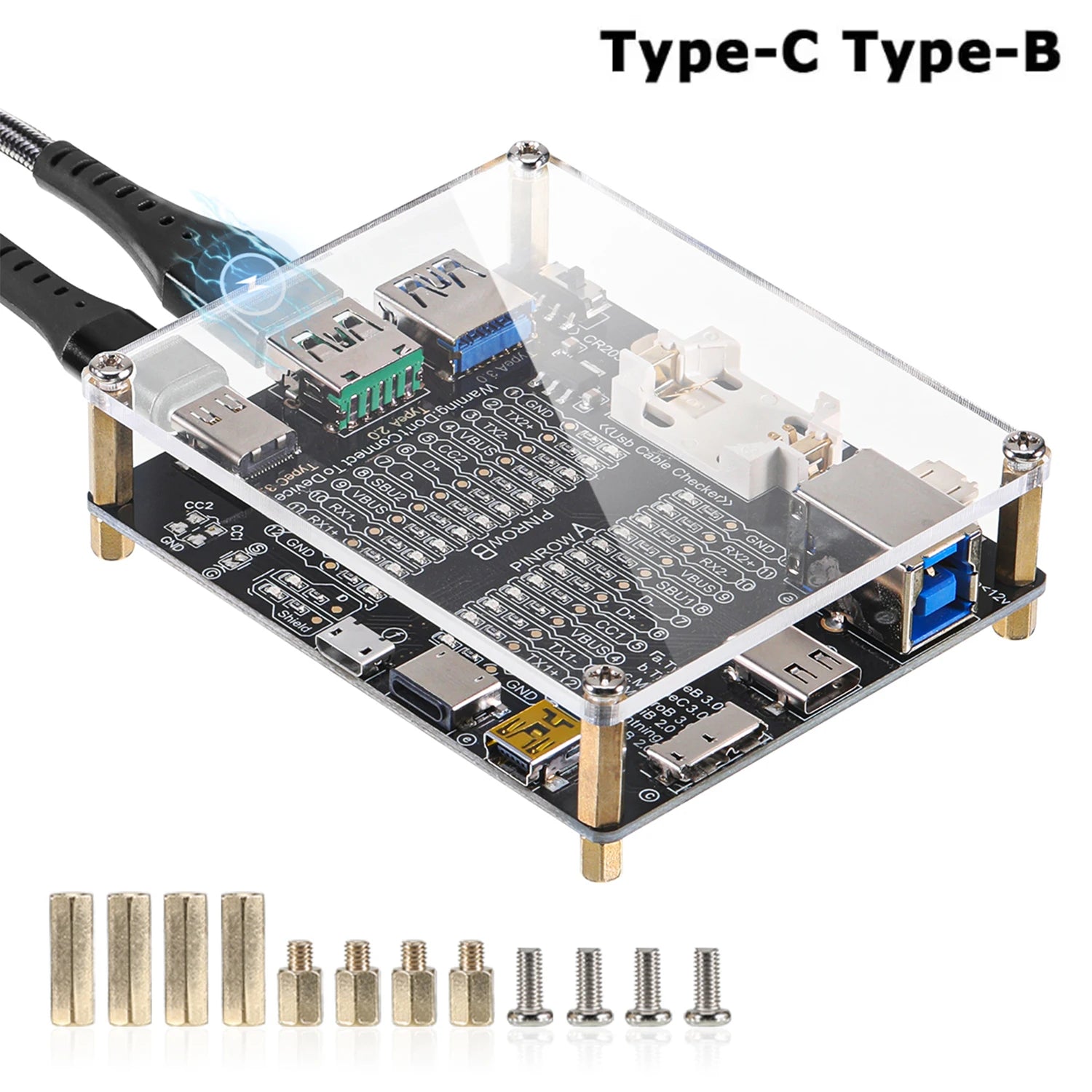

1* housing kit

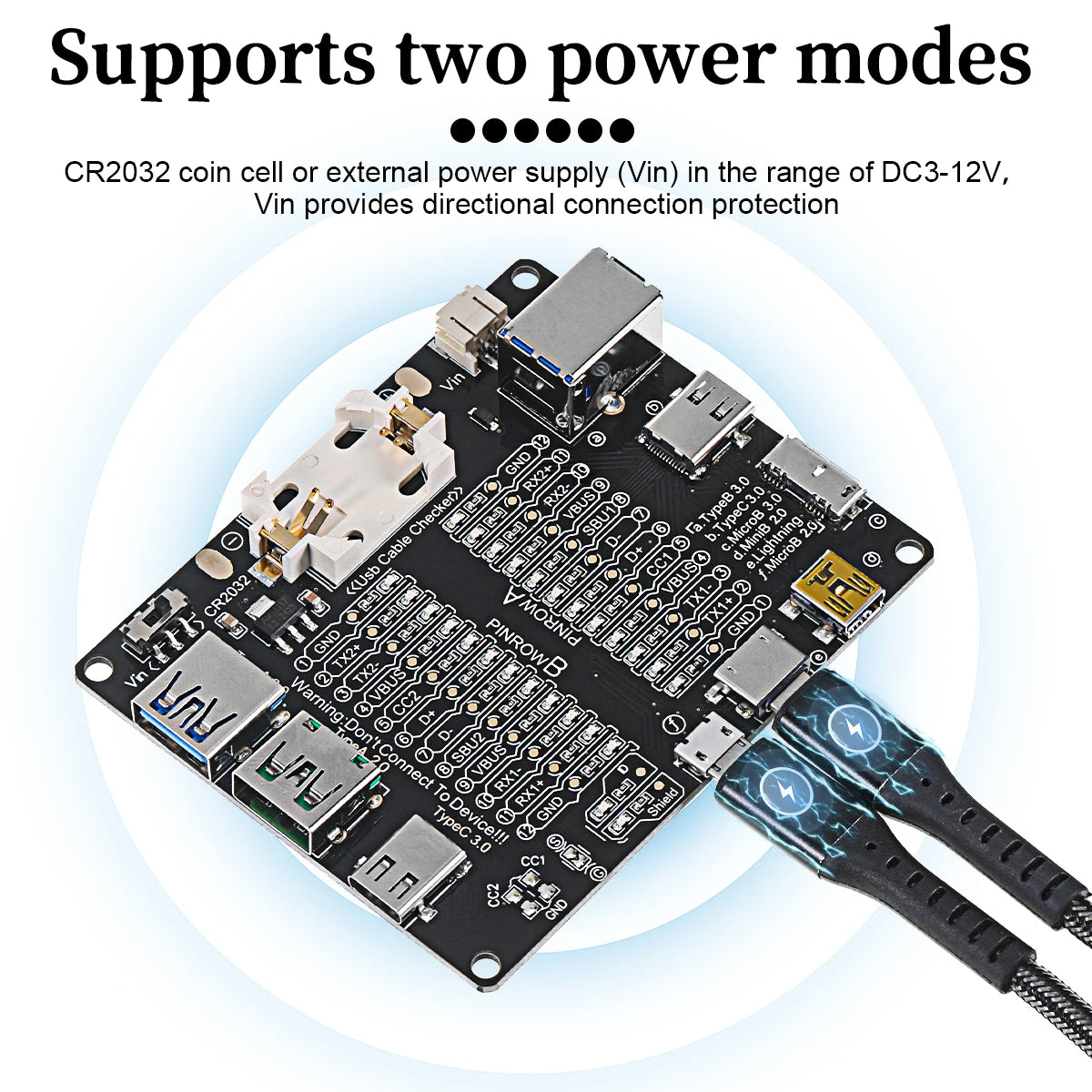

The plate arrived quickly and in perfect condition. It can be powered in two ways, either through an external power supply of up to 12V DC maximum, which can be done using a connector or by soldering the wires onto the board, or, more recommended in my opinion, you can use a common CR2032 button cell battery, which avoids having cables all over the table. In the photos I have provided, you can see different types of cables: USB-C, USB-A, Lightning, and Thunderbolt 4. In all tests, the LEDs indicate the status of the lines, making it easier to detect problems in the cables.
