Product Summary
UNI-T UTI260T Pocket Thermal Imager 256x192 NCV Bluetooth Thermographic Camera Infrared is a thermal inspection tool selected for finding hot spots, checking heating patterns and troubleshooting faults. It is suitable for maintenance users, HVAC technicians and electronics repair users who need practical electronics hardware for reliable project work.
Best For
- finding hot spots, checking heating patterns and troubleshooting faults
- building inspection, PCB repair and equipment maintenance
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for maintenance users, HVAC technicians and electronics repair users.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

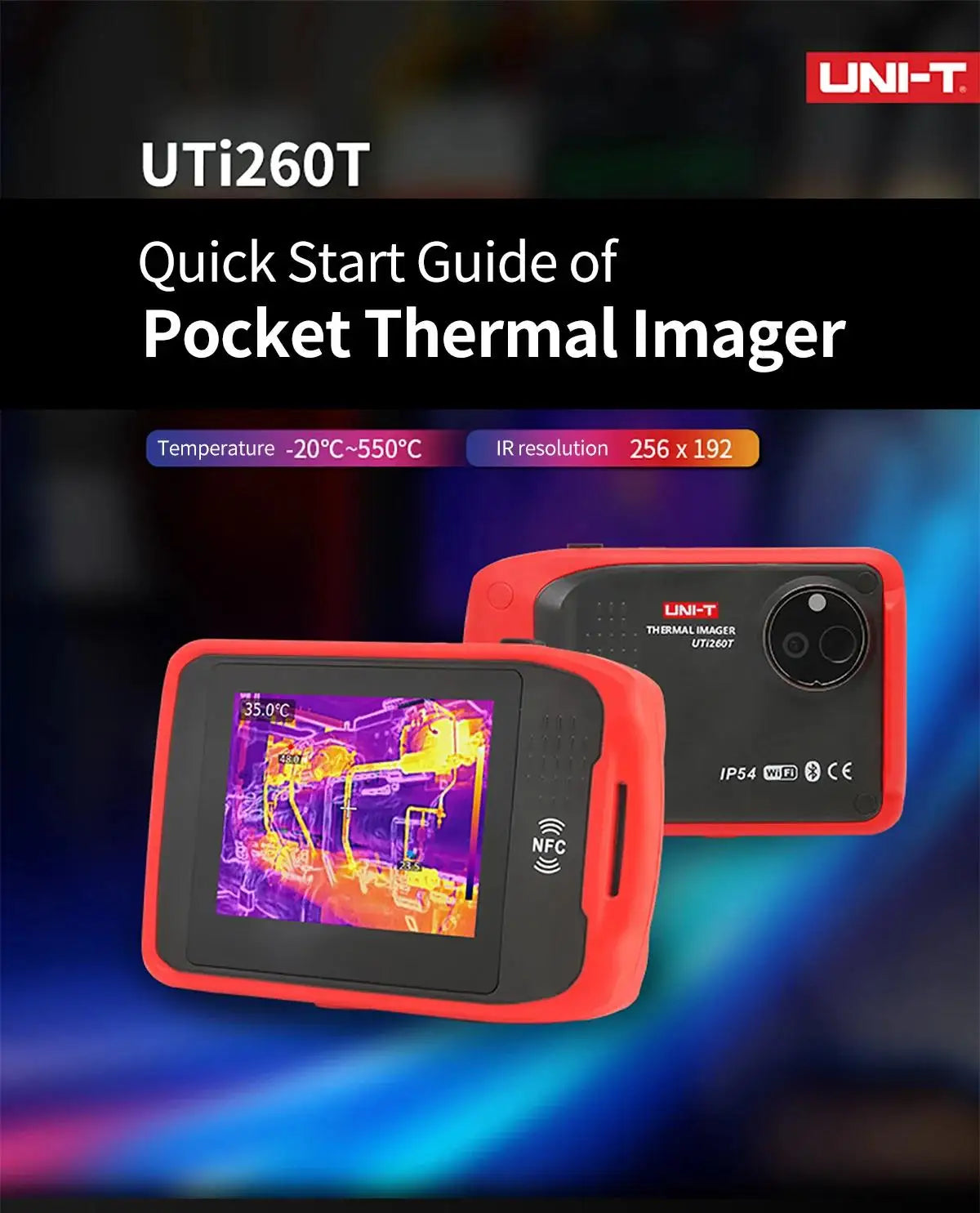

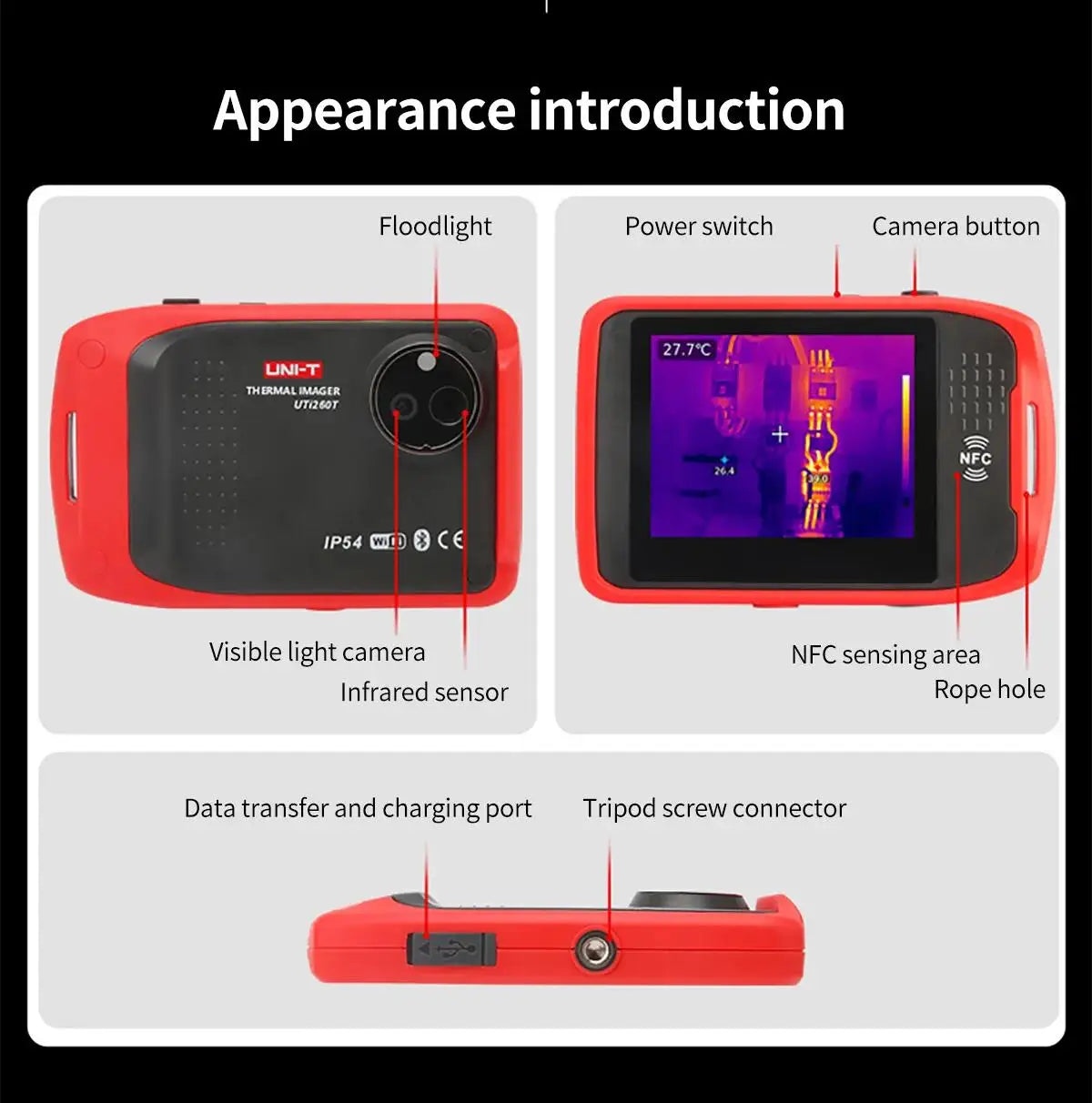

UTi260T Infrared Thermal Imager Product Overview

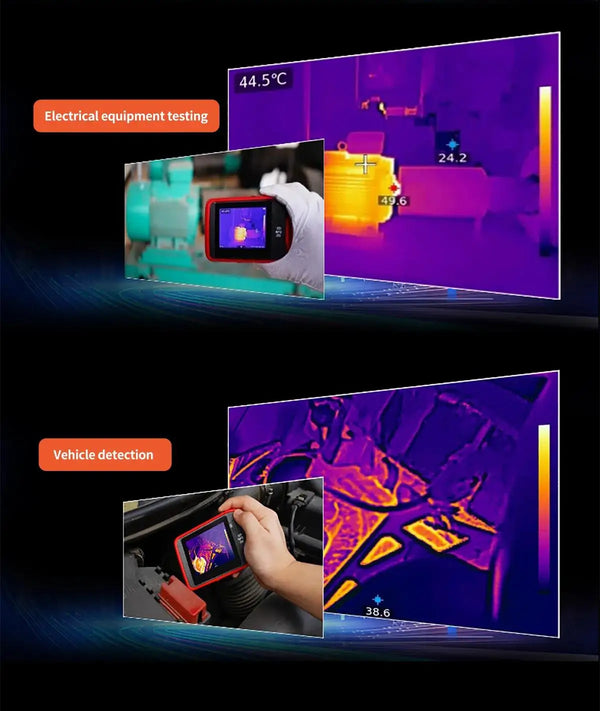

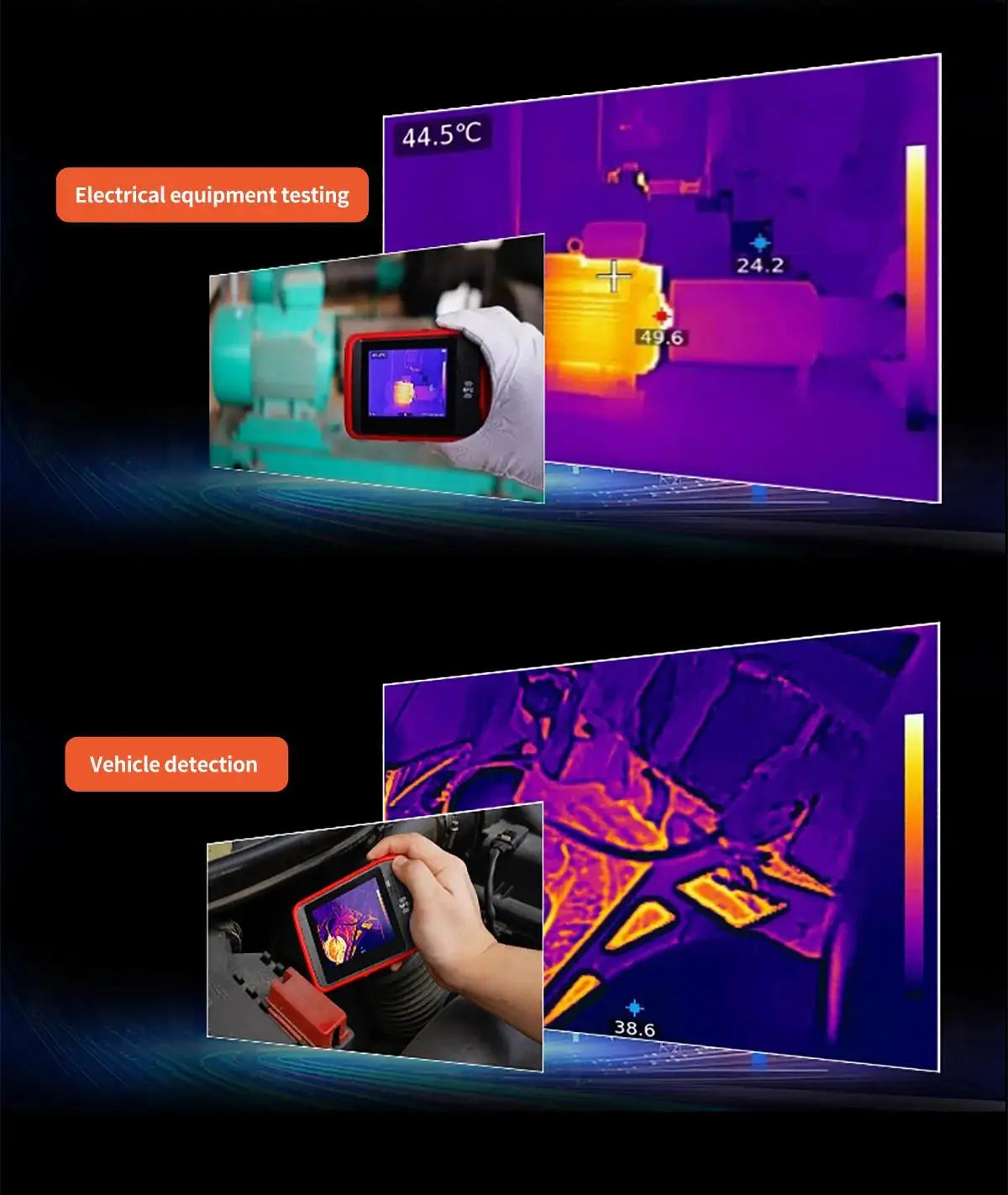

UTi260T is a powerful portable pocket type infrared thermal imager suitable for pipeline inspection, industrial manufacturing, refrigeration industry, construction, equipment maintenance, automotive repair, power industry, and more. This product comes with a 3.5-inch IPS capacitive touch screen, 256 x 192 resolution, image fusion, high and low temperature tracking, NFC quick connection to hotspots, and can be used with a Smart meter. It is a cost-effective thermal imaging product.
Main features of UTi260T infrared thermal imaging instrument product

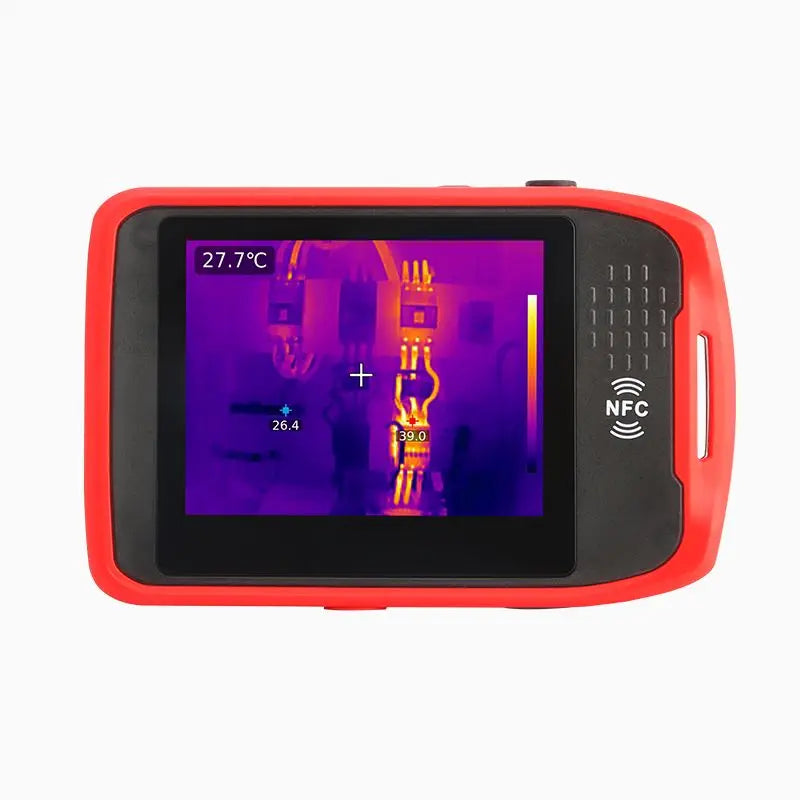

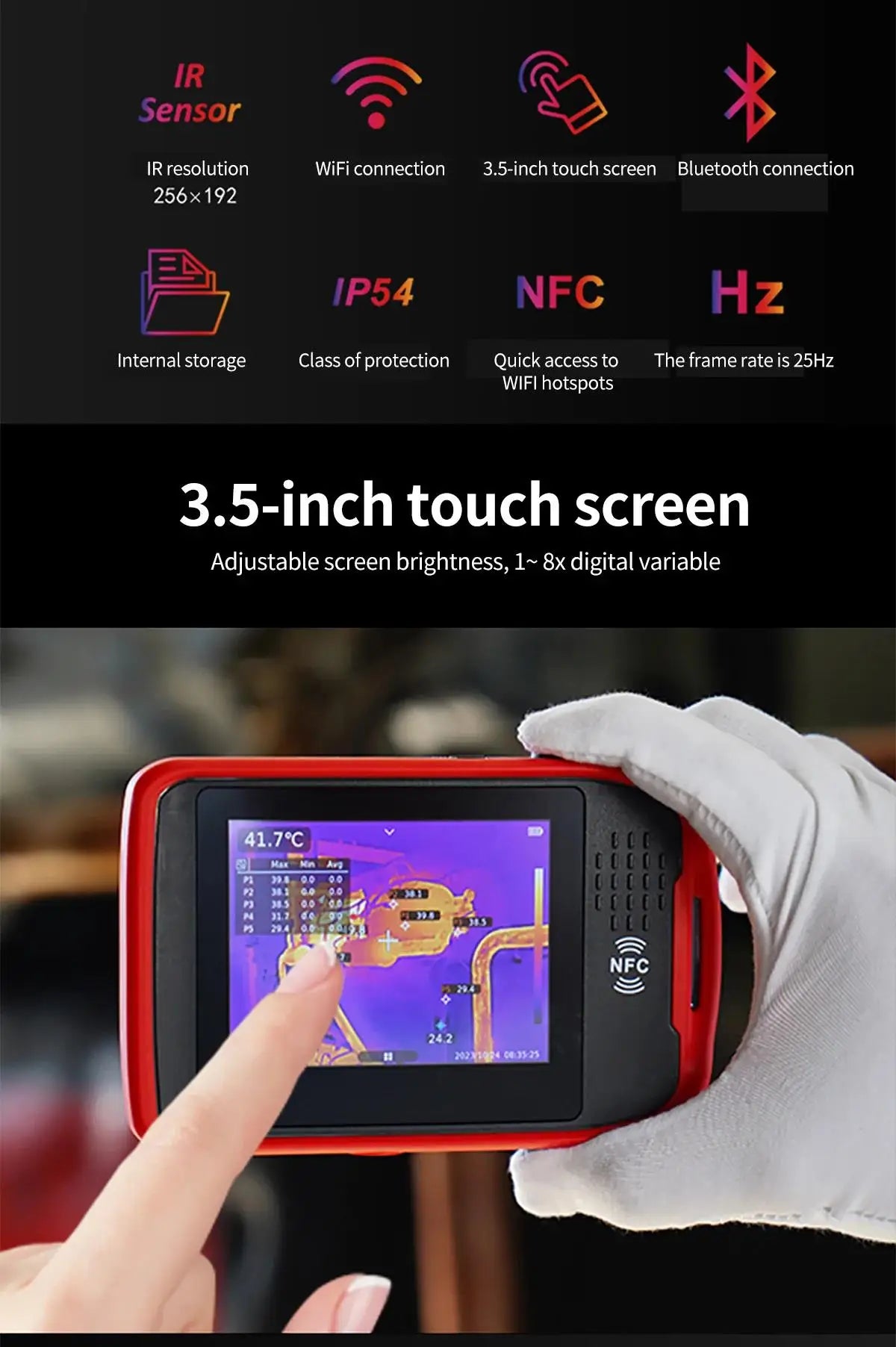

3.5-inch IPS capacitive touch screen
Infrared resolution: 256 x 192
frame rate: 25Hz
Visible light resolution: 2 million pixels
Temperature measurement range: -20 deg C-550 deg C

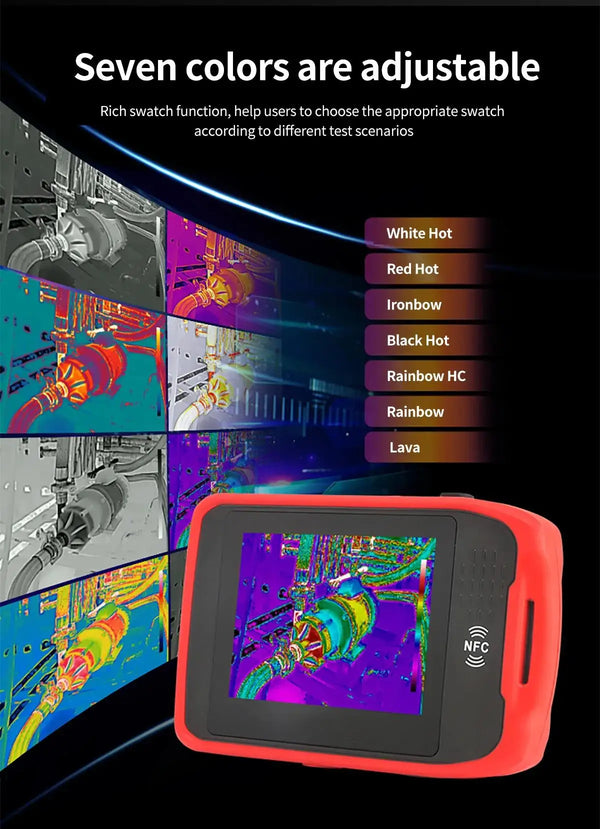

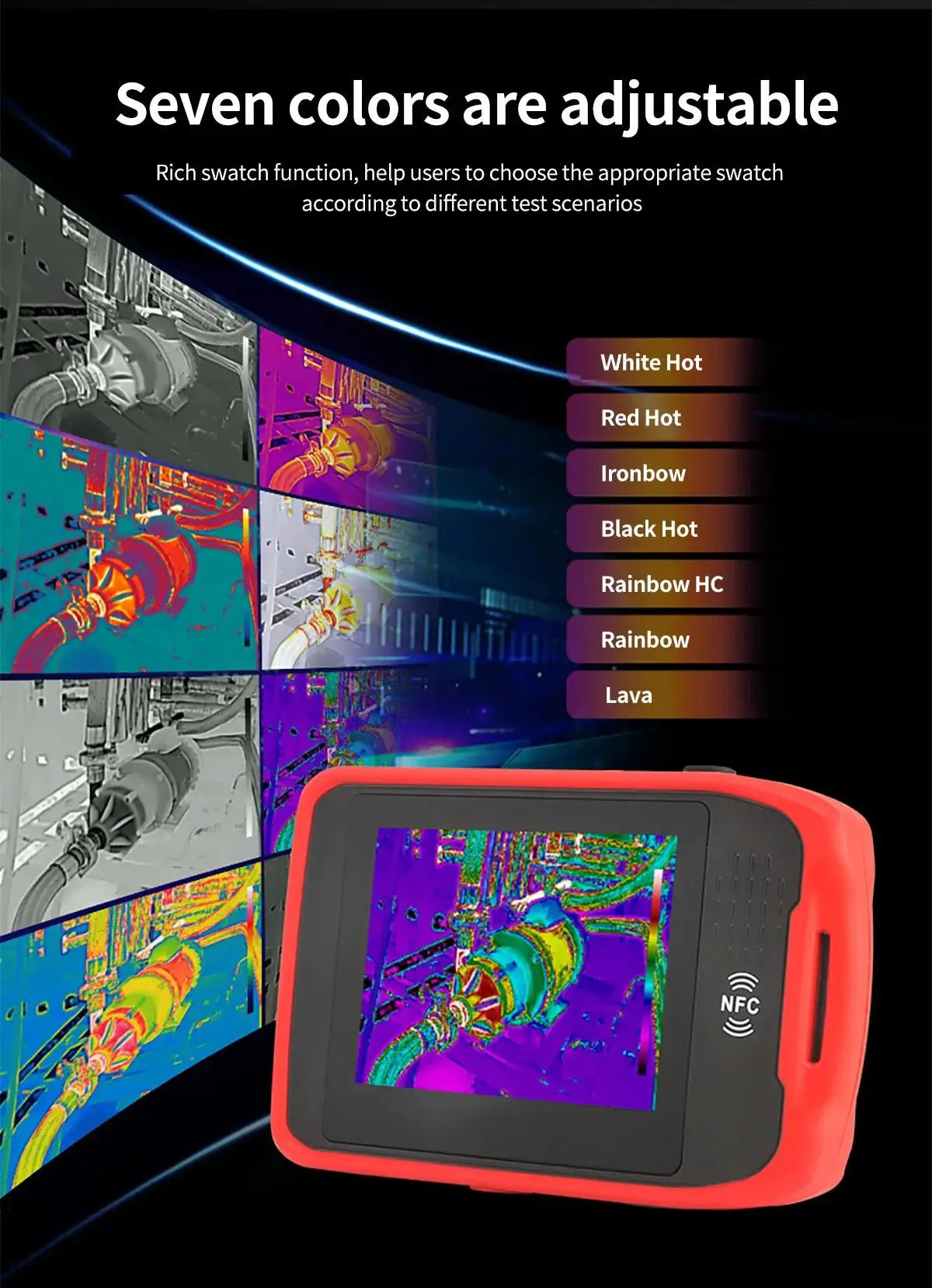

7 adjustable color palettes

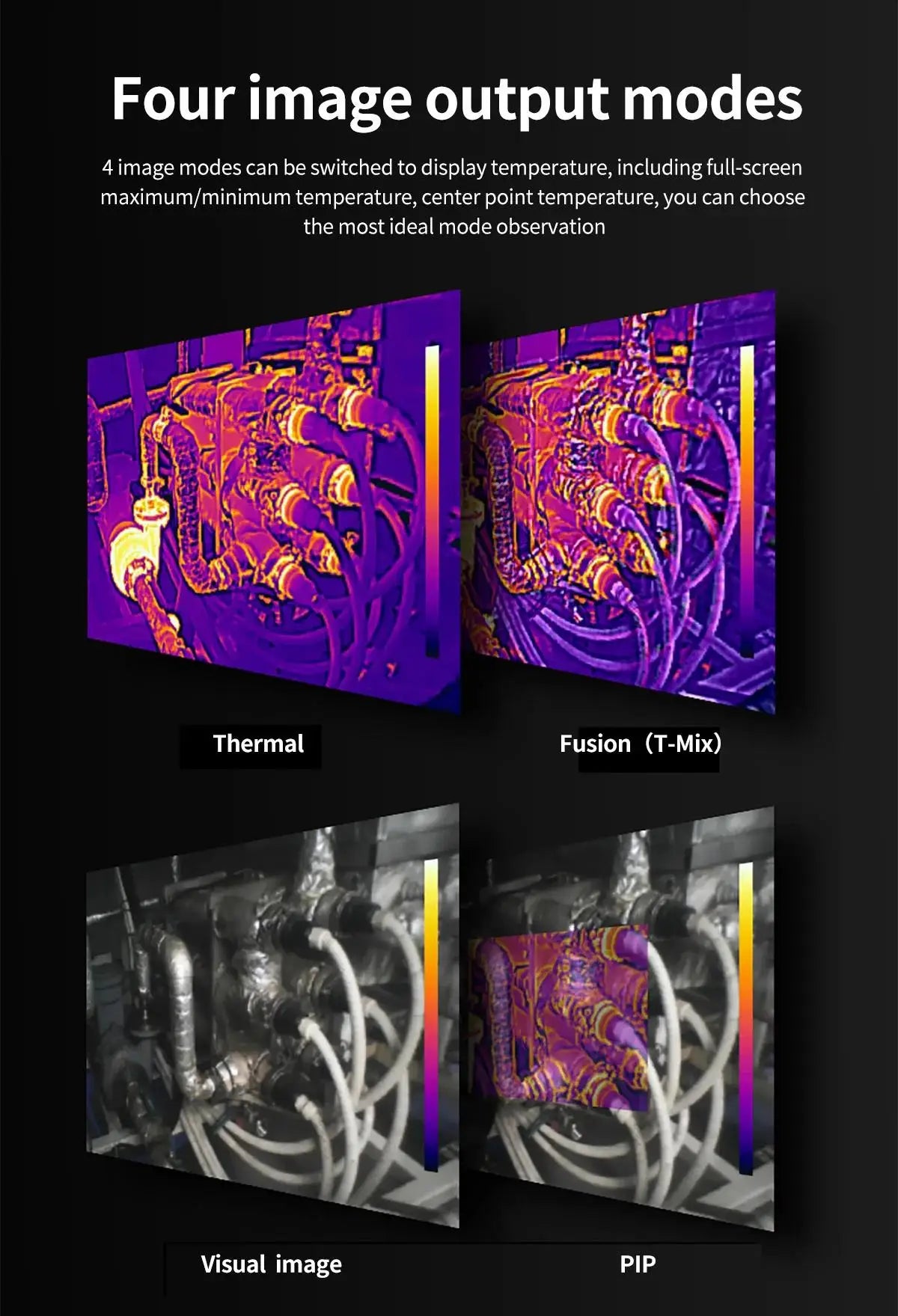

4 image modes: thermal imaging, visible light, T-Mix fusion, picture in picture
Temperature unit switching, custom emissivity, reflection temperature, distance

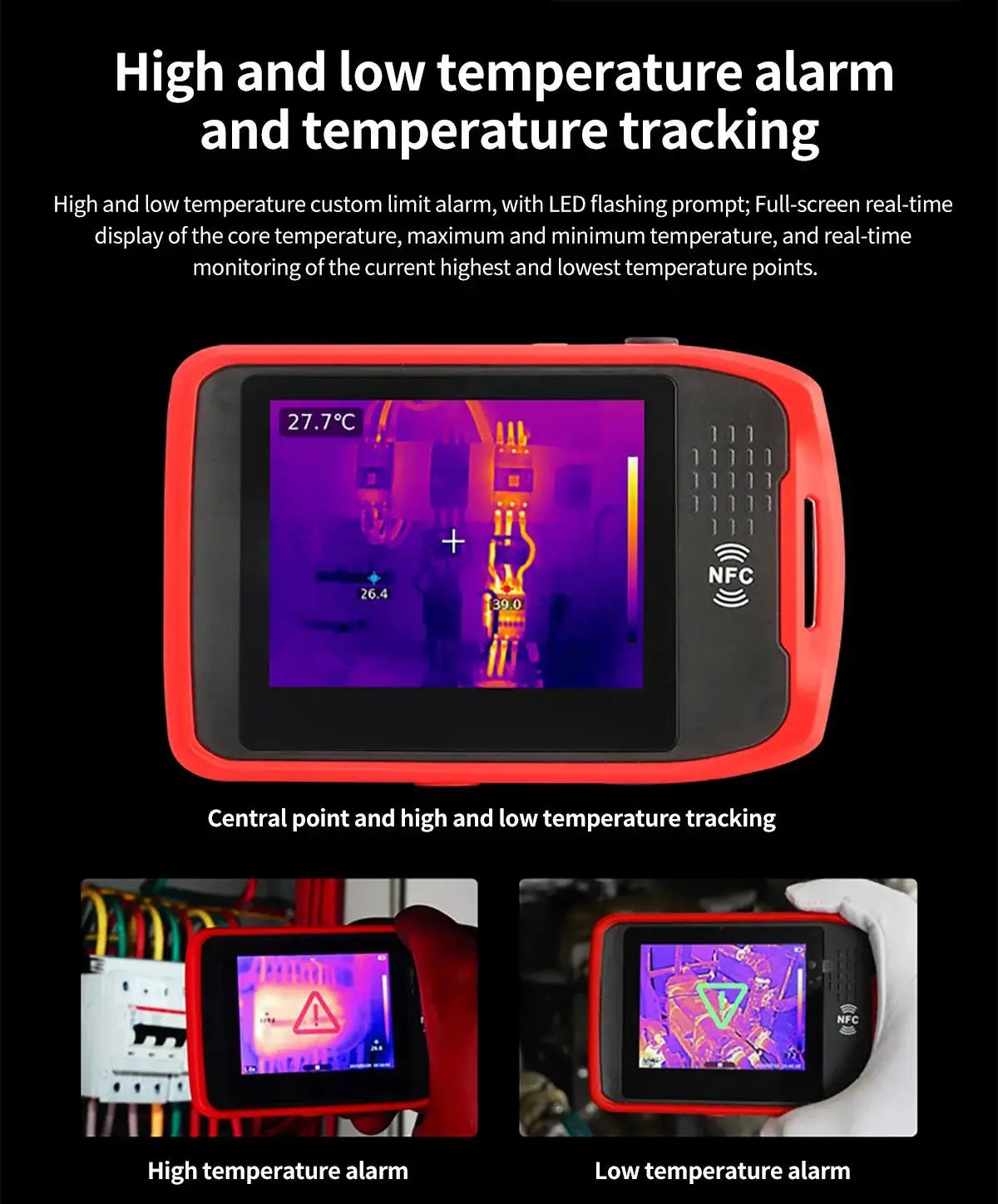

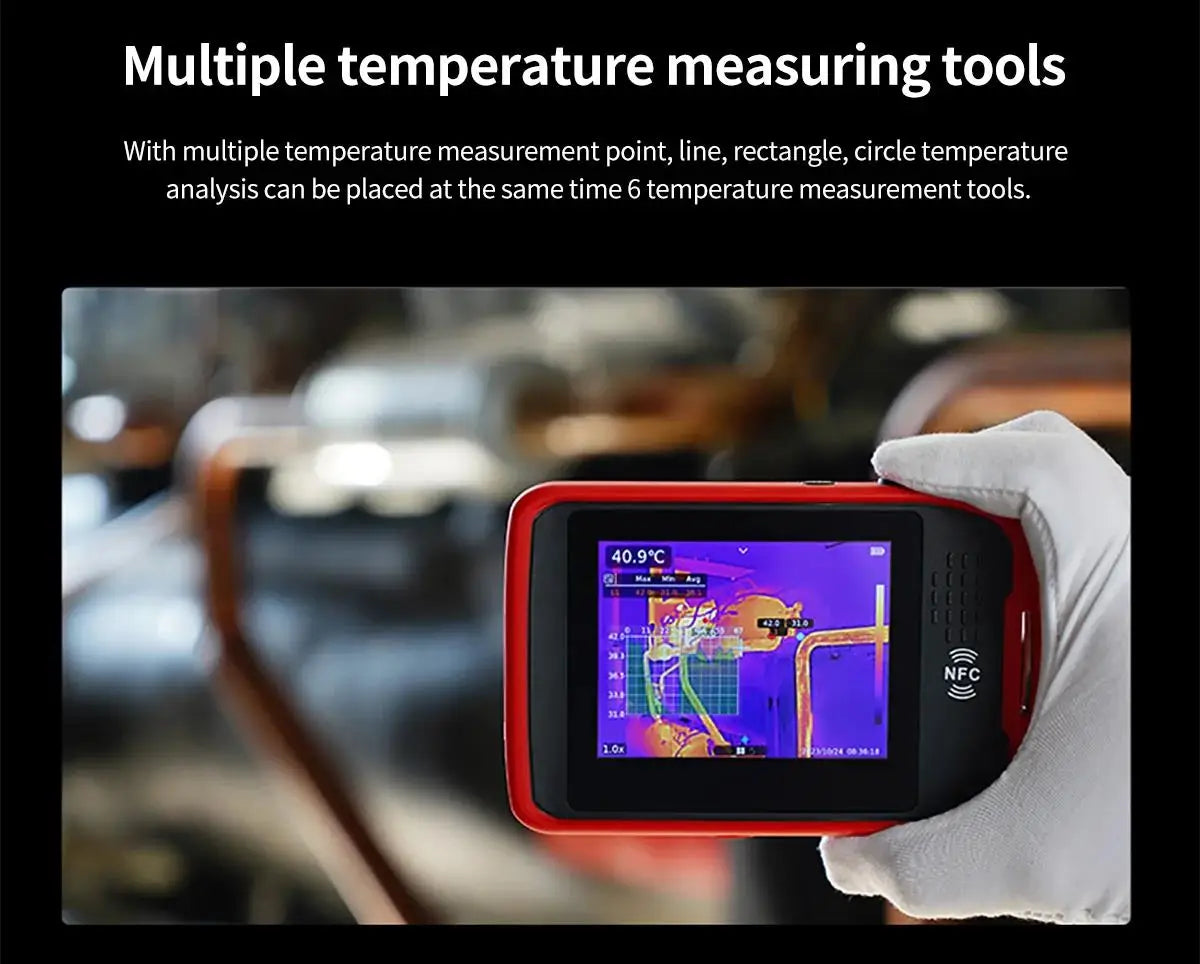

Full screen automatic tracking of maximum/low temperature, customizable limit alarm for high and low temperature

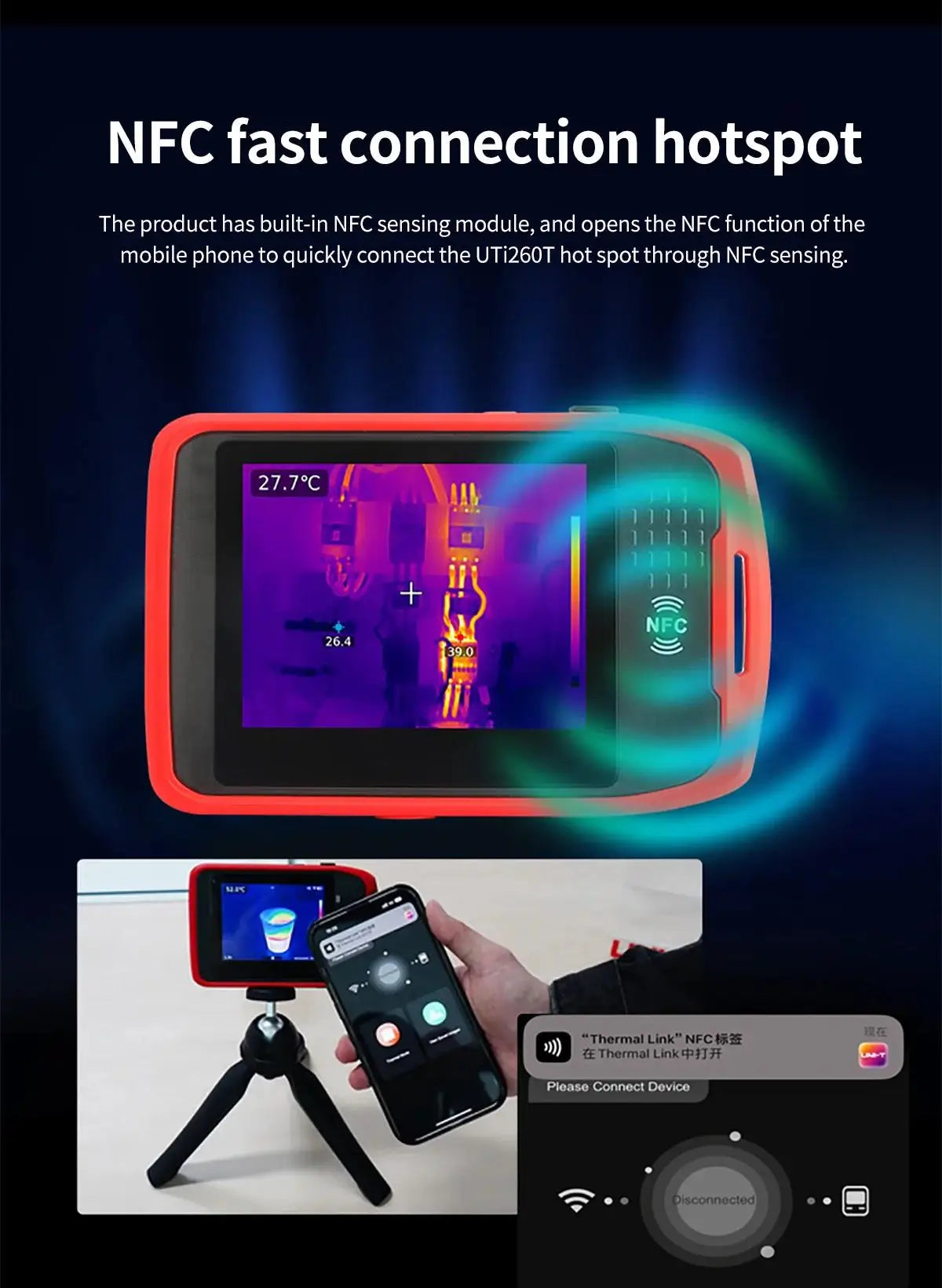

NFC quick connection hotspot function

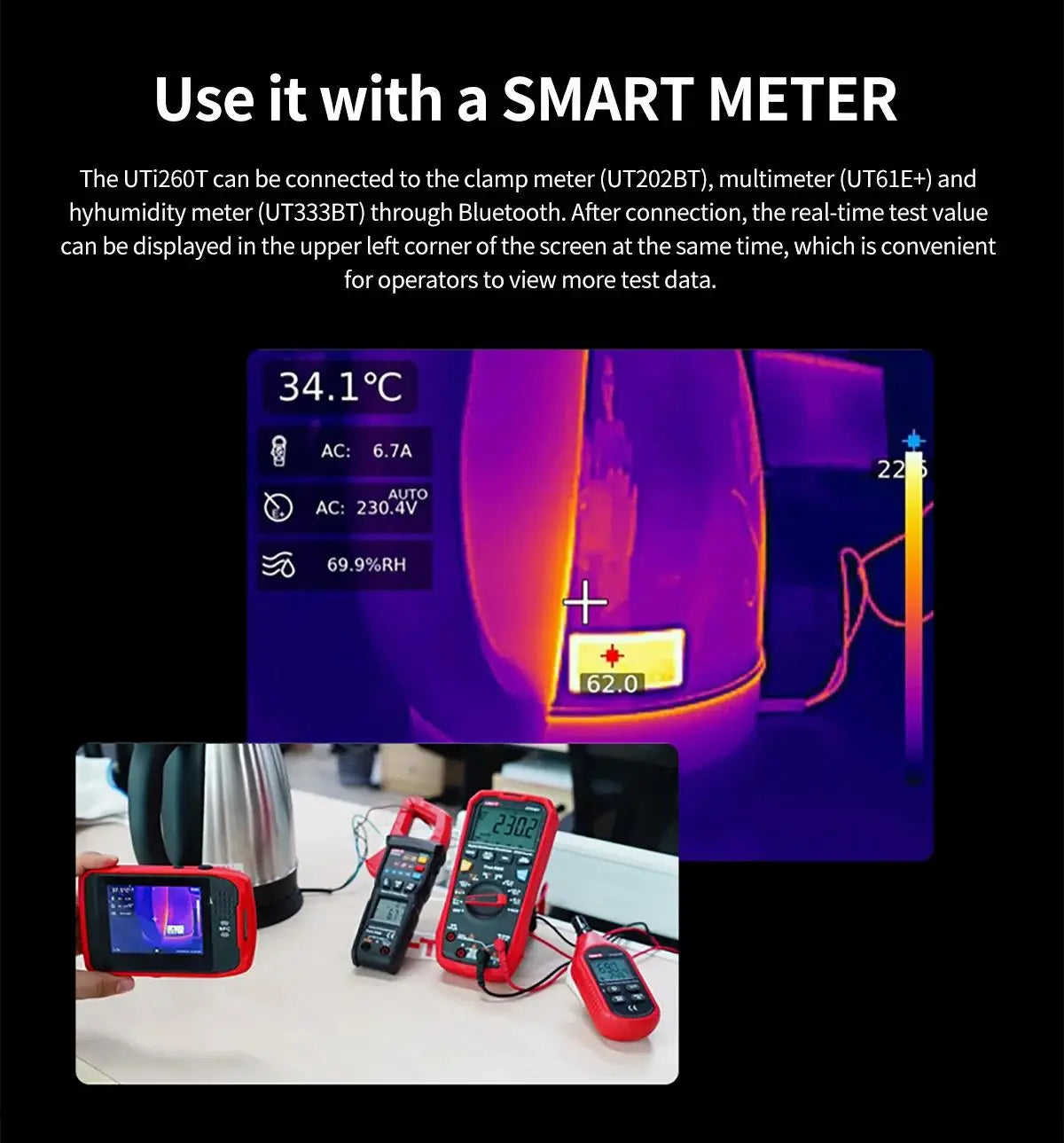

Bluetooth connection for use with Smart meter

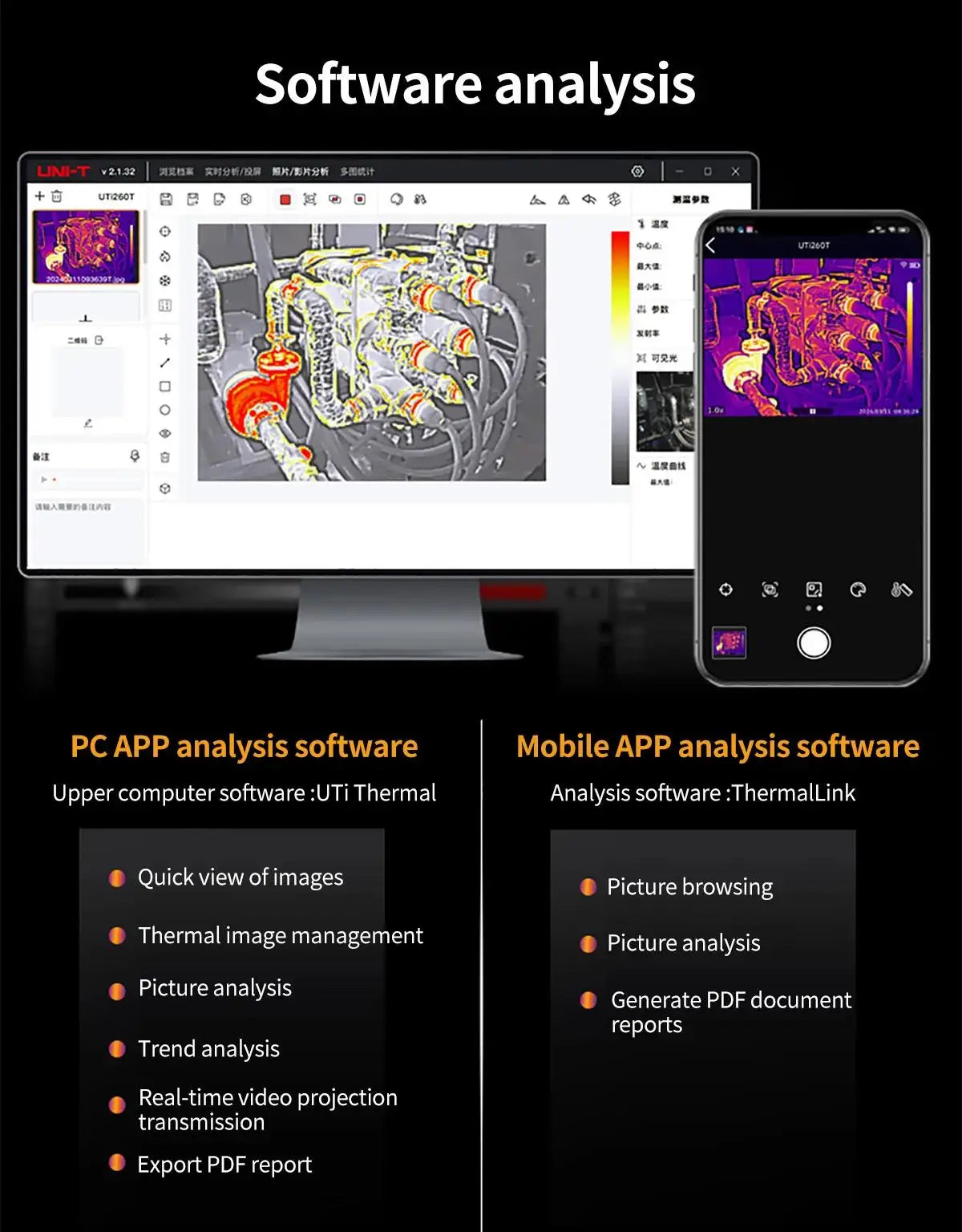

Mobile APP and PC analysis software (export report)
1-8 electron amplification

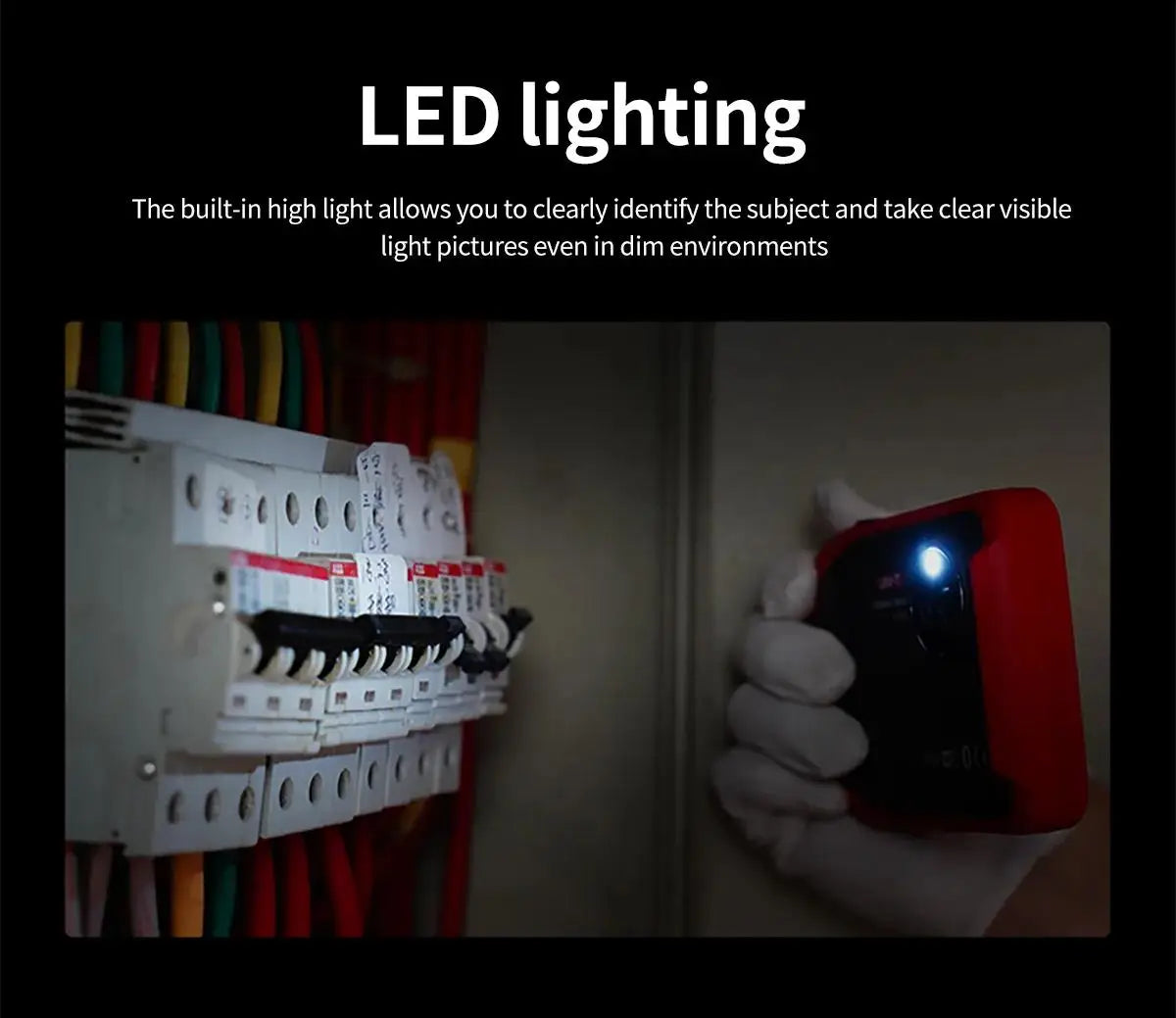

Equipped with LED lighting function

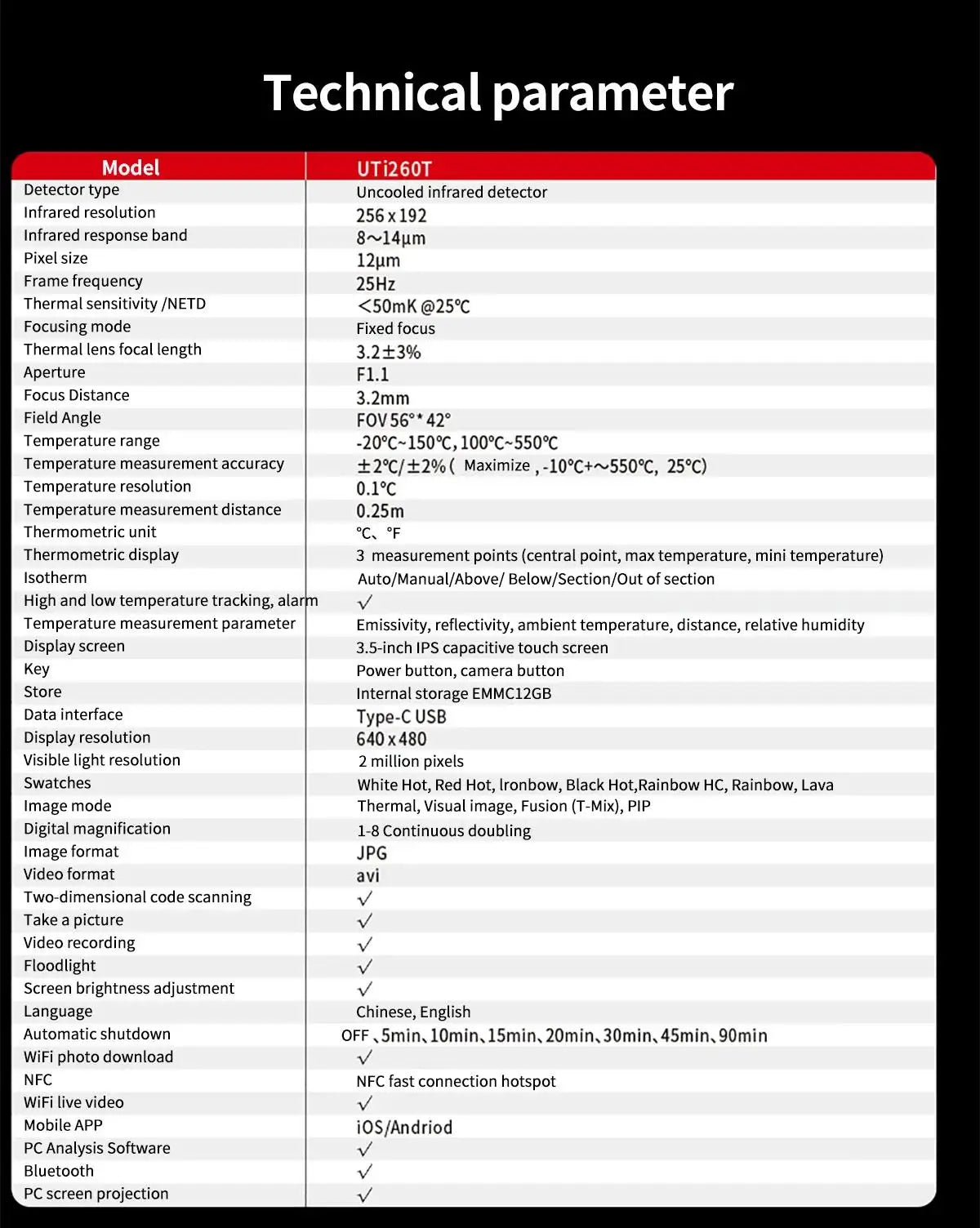

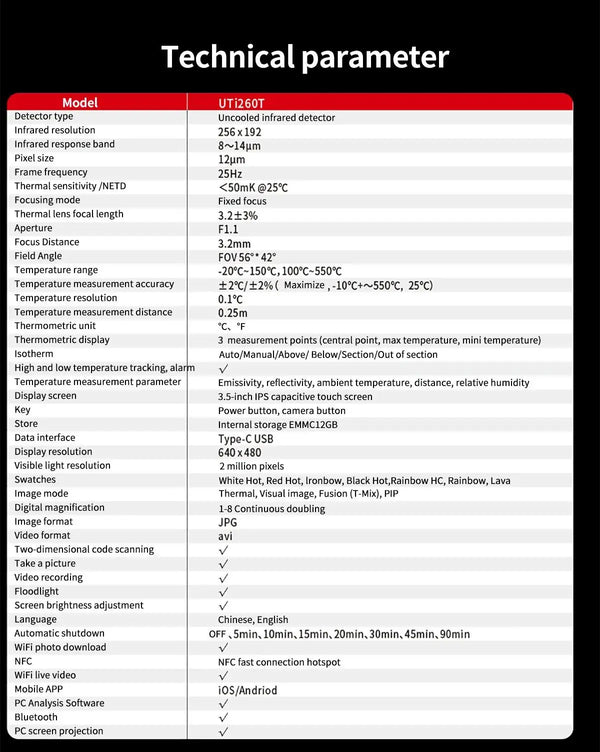

Model |
UTi260T |
Model |
UTi260T |
|
Detector type |
Uncooled infrared detector |
Data interface |
Type-C USB |
|
Infrared resolution |
256 x 192 |
Display resolution |
640 x 480 |
|
8-14um |
Visible light resolution |
2 million pixels |
||
pixel size |
12um |
Color palette |
2 million pixels |
|
25Hz |
Image mode |
Red hot, high contrast rainbow, rainbow, lava, iron red, black hot, white hotThermal imaging, visible light, T-Mix/dual light fusion, picture in picture |
||
Thermal sensitivity/NETD |
<50mK @25 deg C |
Number doubling |
1-8 continuous doubling |
|
Focus Mode |
Fixed focus |
Image format |
JPG |
|
Thermal imaging lens focal length |
3.2±3% |
Video format |
avi |
|
Aperture |
F1.1 |
QR code scanning |
√ |
|
Focal length |
3.2mm |
Photograph |
√ |
|
Field of view angle |
FOV 56 deg * 42 deg |
Video recording |
√ |
|
Measuring range |
-20 deg C-150 deg C,100 deg C-550 deg C(Manual gear shifting) |
Floodlight |
√ |
|
Temperature measurement accuracy |
±2 deg C/±2%(Take the maximum value, -10 deg C+-550 deg C, room temperature 25 deg C) |
Screen brightness adjustment |
√ |
|
Temperature measurement accuracy |
0.1 deg C |
Language |
Simplified Chinese, English |
|
Suggested temperature measurement distance |
0.25m |
Automatic shutdown |
关、5min、10min、15min、20min、30min、45min、90min |
|
Celsius, Fahrenheit |
WiFi photo download |
√ |
||
Temperature measurement display |

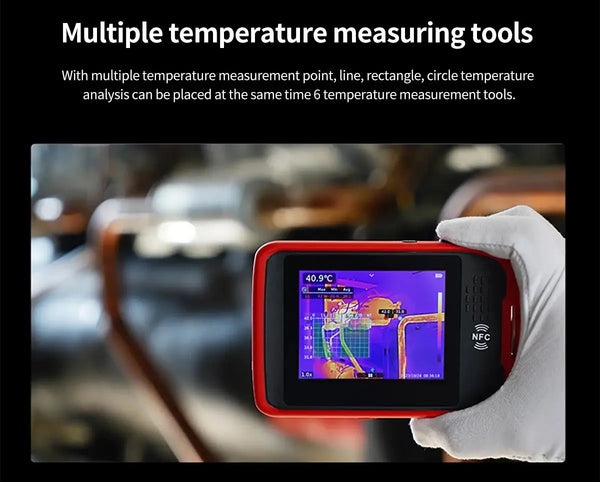

3 temperature measurement points (center point, highest temperature, lowest temperature) |
NFC |
NFC quick connection hotspot |
|
Isotherm |
Automatic isothermal, proportional isothermal, isothermal lines, isothermal lines, interval isothermal lines, manual isothermal lines |
WiFi video live streaming |
√ |
|
High and low temperature tracking and alarm |
√ |
Mobile APP |
iOS/Andriod |
|
Emissivity, reflectivity, ambient temperature, distance, relative humidity |
PC analysis software |
√ |
||
Display |
3.5-inch IPS capacitive touch screen |
Bluetooth |
√ |
|
Key |
Power button, camera button |
PC screen mirroring |
√ |
|
Storage |
Internal storage EMMC 12GB |
Battery type |
3.7V, 1800mAh lithium battery pack (non removable) |
