UNI-T UTI260B UTI260A Thermal Camera 256X192 Pixels Construction Thermal Imager PCB Circuit Floor Heating Tube Testing

Sale price
$209.00
List price
$261.25
You save
$52.25 (20%)

Prices include VAT and any applicable duties.

Model:UTI260A
Ships From:Standard
Delivery estimate Estimated arrival is calculated for your delivery market.
Ships in 1-3 business days. Remote areas or special items may take longer.

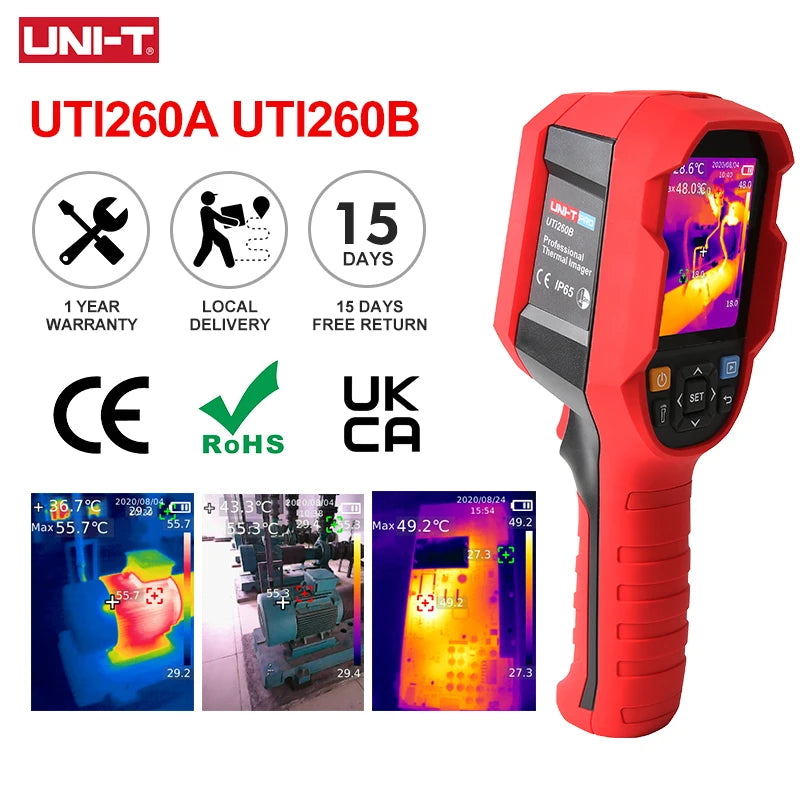

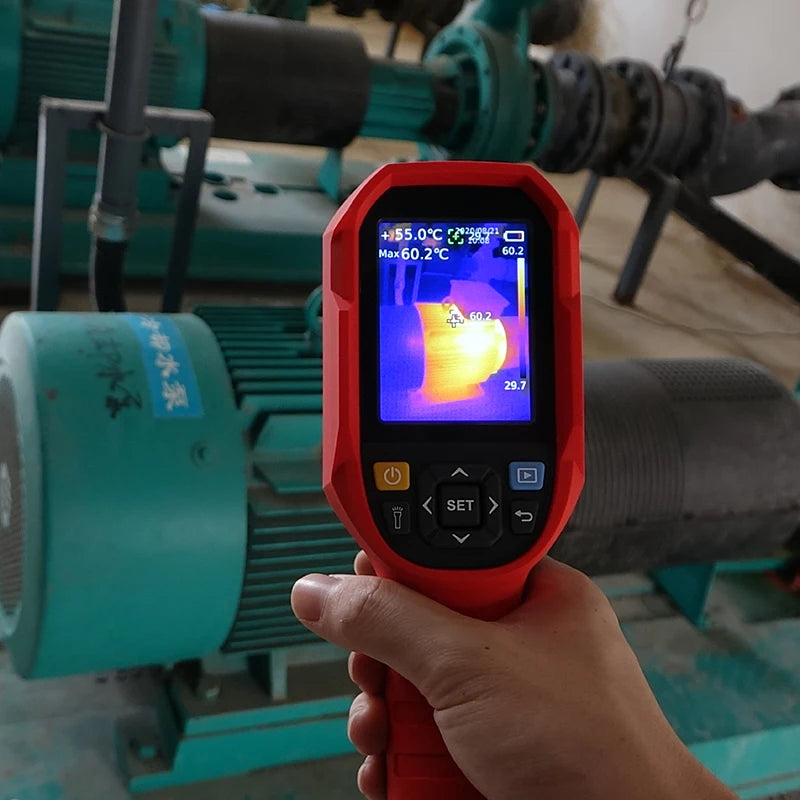

The UNI-T UTi260A and UTi260B are handheld 256 x 192 infrared thermal imagers for electrical inspection, PCB diagnostics, HVAC work, building checks, mechanical maintenance, and temperature troubleshooting. Select the model according to the required temperature range and visible-light functions.

Model Comparison

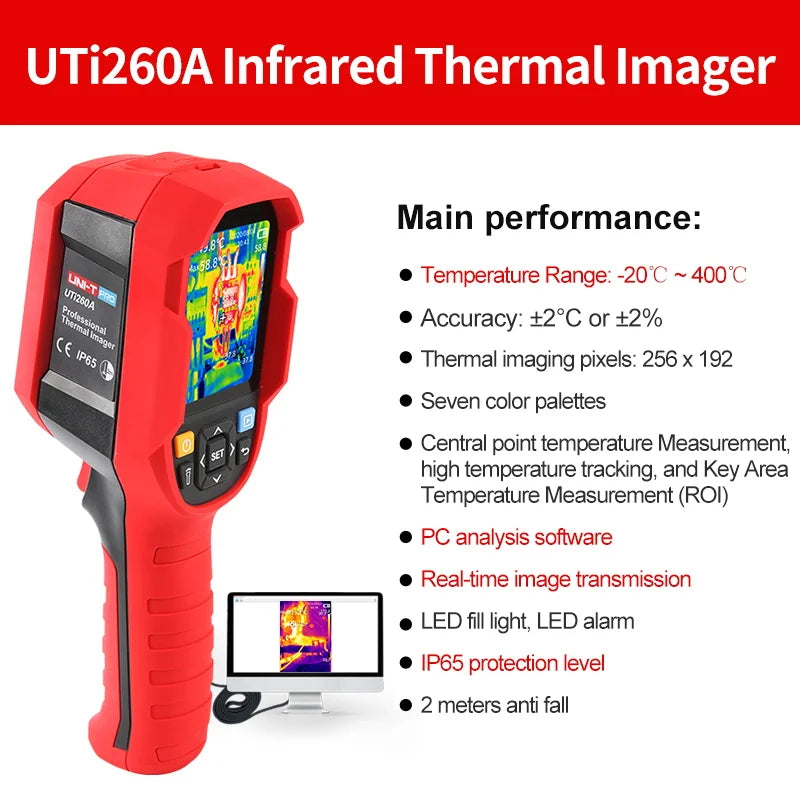

  • UTi260A temperature range: -20°C to 400°C.

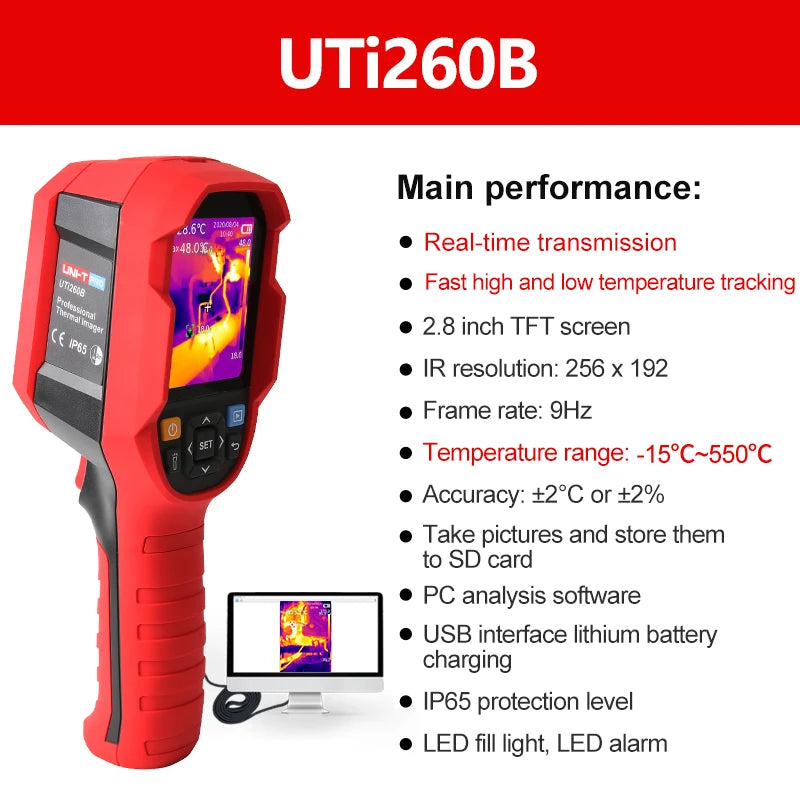

  • UTi260B temperature range: -15°C to 550°C.
  • Infrared resolution: 256 x 192 for both models.
  • UTi260B visible-light resolution: 640 x 480.
  • Accuracy: ±2°C or ±2%, whichever is greater.
  • Thermal sensitivity: below 60mK; frame rate below 25Hz.

Imaging and Measurement

  • Multiple palettes including white hot, black hot, iron red, lava, rainbow, high-contrast rainbow, and red hot.
  • Center-point measurement plus high/low temperature tracking and configurable measurement points.
  • Thermal imaging, with fusion/picture-in-picture/visible-light modes available according to model.
  • Image storage to microSD card and PC analysis support.

General Specifications

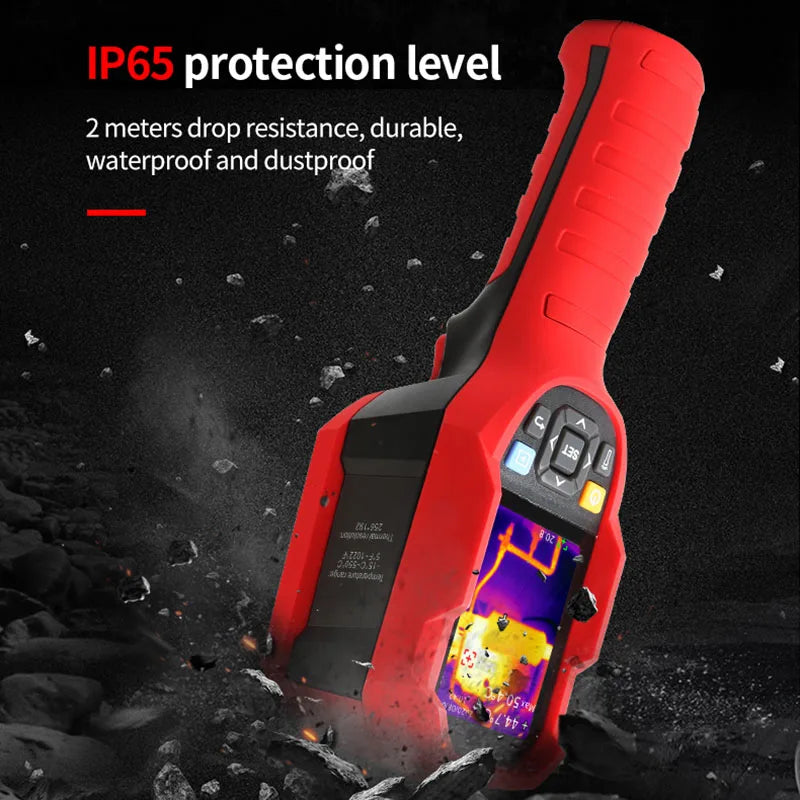

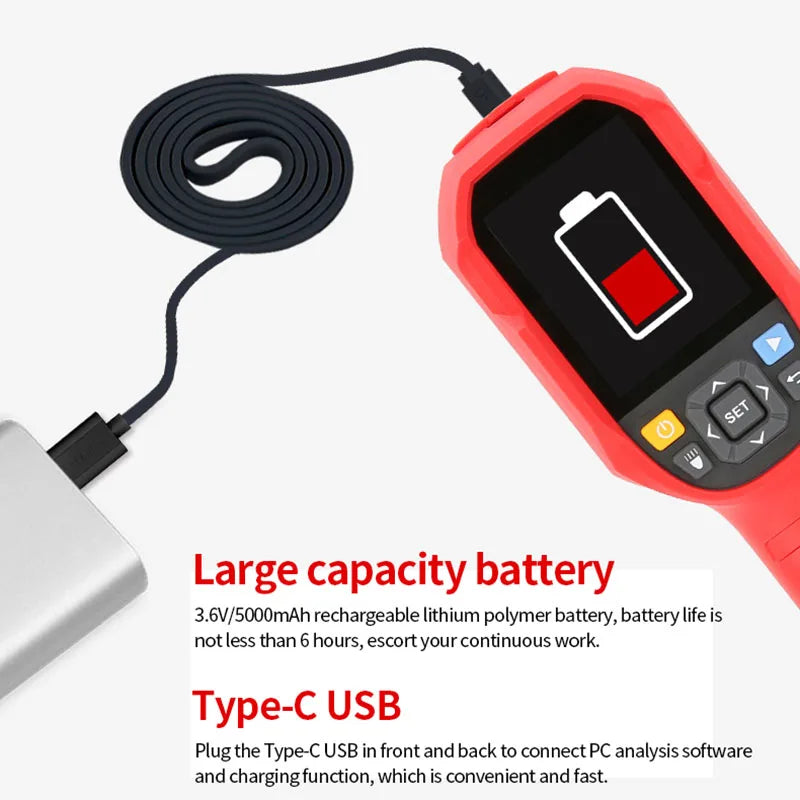

The matching model table lists a 2.8-inch TFT LCD, 5000mAh rechargeable battery, Type-C USB connection, 2m drop rating, and IP54 for UTi260A / IP65 for UTi260B. Verify the selected model and included accessories before checkout.

Product Detail Images

UNI-T UTI260B UTI260A Thermal Camera 256X192 Pixels Construction Thermal Imager PCB Circuit Floor Heating Tube Testing product photo

UNI-T UTI260B UTI260A Thermal Camera 256X192 Pixels Construction Thermal Imager PCB Circuit Floor Heating Tube Testing detail photo 2

UNI-T UTI260B UTI260A Thermal Camera 256X192 Pixels Construction Thermal Imager PCB Circuit Floor Heating Tube Testing detail photo 3

UNI-T UTI260B UTI260A Thermal Camera 256X192 Pixels Construction Thermal Imager PCB Circuit Floor Heating Tube Testing detail photo 4
