Product Summary

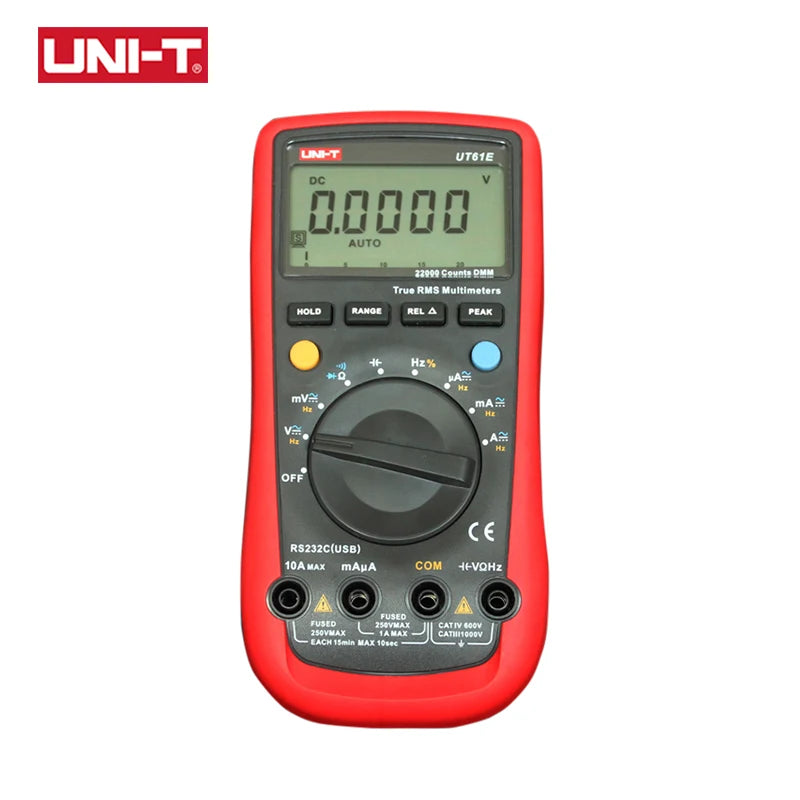

UNI-T UT61E Digital Multimeter Meter True RMS 1000V AC DC Multimeter Voltage Tester Relative is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. It is suitable for electricians, repair users and electronics hobbyists who need practical electronics hardware for reliable project work.
Best For
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

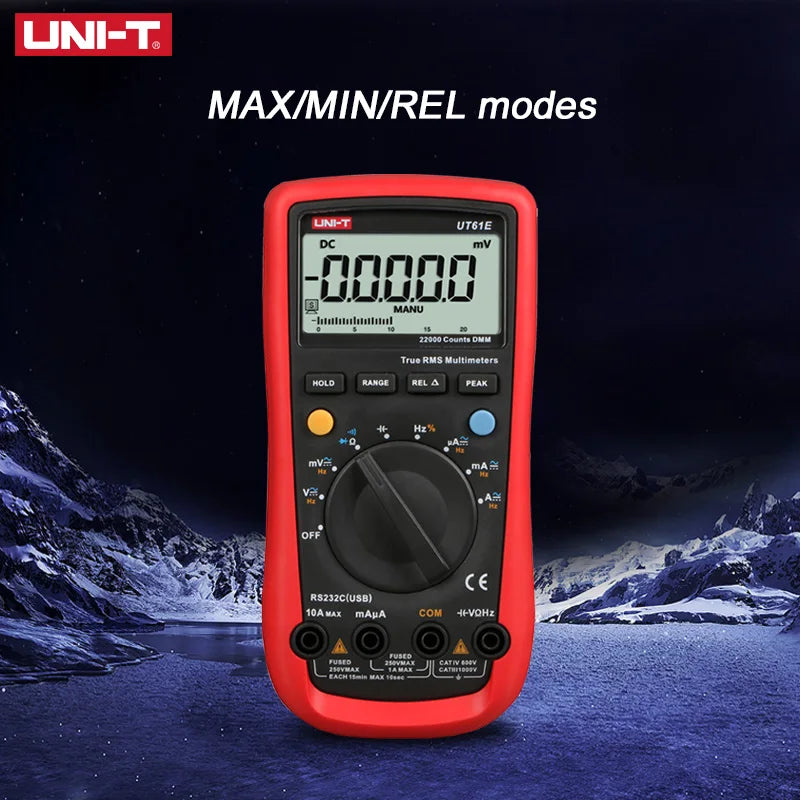

1. MAX/MIN/REL modes
2. RS-232 and USB interface

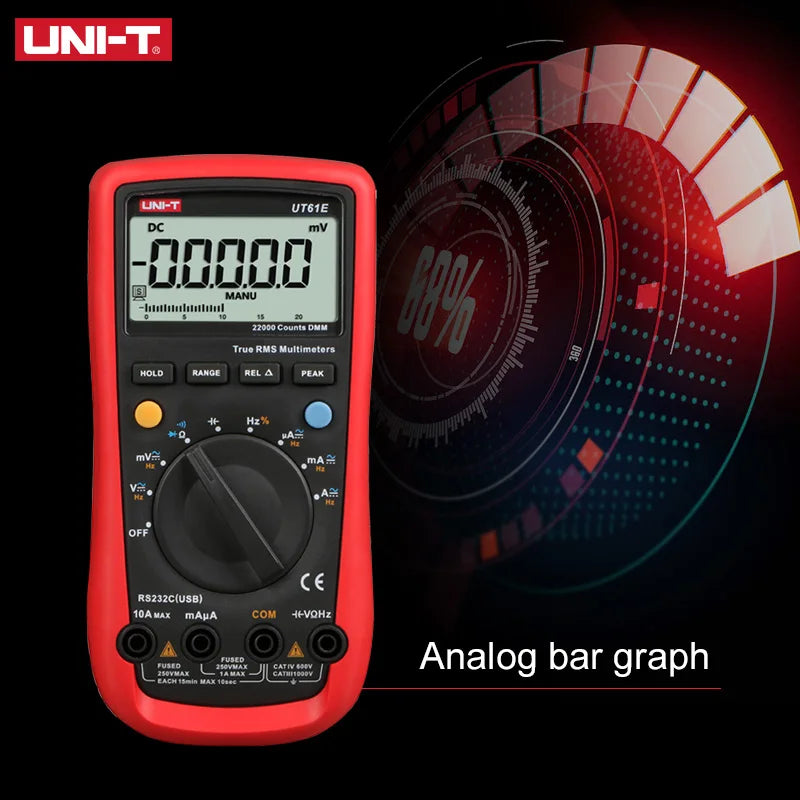

3. Analog bar graph

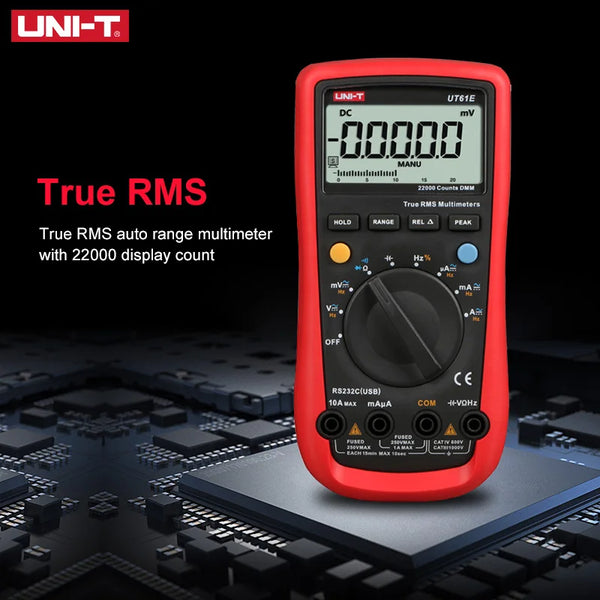

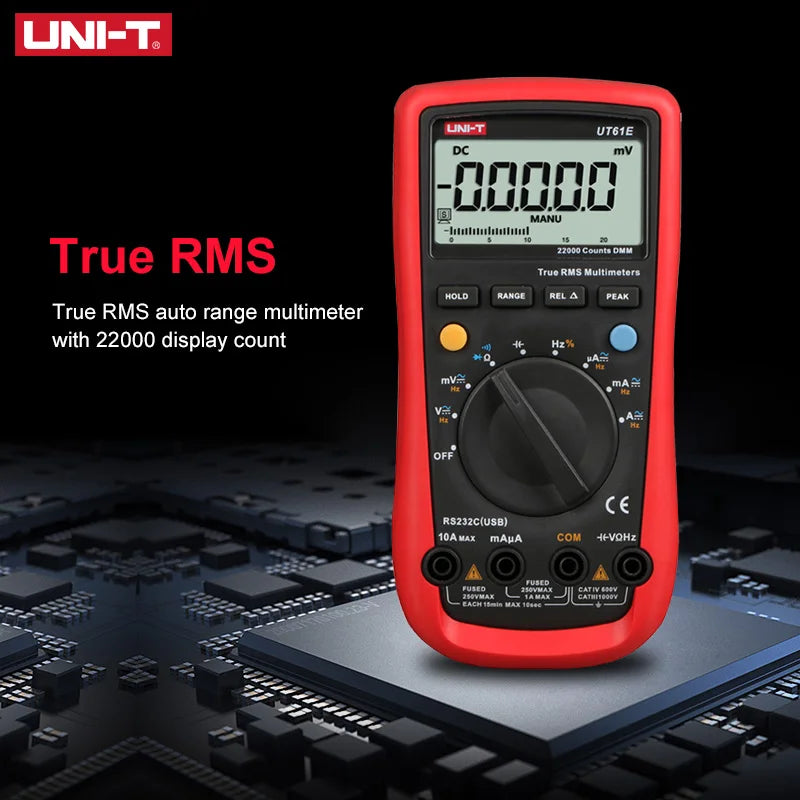

4. True RMS
5. Peak hold
Specifications
Range
Best Accuracy
Model UT61E
DC Voltage (V) 220mV/2.2V/22V/220V/1000V ±(0.1%+2)
AC Voltage (V) 220mV/2.2V/22V/220V/750V ±(0.8%+10)
DC Current (A) 200uA/2200uA/22mA/220mA/2.2A/10A ±(0.5%+10)
AC Current (A) 200uA/2200uA/22mA/220mA/2.2A/10A ±(0.8%+10)
Features
Display Count 22000
Auto Range √
True RMS √
Bandwidth (Hz) 45Hz -10kHz
Duty Cycle 0.1% - 99.9% √
Diode √
Continuity Buzzer √
Low Battery Indication ≤7.5V √
Data Hold √
Relative Mode √
MAX/MIN √
Peak Value √
RS-232 √
Analog Bar Graph 46
Input Protection √
Input Impedance for DCV Around 10M ohm √
General Characteristics
Power 9V Battery (6F22) (not included)
LCD Size 65mm X 43mm
Product Color Red and grey
Product Net Weight 370g
Product Size 180mm X 87mm X 47mm

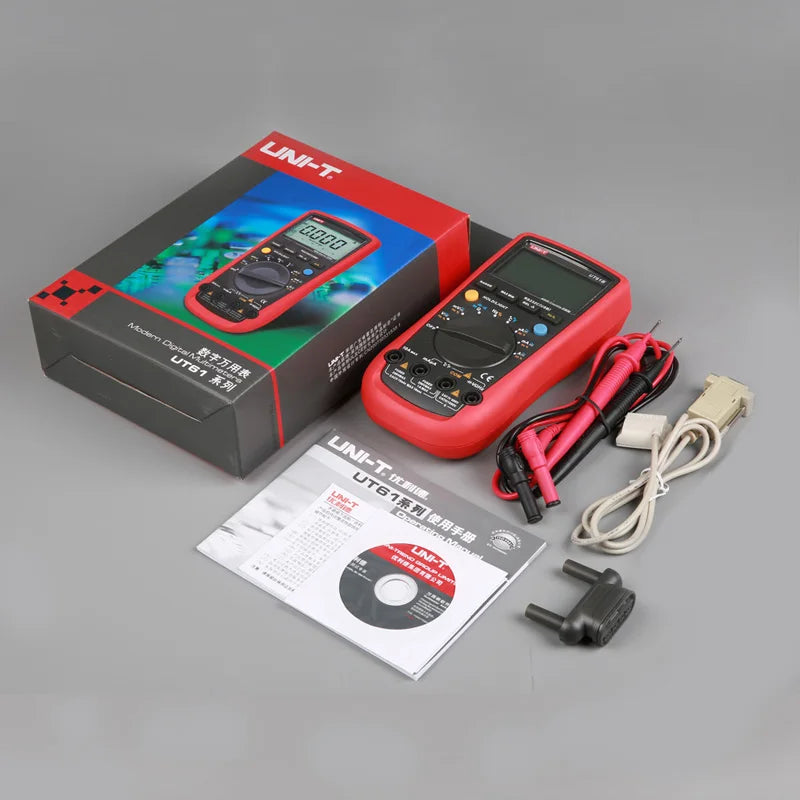

Standard Accessories Battery (if shipping from Russian inludes, from not included), Test Lead, Multi-Purpose Socket, RS-232 Interface Cable,
Standard Individual Packing Gift Box, English Manual
Note: If shipping from , shipping company not allow to carry battery,so battery is not included
Please note: Batteries and CD are not included in the product.
