Product Summary
UNI-T UT60S UT60BT Digital Smart Multimeter 1000V AC DC Voltmeter Ammeter True RMS Frequency is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. It is suitable for electricians, repair users and electronics hobbyists who need practical electronics hardware for reliable project work.
Best For
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Note: (Batteries not included) This product requires 3 3A batteries, which cannot be included due to international shipping regulations.UT60 Series Digital Multimeters
UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users' testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100M ohm resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places. This CE certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.

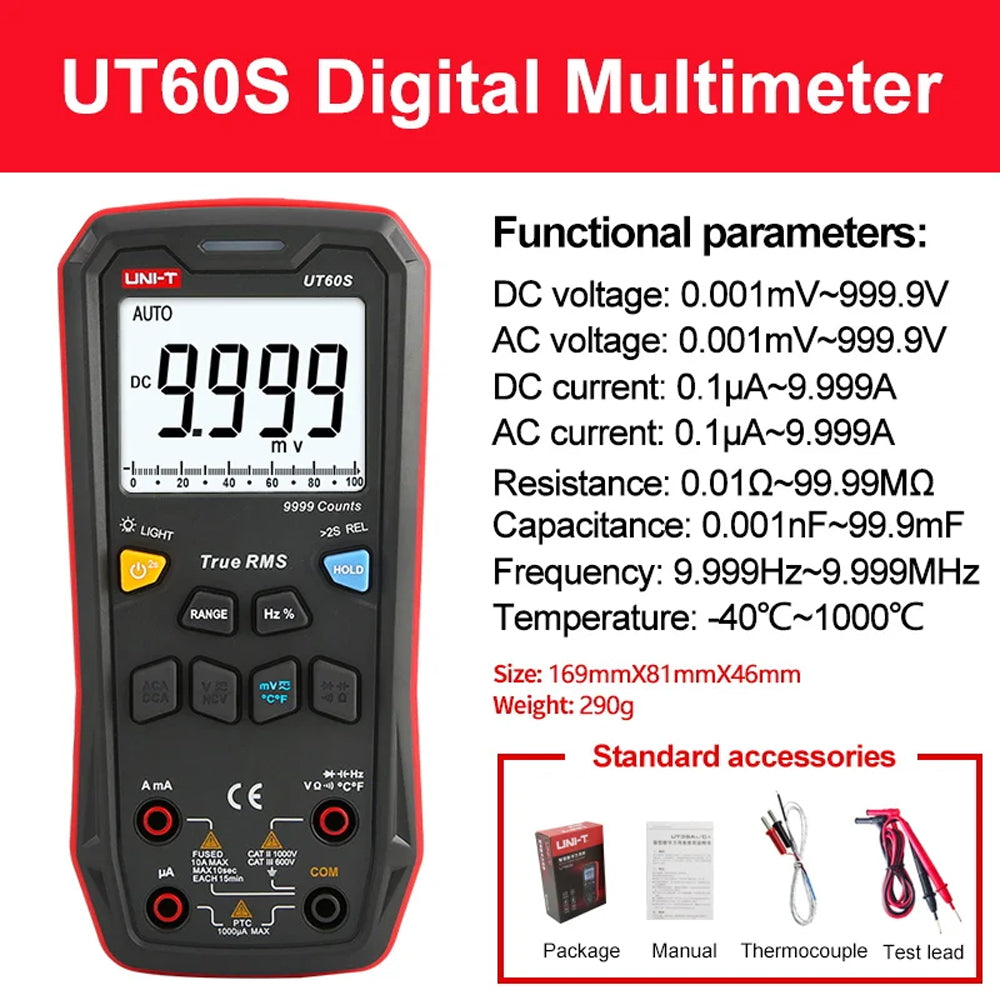

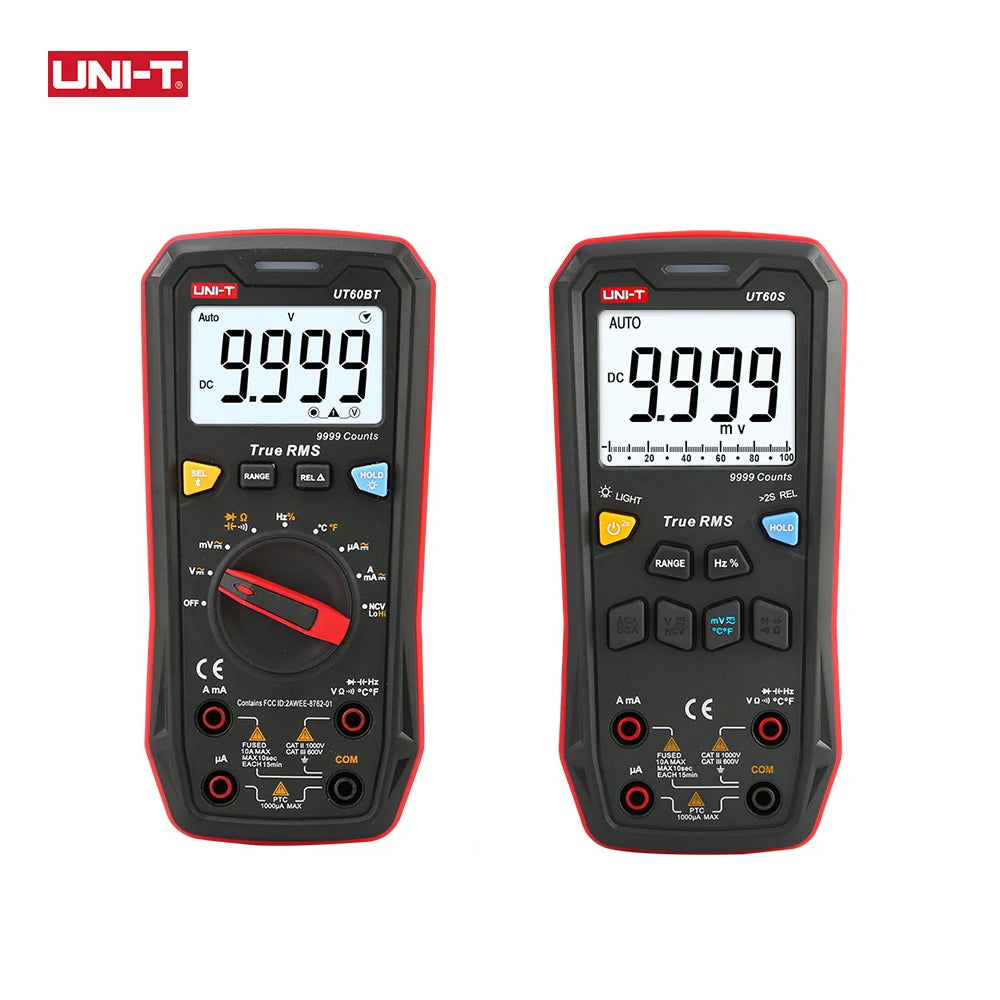

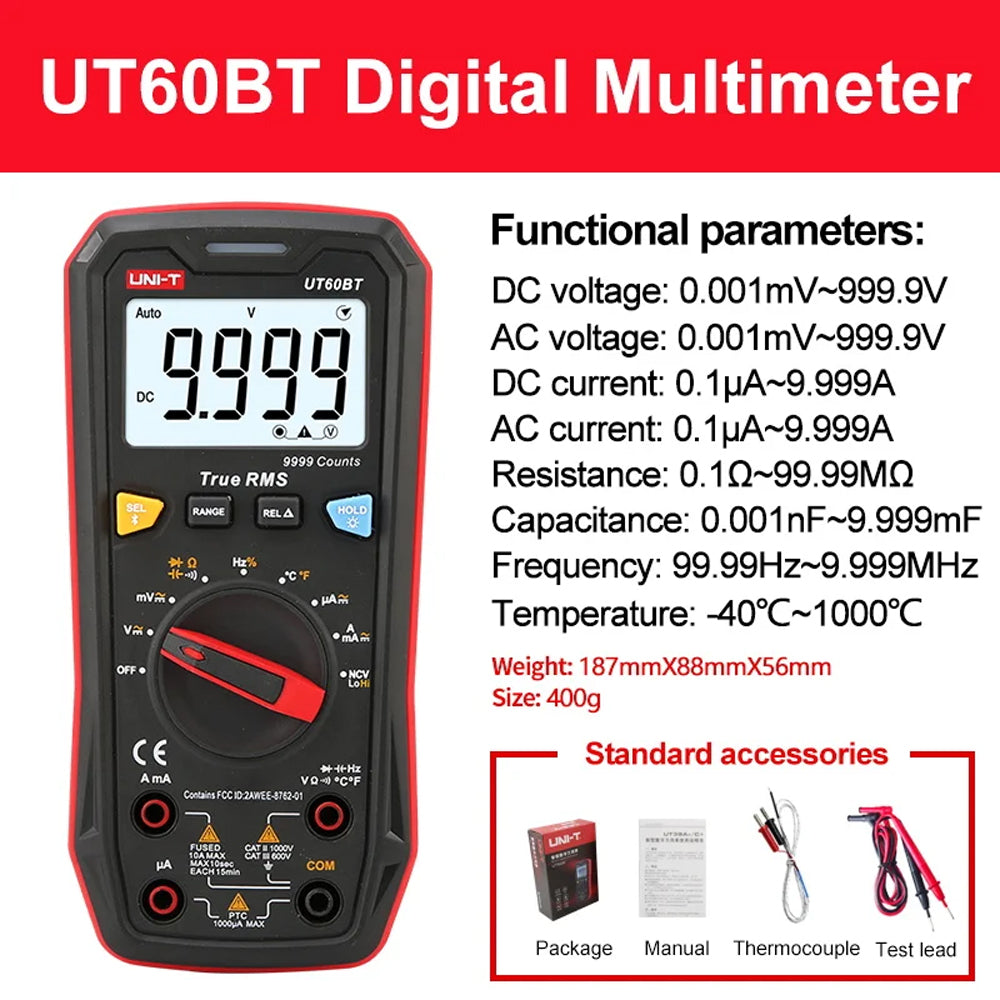

Models in the UT60 Series: UT60BT, UT60S
Features of UT60 Series Digital Multimeters
Certificates: CE, UKCA, cETLus
● 9999 counts
● True RMS
● Bluetooth
● Duty cycle
● Diode/Continuity test
● Temperature
● Non-contact voltage
● Analog bar/Data hold
● Backlight/Relative mode
● Auto/Manual range
● Low battery indication
● Three-color LED light indicator
Specifications of UT60 Series Digital Multimeters
Specification |
Range |
UT60BT |
UT60S |
DC Voltage |
9.999mV/99.99mV/999.9mV/ |
±(0.5%+3) |
±(0.5%+3) |
AC Voltage |
9.999mV/99.99mV/999.9mV/ |
±(0.8%+3) |
±(0.8%+3) |
DC Current |
999.9uA/999.9mA/9.999A/10A |
±(0.8%+3) |
±(0.8%+3) |
AC Current |
999.9uA/999.9mA/9.999A/10A |
±(1.0%+3) |
±(1.0%+3) |
Resistance |
999.9 ohm/9.999k ohm/99.99k ohm/999.9k ohm/9.999M ohm/99.99M ohm |
±(0.8%+2) |
±(0.8%+2) |
Capacitor |
9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/9.99mF (UT60EU/UT60BT)/99.9mF(UT60S) |
±(4.0%+5) |
±(4.0%+5) |
Frequency |
99.99Hz-9.999MHz |
±(0.1%+5) |
±(0.1%+5) |
Duty Cycle |
0.1-99.9% |
±(3%+5) |
±(3%+5) |
Temperatue |
-40 deg C-1000 deg C/-40 deg F-1832 deg F |
±4 deg C/±5 deg F |
±4 deg C/±5 deg F |
Features | |||
Bluetooth |
√ |
||
Display Count |
9999 |
9999 |
|
Auto Range |
√ |
√ |
|
REL |
√ |
√ |
|
NCV |
√ |
√ |
|
Diode |
√ |
√ |
|
Continuity Test |
√ |
√ |
|
Acousto-optic Indication (NCV/continuity/battery power) |
√ |
√ |
|
Low Battery Indication |
≤3.6V |
√ |
√ |
Data Hold |
√ |
√ |
|
Auto Power Off |
15Min |
√ |
√ |
Operation Temperature |
0 deg C-40 deg C |
||
Safety |
CAT II 1000V/CAT III 600V |
||
General Characteristics | |||
Battery |
1.5V AAA x 3(Due to logistics reasons, the shipment does not include batteries) |
||
Product Color |
Red and Gray |
||
Product Net Weight |
290g |
||
Product Size |
169mm x 81mm x 46mm |
||
