Product Summary
UNI-T Speed Tachometer 2-in-1 UT372D optical Tachometer Contact And Non-contact Tacometro is a specialized measurement tool selected for measuring task-specific environmental, physical or installation parameters. It is suitable for maintenance users, installers and technical inspection teams who need practical electronics hardware for reliable project work.
Best For
- measuring task-specific environmental, physical or installation parameters
- field inspection, equipment checks and maintenance workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for maintenance users, installers and technical inspection teams.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

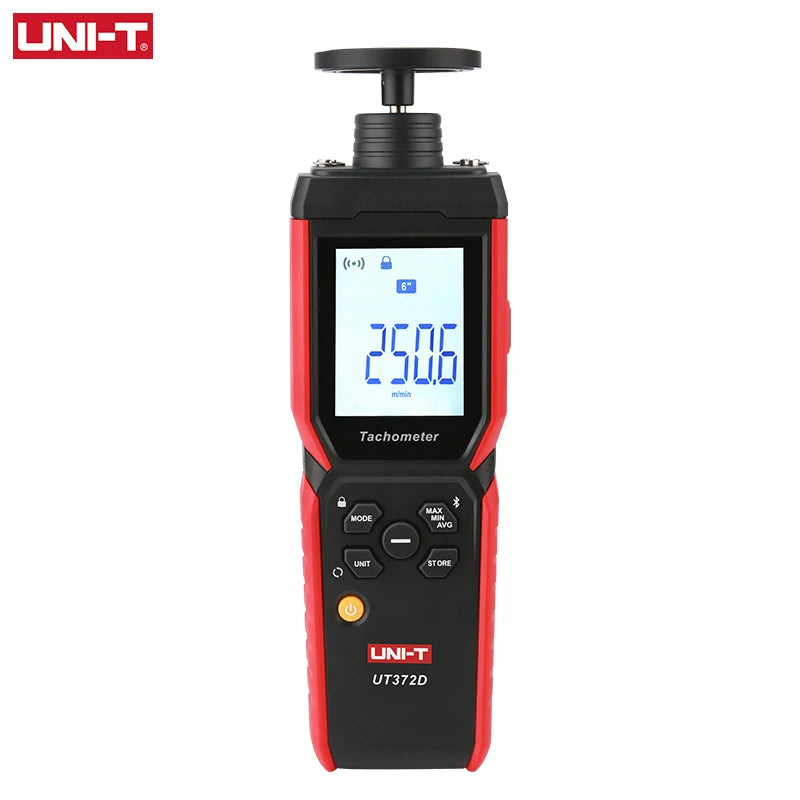

UT372D 2-in-1 Tachometer

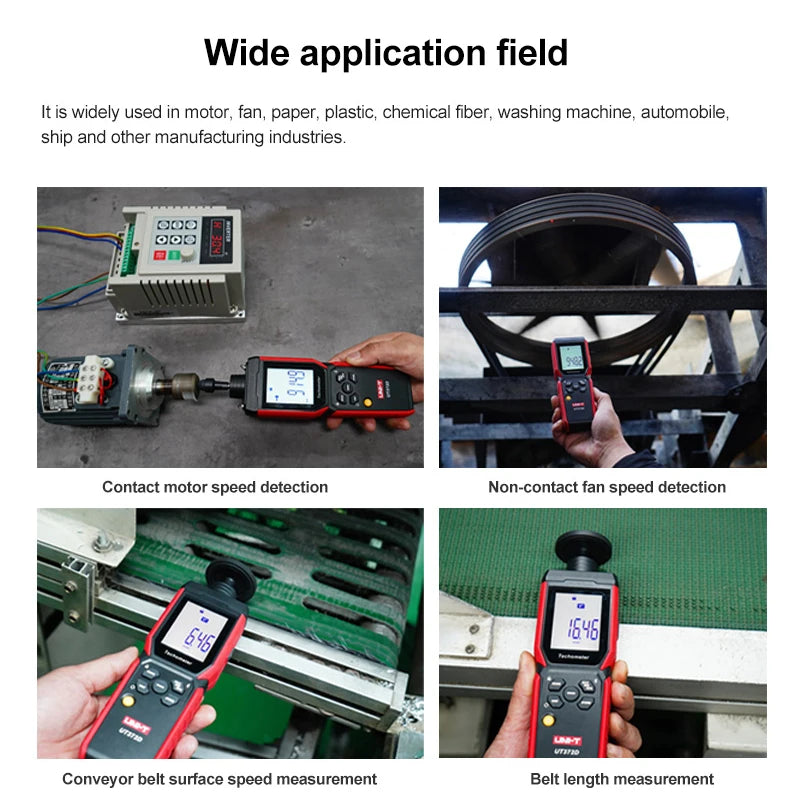

UT372D 2-in-1 Tachometer is a reliable and safe tachometer, which combines contact and non-contact measurement modes. It is mainly used to measure Revolutions Per Minute(RPM) , frequency, surface velocity and length in the fields of motors, fans, automobiles, papermaking, etc.
UT372D Speed Tachometer Features
● Contact and non-contact measurements
● MAX/MIN/AVG/HOLD
● Rotatable LCD backlight screen
● Unit conversion

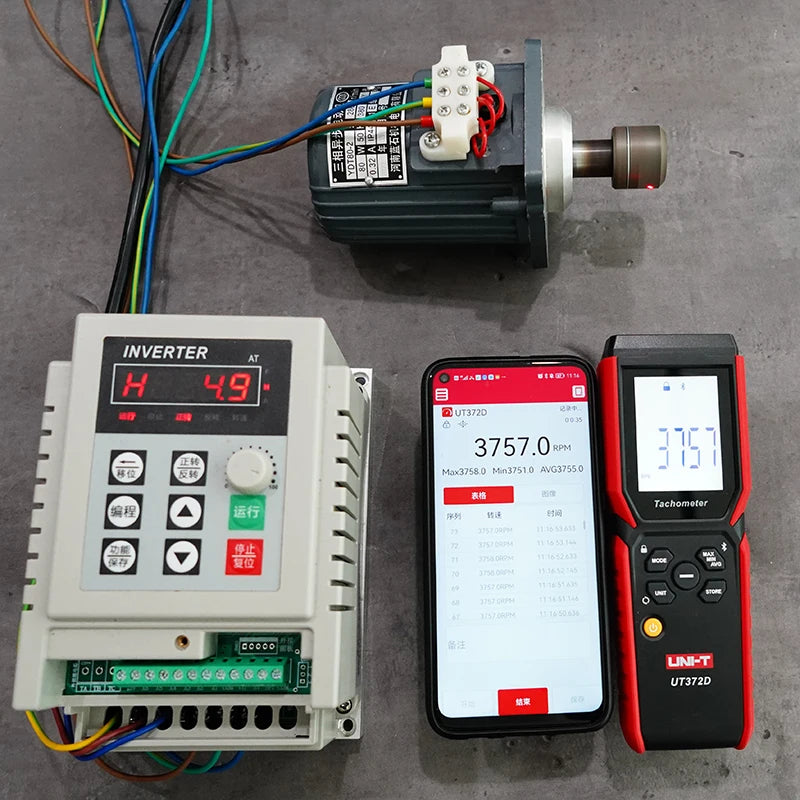

● Bluetooth APP
● Auto power off
● Data storage
● Two measurement buttons
Specifications of UT372D 2-in-1 Tachometer
Sepecification |
Range |
|
Non-contact (optical) measurement |
Rotational velocity (RPM) |
1-99,999 |
Frequency (HZ) |
1-1,666 |
|
Count(REV) |
1-99,999 |
|
Target distance |
50-500mm |
|
Contact measurement |
Rotational velocity (RPM) |
1-19,999 |
Frequency (HZ) |
1-333 |
|
Surface velocity |
0.1m |
|
0.1-1,999m/min | ||
0.4-6,550ft/min | ||
4-78,700in/min | ||
6"wheel | ||
0.15-1,524m/min | ||
0.5-5,000ft/min | ||
6-60,000in/min | ||
Length |
0-99999(m/ft/in) |
|
Accuracy |
±0.02% ±1 digit |
|
Measurement modes |
Contact RPM/Non-contact RPM/counting/frequency/Surface velocity/length |
|
Contact measurement unit |
m/min, ft/min, in/min,m,ft,in |
|
Statistical measurement |
Max/Min/Last reading/Average |
|
Data storage |
10 groups |
|
Operating temperature/humidity |
0 deg C-50 deg C; ≤80%RH |
|
Storage temperature |
-20 deg C-60 deg C; ≤80%RH |
|
Drop test |
1m |
|
Auto power off |
After about 15 minutes of inactivity |
|
General Characteristics | ||
Product color |
Red and grey |
|
Product weight |
About 181g (without batteries) |
|
Product size |
176 x 63 x 38mm |
|
Battery type |
AAA 1.5V x3(No include) |
|

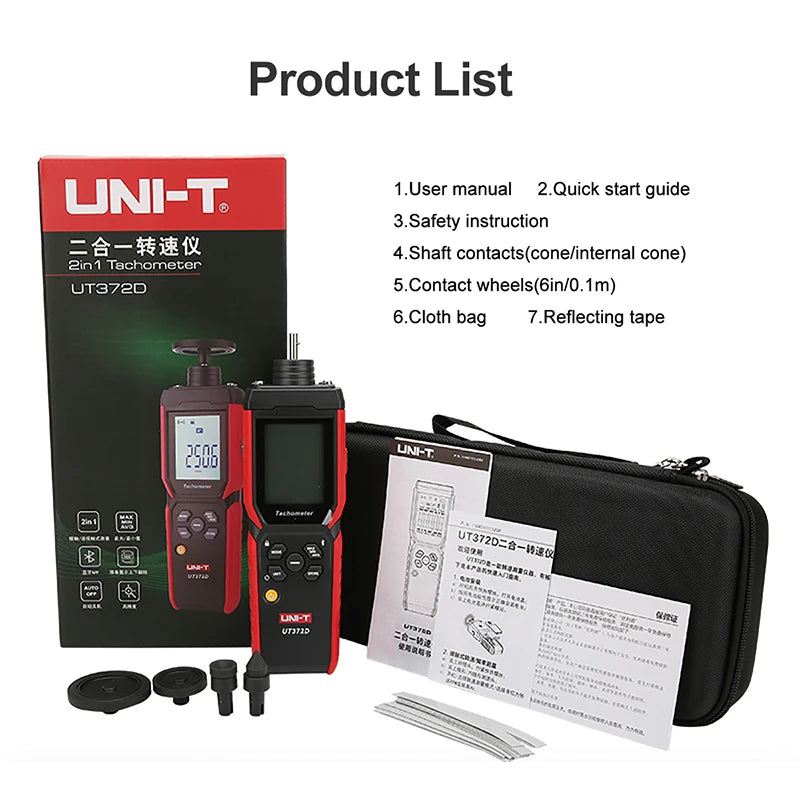

Standard accessories |
user manual,quick start guide,safety instruction,shaft contacts(cone/internal |
|
UT372D Tachometer Two measurement modes

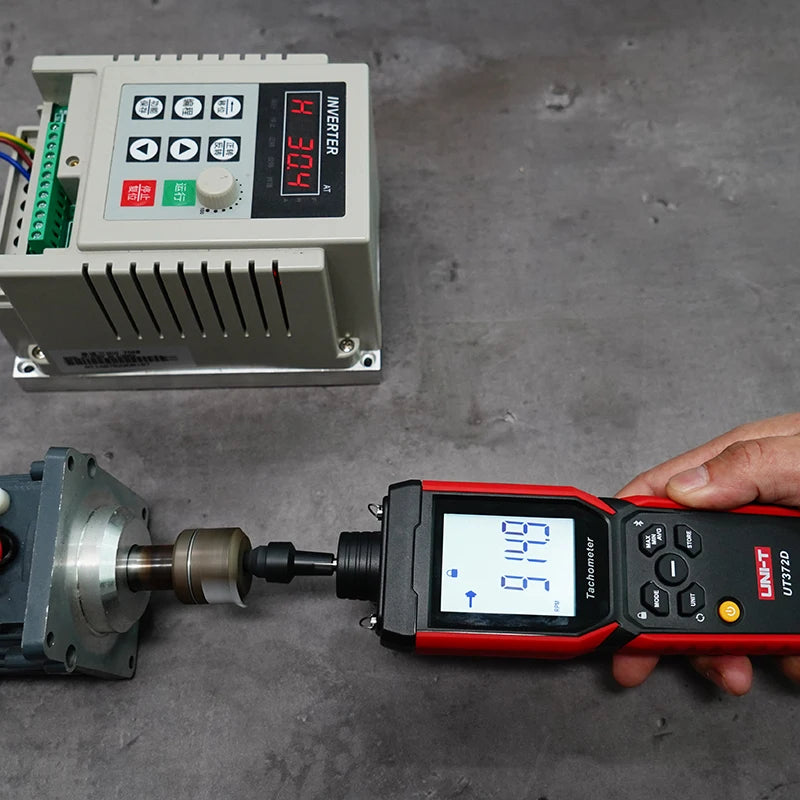

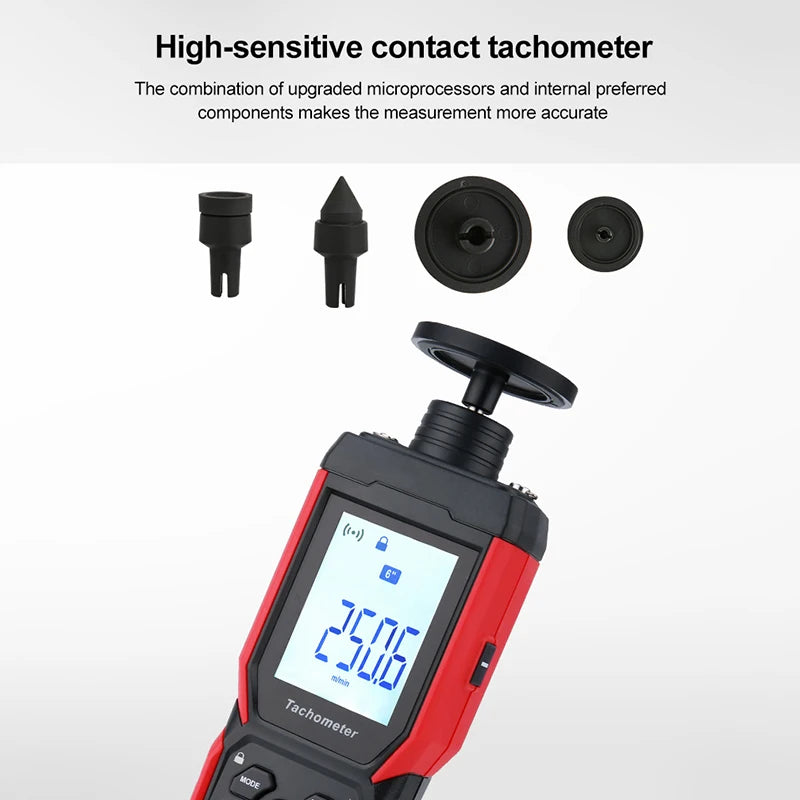

Contact and non-contact measurements
Please note: The product does not include batteries.
