Product Summary
UNI-T Coating Thickness Gauge UT343E 0-2000um Car Film Paint Thickness Tester TFT Screen is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. It is suitable for electricians, repair users and electronics hobbyists who need practical electronics hardware for reliable project work.
Best For
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

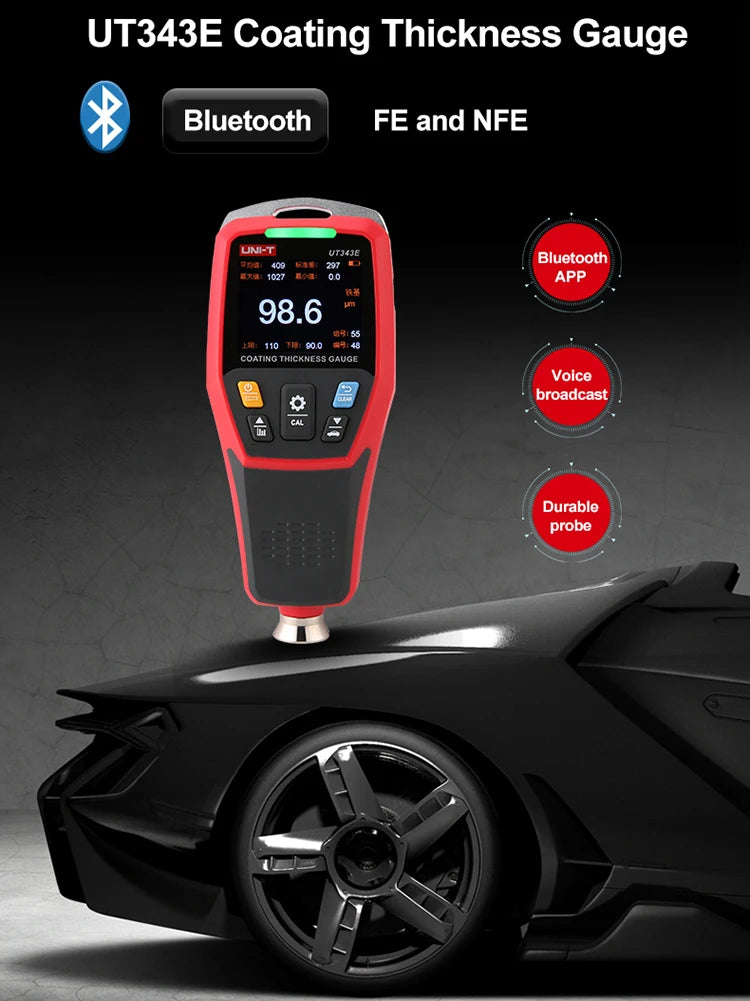

UT343E Coating Thickness Gauge

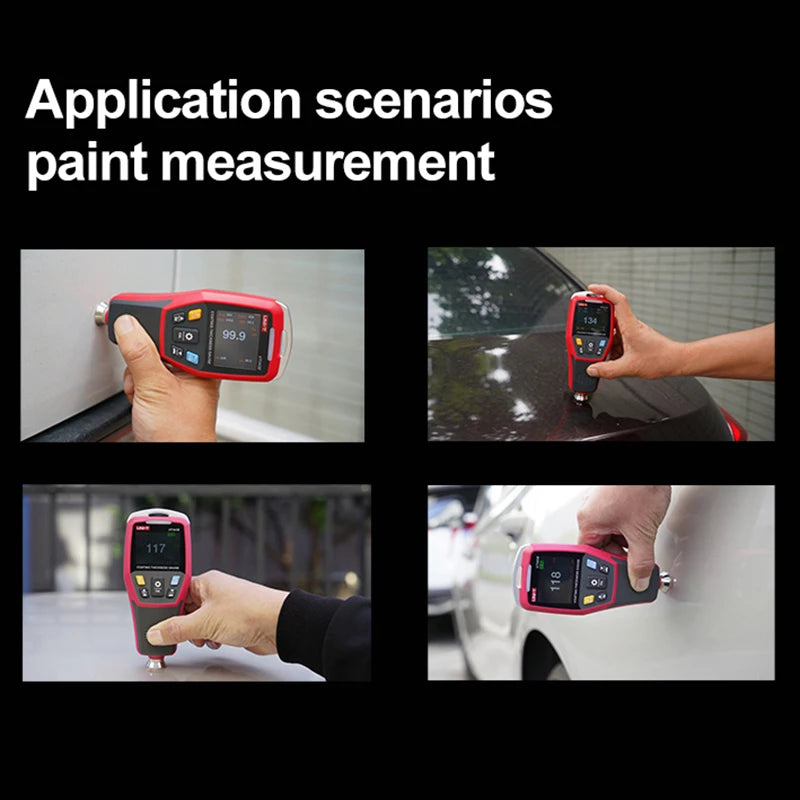

UT343E coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. The measuring range is up to 2000um, and the data can be analyzed through Bluetooth APP and PC software of mobile phones, which can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other detection areas.
Features
1. Bluetooth APP
2. Conductive coating measurement (like chromium, zinc, tin)
3. Voice broadcast
4. Durable probe
5. Automobile mode
6. Multiple measurement modes
7. PC software analysis
Parameter
Specification |
Range |
Thickness |
Resolution |
Accuracy |
Certificates |
CE/UKCA |
|||
Ferrous and non-ferrous substrates measurement(FE and NFE) |
0-2000um |
0-99.9um |
0.1um |
±(2%H+2um) |
100-2000um |
1um |
|||
0-78.7mil |
0-4.99mil |
0.01mil |
±(2%H+0.08mil) |
|
5.0-78.7mil |
0.1mil |
|||
Bluetooth and App function |
√ |
|||
Probe measuring force |
0.3-1.5N |
|||
Display |
2''color TFT screen |
|||

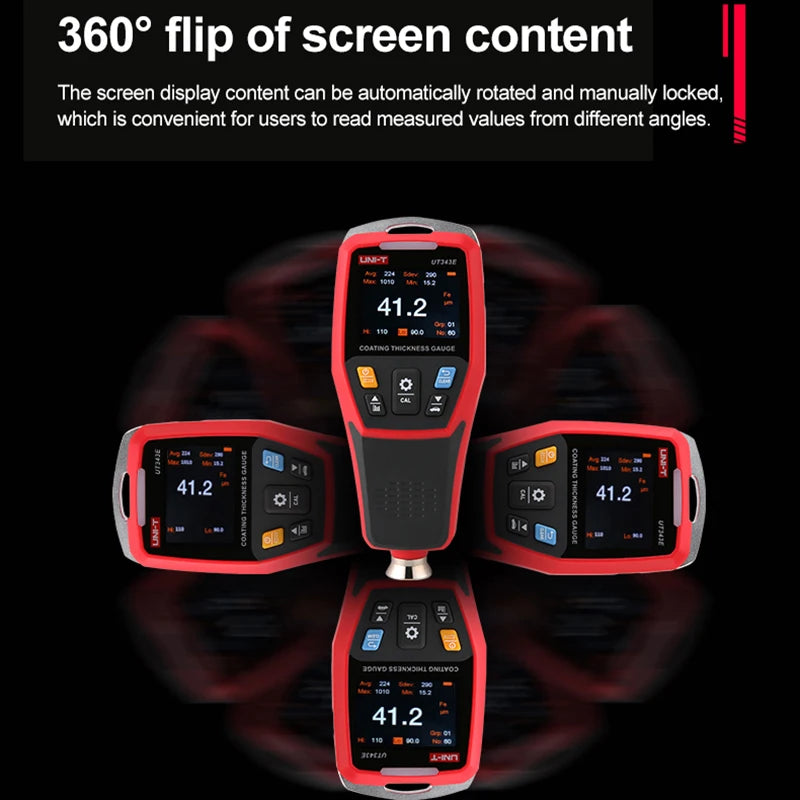

Auto rotatable screen |
√ |
|||
Unit conversion |
um/mil |
|||
LED /Audio alarm |
√ |
|||
Limit setting |
0-2000um |
|||
Measurement method |
Single/continuous |
|||
Statistical measurement |
Max/Min/Avg |
|||
Matrix identification modes |
Auto/manual |
|||

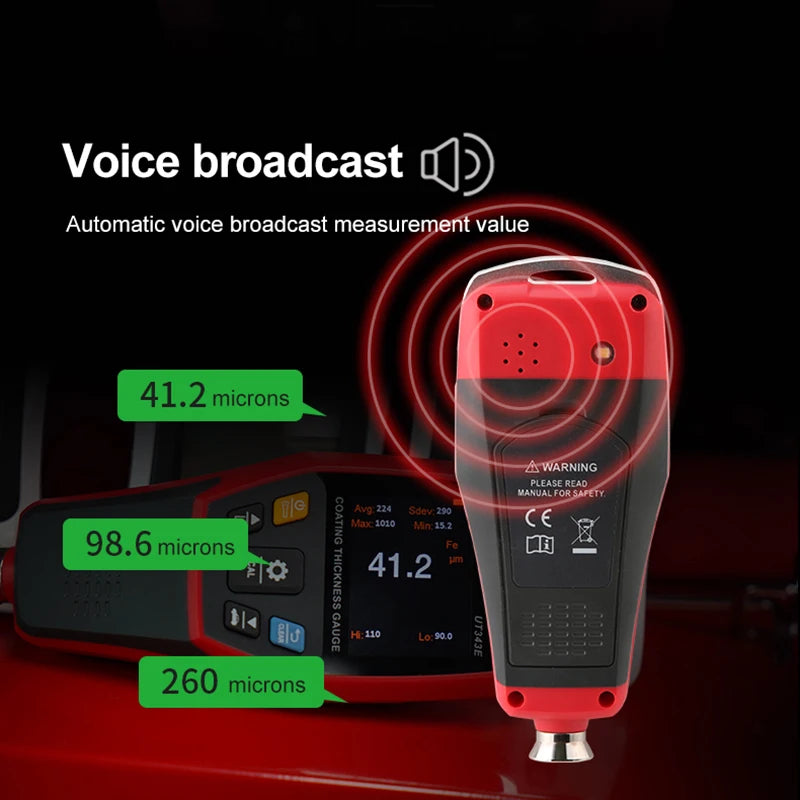

Voice broadcast |
√ |
|||
Flashlight |
√ |
|||
USB communication |
Upper computer communication |
|||
Data storage |
3300 data |
|||
LCD brightness control |
√ |
|||
Auto power off |
5 minutes |
|||
Low battery indication |
√ |
|||
Power supply |
3.7V 1300mAh Lithium battery |
|||
General Characteristics | ||||
Power |
3.7V 1300mAh Lithium battery |
|||
LCD Size |
2 inch |
|||
Product color |
Red and Gray |
|||
Product net weight |
150g |
|||
Product size |
152*65*35mm |
|||

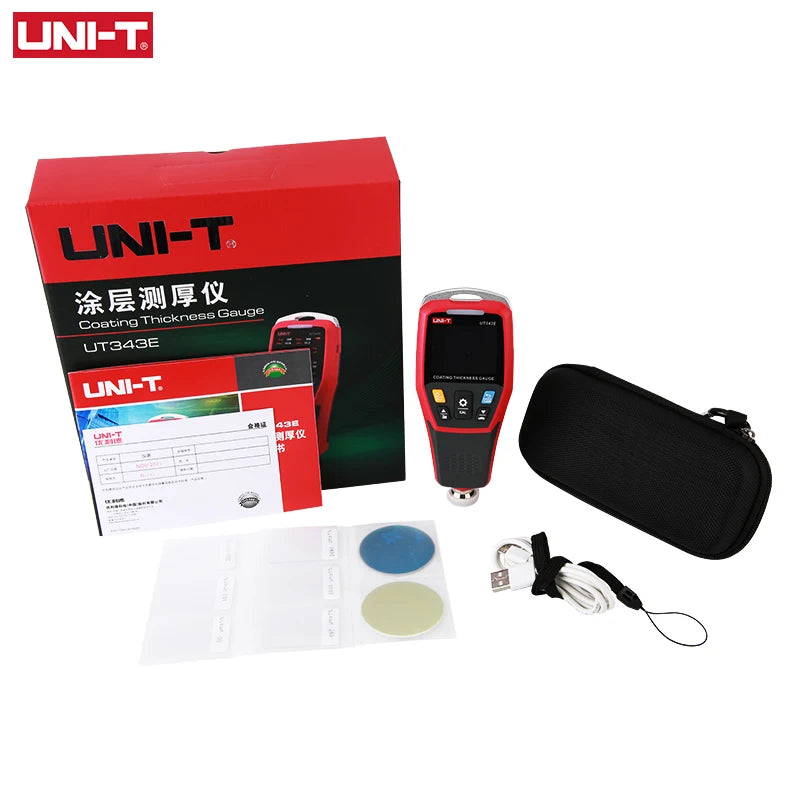

Standard accessories |
USB cable, Hand strap, Sensor protective cover, Ferrous matrix, Non-ferrous |
|||
