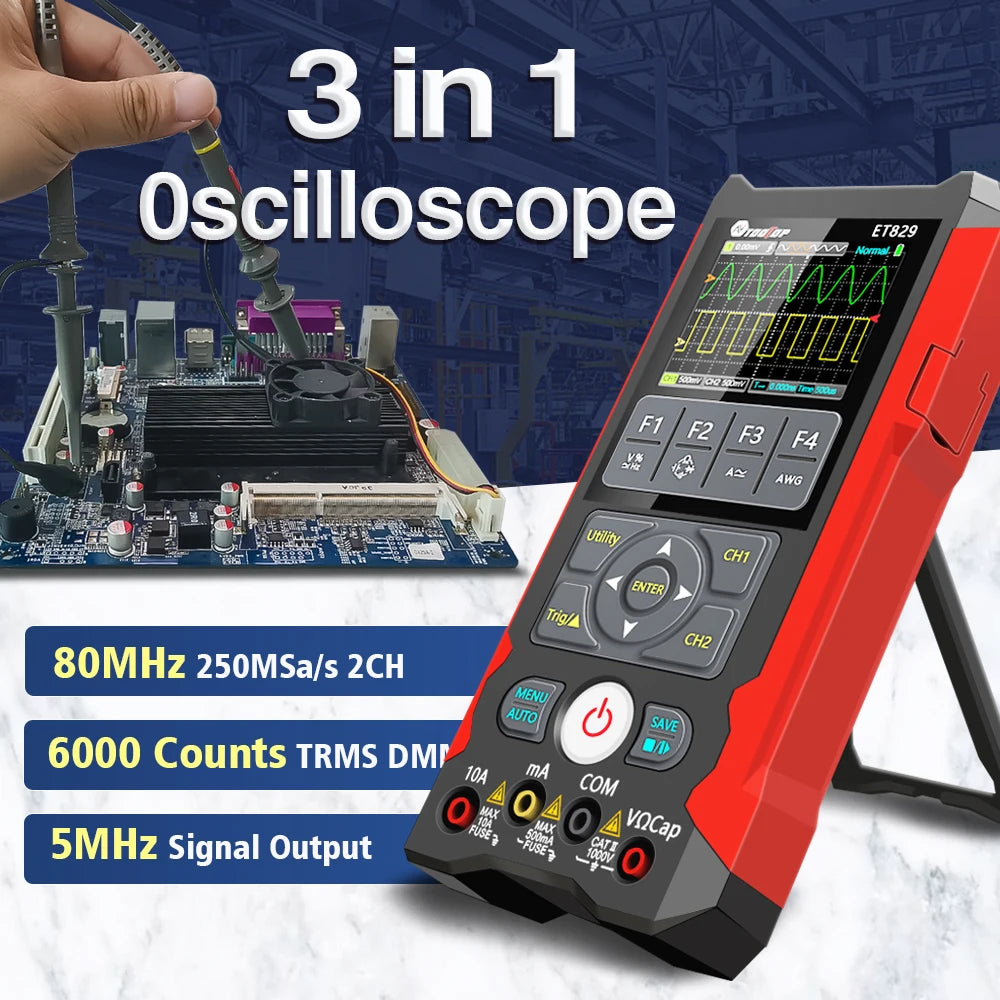

TOOLTOP ET829 80MHz Oscilloscope Multimeter Signal Generator

TOOLTOP ET829 80MHz Oscilloscope Multimeter Signal Generator

Use this page to compare the listed model, configuration, compatibility notes, and specifications before ordering.

Product area: Oscilloscope.

Check the selected variant, connector, voltage, frequency range, measurement range, and included accessories before checkout.

Specifications and Notes

• Listed ratings: 80MHz
• Embedded, power, and automotive measurement workflows where suitable

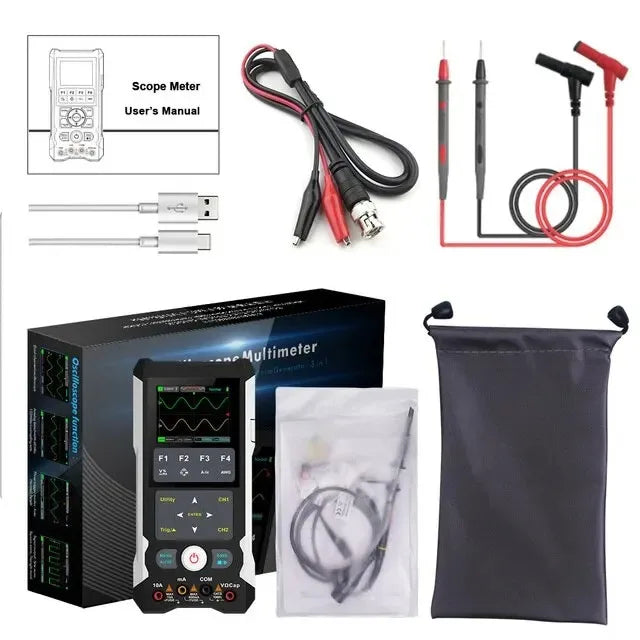

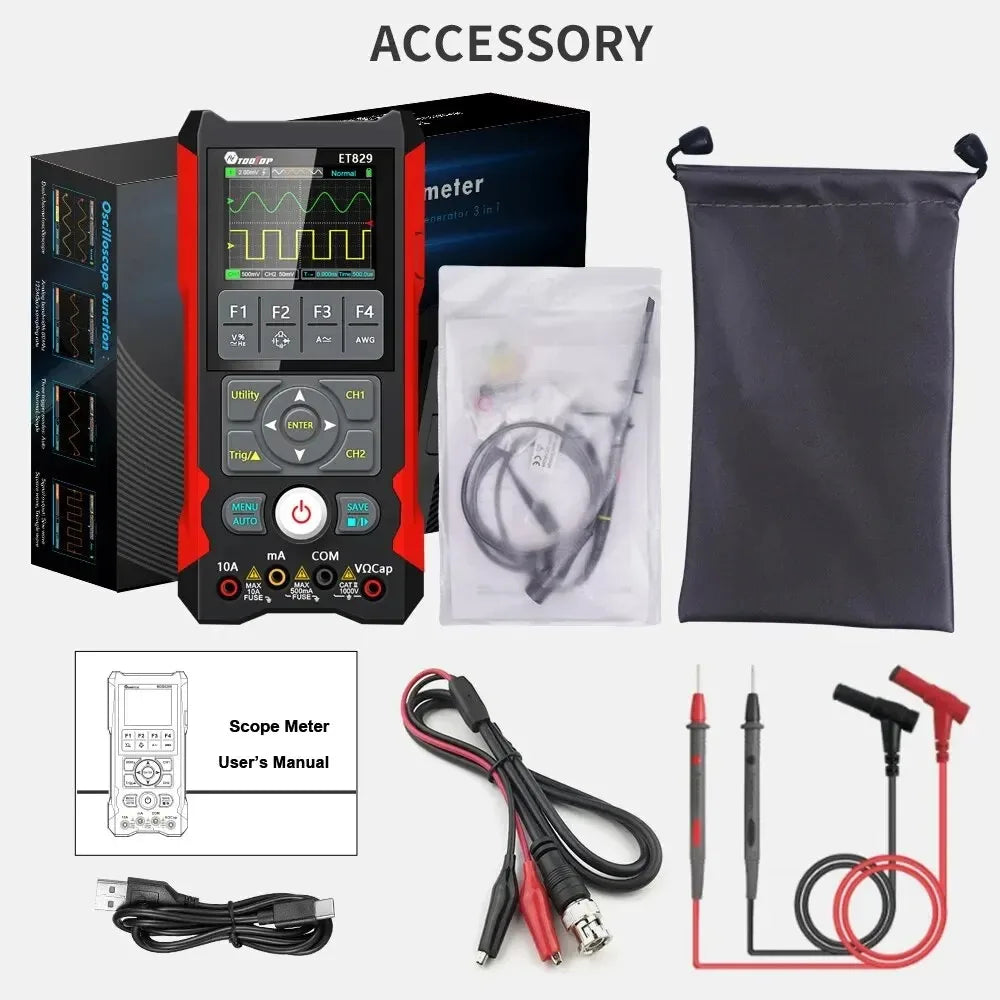

• Check the selected option and package contents before checkout.
• Confirm voltage, connector, measurement range, frequency range, or accessory compatibility for your application.

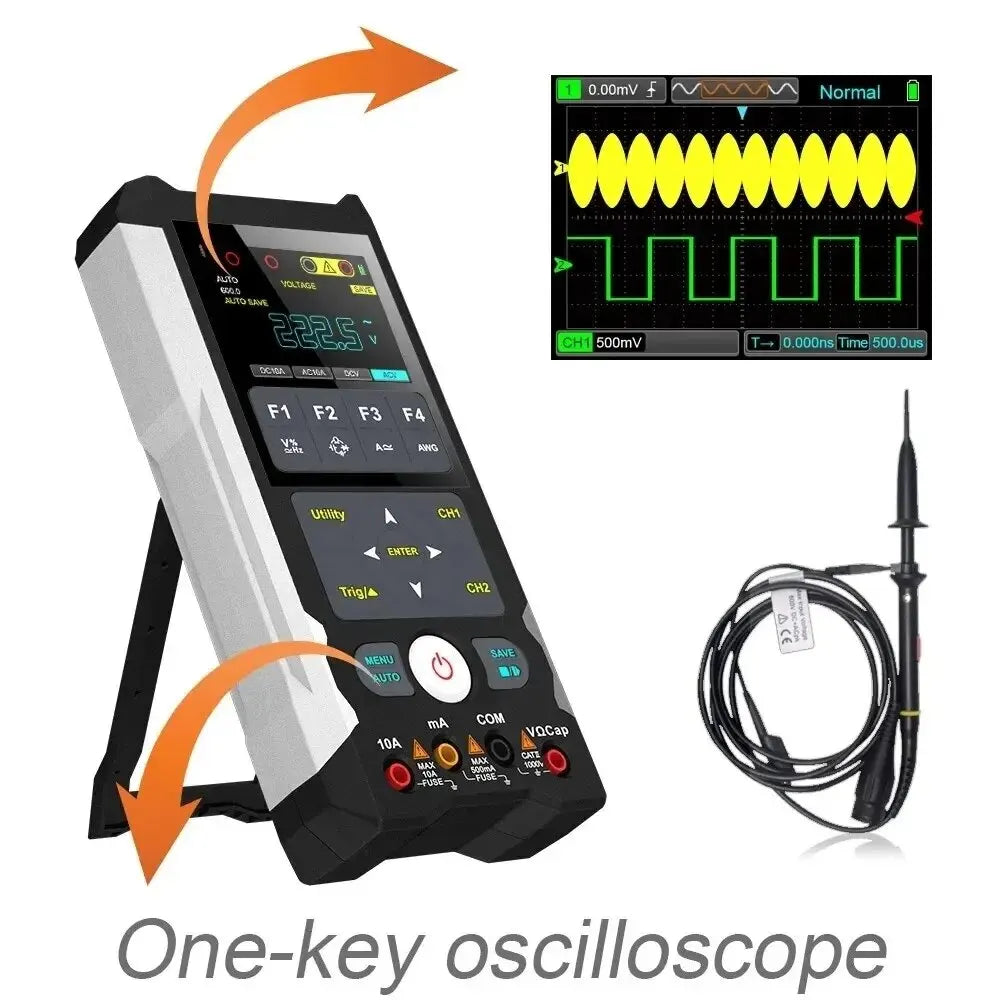

• The oscilloscope hat a Echtzeit-Samplingrate von 250MSa/s, a analoge Bandbreite von 80MHz and 2 channels
• display-Hintergrundbeleuchtungszeit: einstellbar
• Helligkeit the Display-Hintergrundbeleuchtung: einstellbar
• Stromversorgung: AC100V-240V, 50Hz/60Hz; DC15W Schnellladung
• battery: 18650 Lithiumbatterie 2000mAh x 2 (enthalten)
• Betriebsumgebung: 0°C to 40°C, <75% RH
• Lagerbedingungen: -10°C to 60°C, <90% RH

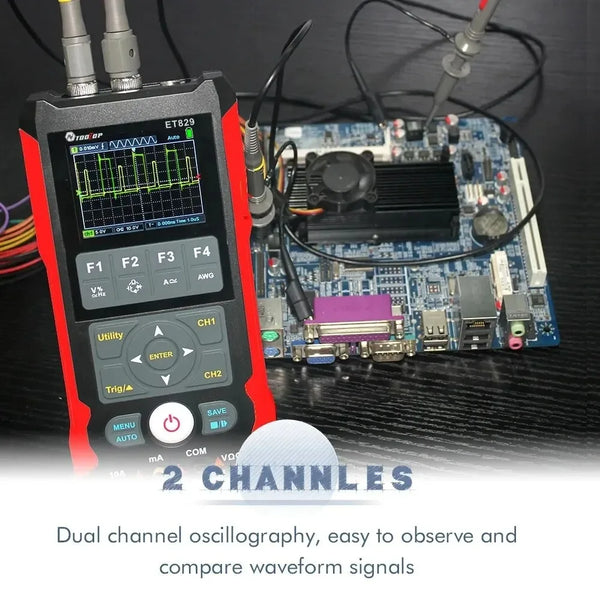

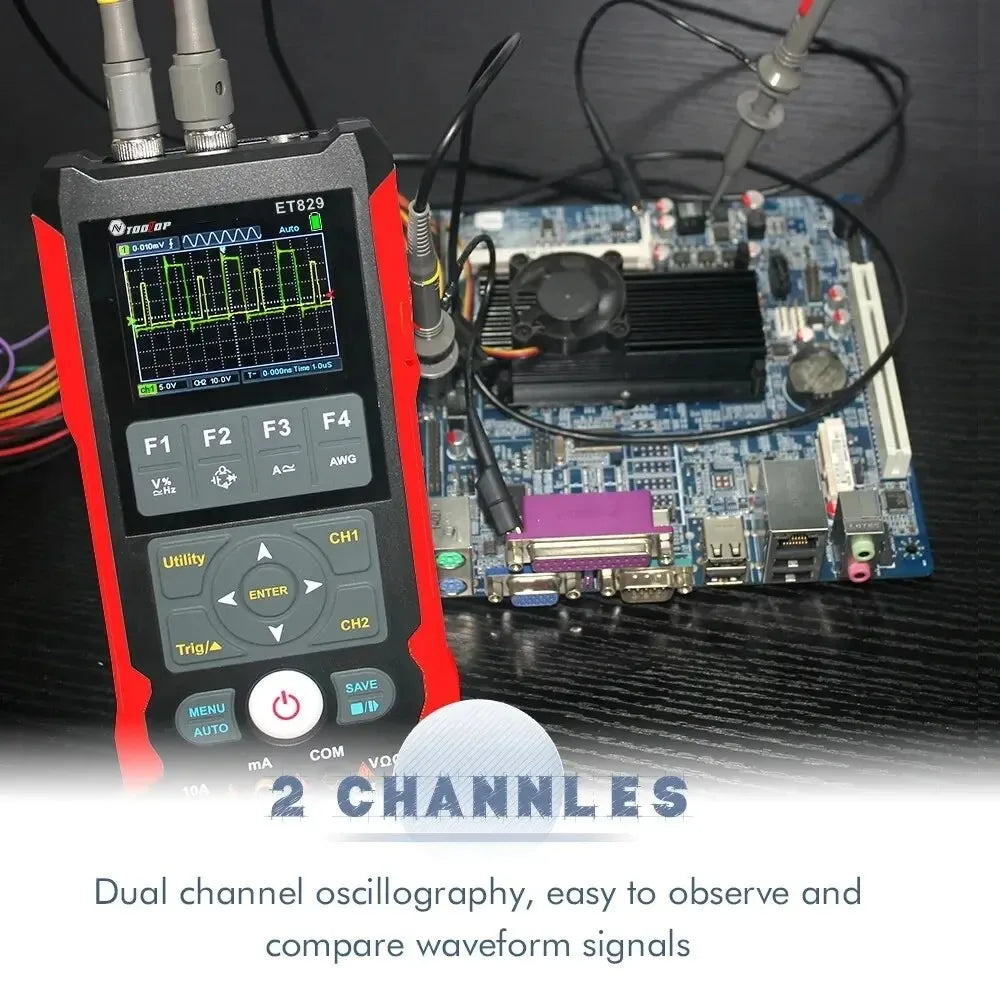

• Anzahl the channels: channel CH1, channel CH2
• Bandbreite: 80MHz (Einzelkanal), 50MHz (Zweikanal)
• AD-Wandler: 8-Bit-resolution, simultane Abtastung jedes Kanals
• Vertikaler Skalenbereich: 1 X: 10mV/div-10V/div; 10X: 100mV/div-100V/div
• Vertikaler measurement range: ±4 Raster
• Optionales Bandbreitenlimit: 20MHz
• Niederfrequenzgang (-3dB): ≤10Hz bei BNC

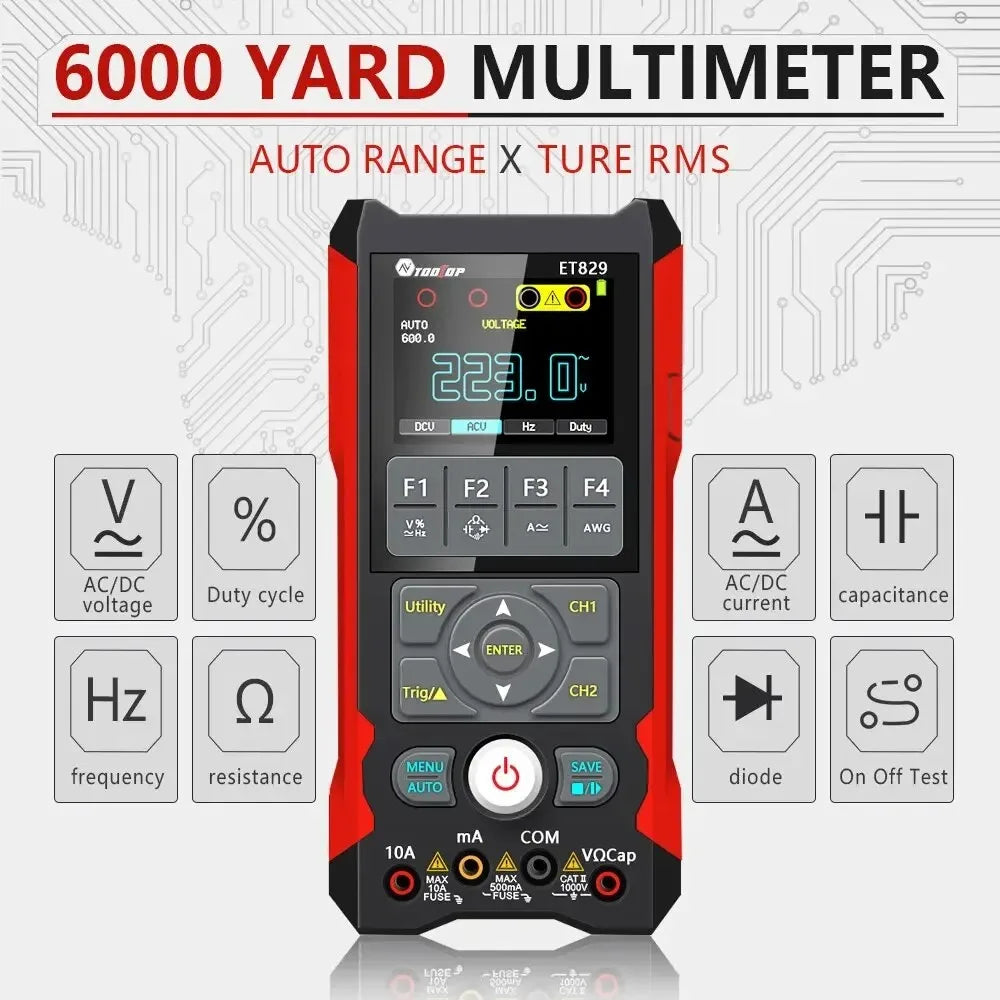

• Gleichstrom: 60.00mA/500.0mA, 6.000A/10.00A
• resistance: 600.0 Ohm-60.00M, 1.0%rdg + 5dgt
• frequency: 10.00Hz-10.00MHz, 1.0%rdg + 5dgt
• Durchgangstest: ≤50 Ohm Signalton, ≥600 Ohm display 0L

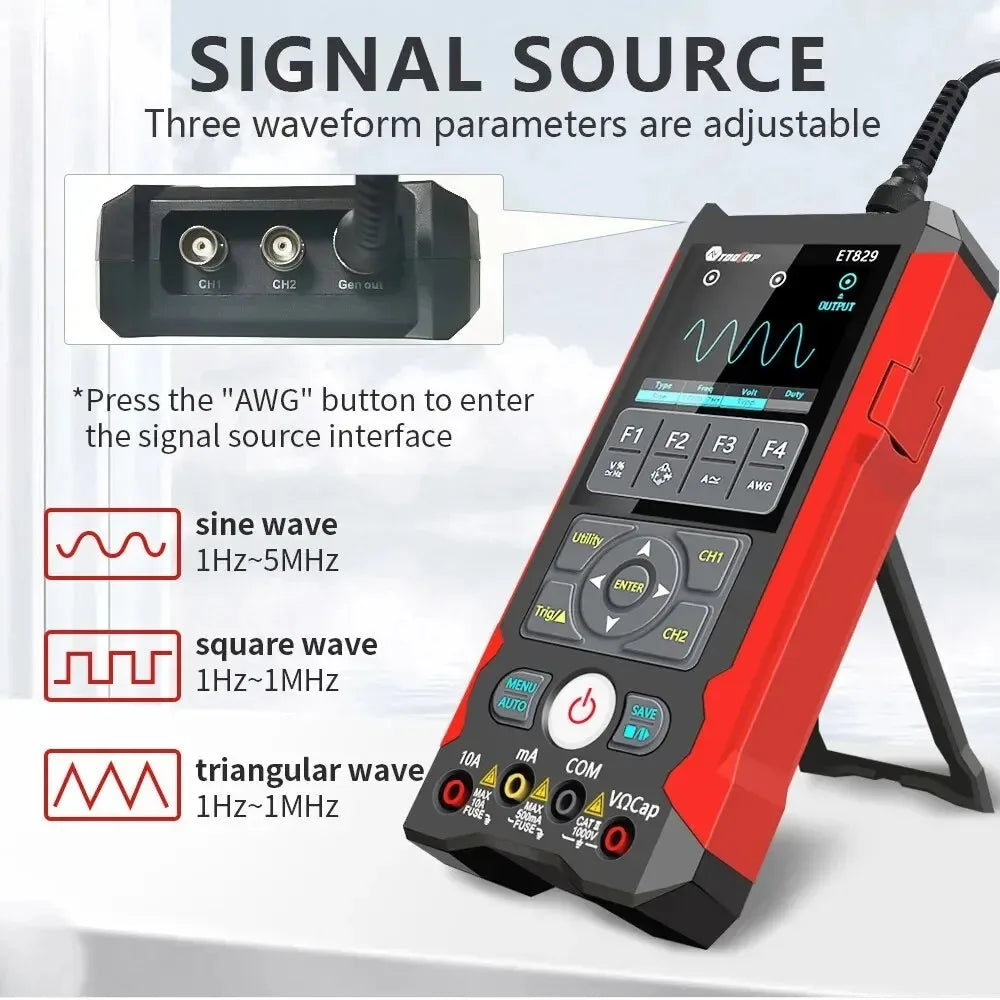

• Sinuswellen: 1Hz-5MHz
• Rechteckwellen: 1Hz-500KHz
• Dreieckswellen: 1Hz-500KHz
• Vertikale resolution: 8 Bit
• accuracy the Rechteckwellenbreite: ±20nS
