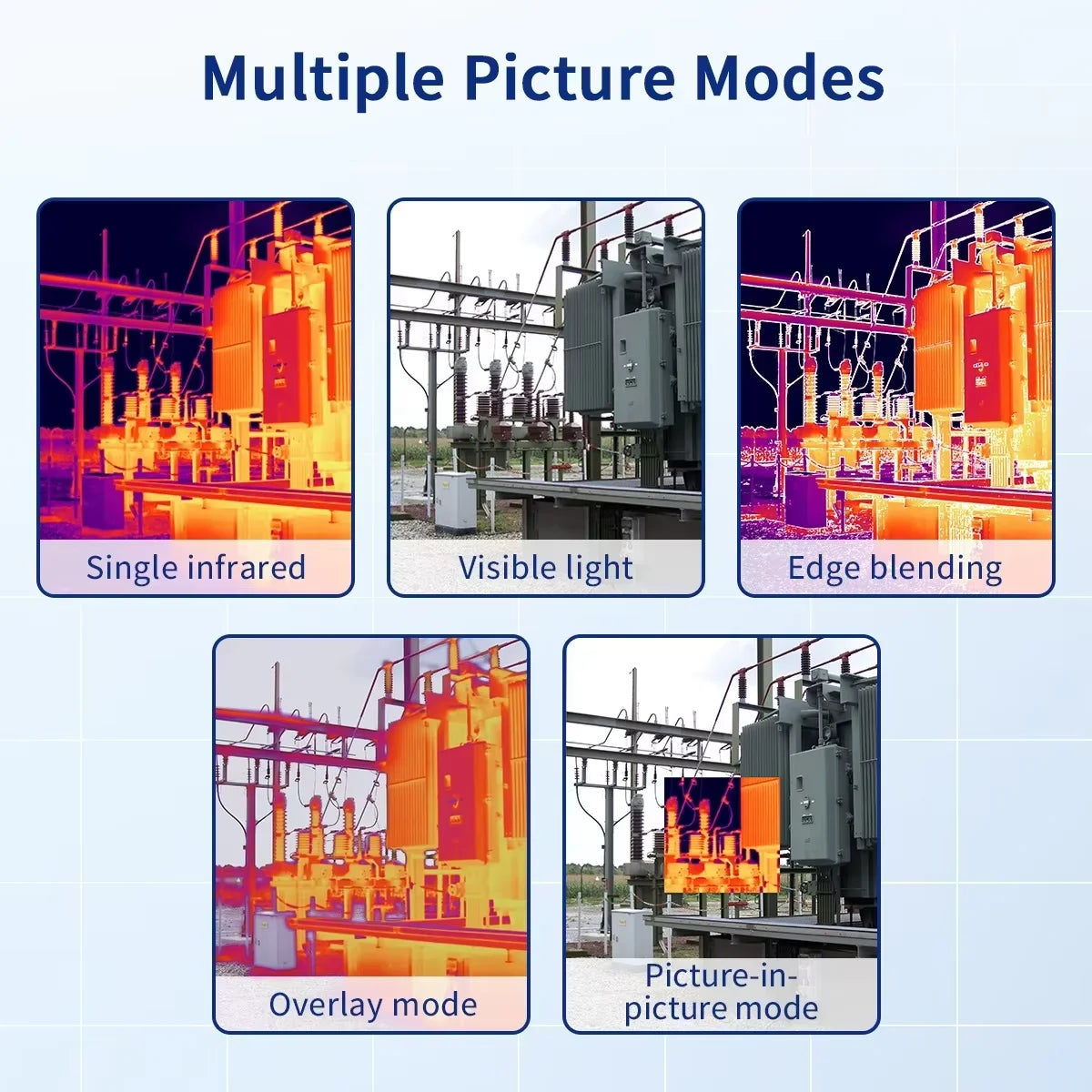

The TOOLTOP ET693C combines a 256 × 192 infrared detector with a 1080P visible-light camera for inspection, maintenance and fault-finding. Thermal, visible, picture-in-picture and fusion views help relate temperature patterns to the physical equipment being examined.
Imaging system
- Infrared resolution: 256 × 192 pixels.

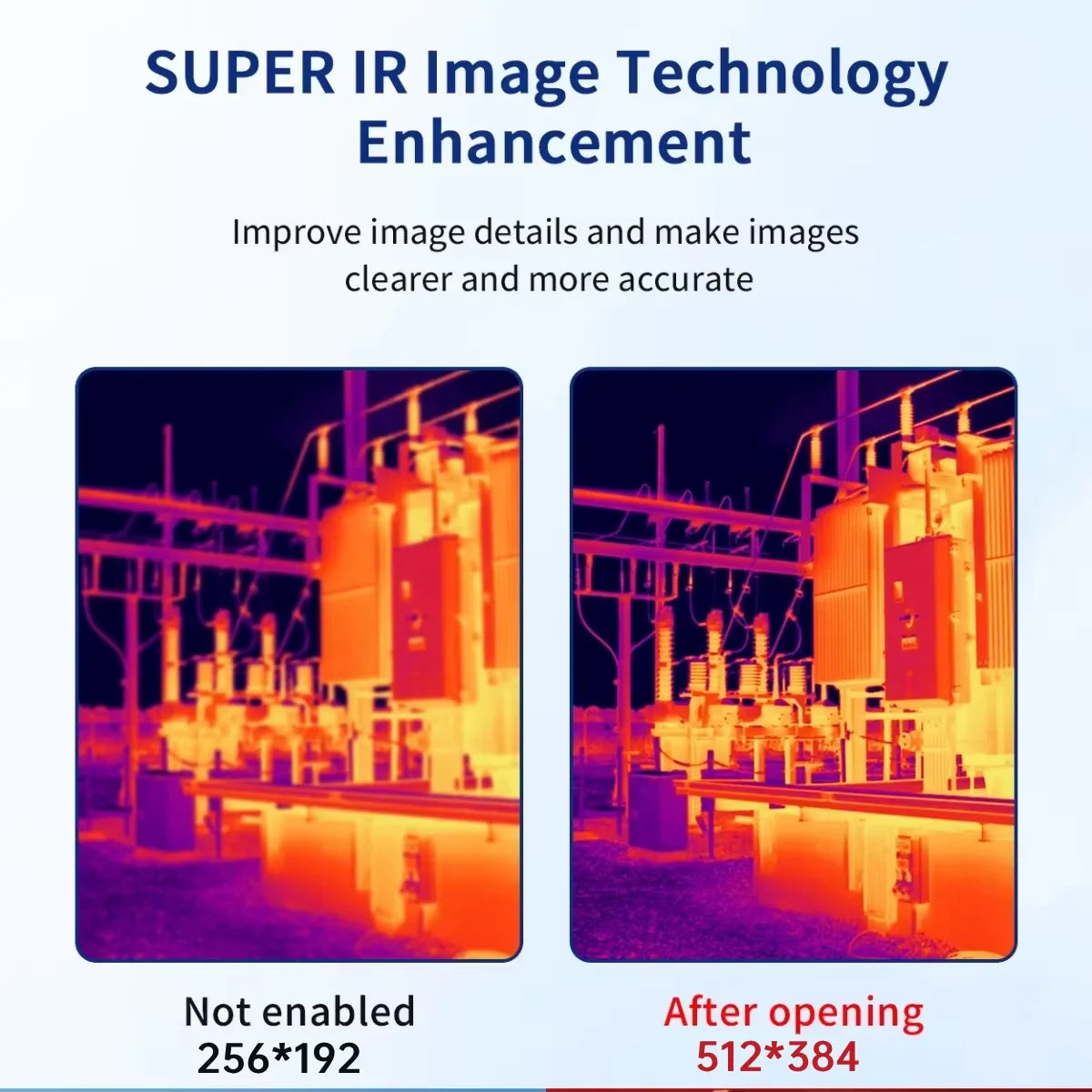

- Super IR image enhancement output: up to 512 × 384 pixels.

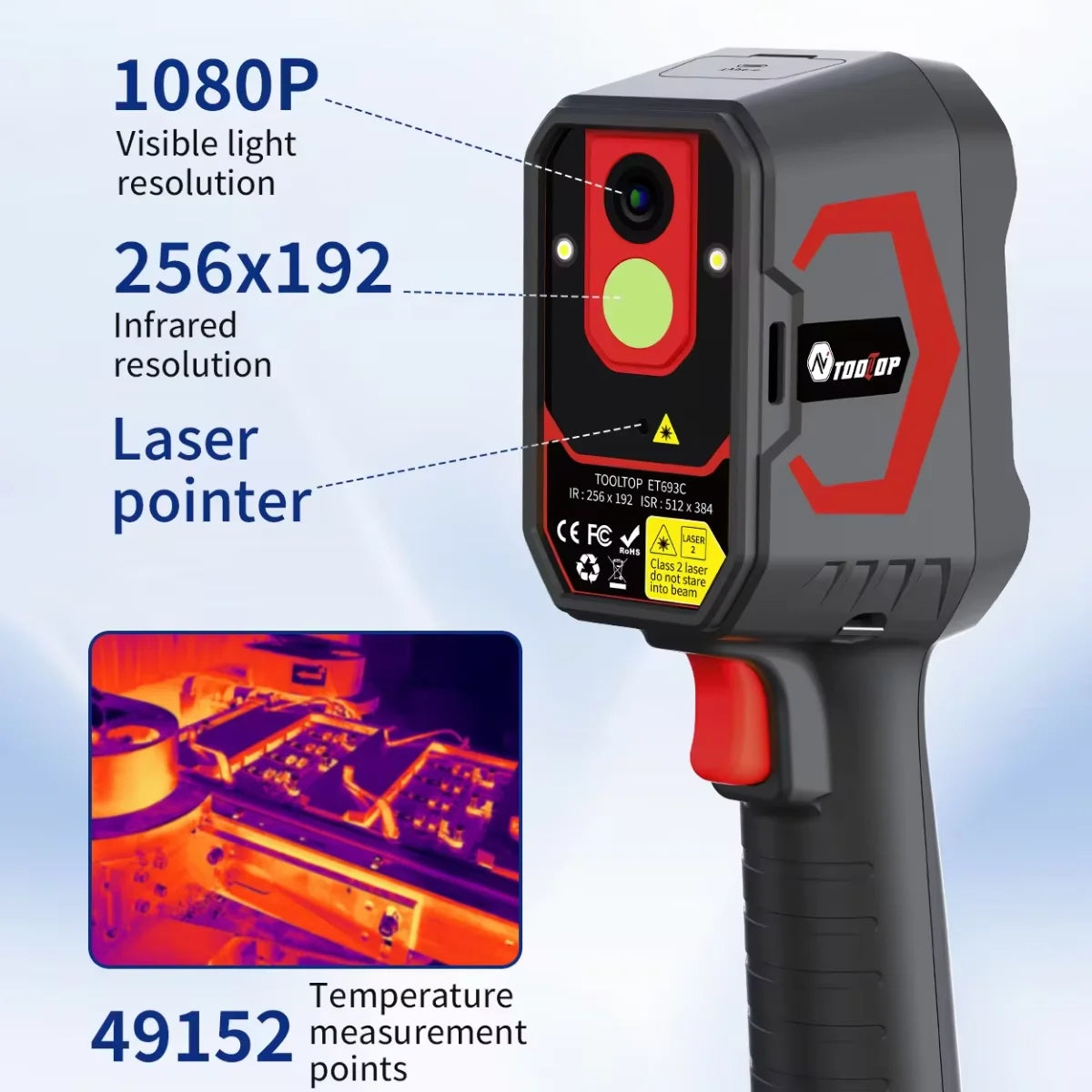

- Visible-light camera: 1080P.
- Thermal refresh rate: 25 Hz.
- Thermal sensitivity: less than 50 mK at 25°C.
- Field of view: approximately 42° × 56°.
Temperature measurement
- Measurement range: -20°C to 550°C.
- Reference accuracy: ±2°C or ±2% of the reading, whichever is greater.
- Nine colour palettes for highlighting different thermal patterns.
- Adjustable emissivity and reflected-temperature settings for different surfaces.
- Laser pointer for orientation; the laser is not the temperature measurement sensor.
Typical applications
Suitable tasks include checking electrical panels and terminals, locating overheated components, comparing bearings and motors, observing heating systems, inspecting insulation and tracing temperature distribution across equipment. A thermal image indicates surface temperature patterns and should be combined with normal electrical or mechanical diagnostic procedures.
Storage and power
- 2.8-inch display.
- 8 GB internal storage for images and records.
- USB-C connection for charging and data transfer.
- 2600 mAh rechargeable battery with approximately four hours of typical operation.
Measurement notes
Shiny bare metal, glass and other low-emissivity surfaces can produce misleading readings because they reflect surrounding thermal energy. Adjust emissivity where the surface value is known, or use a suitable high-emissivity reference patch. Keep the lens clean, allow the camera to acclimatise after large temperature changes and never look directly into the Class 2 laser.
