Product Summary
TOOLTOP ET692B Handheld Infrared & Visible Light Thermal Imager 160*120 Thermal Camera 25Hz is a thermal inspection tool selected for finding hot spots, checking heating patterns and troubleshooting faults. It is suitable for maintenance users, HVAC technicians and electronics repair users who need practical electronics hardware for reliable project work.
Best For
- finding hot spots, checking heating patterns and troubleshooting faults
- building inspection, PCB repair and equipment maintenance
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for maintenance users, HVAC technicians and electronics repair users.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Note:
1. In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a pause of about 1-3 seconds, which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don't worry

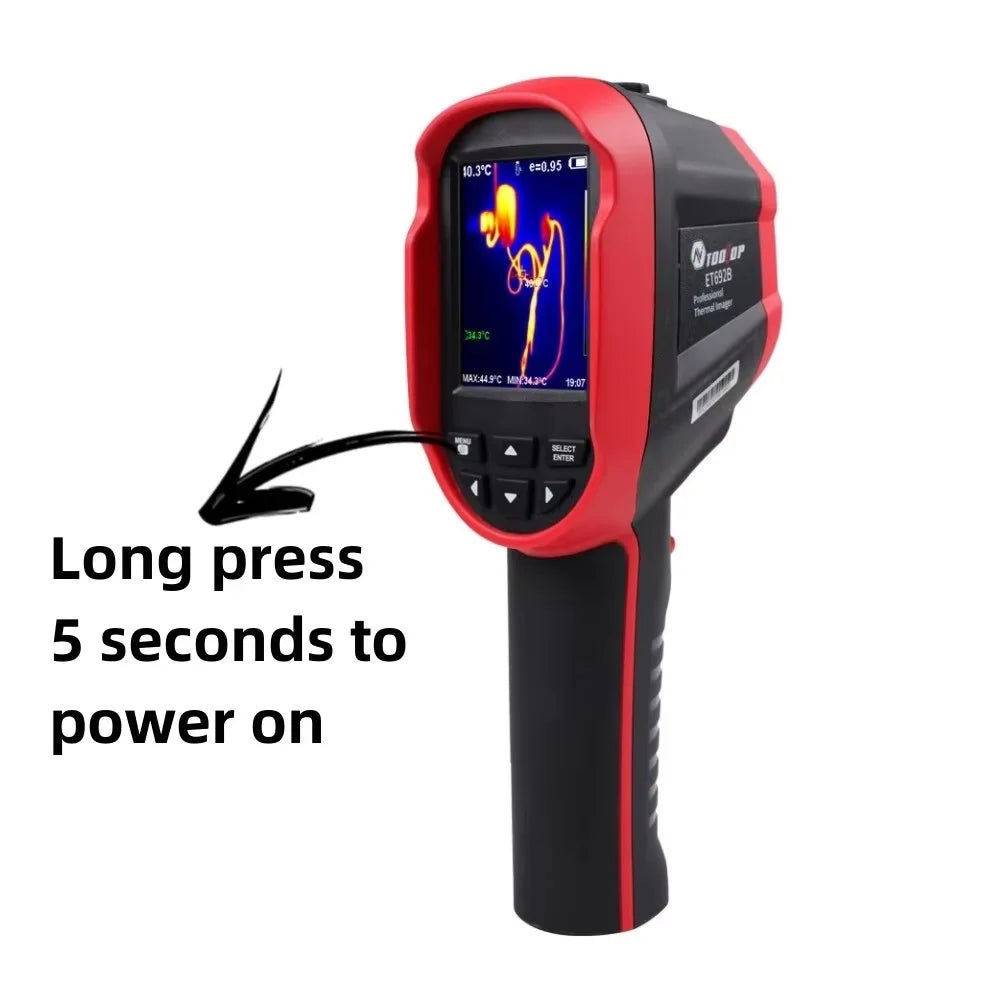

2. Please press and hold for 5 seconds to power on.

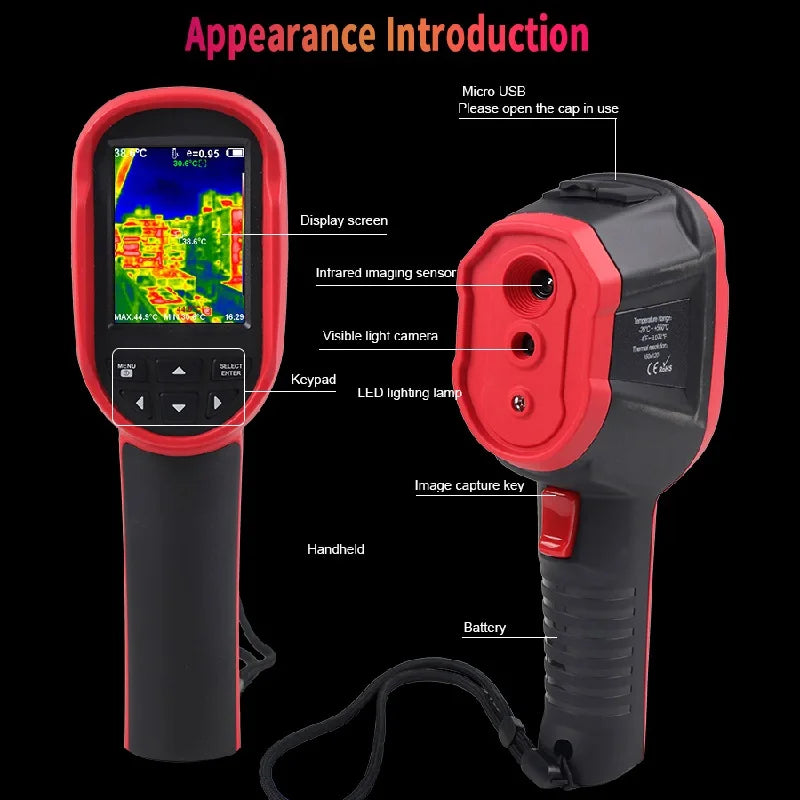

Features:
[Sturdy and durable] : high-level protections and industrial-level quality, with comfortable soft rubber buttons
[Highly sensitive infrared sensor]: 160*120 IR sensor ,25Hz frame rate quickly images refreshing, and clear imaging.
[Large Screen] 2.8inch large TFT full viewing angle screen with 640*480 visible light resolution
[Real-time measurement]: with -20 deg C to +550 deg C/-40 deg F to +1022 deg F measurement ranges, suport deg C and deg F switch.
[5 imaging modes design]:rainbow, iron oxide red, cold color, black & white, white & black five imaging modes can be select
[3 imaging display modes]: Infrared mode, visible light mode, infrared visible light fusions mode(25%, 50%, 75%, 100.0%).
[4 languages]: support Chinese/English/German/Italian , time and date setting, with LED light.
[PC analysis] :Support photo-taking and video recording function, data can be output to the computer through Micro USB, support win xp, win7, win8, win10 system, and support offline analysis on computers.

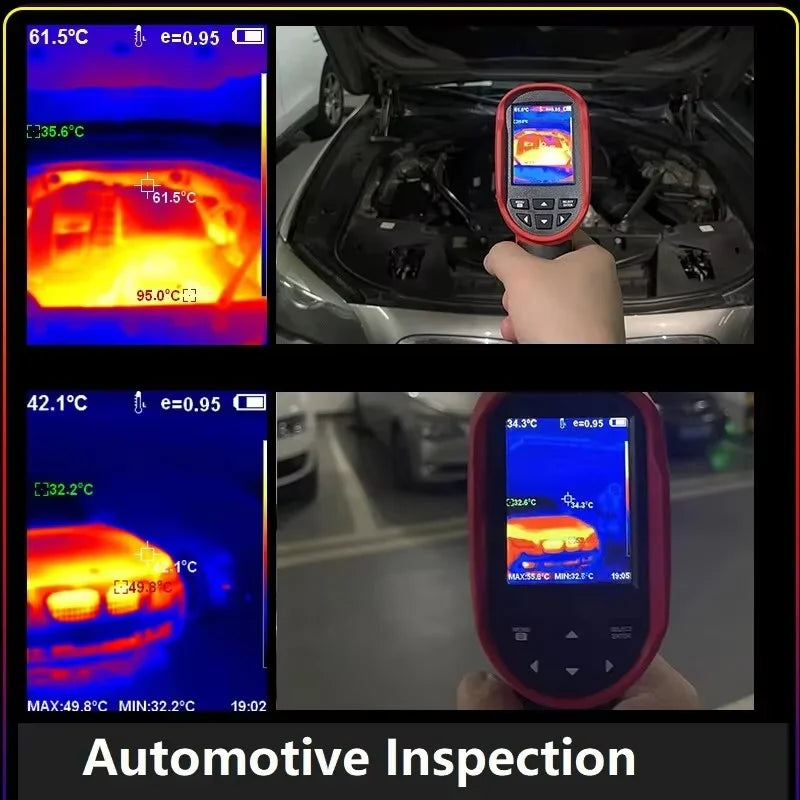

[Widely used] : In building inspection, vehicle maintenance inspection, automotive parts temperature detection, floor heating detection, electrical inspection, motor fault detection, temperature monitoring of industrial parts, etc.
Specifications:
Name: Thermal Imager
Material: Plastics
Battery: 1 * Removable Rechargeable Lithium Battery,2200mAh(included)
Infrared resolution: 160*120
Infrared response band: 8 to14um
NETD: ≤50mK @25 deg C,@F/1.1
Lens focal length: 3.2mm
IFOV: 3.75mrad
Field angle: 35 deg *27 deg
Focus mode: Free focus
Temperature measurement ranges: -20 deg C to +550 deg C(-4 deg F to 1022 deg F)
Measurement accuracy: ±2 deg C(35.6 deg F) or ±2%
Temperature measurement resolution: 0.1 deg C
Temperature measurement mode: center point/hot and cold spots tracking
Color palette: Rainbow, iron oxide red, cold color, black & white, white & black
Emissivity setting: Adjustable from 0.01 to 1.00
Thermal imaging frame rate: ≤25Hz
Visible light resolution: 640*480
2.5-inch display size (240 x 320)
Imaging display mode: Infrared/visible light/dual light fusion
Lighting system: LED fill light
Device storage: Built-in 4G eMMC (user available storage space is about 3G)
Storage Images/Video Format: JPG/MP4
Images/video export method: USB connection to computers export
Imaging analysis function: Support offline analysis on computers
Menu language: English、Chinese、Italian、German
Working time: 2 to 3 hours
Power interface: Micro USB
Power configuration: 5 minutes / 20 minutes / no automatic
shutdown
Work temperature: -10 deg C to +50 deg C
Storage temperature: -20 deg C to +60 deg C
Relative humidity: 10% to 85%RH (non-condensing)
Item Size: 96*72*226mm/3.78*2.83 * 8.90in
Item weight: 389g / 0.86lb
Package size: 260*130*90mm/10.24*5.12 * 3.54in
Package weight: 880g / 1.94lb

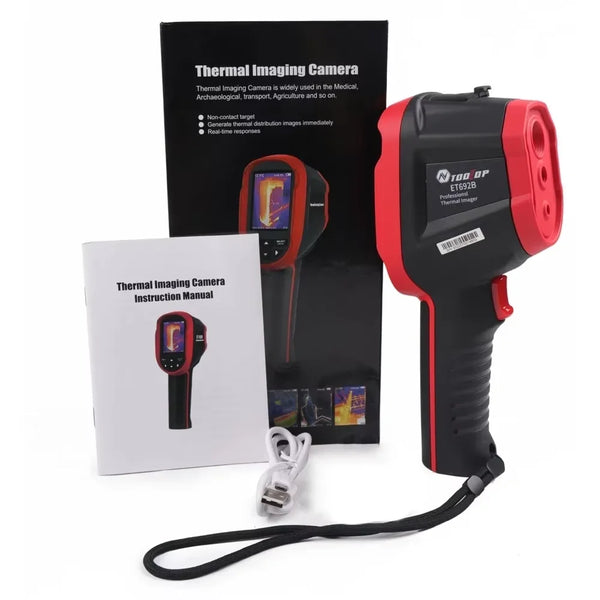

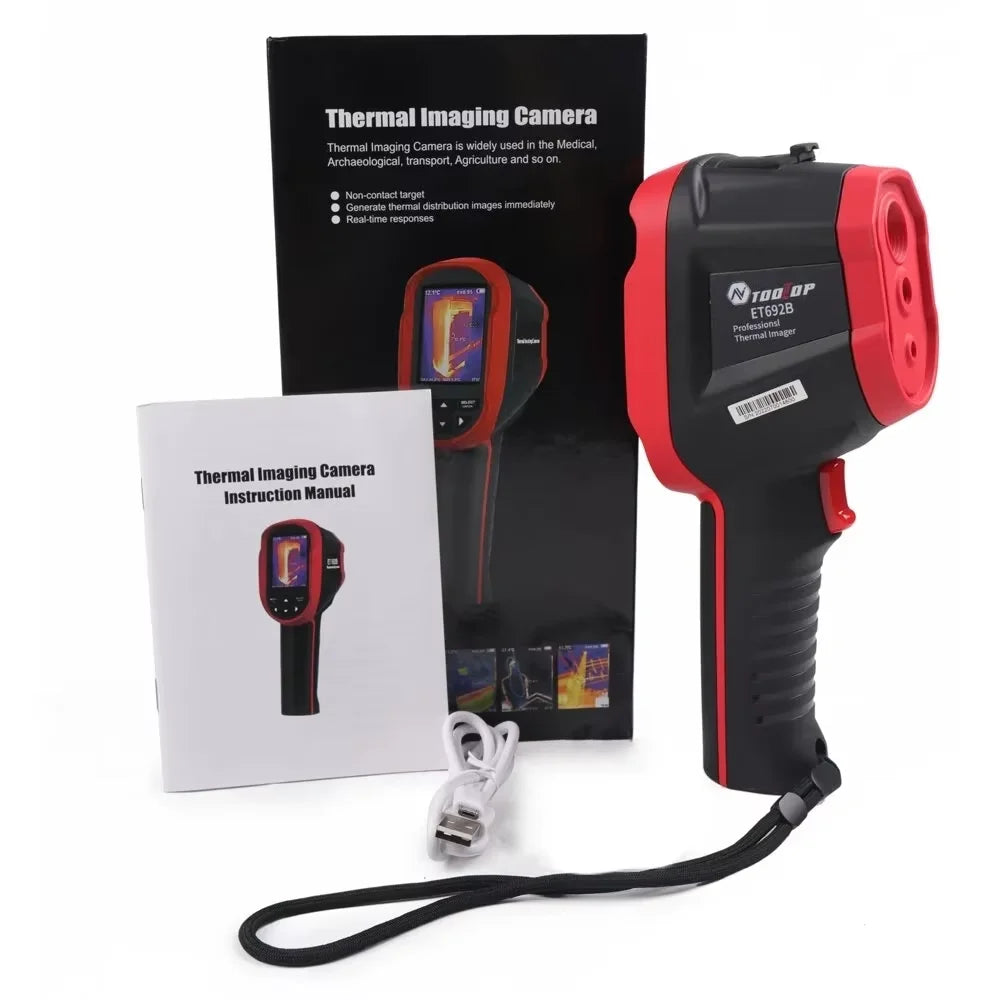

Packing List:
