TOOLTOP ET15S 256*192 Thermal Multimeter 3.5-inch Industry Thermal Camera 19999 Counts T-RMS Multimeter HVAC Heating PCB Inspect

Note:

1.In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated about every 10 seconds to ensure more accurate measurements. This is a thermal imaging detector undergoing calibration work, which usually experiences a lag of about 1-3 seconds. This is a normal phenomenon, so please don't worry.

2.PC Software Download: http://doctuchuang.eirbio.FR02E_EN/IR-DMM.zip

3.For PCB circuit board inspection, it is recommended to buy the version containing a macro lens

Features:

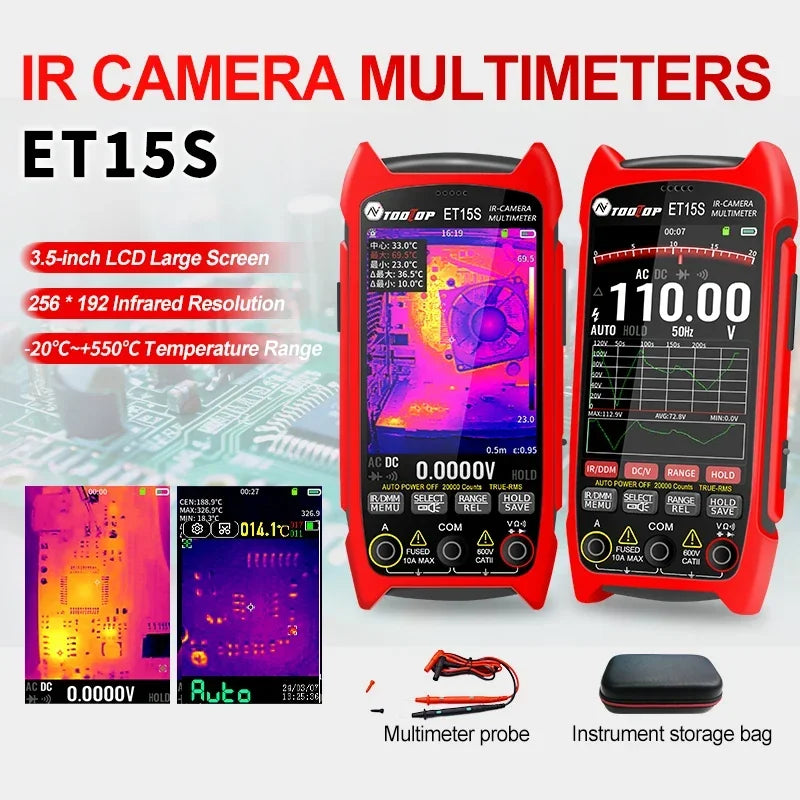

Industrial-grade Thermal Camera

- 256x192 resolution 25Hz thermal imaging sensor

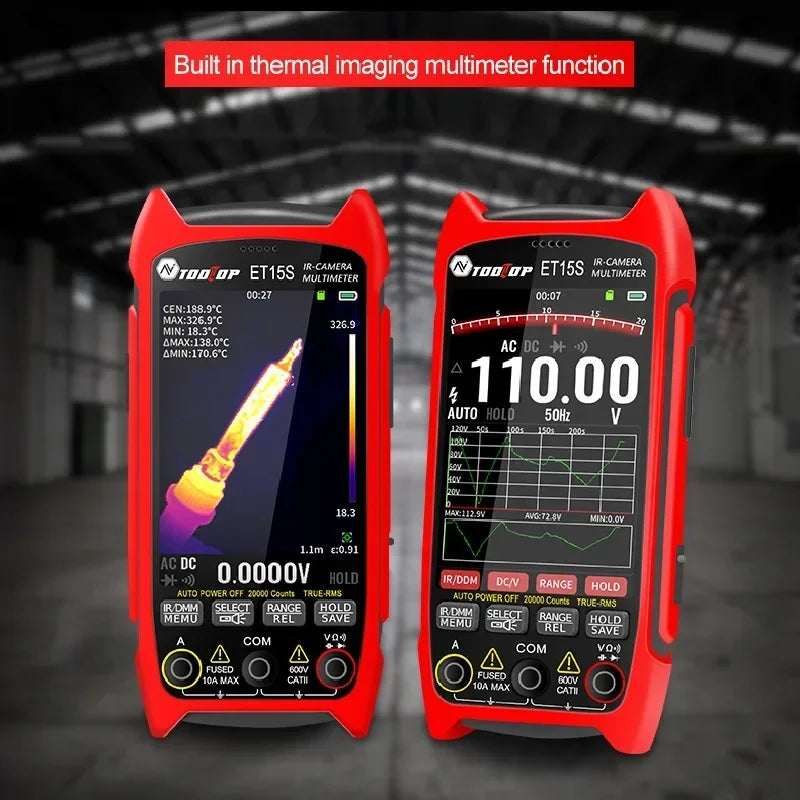

- In thermal imaging mode, multimeter can also be used.

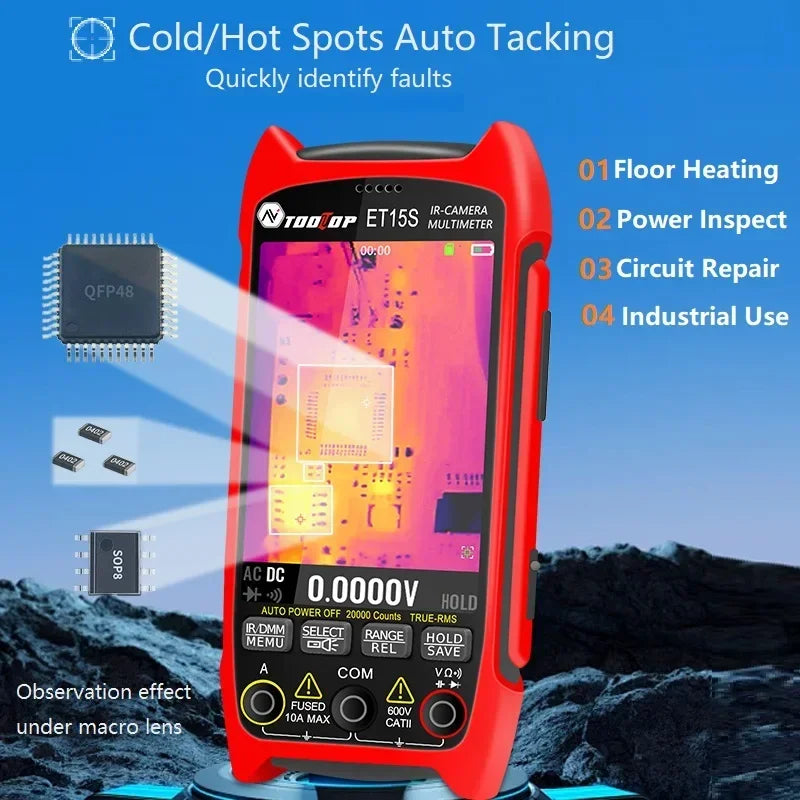

- suitable for: underfloor heating leaks, HVAC maintenance, power system inspections, electronic repairs, and industrial inspect.

High-Precision Multimeter with 19,999 Counts

- manual and automatic range options

- analog needle display

- Maximum input DC voltage up to 1000V

voltage, current, resistance, capacitance, diode, frequency, NCV temperature measurements

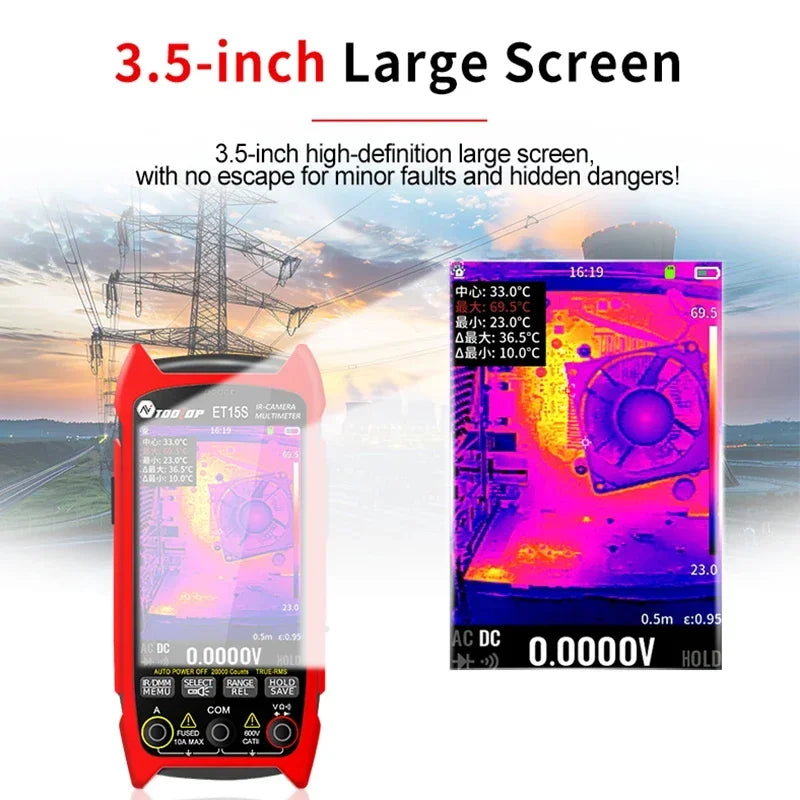

Clear Display with Rich Color Options

- 3.5 inches large IPS screen with a resolution of 320x480

- 15 selectable color palettes, easily switching by long pressing the side button

Waveform Visualization

The multimeter measurement results can be visualized as waveform graphs, clearly understand data trends and simplify fault analysis.

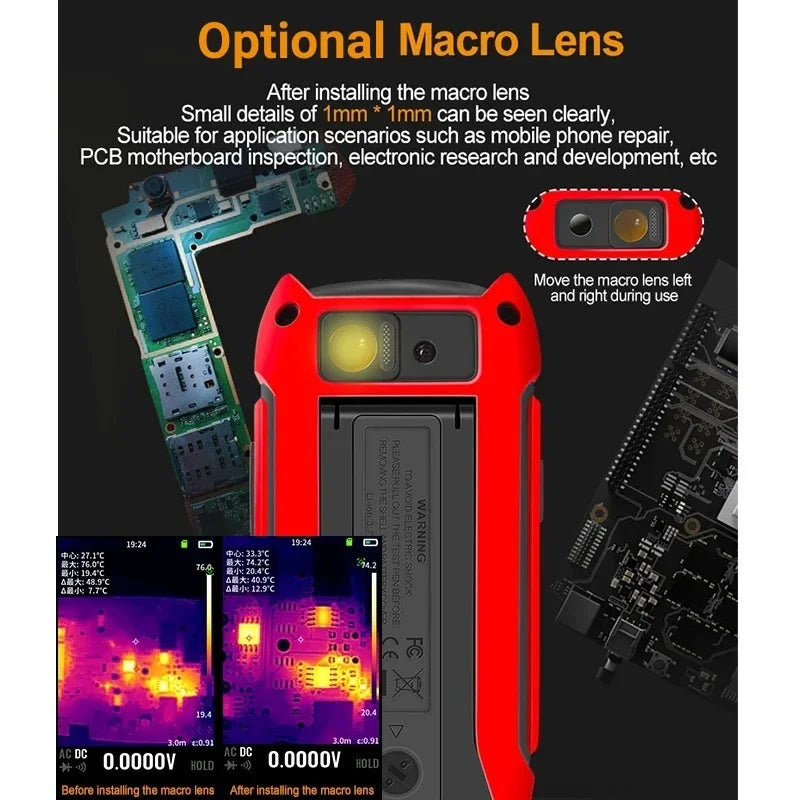

Optional Macro Lens

captures small details as clear as 1mm x 1mm, ideal for smartphone repairs and PCB mainboard inspections.

vailable in 11 languages

Including Chinese, English, German, Russian, French, Spanish, Portuguese, Korean, Japanese, Italian, and Polish, catering to global users.

Strong Battery Life and Convenient Charging

Powered by a detachable 18650 lithium battery with a runtime of up to 8 hours, reliable USB charging.

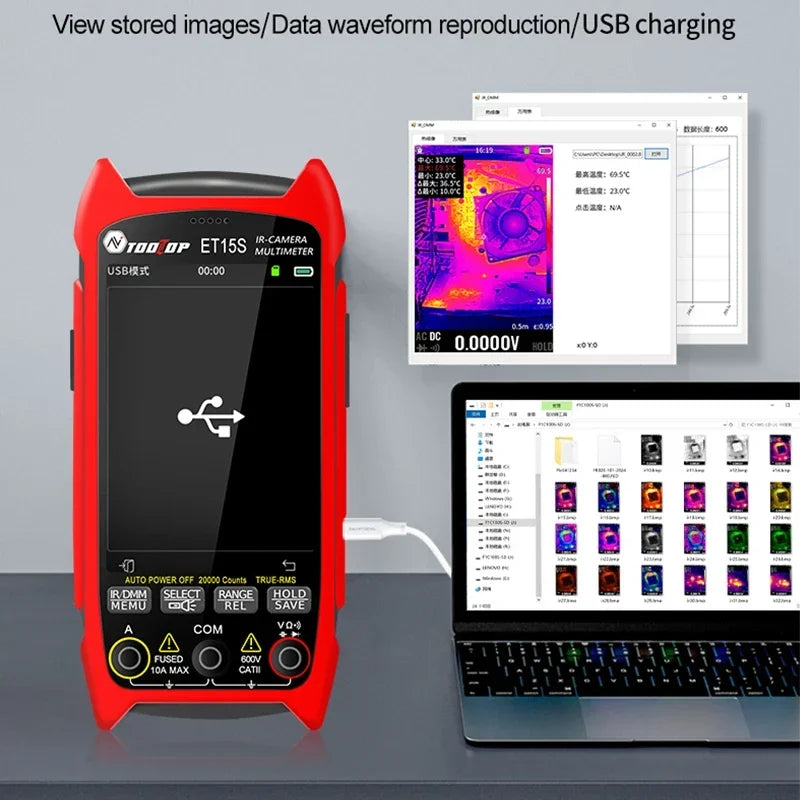

PC Software Support

Can transfer and analysis the multimeter data chart and thermal image

Specifications:

Thermal imaging parameters

Sensor: Vanadium oxide (VOx)

Image capture frequency:25Hz

Thermal imaging pixels:256x192

Display image resolution:427 x 320

Field of View (FOV):50.0 deg (H) x 37.2 deg (V)

Emissivity:0.1 - 0.99 adjustable,(0.95 by default)

Temperature range:-20 deg C - +550 deg C

Gain mode: Auto Gain

Color palette: White Heat, Black Heat, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Dark Brown, Color 1, Color 2, Ice Fire, Rain, Green Heat, Red Heat, Deep Blue

Accuracy:±2 deg Cor±2%

Measurement resolution:0.1 deg C/0.1 deg F

Macro Lens: Optional, no need to install, move the macro lens left and right during use.

Macro lens working distance: about 5cm, (please use normal thermal imaging when the distance exceeds this, otherwise the image will become blurred)

Multimeter parameters

Display:19999 counts, Updates 3/sec

DC maximum input voltage:1000V

AC maximum input voltage:750V

Maximum current measurement:10A

The maximum resistance:99.99M ohm

The maximum capacitance:199.99mF

Duty cycle test range:0.1% - 99.9%

Diode test range:0V - 3V

Continuity test:199.99 ohm

Other parameters of the equipment

Display type:3.5-inch 320 * 480 resolution

USB interface: Type-C USB

Storage capacity: includes a 4G TF card and supports a maximum of 64G TF card (not included).

Battery Type: Detachable 18650 Lithium-ion battery

Storage temperature:-20-60 deg C(-4-140 deg F)

Operating temperature:0-50 deg C(32-122 deg F)

Operating Humidity:<85%RH ( non-condensing )

Size: 134 mm * 64mm * 28 mm

Weight: Host weight: 198g (including battery), packaging weight: 390g

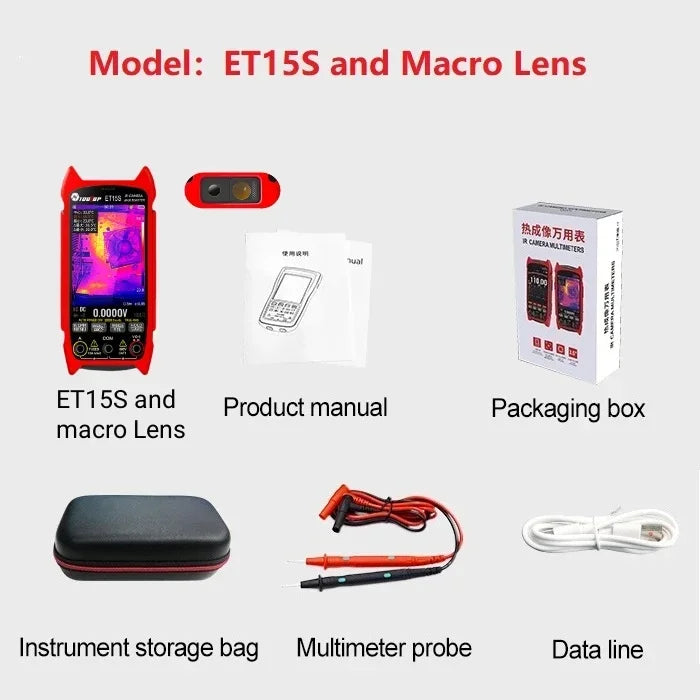

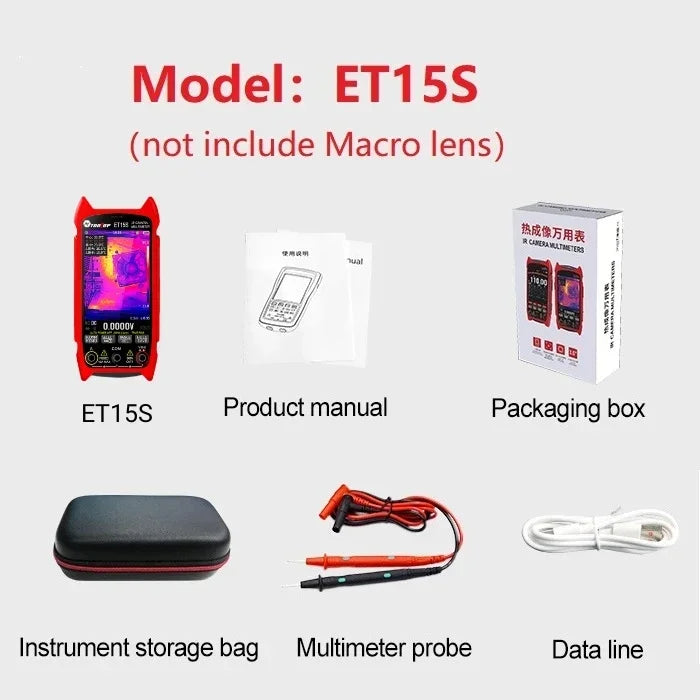

kit List:

1 x Thermal Camera Multimeter

1 x USB Cable

1 x English Manual

1 x storage bag

1 x multimeter probe

1 x Macro Lens (for optional)
