Product Summary
TOOLTOP ET14S 2.8inch Thermal Imager AC/DC Current Voltage Multimeter ISR 240x240 IR Camera is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. It is suitable for electricians, repair users and electronics hobbyists who need practical electronics hardware for reliable project work.
Best For
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Note:
1.In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. This is a thermal imaging detector undergoing calibration work, which usually experiences a lag of about 1-2seconds. This is a normal phenomenon, so please don't worry.
2.PC SoftwareDownload: http://doctuchuang.eirbio.FR02E_EN/IR-DMM.zip
3.For PCB circuit board inspection, it is recommended to buy the version containing a macro lens
Features:

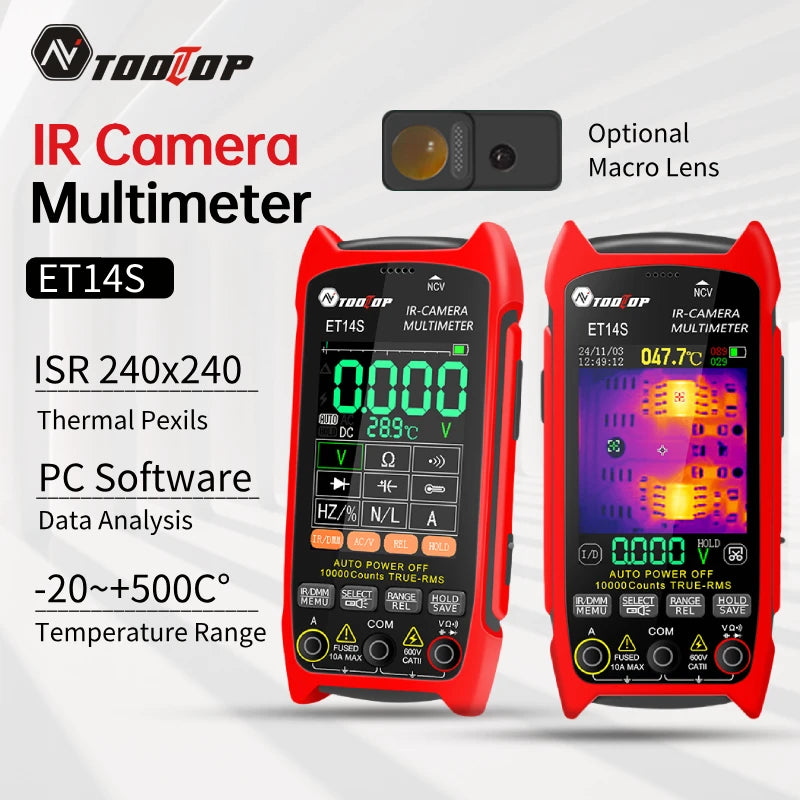

ISR240x240 Thermal Camera
Upgraded imaging pixels of 240x240 and 25hz image capture frequency, providing clearer and more detailed thermal images. With optional macro lens.
High-precision Multimeter

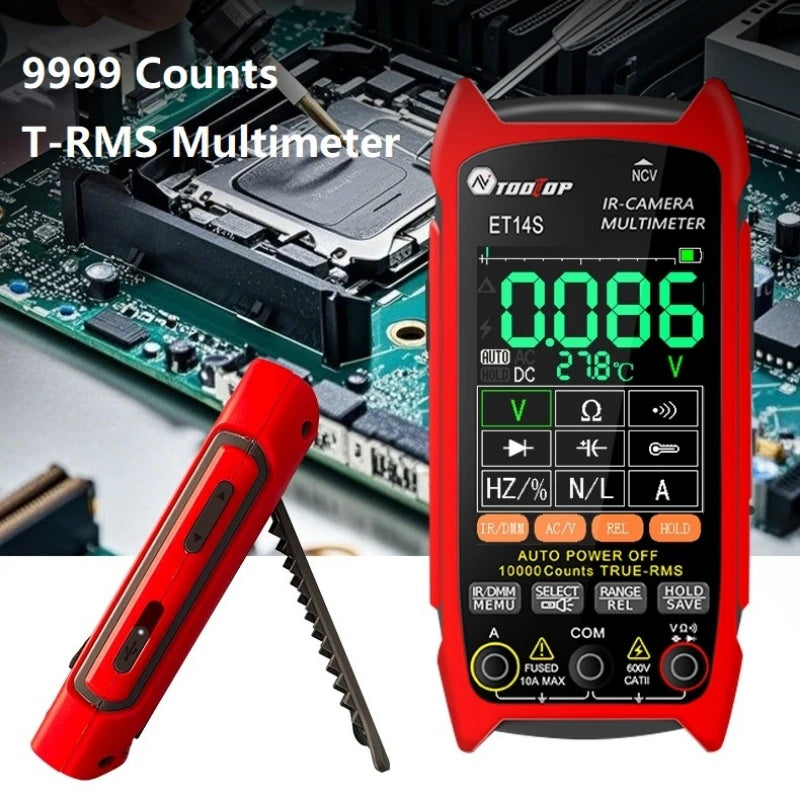

9999 counts True RMS multimeter, AC DC current and voltage measurement, also includes functions such as resistance, capacitance, diode, buzzer and duty cycle test.
PC Software Analysis
allows for the transfer and analysis of thermal images and multimeter voltage measurement results charts under USB Mode

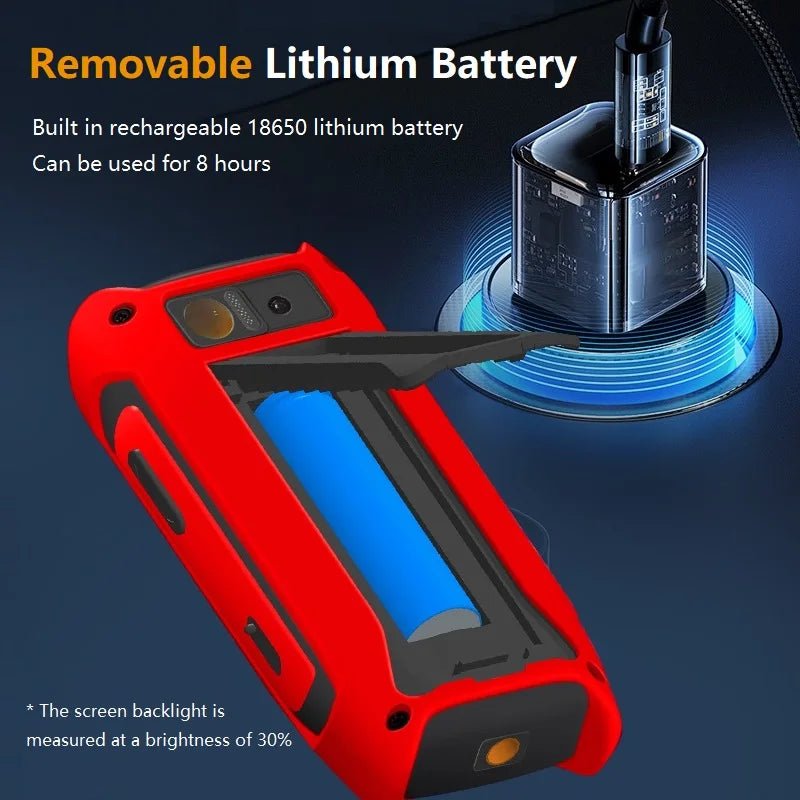

Detachable Lithium Battery
Up to 8 hours of continuous use. The universal 18650 battery design allows for easy replacement, eliminating concerns about battery aging.
Widely Applications

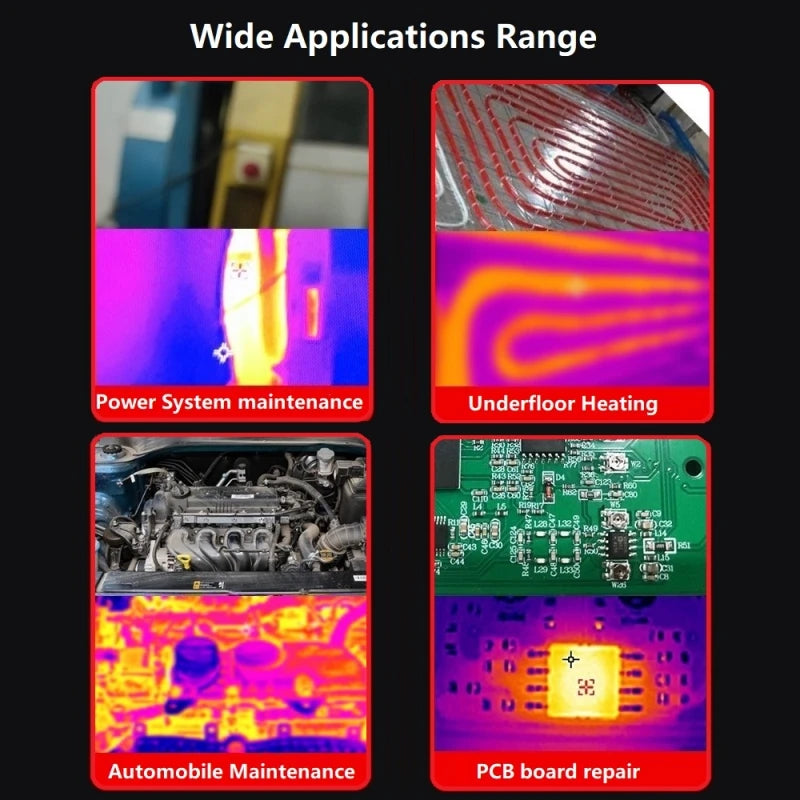

for Home appliance overhaul, circuit board inspection, power supply and electronic equipment maintenance. It's an ideal for electronics and maintenance technicians
Compact and Portable

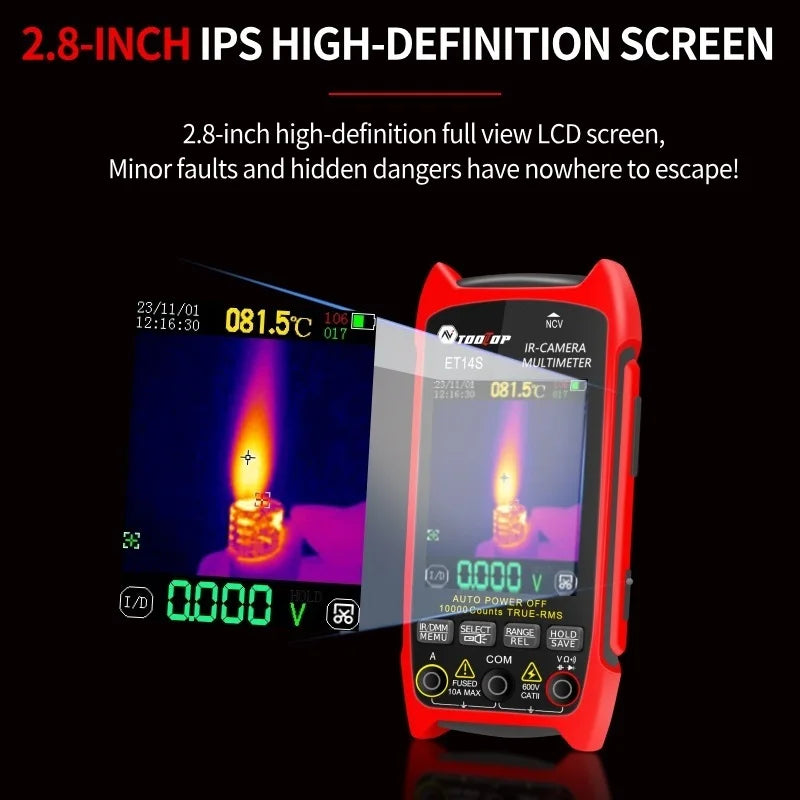

with a 2.8-inch large screen and innovative stand design, this device offers convenience and versatility for all your viewing needs.
Specifications:
Thermal imaging parameters
Image capture frequency: 25Hz
Thermal imaging pixels: ISR 240x240
Field of View : 50.0 deg (H) x 50 deg (V) /72.1 deg (D)
Emissivity: 0.1 - 0.99 adjustable,(0.95 by default)
Temperature range: -20 deg C - +550 deg C
Gain mode: Auto Gain
Color palette: Iron Red, Rainbow, Fusion, White Heat, Red Heat
Accuracy: ±2 deg Cor±2%
Measurement resolution: 0.1 deg C/0.1 deg F
Photos Taking and viewing: support

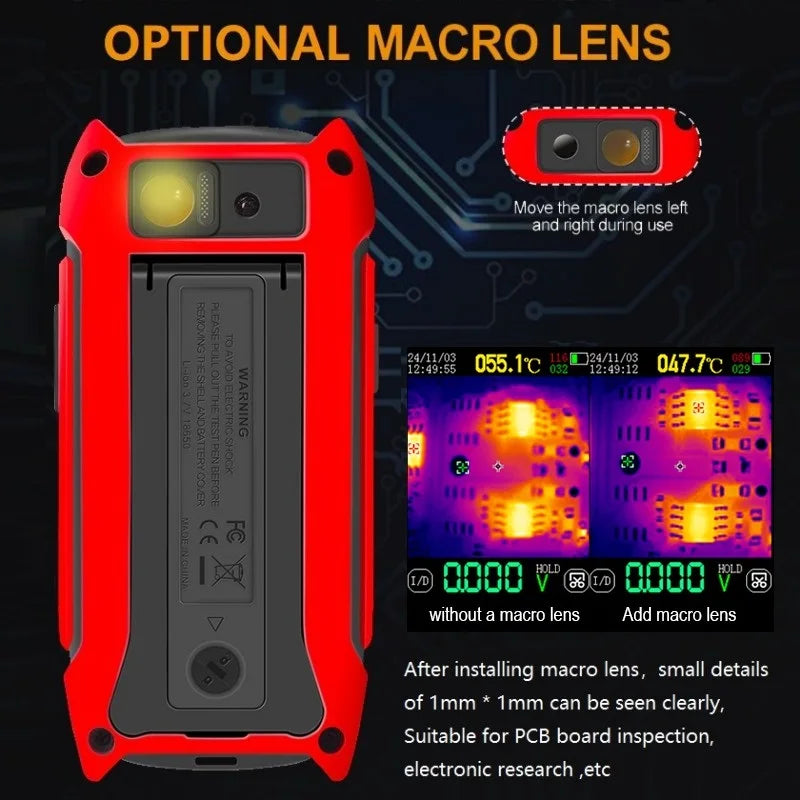

Macro Lens: Optional, no need to install, move the macro lens left and right during use.
Macro lens working distance: about 2.5cm, (please use normal thermal imaging when the distance exceeds this, otherwise the image will become blurred)
Multimeter parameters
Display word count: 9999 counts, Updates 3/sec
DC maximum input voltage: 1000V
AC maximum input voltage: 750V
Maximum current measurement: 10A
The maximum resistance: 99.99M ohm
The maximum capacitance: 99.99mF
Duty cycle test range: 0.1% - 99.9%
Diode test range: 0V - 3V
Continuity test: 999.99 ohm
Other parameters of the equipment
Display type: 2.8-inch, 240 * 320 resolution
USB interface: Type-C USB
Storage capacity: 7.5MB
lmage storage format: BMP
Battery Type: Detachable 18650 Lithium-ion battery
Languages: Chinese,English,German
Storage temperature: -20-60 deg C(-4-140 deg F)
Operating temperature: 0-50 deg C(32-122 deg F)
Operating Humidity: <85%RH ( non-condensing )
Size: 134 mm * 64mm * 28 mm
Weight: Host weight: 180g (including battery)
packaging weight: 380g

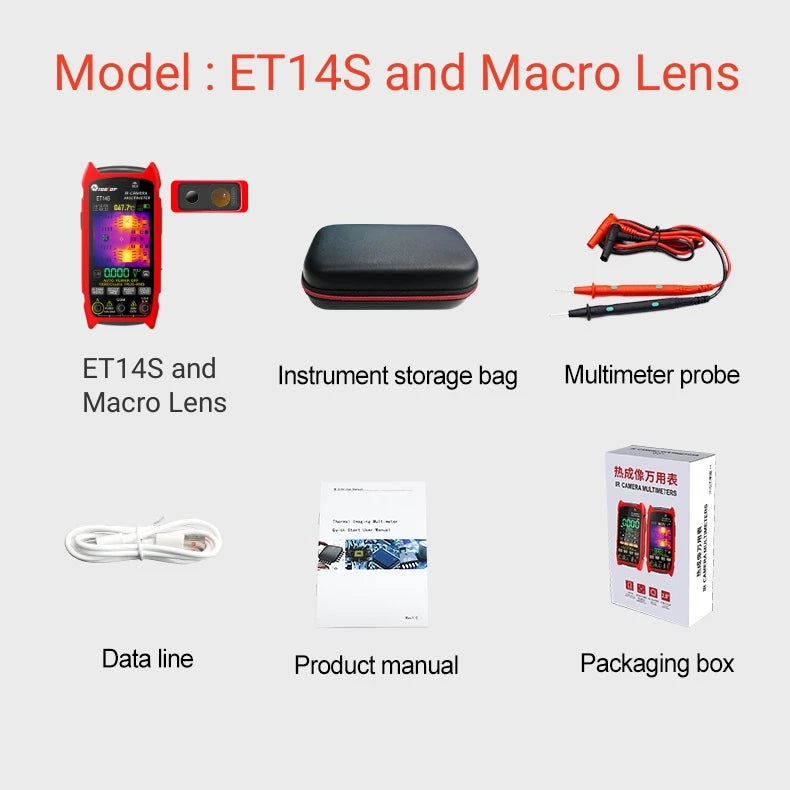

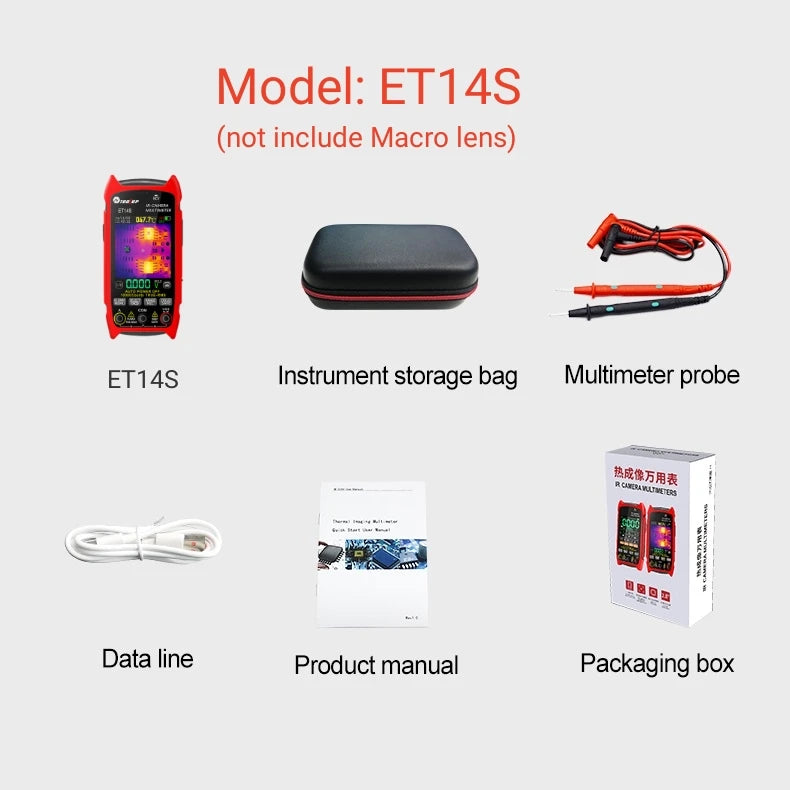

kit List:
1 x Thermal Camera Multimeter
1 x USB Cable
1 x English Manual
1 x Storage Bag
1 x Multimeter probe
1 x Macro Lens (for optional)
