T36C Mini Whip Active Receiving-Antenna Interface

This enclosed active-antenna interface is intended for Mini Whip receiving systems used with VLF, LF, HF and compatible SDR receiver setups. The enclosure separates antenna, ground, receiver and power connections.

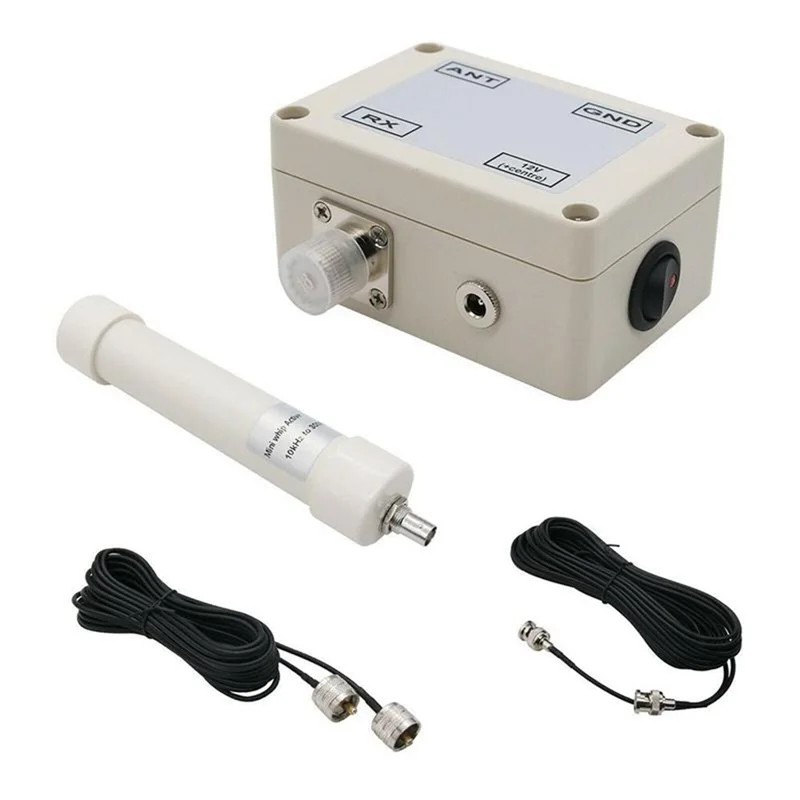

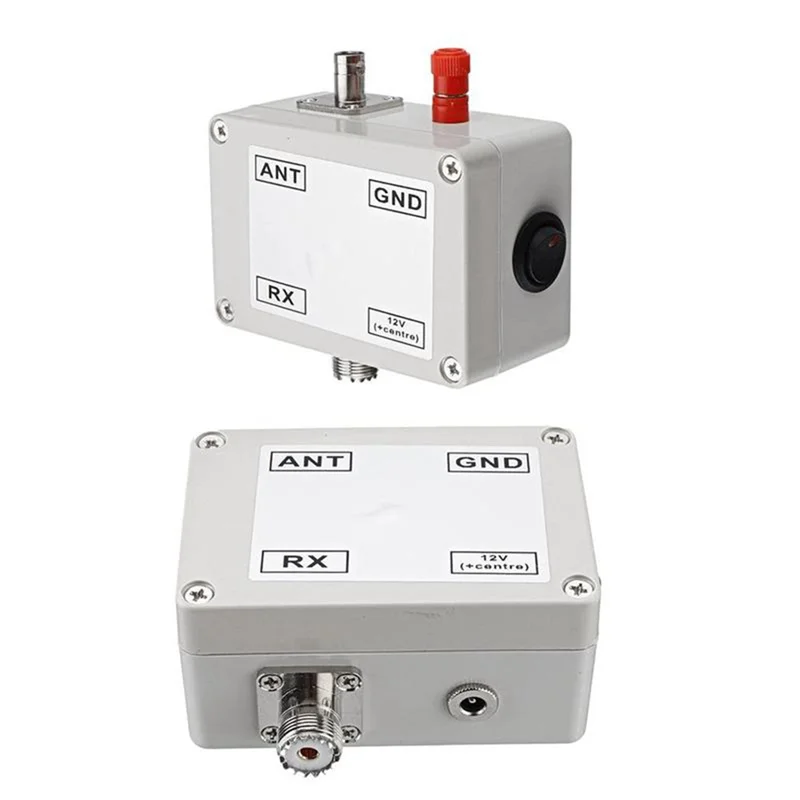

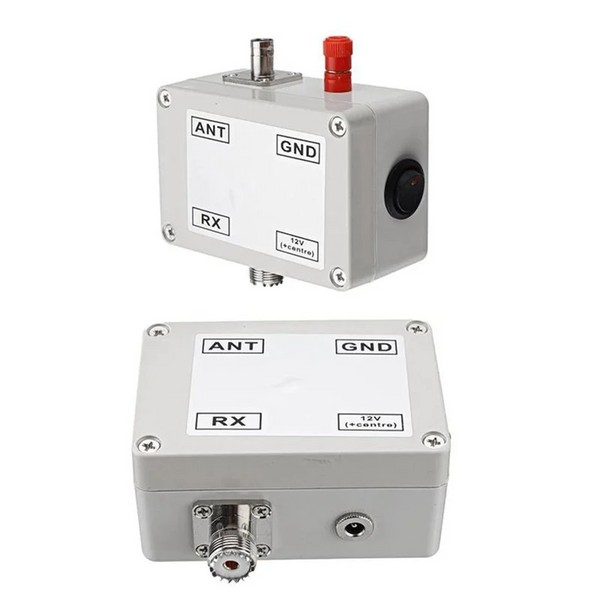

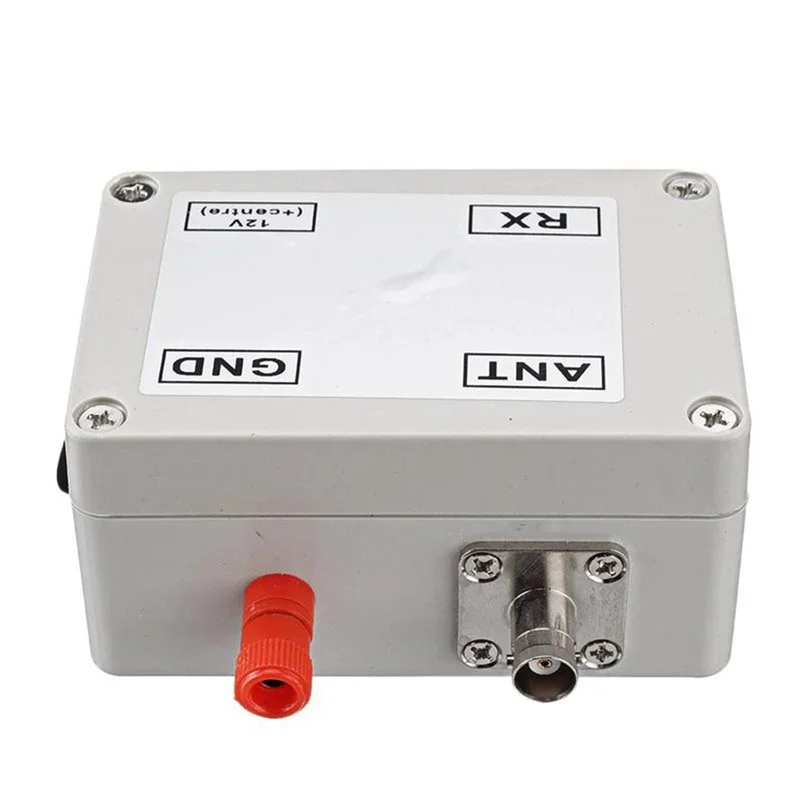

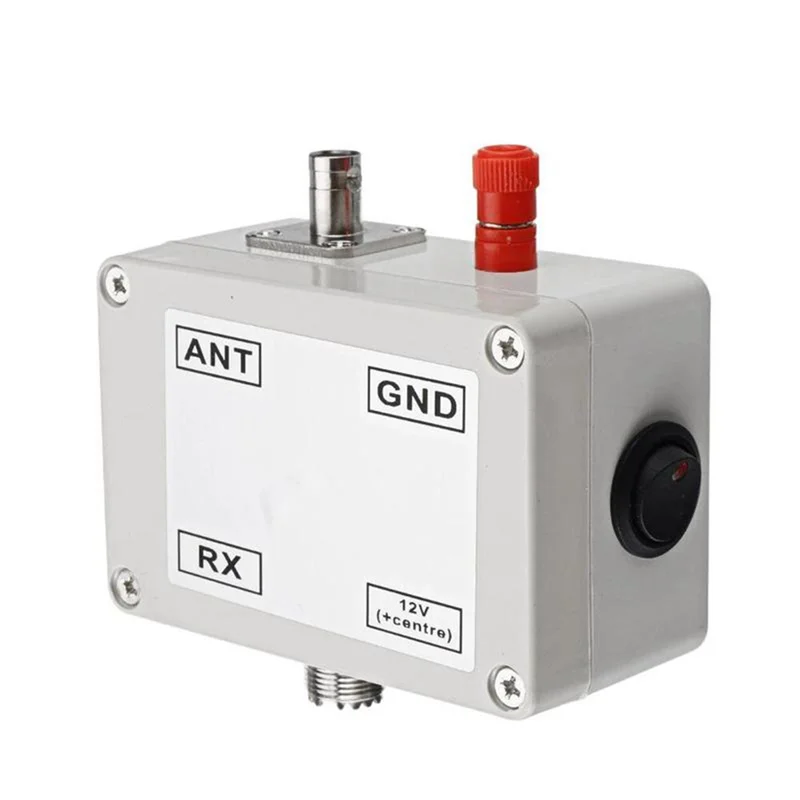

Visible Connections

• ANT terminal for the active antenna element.
• Dedicated GND terminal for the station or antenna ground.
• RX coaxial output for connection to the receiver.
• 12 V centre-positive DC input and power switch.

Installation Notes

• Use this unit for reception only; do not connect a transmitter to the RX port.
• Confirm the receiver-cable connector and antenna-element requirements before installation.
• Place the antenna element away from local digital noise sources and use an appropriate ground arrangement.
• Verify supply polarity before power-on.

Frequency Expectations

Usable coverage depends on the active element, feed arrangement, receiver and local interference. No narrower numeric frequency claim is added here because the available same-style sources list different ranges.
