1-to-4 GPS/GNSS Antenna Signal Splitter

This enclosed splitter distributes one GNSS antenna signal to four receiver inputs. It is intended for GPS, BeiDou, GLONASS, Galileo and compatible L-band receiver setups that use 50-ohm SMA connections.

Listed RF Specifications

• Frequency range: 1.4-1.6 GHz.
• Insertion loss: less than 6.6 dB.
• Return loss: better than 25 dB as listed.
• Output-to-output isolation: 30 dB.
• 50-ohm SMA female input and output ports.
• Inline antenna power is supported by the listed design.

Connection Notes

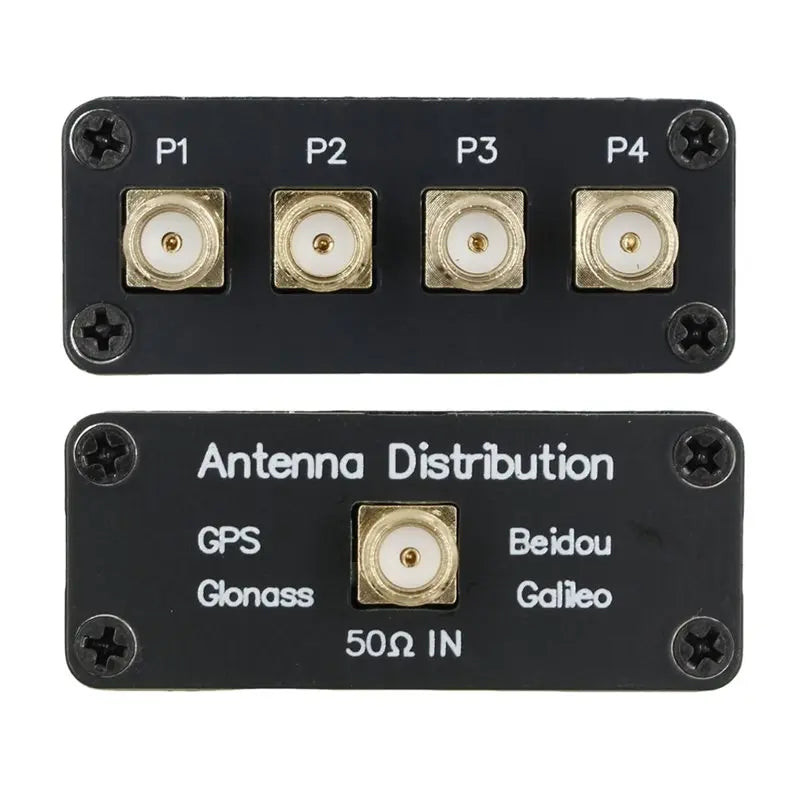

• Connect the antenna or GNSS source to the single 50-ohm input and receivers to P1-P4.
• Before using an active antenna, confirm which receiver port supplies DC and verify voltage compatibility across the complete system.
• Terminate unused RF ports when required by the measurement or receiver setup.
