Stable Performance-LCKVM Server H313 Development Board 512MB/1GB DDR3 Memory Computer Remote Control For Operation And Maintenan

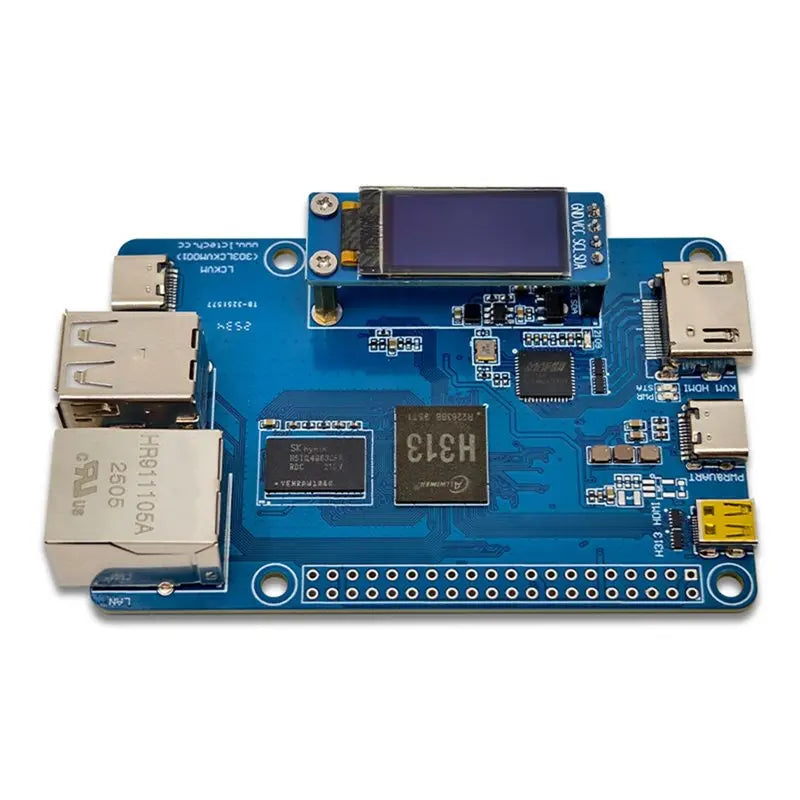

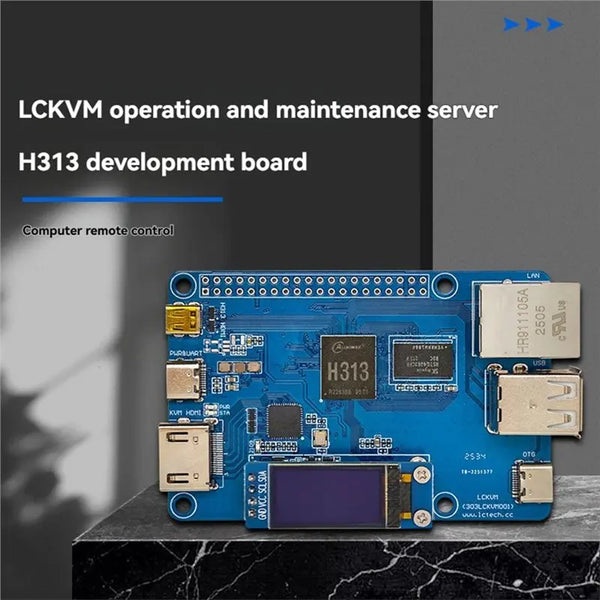

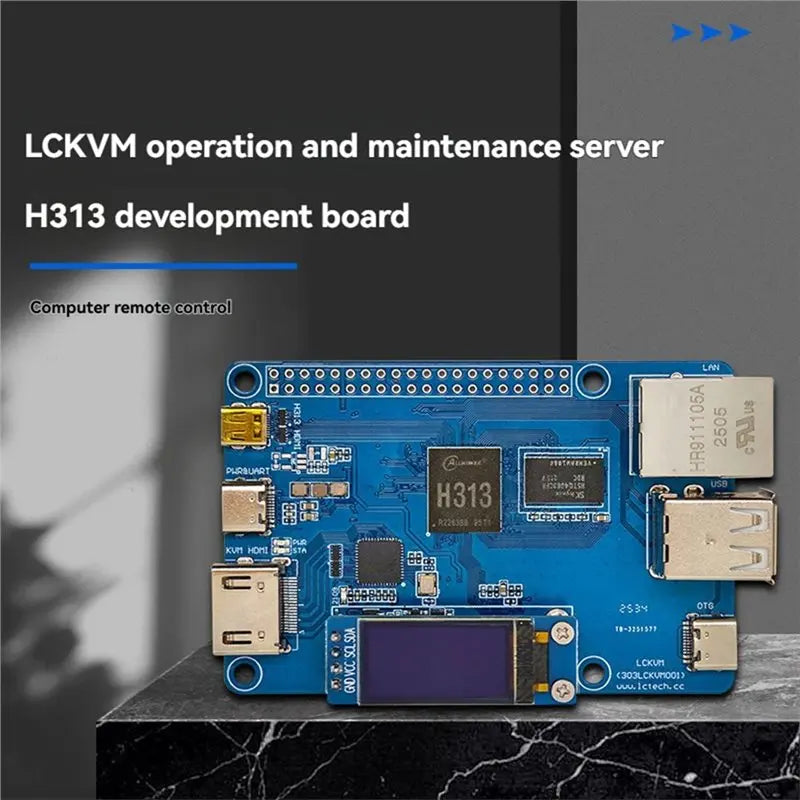

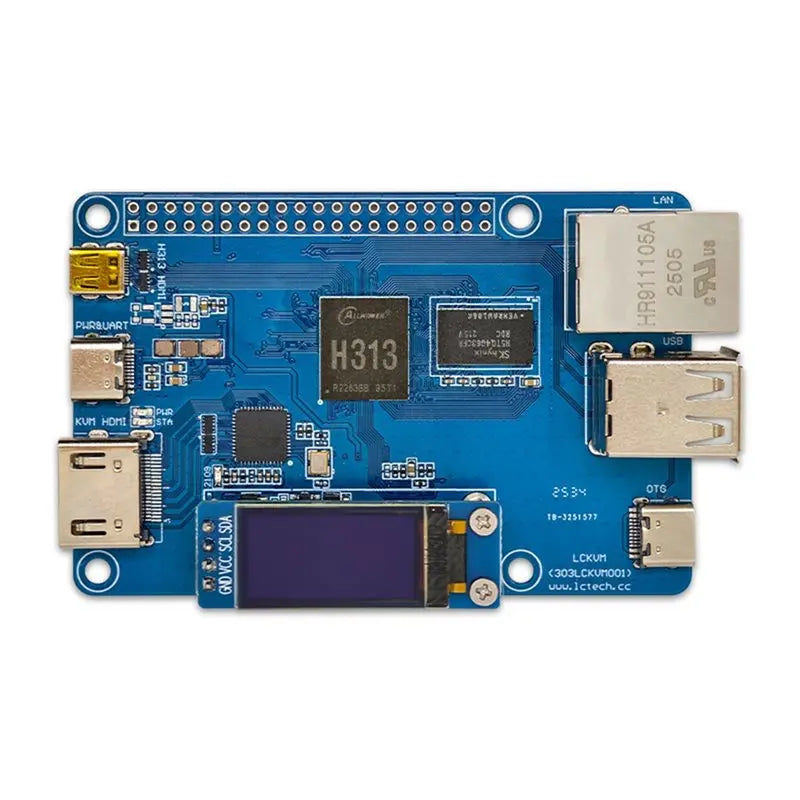

LCKVM H313 Remote KVM and Development Board

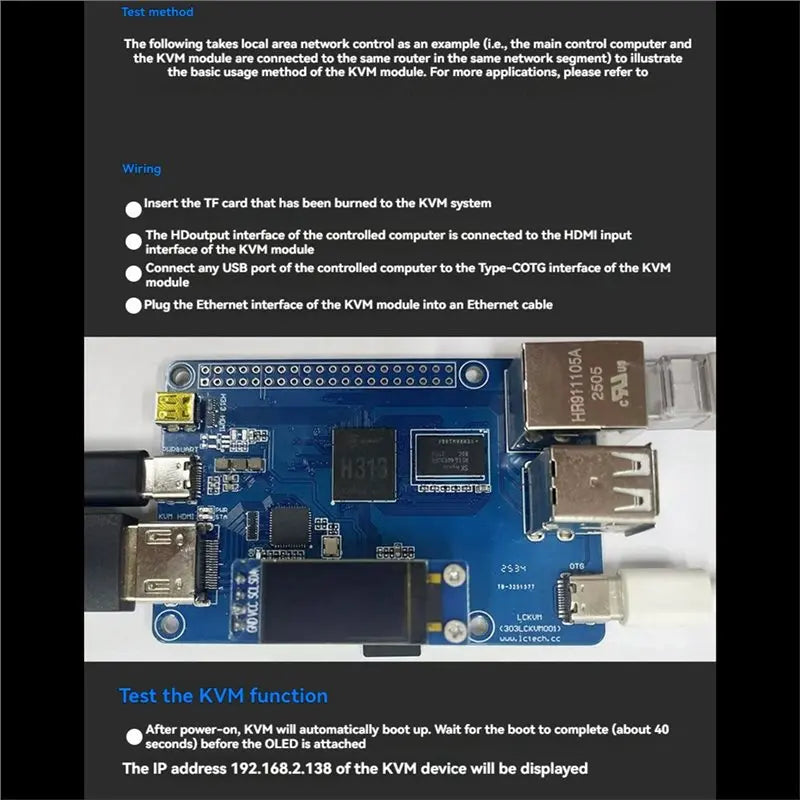

LCKVM is a compact network-connected KVM board for remote operation and maintenance of a connected computer. It captures the computer's HDMI audio/video signal and makes the remote console available through a web browser over Ethernet; keyboard and mouse control can be sent from the remote console to the connected computer.

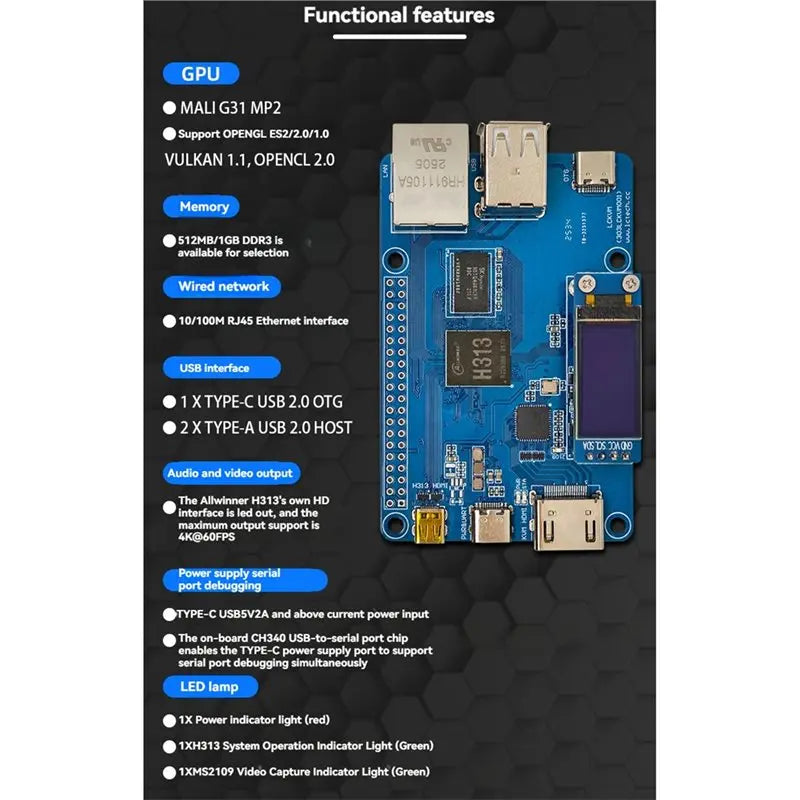

Key Features

• Allwinner H313-based remote KVM and ARM development platform.

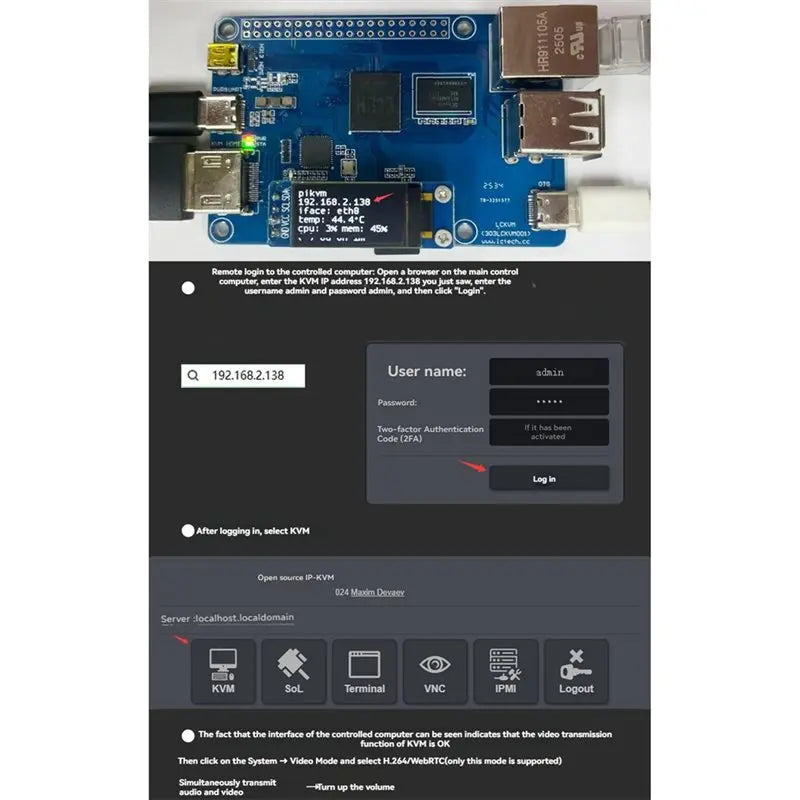

• Browser-accessible remote console for authorized computer and server maintenance.
• Built-in OLED display for device information such as network IP address and CPU temperature.
• 10/100M RJ45 Ethernet for wired network connection.
• HDMI interface for the connected computer's audio/video signal.
• Two USB 2.0 Type-A host ports and one USB 2.0 Type-C OTG port.
• Exposed HDMI, USB, and GPIO interfaces for Linux or Android ARM development work.

Memory Options

• Blue 512MB: 512MB DDR3 memory.
• Blue 1GB: 1GB DDR3 memory.

Power, Debugging and Indicators

• Type-C input; use a power source rated for 2A or higher.
• Onboard CH340 USB-to-serial interface supports serial debugging through the Type-C power/debug port.
• Power, H313 system, and MS2109 video-capture status indicators.

Package Contents

• 1 x LCKVM H313 development board
• 1 x pin header

Note: Use only on computers and networks you own or are authorized to administer. Confirm the selected memory option before ordering.
