Small Whip 30W QRP QRGP Shortwave HF Antenna 3.5MHz-30MHz Tuned For MCHF Yaesu FT-817 8188 891 703 705 K1 K3 USDX

Sale price
$67.94
List price
$97.05
You save
$29.11 (30%)

Prices include VAT and any applicable duties.
In stock, usually dispatched in 2-3 business days.

Product Summary

Small Whip 30W QRP QRGP Shortwave HF Antenna 3.5MHz-30MHz Tuned For MCHF Yaesu FT-817 8188 is a RF wireless product selected for wireless communication, antenna experiments and radio signal workflows. It is suitable for radio users, SDR experimenters and wireless project builders who need practical electronics hardware for reliable project work.

Best For

  • wireless communication, antenna experiments and radio signal workflows
  • SDR receivers, LoRa modules, antennas and RF test setups
  • Electronics testing, repair, prototyping and maker workflows

FAQ

Who is this product for? It is intended for radio users, SDR experimenters and wireless project builders.

What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

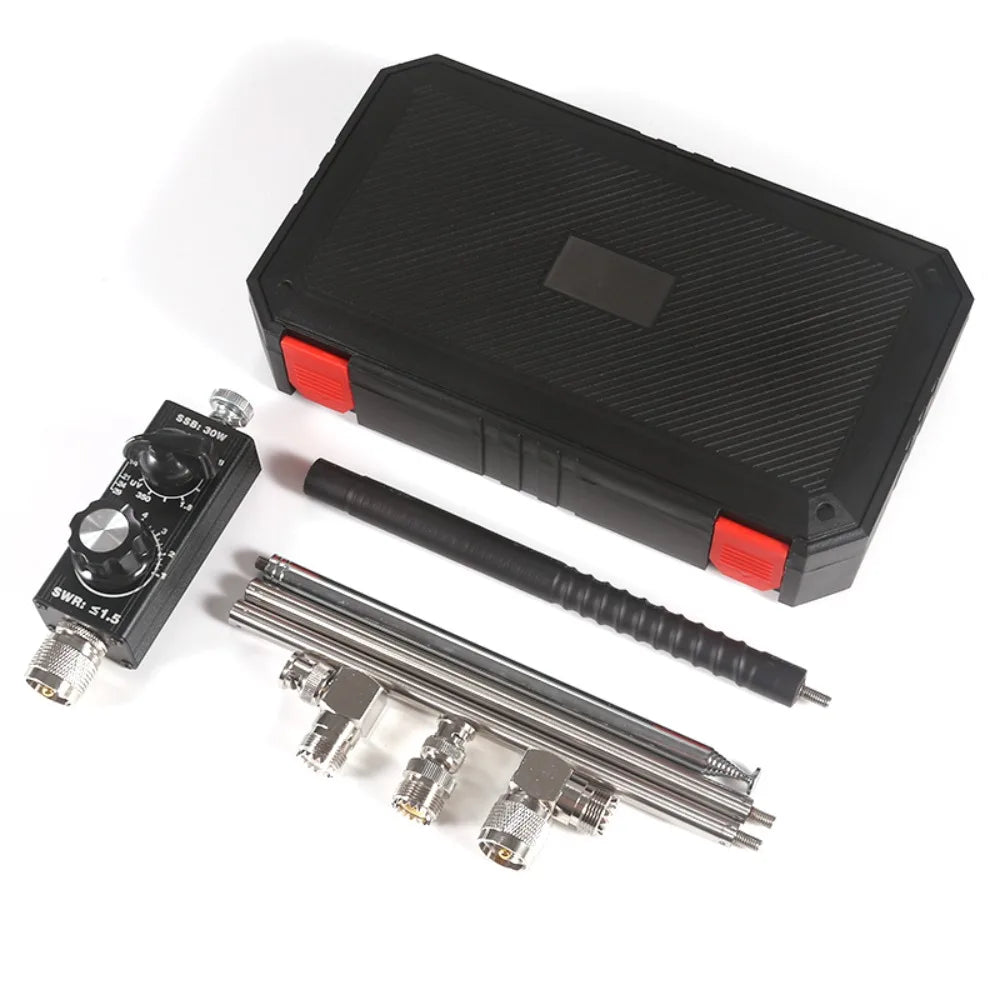

Small whip

3.5-30 MHz, with an antenna that extends 2 meters in length and comes with a 14 MHz inductive coil, which means 14 MHz is a natural resonance. The remaining frequencies are compensated with small tuning, with a rated power tolerance of 30W and a power tolerance of doubling in the 14 MHz range.

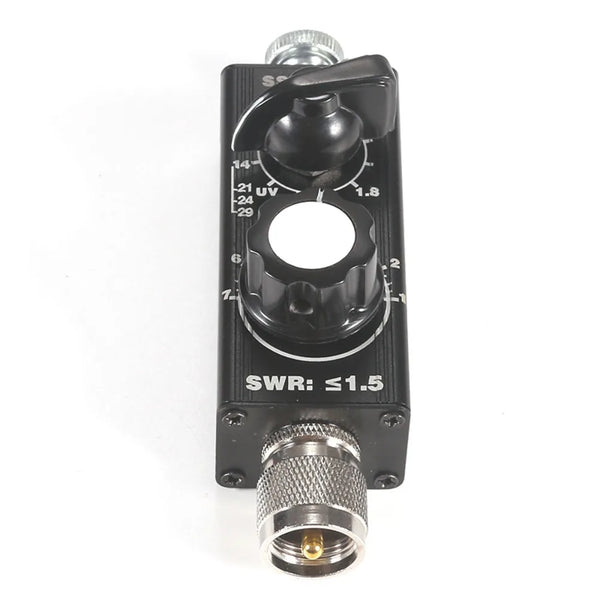

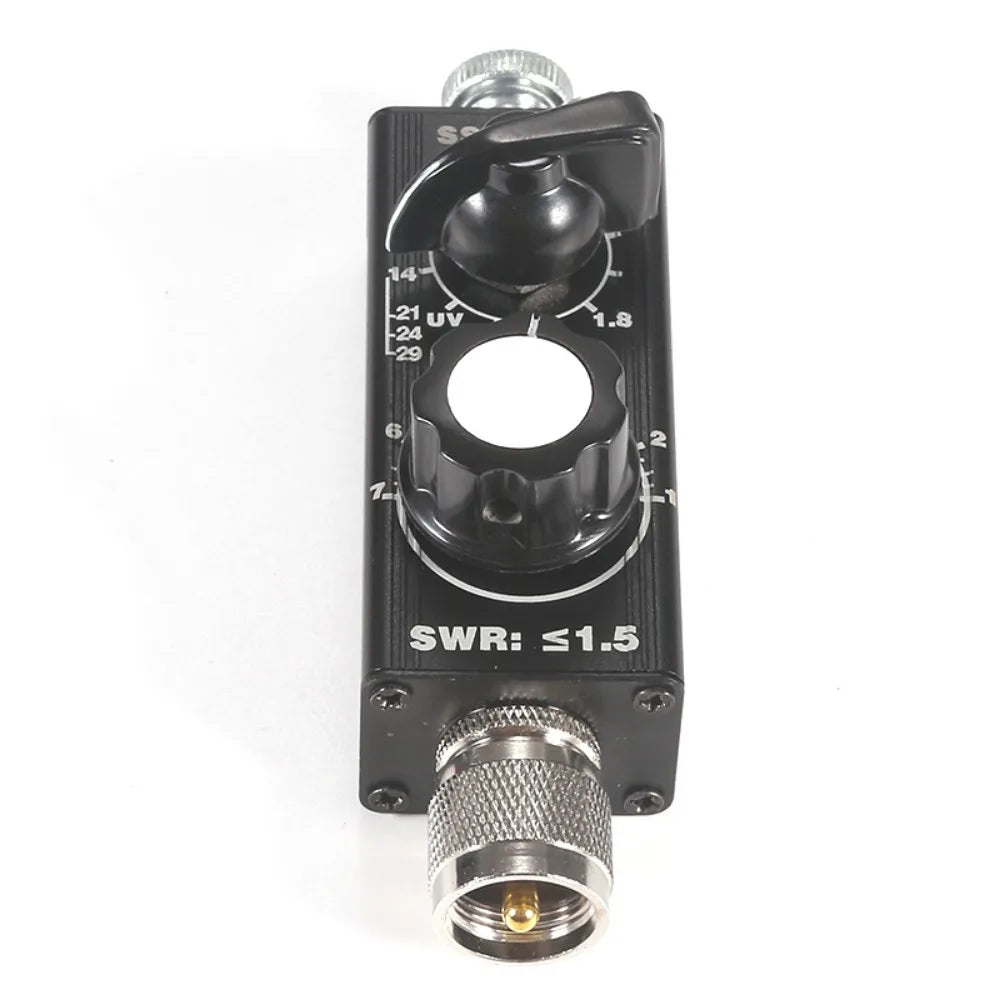

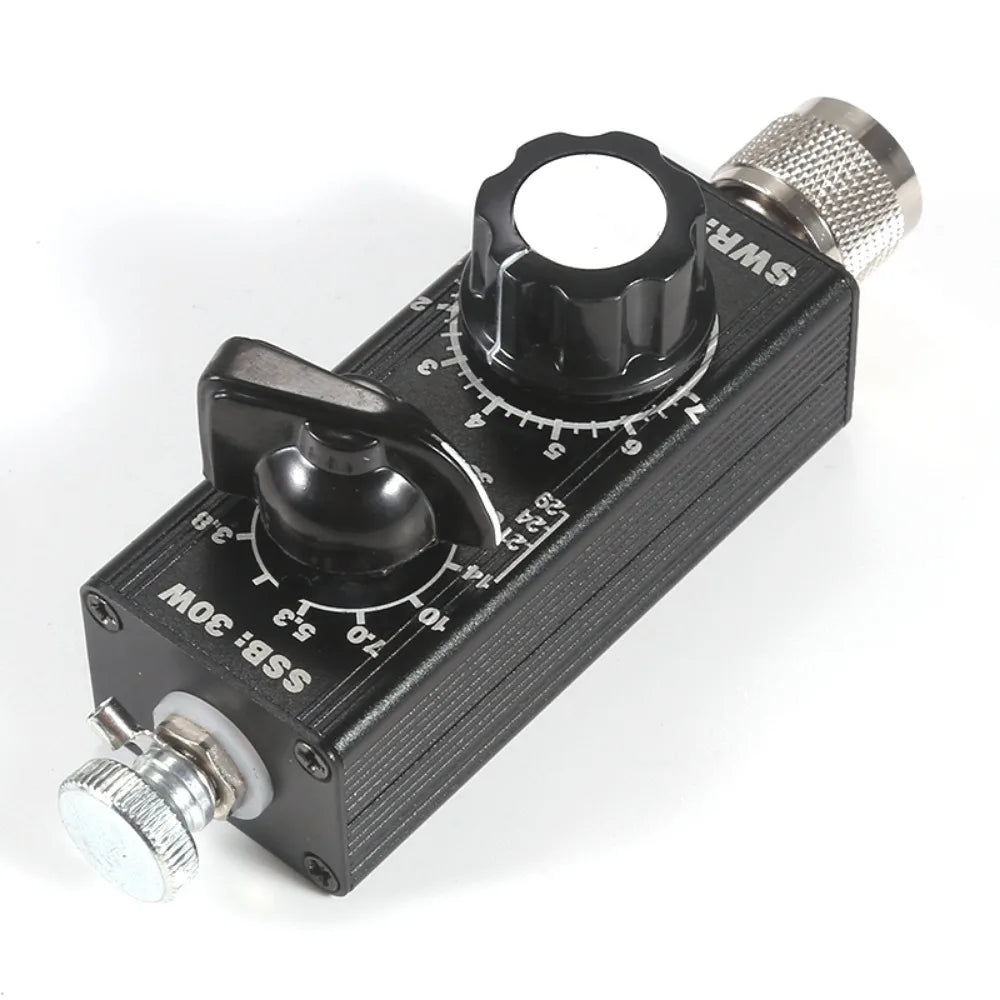

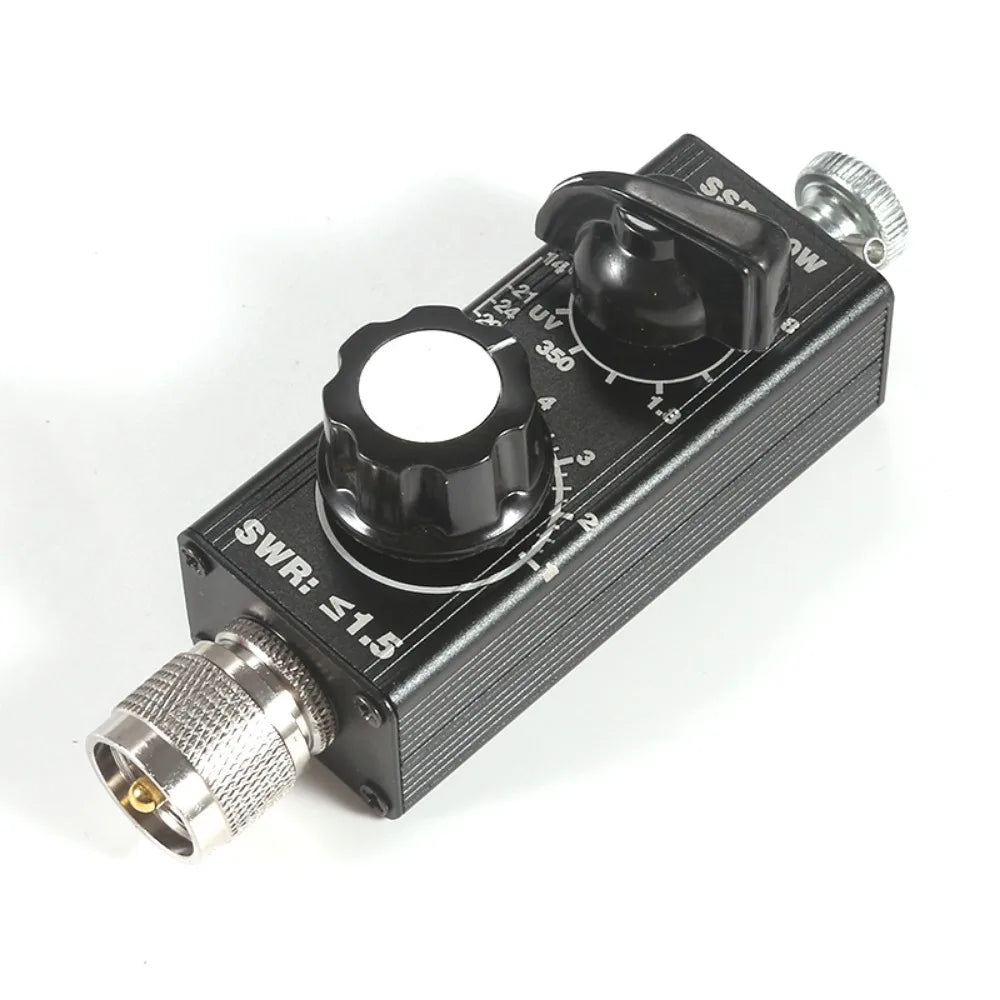

The upper knob adjusts the frequency band, and the lower knob adjusts the standing wave

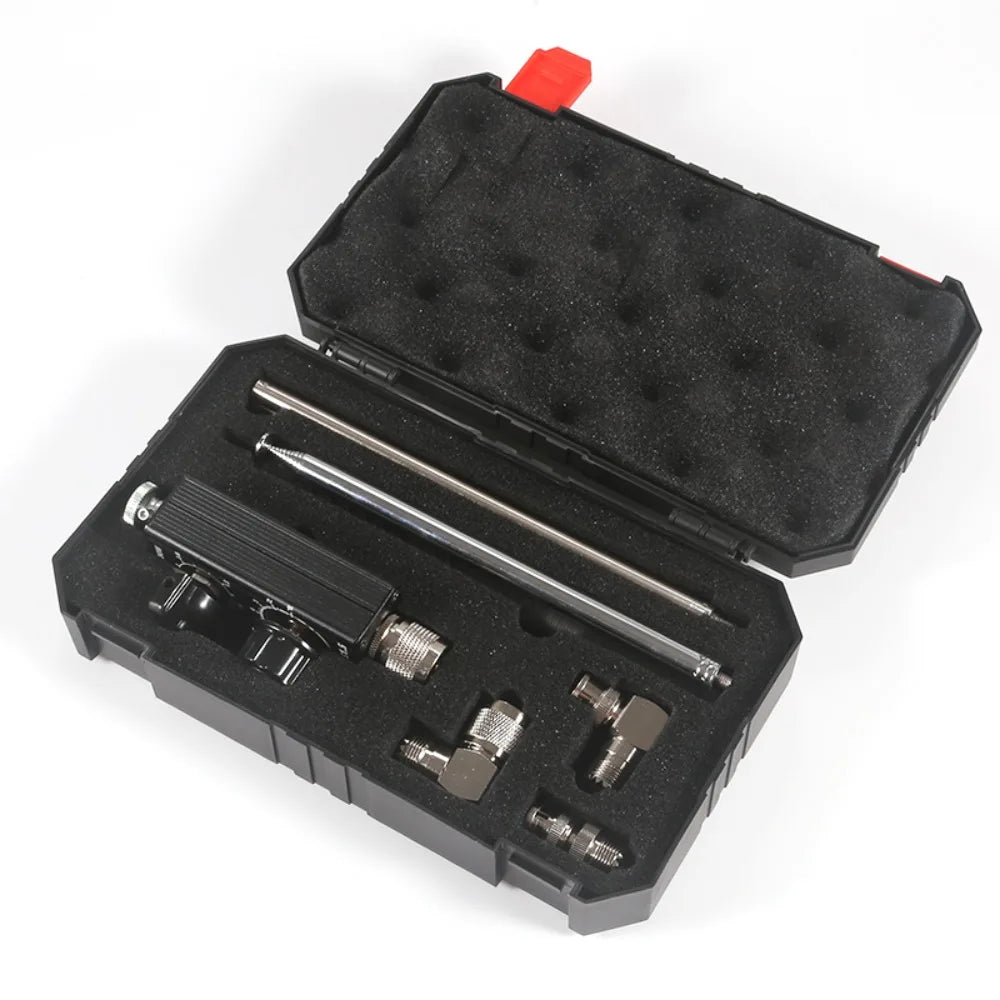

The installation position of the antenna includes hand twisted screws and a copper nose. The copper nose welds a 20 meter long wire on its own, which is a long wire antenna (end feed antenna)

There is no talent meter, no ground cable, and the pull rod antenna is uniformly pulled out and retracted by one section.

Steps for debugging the perfect state of the antenna:

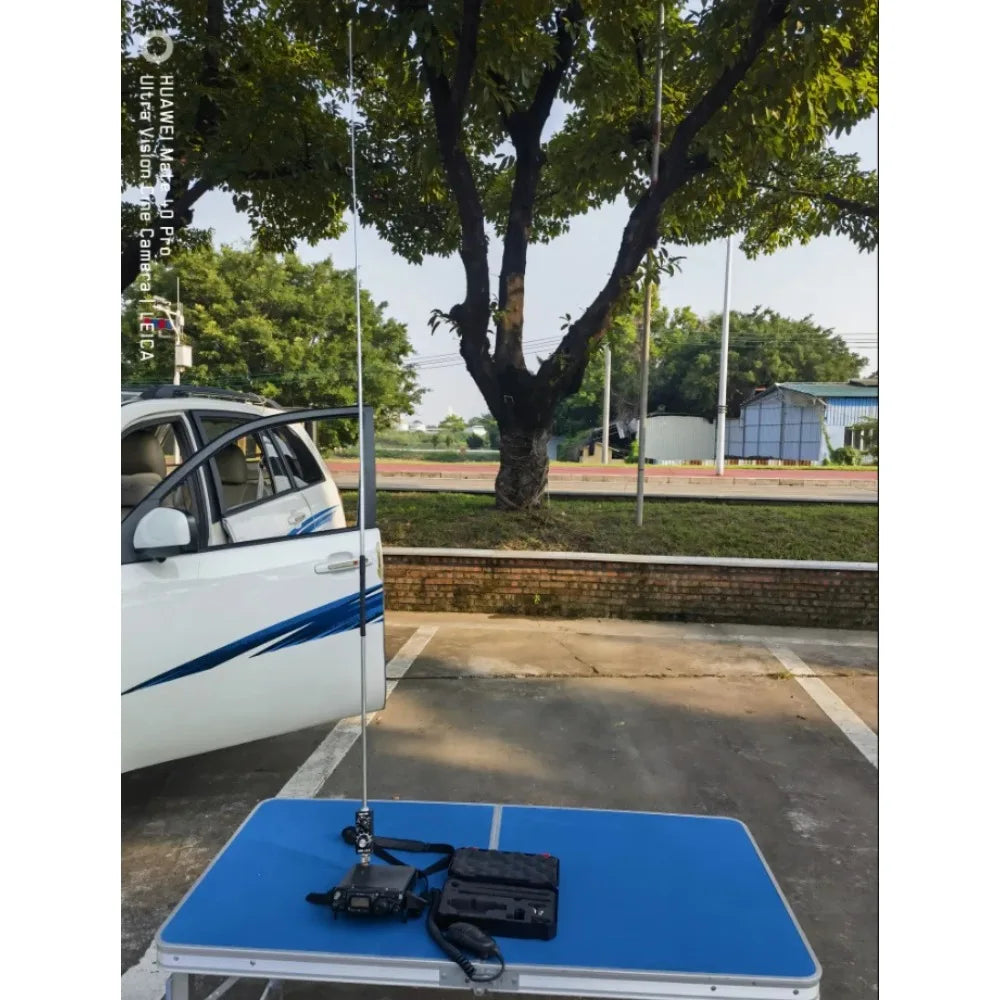

Connect a 5-meter long wire to the outer shell of the antenna head to create a grounding grid. Turn the top knob to scale 14 and the bottom knob to scale 2. Connect the celestial instrument and pull out all the rod antennas before retracting one section. Observe the curve of the celestial instrument and fine tune the rod antenna to find the 14.270 resonance point. Use a marker to mark the length and position of the rod antenna. In the future, use the marked position as a reference for the best point
