XY-SK60 / XY-SK120 Programmable 60W-120W DC-DC Buck-Boost Power Modules

SK60 / SK120 Programmable DC-DC Buck-Boost Module

SK60 and SK120 are programmable constant-voltage / constant-current DC-DC modules for bench integration, battery-powered projects and compatible solar DC systems. They accept a DC input and regulate a separate DC output; they are not standalone mains power supplies.

Select the required model

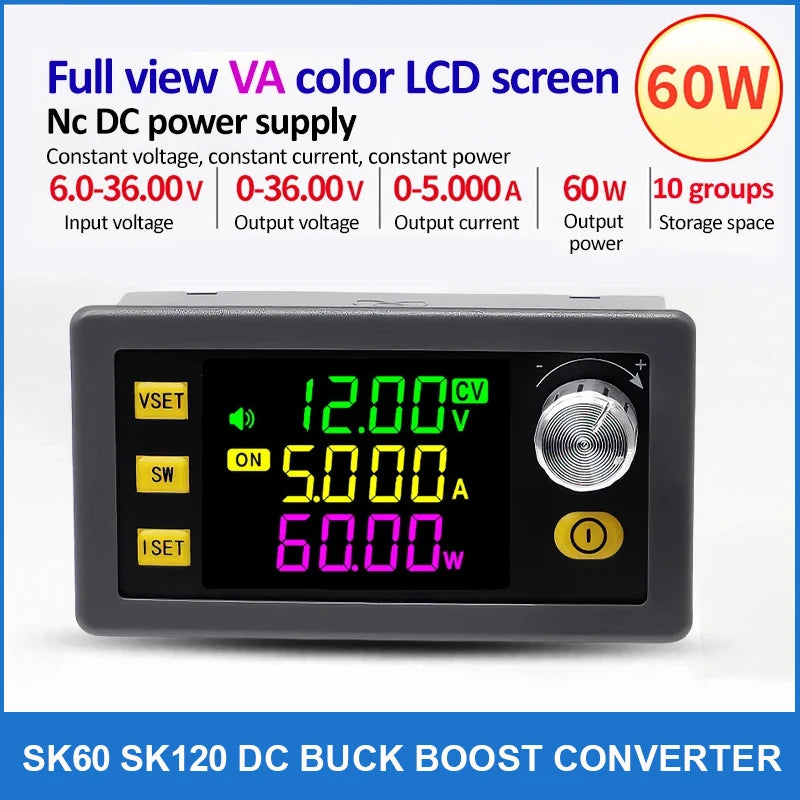

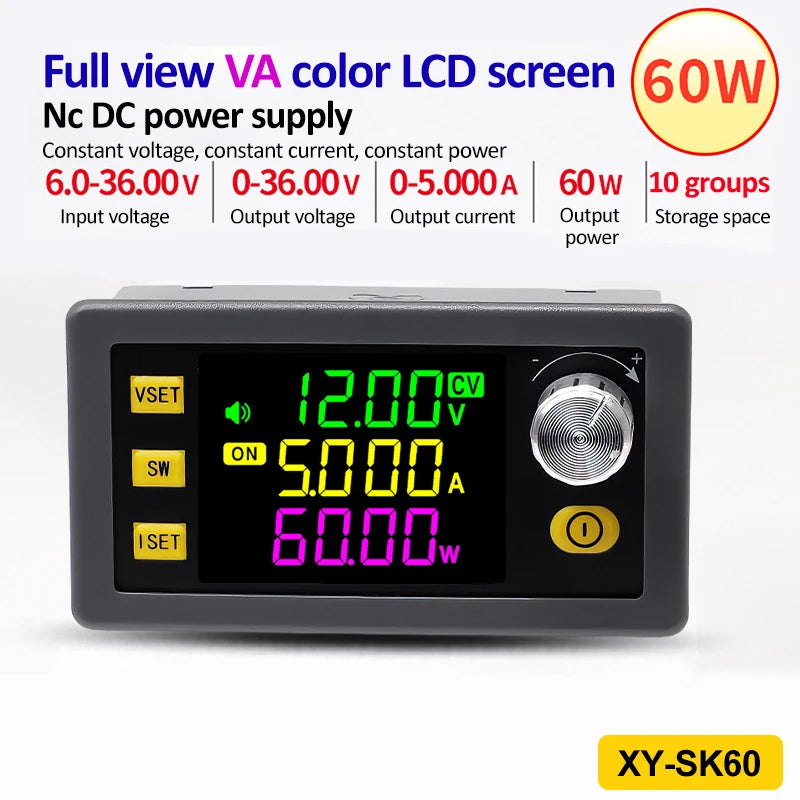

• XY-SK60 60W: 6-36V DC input; 0-36V DC adjustable output; 0-5.000A output current; up to 60W.

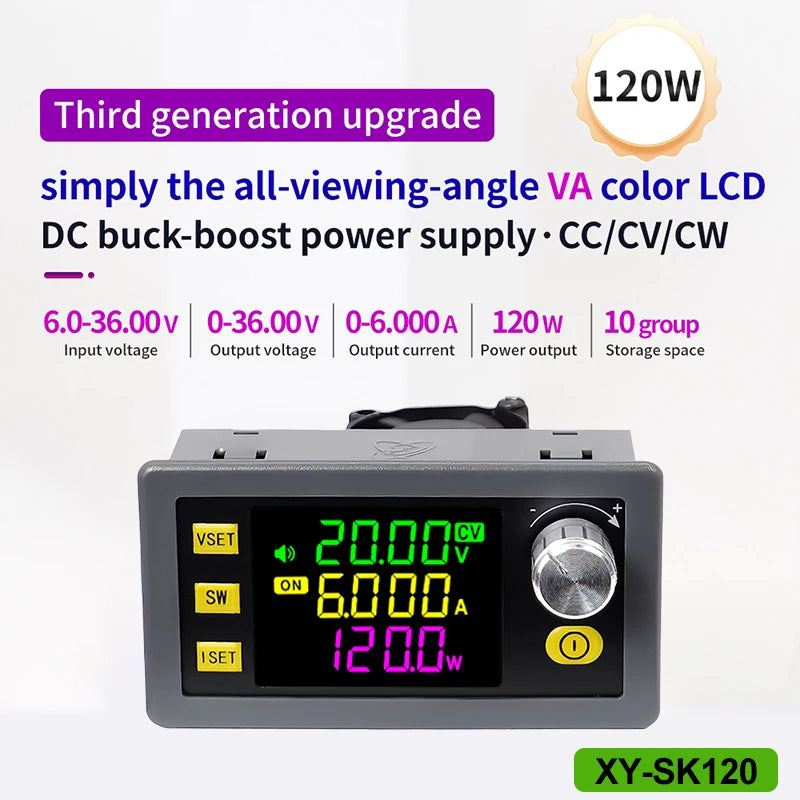

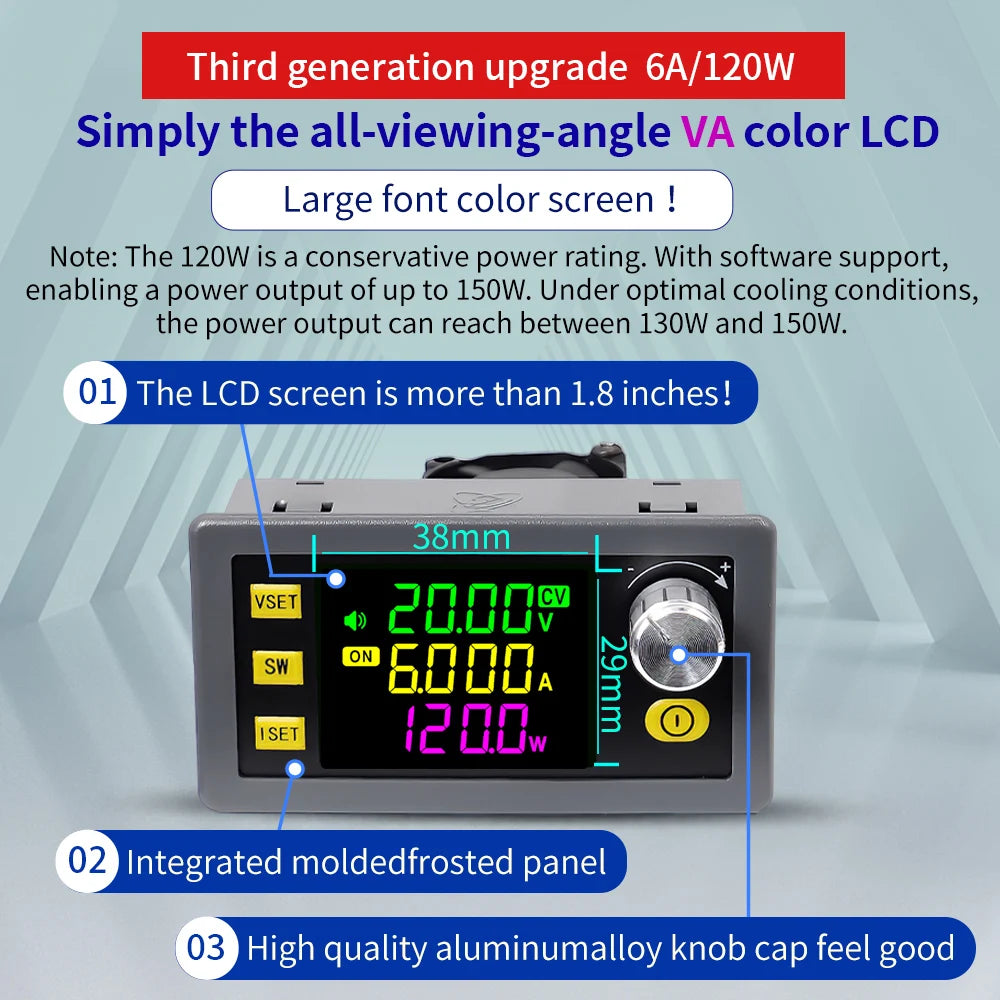

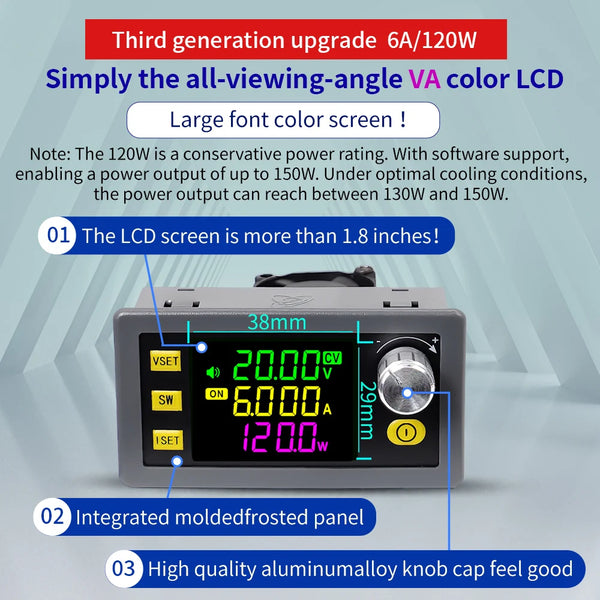

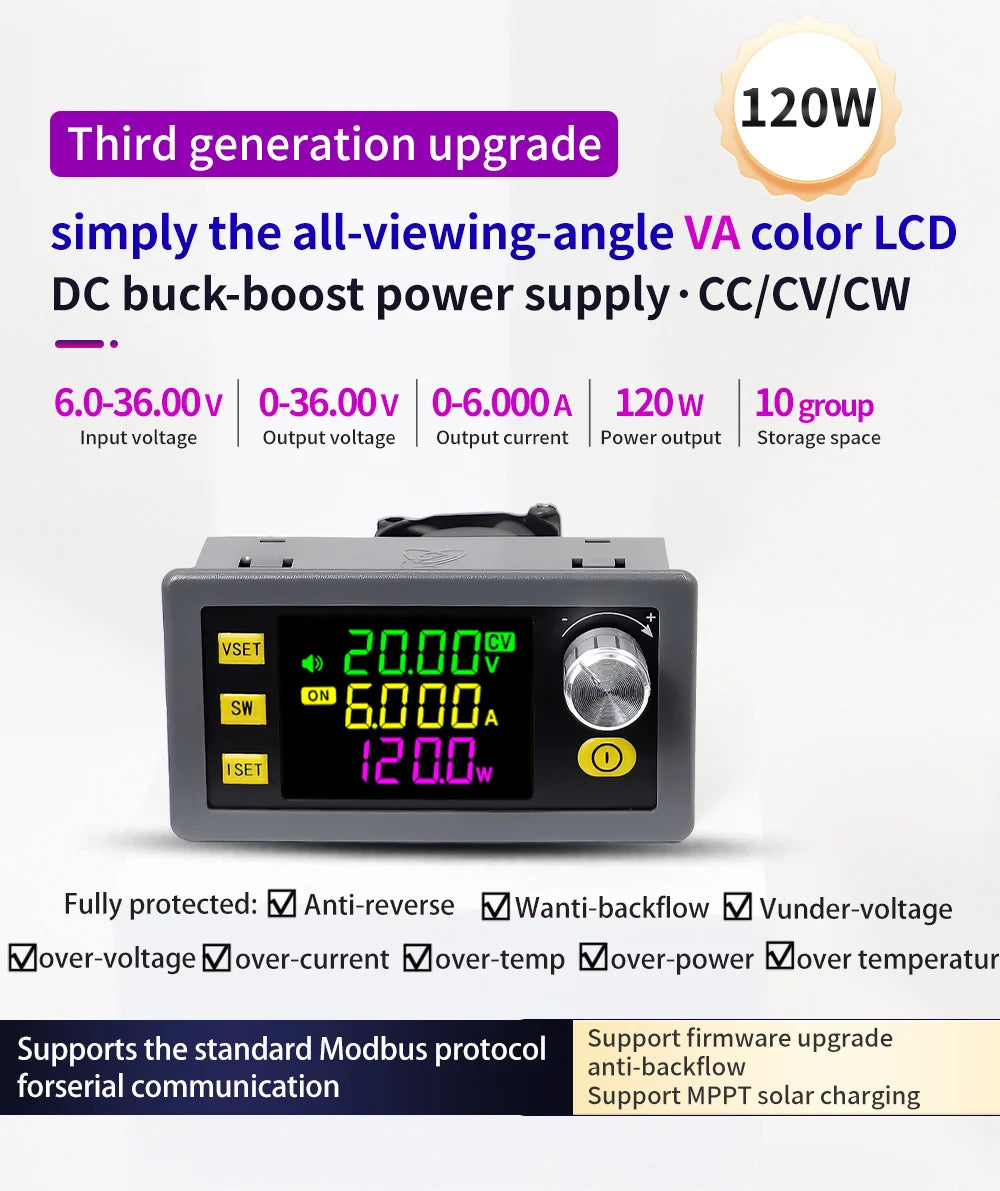

• XY-SK120 120W: 6-36V DC input; 0-36V DC adjustable output; 0-6.000A output current; up to 120W.

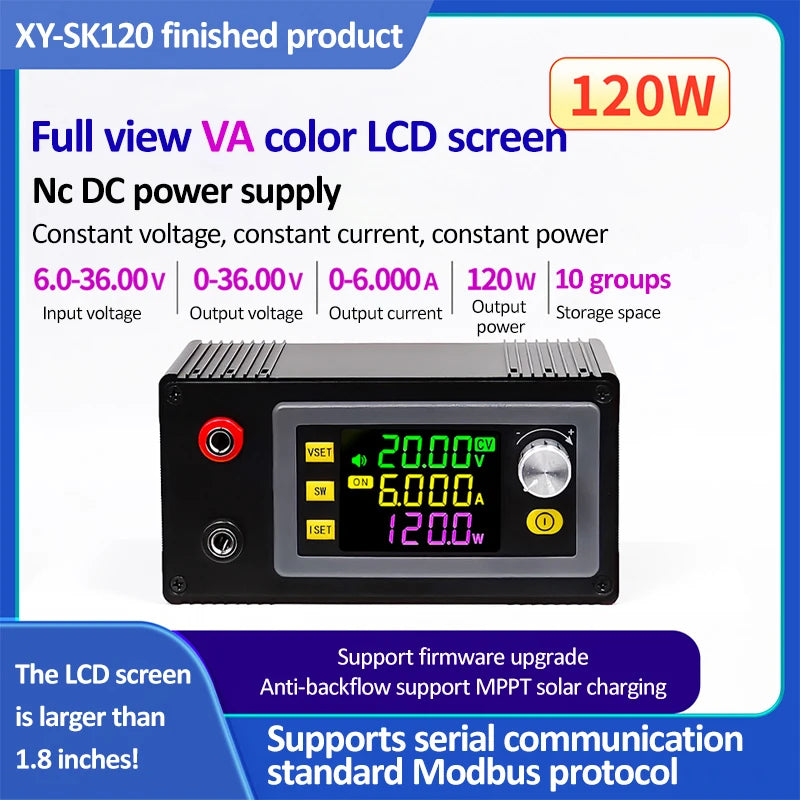

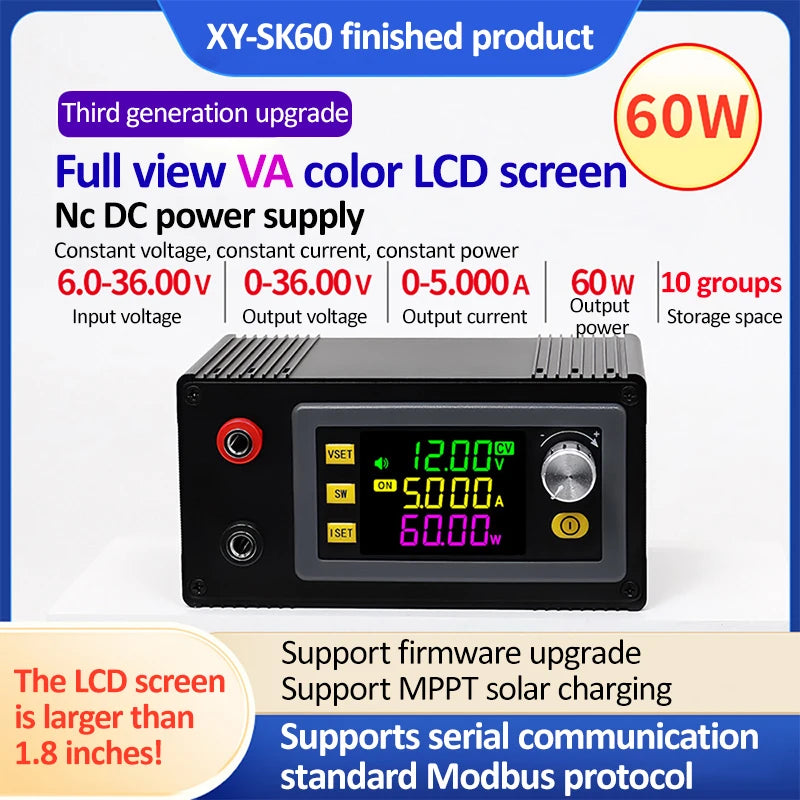

• Finished options: assembled versions identified by the option label. Please use the product images and selected option to confirm the physical configuration before ordering.

Control and operating features

• Constant-voltage and constant-current regulation for powering prototypes, charging workflows and controlled DC loads within the selected model's limits.

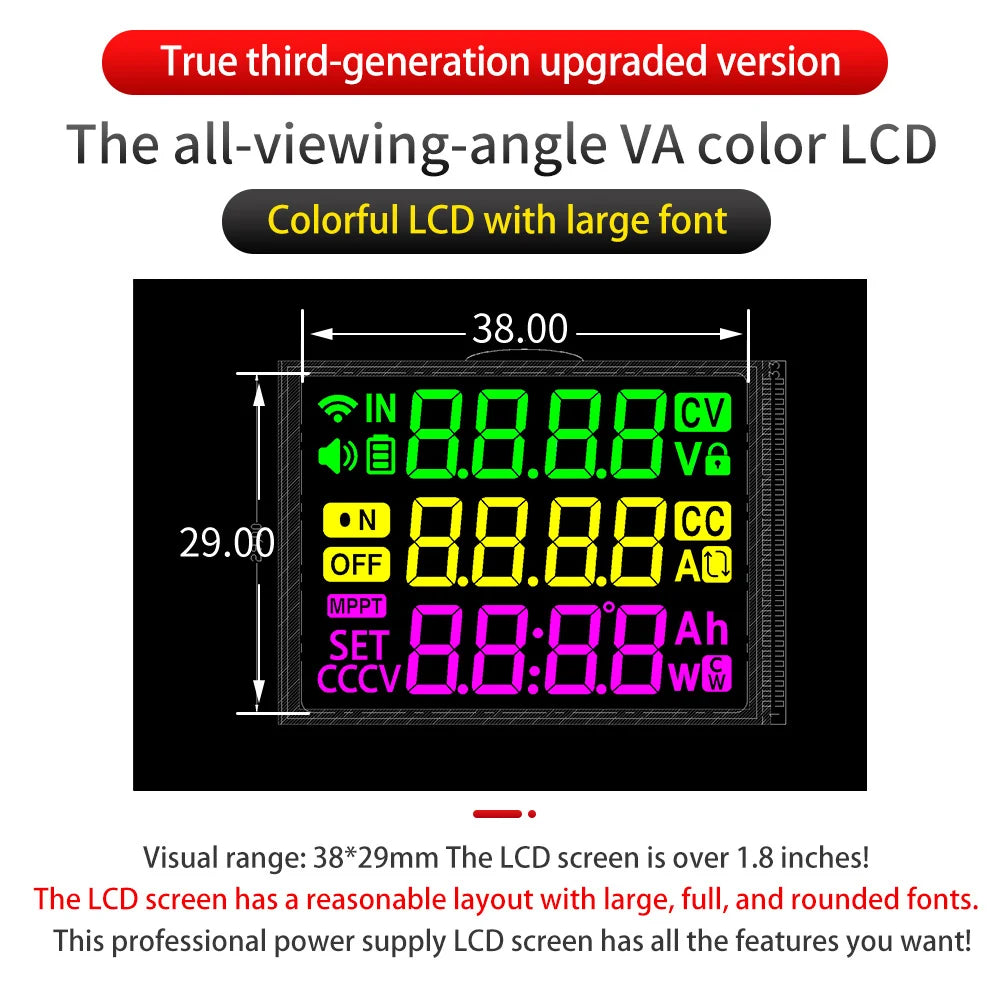

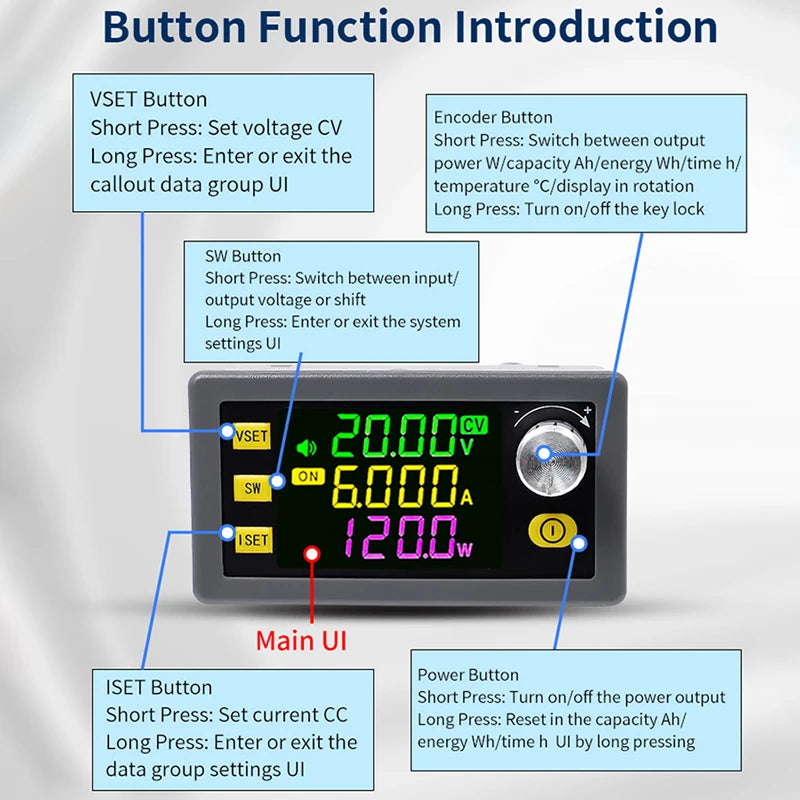

• Adjustable output voltage, current limit and protection thresholds through the onboard control interface.
• Ten stored parameter groups for repeat test setups.

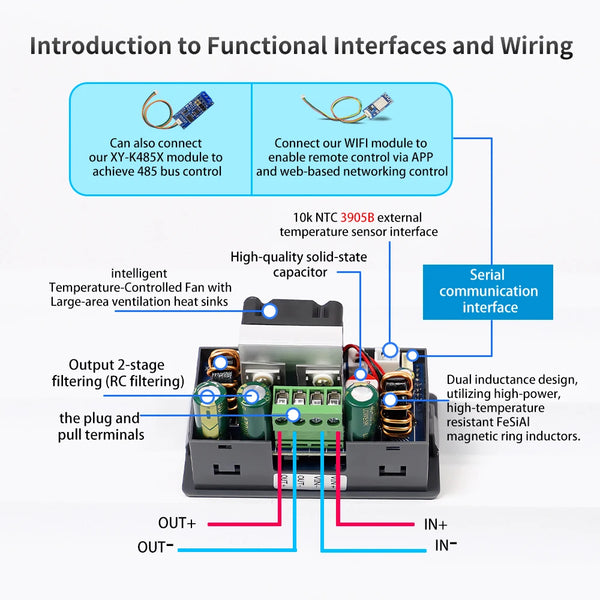

• Supports Modbus serial communication and MPPT-oriented solar charging functions when configured for the application.
• Input/output reverse-polarity protection and configurable input undervoltage, output overvoltage, overcurrent, overpower and temperature protections.

Use and safety notes

• Use a suitably rated DC source and observe correct input/output polarity before powering the module.
• Keep the selected model within its voltage, current and power limits. Output current capability also depends on the available input source and thermal conditions.
• For sustained higher-power operation, provide adequate airflow and install the module in an enclosure appropriate for the working environment.

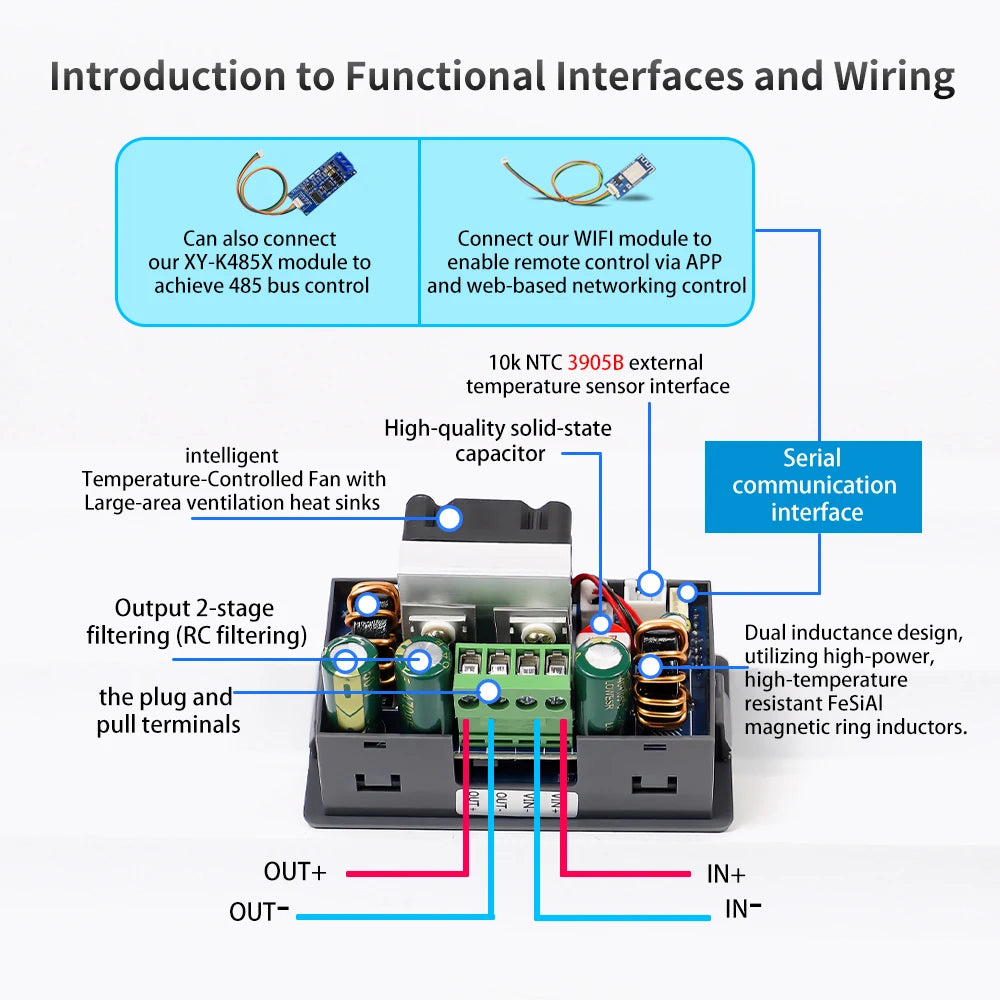

• An external temperature probe may be used for temperature-protection workflows where the selected configuration supports it; confirm the included accessories from the selected option and images.

In the box

Package contents vary by selected option. Check the option name and product images for the supplied module or assembled version before checkout.
