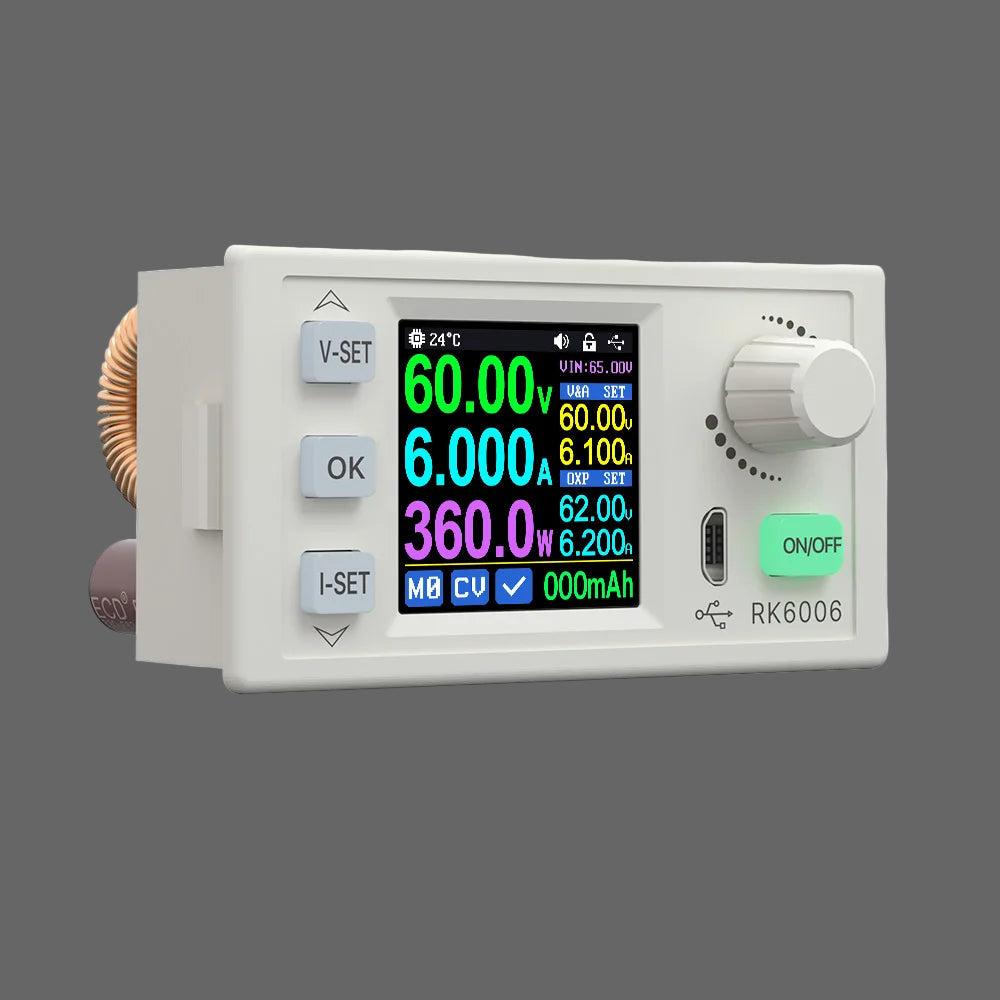

RD RK6006-BT 60V 6A DC-DC Buck Power Supply Module with USB Control

Please note before purchasing:
There is a slight high-frequency noise when the switching power supply is unloaded, and there is a loud sound when the fan is running; when the ambient temperature is high, the fan may work even if it is unloaded. These are normal phenomena. It is recommended to turn off the AC switch when the product is not in use! If you mind, please do not buy it.

Note:

please check option title to see what you can get

RK6006 and RK6006-BT are DC to DC power supply, just like their option picture

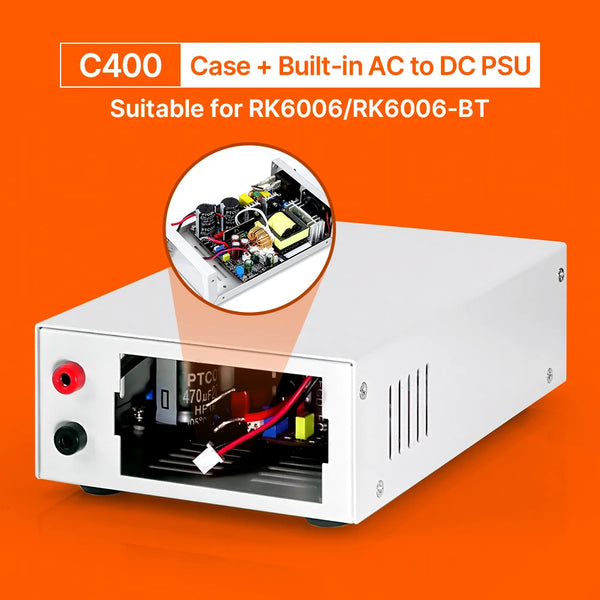

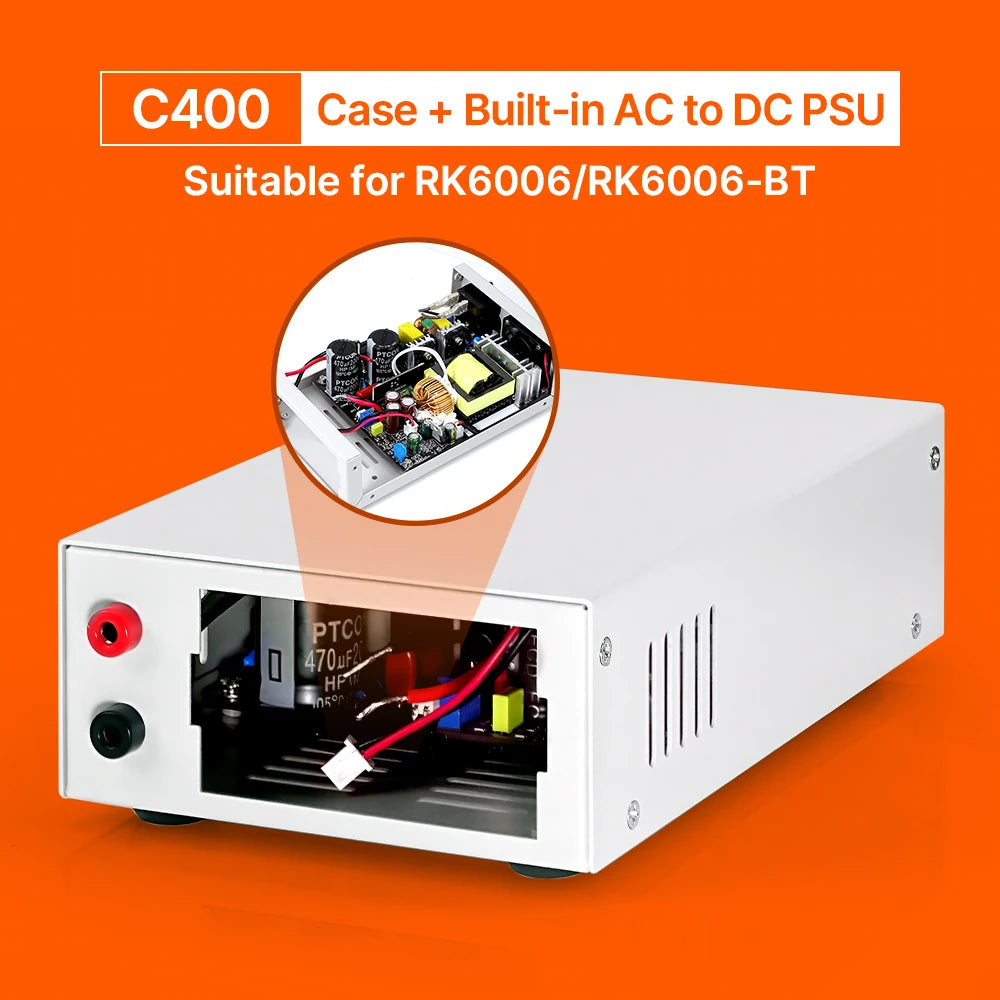

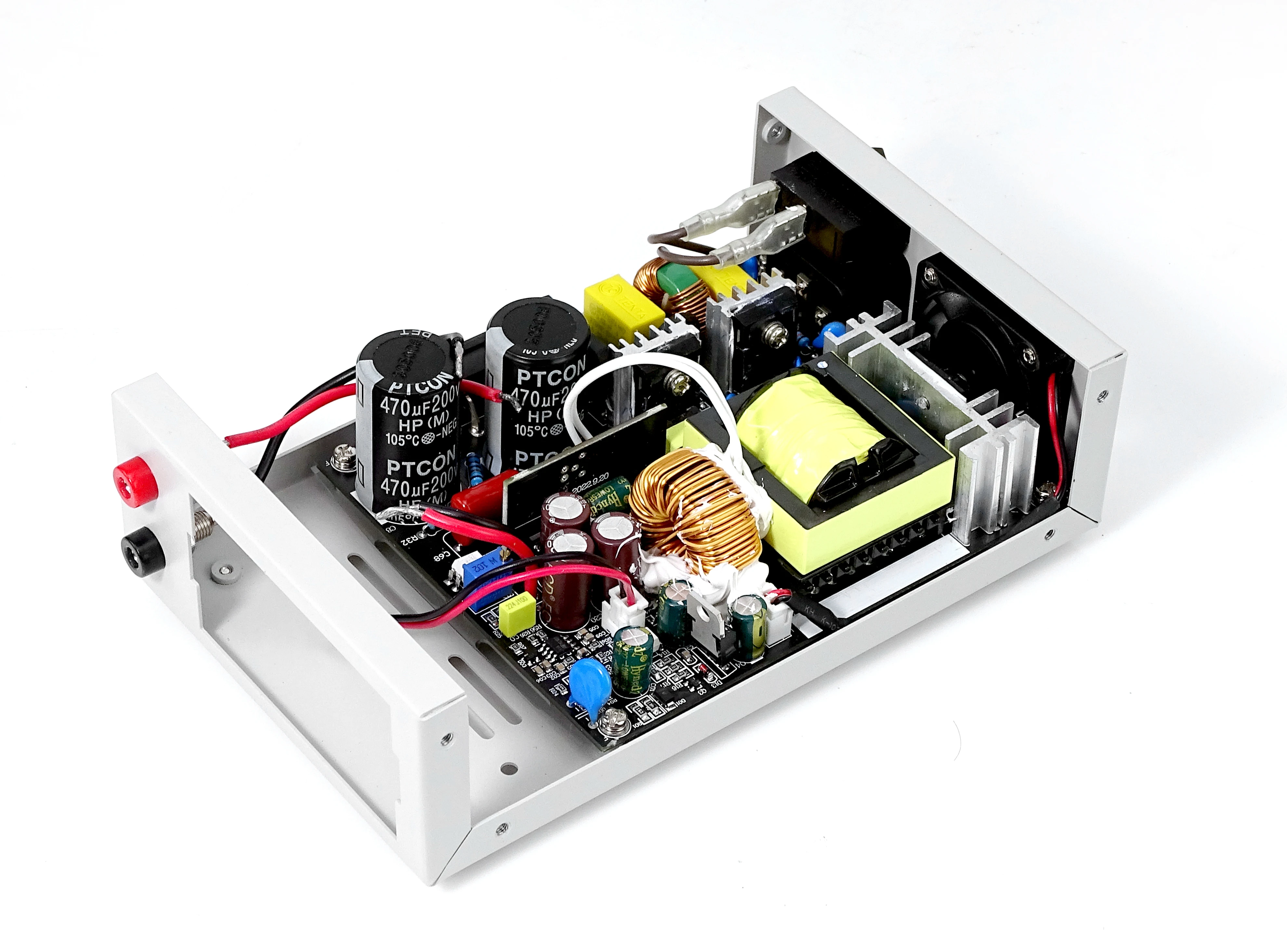

"C400" contains case and input AC to DC PSU only, it is for customers who already ordered RK6006/RK6006 BT before

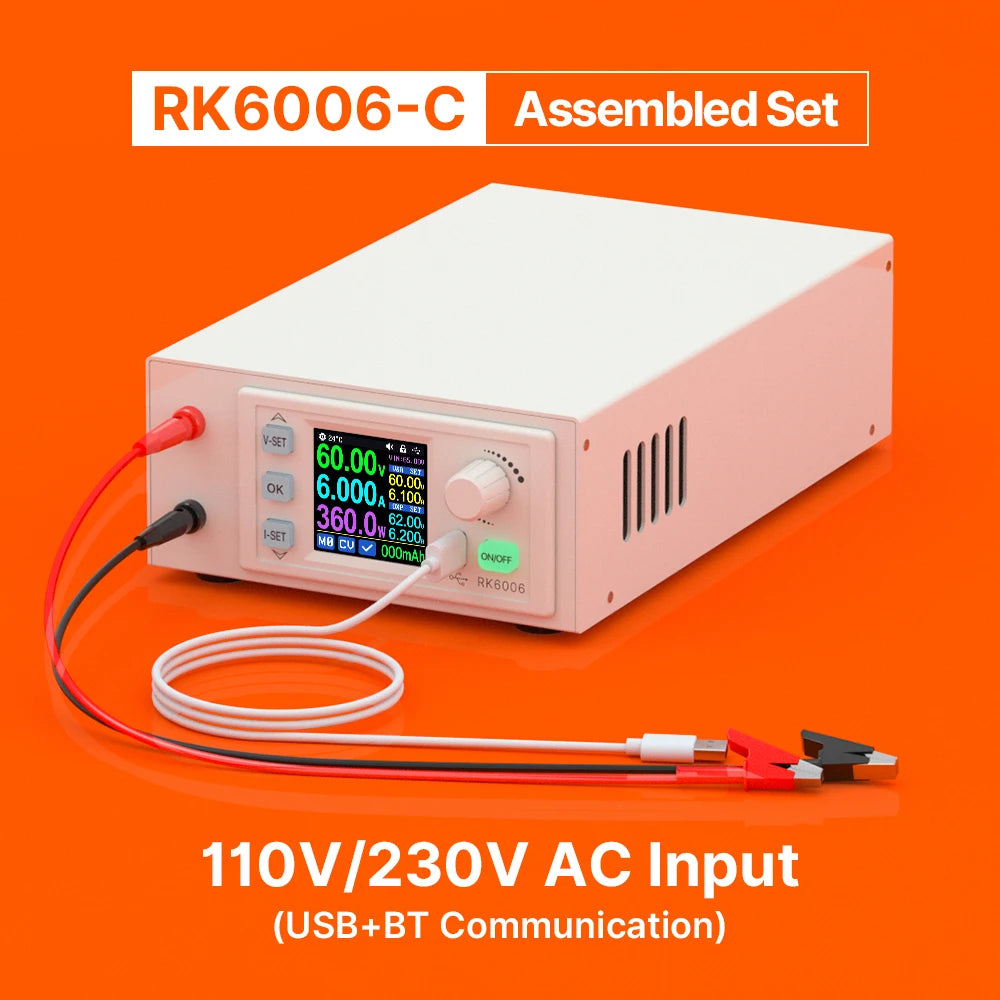

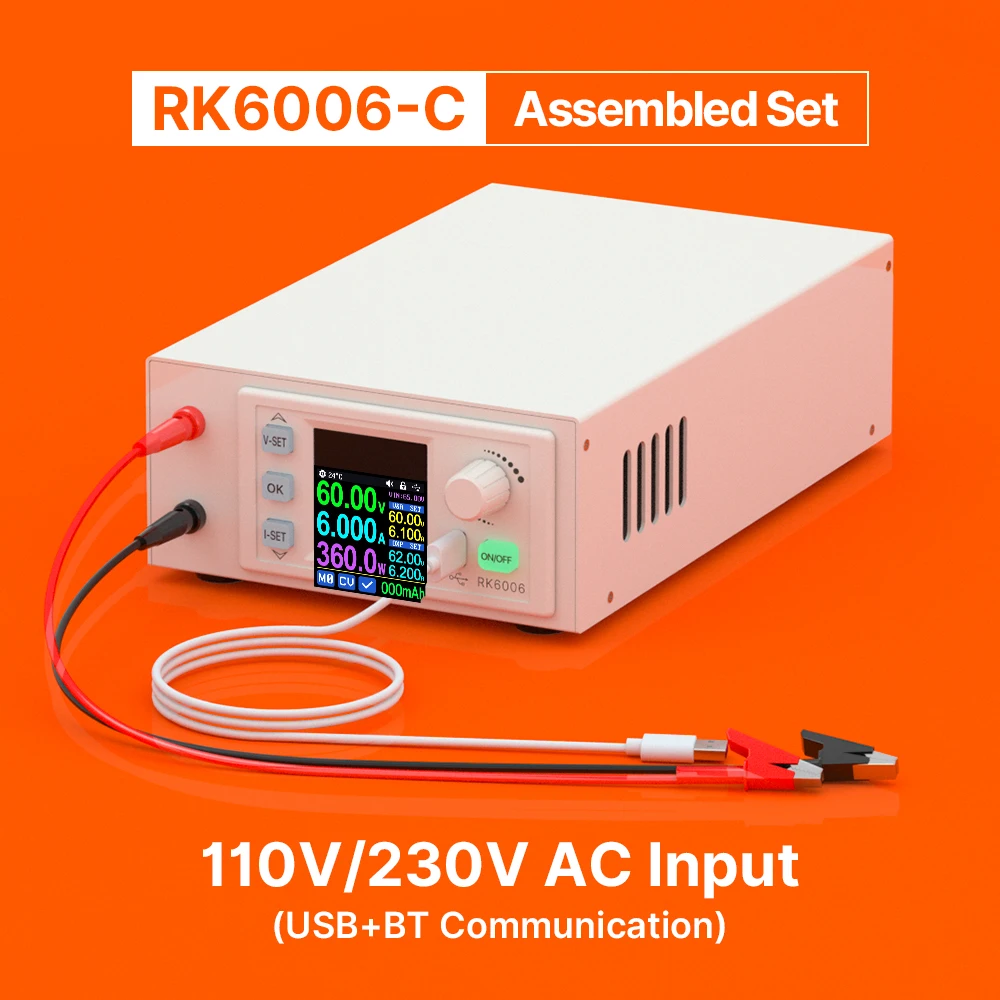

"RK6006-C" is the AC to DC version, supports 100-120V/200-240V AC input, you can see its detail description page by click the bar picrure below, it does not have AC power cable and external temperature sensor cable, please notice that

RK6006-C is set to use 200-240V AC input by default, if you use 100-120V AC, please put the AC selector to 110V gear

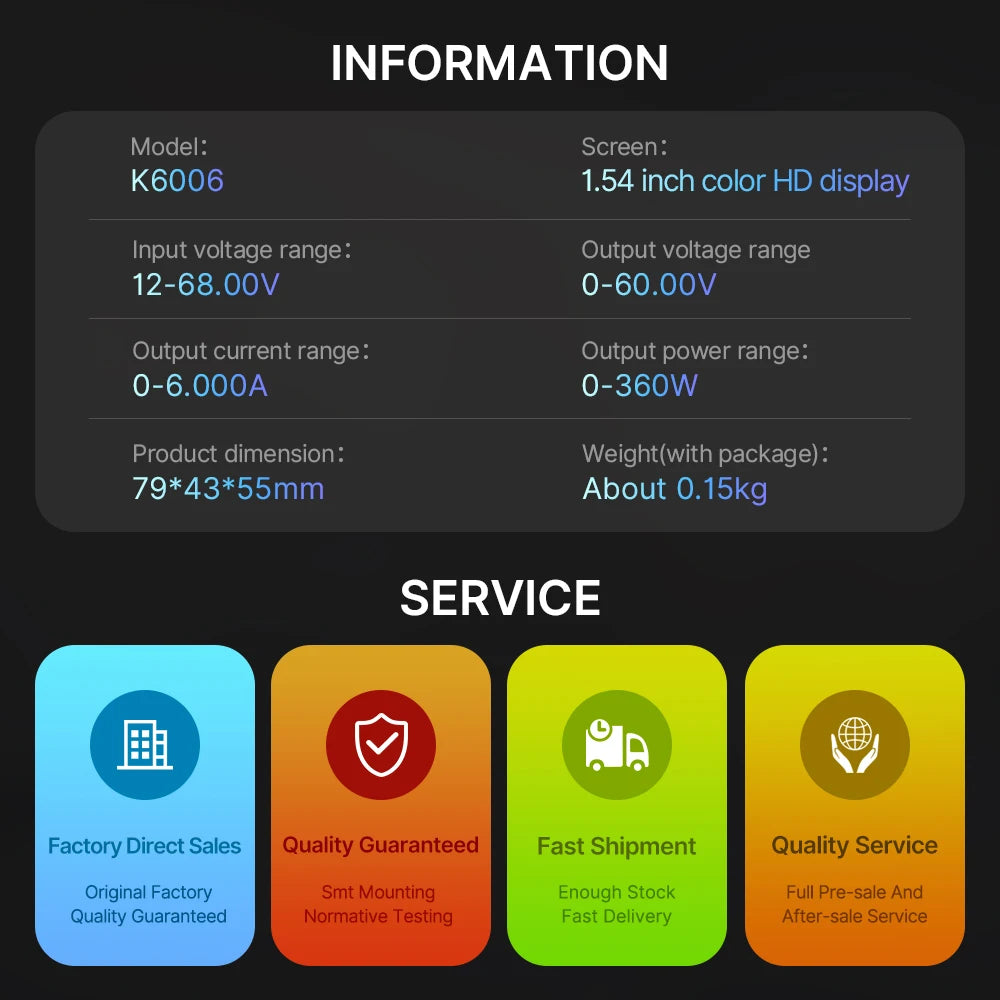

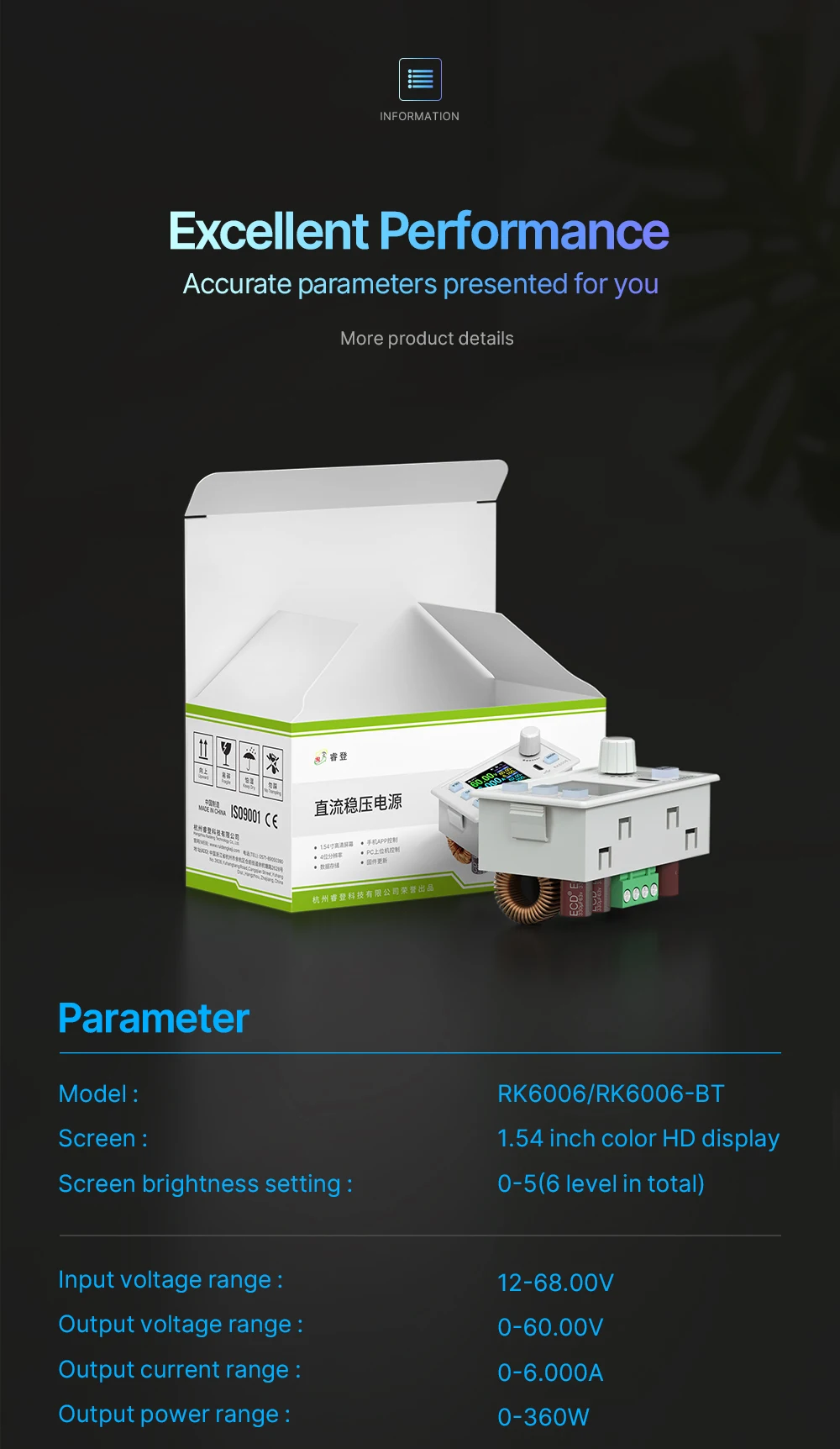

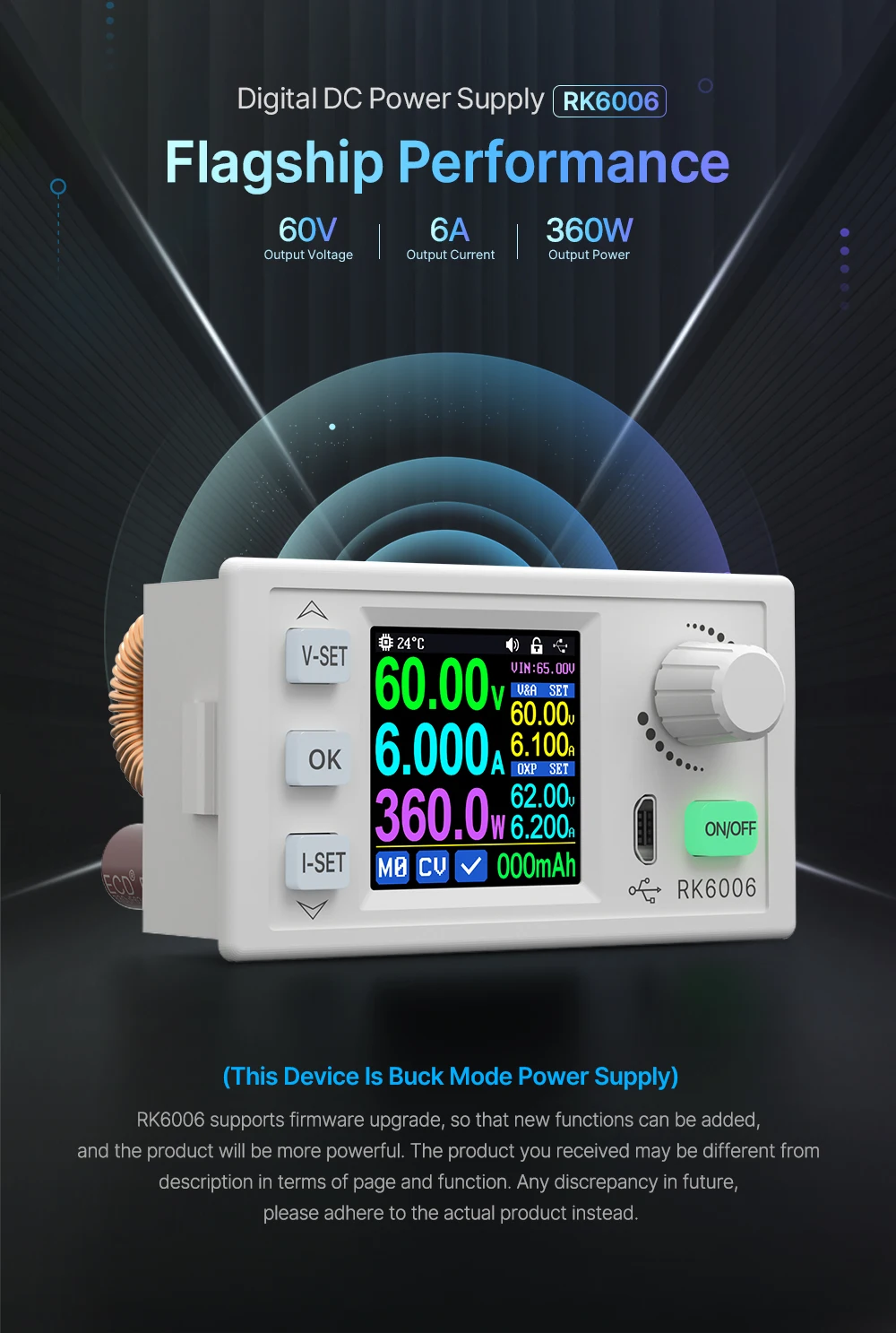

Model: RK6006/RK6006-BT
Input voltage range: 12-68.00V

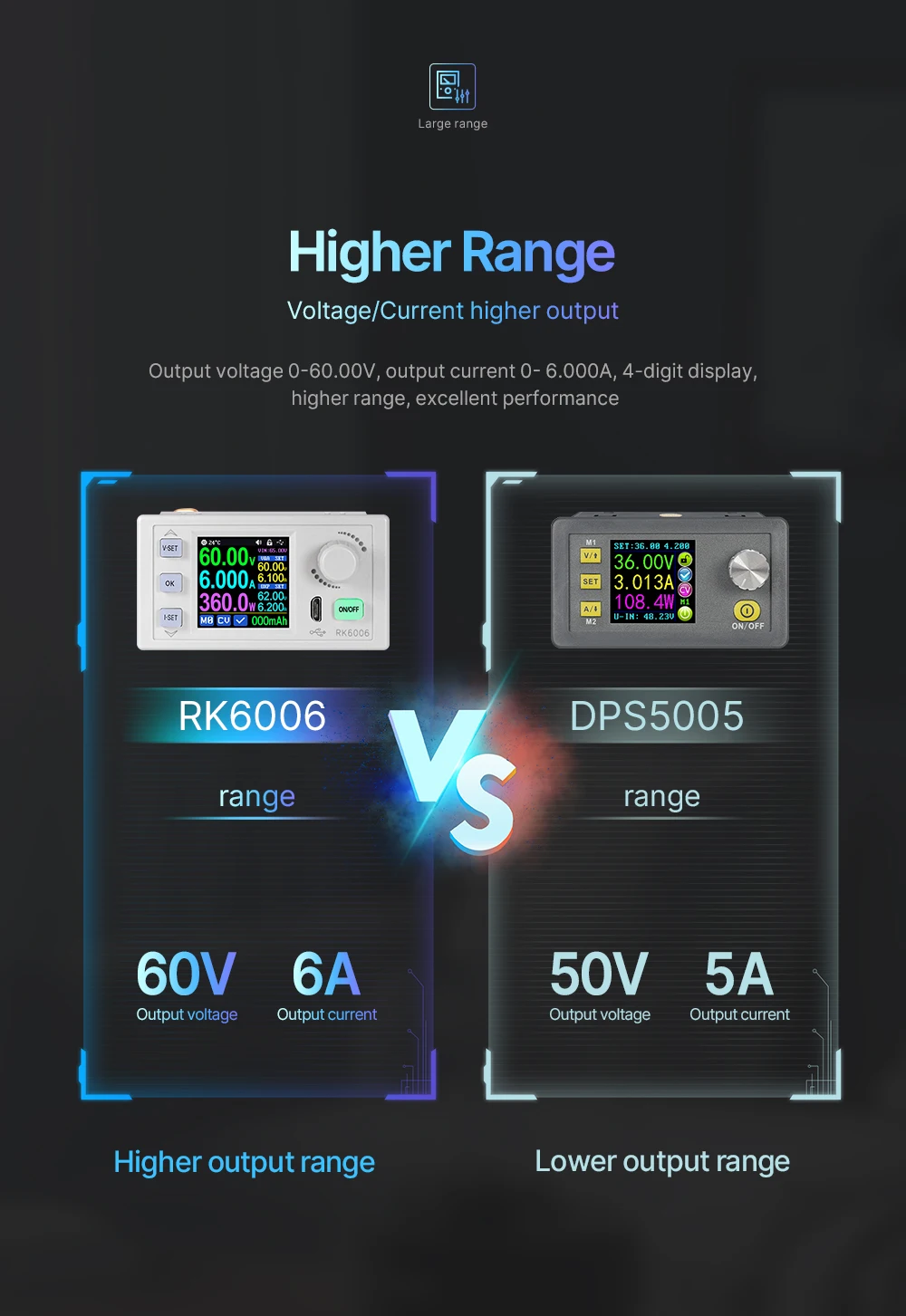

Output voltage range: 0-60.00V
Output current range: 0-6.000A
Output power range: 0-360W

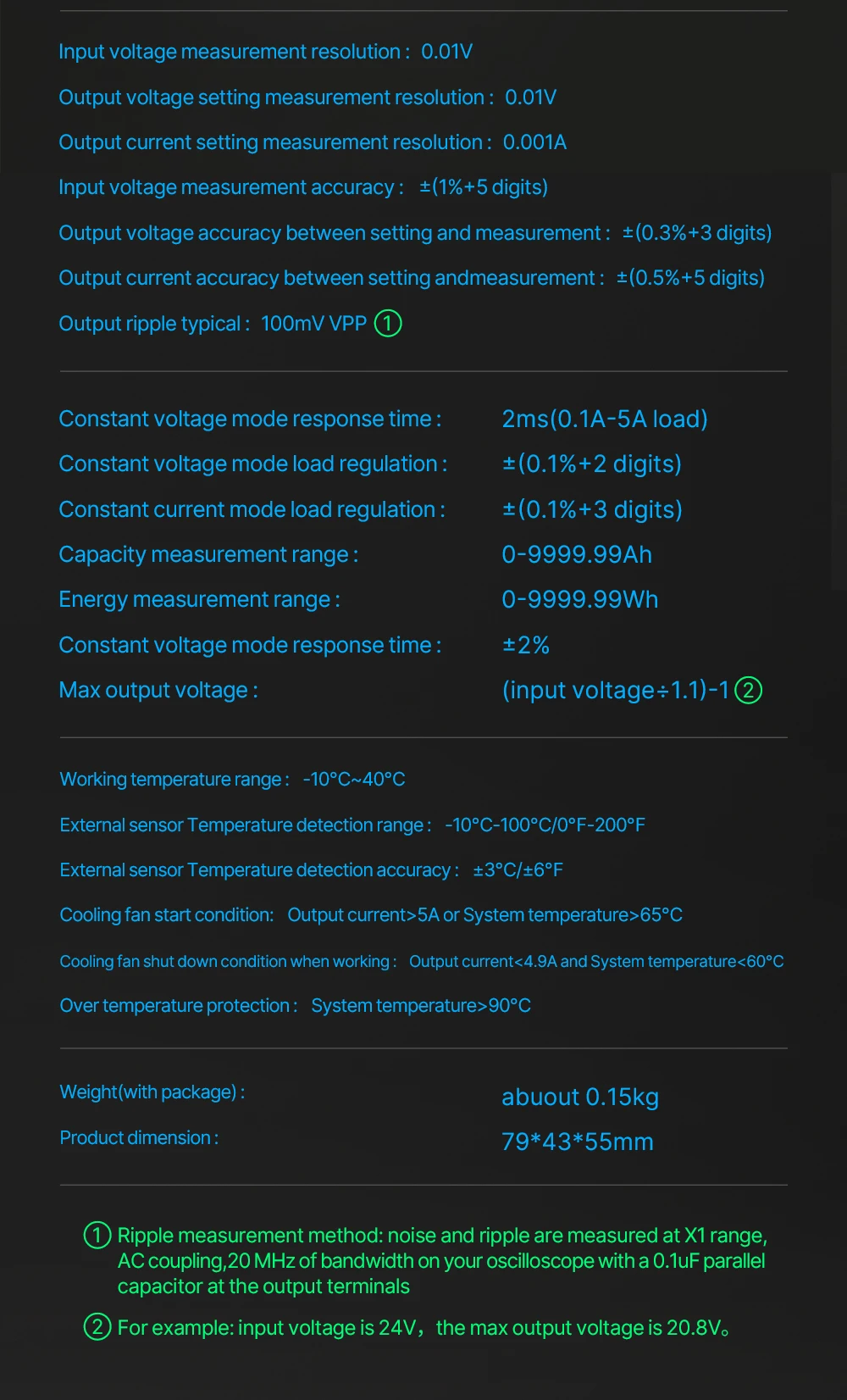

Input voltage measurement resolution: 0.01V
Output voltagesetting measurement resolution: 0.01V
Output current setting measurement resolution: 0.001A
Input voltage measurement accuracy: ±(1%+5 digits)
Output voltage accuracy between setting and measurement: ±(0.3%+3 digits)
Output currentaccuracybetween setting and measurement:±(0.5%+5 digits)
Output ripple typical:100mV VPP①
Working temperature range: -10℃~40℃
External sensor Temperature detection range:-10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy:±3℃/±6℉
Constant voltage moderesponse time: 2ms（0.1A-5A Load）
Constant voltage mode load regulation: ±(0.1%+2 digits)
Constant current mode load regulation: ±(0.1%+3 digits)
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
Capacity and energy statistical error: ±2％
Buck working mode: （input voltage÷1.1）-1②

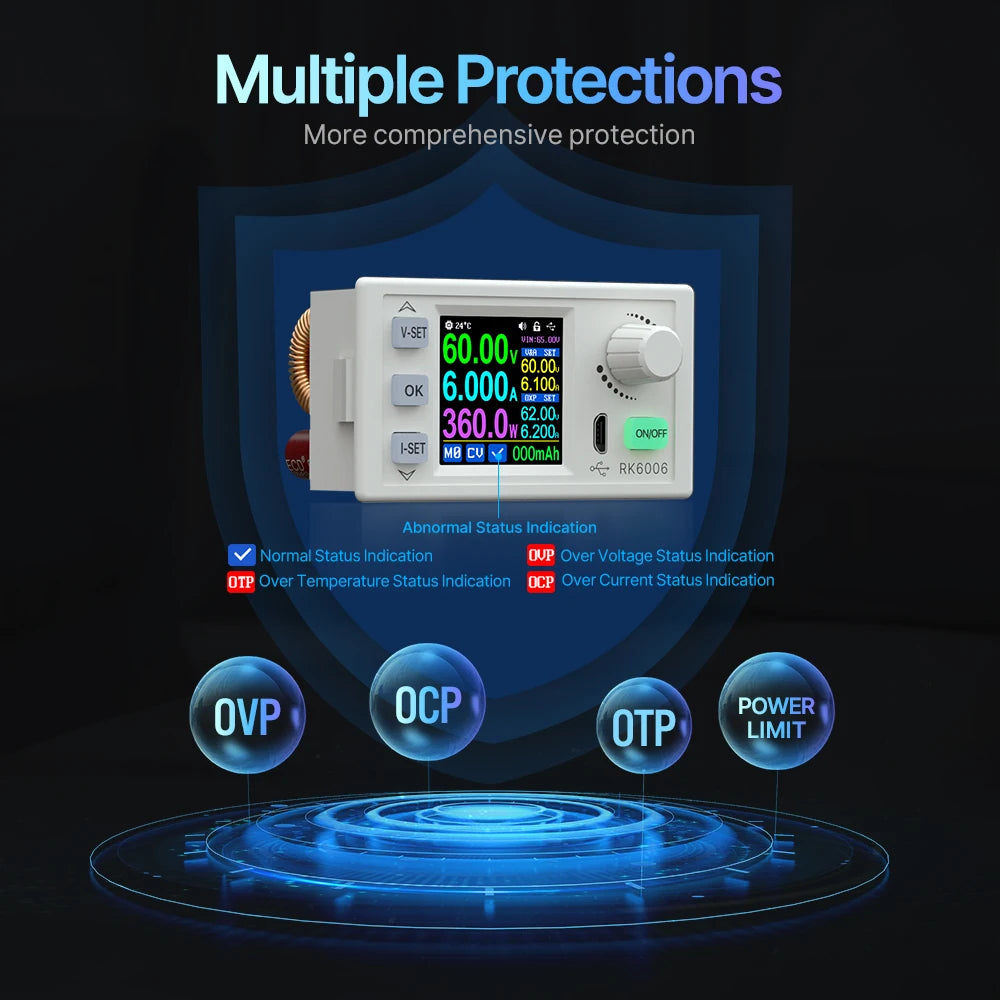

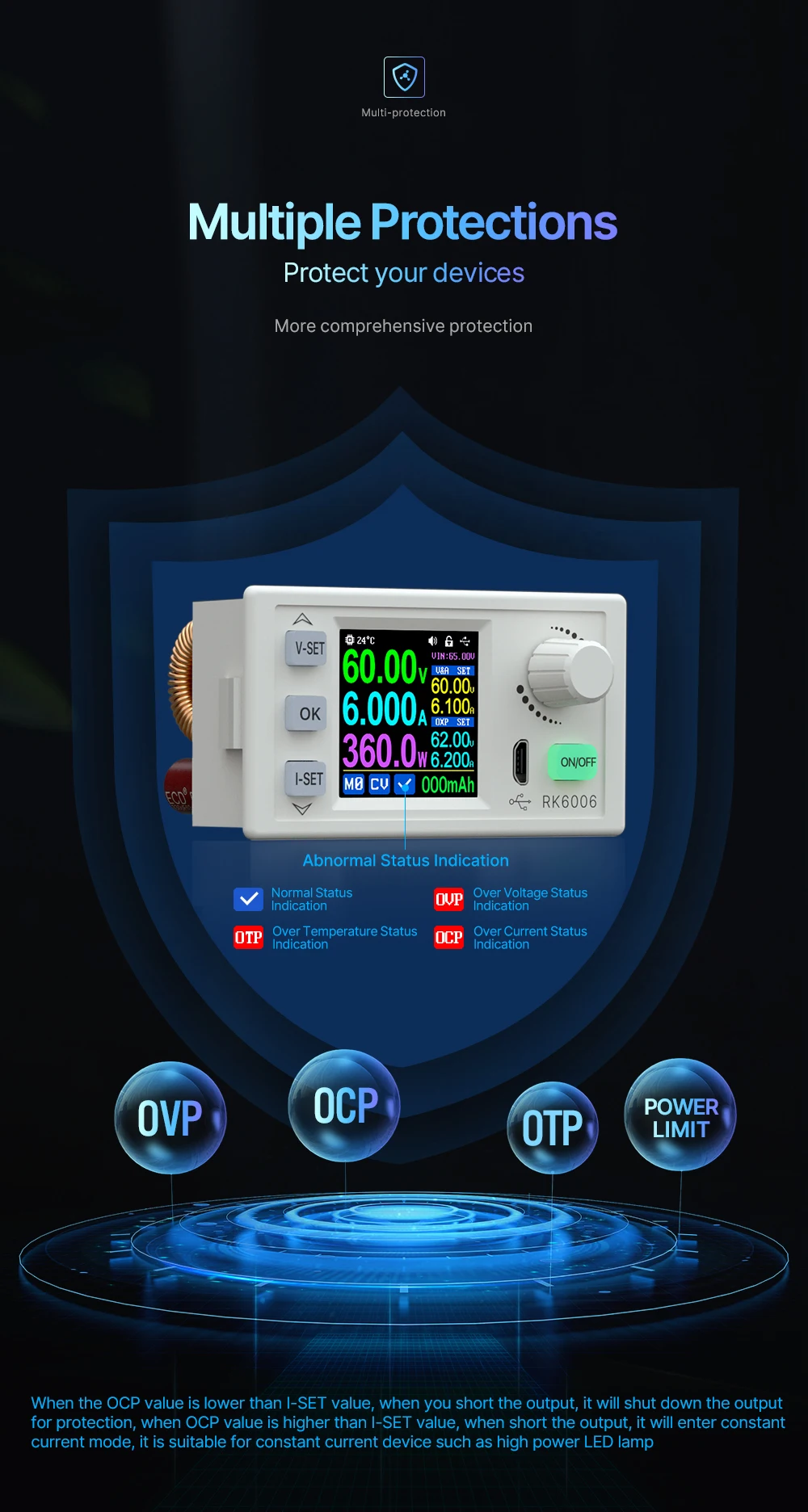

Over temperature protection: System temperature>90℃

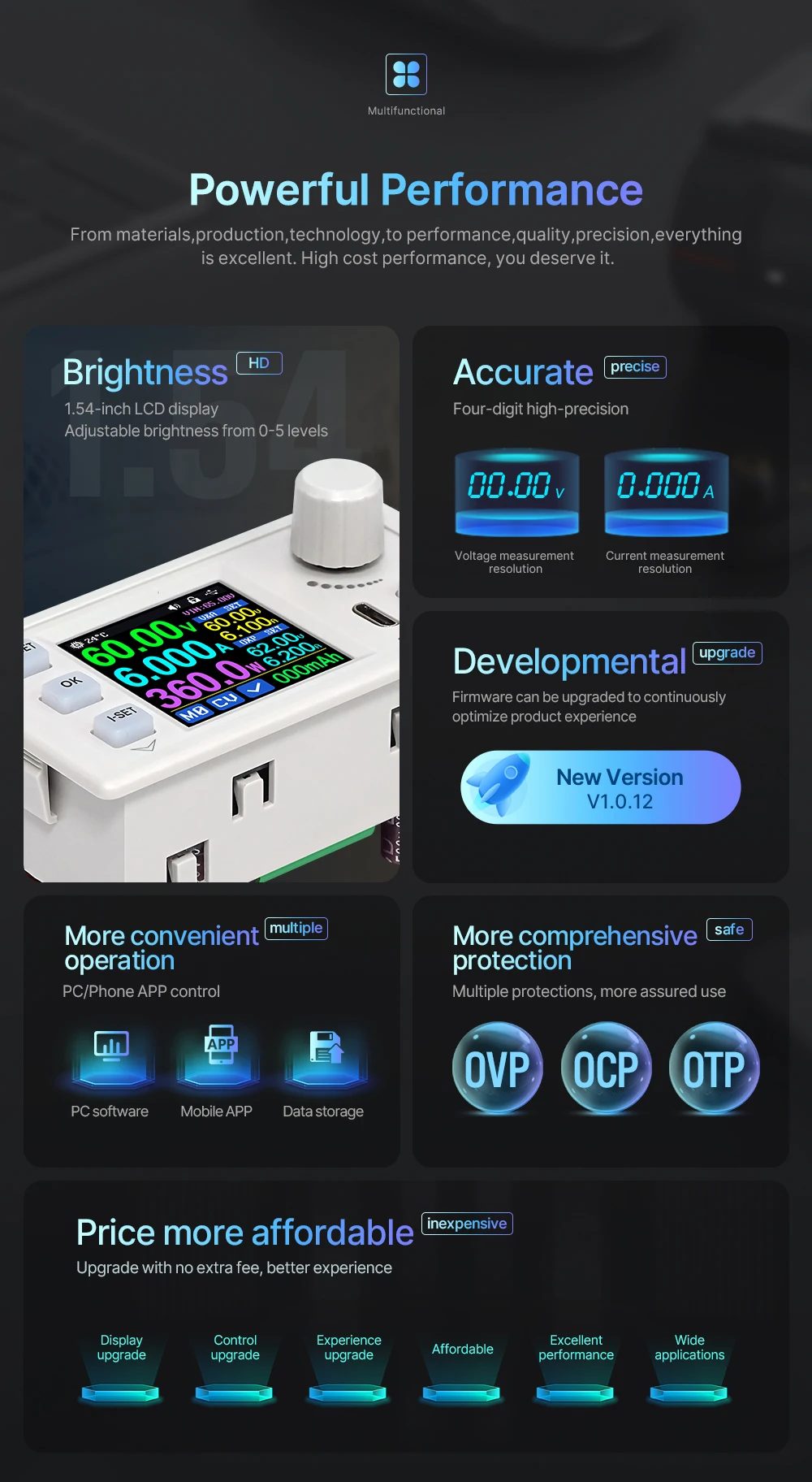

Screen brightness setting: 0-5(6 level in total)

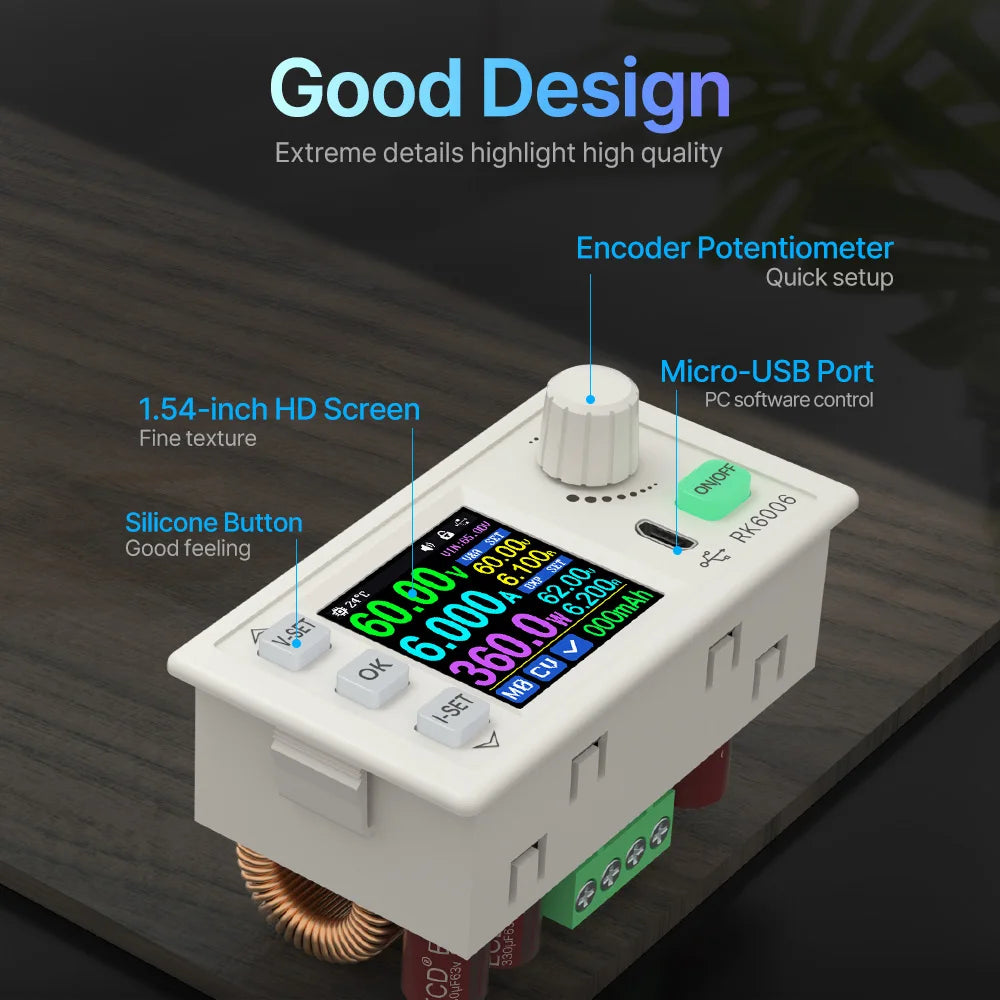

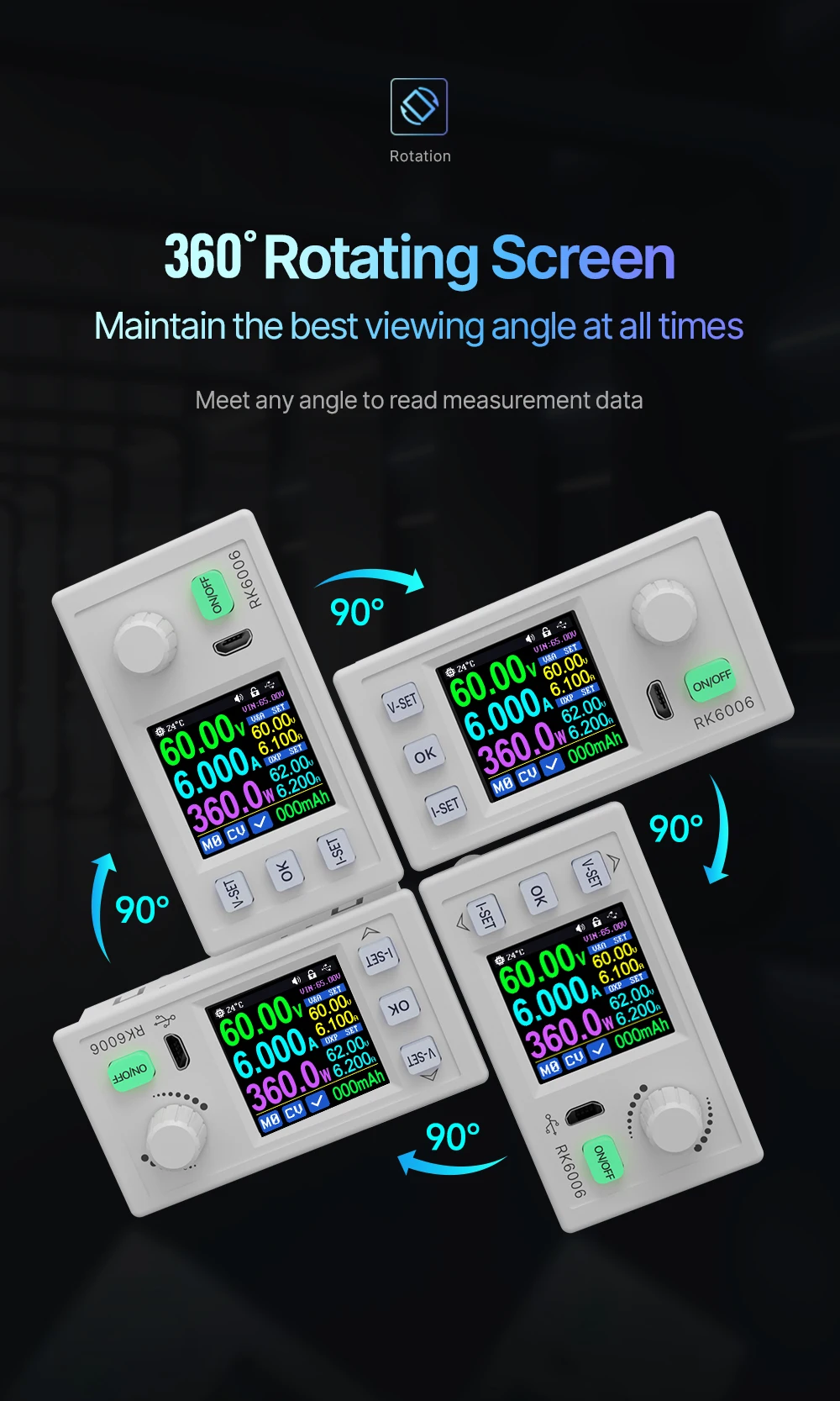

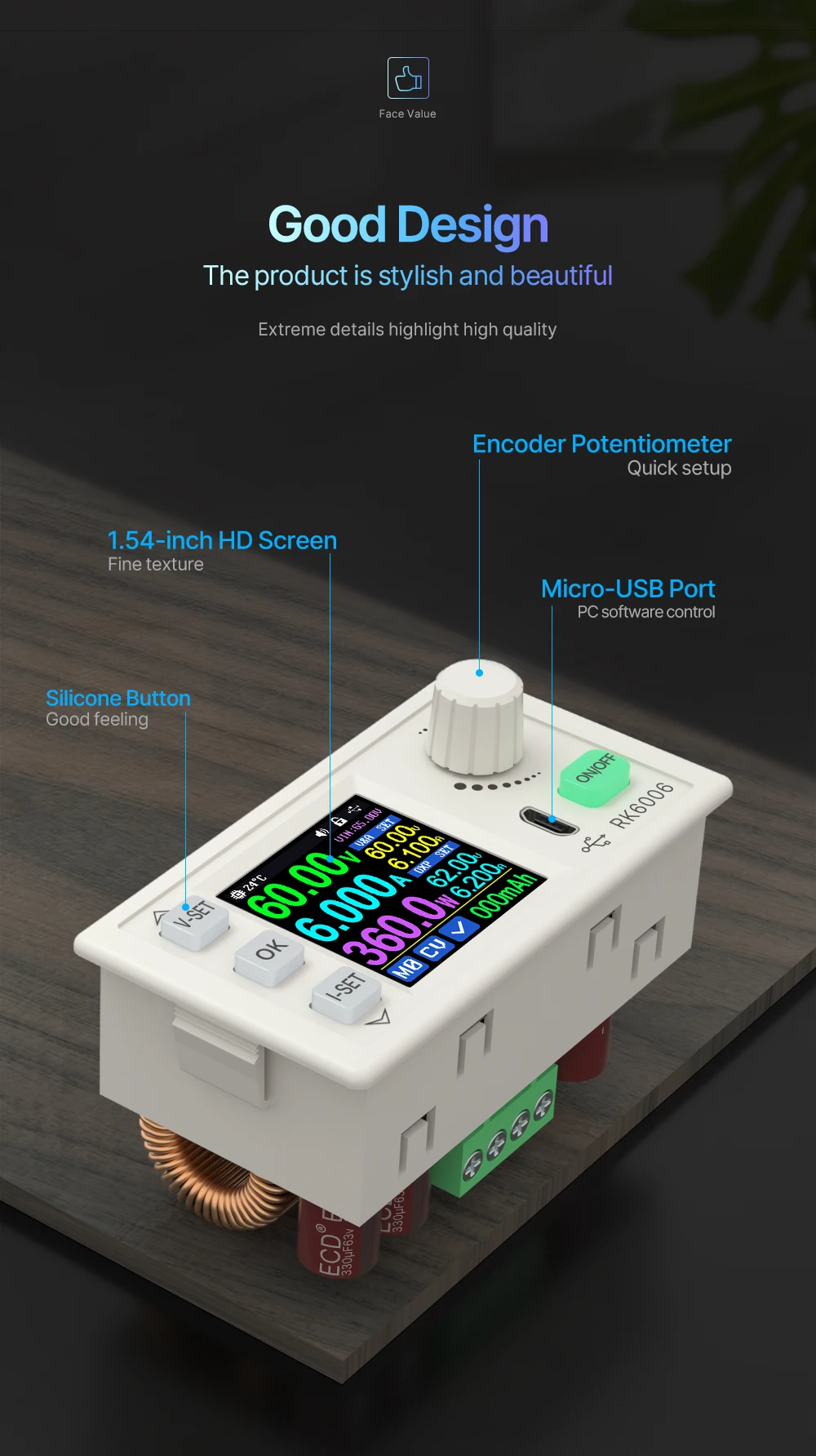

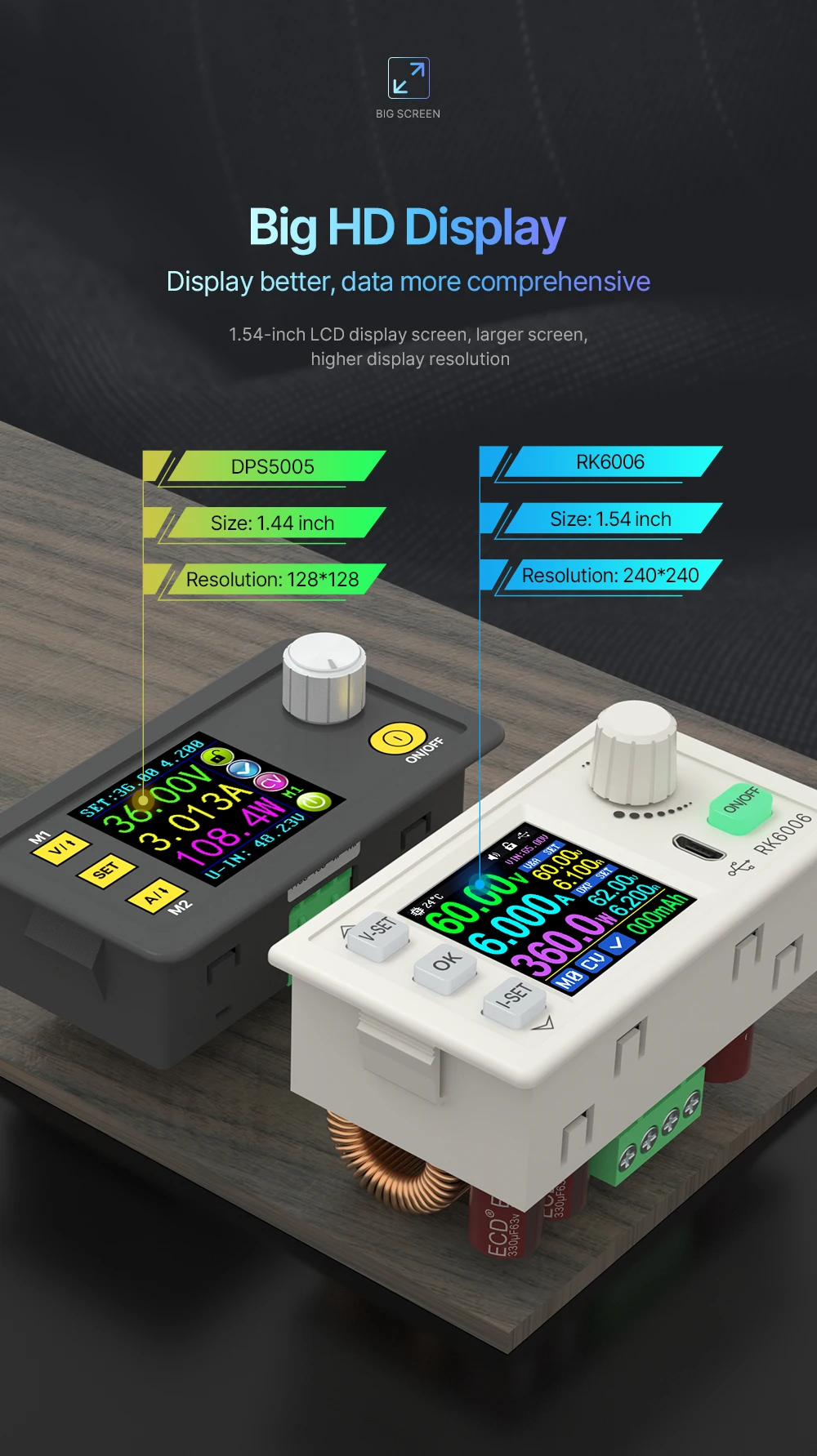

Screen: 1.54 inch 240*240 color HD display

Cooling fan start condition：Output current>5A or System temperature>65℃

Cooling fan shut down condition：Output current<4.9Aand System temperature<60℃

Weight(with package):About 0.15kg

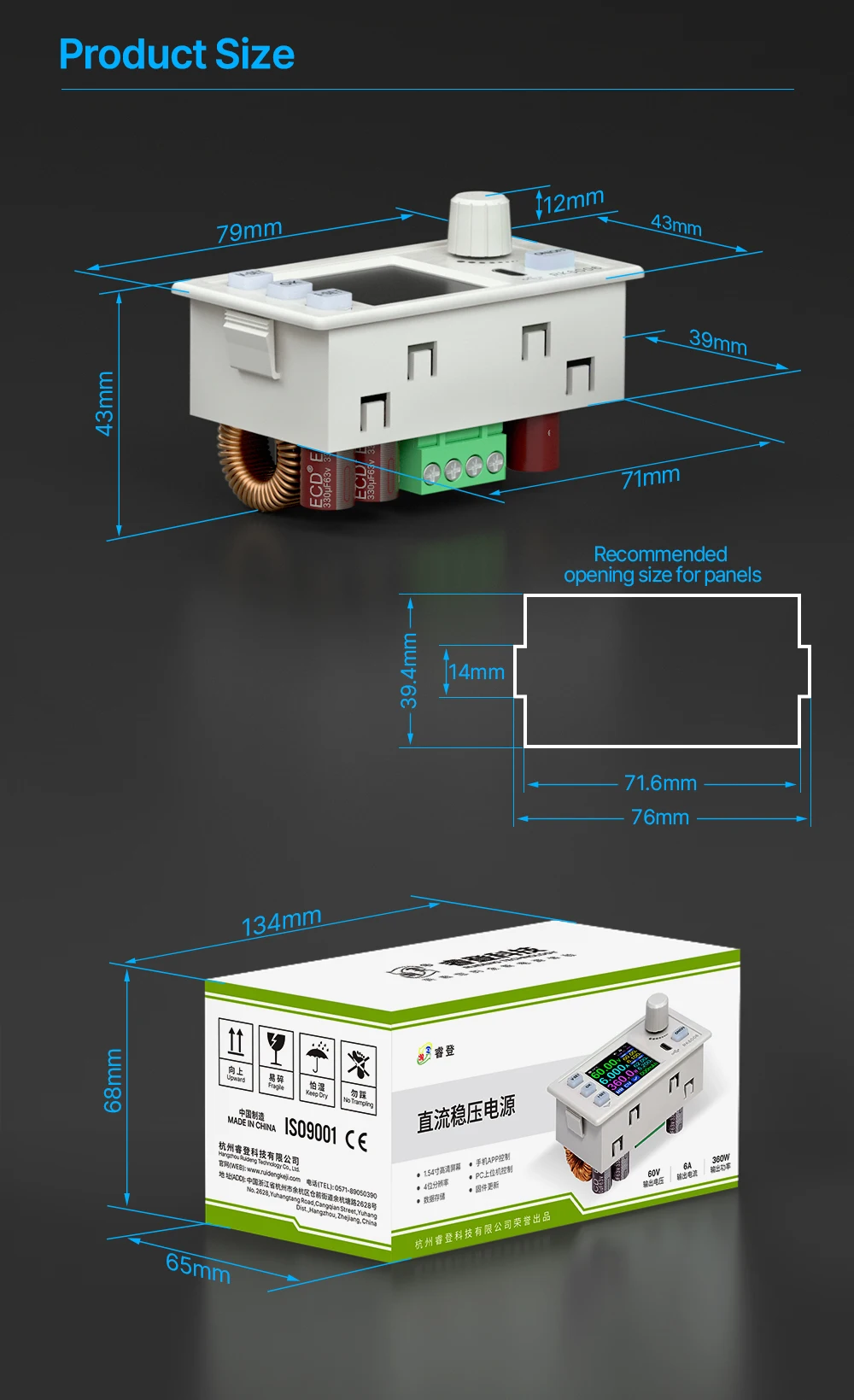

Product dimension: 79*43*55mm
Support USB communication: yes
Support Bluetooth communication: Only RK6006-BT supports
(​for firmware version V1.09)
①:Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope, with a 0.1uF parallel capacitor at the output terminals

②for example: input voltage is 24V，the max output voltage is 20.8V

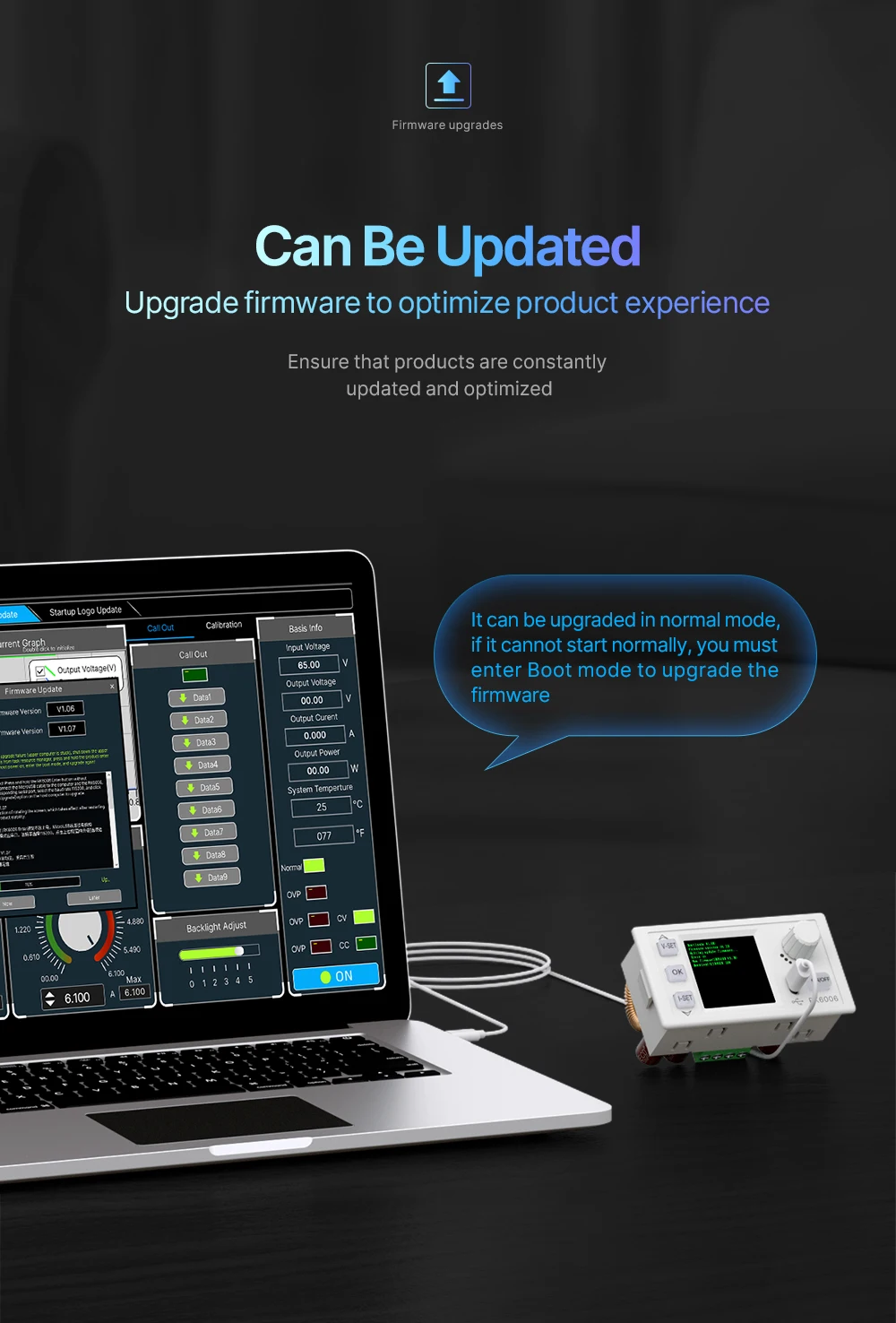

1. RK6006 manual, PC software, APP download link: https://drive.google.com/drive/folders/1U1g45_d_W2IXQIo4-s5pp4lnu72SbYW6?usp=share_link

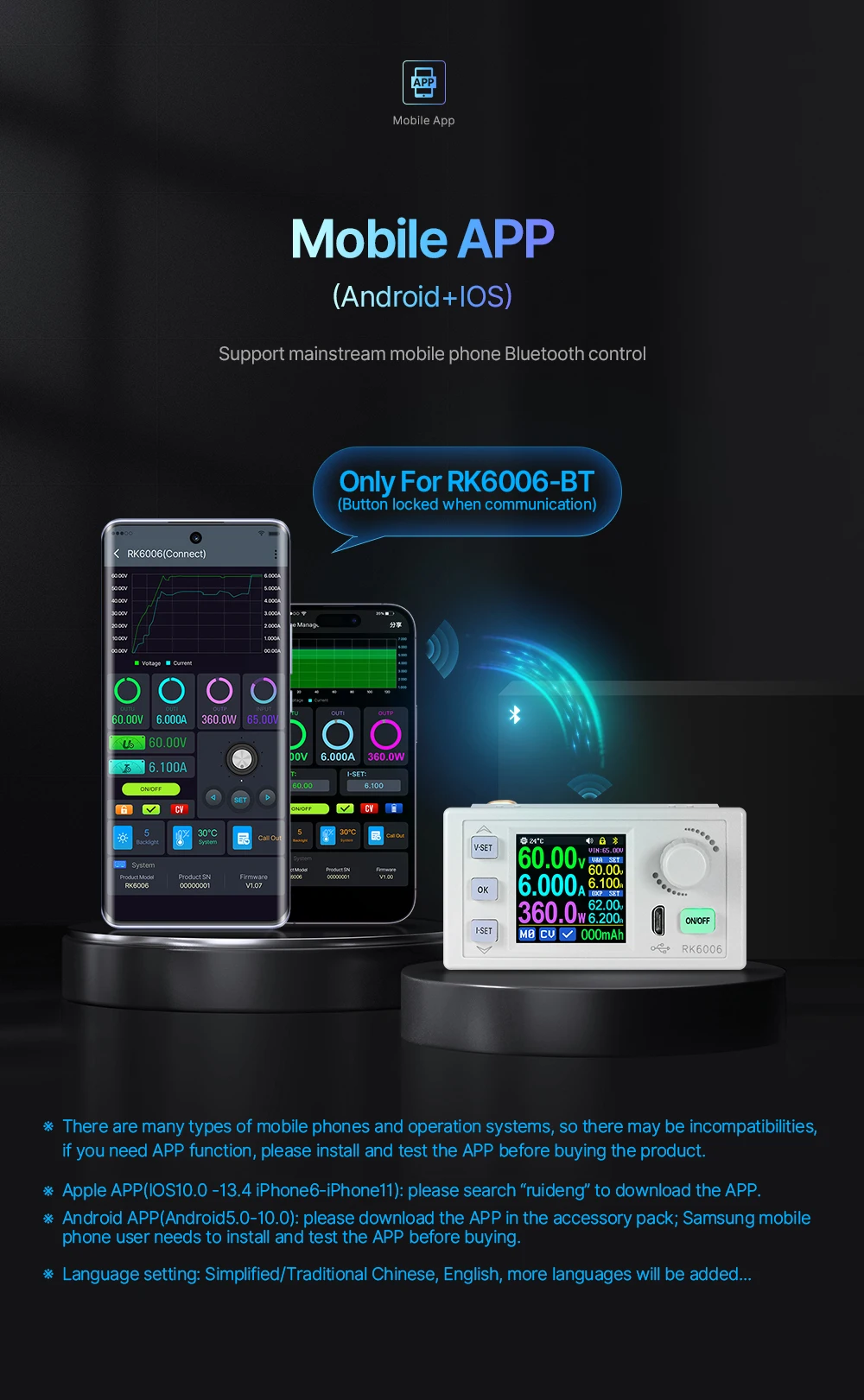

2. IOS APP download: search "RUIDENG" in APP STORE

Android app download link: https://drive.google.com/drive/folders/1U1g45_d_W2IXQIo4-s5pp4lnu72SbYW6?usp=drive_link

1.4.2.1 Main Page Output Voltage and Current Setting: https://youtu.be/C3qL3OIkNBo

1.4.2.2 Data Group Quick Storage and Call out: https://youtu.be/7bW9UcJY17o

1.4.2.3 System Setting: https://youtu.be/YaDcW2voC7Q

1.4.2.4 Main Page Display Style Setting: https://youtu.be/kpFtPQGhBmc

1.4.2.5 Storage Data Setting: https://youtu.be/7GYv6B40dGk

RK6006 actual testing: voltage and current accuracy, ripple and efficiency: https://youtu.be/EP9uKFeOwPQ

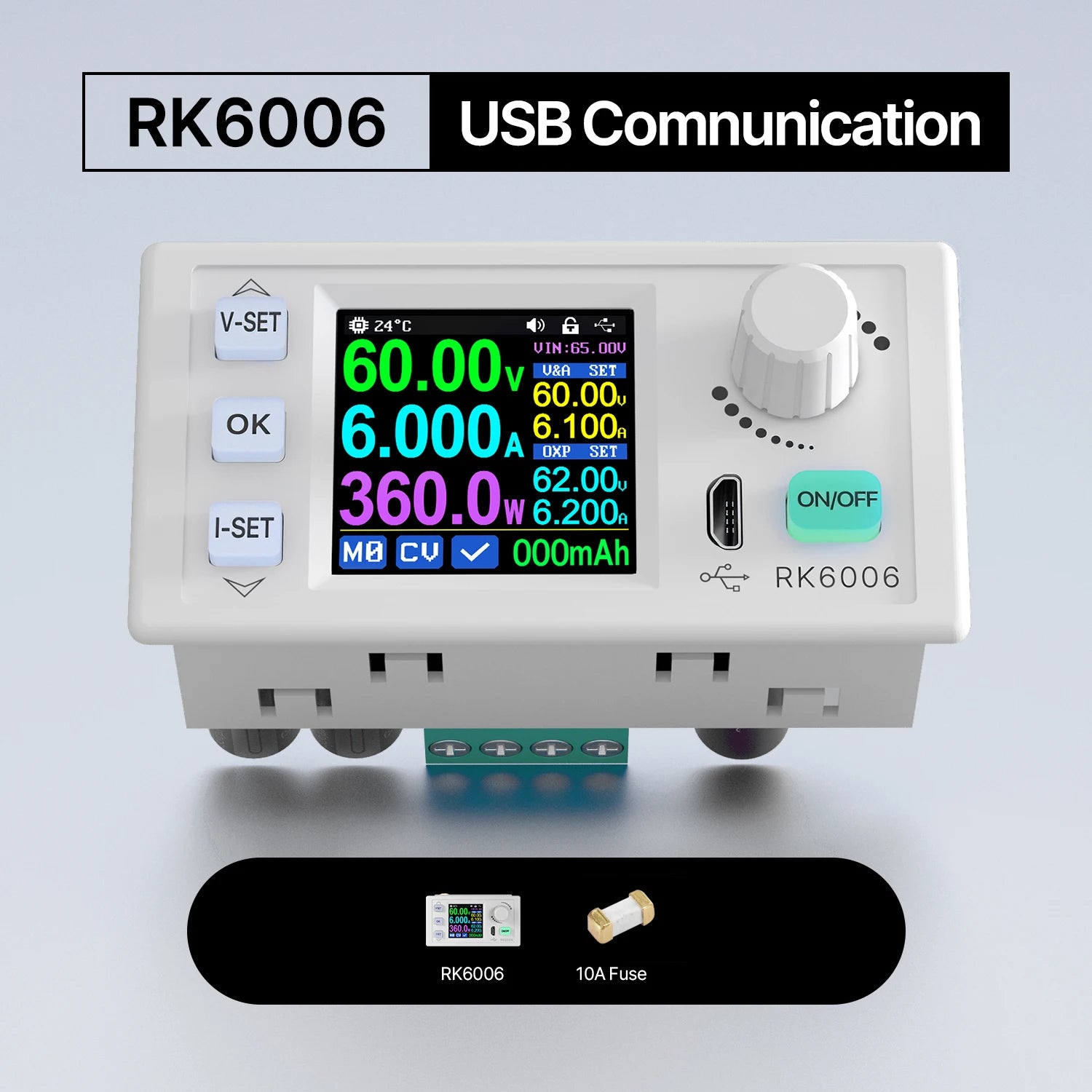

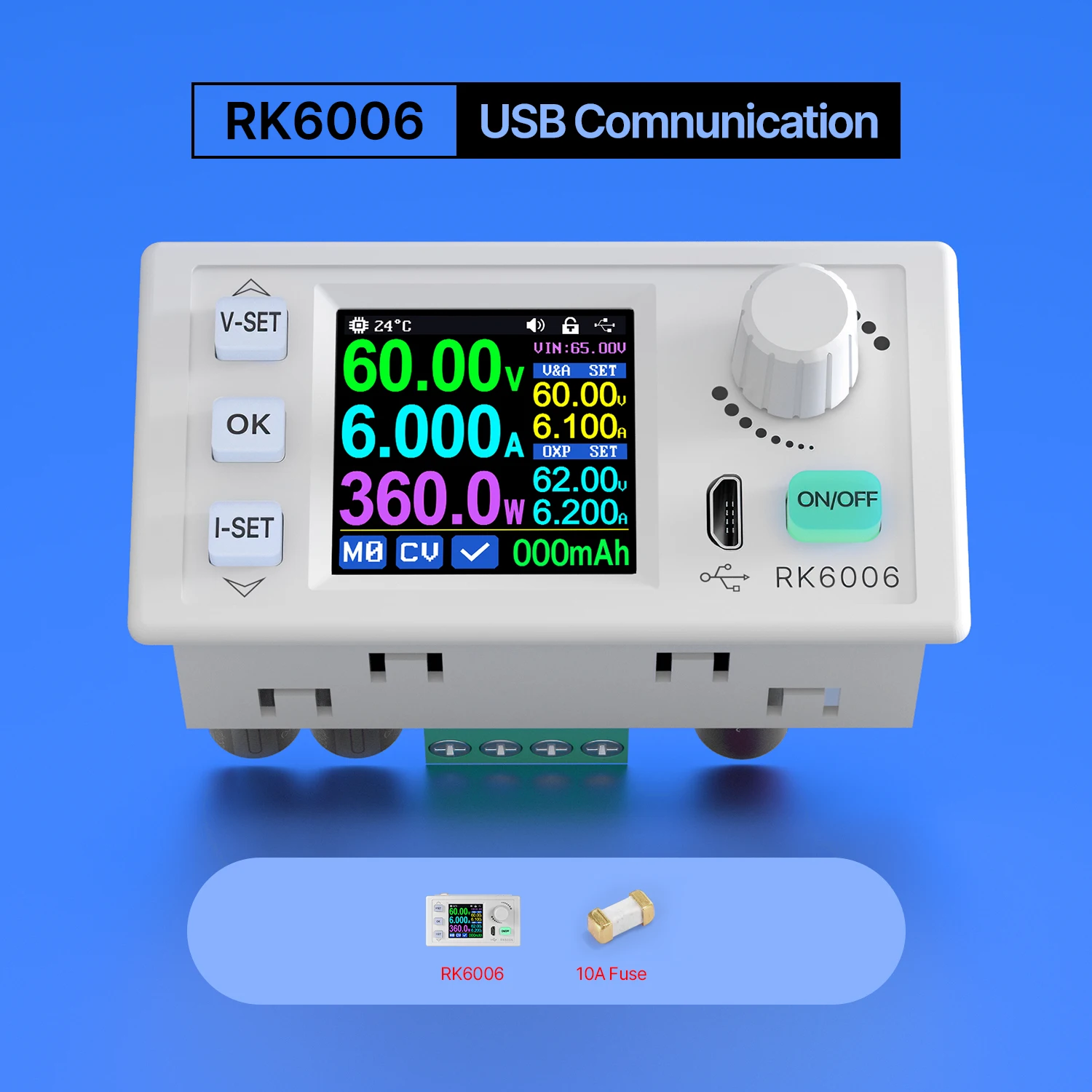

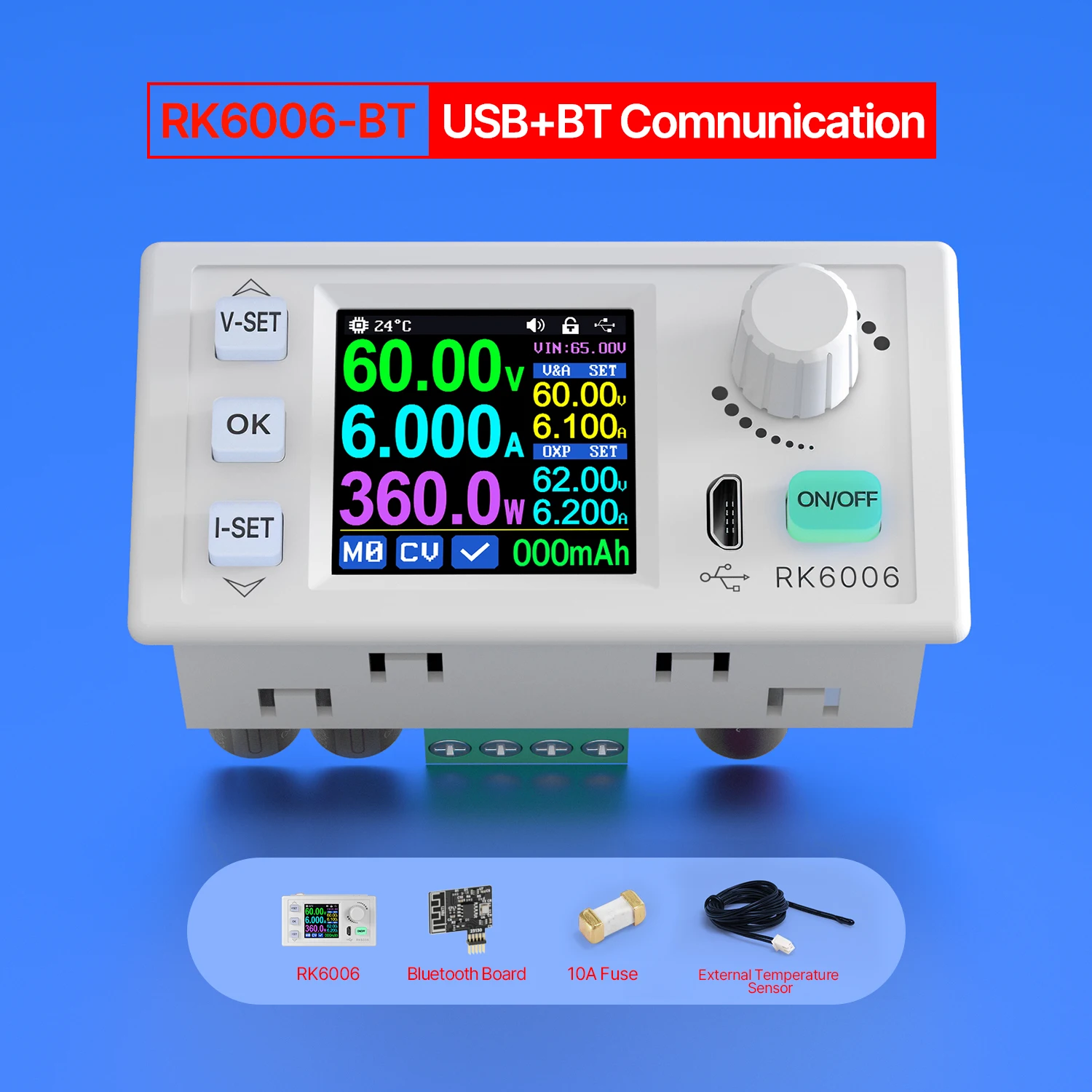

1. Q: What is the differences between RK6006 and RK6006-BT?

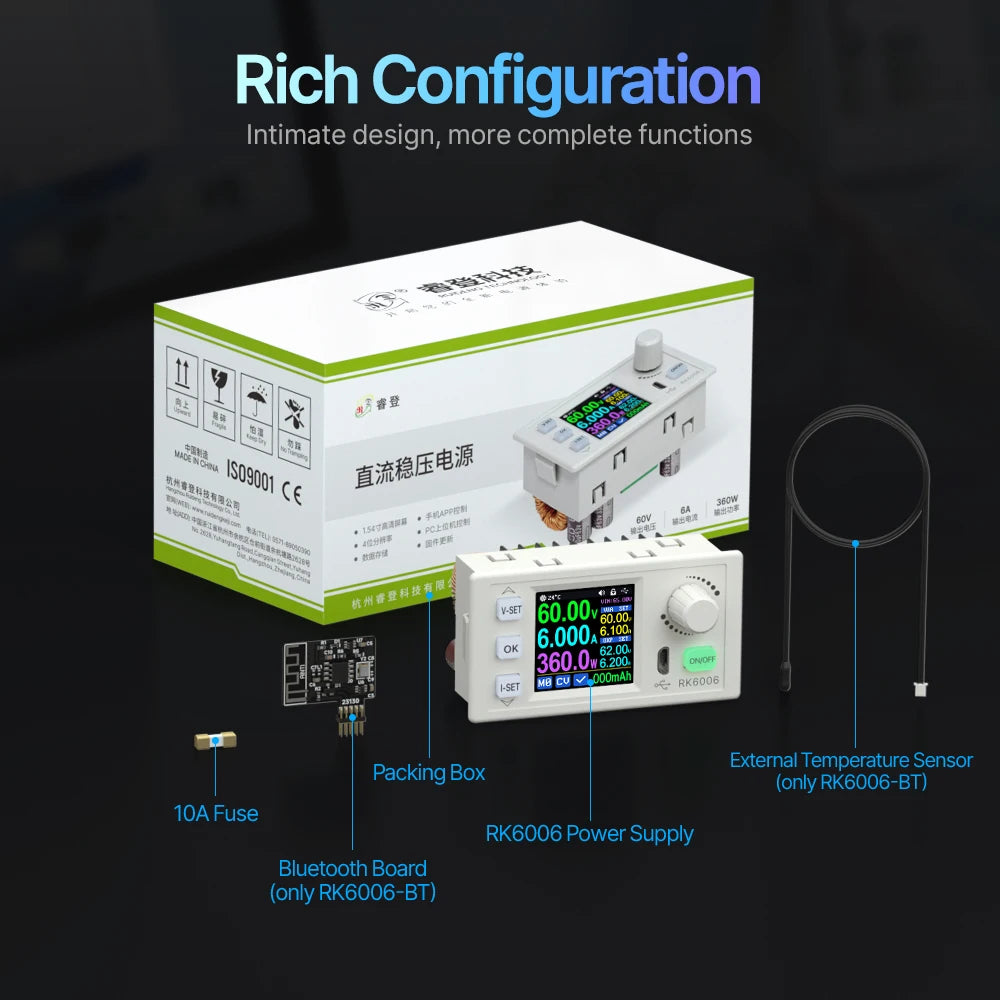

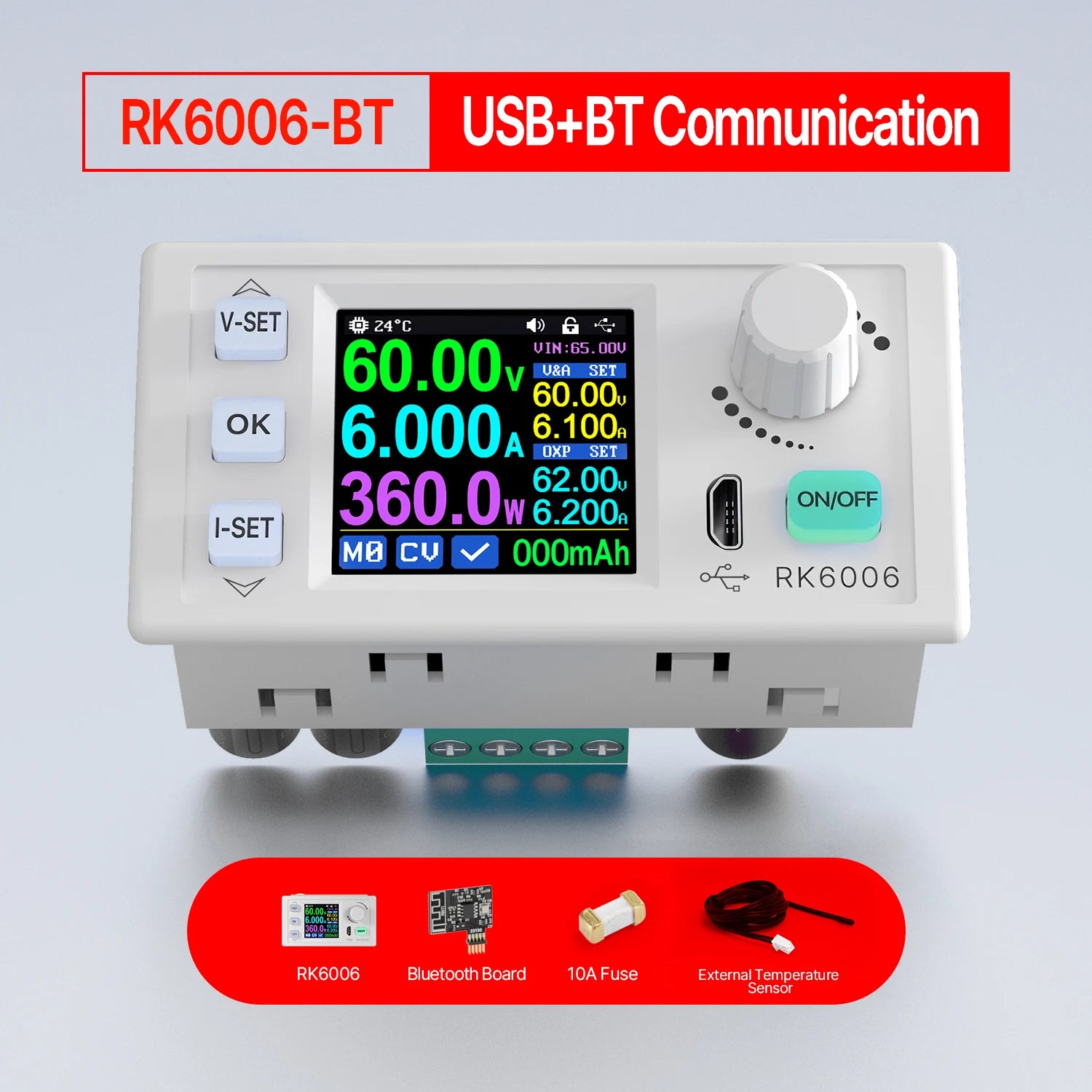

A: RK6006-BT has Bluetooth board , RK6006 doesn't have. RK6006-BT can use Bluetooth board to connect APP, also use USB micro cable to connect PC software . RK6006 doesn't have Bluetooth board, only support PC software by connecting with micro USB cable, do not support APP. and RK6006-BT has external temperature sensor cable, RK6006 does not have that

3. Q: Why the product I get is a bit different with the picture?

A: We keep updating the product hardware and software to make the device better, so the internal material details may be different, but it does not affect you to use the functions.

4. Q: why does the instruction not come with the product?

A: Because the products keep updating, we will add some function with the firmware and hardware update, so you can download the instruction online.

5.Q: Can I use it to power on inductive load?

A: If you connect inductive load (such as motor), the max working voltage and current is 1/3 of full range. don't exceed it.

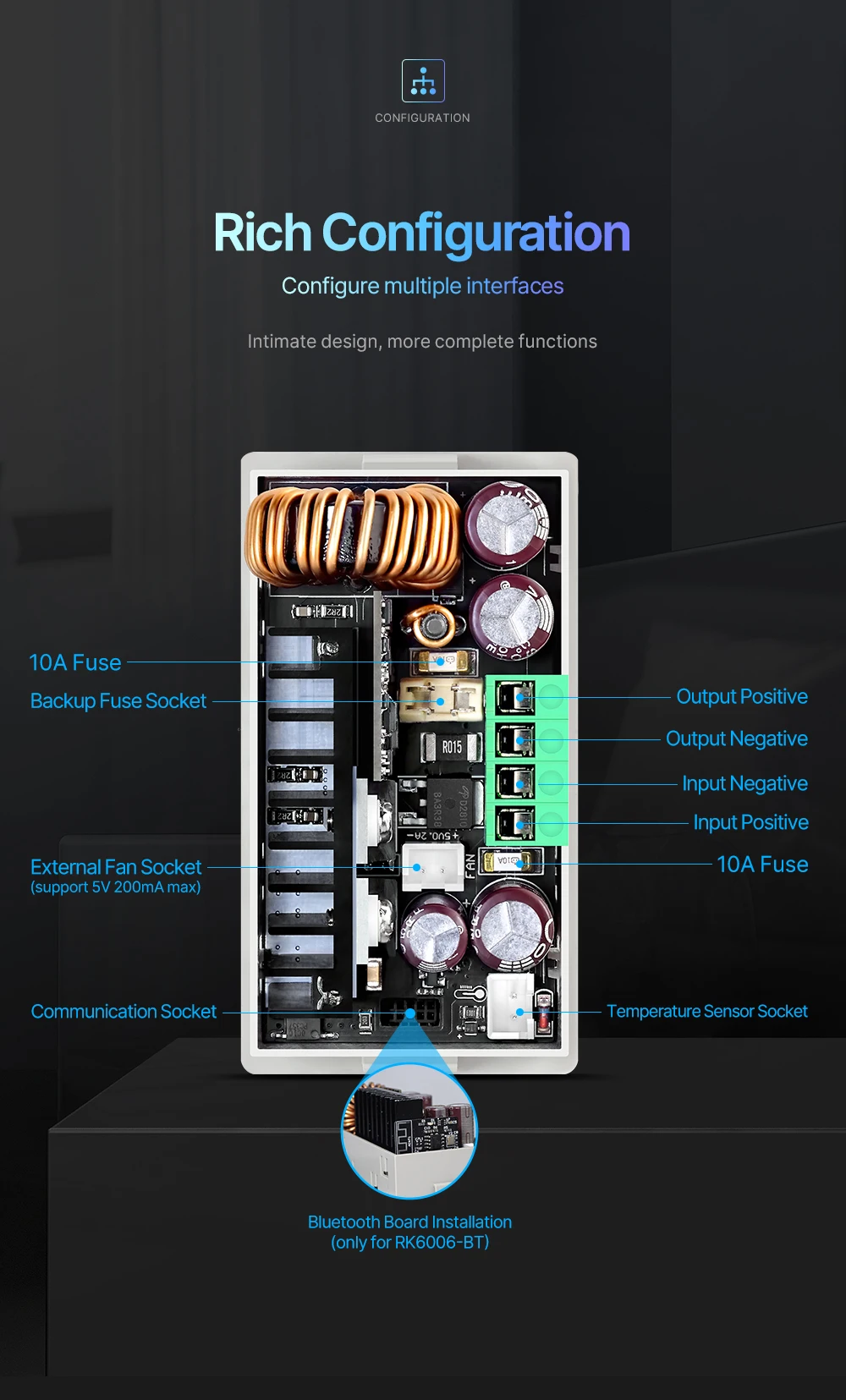

6. Q: Why there is a fuse in the box? Should I install it?

A:It is a BACKUP fuse in the, if you burn the fuse with wrong operation, you can replace the fuse with the backup fuse to fix it.

SOFTWARE QUESTIONS:

1. Q: The APP crashes on my phone, what the problem is?

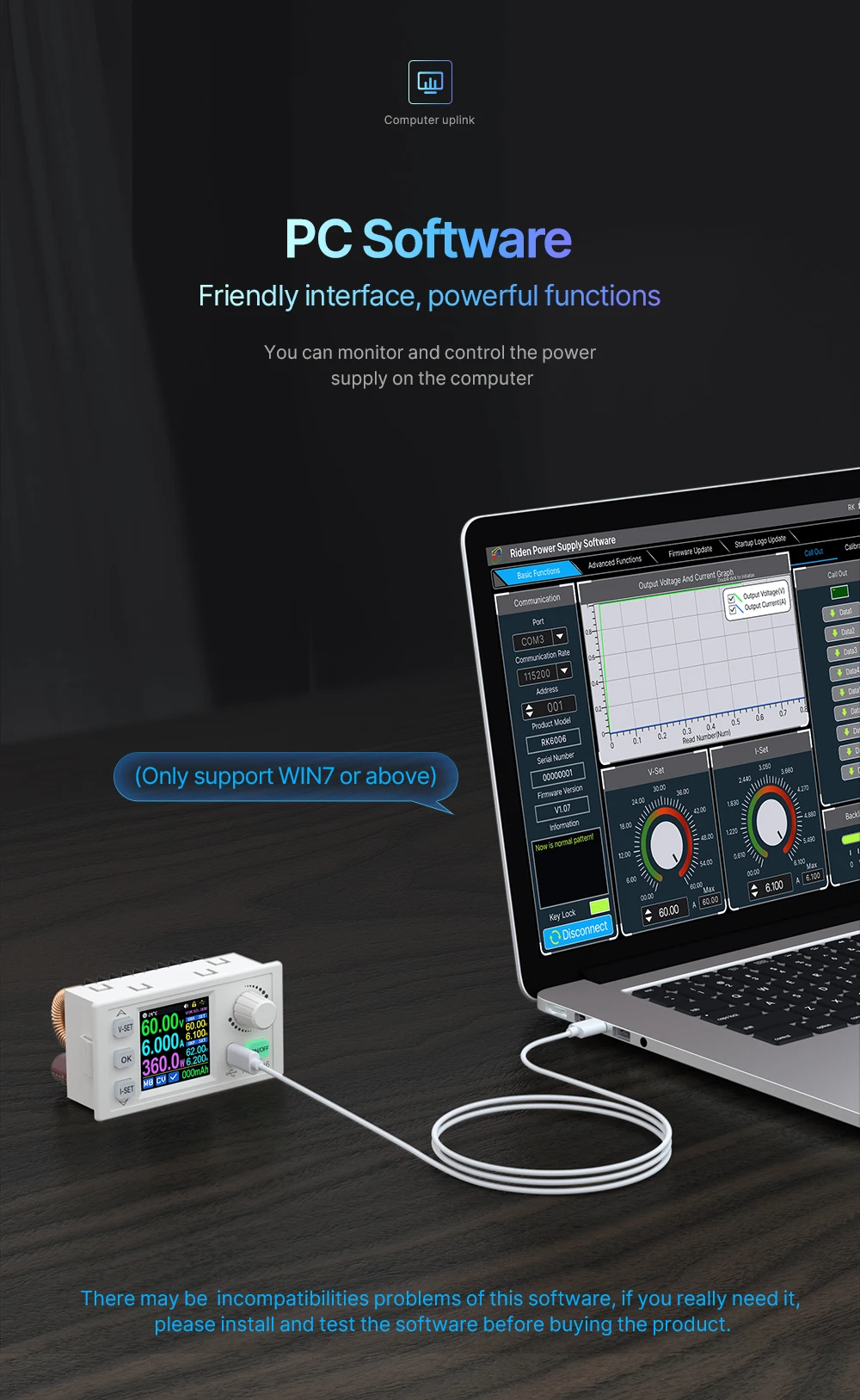

A: For APP and PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can make order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.For PC software, it only support win 7 and above for now. For APP, it only support android 8.0 and above.
