P4100 Oscilloscope Probe 100:1 2KV High Voltage 100Mhz Safety BNC Connector For Oscilloscope Adjustable Attenuation

Sale price
$17.50
List price
$25.00
You save
$7.50 (30%)

Prices include VAT and any applicable duties.

Color:Black
Delivery estimate Estimated arrival is calculated for your delivery market.
Ships in 1-3 business days. Remote areas or special items may take longer.

P4100 100:1 High-Voltage Oscilloscope Probe

The P4100 is a passive 100:1 oscilloscope probe for higher-voltage waveform measurements with a compatible oscilloscope. Its BNC connection and adjustable compensation support standard bench-oscilloscope use within the probe and instrument safety ratings.

P4100 100 to 1 high-voltage oscilloscope probe

Specifications

  • Attenuation ratio: 100:1.
  • Bandwidth: 100 MHz.
  • Rise time: approximately 3.5 ns.
  • Input resistance: 100 megohms.
  • Input capacitance: approximately 6 pF.
  • Compensation range: 10 to 35 pF.
  • Maximum listed rating: 2 kV peak-to-peak.

P4100 oscilloscope probe electrical specifications

Compatibility and Setup

  • BNC connector for compatible oscilloscopes.
  • Adjust the compensation trimmer using the oscilloscope calibration output before measurement.
  • Confirm the oscilloscope input rating, probe category and grounding arrangement for the circuit being tested.
  • Do not exceed the lowest voltage or safety-category limit in the complete measurement setup.

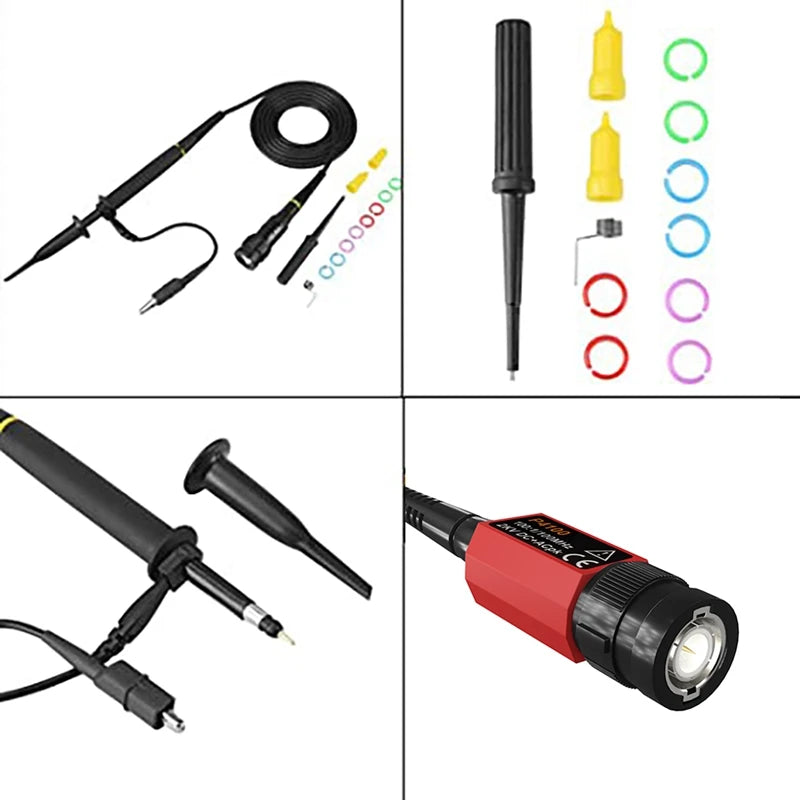

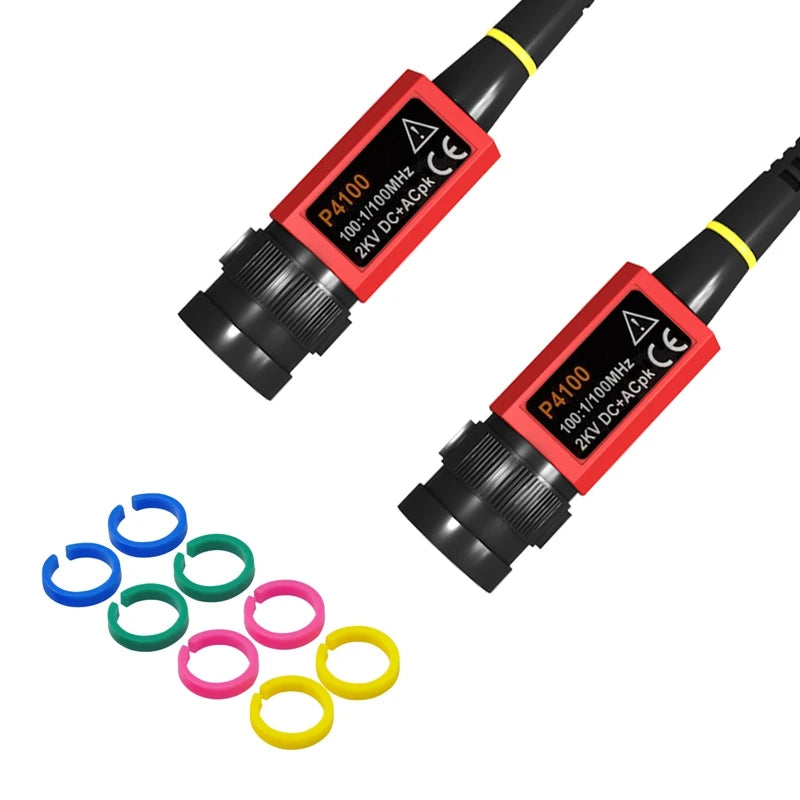

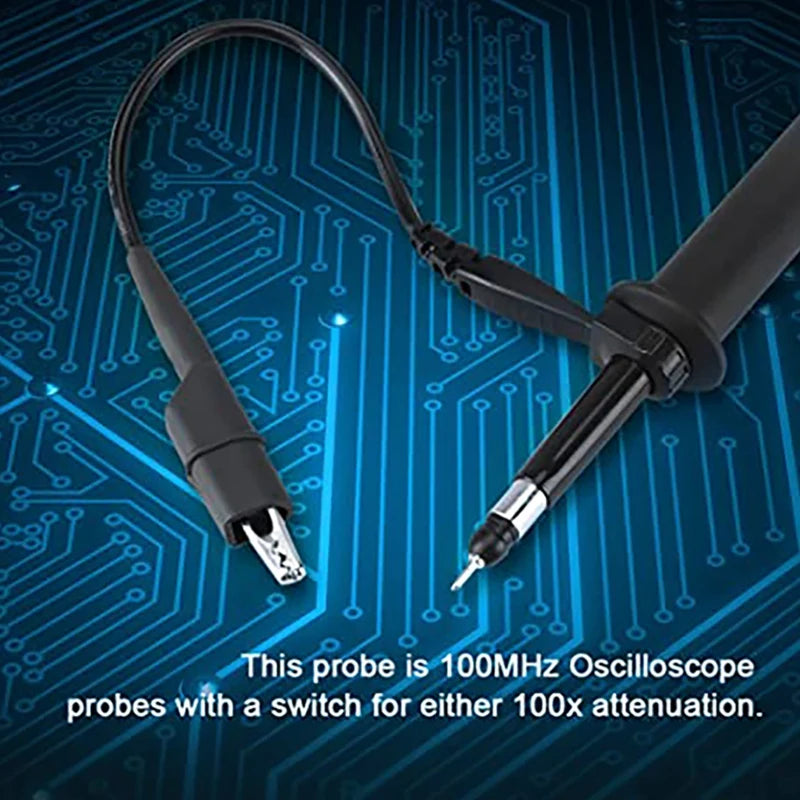

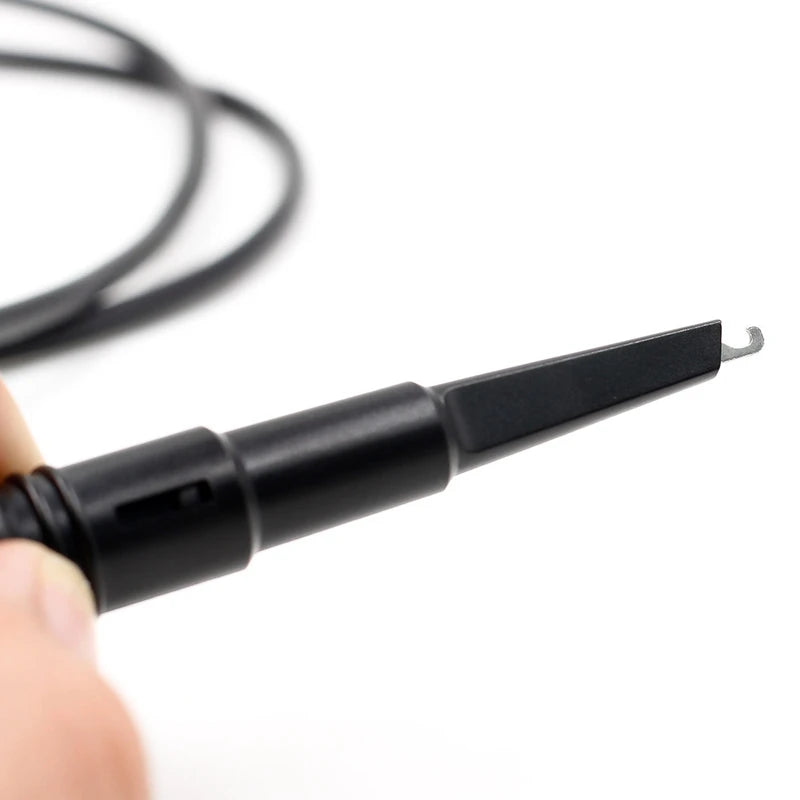

P4100 high-voltage probe BNC connector and probe tip

Package Contents

  • 1 x P4100 oscilloscope probe.
  • 4 x colour identification rings.

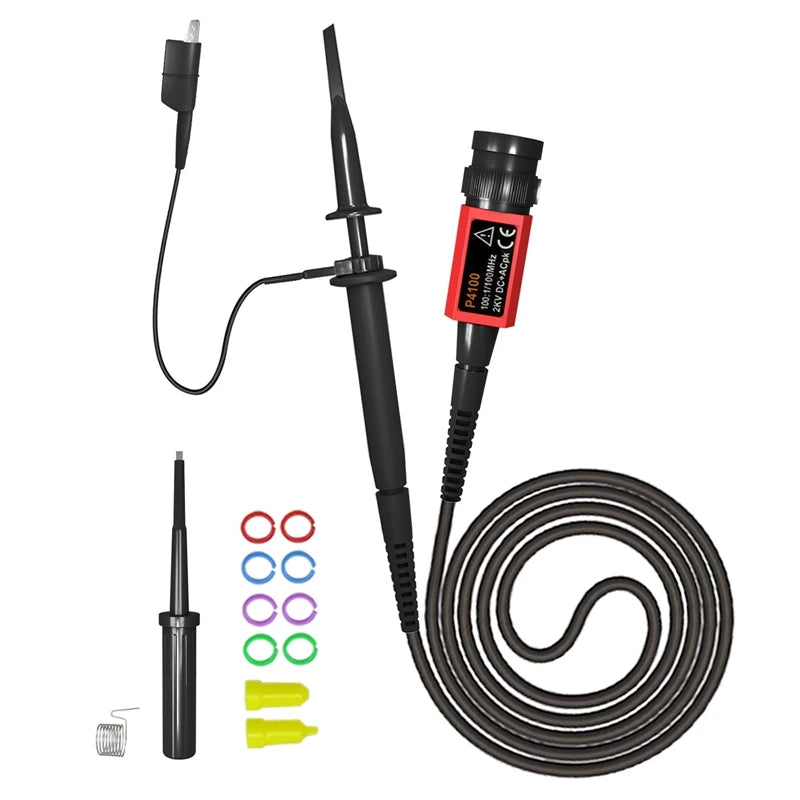

P4100 oscilloscope probe package and accessories
