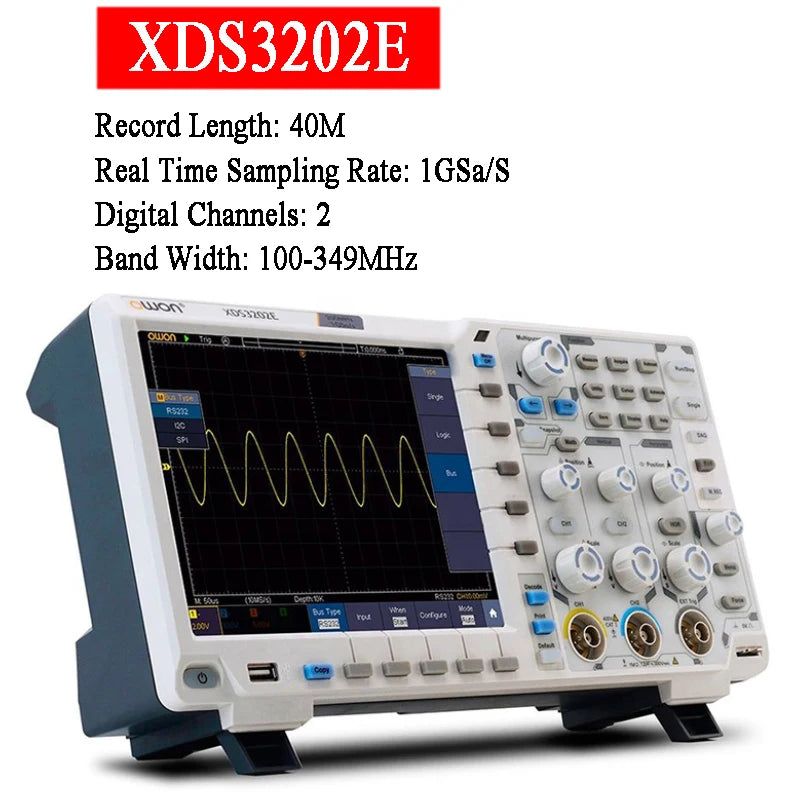

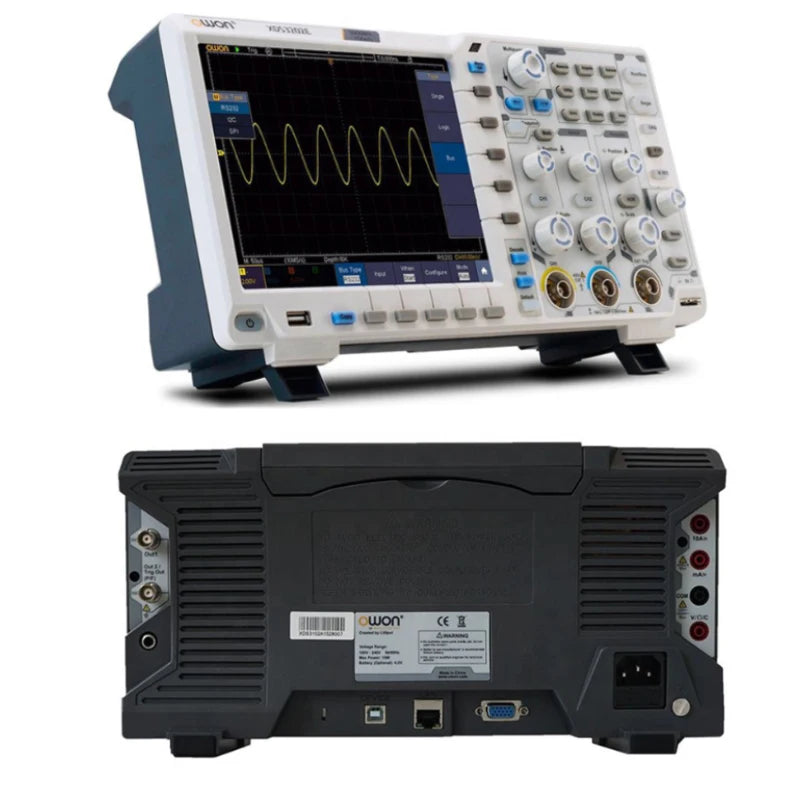

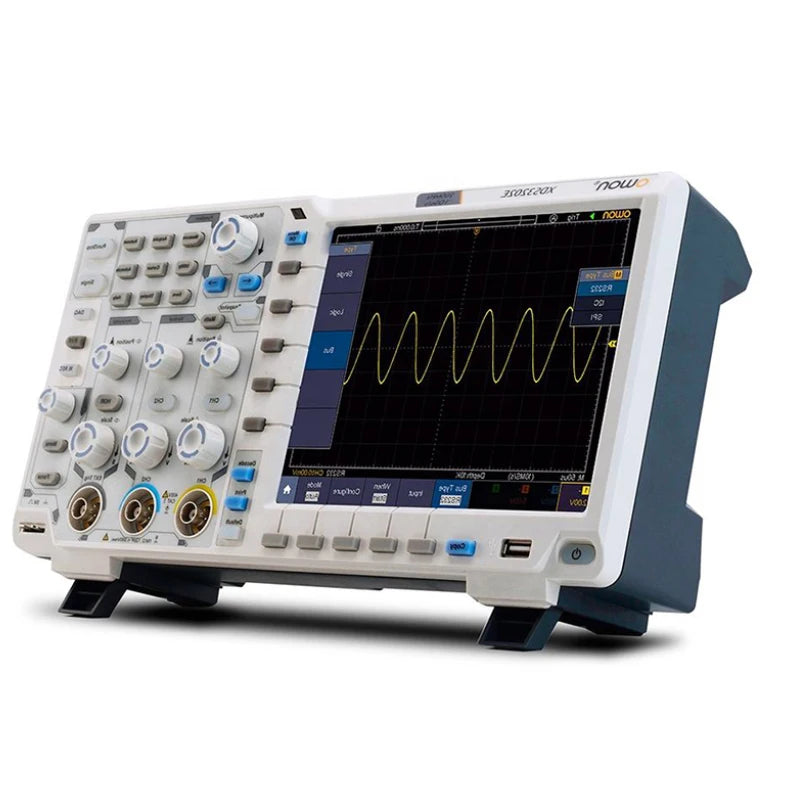

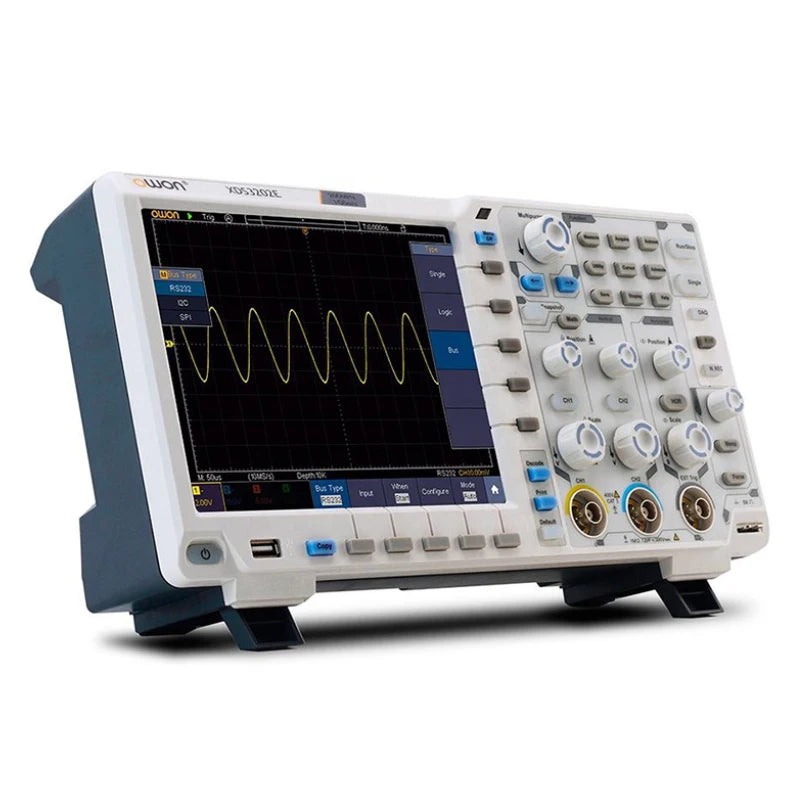

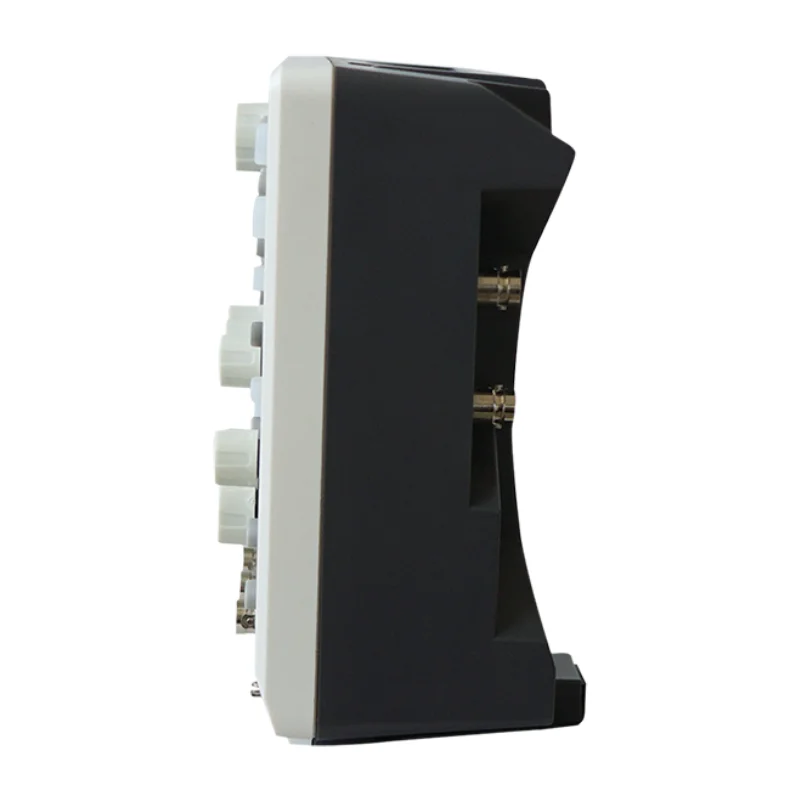

OWON XDS3202E Digital Oscilloscope 1GS/s 200MHz 2 Channels 40M Record Length 8 Bits 8Inch is a digital oscilloscope selected for checking waveforms, debugging signals and validating circuit behavior. It is suitable for electronics repair technicians, lab users and embedded developers who need practical electronics hardware for reliable project work.
Who is this product for? It is intended for electronics repair technicians, lab users and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
OWON XDS3202E Digital Oscilloscope 1GS/s 200MHz 2 Channels 40M Record Length 8
Bits 8Inch USB I2C SPI RS232 CAN 2CH Oscilloscope
Feature:
XDS3202E
Super Performance
Optional Notice:
This XDS3202E optional function include Touch Screen,WIFI,Multimeter,Rechargeable Battery, if you need to add some optional function please contact with me, we will send you link to add to cart,thanks!
If you need the optional function please contact with me
Specifications:
Model |
XDS3202E |
|
Bandwidth |
200MHz |
|
Sampling Rate |
1GS/s |
|
Vertical Resolution(A/D) |
8bits |
|
Record Length |
40M |
|
Waveform Refresh Rate |
75,000 wfms/s |
|
Horizontal Scale(S/DIV) |
1ns/div - 1000s/div, step by 1 - 2 - 5 |
|
Rise Time(input, output) |
≤1.7ns |
|
Channel |
2 + 1 (external) |
|
Display |
8" color LCD, 800 x 600 pixels |
|
Input Impedance |
1M& ; ± 2%, in parallel with 15pF ± 5pF |
|
Channel Isolation |
50Hz : 100 : 1, 10MHz : 40 : 1 |
|
. Input Signal Level |
1M& ; ≤ 300Vrms; 50& ; ≤ 5Vrms |
|
DC Gain Accuracy |
±3% |
|
DC Accuracy |
average≥16: ±(3% reading + 0.05 div) for V |
|
Probe Attenuation Coefficient |
0.001X - 1000X, step by 1 - 2 - 5 |
|
Bass Response(AC, -3dB) |
≥5Hz (at input, AC coupling, -3dB) |
|
Sampling Rate/Relay Time Accuracy |
±1ppm |
|
Interpolation |
sin(x) / x |
|
Section(t)Accuracy |
Single: ±(1 interval time + 1ppm x reading + 0.6ns); |
|
(Full Bandwidth) |
Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns) |
|
Input Coupling |
DC, AC, and GND |
|
Vertical Sensitivity |
1mV/div - 10V/div (at input) |
|
Trigger Type |
Edge, Video, waveform, Slope, Runt, Windows, Timeout, Nth Edge |
|
Trigger Mode |
Auto, Normal, and Single |
|
Vertical Range |
±2V ( 1mv/div - 50mv/div), ±20V ( 100mv/div - 1V/div), ±200V (2V/div - 10V/div) |
|
Row/Field Frequency (Video) |
NTSC, PAL and SECAM standard |
|
Cursor Measurement |
V, and T between cursors, V and T between cursors, and auto- cursors |
|
Automatic Measurement |
Vpp, VAVG, VRMS, FRQ, cycle RMS, V , Vmin, Vtop, Vbase, VAMP, overshoot, Phase, Preshoot, rise time, fall time, width, width, +duty cycle, duty cycle, duty cycle, Delay A-B, Delay A, B, +waveform count, waveform count, rise edge count, fall edge count |
|
Waveform Math |
+,-,x, /, FFT |
|
Waveform Storage |
100 waveforms |
|
Lissajous figures |
Bandwidth |
full bandwidth |
Phase Difference |
±3 degrees |
|
Communication Interface |

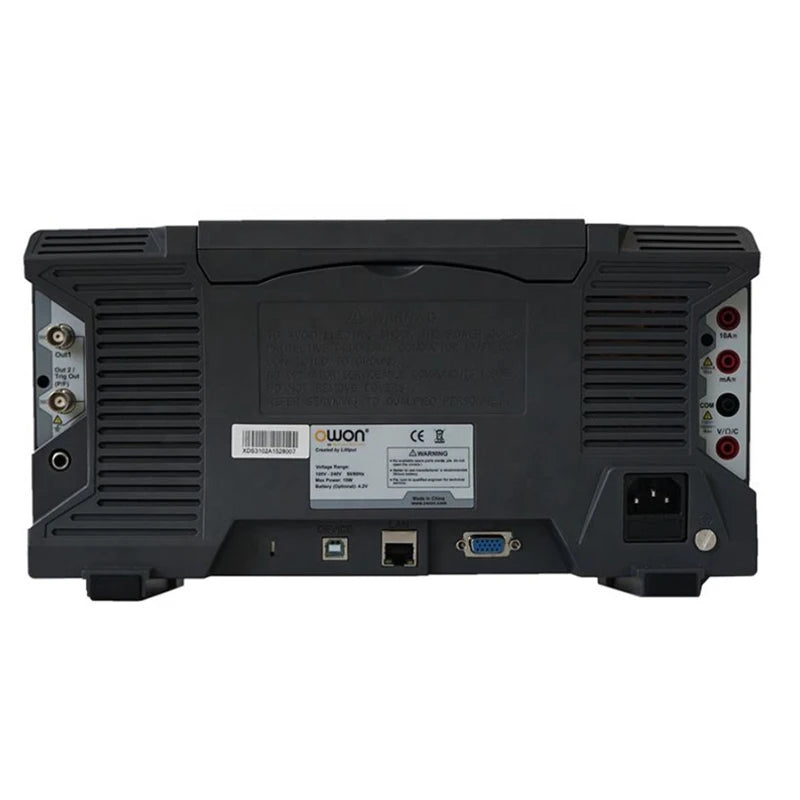

USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN |
|
Frequency Count |
available |
|
Power Supply |
100V - 240V AC, 50/60Hz, CAT II |
|
Plug Type |
EUPlug |
|
Power Consumption |
<15W |
|
Fuse |
2A, T class, 250V |
|
Battery |
3.7V, 13200mAh (NOT included) |
|
Weight |
3254g (approx.) |
|
