Product Summary
OWON XDM1041 XDM1241 4 1/2 Digital Multimeter Portable Bench True RMS DC/AC Current Voltage is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. It is suitable for electricians, repair users and electronics hobbyists who need practical electronics hardware for reliable project work.
Best For
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

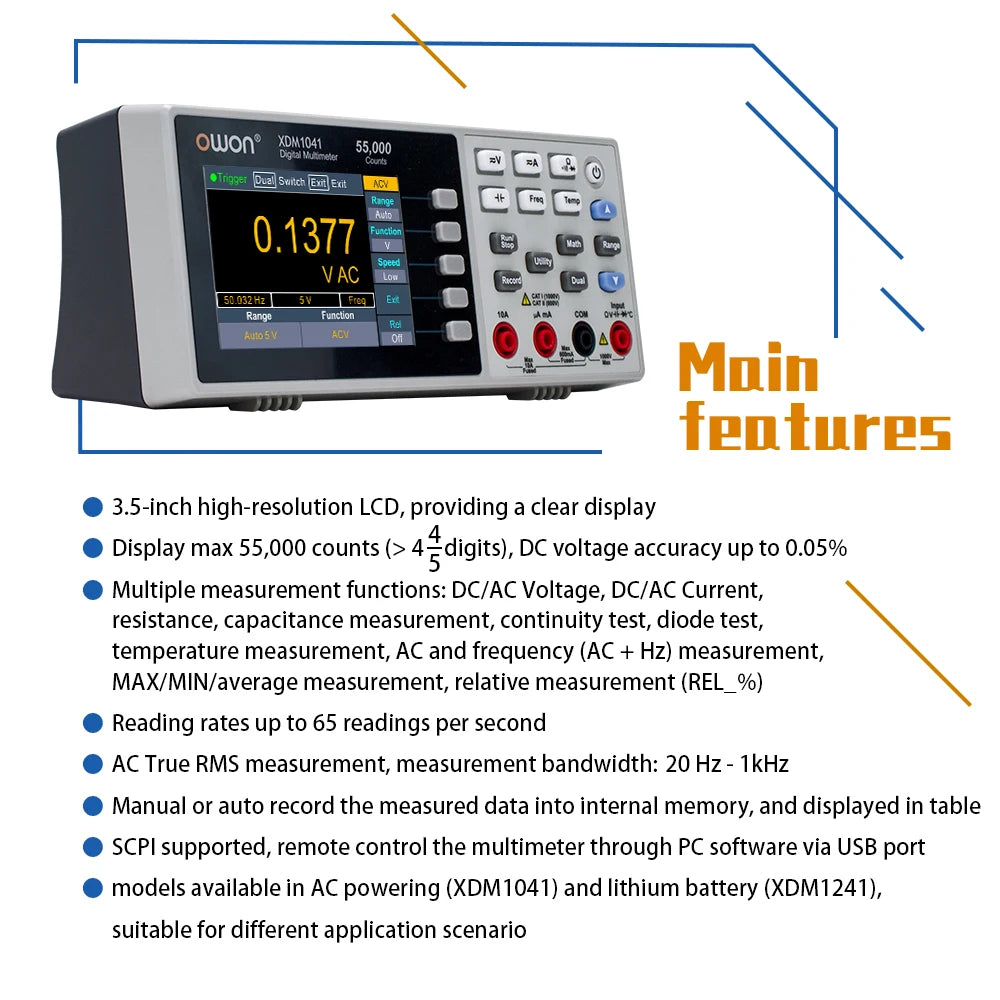

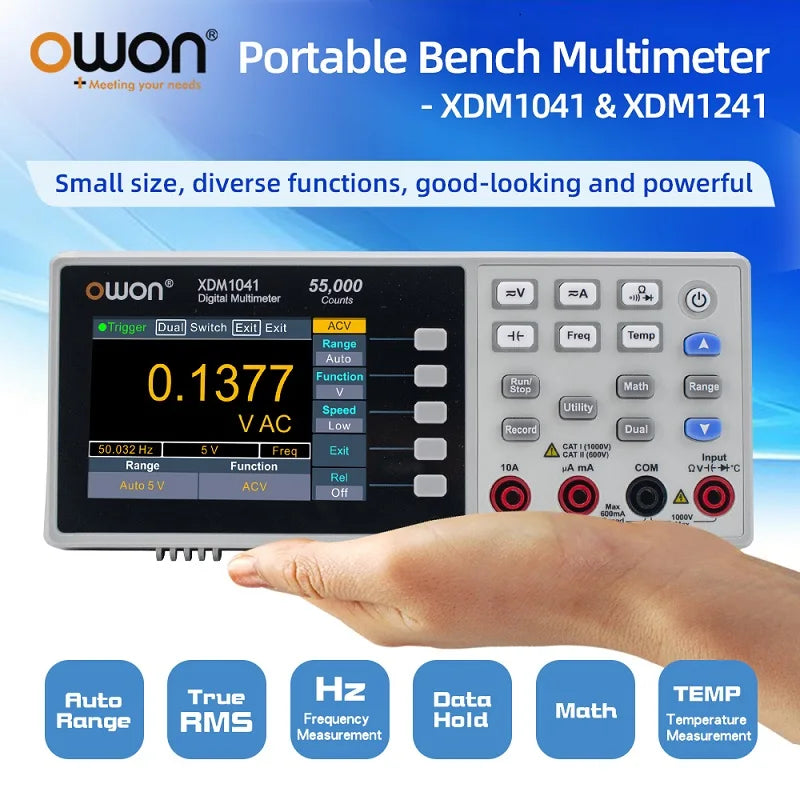

OWON 4 1/2 Digits XDM1041 XDM1241 Bench-Type Digital Multimeter
+ 3.5 inch (480x320) high resolution LCD
+ 55000 counts, DC voltage accuracy up to 0.05%
+ Up to 65 readings per second
+ True RMS AC voltage / current measurement
+ Dual line display supported
+ Trend analysis accessible in chart mode
+ SCPI support
+ Data record function, you can record the measured data into internal memory, and then read and process the recorded data with your computer

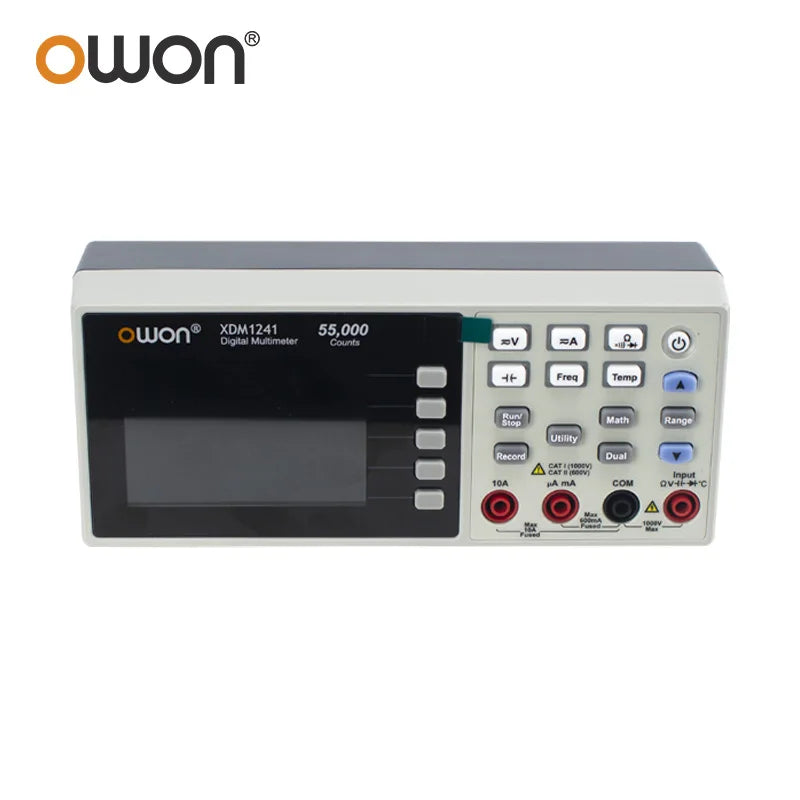

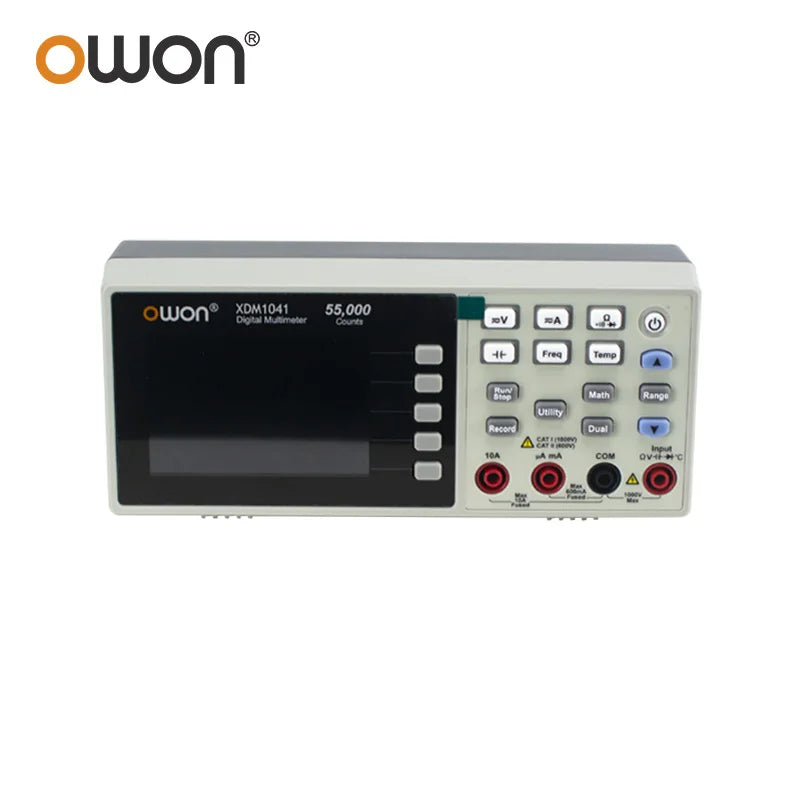

+ models available in AC powering (XDM1041) and lithium battery (XDM1241), suitable for different application scenario

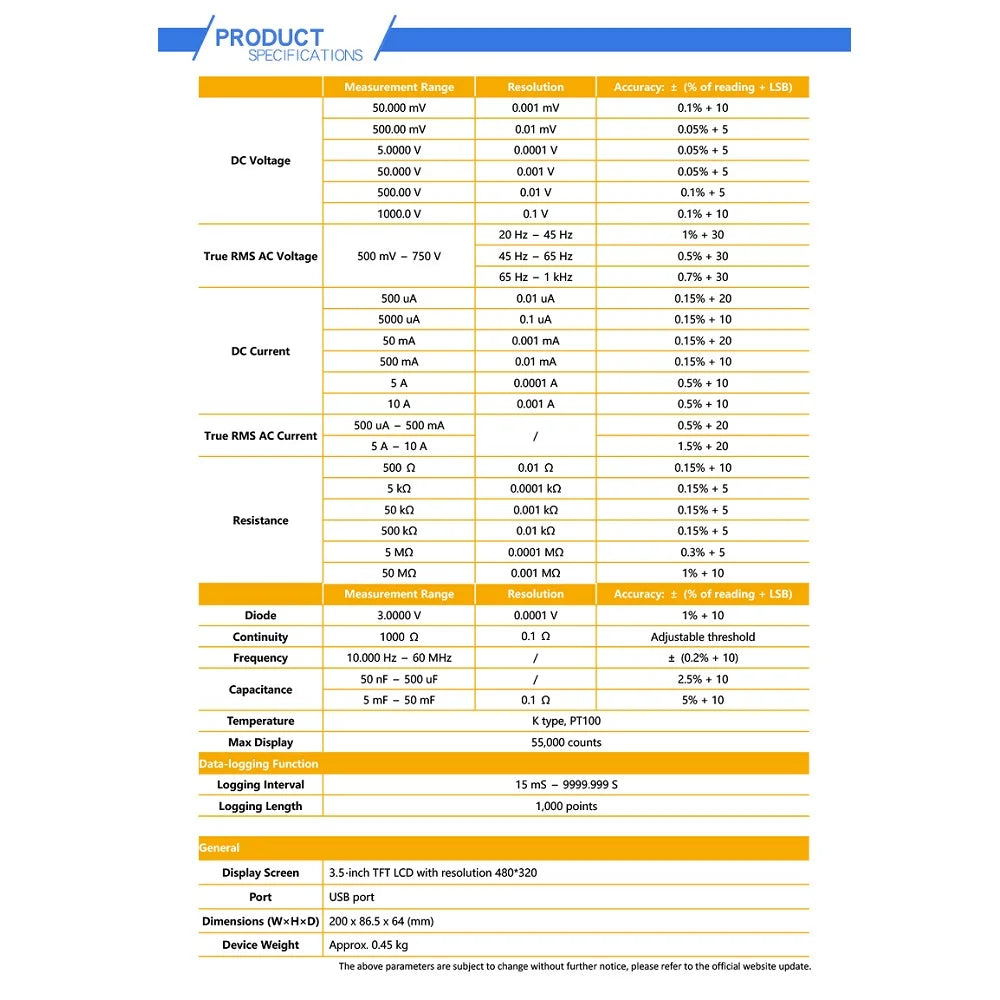

Measurement Range |
Resolution |
Accuracy ±(% of reading + LSB) |
|
DC Voltage |
50.000mV |
0.001mV |
0.1%+10 |
500.00mV |
0.01mV |
0.05%+5 |
|
5.0000V |
0.0001V |
0.05%+5 |
|
50.000V |
0.001V |
0.05%+5 |
|
500.00V |
0.01V |
0.1%+5 |
|
1000.0V |
0.1V |
0.1%+10 |
|
AC Voltage |
500mv-750v |
20Hz-45Hz |
1% + 30 |
45Hz-65Hz |
0.5% + 30 |
||
65Hz-1KHz |
0.7% + 30 |
||
DC Current |
500uA |
0.01uA |
0.15%+20 |
5000uA |
0.1uA |
0.15%+10 |
|
50mA |
0.001mA |
0.15%+20 |
|
500mA |
0.01mA |
0.15%+10 |
|
5A |
0.0001A |
0.5%+10 |
|
10A |
0.001A |
0.5%+10 |
|
AC Current |
500uA-500mA |
20Hz-1KHz |
0.5%+20 |
5A-10A |
1.5%+20 |
||
Resistance |
500 ohm |
0.01 ohm |
0.15%+10 |
5K ohm |
0.0001K ohm |
0.15%+5 |
|
50K ohm |
0.001K ohm |
0.15%+5 |
|
500K ohm |
0.01K ohm |
0.15%+5 |
|
5M ohm |
0.0001M ohm |
0.3%+5 |
|
50M ohm |
0.001M ohm |
1%+10 |
|
Measurement Range |
Resolution |
Accuracy ±(% of reading + LSB) |
|
Frequency |
10.000Hz-60MHz |
/ |
±(0.2%+10) |
Capacitance |
50nF-500uF |
/ |
2.5%+5 |
5mF-50mF |
5%+10 |
||
Diode |
3.0000 V |
0.0001V |
/ |
Continuity |
1000 ohm |
0.1 ohm |
Adjustable threshold |
Temperature |
K type,PT100 |
||
Max Display |
55,000 counts |
||
Data-logging Function | |||
Logging Duration |
15ms-9999.999s |
||
Logging Length |
1,000 points |
||
General | |
Display Screen |
3.7- inch TFT LCD with resolution 480*320 |
Dimensions (WxHxD) |
235 x 88x 65 (mm) |
Device Weight |
Approximately 0.45kg |
