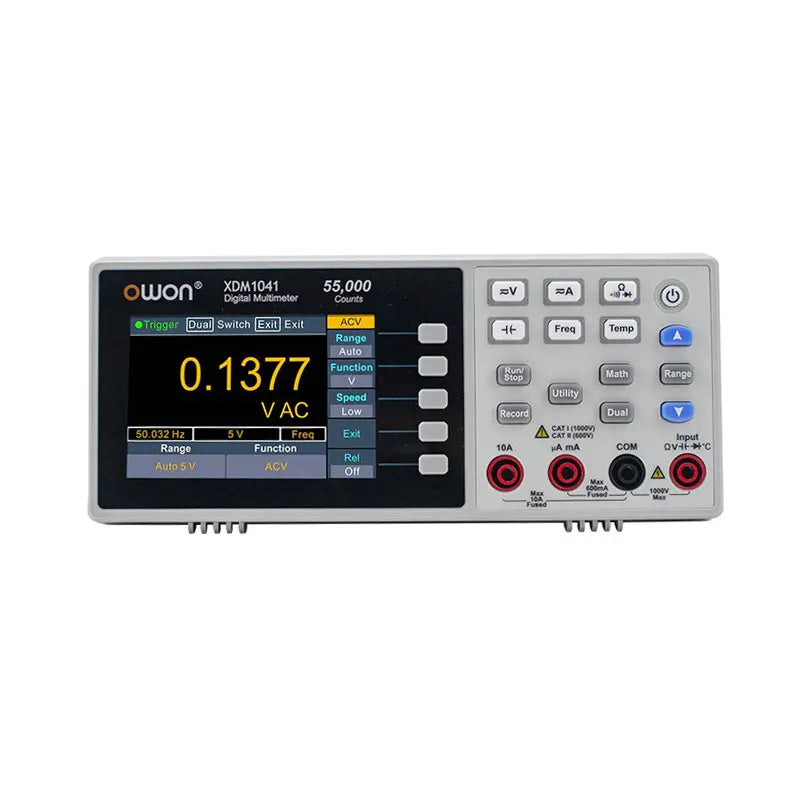

The OWON XDM1000 series is a compact 4.5-digit, 55,000-count bench multimeter for electronics measurement, logging and computer-controlled test setups. XDM1041 and XDM1241 share the same measurement platform; the main difference is their power arrangement.

Model selection

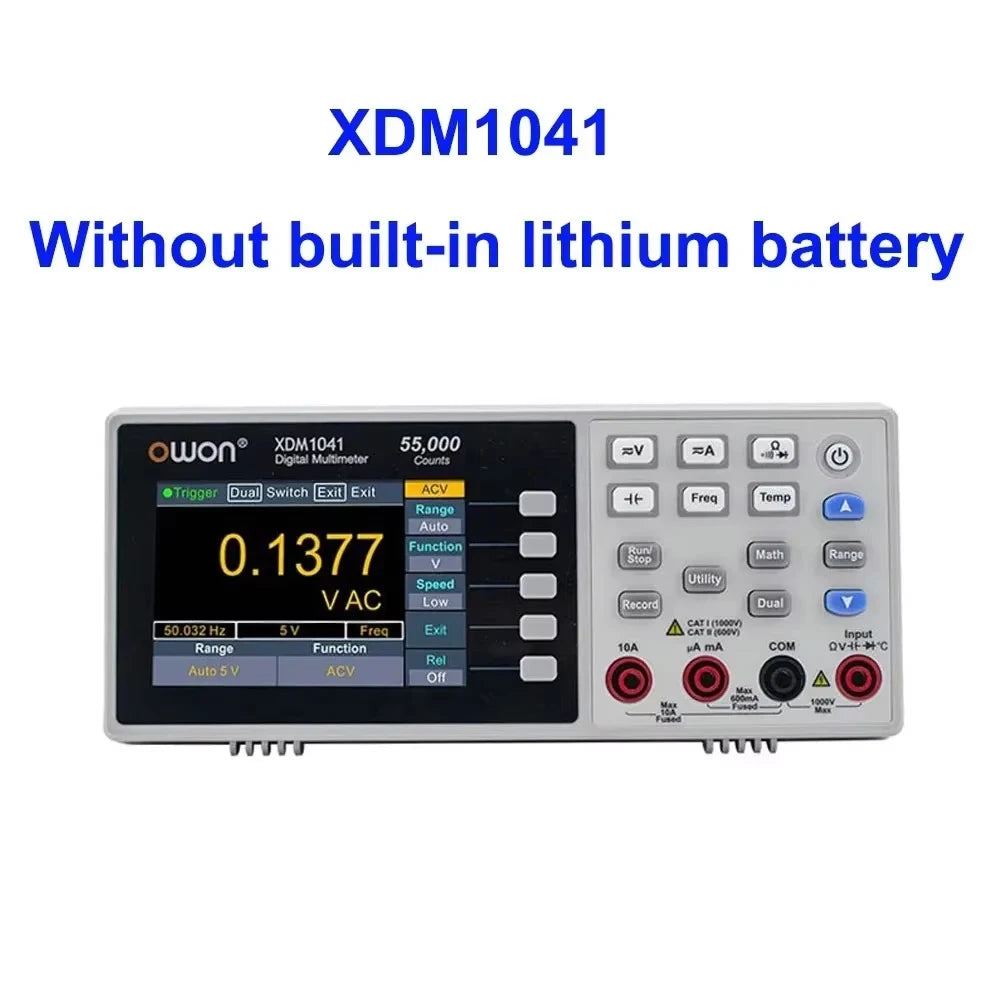

• XDM1041: AC-powered bench model for fixed laboratory or repair-station use.

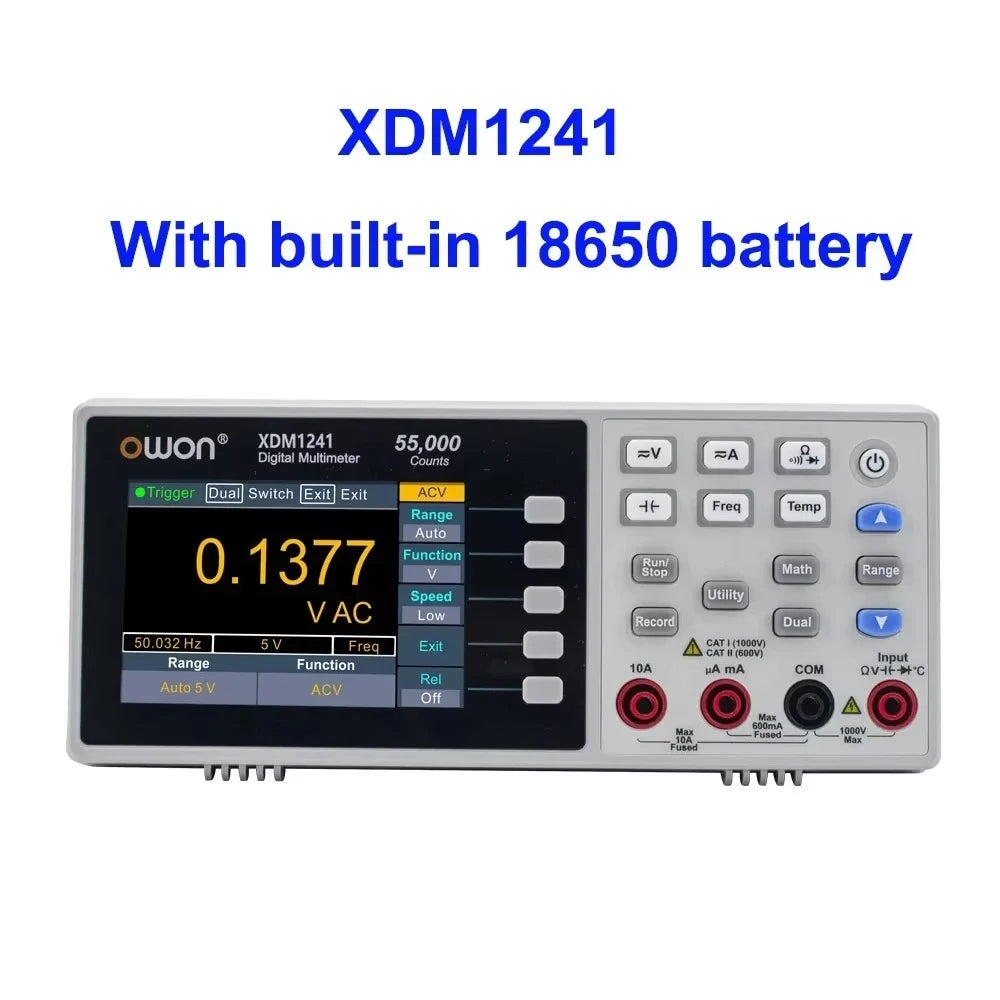

• XDM1241: rechargeable lithium-battery model for portable bench and field work.

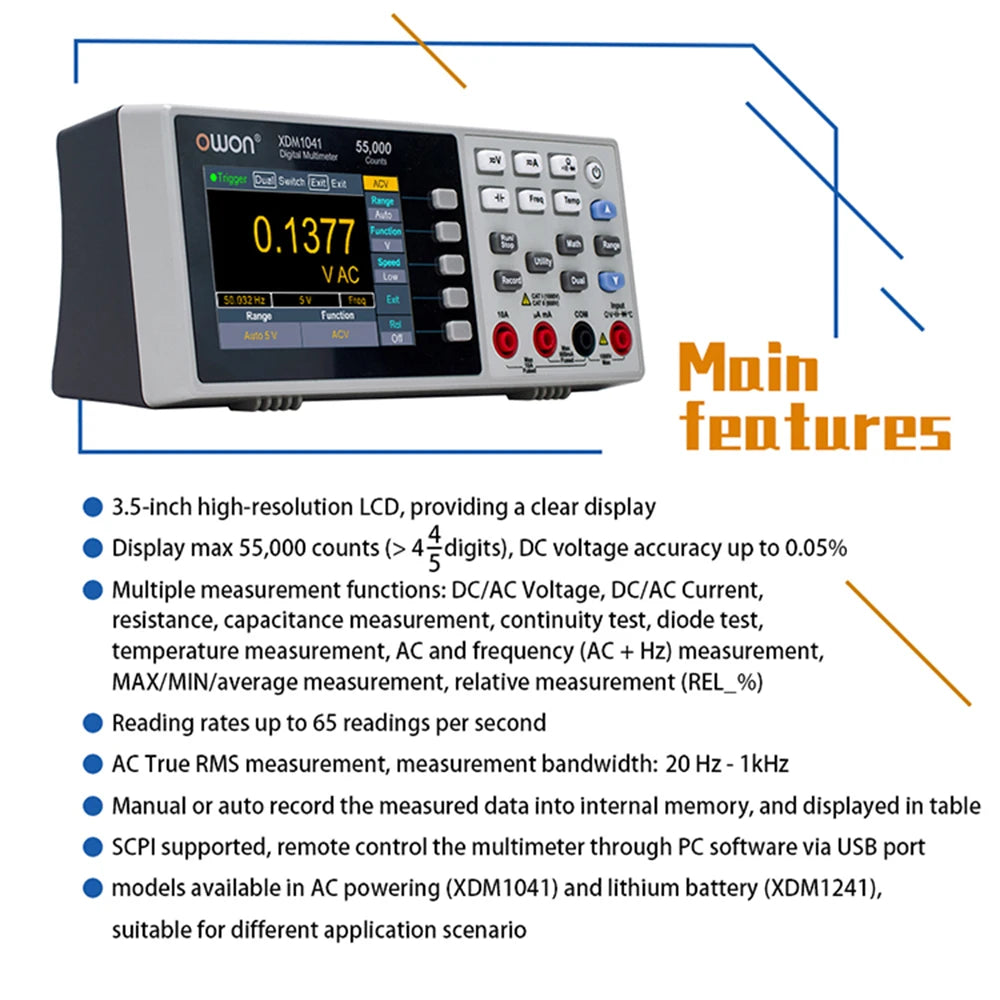

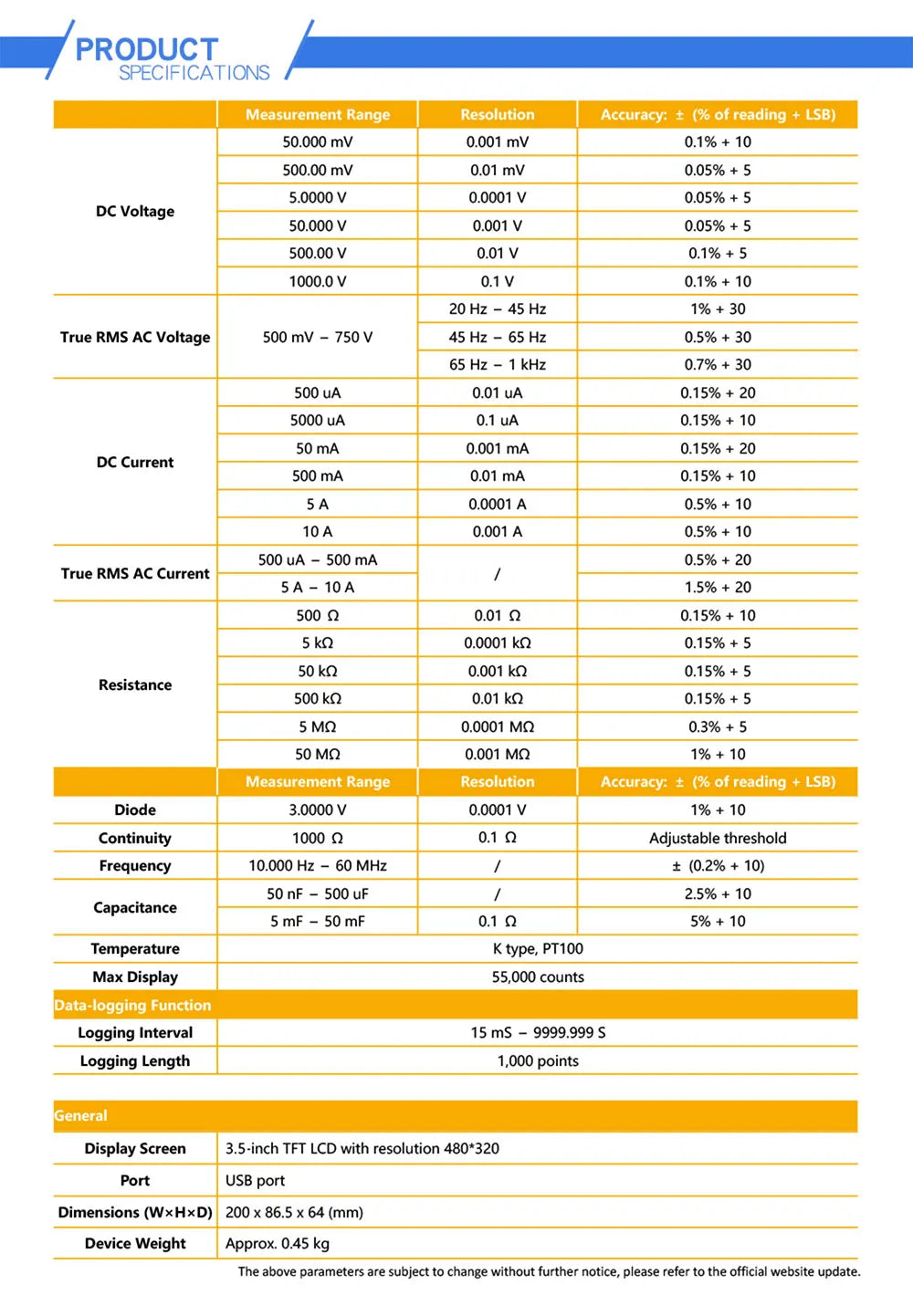

Measurement functions

• DC and True-RMS AC voltage and current measurement.
• Resistance, capacitance, frequency, continuity and diode testing.
• K-type thermocouple and PT100 temperature measurement support.
• 55,000-count display with DC voltage accuracy listed up to 0.05 percent.
• Reading rate up to 65 readings per second.

Display, logging and control

• 3.5-inch 480 × 320 color LCD with dual-line and trend-chart display.
• Internal data logging for up to 1,000 points.

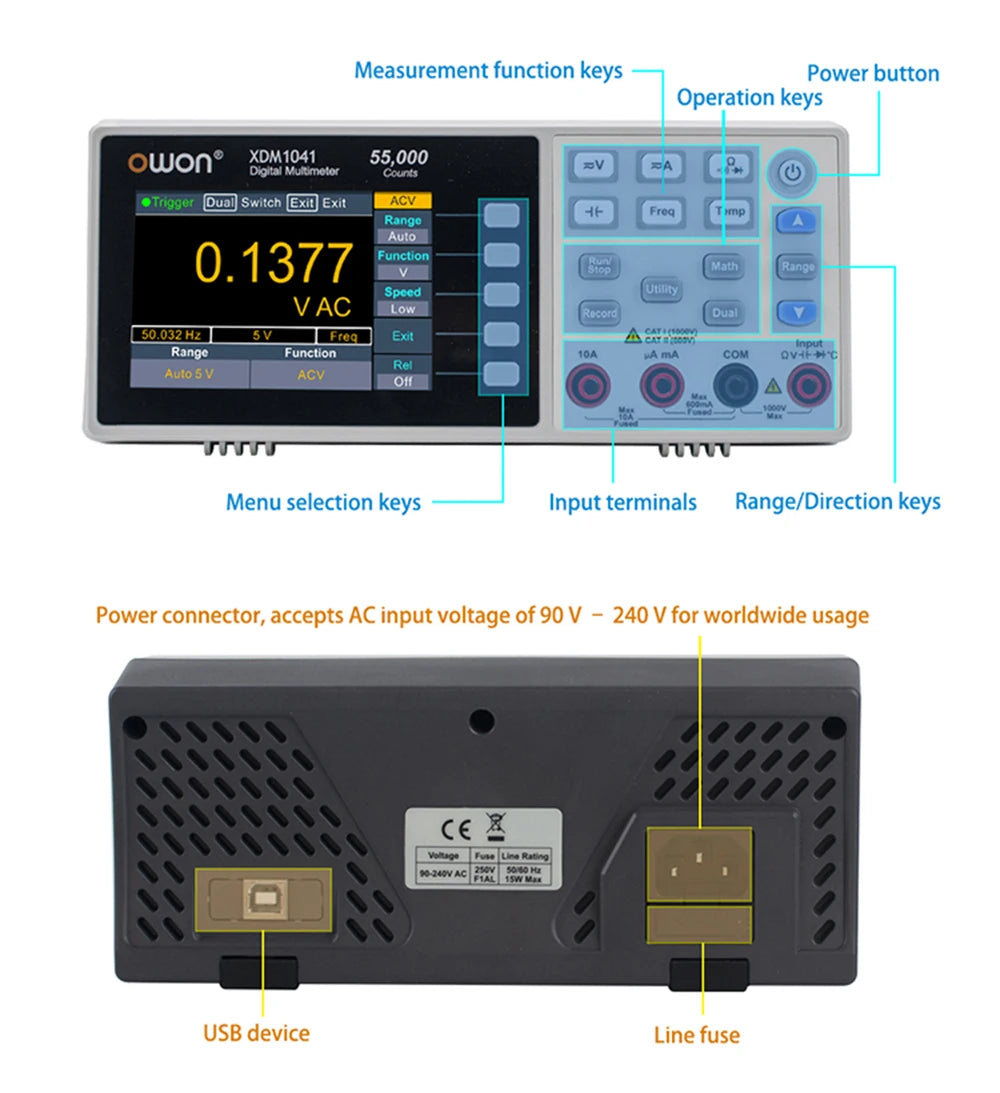

• USB device interface for PC software connection.
• SCPI command support for automated measurement workflows.
• MAX, MIN, average and relative measurement functions.

Before use

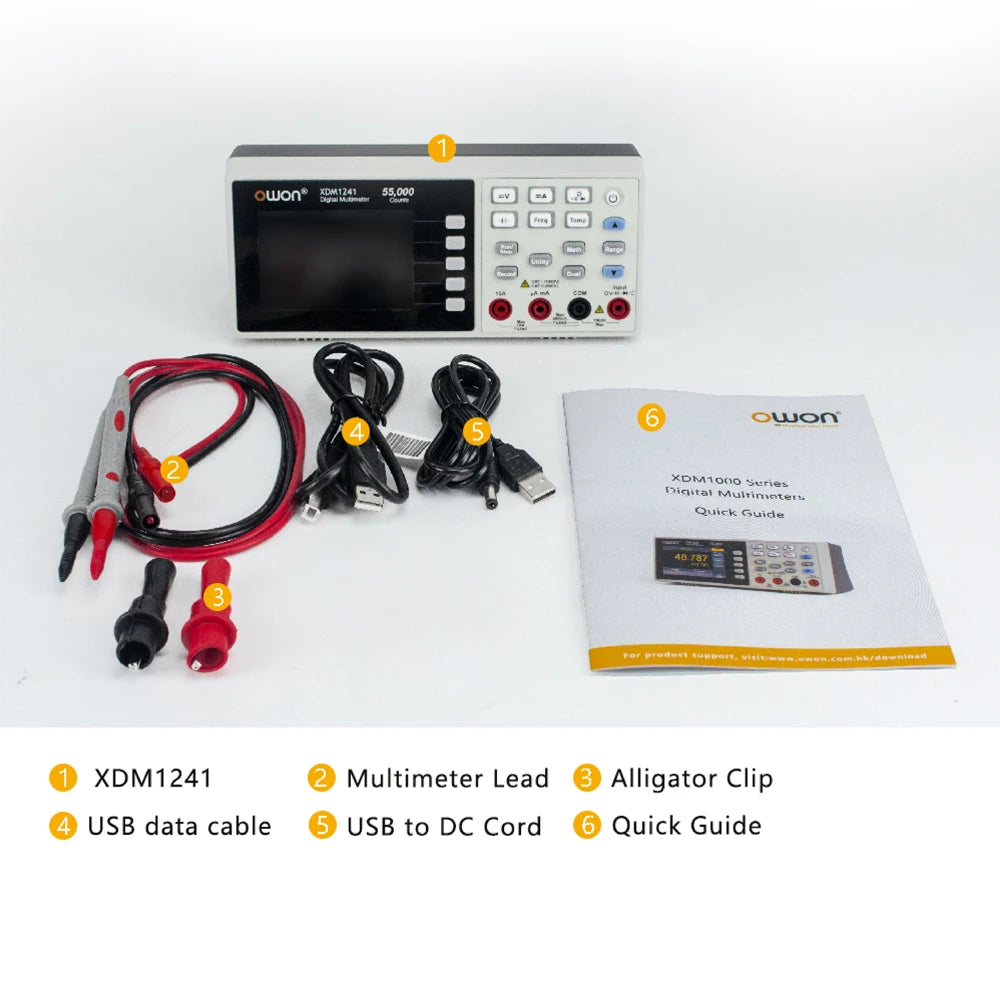

Select XDM1041 or XDM1241 according to the required power source. Confirm the supplied power lead, probes and temperature accessories shown for the selected package. Observe the input terminal, fuse and measurement-category ratings before connecting to a live circuit.
