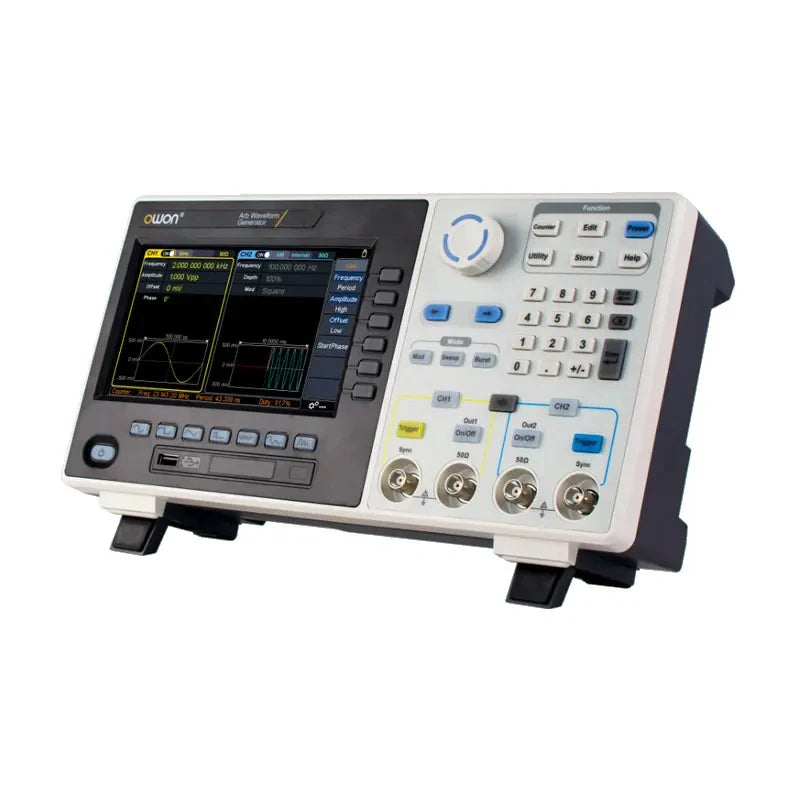

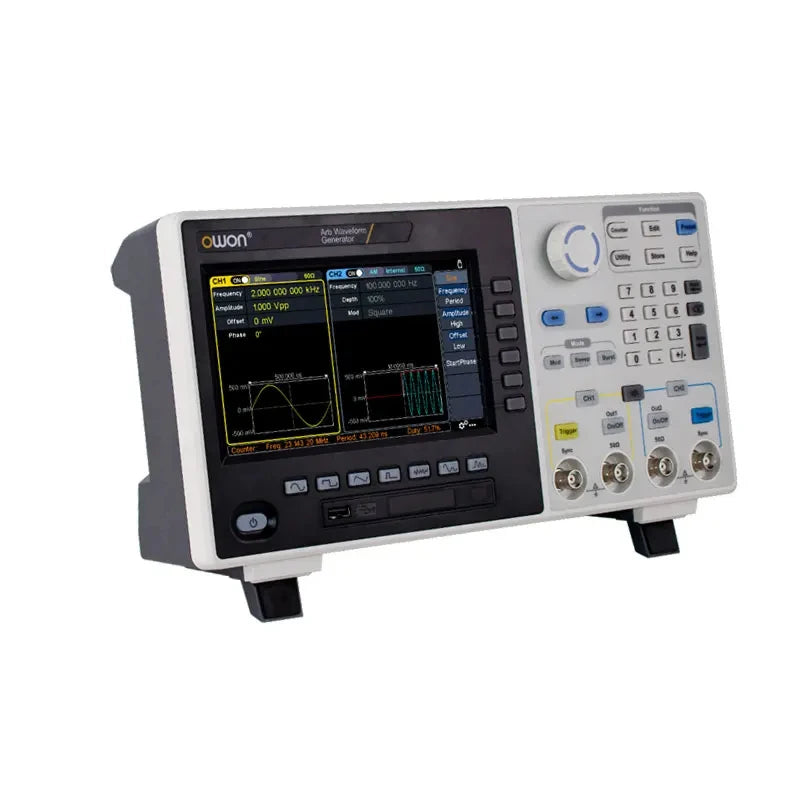

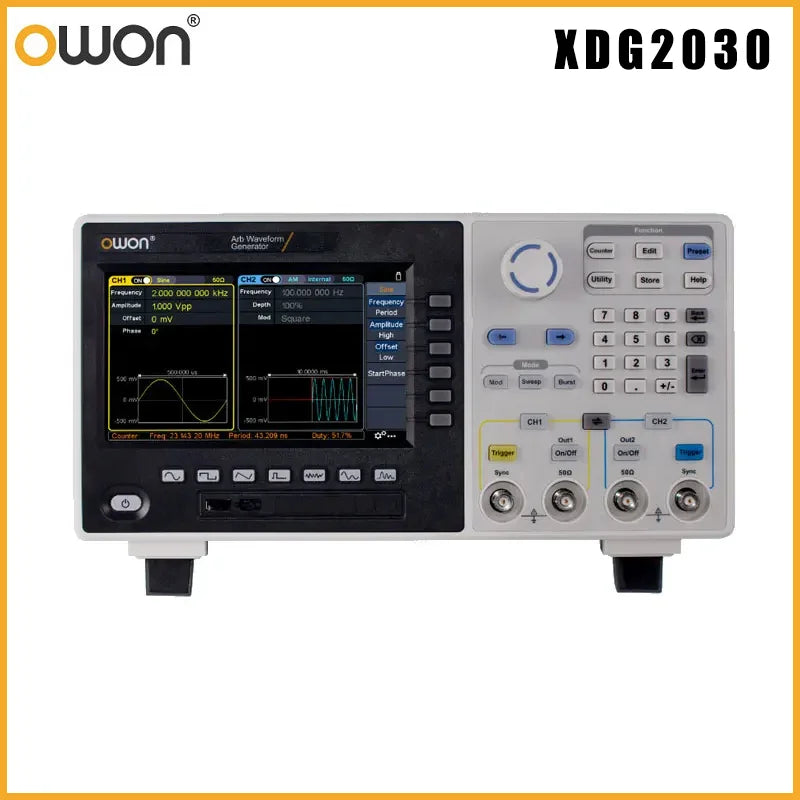

OWON XDG2030 Dual-Channel Arbitrary Waveform Generator
The XDG2030 is a two-channel bench arbitrary waveform generator for circuit development, verification and signal simulation. It provides up to 30 MHz sine-wave output on each channel, with independent output control for two related or separate test signals.

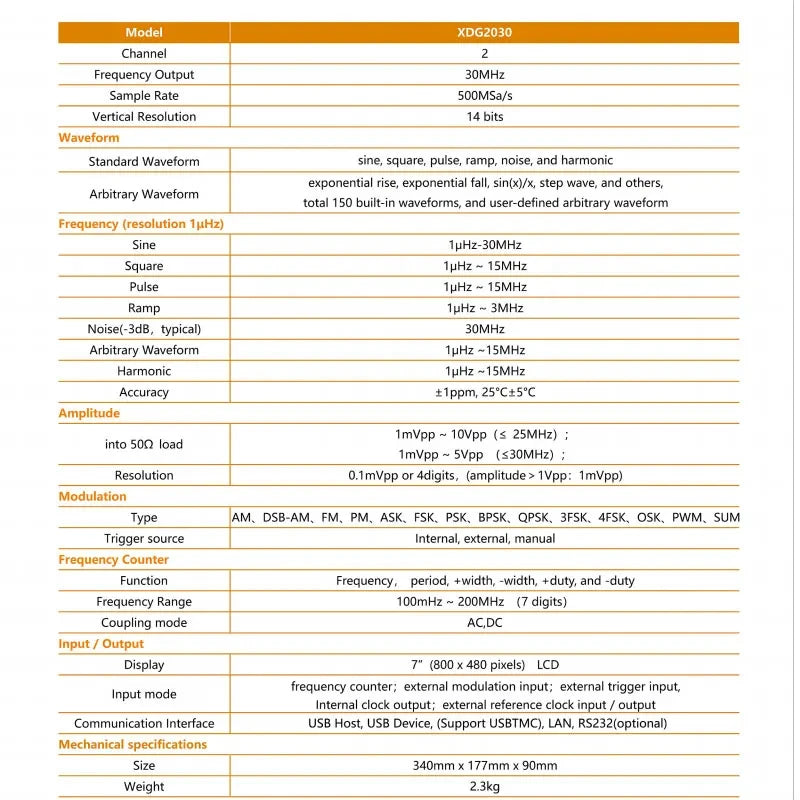

Verified Performance
- Two output channels; sine-wave frequency range from 1 microhertz to 30 MHz.
- 500 MSa/s sample rate, 14-bit vertical resolution and arbitrary-waveform length from 2 points to 10M points.
- Six standard waveform groups: sine, square, pulse, ramp, noise and harmonic; 150 built-in arbitrary waveforms plus user-defined arbitrary waveforms.
- 1 microhertz frequency resolution and specified frequency accuracy of plus or minus 2 ppm at 25 C plus or minus 5 C.
- Integrated frequency counter supporting 100 mHz to 200 MHz, with frequency, period, pulse-width and duty-cycle measurements.
Signal and Modulation Functions

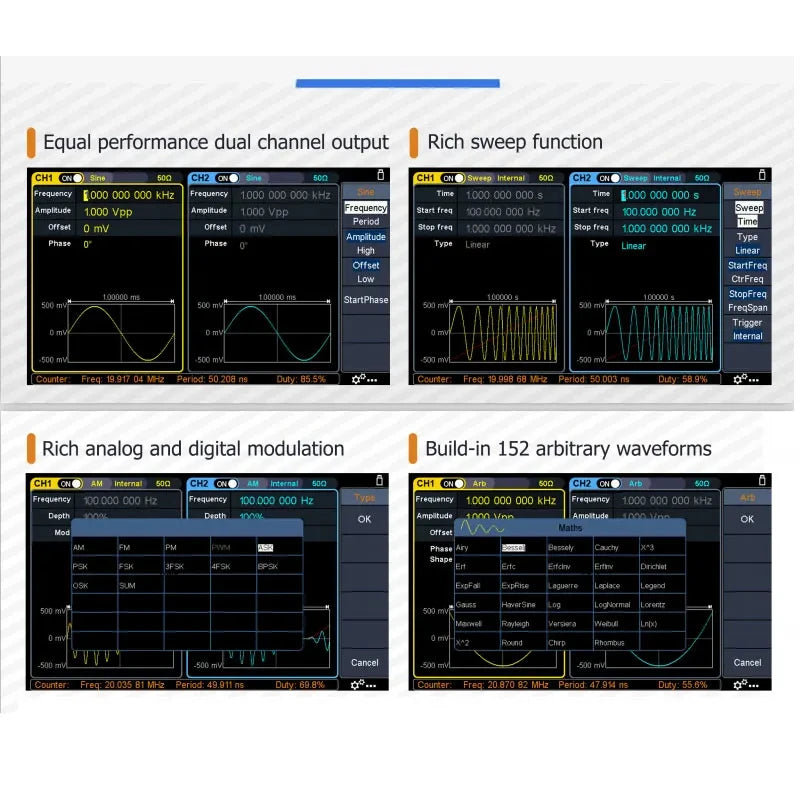

- Supports AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM, SUM, sweep and burst functions.
- For the XDG2030, square and pulse output are specified to 15 MHz; ramp output to 3 MHz; built-in arbitrary waveform output to 15 MHz.
- Output amplitude into 50 ohms is specified from 1 mVpp to 10 Vpp up to 25 MHz, and from 1 mVpp to 5 Vpp above 25 MHz to 30 MHz. High-impedance connections require appropriate amplitude and load consideration.

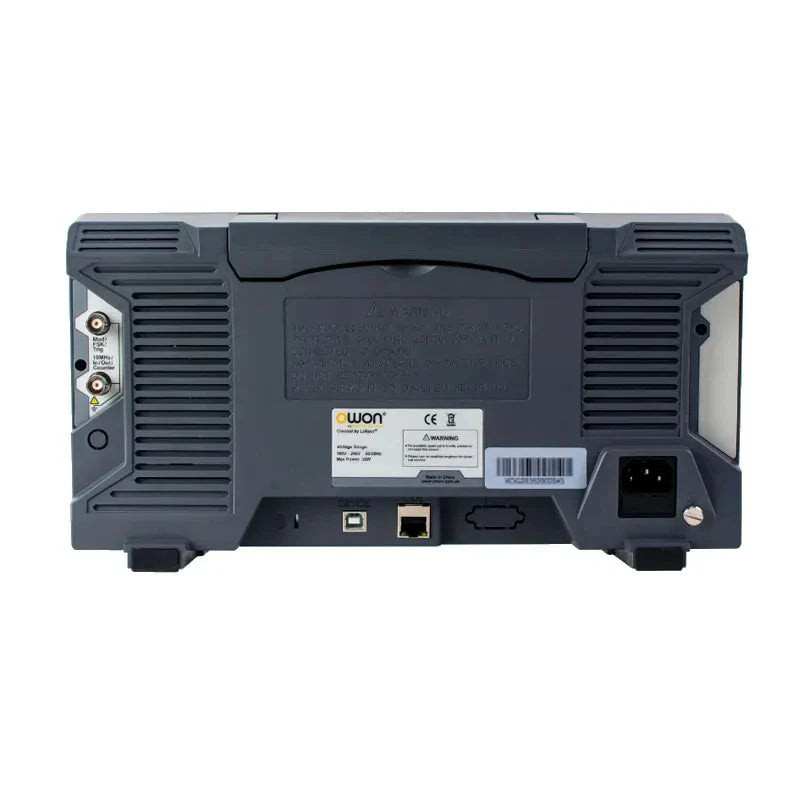

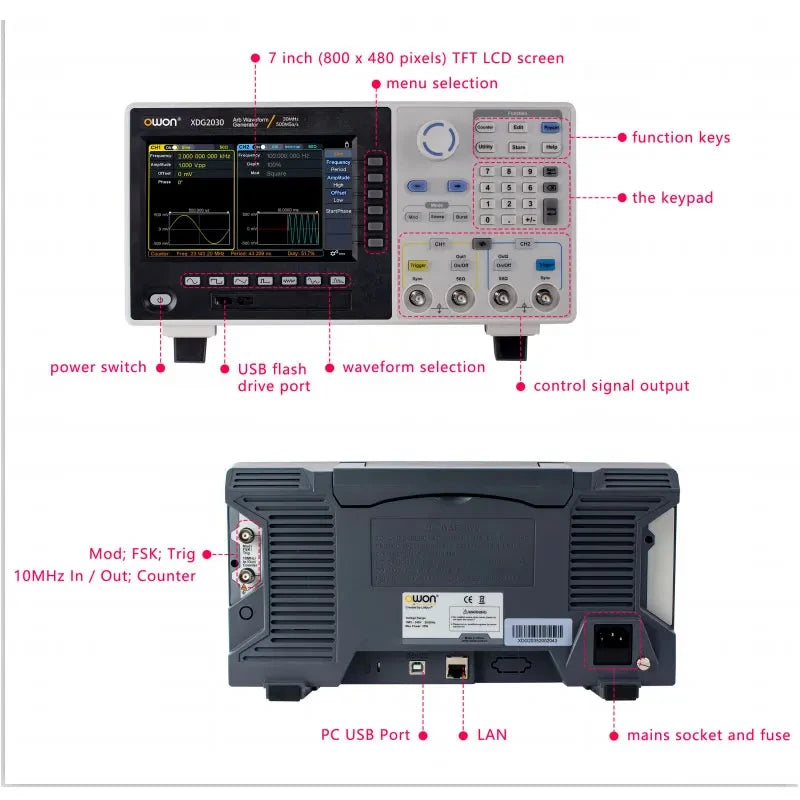

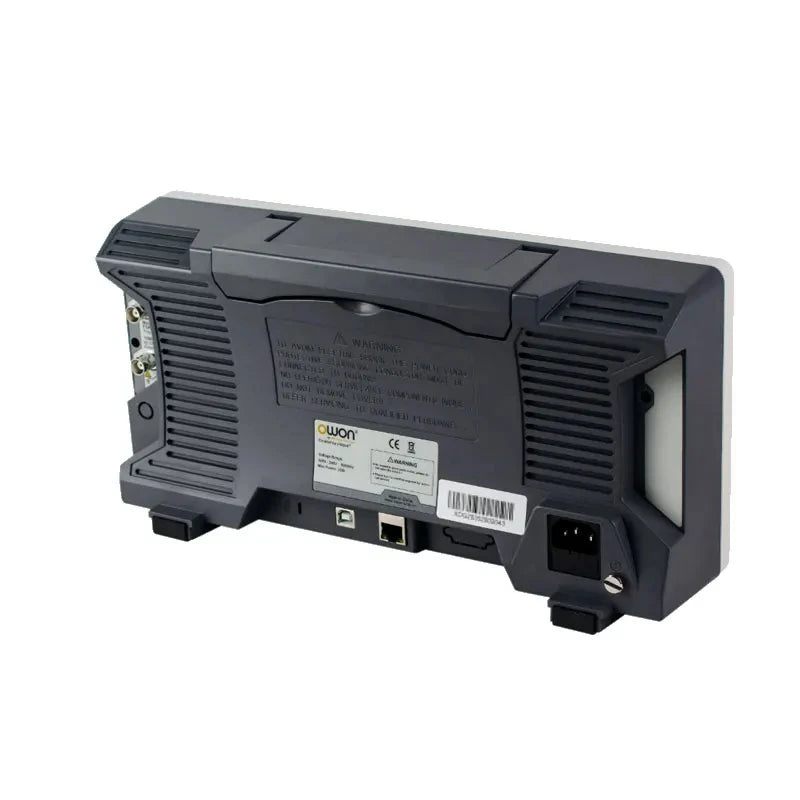

- 7-inch 800 x 480 LCD, USB Host, USB Device and LAN interfaces; SCPI and LabVIEW support are listed by OWON.
Bench Use Notes
- Use 50-ohm termination when the connected instrument or circuit requires a matched source; otherwise verify the load setting and actual voltage at the device under test.
- Check channel amplitude, DC offset, coupling and trigger configuration before connecting sensitive circuits.
- This is a laboratory signal source. It is not a mains-power source or a radio transmitter, and it should be used within its output ratings and normal electrical safety practices.
Package Note
Package contents and supplied accessories follow the selected listing and delivered package. Confirm the included cables, probes and power cord before placing the order when these are required for a particular test setup.
