Product Summary
Owon VDS1022 VDS1022I Digital Oscilloscope 100Msa/S 25Mhz Bandwidth Handheld Portable PC USB is a digital oscilloscope selected for checking waveforms, debugging signals and validating circuit behavior. It is suitable for electronics repair technicians, lab users and embedded developers who need practical electronics hardware for reliable project work.
Best For
- checking waveforms, debugging signals and validating circuit behavior
- test leads, probes and bench electronics workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electronics repair technicians, lab users and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

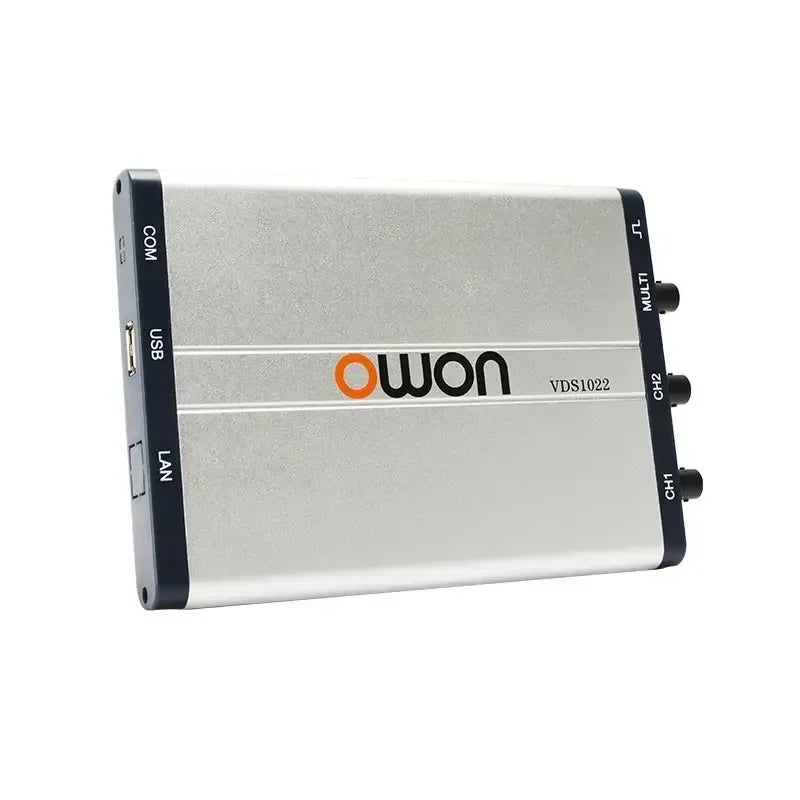

Owon VDS1022 Digital Oscillosco 100Msa/S 25Mhz Bandwidth Handheld Portable PC USB Oscillosco
10M record length

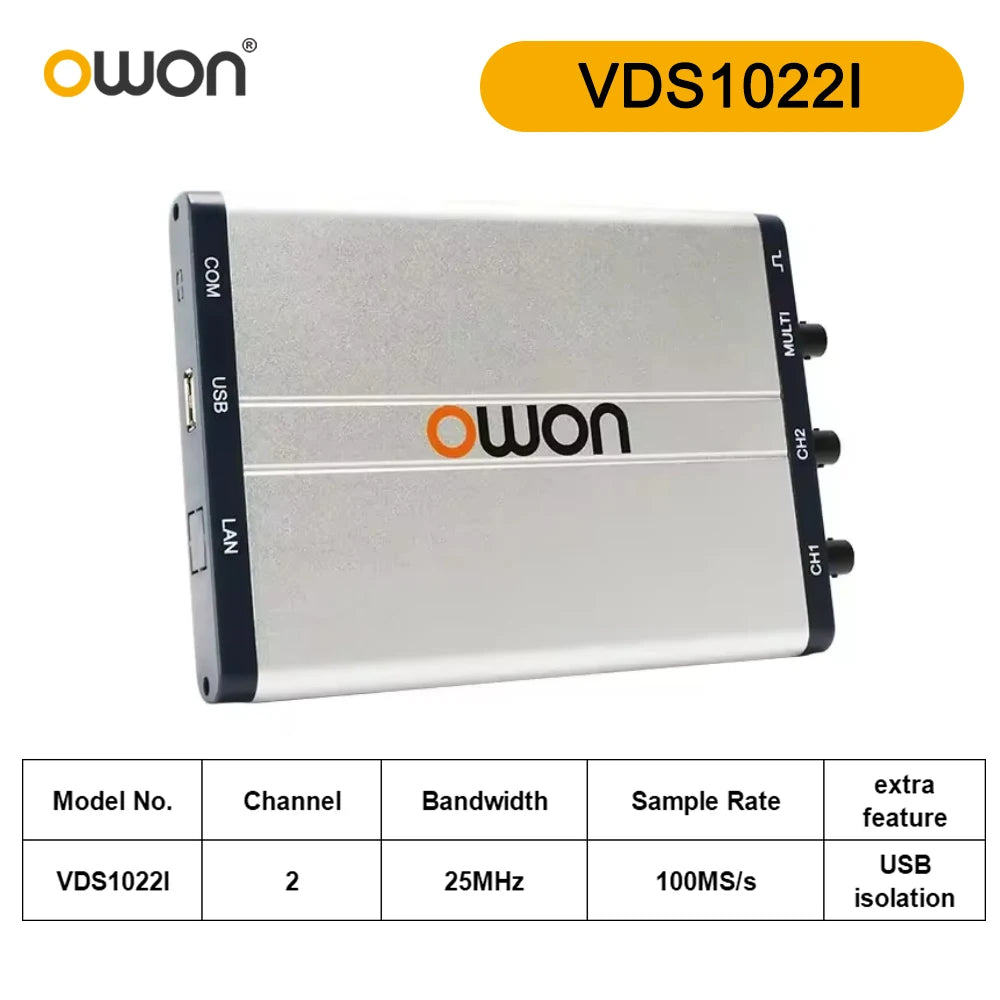

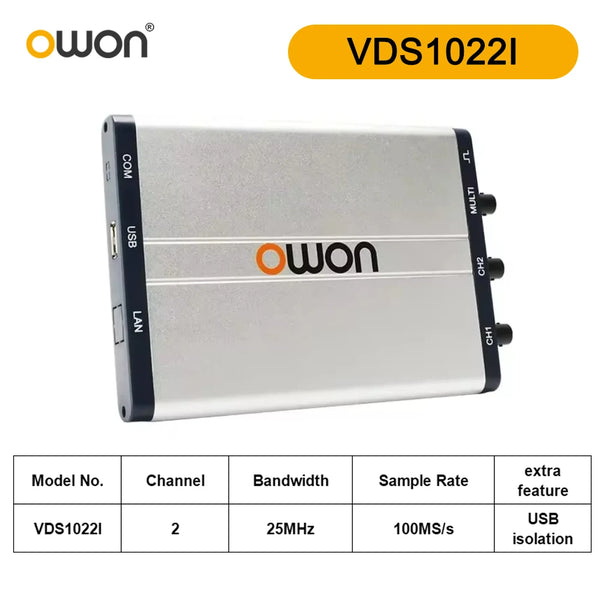

Notice:The difference between VDS1022 and VDS1022I is VDS1022I isolate power for the computer and the oscillosco to protect the computer from being burned by mistake
Feature:
OWON VDS Series PC Oscillosco
- Up to 100MHz bandwidth, and max 1GS/s real-time sample rate
- 10M record length
- Friendly UI : FFT, or X-Y, and waveform 2 views displayed
on the same screen
- Multi-trigger option : edge, video, slope, waveform, and alternate
- USB isolation - less signal inference, more PC protection
- USB bus powering, and LAN remote control (optional)
- Ultra-thin body design, easy portability
Parameters
Condition: 100% Brand New
Model: VDS1022
Package content:
1 x PC Oscillosco
2 x Probe
1 x USB cable
1 x CD
1 x Manual
1 x Adjust tool
2 x Tip locating sleeve
8 x Color circle
2 x Ground spring

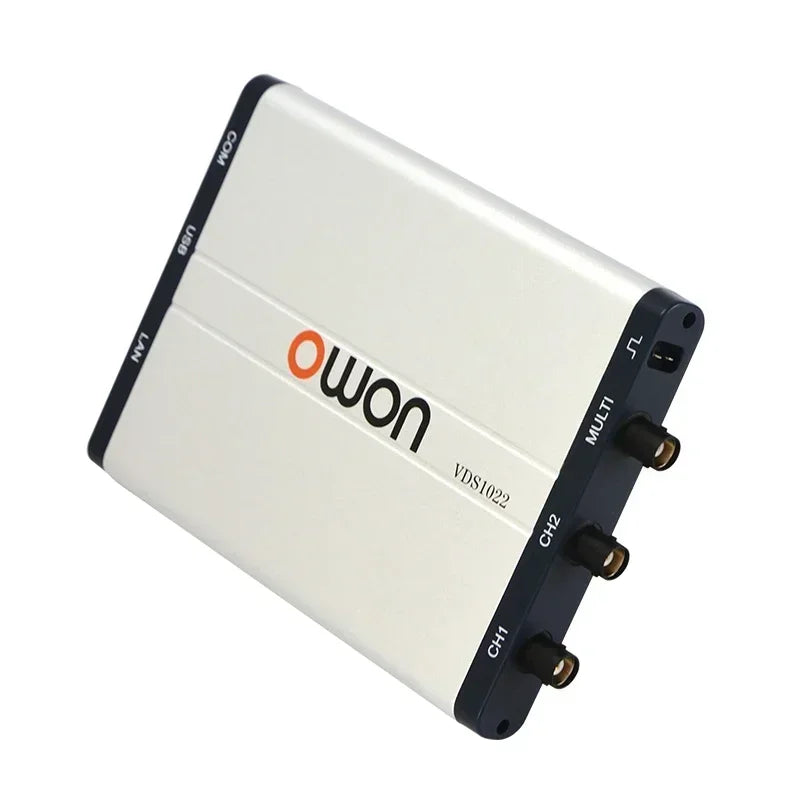

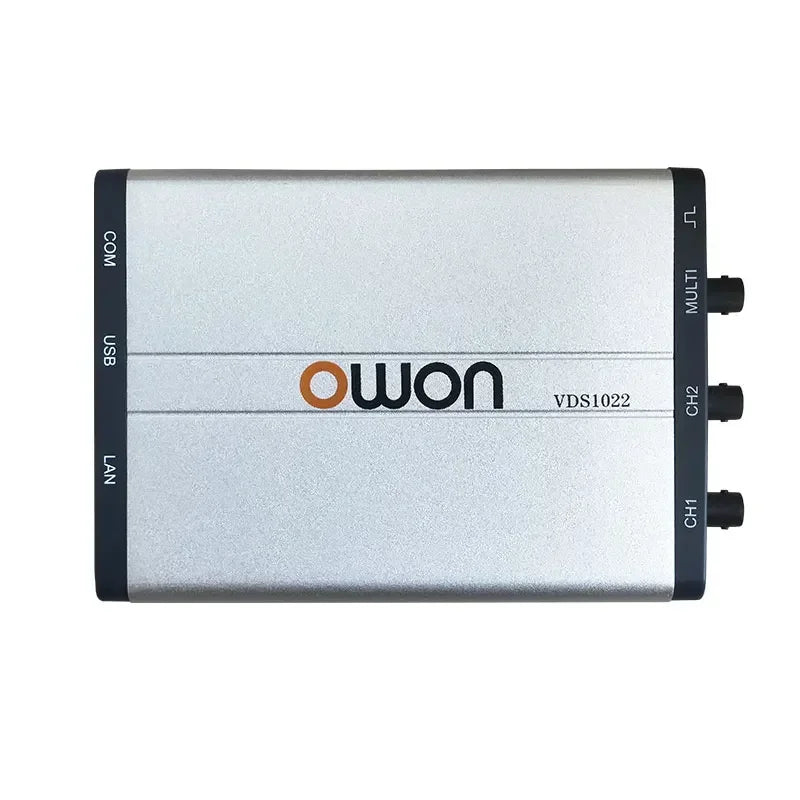

1. Ultra-thin body design, easy portability

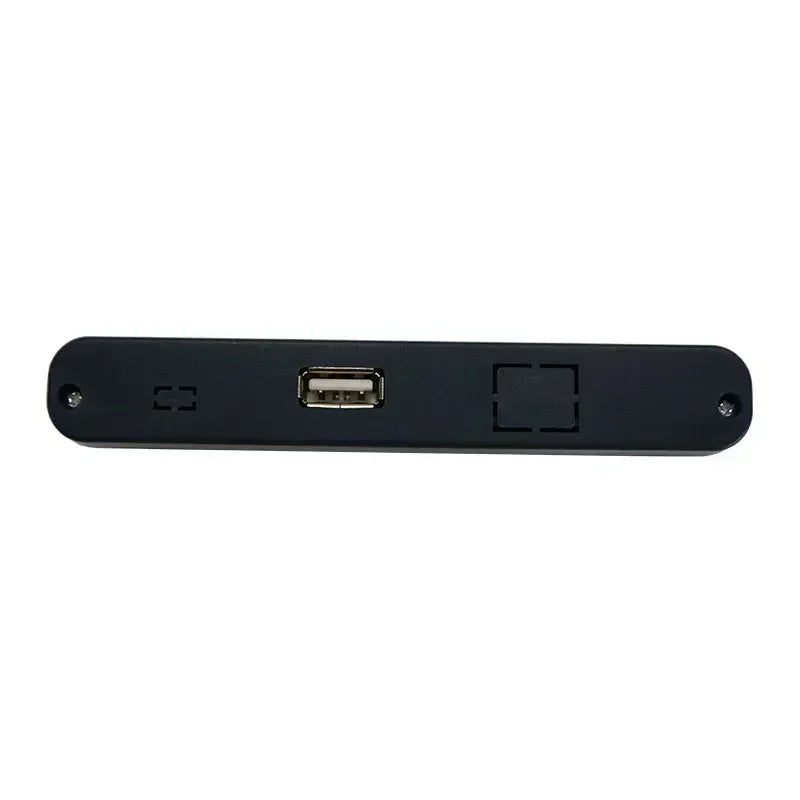

1. RS232 port (optional)
2. USB port : power supplying via USB bus, communicating with PC
3. LAN port (optional) : remote control

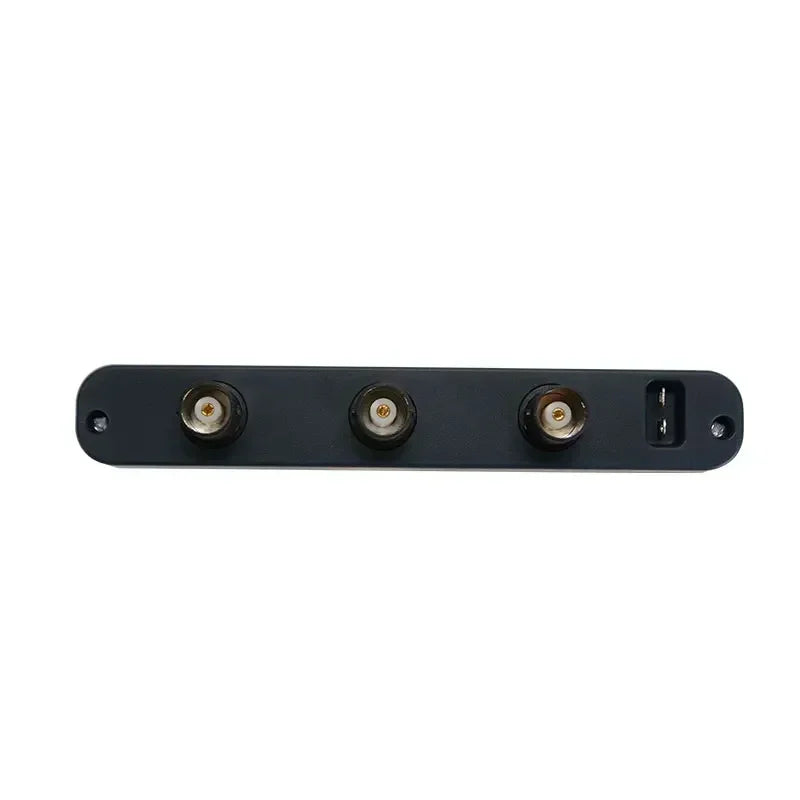

4. Channel 1 signal input
5. Channel 2 signal input
6 .EXT trigger input, trigger output, or Pass/Fail output
7. probe compensation : measurement signal (3.3V/1KHz) output
Note : When communicating with PC via LAN, the oscillosco should be powered by adapter.
2. Record length up to 10M
Various record length option, max 10M.
3. Multi-trigger option
Edge, Video, Slope, waveform, and Alternate
4. X-Y mode, FFT mode with waveform displayed on the same screen
