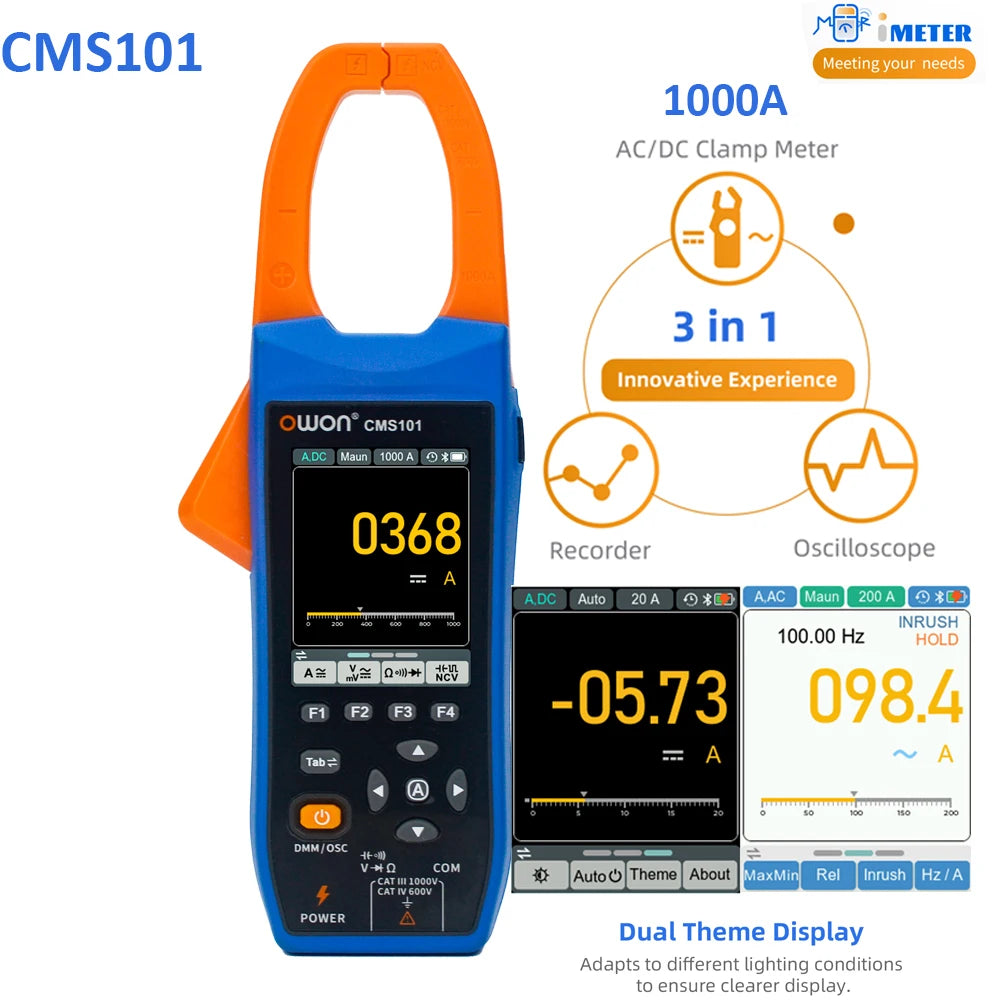

Owon CMS101 3 in 1 1000A AC/DC Clamp Meter+ Oscilloscope Bluetooth Recorder Function 18650 is a digital oscilloscope selected for checking waveforms, debugging signals and validating circuit behavior. It is suitable for electronics repair technicians, lab users and embedded developers who need practical electronics hardware for reliable project work.
Who is this product for? It is intended for electronics repair technicians, lab users and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Features:

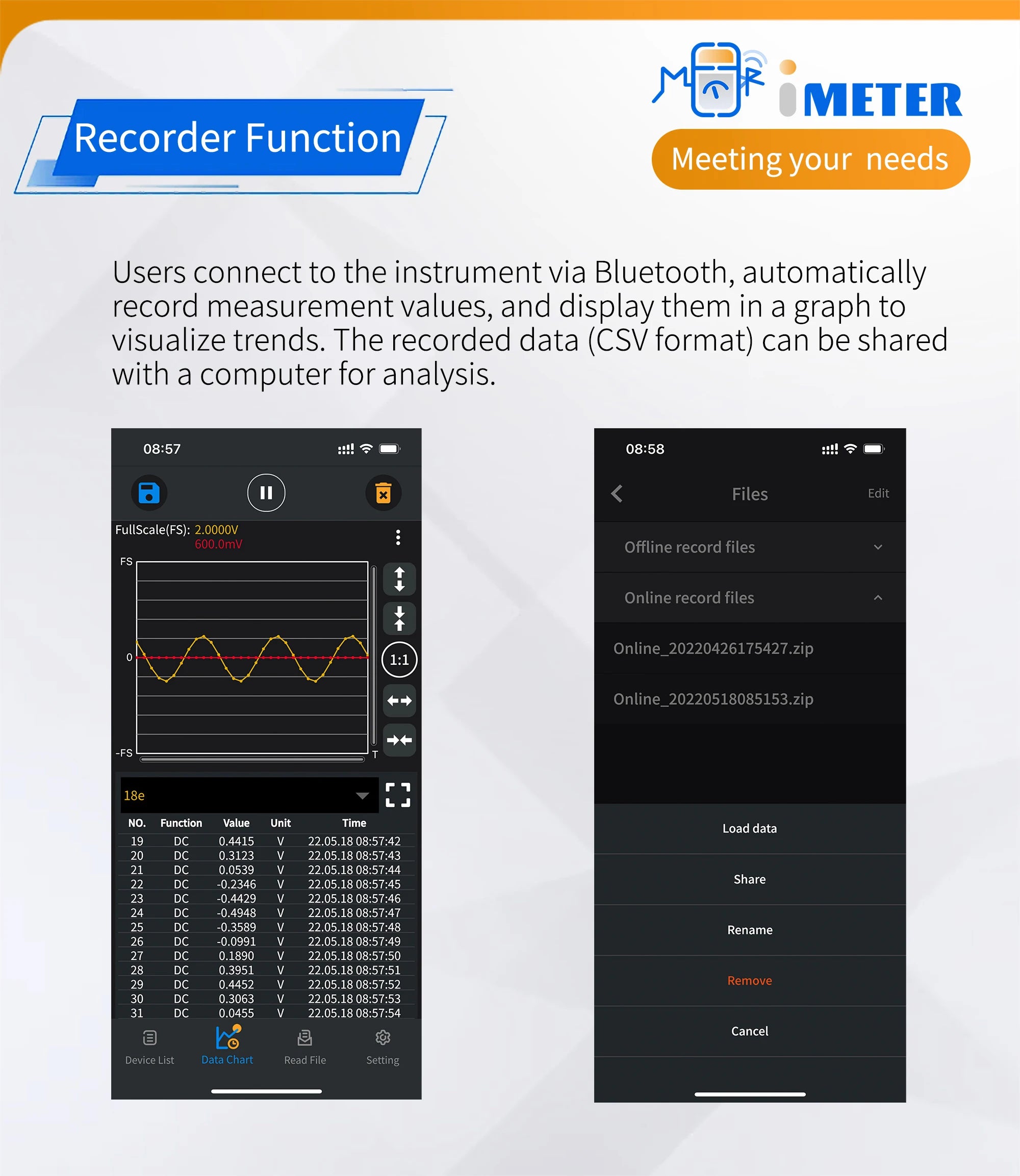

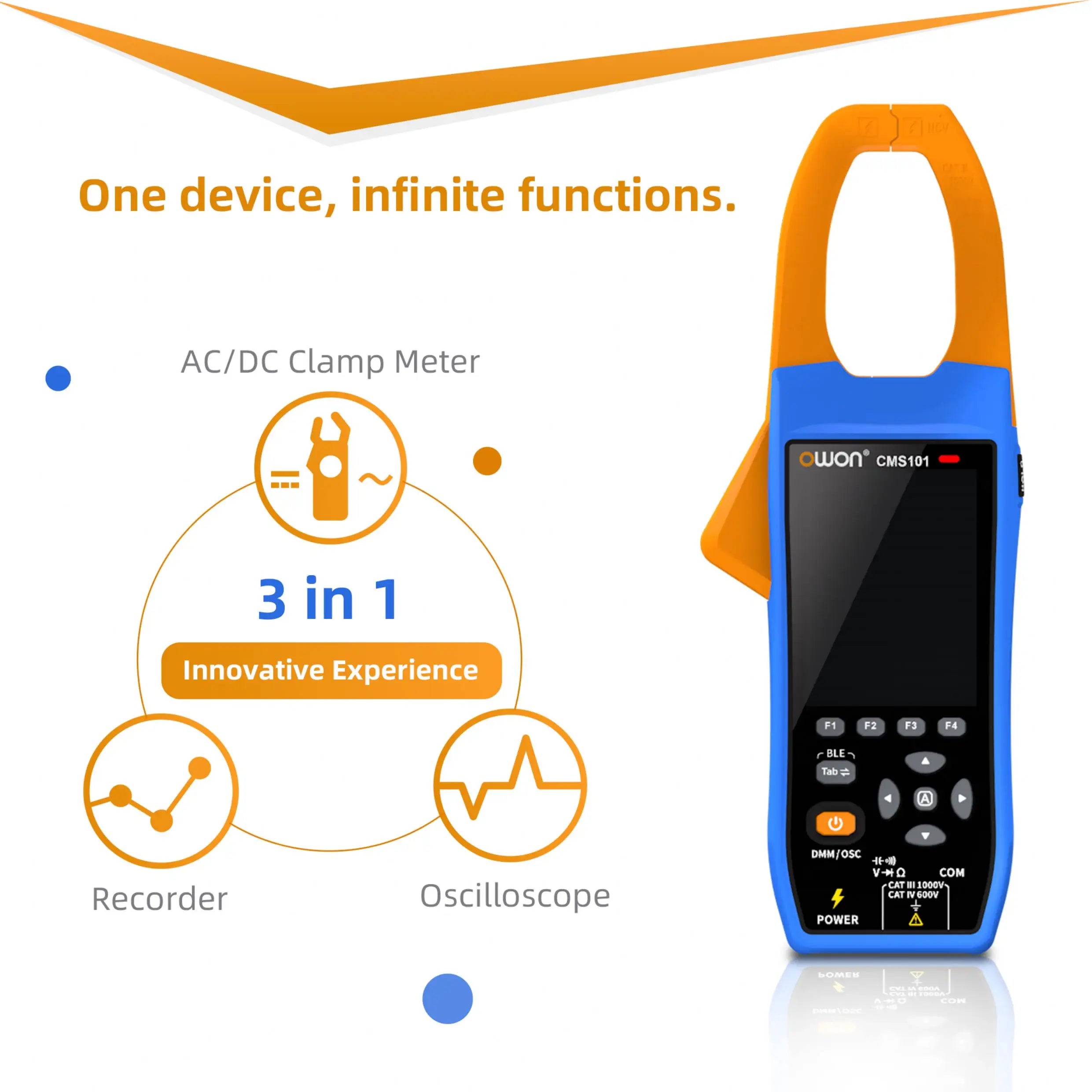

- Multi-functional Usage: Combines multimeter, oscilloscope, and current recorder functions to suit various measurement needs.
- High Accuracy: Ensures precise reading with high accuracy across voltage, current, resistance, and frequency measurements.

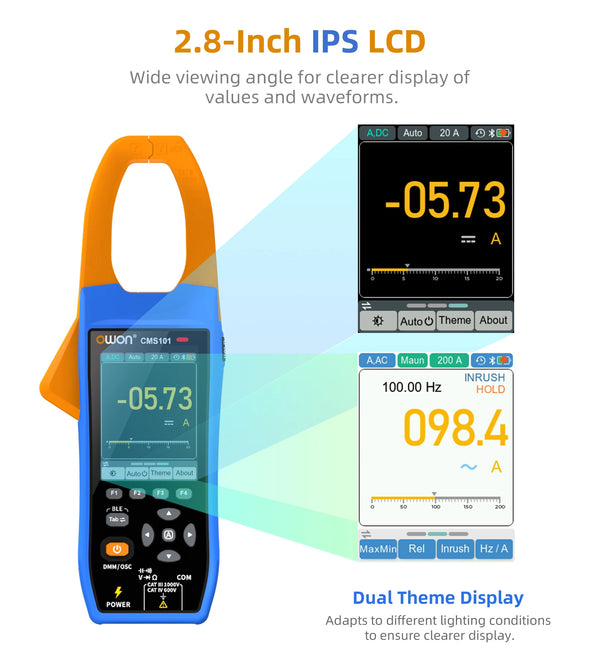

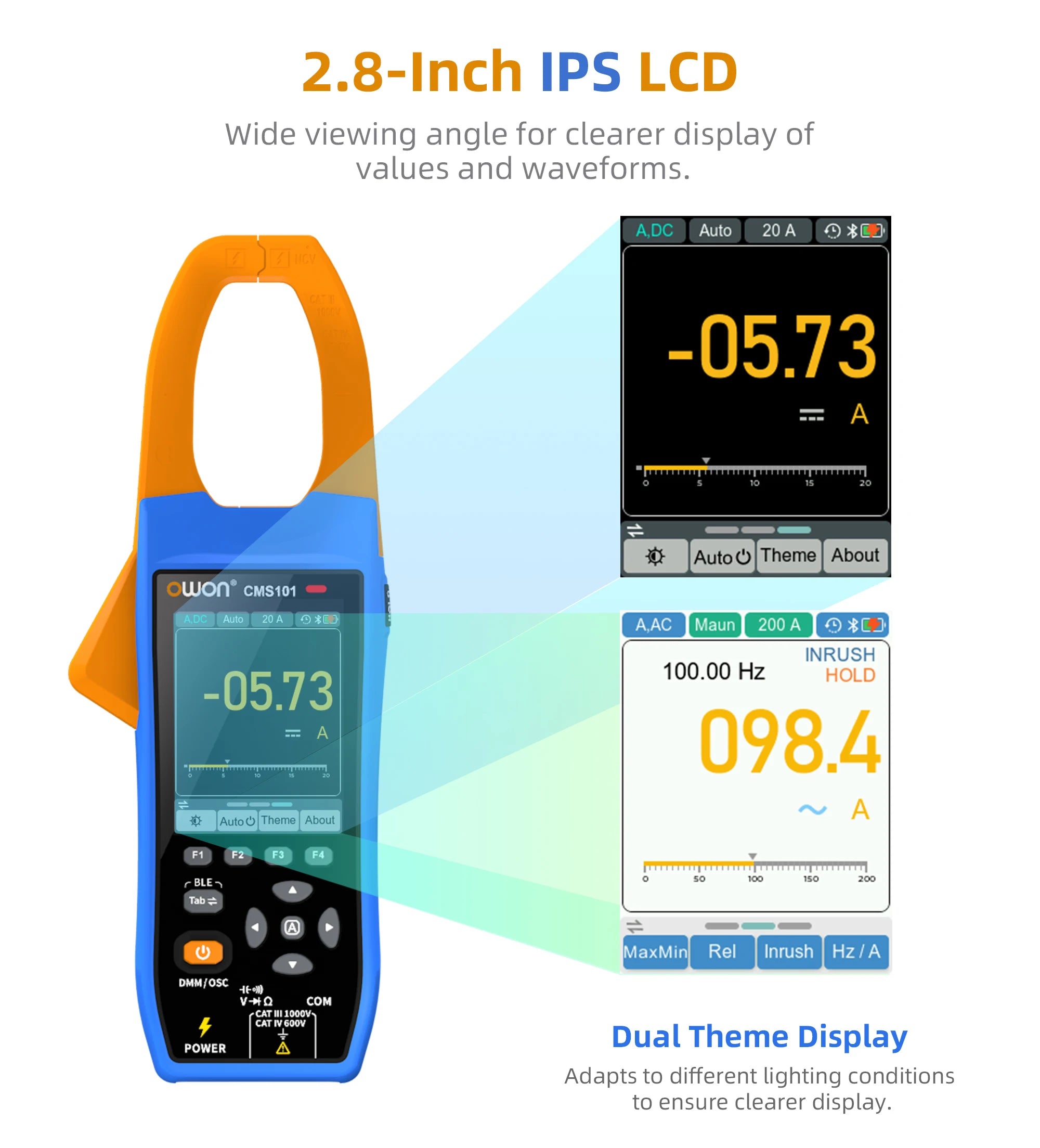

- Easy-to-Read Display: Features a large, clear screen for easy viewing of measurement results and waveforms.
- Robust Input Protection: Equipped with comprehensive input protection to protect the device and the user.
- User-Friendly Interface: Intuitive design with simple button layout for convenient operation and quick access to functions.
Specifications:
- Brand: OWON
- Model: CMS101
- Multimeter Specification
- DC Voltage (V):200.00mV, ±(0.1%+6d)2.0000V/20.000V/200.00V/1000.0V, ±(0.1%+5d)/±(0.15%+5d)
- AC Voltage (V):200.00mV/2.0000V/20.000V/200.00V, ±(0.6%+10d)
1000.0V, ±(0.8%+10d)
- DC Current (A):20.00A, ±(2.0%+10d)
200.0A/1000A, ±(2.0%+5d)
- AC Current (A):20.00A, ±(3.0%+10d)
200.0A/1000A, ±(2.5%+5d)
- Resistance ( ohm):2.0000k ohm/20.000k ohm/200.00k ohm/2.0000M ohm, ±(0.3%+5d)20.000M ohm, ±(0.5%+5d)
- Capacitance (F):
2.00nF/20.0nF/200nF/2.00uF/20.0uF/200uF/2.00mF/20.0mF, ±(3.0%+10d)
Frequency (Hz):
200.0Hz/2.0000kHz/20.000kHz/200.000kHz/2.0000MHz/20.00Mhz, ±(0.1%+5d)
- Duty Cycle:0.1%-99.9% (Typical: Vrms=1V, f=100Hz), ±(1.2%+3d)
0.1%-99.9% (<1kHz), ±(2.5%+10d)
Oscilloscope Specification
- Analog Bandwidth: 1kHz
- Sample Mode: Real-time sample
- Real-time Sampling Rate: 5.0MSa/S
- Channel: 1
- Input Impedance: 10M ohm
- Maximum Input Voltage: 1000V
- Maximum Sample Current: 1000A
- Scan Speed: 2.5us/div to 10s/div
- Time Base Accuracy: ±(0.01%+0.1div)
- Sensitivity: 30mV/div to 500V/div
- Displacement Range: ±3 grid
- Sensitivity Accuracy: ±(5%+0.2div)
- Measurement Value: Rms, Period, Freq, Max, Min, PK-PK
- Trigger Mode: Auto
- Trigger Type: Rise, Fall
Package Included:
- 1 x AC/DC Clamp Meter
- 1 x User Manual
- 1 x Test Lead Set
- 2 x AAA Batteries
- 1 x Carrying Case
