Product Summary
OWON B41T+ Bluetooth Digital Multimeter,Provide True RMS with Four and a Half Digits 3 in 1 is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. It is suitable for electricians, repair users and electronics hobbyists who need practical electronics hardware for reliable project work.
Best For
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

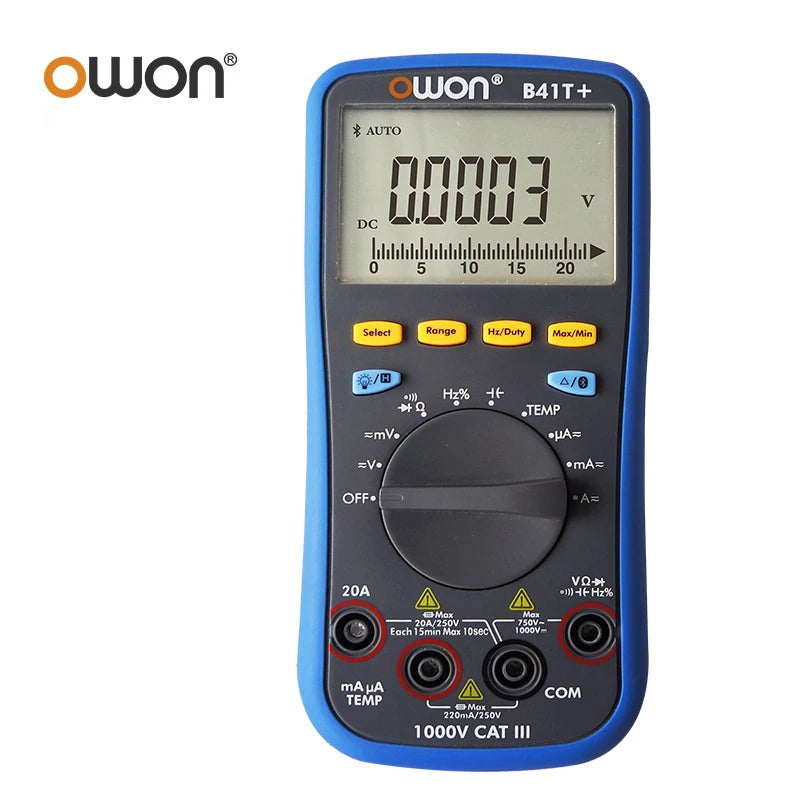

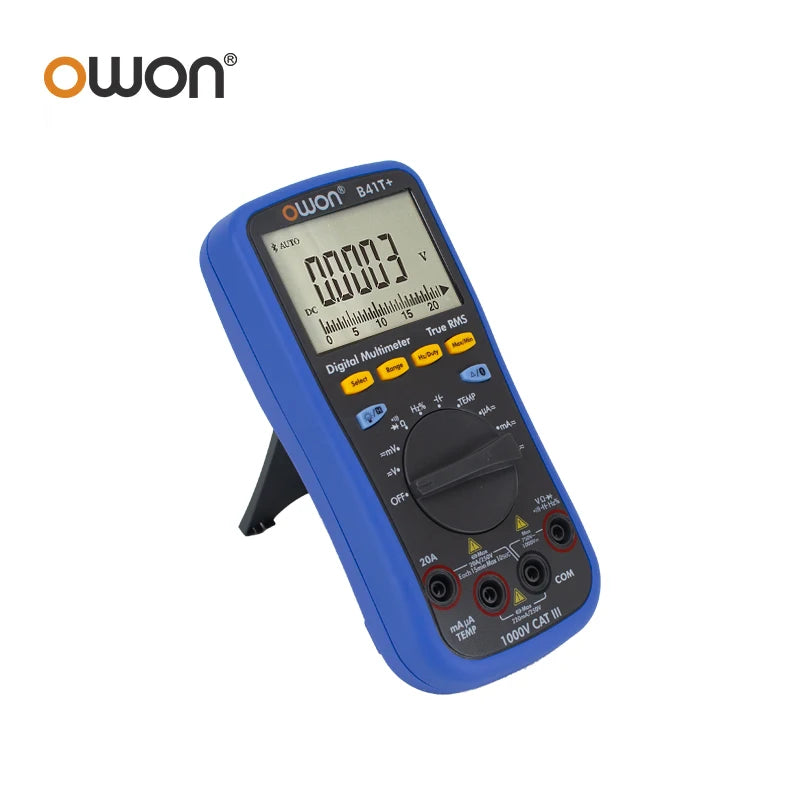

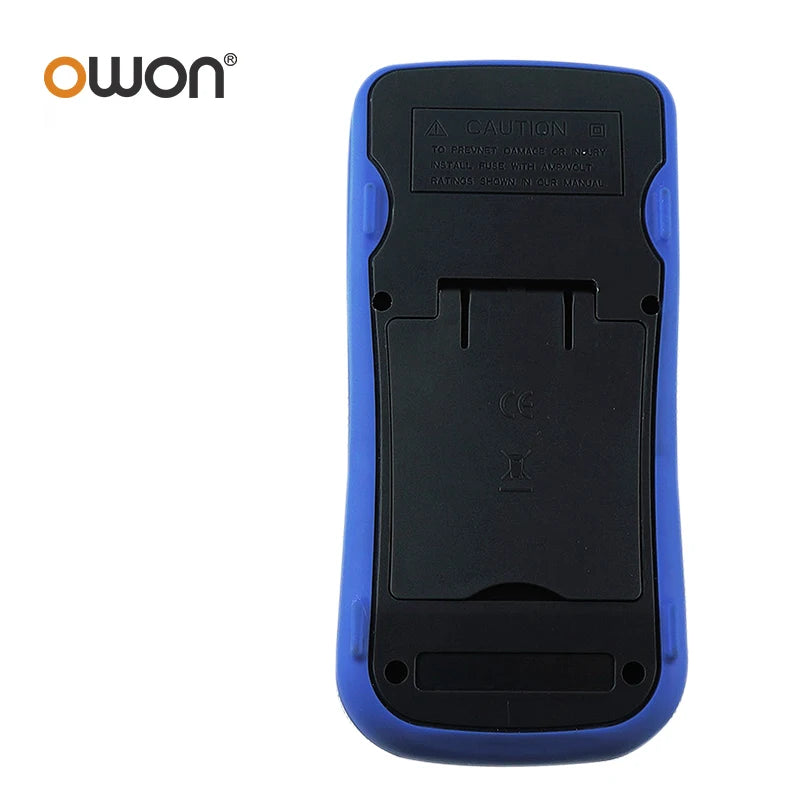

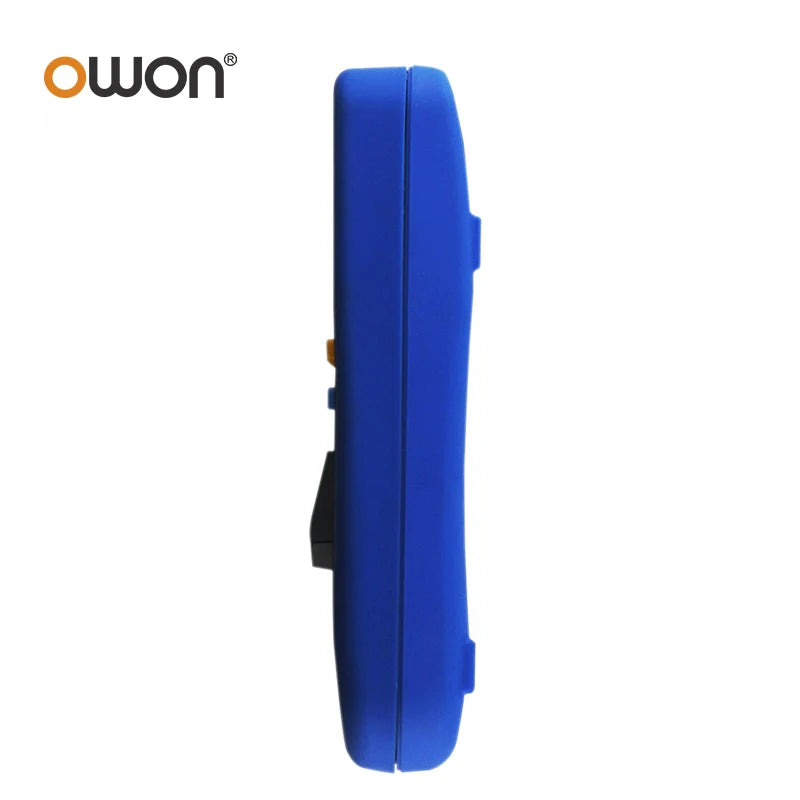

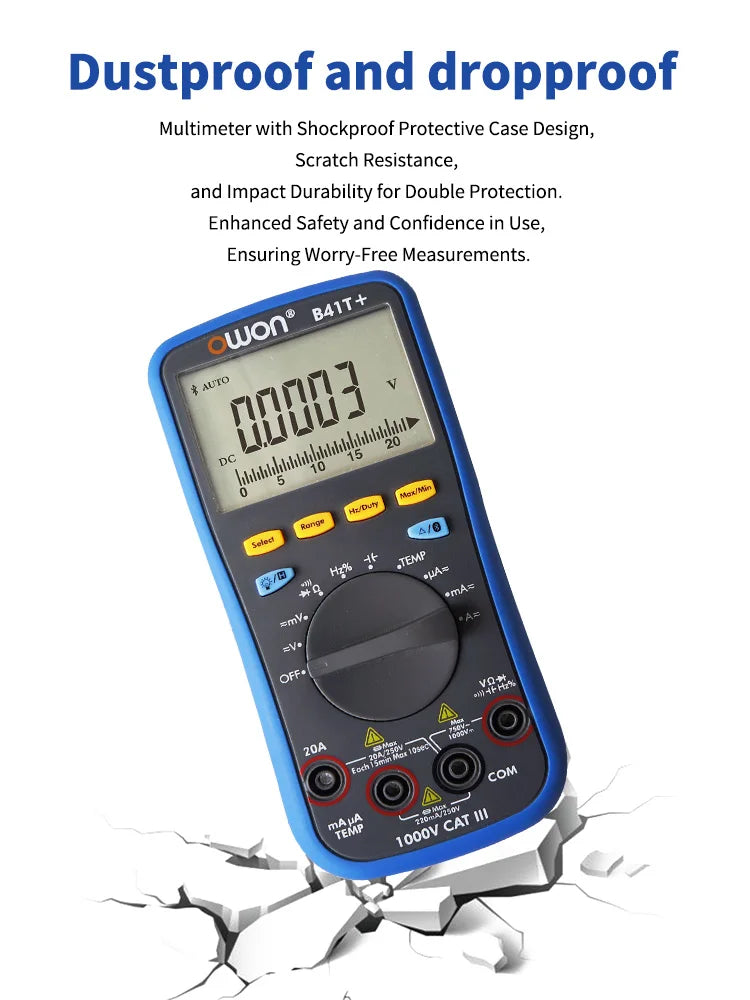

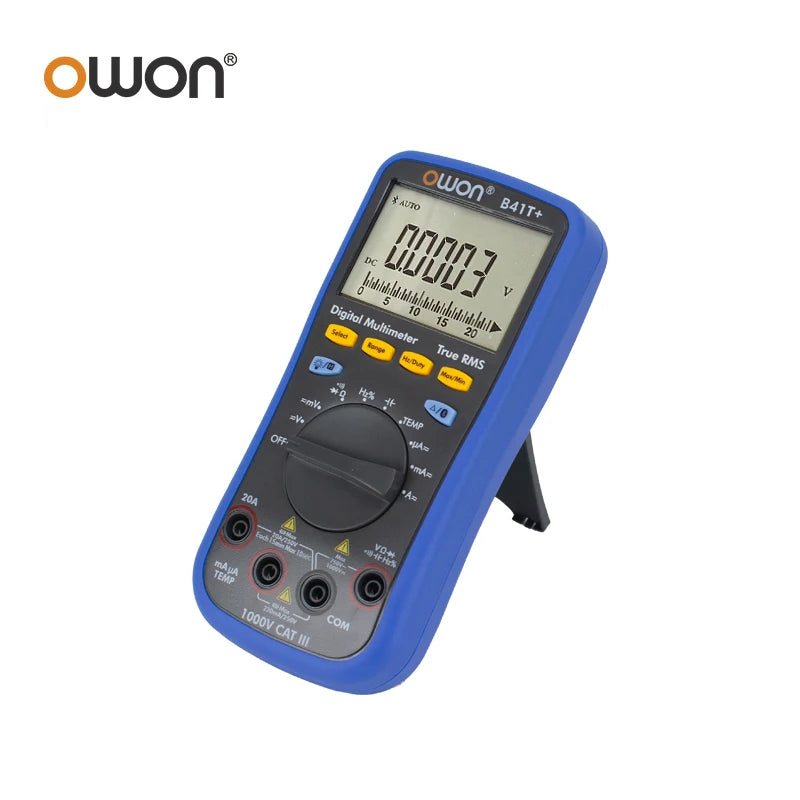

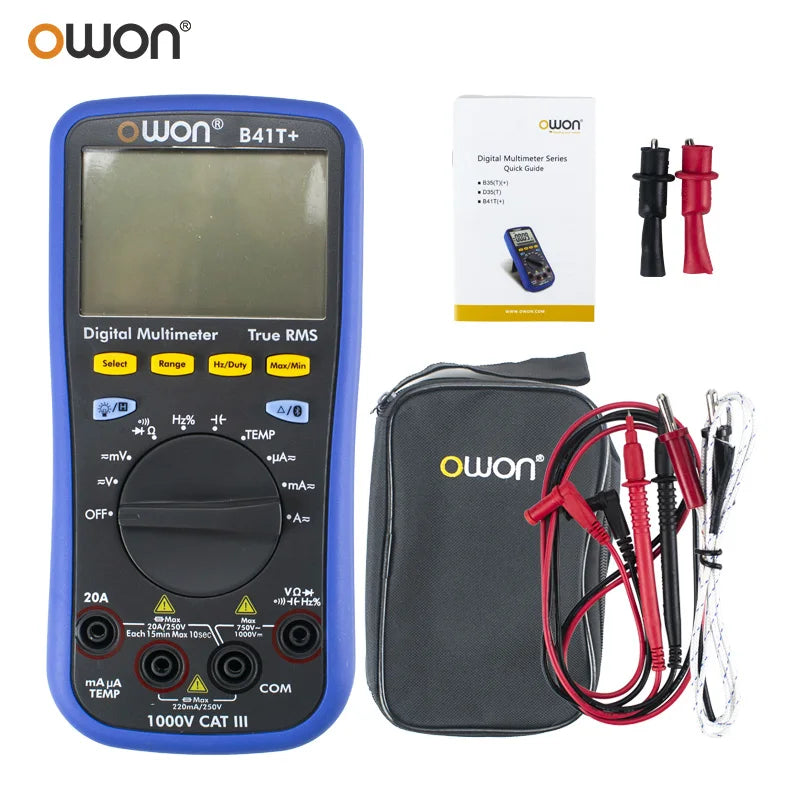

OWON B41T+ Bluetooth Digital Multimeter,Provide True RMS with Four and a Half Digits 3 in 1 Support for Offline Recording
+ function as 3 in 1: datalogger + multimeter + temperature meter
+ multi-connection (more than one device) supported via mobile app
+ the change trend analysis accessible via special chart mode
+ voice warning supported, which assures measurement safety
+ voice-reading accessible
+ 4(1/2)-digit counterparts
+ power-off option extending battery life
+ Bluetooth 4.0 version - supports mobile device with Android 4.3
or above / iOS 7.0 or above OS, and equipped with ble 4.0 module
+ offline recording function
+ True RMS value available
Measurement Range |
Resolution |
Accruacy |
||
|
DC Voltage (V) |
mV |
220mV |
0.01 mV |
±(0.05%+10dig) |
V |
2.2V |
0.1 mV |
||
22V |
1mV |
|||
220V |
10mV |
|||
1000V |
0.1 V |
±(0.1%+10dig) |
||
AC Voltage (V) |
mV |
220mV |
0.01 mV |
±(1.0%+25dig) |
V |
2.2V |
0.1 mV |
±(0.8%+25dig) |
|
22V |
1mV |
|||
220V |
10mV |
|||
750V |
0.1 V |
±(1.0%+25dig) |
||
DC Current (A) |
uA |
220uA |
0.01 uA |
±(0.5%+10dig) |
2200uA |
0.1 uA |
|||
mA |
22mA |
1 uA |
||
220mA |
10 uA |
±(0.8%+10dig) |
||
A |
20.00A [1] |
1mA |
±(2%+25dig) |
|
AC Current (A) |
uA |
220uA |
0.01 uA |
±(1.2%+25dig) |
2200uA |
0.1 uA |
|||
mA |
22mA |
1 uA |
||
220mA |
10 uA |
±(1.5%+25dig) |
||
A |
20.00A [1] |
1 mA |
±(2.5%+35dig) |
|
Resistance ( ohm) |
220 ohm |
0.01 ohm |
±(0.5%+30dig) |
|
2.2k ohm |
0.1 ohm |
±(0.4%+5dig) |
||
22k ohm |
1 ohm |
|||
220k ohm |
10 ohm |
|||
2.2M ohm |
100 ohm |
|||
22M ohm |
1.2k ohm |
±(0.5%+25dig) |
||
220M ohm |
100k ohm |
±(5%+10dig) |
||
|
Capacitance (F) |
22nF |
1pF |
±(2.5%+15dig) |
|
220nF |
10pF |
|||
2.2uF |
100pF |
|||
22uF |
1 nF |
|||
220uF |
10 nF |
|||
2.2mF |
100 nF |
±(4.0%+10dig) |
||
>220mF |
/ |
/ |
||
Frequency |
22.00Hz |
0.01Hz |
±(0.1%+4dig) |
|
220.0Hz |
0.1 Hz |
|||
22.000kHz |
1 Hz |
|||
220.00kHz |
10 Hz |
|||
22.00Hz |
100 Hz |
|||
2.2000MHz |
1k Hz |
|||
22.000MHz |
10k Hz |
|||
>220MHz |
/ |
/ |
||
Duty Ratio (%) |
5.0% - 94.9% (typical value:Vrms=1 V, f=1 kHz) |
0.1% |
±(1.2%+3dig) |
|
0.1% - 99.9%(≥1 kHz) |
±(2.5%+3dig) |
|||
|
Temperature ( deg C/ deg F) |
(-50 deg C) - (400 deg C) |
0.1 deg C |
±(1.0%+5dig) |
|
(-58 deg F) - (752 deg F) |
0.1 deg F |
±(1.2%+6dig) |
||
Display |
21999 |
|||
Frequency Response |
(40 - 10000) Hz |
|||
Shift Rate |
3 times/s |
|||
