Raspberry Pi 3 Model B/3B+ Plus BCM2837 1.2G,Raspberry Pi 3 B+ with 2.4G & 5G WIFI 4.2 BT and PoE

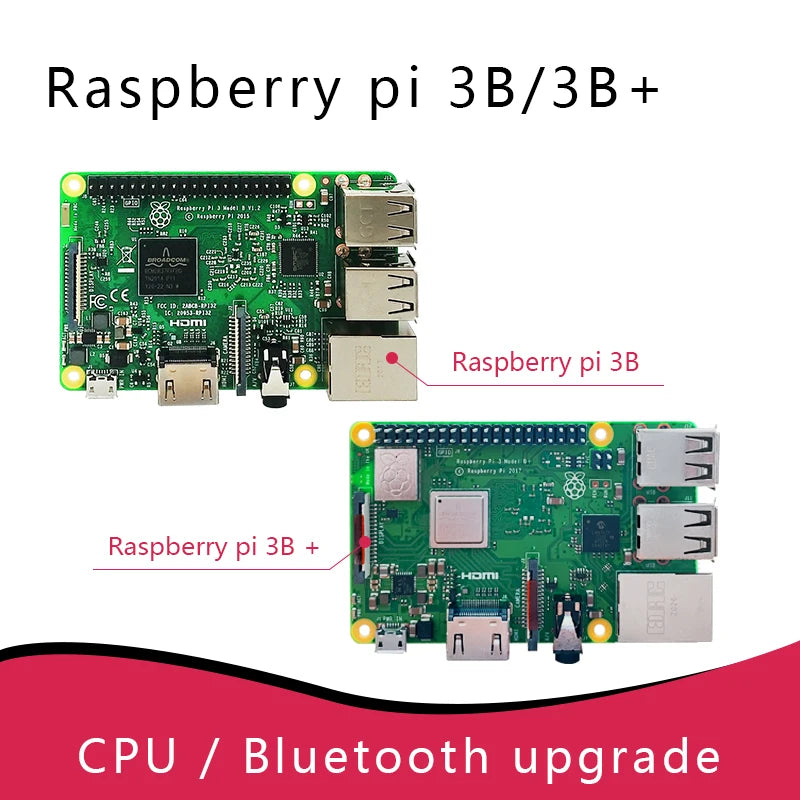

Raspberry Pi 3 Model B and Model B+ Options

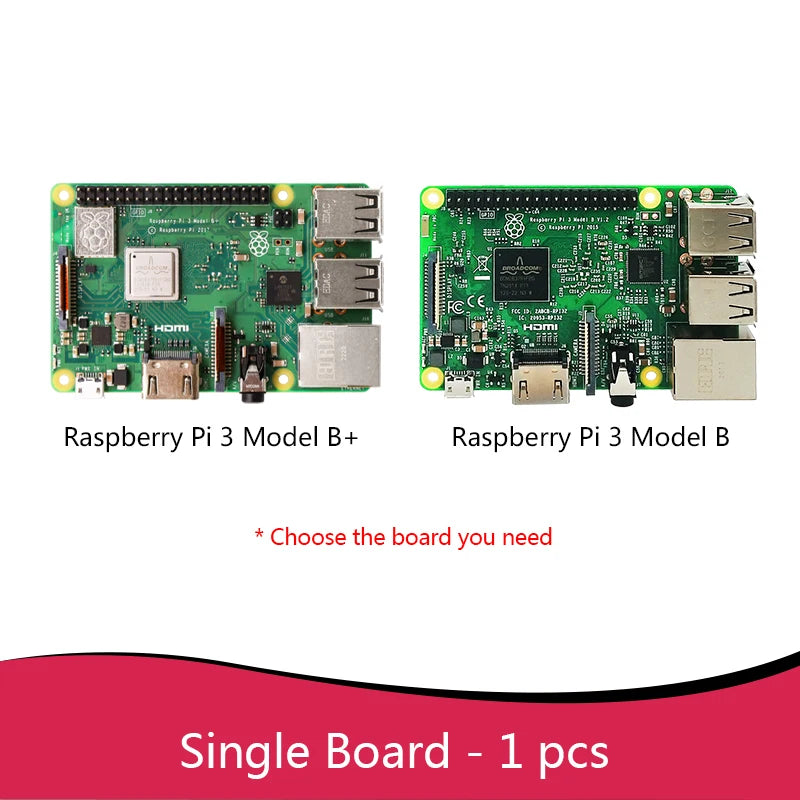

This listing contains both Raspberry Pi 3 Model B and Raspberry Pi 3 Model B+ boards, with single-board and kit options. Select the exact board model first because processor speed, wireless networking and Ethernet capability differ between the two revisions.

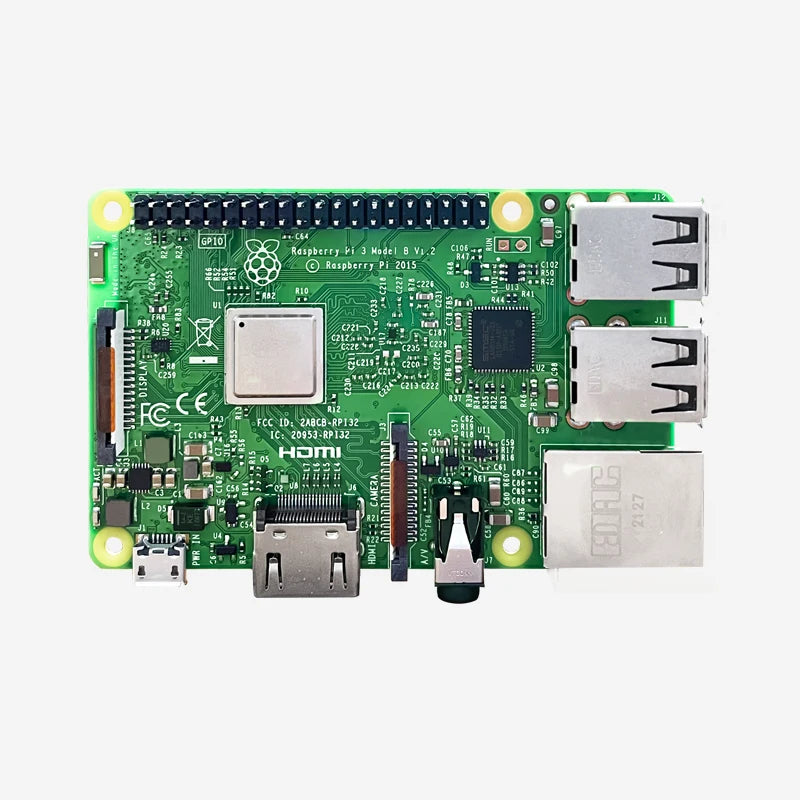

Raspberry Pi 3 Model B

• Broadcom BCM2837 quad-core 64-bit Cortex-A53 processor at 1.2 GHz.
• 1 GB RAM, 2.4 GHz 802.11n Wi-Fi and Bluetooth 4.1/BLE.
• 100 Mb/s Ethernet, four USB 2.0 ports and 40-pin GPIO header.

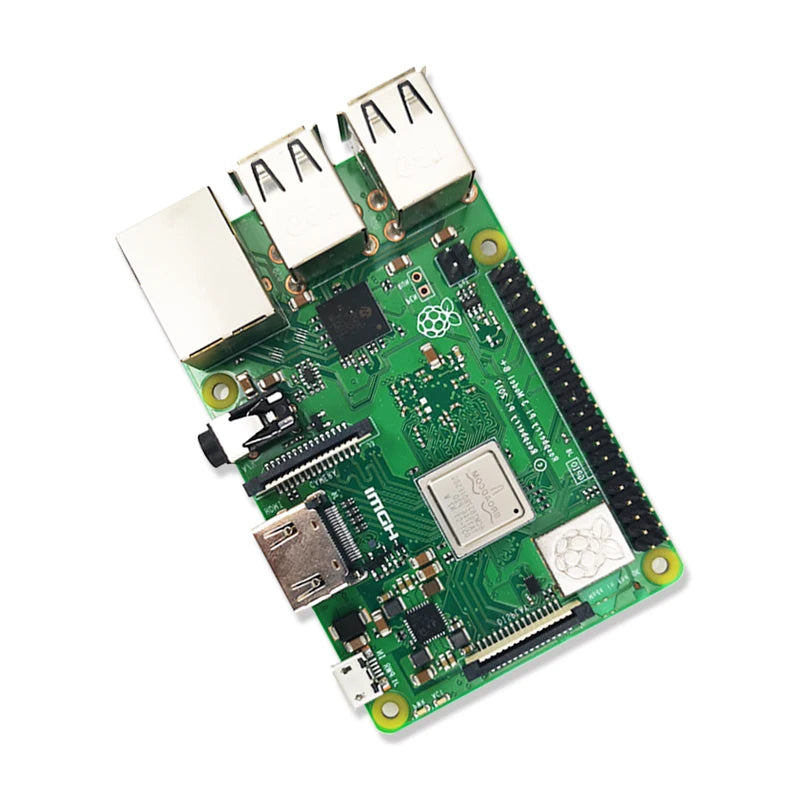

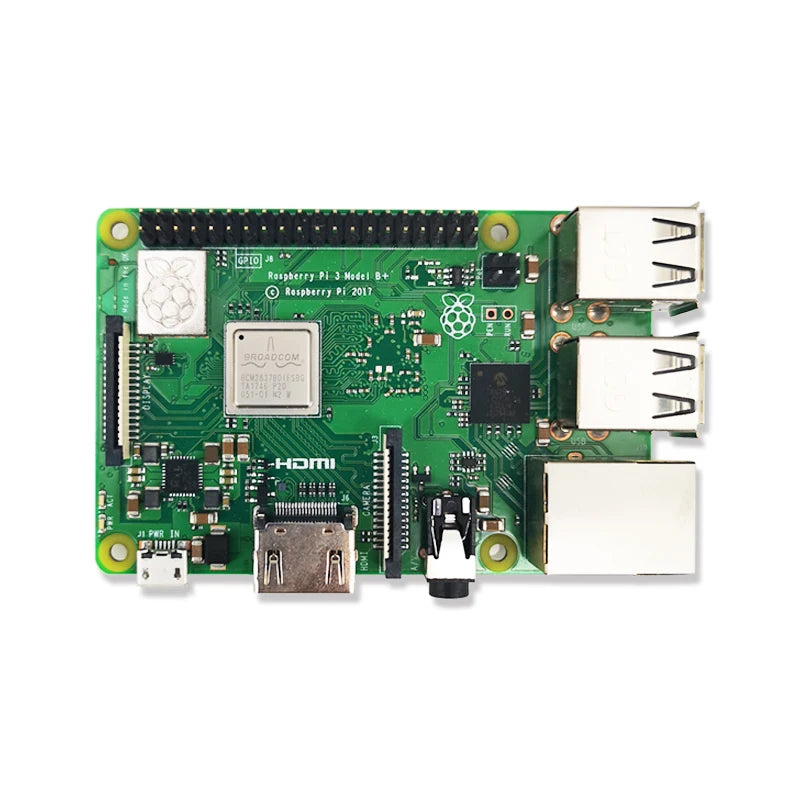

Raspberry Pi 3 Model B+

• Broadcom BCM2837B0 quad-core 64-bit Cortex-A53 processor at 1.4 GHz.
• 1 GB RAM, dual-band 2.4/5 GHz Wi-Fi and Bluetooth 4.2/BLE.
• Gigabit Ethernet over USB 2.0 with maximum throughput of 300 Mb/s.
• PoE support requires a separate compatible PoE HAT.

Shared Interfaces and Bundle Selection

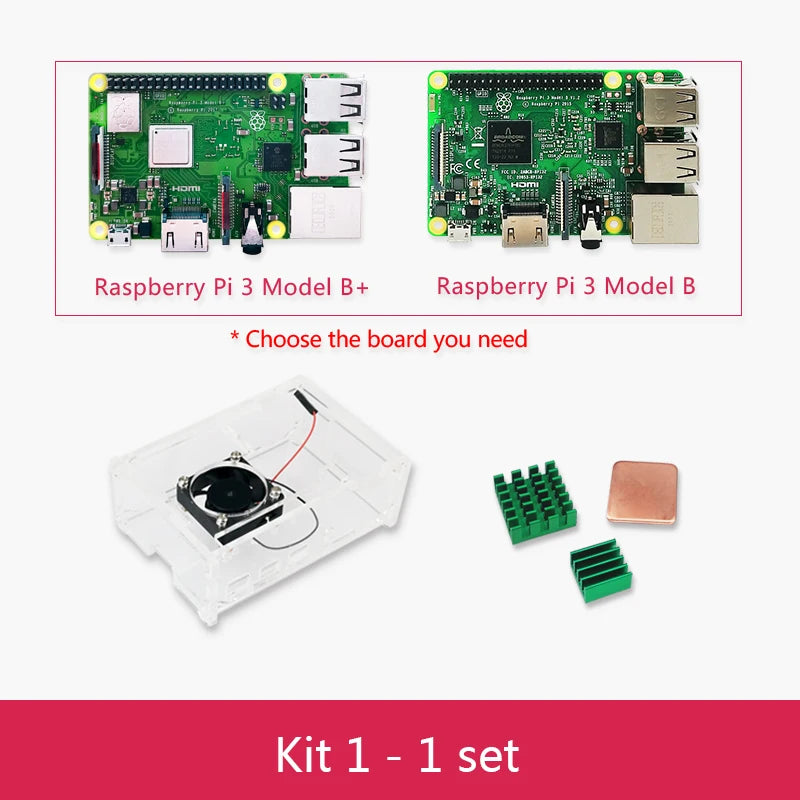

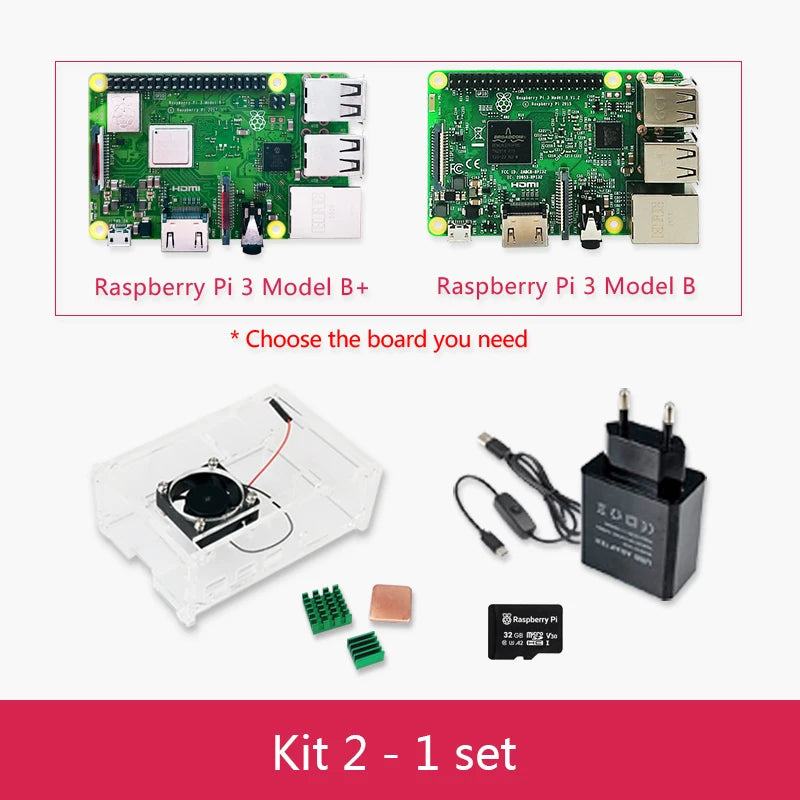

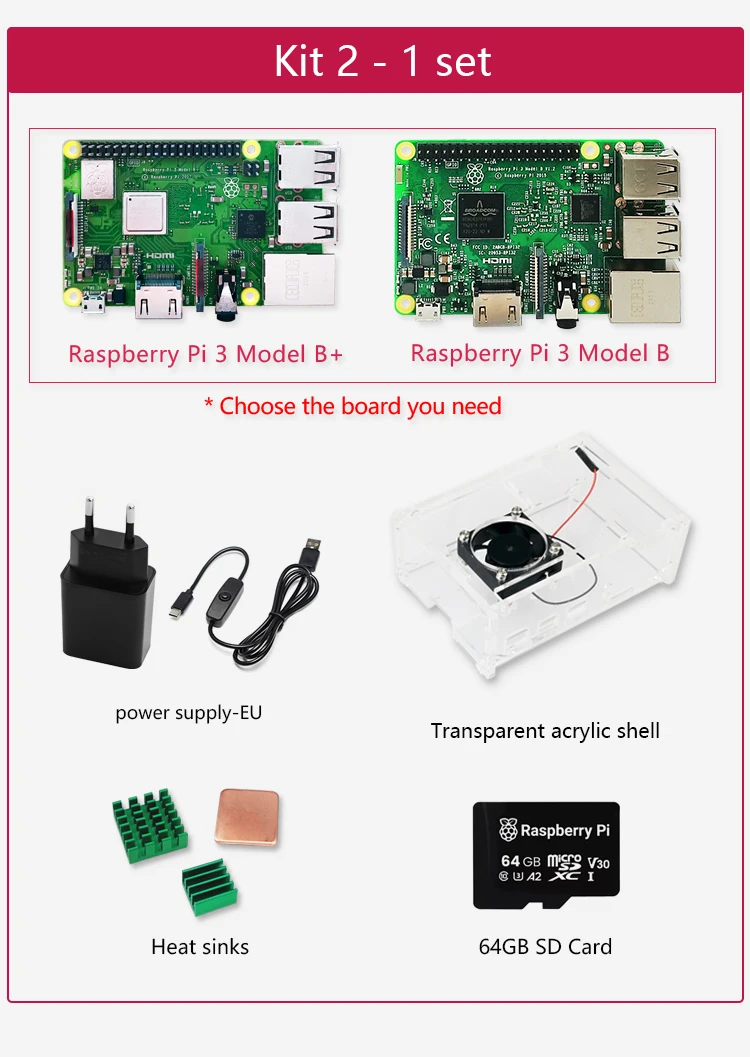

Both models use microSD storage and micro-USB power and provide full-size HDMI, CSI camera, DSI display and 3.5 mm audio/video connections. Single Board, Kit 1 and Kit 2 packages contain different accessories; package contents follow the selected model and bundle images.
