Product Summary
Noyafa NF-8508 Network Cable Tester Optical Power Meter Wire PoE Lan Test LCD Digital Line is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. It is suitable for electricians, repair users and electronics hobbyists who need practical electronics hardware for reliable project work.
Best For
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Features:

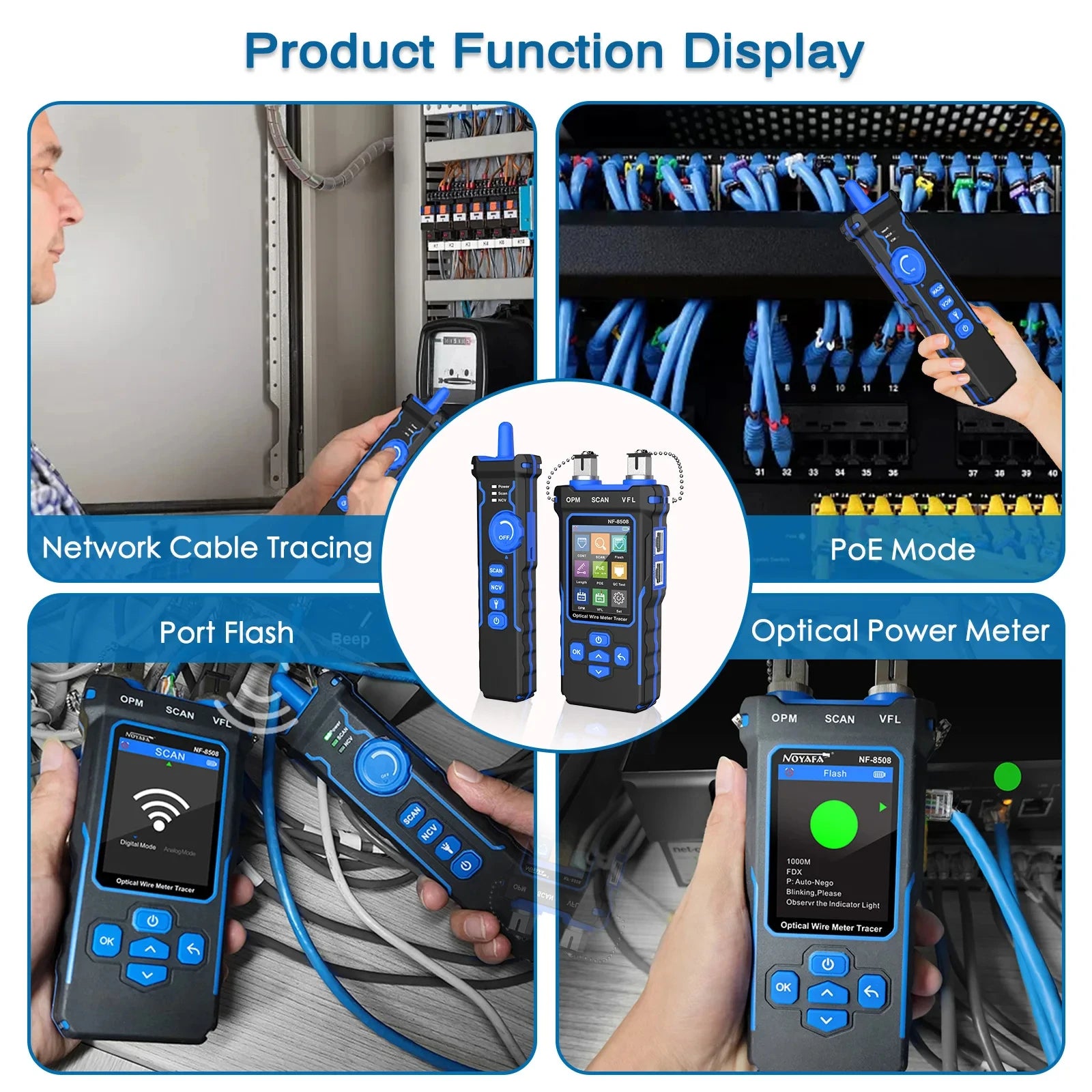

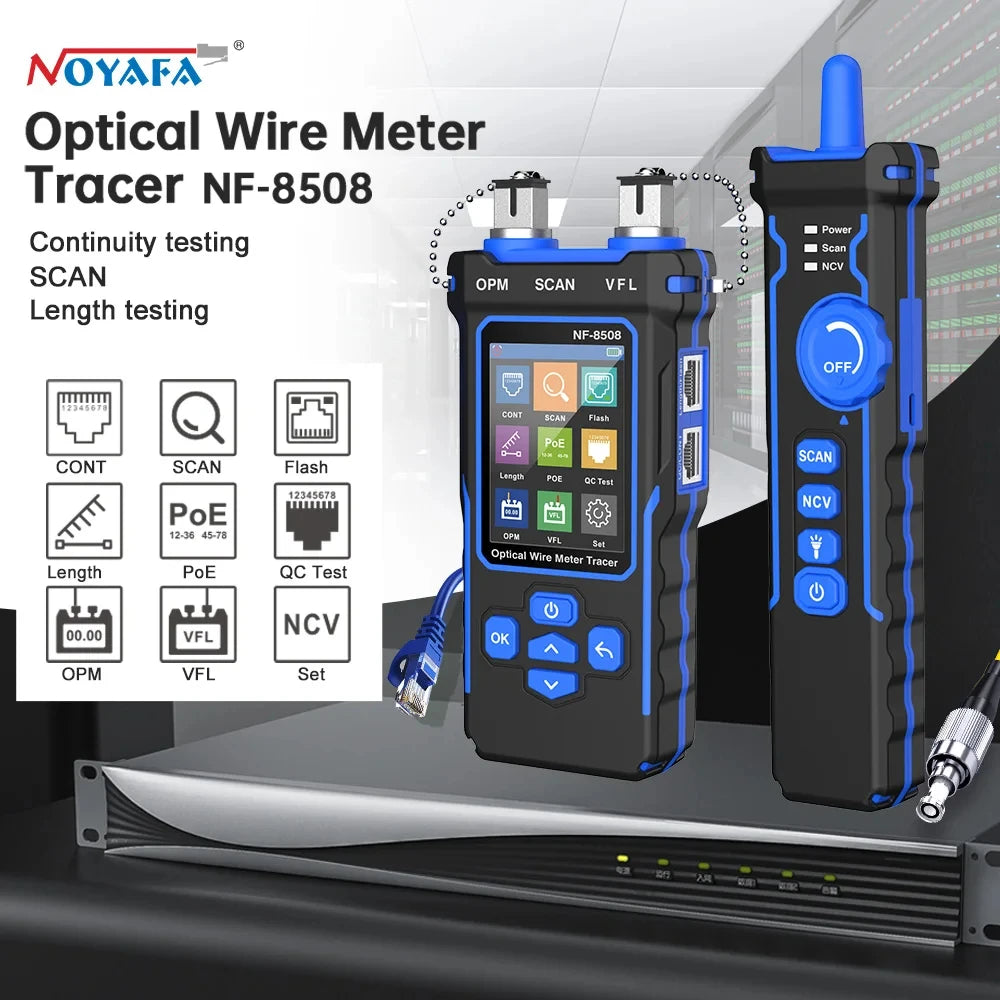

Transmitter Testing Function: including cable continuity testing, cable scan, port flashing, cable length measurement, PoE test, QC testing for crystal head, OPM(optical power meter) and VFL(visual fault location) function.
POE Test: automatic identification of midspan/endspan/power by 8 cores, automatic identification of standard and nonstandard device.
Optical Power Meter: 850/1300/1310/1490/1550/1625nm wavelength switching; unit switching at dBm, dB, or mw, uw, nw; and REF switch.
Visual Fault Location Function: detect and locate fiber breaks, as well as problems such as poor connections, fiber bends or cracks.
Receiver Function: sensitivity adjustment, 300m no-load shielded network cable/non-empty shielded network cable, NCV detection, lighting function, etc.
Non-contact Voltage Detecting: the receiver can be used to detect the AC voltage of household electrical wiring.
Illuminate Function: the receiver designed with lamp for auxiliary lighting up the working areas during operation.

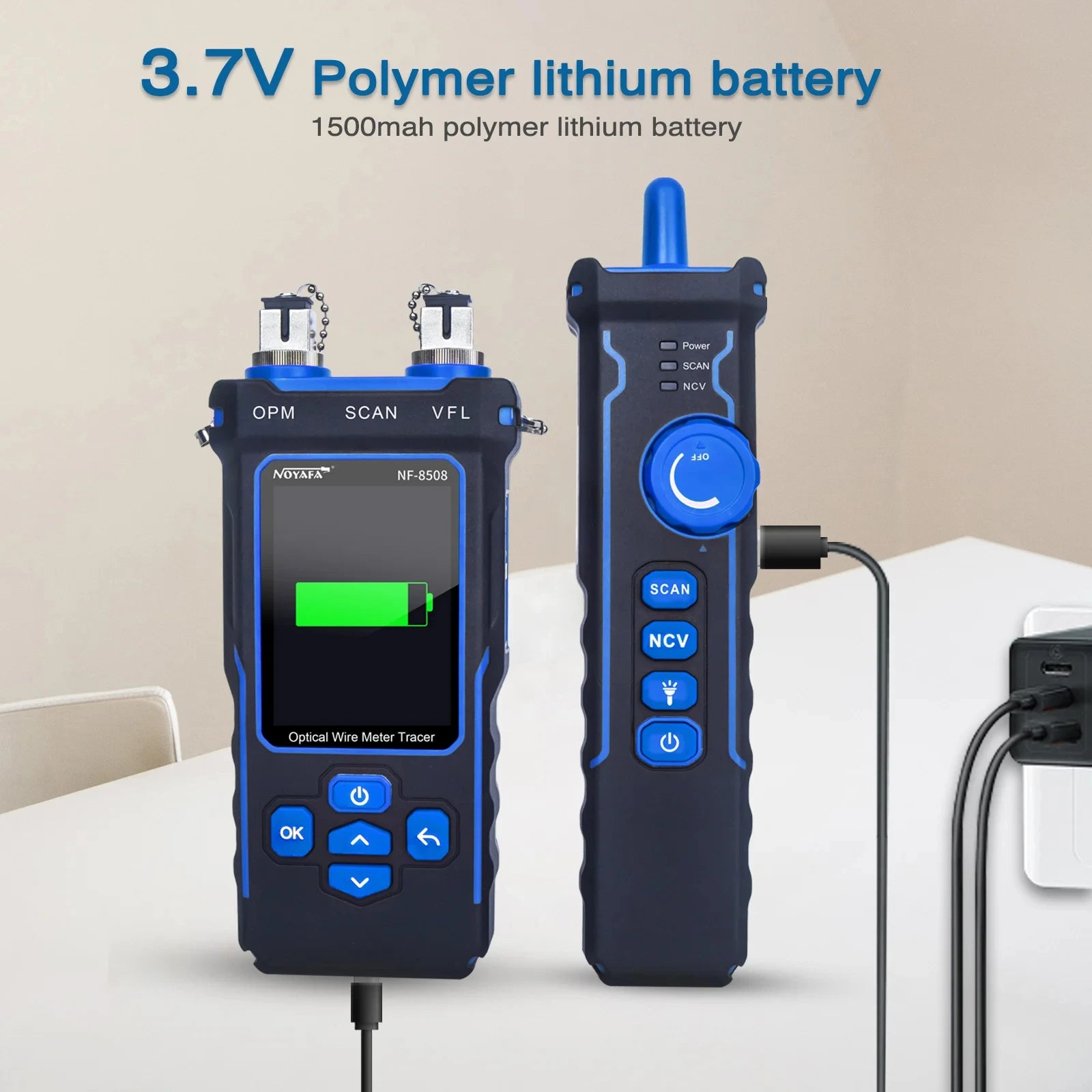

Battery Operated: both the transmitter and the receiver are built-in with 1500mAh polymer battery, no need to change batteries, type-C charging, with charging indicator and low battery indicator.
Other Settings: backlight brightness(level 1/2/3), backlight time(MAX/1min/30S/15S), auto-off time(15min/30min/1h/2h/off), red light flash under VFL function(fast flashing/slow flashing/ON).
Wide Applications: suitable for the network line engineering and maintenance work of telecommunication, computer, other metal conductor, etc.
Specifications:
Material: ABS
Cable Type: CAT5/CAT6
Voltage: 60V
Package Weight: 586g / 20.67oz
Package Size: 24 * 16.5 * 5.5cm / 9.45 * 6.50 * 2.17in

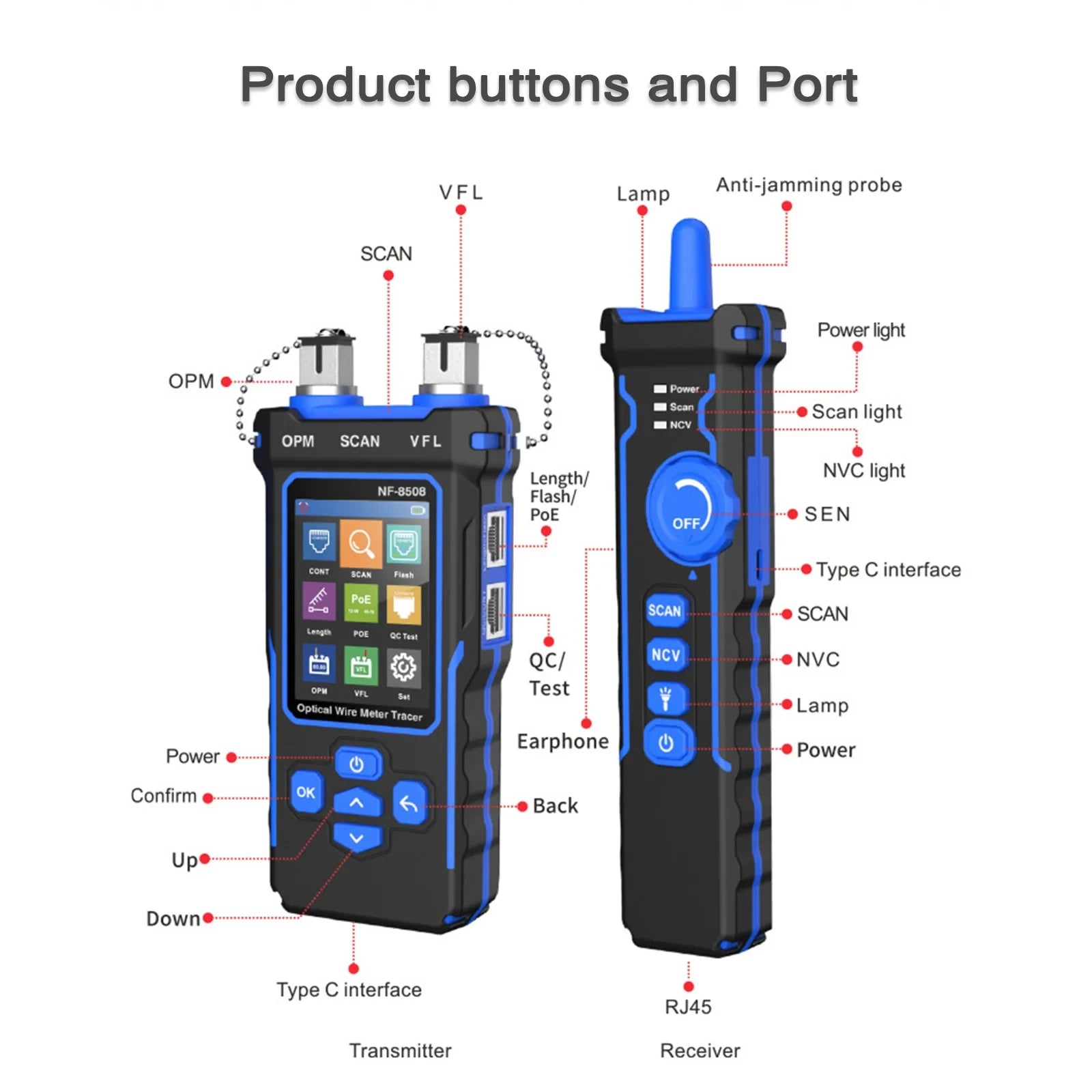

TRANSMITTER:
Wiremap Port: RJ45
Remote Continuity: ≥300m
Cable Sequence and Fault Test: Yes
STP/NTP: Yes
Short Circuit Reminder: Yes
Anti-jamming and Normal Mode: Yes
Audio Transmission Frequency: 455KHz
Audio Transmission Distance: RJ45 300m
NVL: 10mW
Power Meter: 850/1300/1310/1490/1550/1625nm (wavelength)
Crimping: RJ45-8 cores, min length is ≥10cm
Low Voltage Prompt: <3.5V±0.1V, power indicator flashes
Power Supply: 3.7V 1500mAh polymer lithium battery

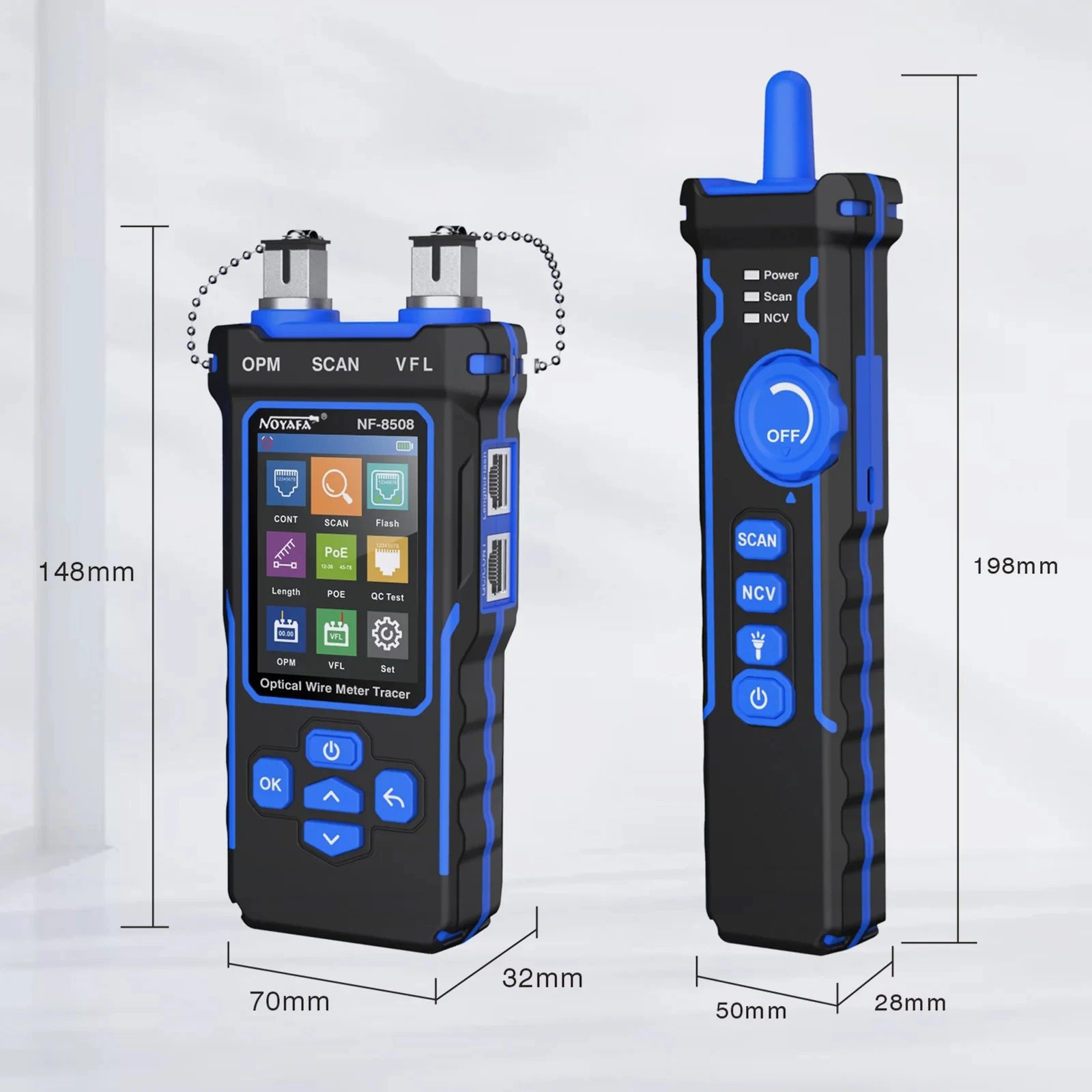

Size: 148 * 70 * 32mm / 5.83 * 2.76 * 1.26in
RECEIVER:
Scan Current: ≤300mA
Remote Continuity: ≥300m
NCV Detection: Yes
Lamp: Yes
Low Voltage Prompt: Yes
Power Supply: 3.7V 1500mAh polymer lithium battery
Size: 198 * 50 * 28mm / 7.80 * 1.97 * 1.10in

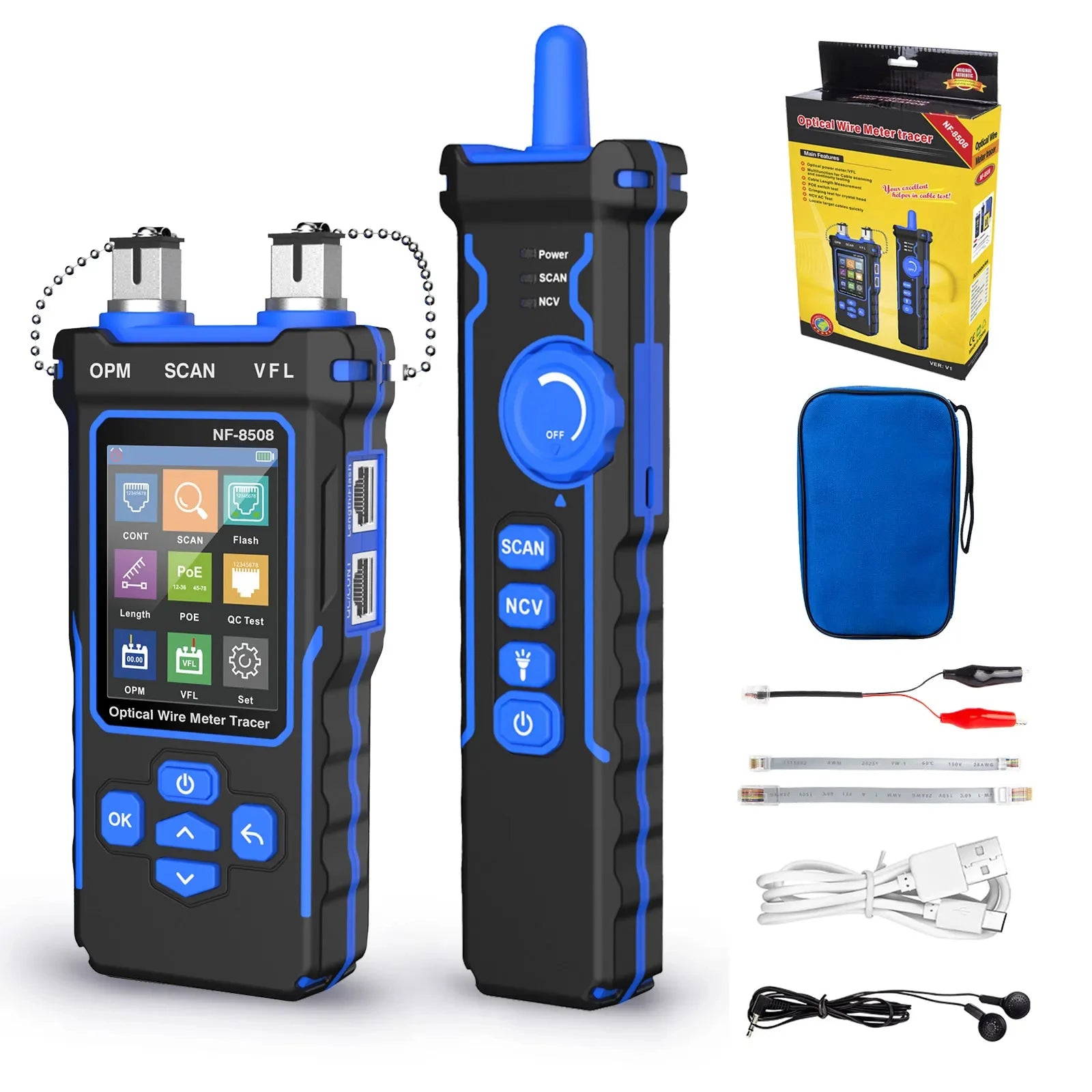

Package List:
1 * Transmitter
1 * Receiver
1 * RJ45 Adapter Line
1 * RJ11 Adapter Line
1 * Crocodile Clip Test Line
1 * Type-C Data Cable
1 * Earphone
1 * Carry Bag
1 * Manual (English)
