Product Summary
NanoVna SAA-2N VNA Antenna Analyzer 50KHz -3GHz Vector Network Analyzer 4" inch LCD,HF VHF is a RF wireless product selected for wireless communication, antenna experiments and radio signal workflows. It is suitable for radio users, SDR experimenters and wireless project builders who need practical electronics hardware for reliable project work.
Best For
- wireless communication, antenna experiments and radio signal workflows
- SDR receivers, LoRa modules, antennas and RF test setups
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for radio users, SDR experimenters and wireless project builders.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Vector Network Analyzer Kit, 4.0 Inch Screen 3G SAA-2N NanoVNA V2 Antenna Analyzer Shortwave HF VHF UHF
Features:
Made of fine quality material, practical, has a long service life.
Portable and compact, easy to operate and carry.

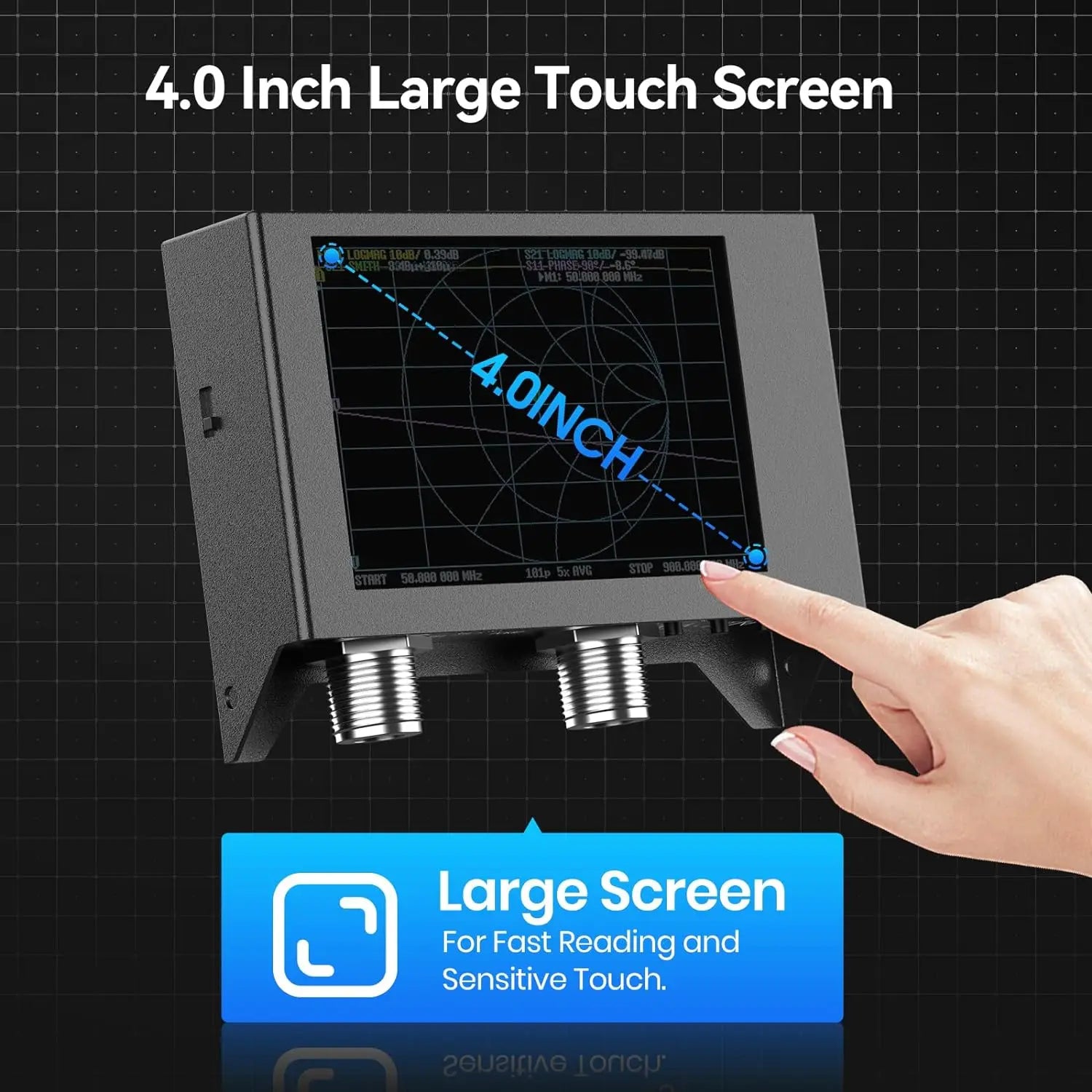

4.0 inch TFT LCD touching screen display.

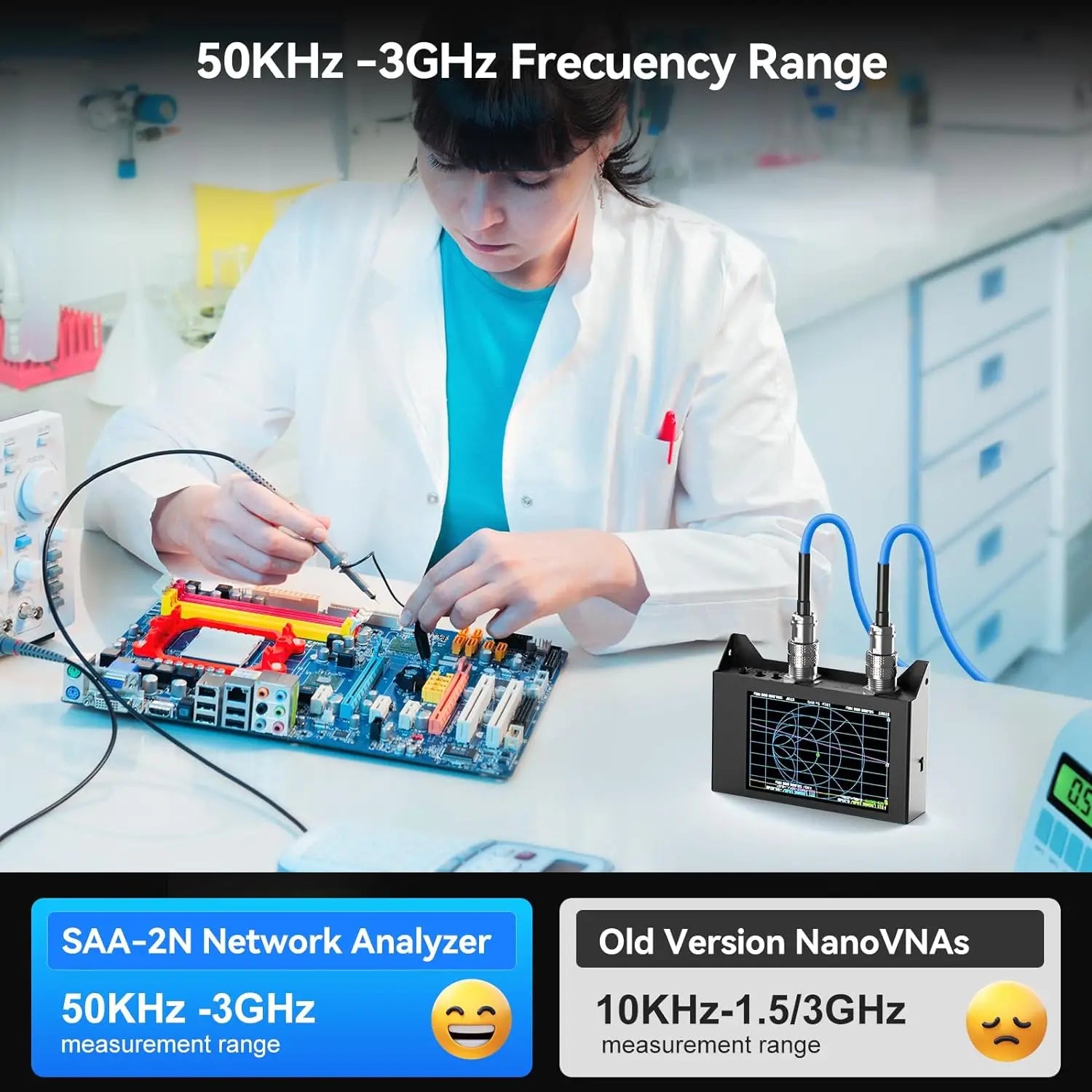

Measurement frequency range is 50KHz-3GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.
EVA storage bag is convenient for storage and carrying.
Note:

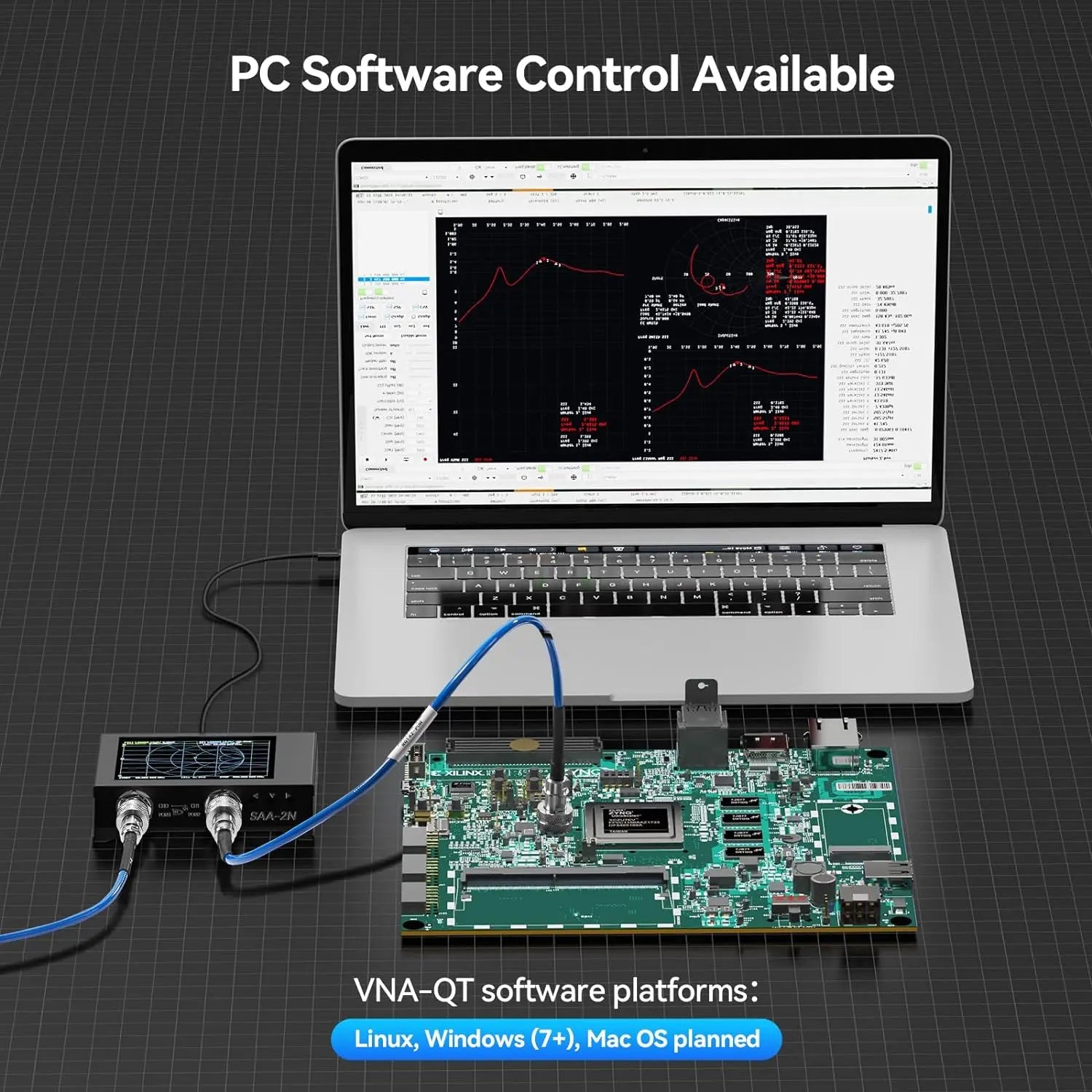

VNA-QT software download: https://github.com/nanovna/NanoVNA-QT/releases
Specifications:
Main material: PCB+iron
Color: black
Battery: 1 * lithium battery, 3000mAh (included)
Measurement frequency range: 50KHz-3GHz
Frequency tolerance: <2ppm
Frequency stability: <0.5ppm
System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Sweep rate: 100 points / second
Display: 4.0 inch, 320 * 480
USB interface: Micro USB
Power supply: USB, maximum charging current 1A
Battery connector: JST-XH 2.54mm
Maximum sweep points (on device): 201
Maximum sweep points (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB MIN
Item size: 117 * 85 * 25mm / 4.6 * 3.3 * 1.0in
Item weight: 368g / 13.0ounce
Package size: 215 * 137 * 85mm / 8.5 * 5.4 * 3.3in
Package weight: 972g / 2.1lb

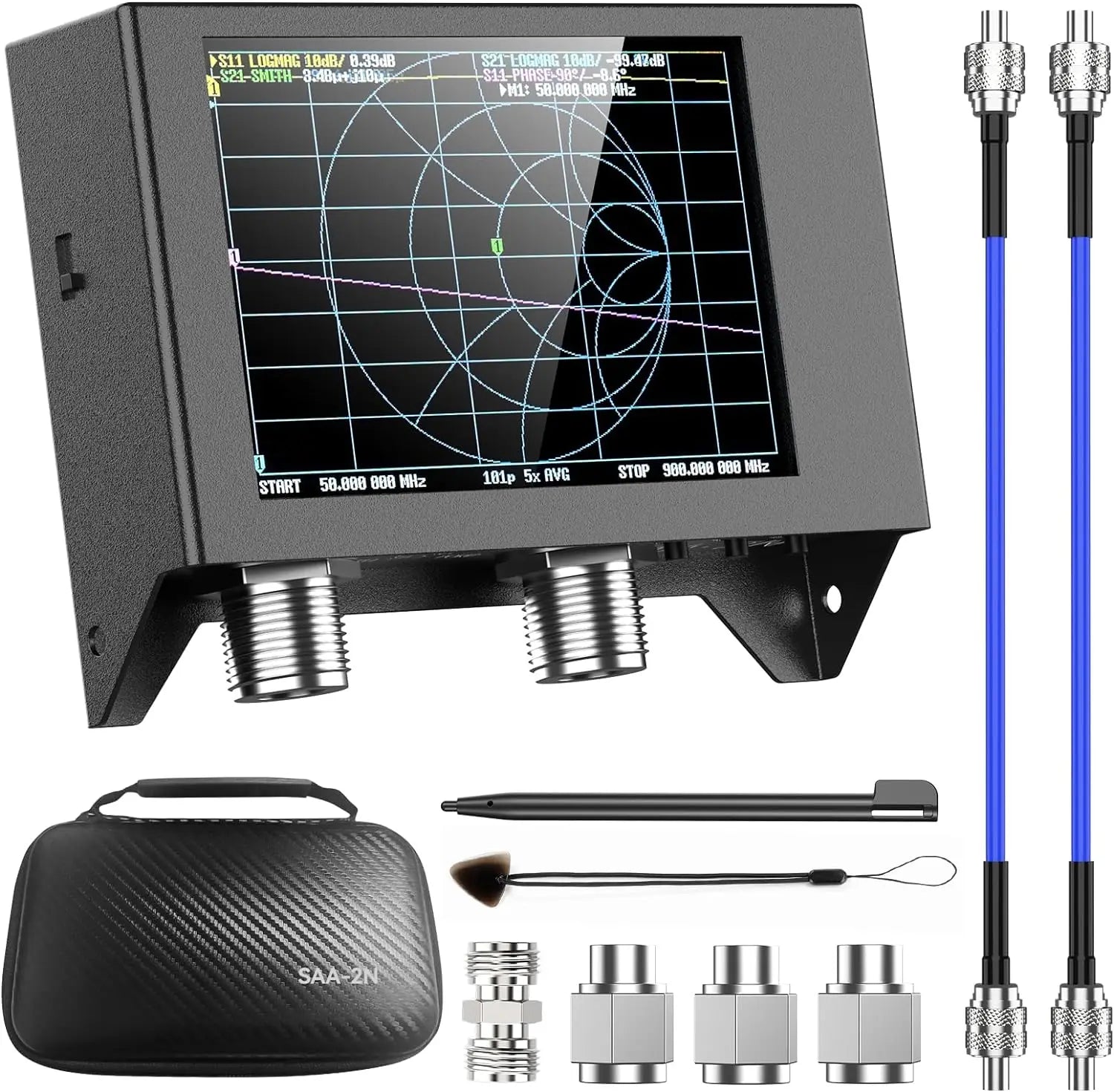

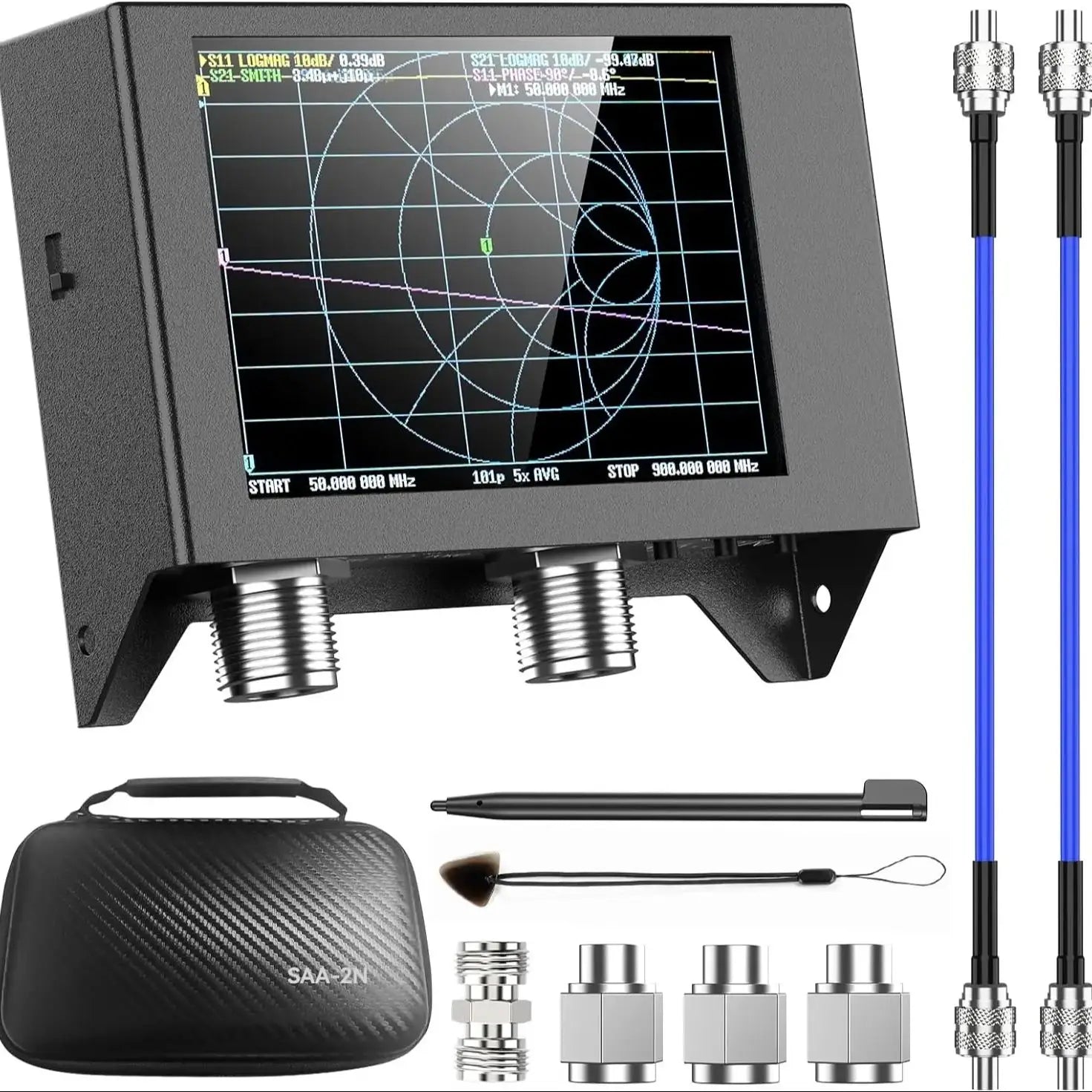

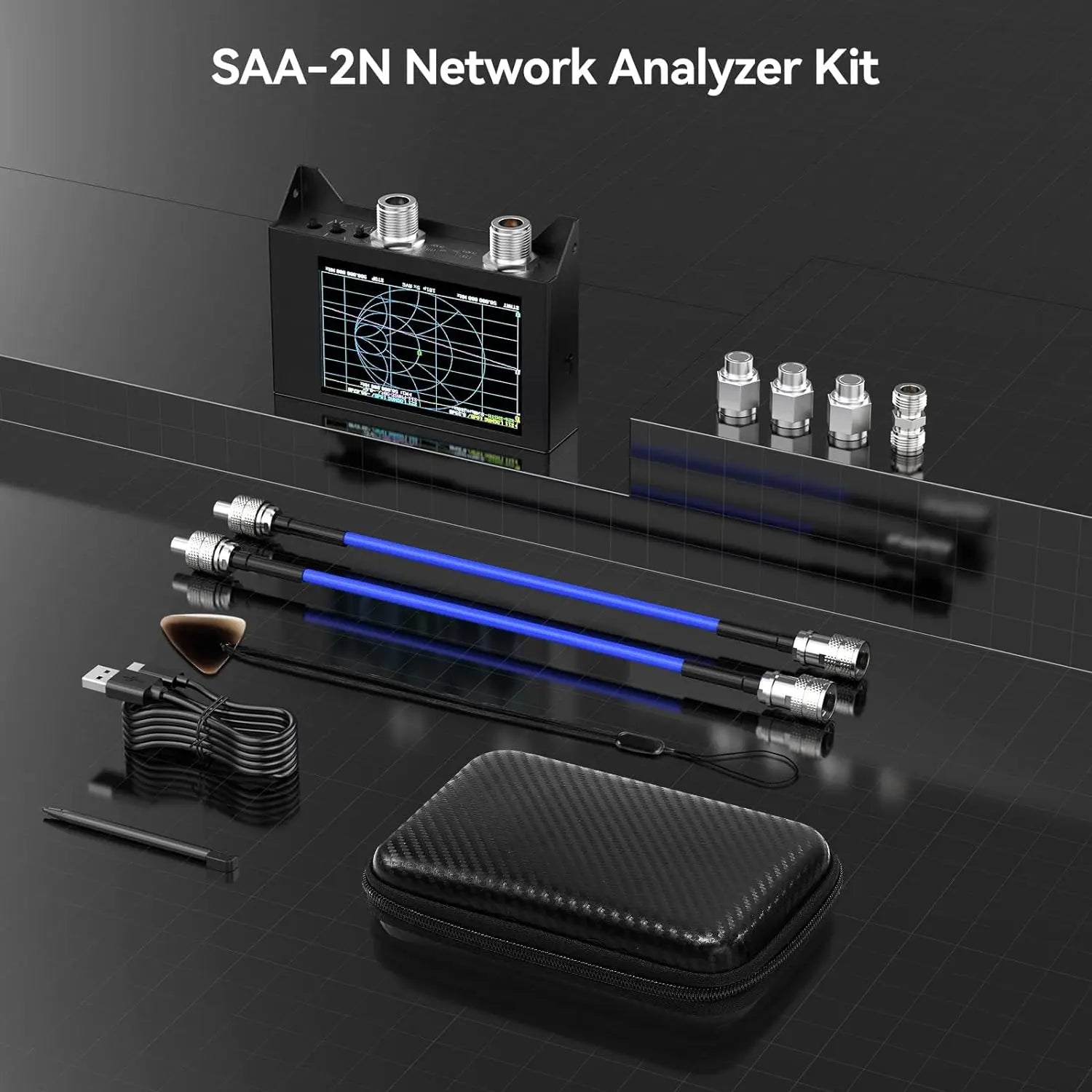

Packing List:
1 * NanoVNA SAA-2N VNA
1 * Micro USB Data Cable
2 * 500mm N-type Male to Male RG142-PUR RF Cable
1 * N-type Male Calibration Kit-OPEN
1 * N-type Male Calibration Kit-SHORT
1 * N-type Male Calibration Kit-LOAD
1 * N-type Female to Female Connector
1 * EVA Storage Bag
1 * Touching Screen Pen and Lanyard
1 * Accessories Kit
