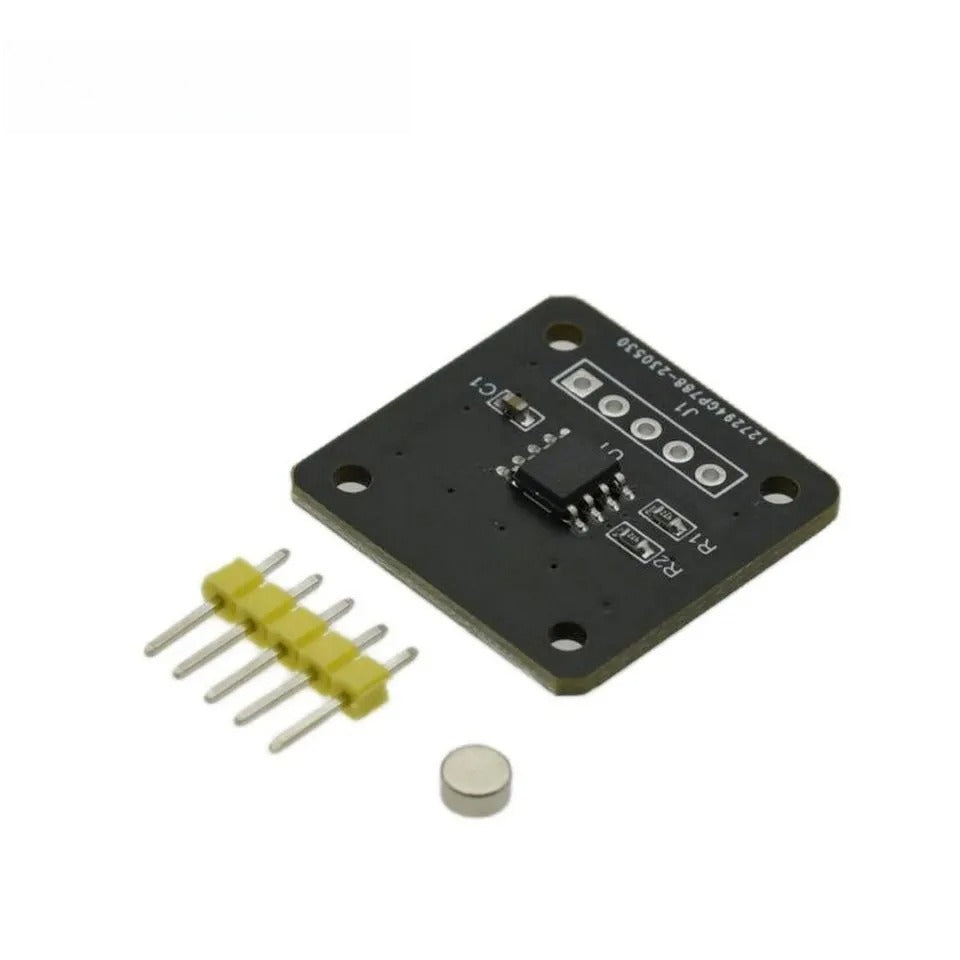

MT6701 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 14bit High Precision Replacement AS5600

The MT6701 is a magnetic absolute-angle encoder based on differential Hall sensing. With a suitable radial magnet positioned above the sensor, it measures 0-360° rotation for motor control, knobs, robotics, position feedback, and compact rotary interfaces.

Interfaces and Outputs

• 14-bit digital angle output through I²C or SSI.
• ABZ incremental output with programmable resolution from 1 to 1024 lines.
• UVW incremental output with 1-16 pole-pair settings.
• 12-bit PWM or analog output.
• Dedicated push detection for rotation-plus-press control designs.

Listed Specifications

• Operating voltage: 3.3-5.0V.
• Operating temperature: -40°C to 125°C.
• Typical linearity deviation: below ±1°; below ±1.5° across the listed temperature range.
• System delay: as low as 5μs.
• Maximum listed speed: up to 55,000rpm.
• Built-in EEPROM with more than 1000 programming cycles listed.

Integration Note

Magnet type, centering, air gap, shaft runout, supply decoupling, and interface configuration directly affect accuracy. Confirm the module pinout and magnet orientation before connecting it as a replacement for another encoder.

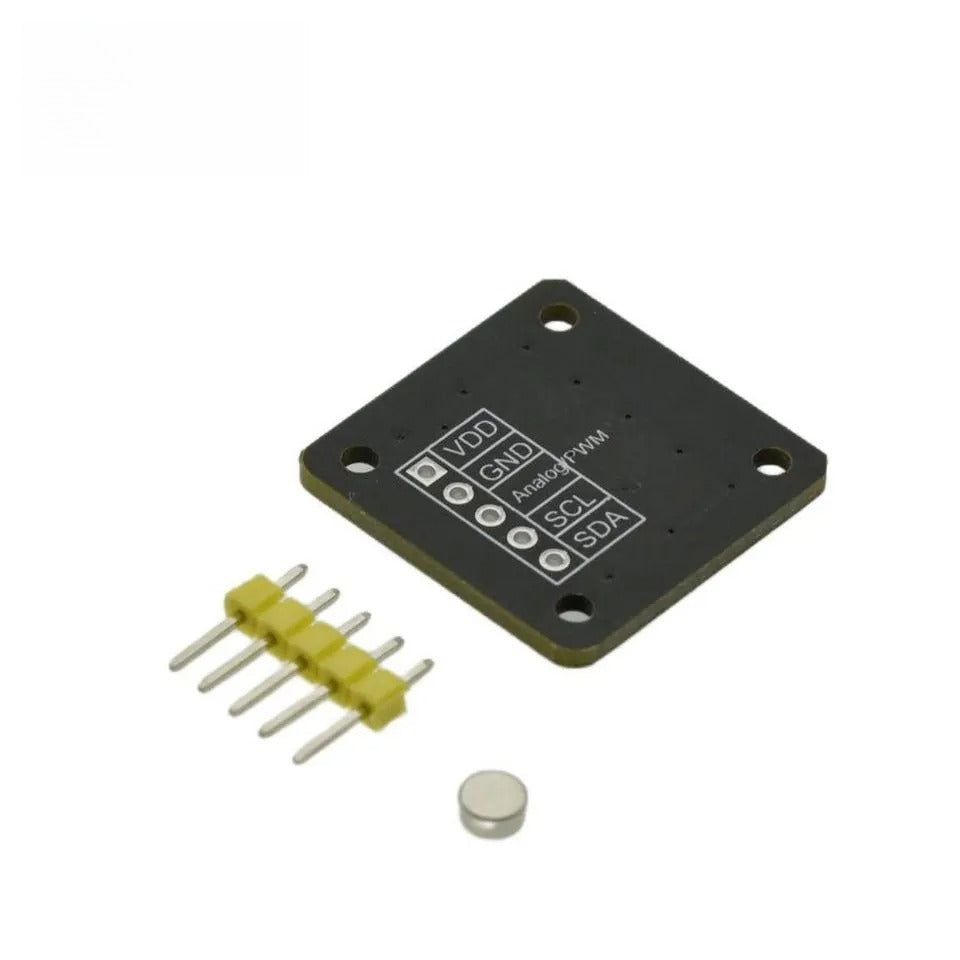

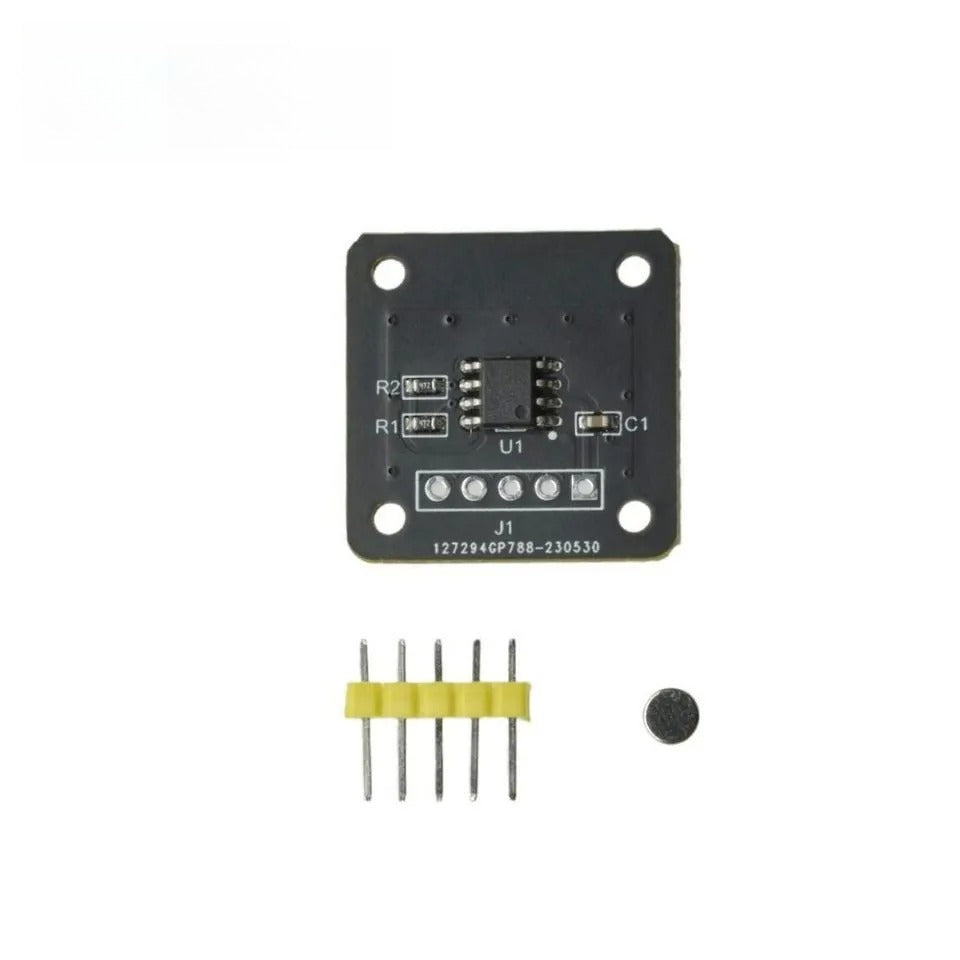

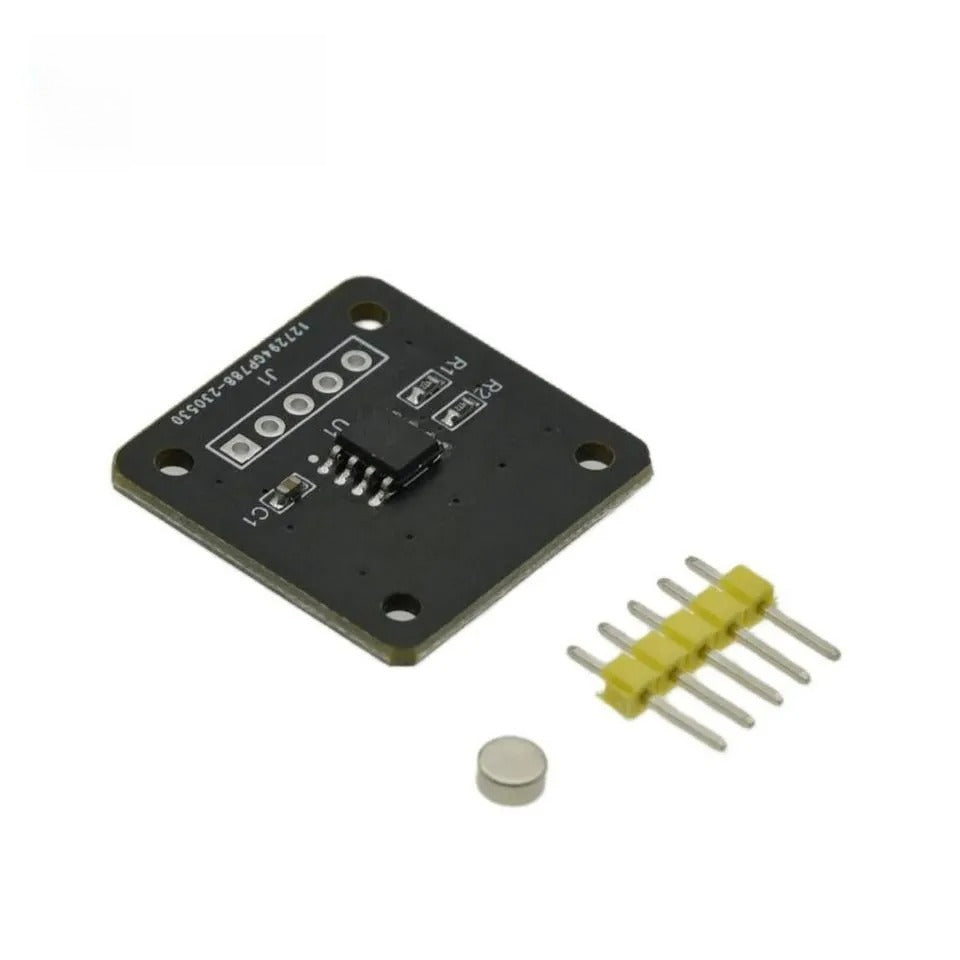

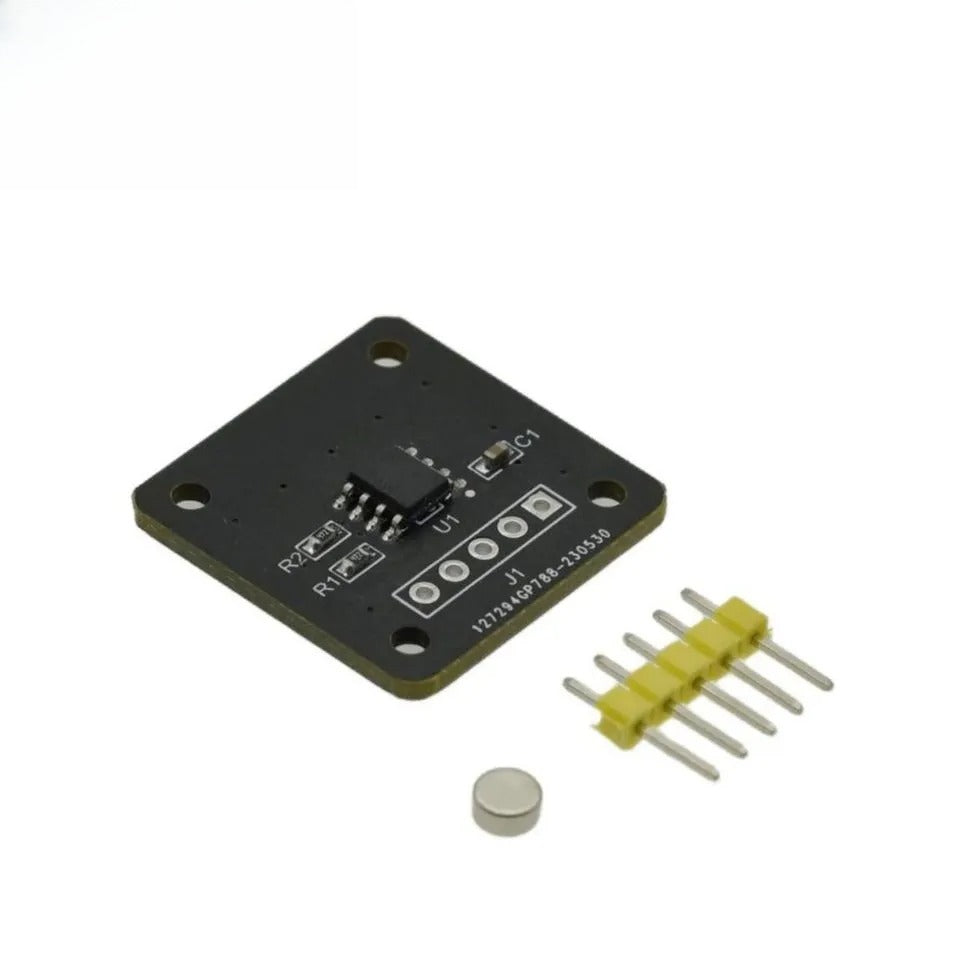

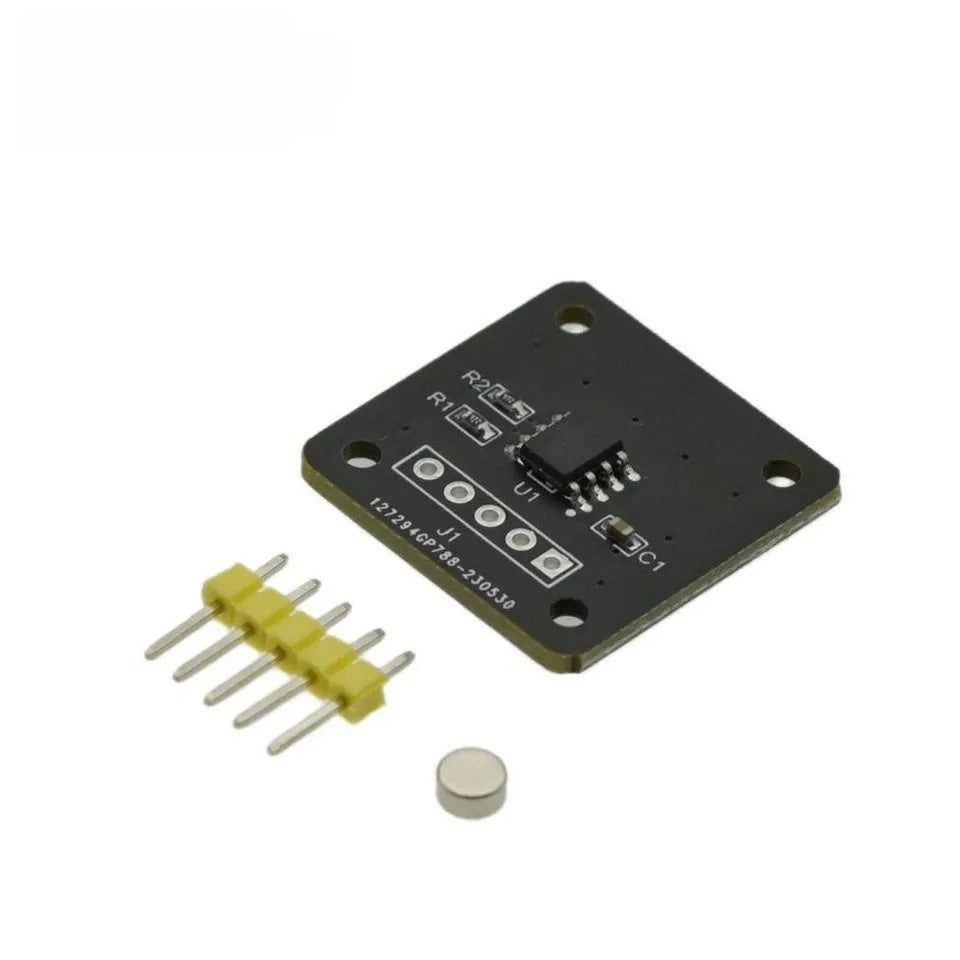

Product Detail Images
