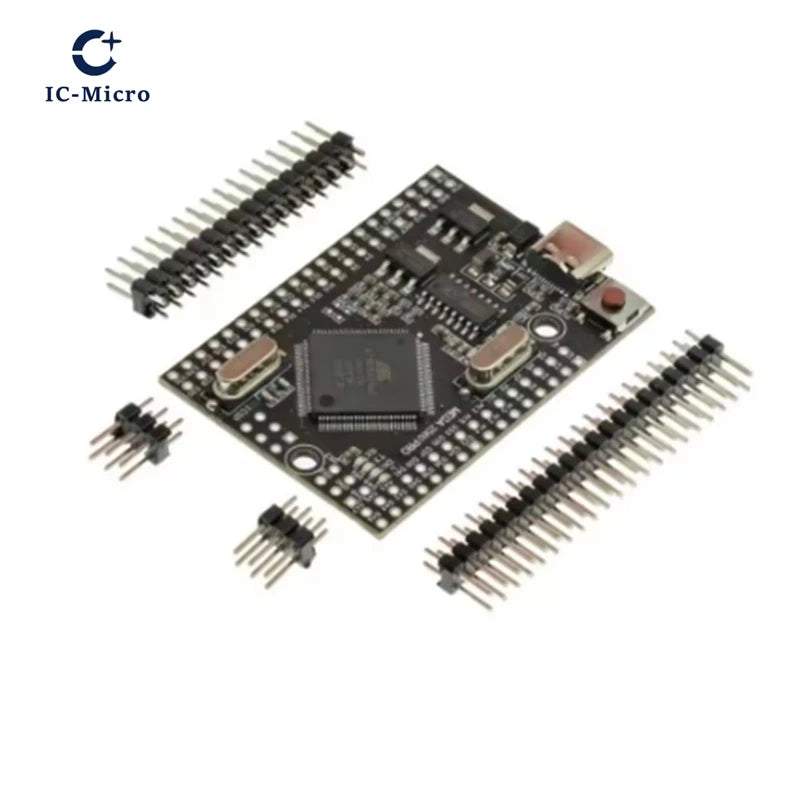

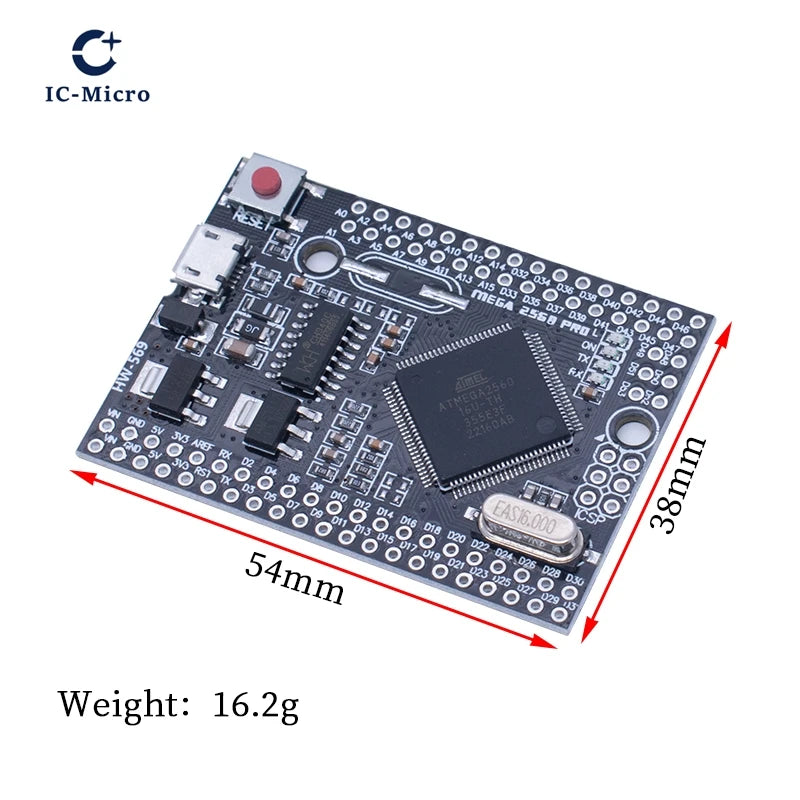

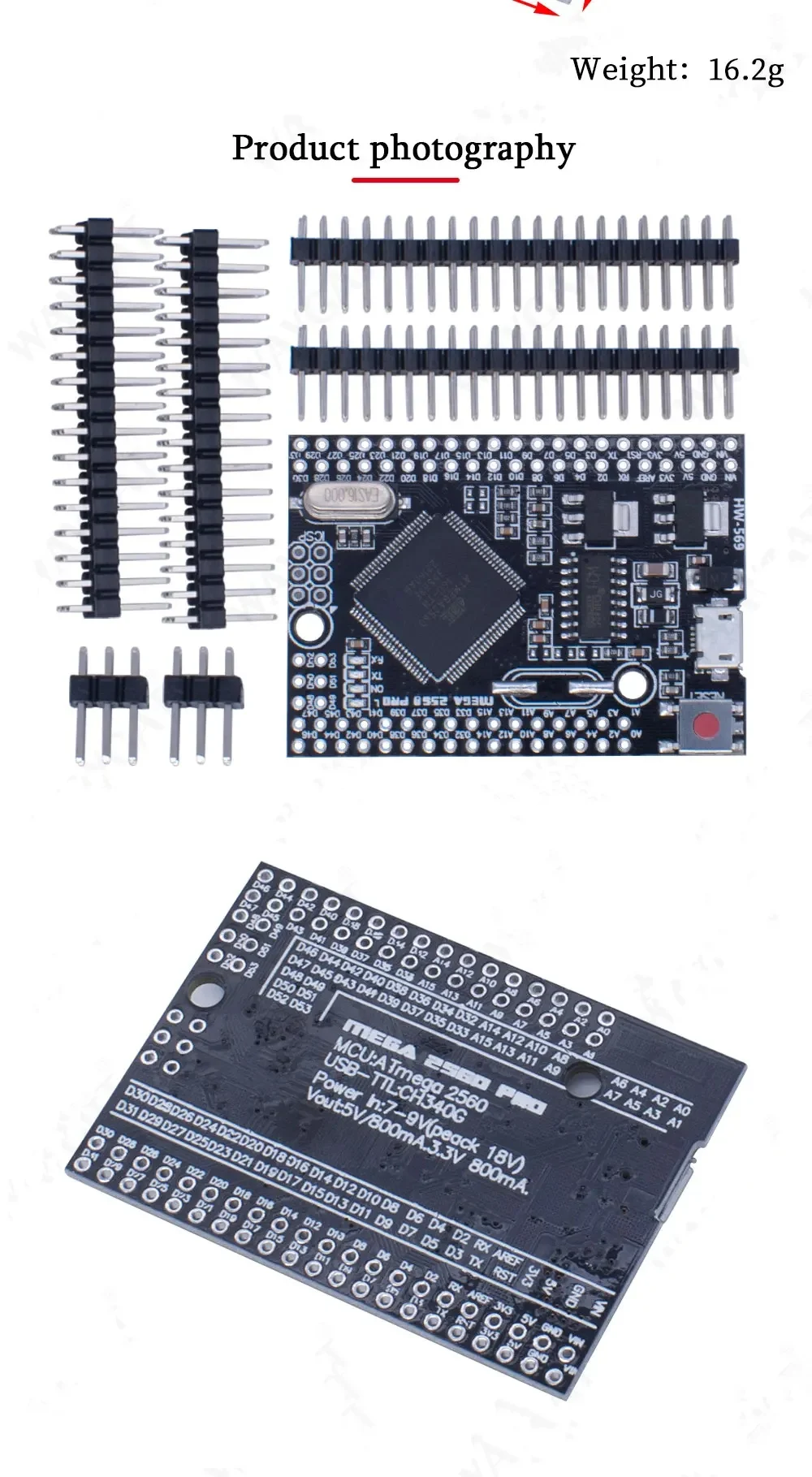

Mega2560 Mega 2560 PRO MINI 5V (Embed) CH340G ATmega2560-16AU MICRO TYPE-C With Male Pinheaders Compatible For Arduino Mega XCW

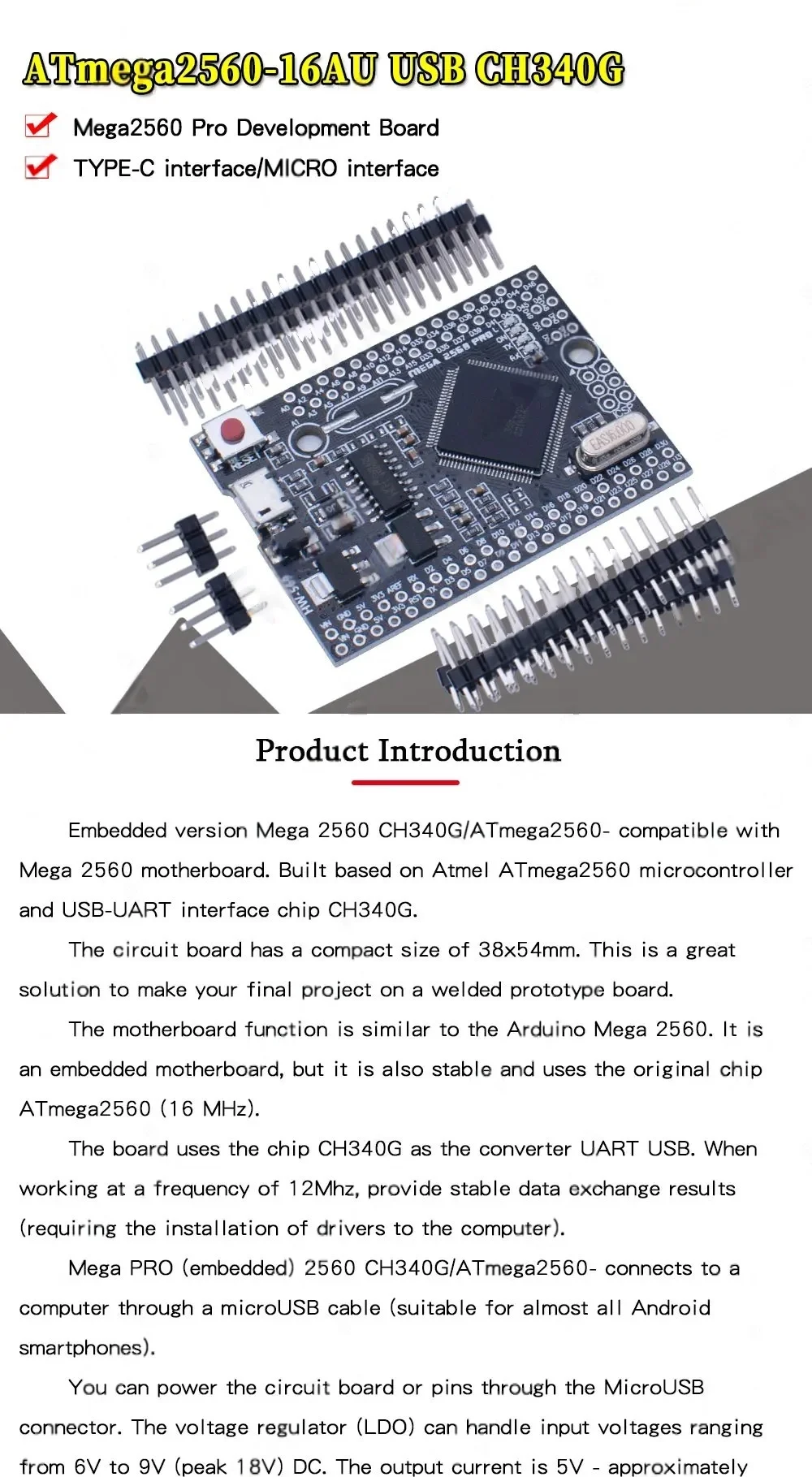

Mega 2560 Pro Mini Compatible Development Board

This compact embedded controller uses the ATmega2560-16AU and CH340G USB interface while providing Mega 2560-compatible I/O in a smaller board format. It is a compatible module rather than an official Arduino Mega 2560 board.

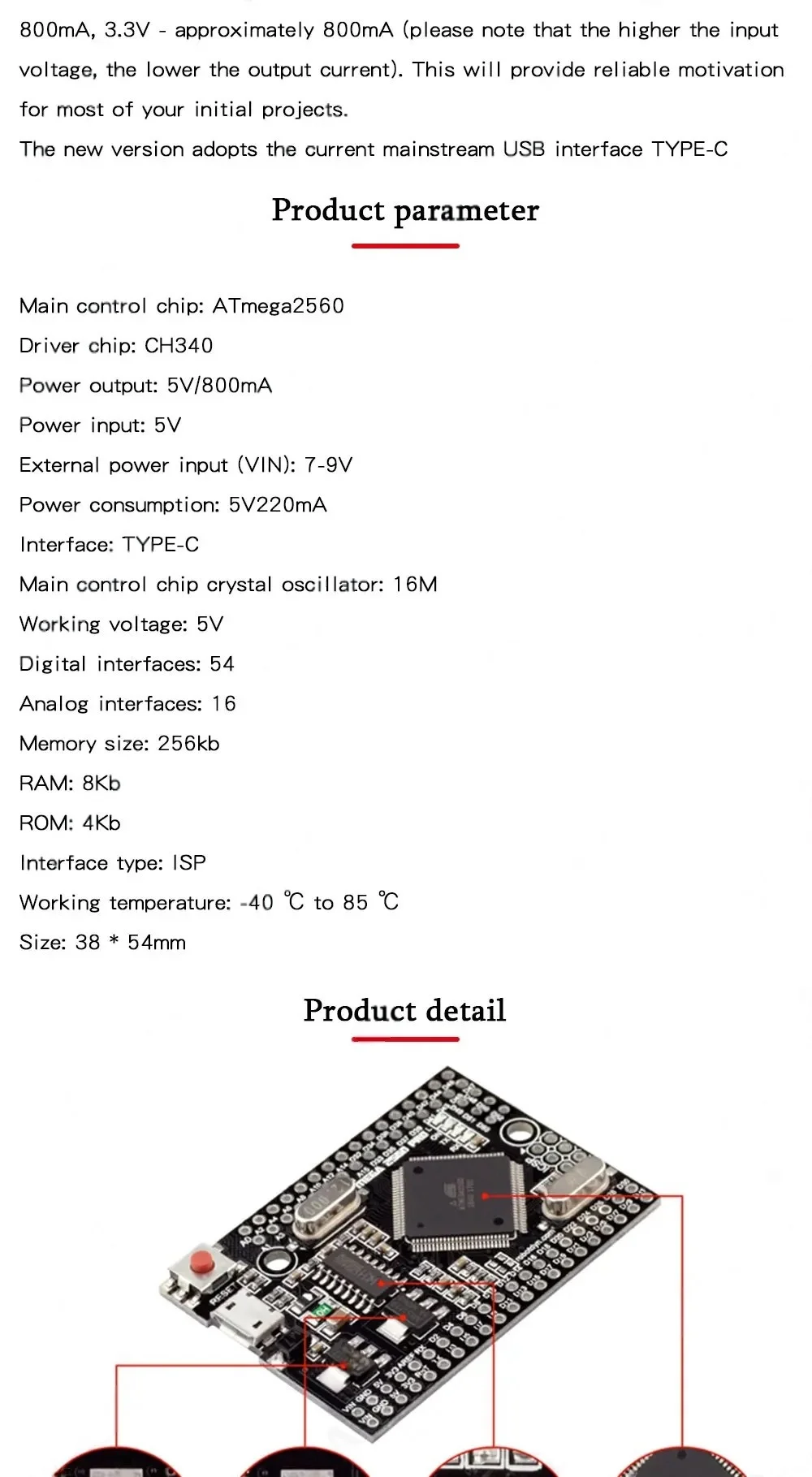

Core Specifications

• ATmega2560-16AU microcontroller, 5 V logic and 16 MHz clock.
• 256 KB flash memory, 8 KB SRAM and 4 KB EEPROM.
• 54 digital I/O pins, including 15 PWM outputs.
• 16 analog inputs and 4 hardware serial interfaces.
• CH340G USB-to-serial interface.

Connector Options

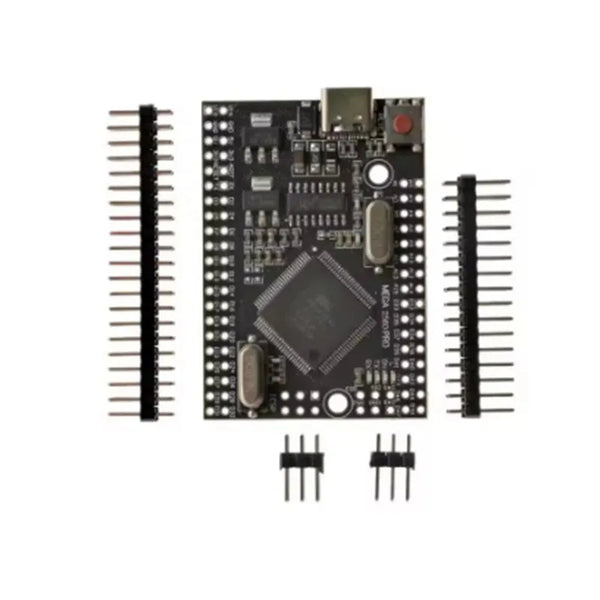

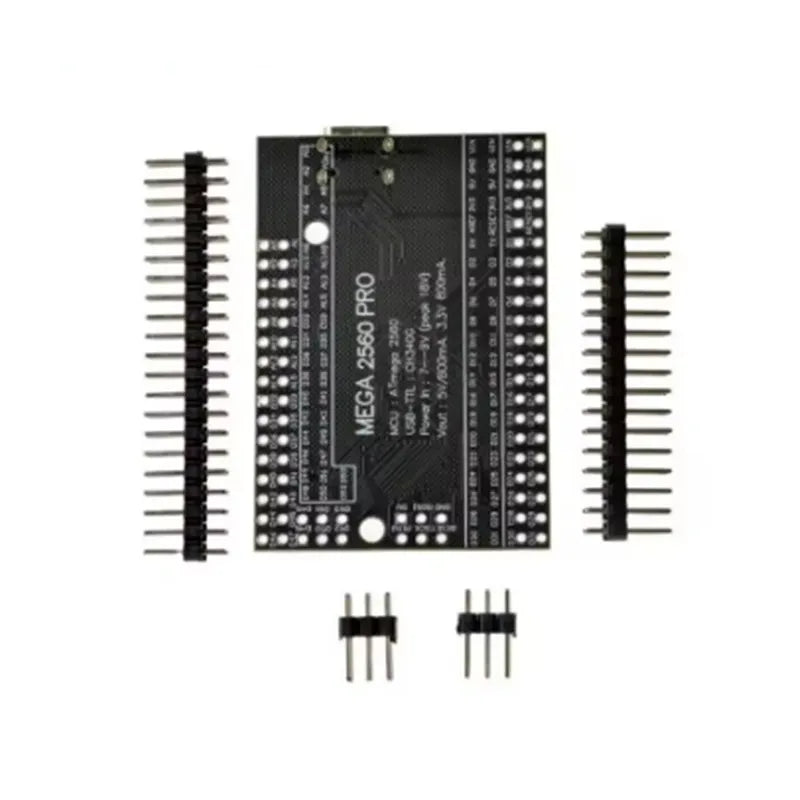

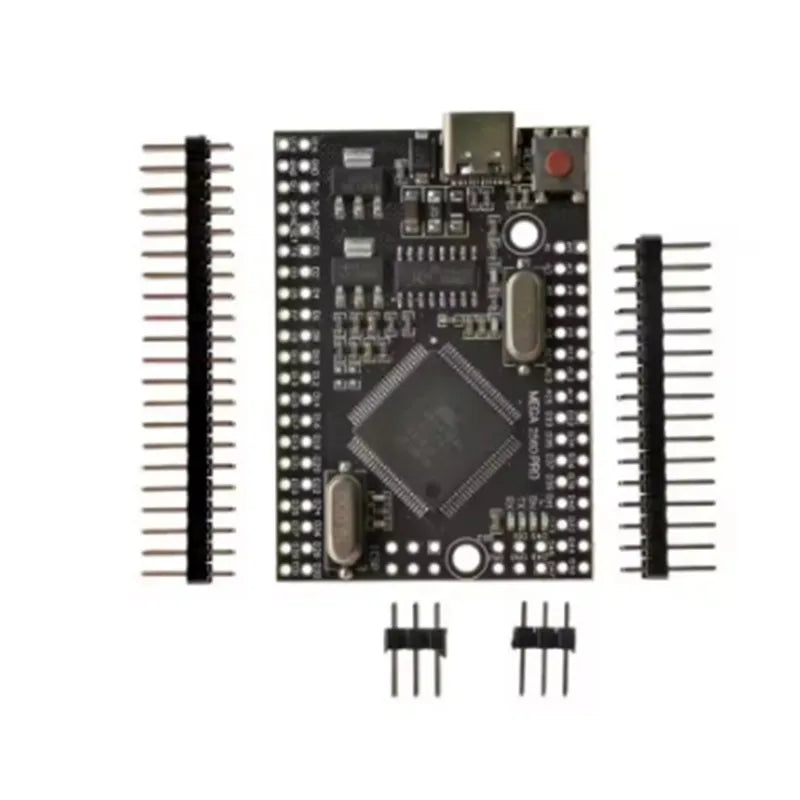

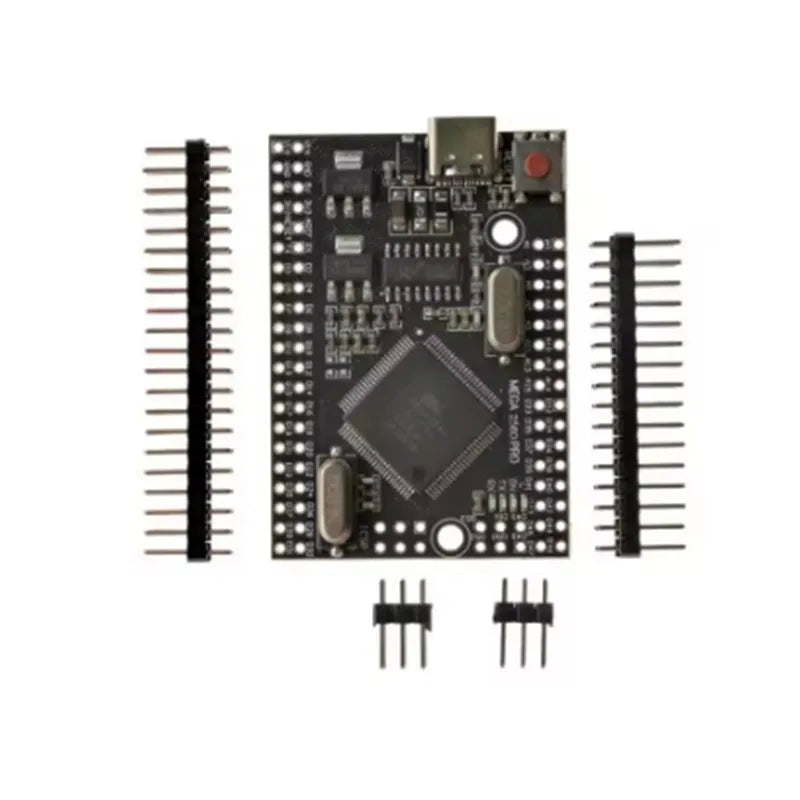

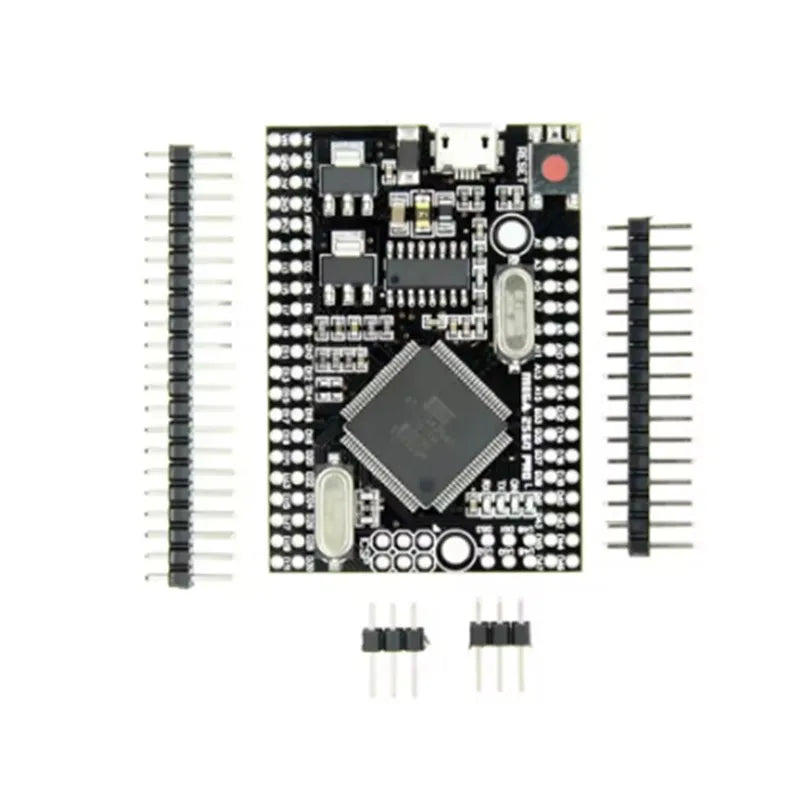

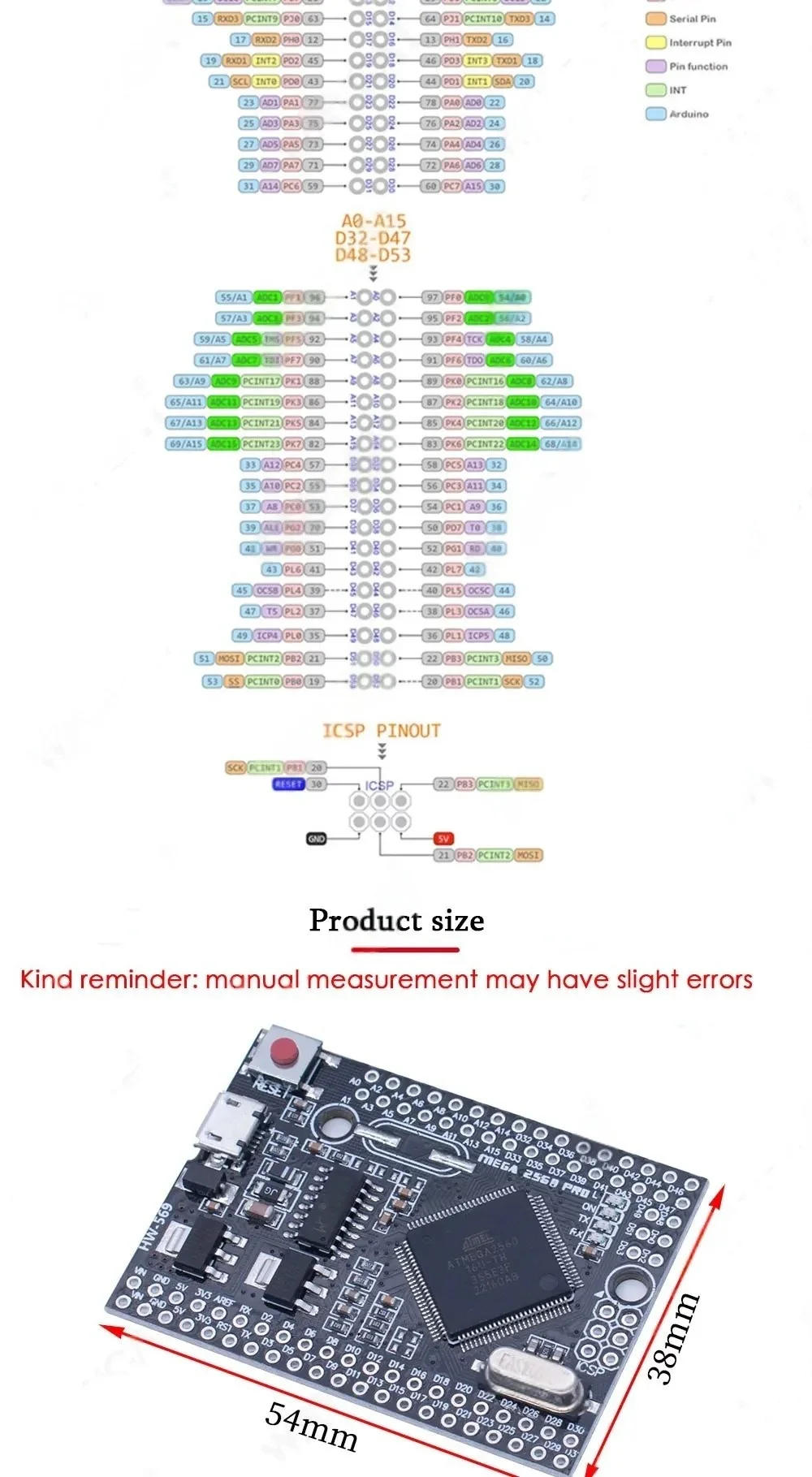

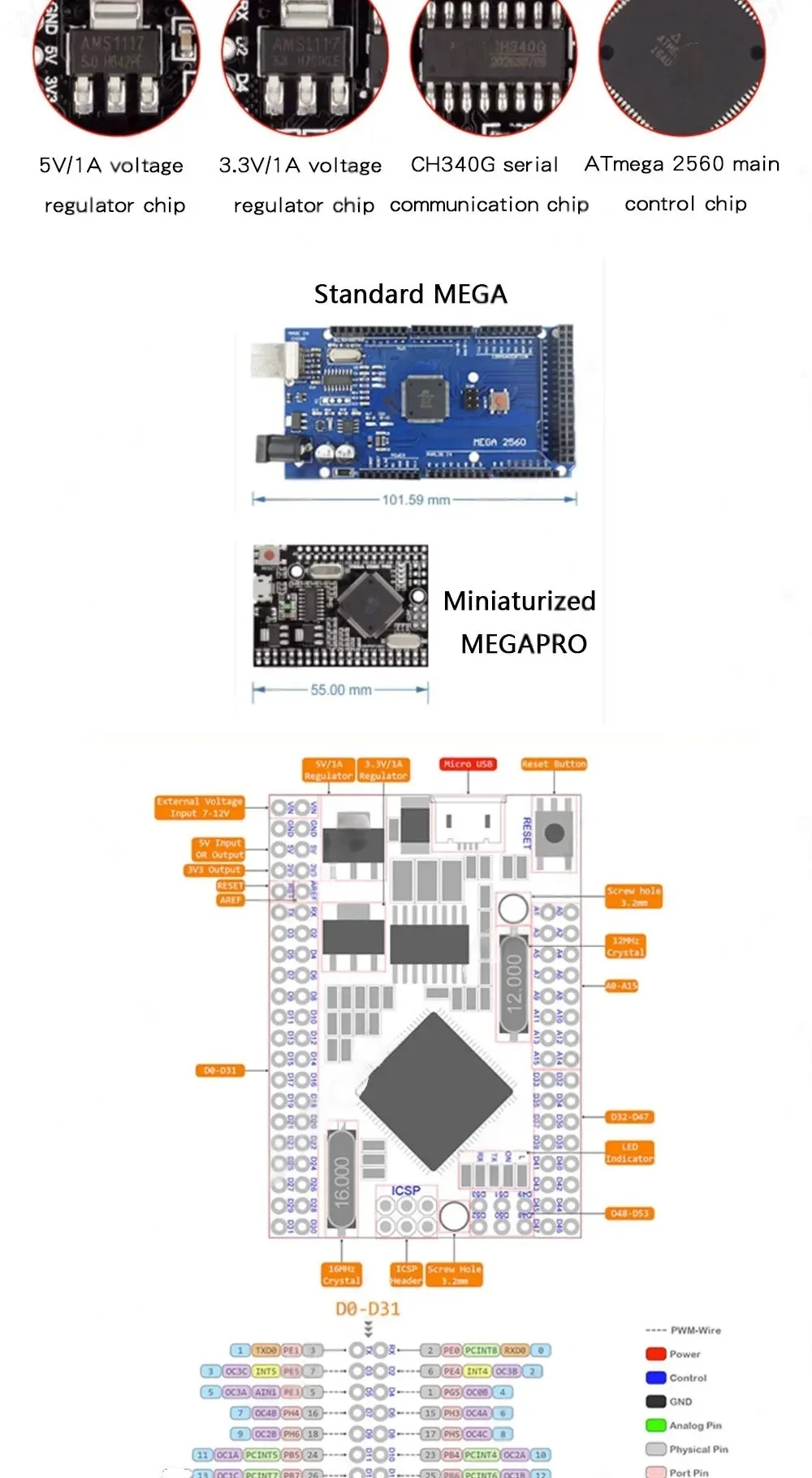

Select MINI TYPE-C or MINI MICRO according to the required USB connector. Male pin headers are included as shown. Confirm the compact-board pin map rather than assuming the physical shield layout of a full-size Mega 2560.
