This enclosed AC-to-DC switching power supply provides an adjustable output for test fixtures, LED systems, industrial control, charging projects, and equipment integration. The selected variant determines the output voltage and current range.
Available Output Configurations
- 0-12V / 40A.
- 0-24V / 20A.
- 0-36V / 15A.
- 0-48V / 10A.
- 0-60V / 8A.
- 0-80V / 6A.
- 0-120V / 4A.
- 0-160V / 3A.
Listed Specifications
- AC input: 110V or 220V, ±15%, 47-63Hz.
- Rated output power: up to 480W, subject to the selected voltage/current configuration.
- Output ripple and noise: approximately 100mV p-p.
- Listed efficiency: approximately 85-90%.
- Operating temperature: -10°C to 60°C.
- Dimensions: approximately 215 x 115 x 50mm.
Adjustment and Protection

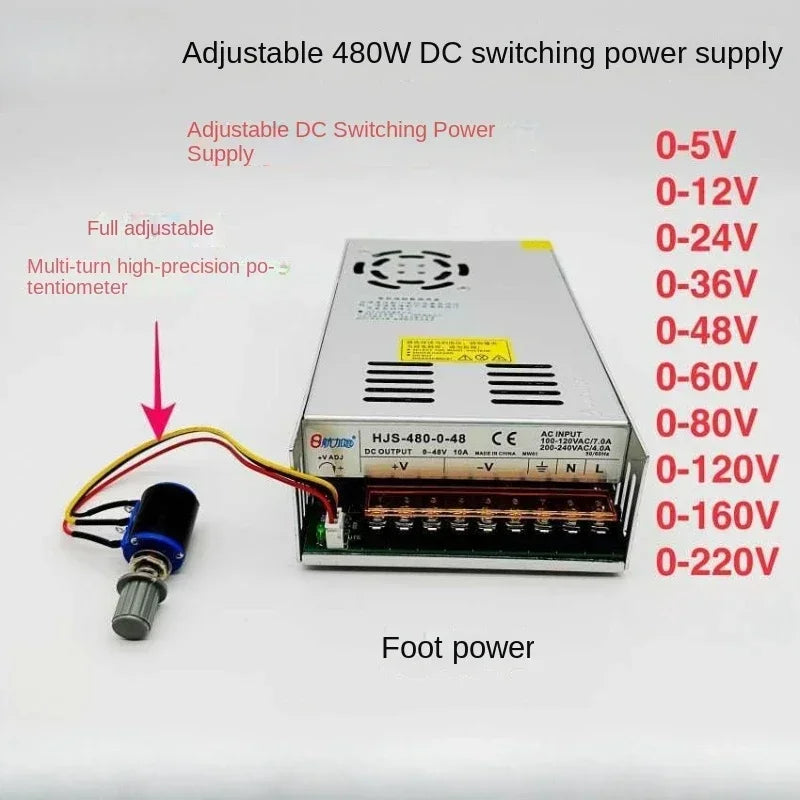

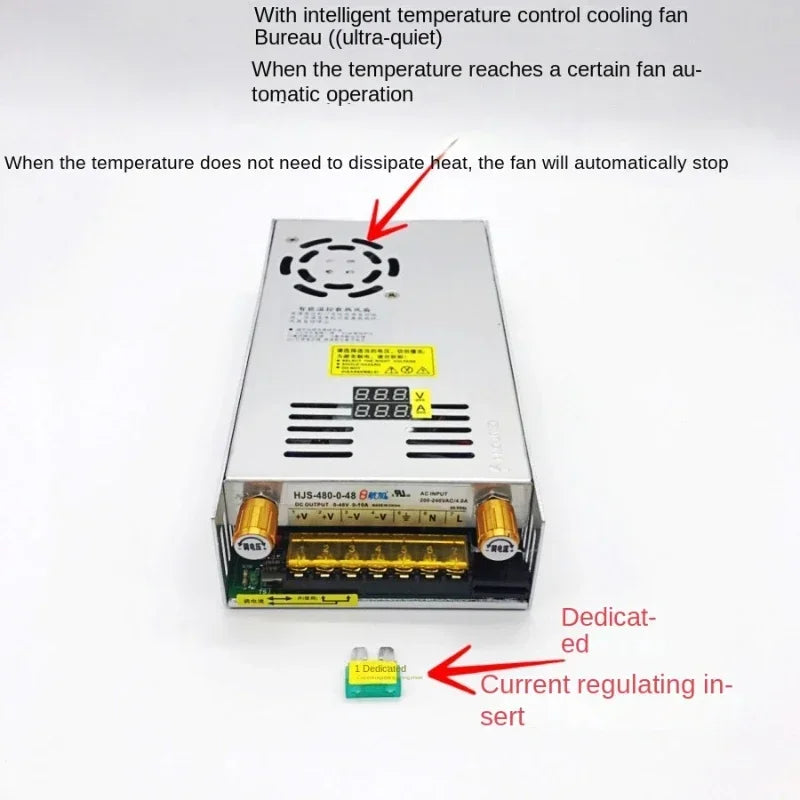

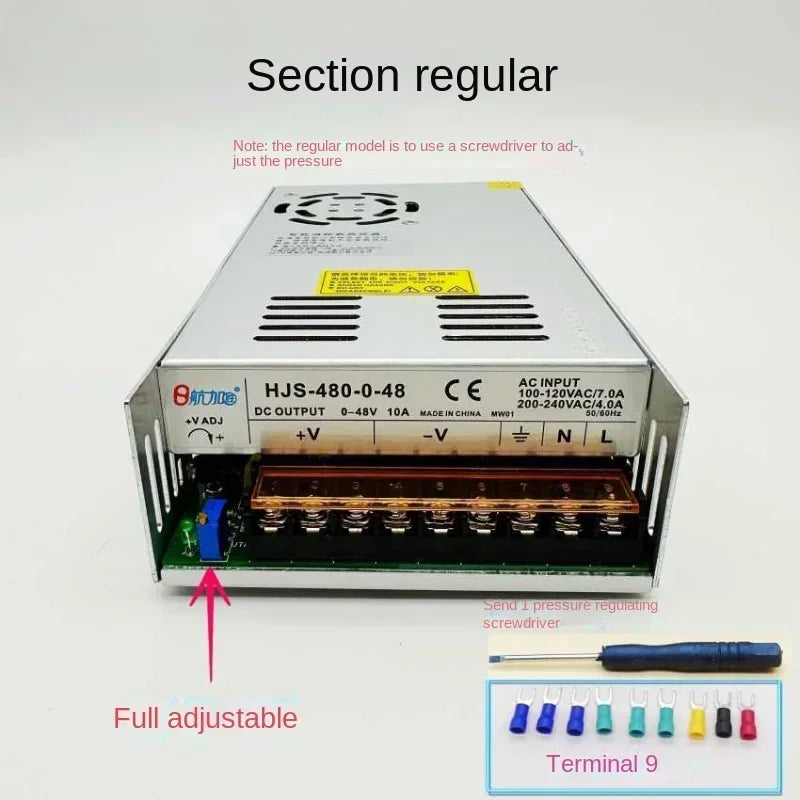

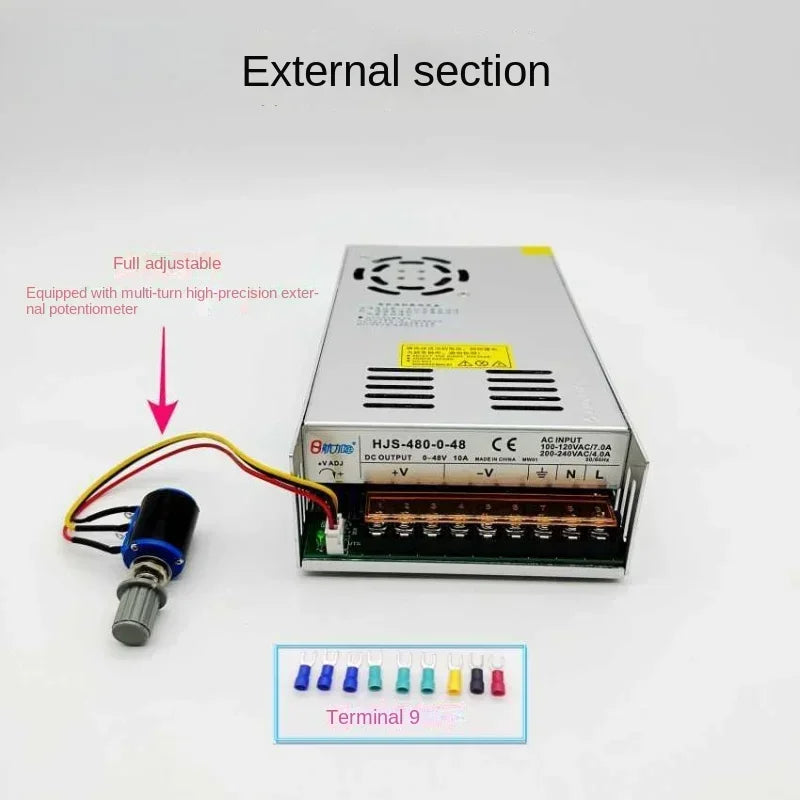

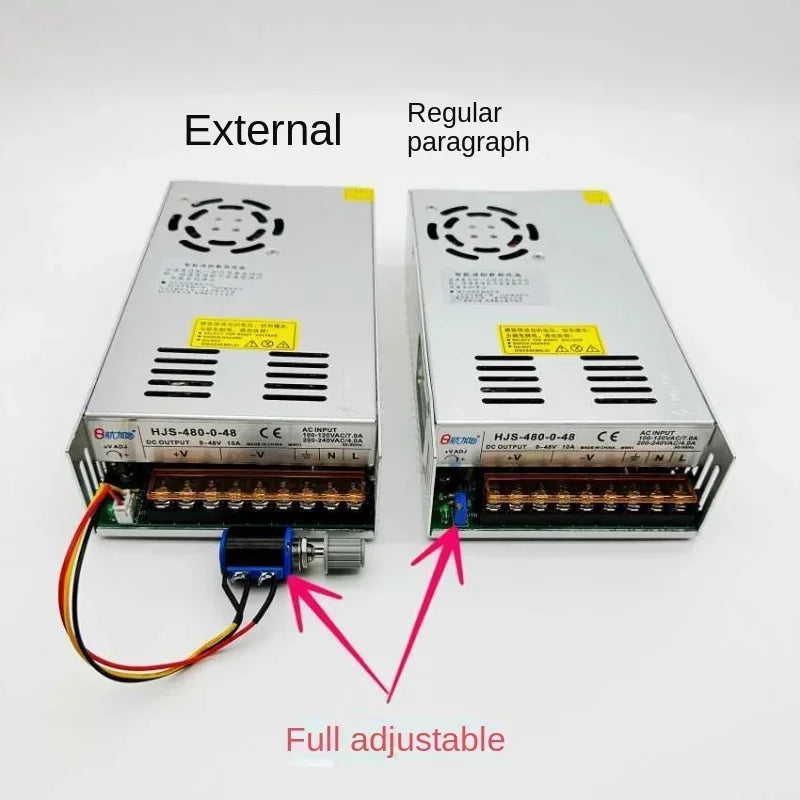

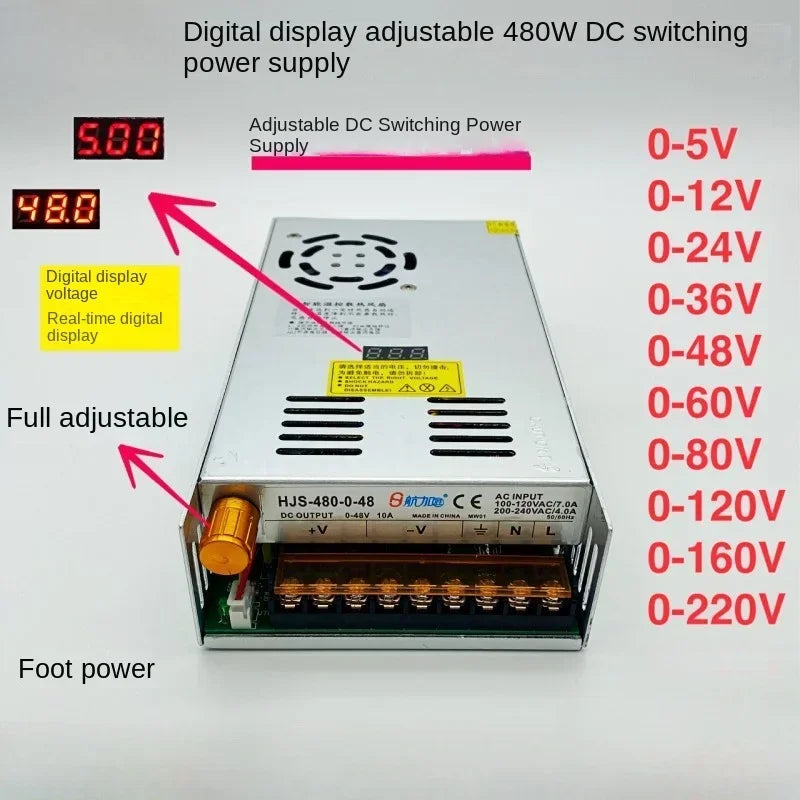

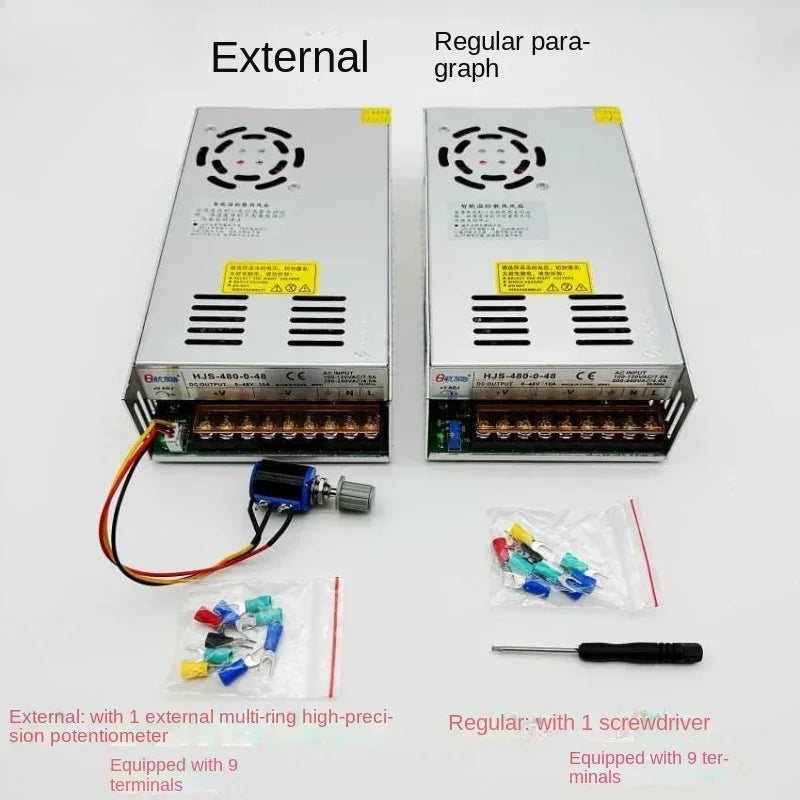

The product images show regular and external-adjustment configurations; some versions use a wired external potentiometer for output adjustment. Protection functions listed by the source include short-circuit, overcurrent, overload, and overvoltage protection. The cooling fan operates according to internal temperature.
Installation Note
This is an open-terminal power supply for integration by qualified users. Verify the selected input setting, output range, grounding, enclosure, wire gauge, ventilation, and load requirements before connection. Disconnect mains power before wiring or adjustment.

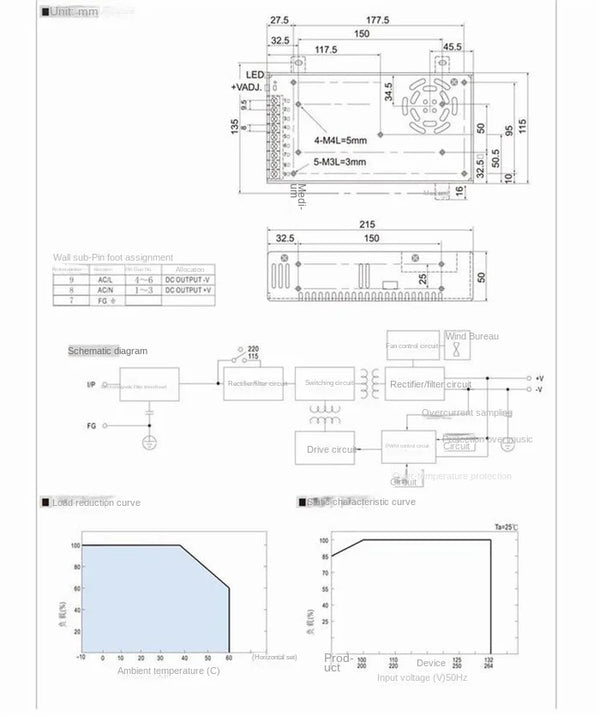

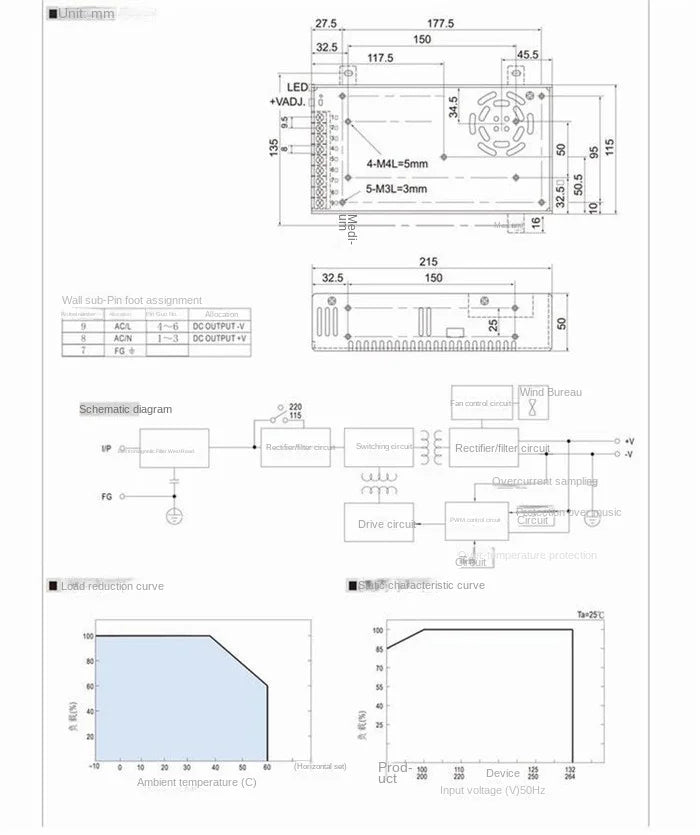

Product Detail Images
