M5Stack Cap LoRa-1262 868MHz-923MHz LoRa Wireless Development Board

M5Stack Cap LoRa-1262 868MHz-923MHz LoRa Wireless Development Board

M5Stack Cap LoRa1262 LoRa

Integrates LoRa modulation technology and GNSS global positioning system

Operating frequency: 868 - 923 MHz

Supports FSK, GFSK, MSK, GMSK, LoRa, and OOK modulation modes

Features and Specifications

• LoRa receiving sensitivity: down to -147 dBm (LoRa low data rate mode)
• LoRa maximum transmission power: +20 dBm
• External SMA antenna interface for LoRa, built-in ceramic antenna for GPS
• Positioning supports multiple satellite navigation systems (GPS / QZSS / BD2 / BD3 / GAL / GLO)
• Multi-frequency and multi-system reception
• HY2.0-4P expansion interface
• Development Platform:
• UiFlow2
• Remote data acquisition
• Vehicle positioning and navigation
• IoT device positioning

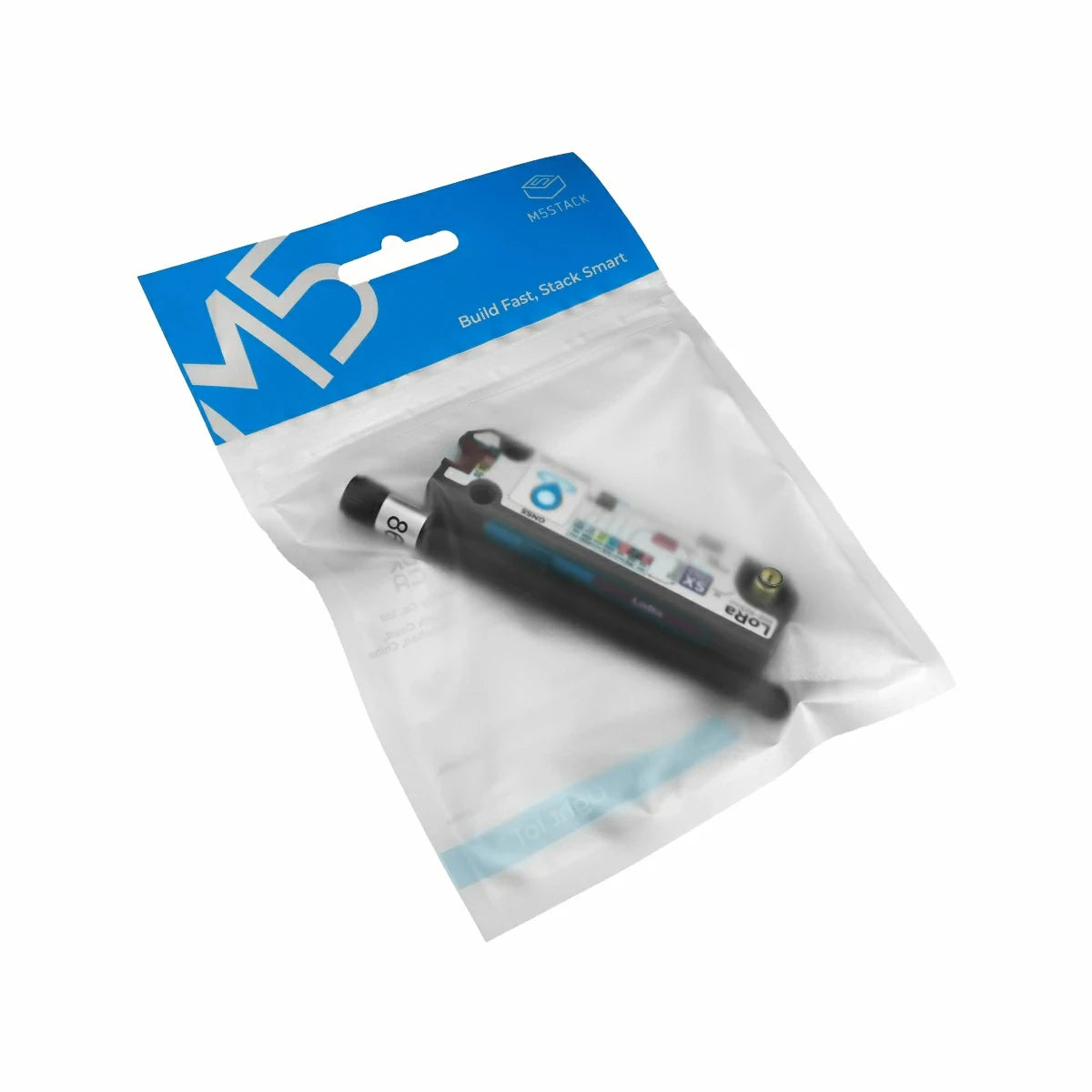

• Package Includes
• Cardputer Adv not included
• 1 x Cap LoRa-1262
• 1 x LoRa Rubber Antenna
• Specification
• Product Comparison
• Product Description

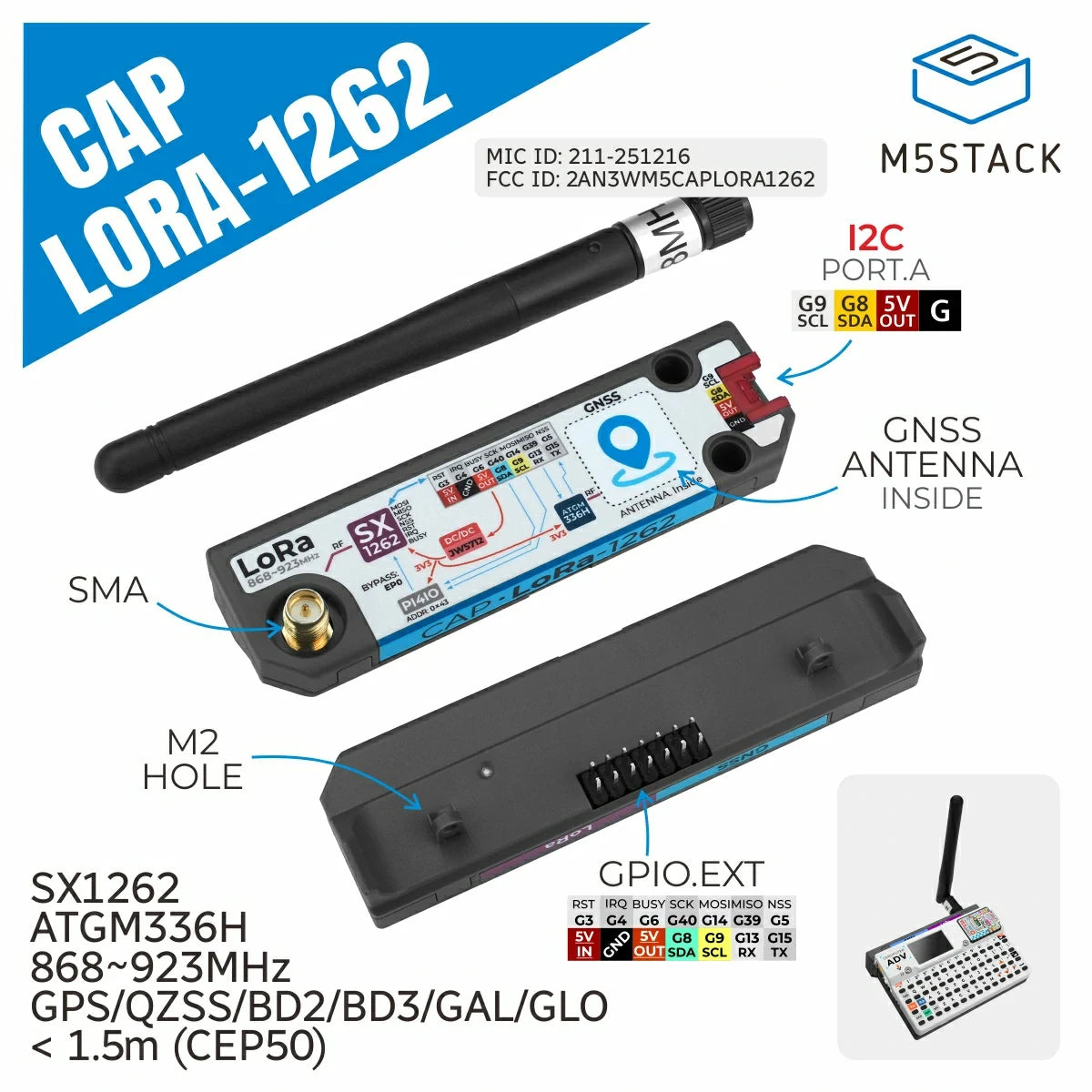

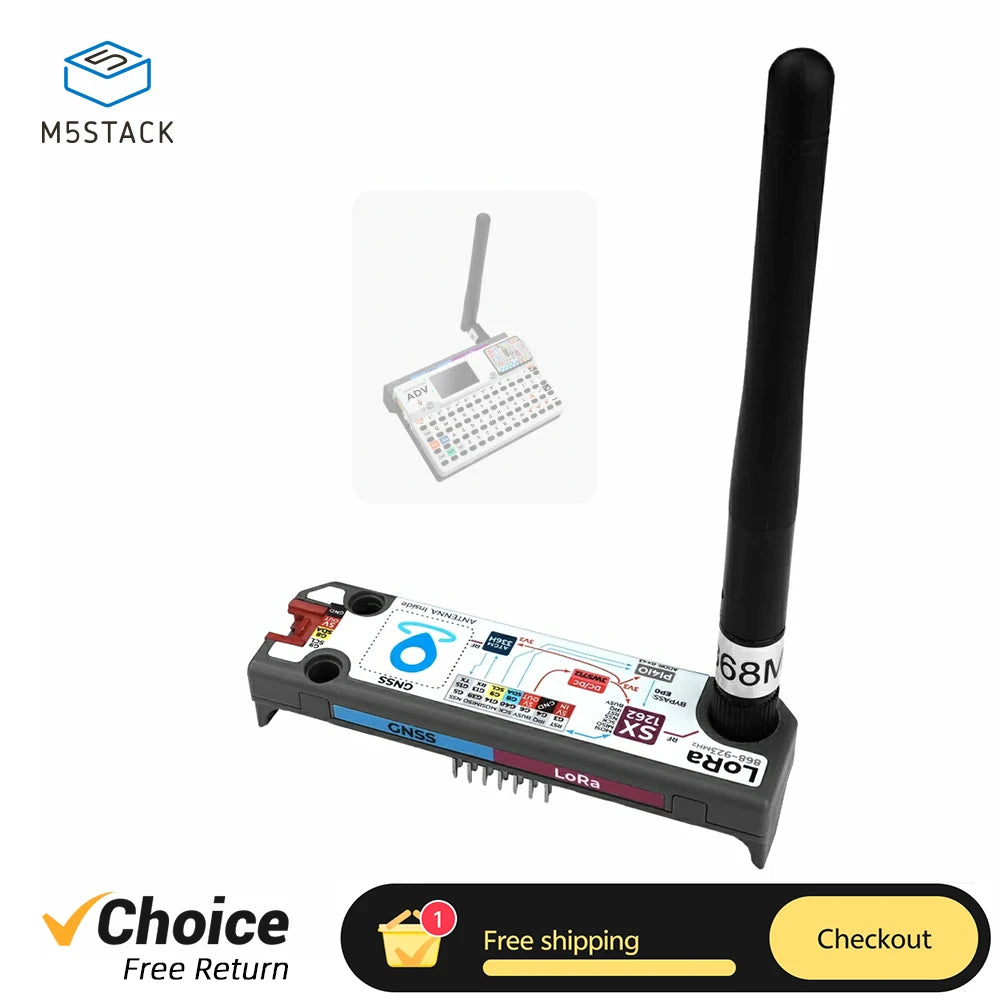

• Cap LoRa-1262 is a high-performance communication expansion module featuring LoRa wireless communication and GNSS global positioning, designed to work with Cardputer-Adv.

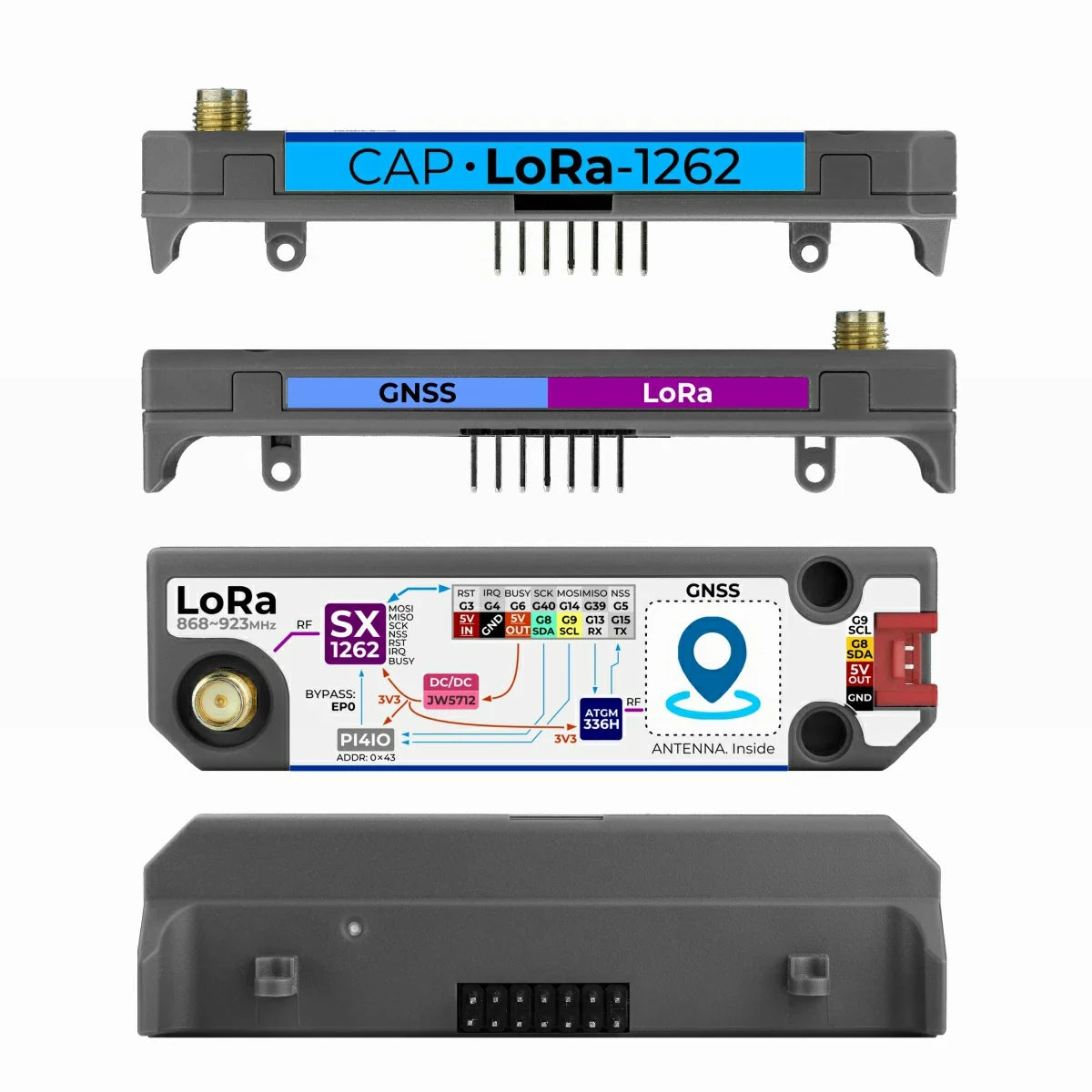

• The module is equipped with an HY2.0-4P expansion interface, enabling stable connection and functional expansion with the host controller.

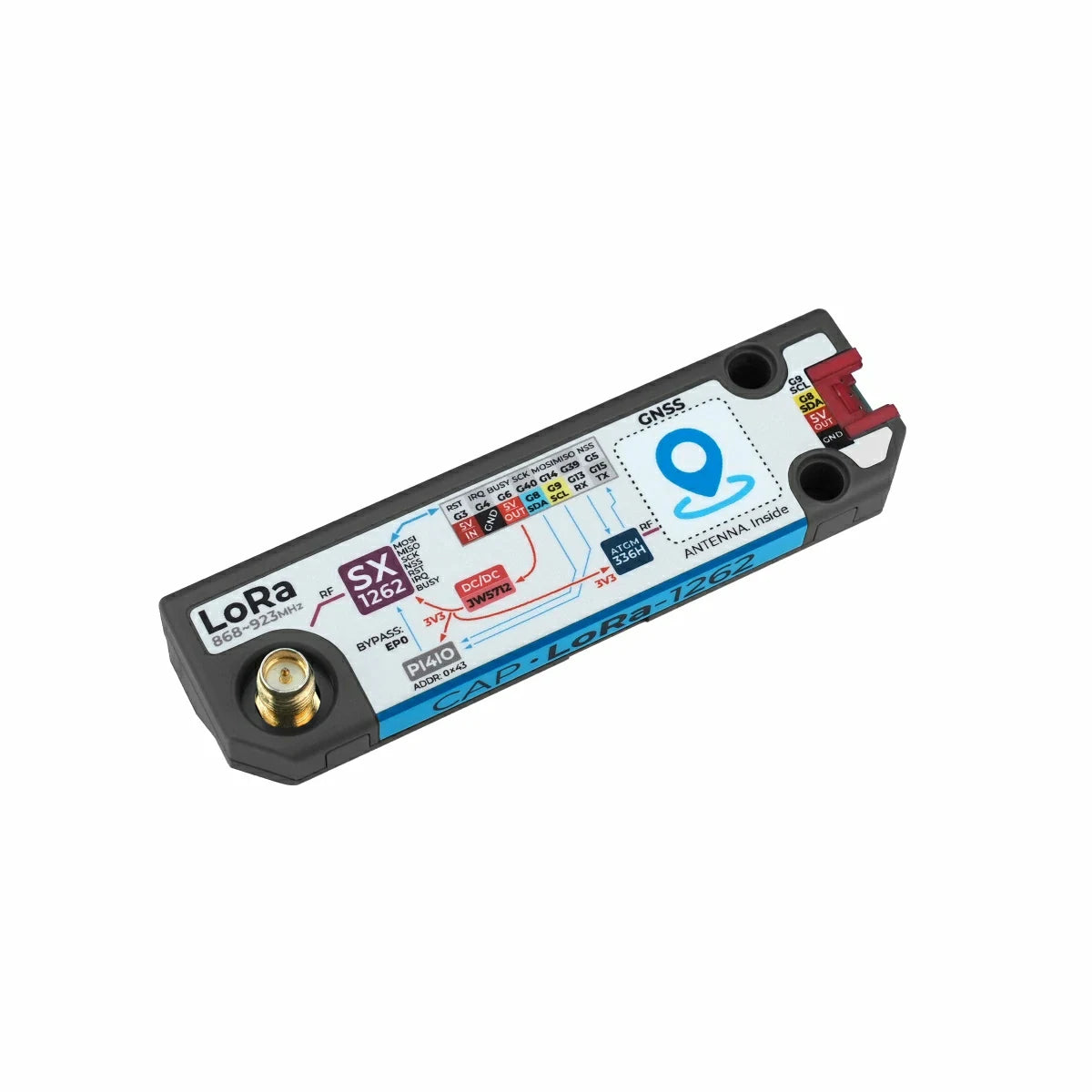

• The LoRa module is based on the SX1262 chip solution and is equipped by default with an external SMA antenna, offering stronger anti-interference performance and long-range communication capability.
• It supports the 868MHz - 923MHz frequency band, providing long-distance, low-power wireless links for Internet of Things (IoT) scenarios.
• The GPS module adopts a solution based on the AT6668 chip and integrates a built-in ceramic antenna to deliver accurate and reliable satellite positioning services.
• It supports multi-band, multi-mode GNSS signal reception, enabling reception of signals from multiple global navigation satellite systems, including GPS, BD2, BD3, GLONASS, GALILEO, and QZSS.
• It supports both multi-system combined positioning and single-system independent positioning, featuring strong anti-interference capability and high positioning accuracy.
• Even in weak signal environments, it can quickly obtain more precise location information.
• It is suitable for applications such as remote data acquisition, smart cities, smart homes, vehicle positioning and navigation, and IoT device localization.
• Do NOT connect or power on the device without installing the antenna, as this may cause permanent hardware damage!
• M5Stack Cap LoRa-1262 868MHz-923MHz LoRa Wireless Development Board is listed as a Wireless Development Board for customers who need clear model, compatibility, and specification information before ordering.
• Key Specifications
• Brand / series: M5Stack
• Listed model terms: SX1262
• Visible listed specs: 868MHz, 923MHz, 923 mhz
• Interfaces / functions: SMA, LoRa, GNSS
• Selectable options: Cap LoRa-1262
• Embedded development and prototyping
• IoT, telemetry, and firmware testing
• Module evaluation before integration
• Check the selected variant, plug, frequency, voltage, connector, or package option before checkout.
• Match the listed measurement range, interface, and accessory requirements to your bench or field setup.
• Use the product within its rated limits and follow normal electrical, RF, laser, battery, or workshop safety practices where applicable.
