Product Summary
Luckfox PicoKVM Lightweight IP KVM Remote Management 1920 x 1080@60fps HDMI Video Input HID is a single-board computer accessory selected for expanding SBC projects, remote management and embedded computing setups. It is suitable for Linux makers, automation users and edge computing builders who need practical electronics hardware for reliable project work.
Best For
- expanding SBC projects, remote management and embedded computing setups
- Raspberry Pi, Linux boards and maker project hardware
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for Linux makers, automation users and edge computing builders.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

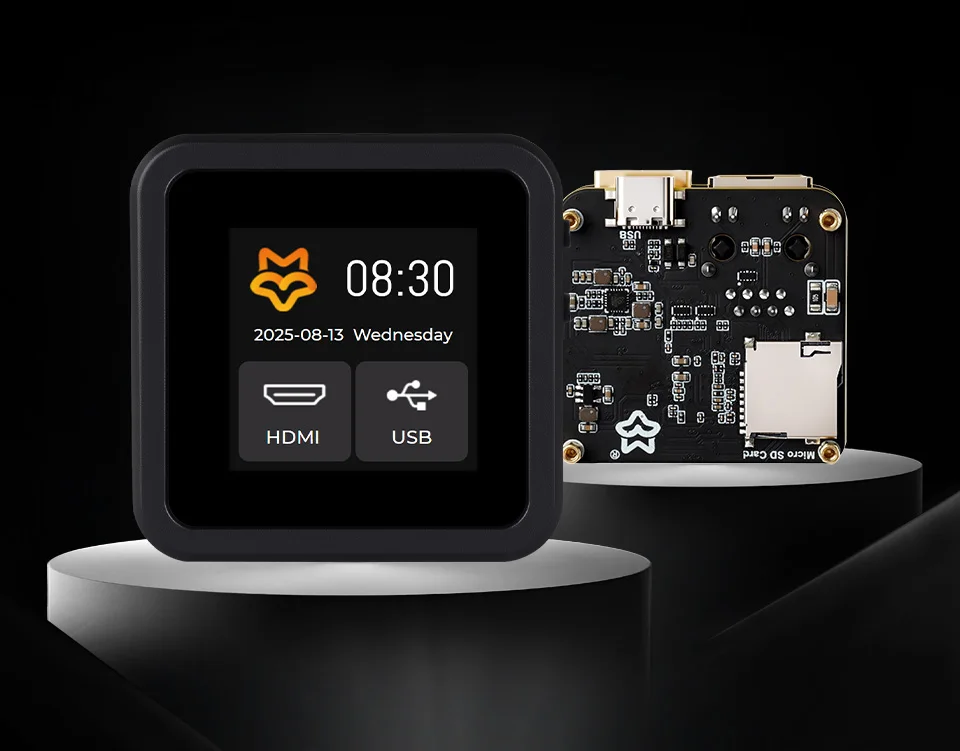

Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 x 1080@60fps HDMI Video Input and HID Signal Output for Device Control
Features

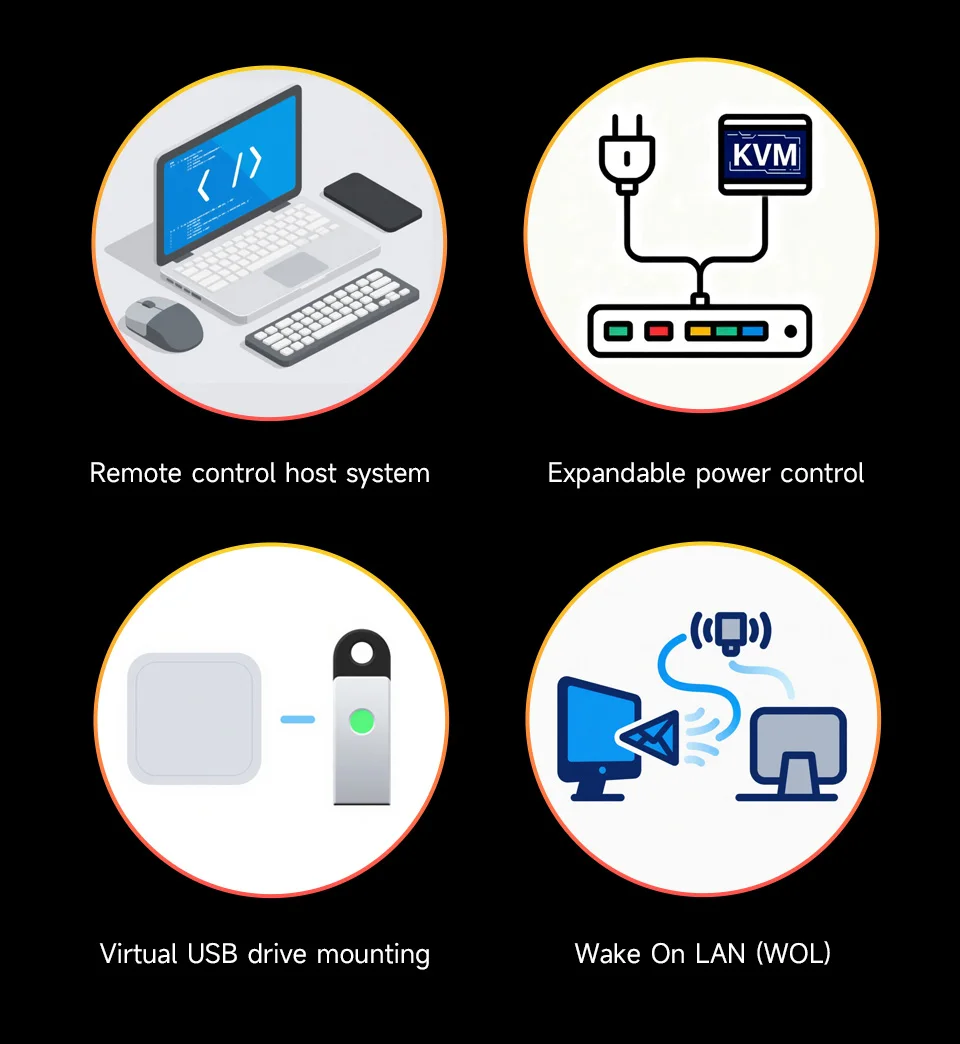

TheLuckfox PicoKVMis a lightweight IP KVM management tool, supports real-time video capture and HID input simulation over the network, enabling touch-free operation of development boards, PCs, and servers. This product offers stable, low-latency video capture and remote control capabilities, widely suitable for scenarios such as remote PC control and server maintenance.

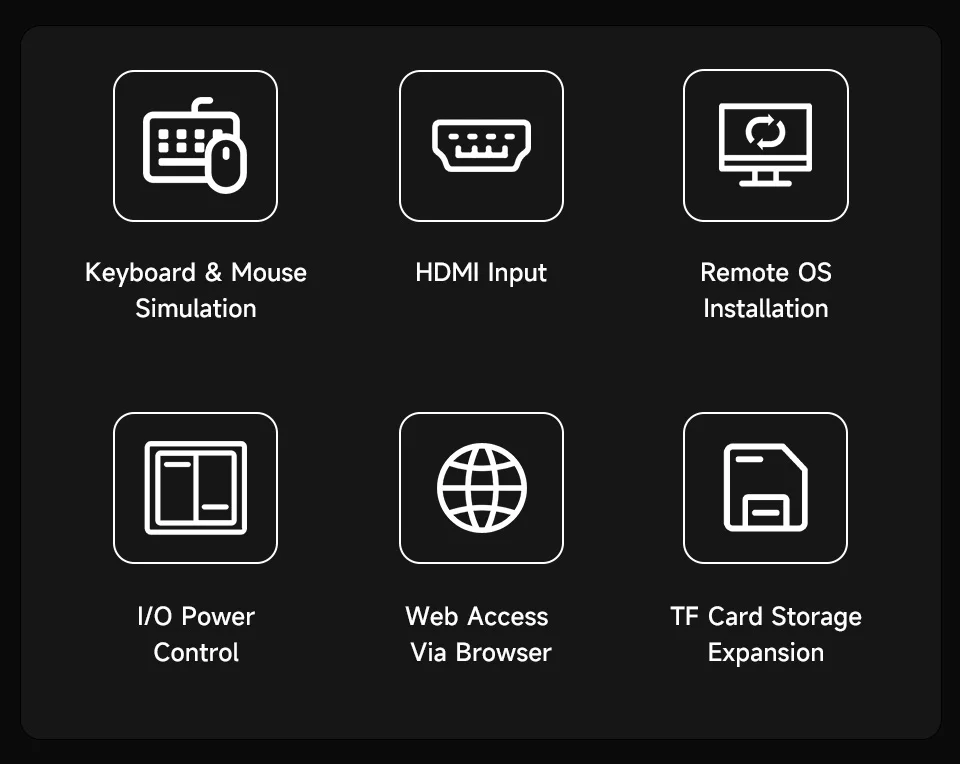

Key Features:
OnboardHDMI input interface: recognized by PC as a display for video capture
OnboardUSB port: Supports simulation of mouse, keyboard, and USB storage devices
Onboard100Mbps Ethernet port: for video and control signal transmission
1.54inch touch display: for displaying IP address, connection status, and system operating status
TF card slot: supports storage expansion
I/O expansion interface: for host power ON/OFF control
Specifications
Product |
Luckfox PicoKVM |
Processor |
RV1106G3 |
Core |
1 xA7@1.2G |
Memory |
256M DDR3 |
Storage |
8G eMMC |
System |
PicoKVM |
Resolution |
1080P@60fps |
Video Encoding |
H264 |
Video Latency |
80ms - 200ms |
Audio Transmission |
√ |
UEFI / BIOS Support |
√ |
USB Keyboard & Mouse Emulation |
√ |
USB Storage Emulation |
√ |
UEFI / BIOS Scope |
√ |
Wake-on-LAN (WOL) |
√ |
Web Terminal |
√ |
Custom Script |
√ |
Serial Terminal |
1-Ch |
Storage Expansion |
TF card |
Power Control |
GPIO control |
Ethernet |
100Mbps |
LCD Display |
1.54inch 240 x 240 touch display (Only included in the Luckfox PicoKVM full version) |
Power Input |
Type-C |
Outline Dimension |
Luckfox PicoKVM: 48.50 x 48.50 x 29.00 (mm) |
Luckfox PicoKVM Base: 44.00 x 42.00 x 23.60 (mm) |

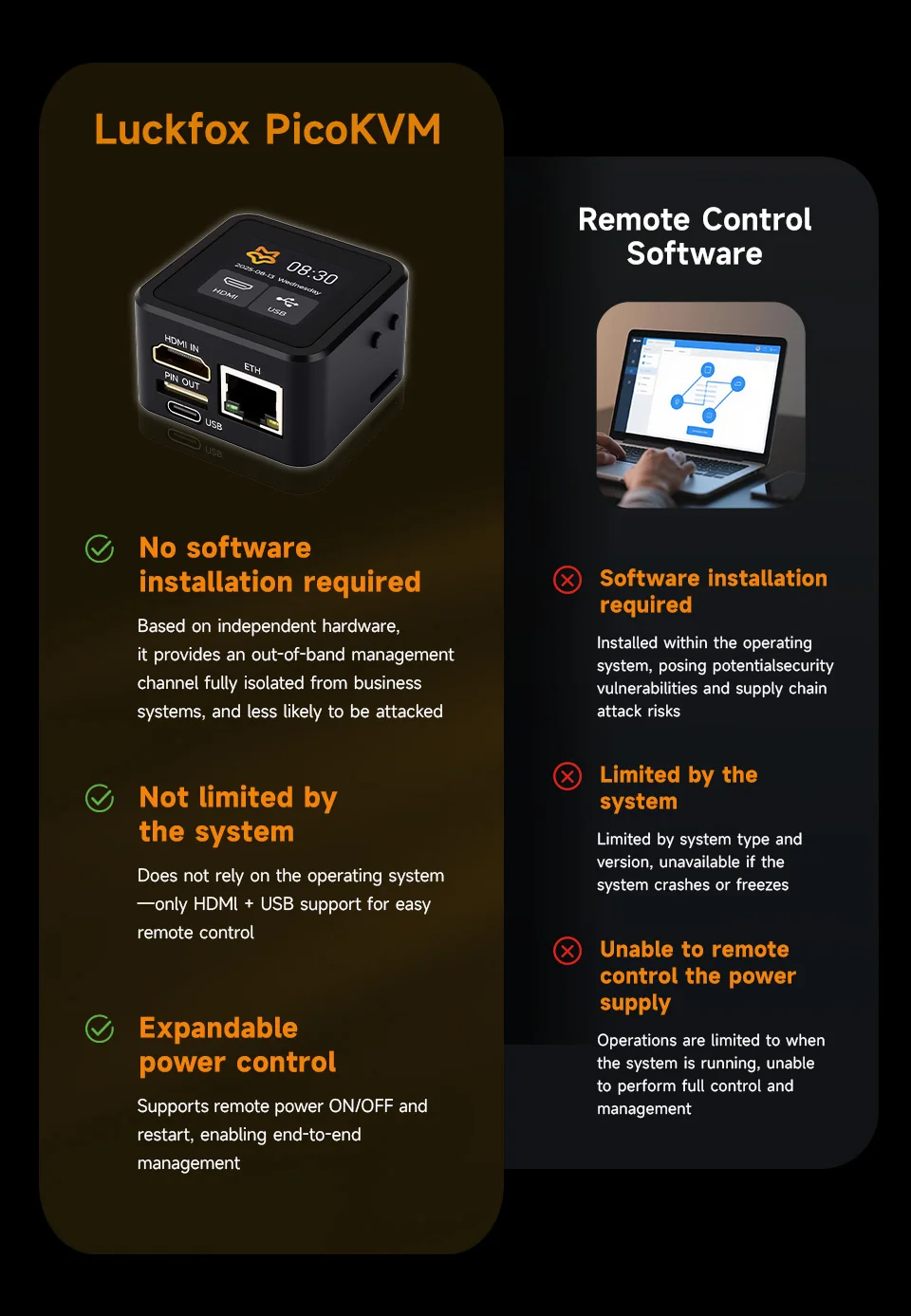

Comparison with Commercial Remote Control Software
* for reference only, the above host boards are NOT included.

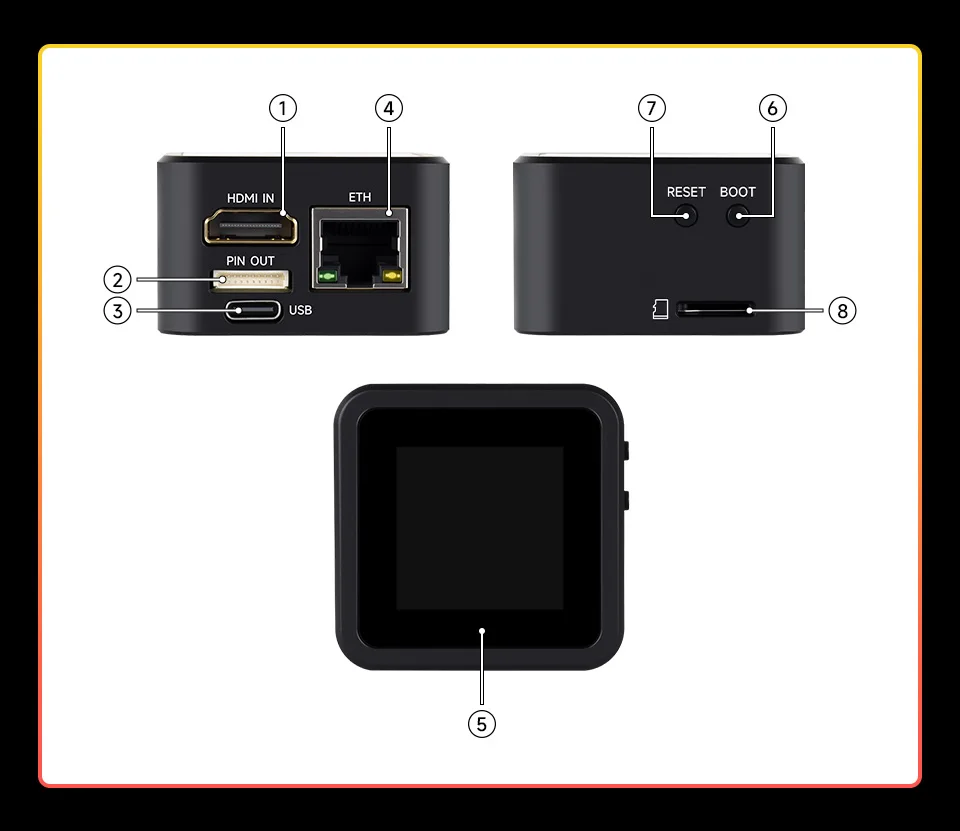

What's On Board
HDMI IN interface
for connecting to the HDMI output interface of the controlled host

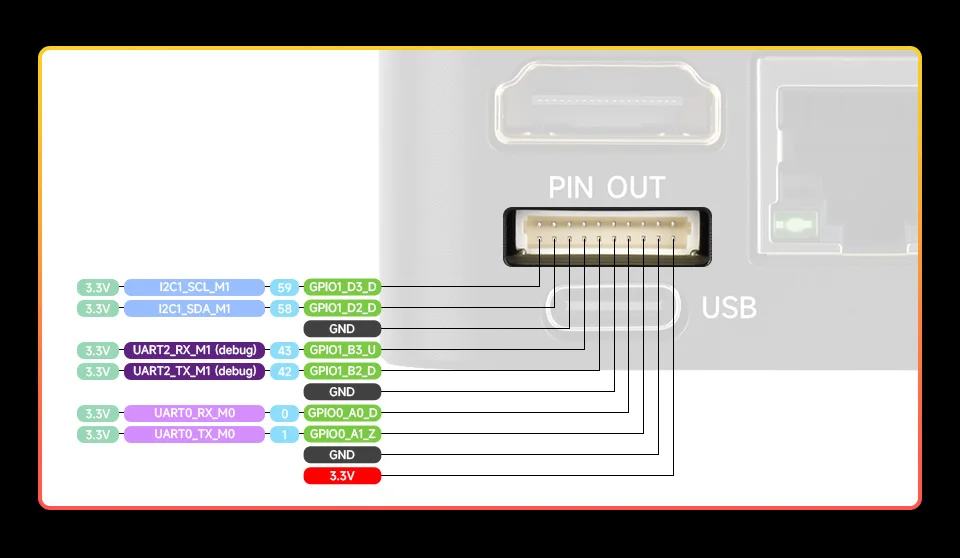

I/O expansion interface
USB Type-C port
for power supply, simulating HID/UMS devices, and programming
10/100Mbps RJ45 Ethernet port with indicator
1.54inch touch LCD
BOOT button
press it when powering on or resetting to enter download mode
RESET button
TF card slot

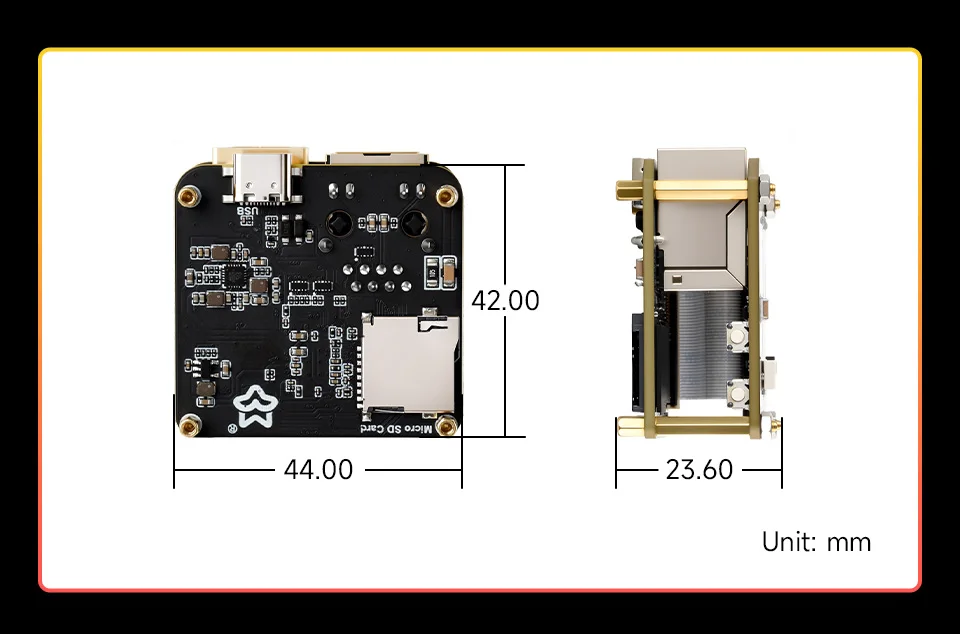

Outline Dimensions
Luckfox PicoKVM
Luckfox PicoKVM Base
Resources & Services
Wiki:https://wiki.luckfox.com/Luckfox-PicoKVM
Package Content
Weight:0.117 kg
Luckfox PicoKVM
Luckfox PicoKVM x1
Luckfox PicoKVM Base
Luckfox PicoKVM Base x1
