LILYGO T-2CAN ESP32-S3 Dual CAN Development Board with 16MB Flash

Sale price
$34.18
List price
$48.82
You save
$14.64 (30%)

Prices include VAT and any applicable duties.

Model:T-2CAN
Version:2 x CAN
Delivery estimate Estimated arrival is calculated for your delivery market.
Ships in 1-3 business days. Remote areas or special items may take longer.

LILYGO T-2CAN Dual CAN Development Board

This is the standard LILYGO T-2CAN version with two classical CAN channels. It combines an ESP32-S3 wireless controller with two MCP2515 CAN controllers for development, logging, gateway and vehicle-network prototyping.

LILYGO T-2CAN dual CAN development board 1

LILYGO T-2CAN dual CAN development board 2

LILYGO T-2CAN dual CAN development board 3

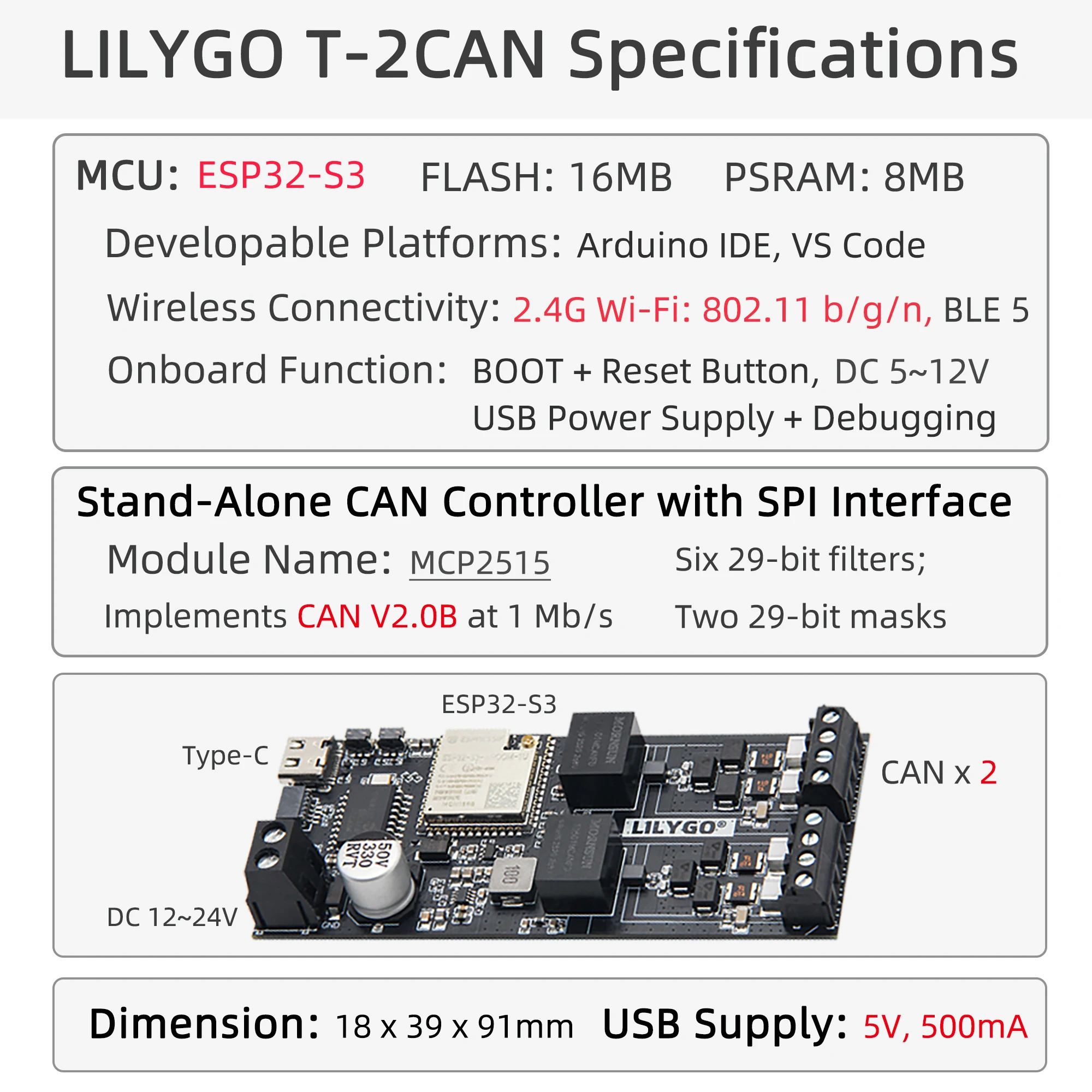

Core Hardware

  • ESP32-S3-WROOM-1U module in the N16R8 memory configuration.
  • 16 MB flash and 8 MB PSRAM.
  • Two independent classical CAN channels using MCP2515 controllers over SPI.
  • ESP32-S3 Wi-Fi and Bluetooth capability for wireless integration.

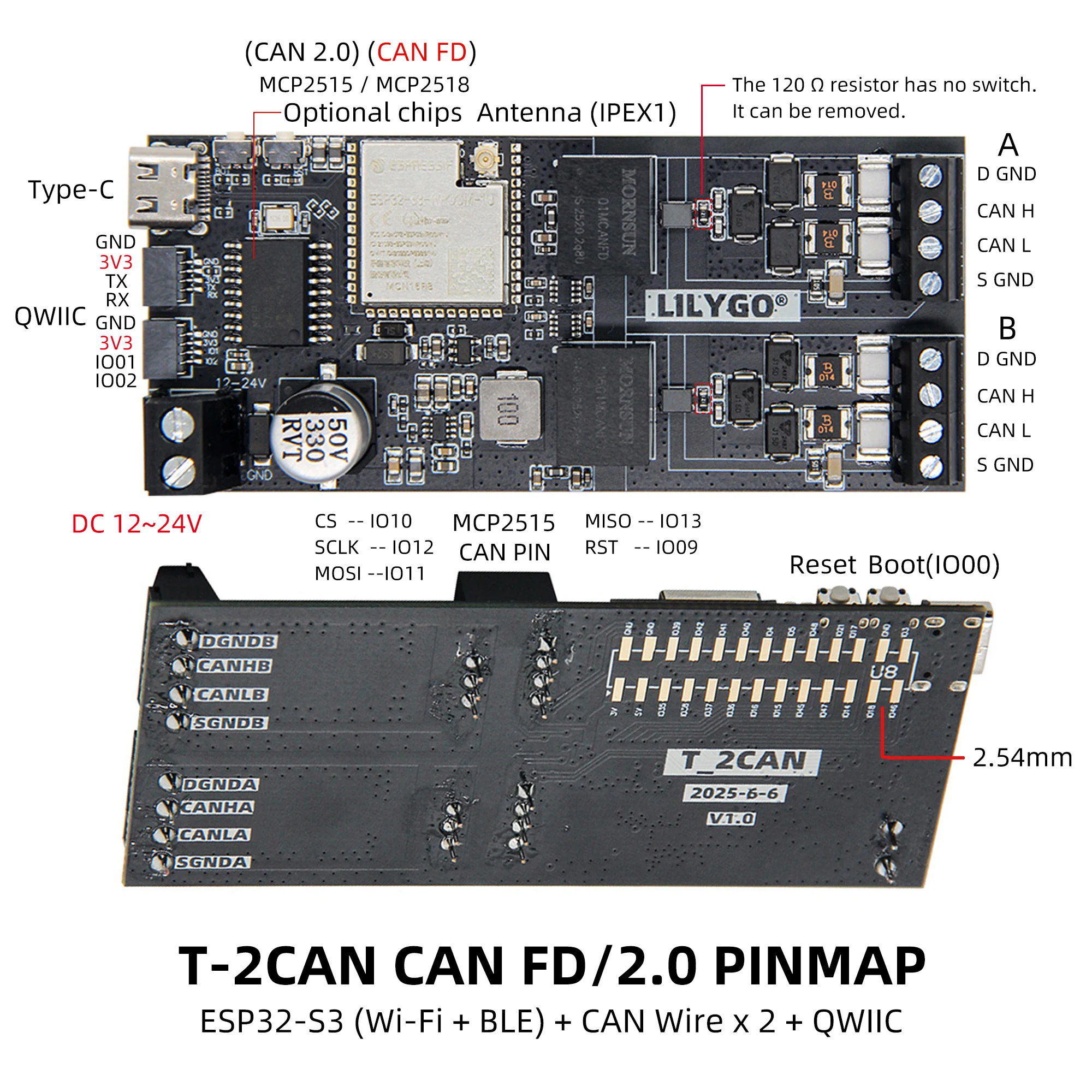

LILYGO T-2CAN interfaces and ESP32-S3 hardware 4

LILYGO T-2CAN interfaces and ESP32-S3 hardware 5

LILYGO T-2CAN interfaces and ESP32-S3 hardware 6

LILYGO T-2CAN interfaces and ESP32-S3 hardware 7

LILYGO T-2CAN interfaces and ESP32-S3 hardware 8

Development Support

LILYGO provides Arduino and PlatformIO examples in the official T-2CAN repository. The board can be used to prototype CAN monitoring, message forwarding and wireless gateway applications when paired with suitable firmware, wiring and bus termination.

LILYGO T-2CAN development and connection details 9

LILYGO T-2CAN development and connection details 10

LILYGO T-2CAN development and connection details 11

LILYGO T-2CAN development and connection details 12

LILYGO T-2CAN development and connection details 13

Important Version Note

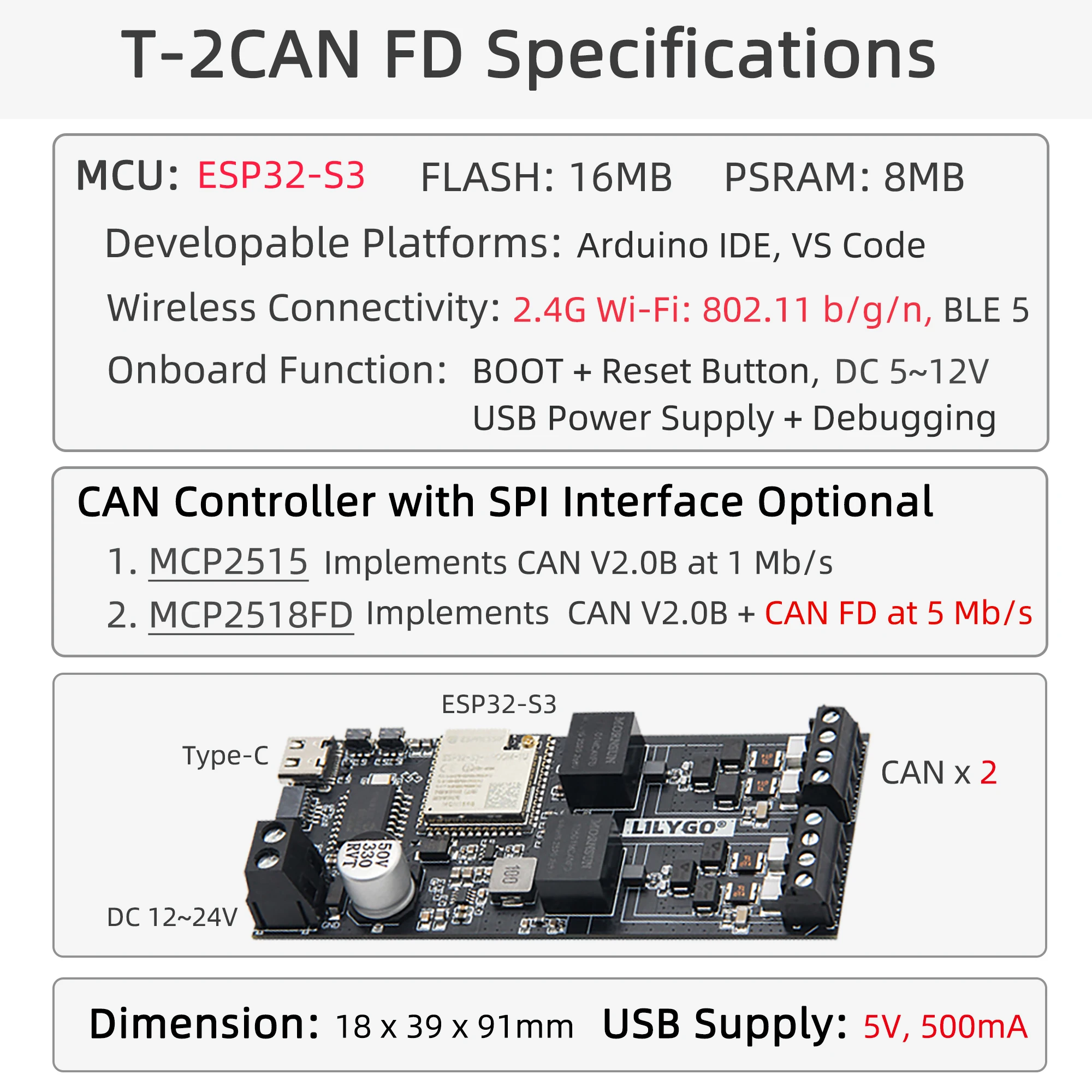

The available Shopify variant is T-2CAN / 2 x CAN. It is not the T-2CAN-FD version, so CAN FD and MCP2518 specifications do not apply to this item. Confirm bus voltage, connector pinout, termination and local regulatory requirements before connecting it to an active network.

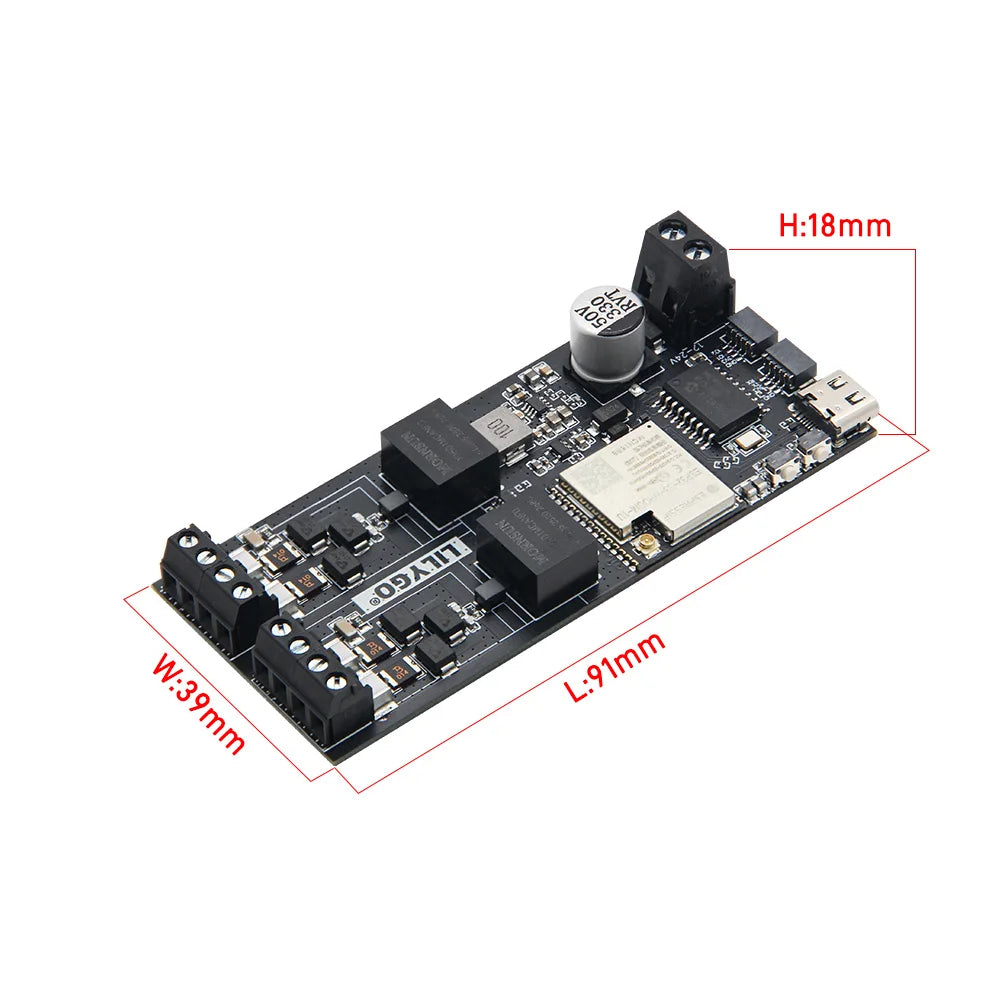

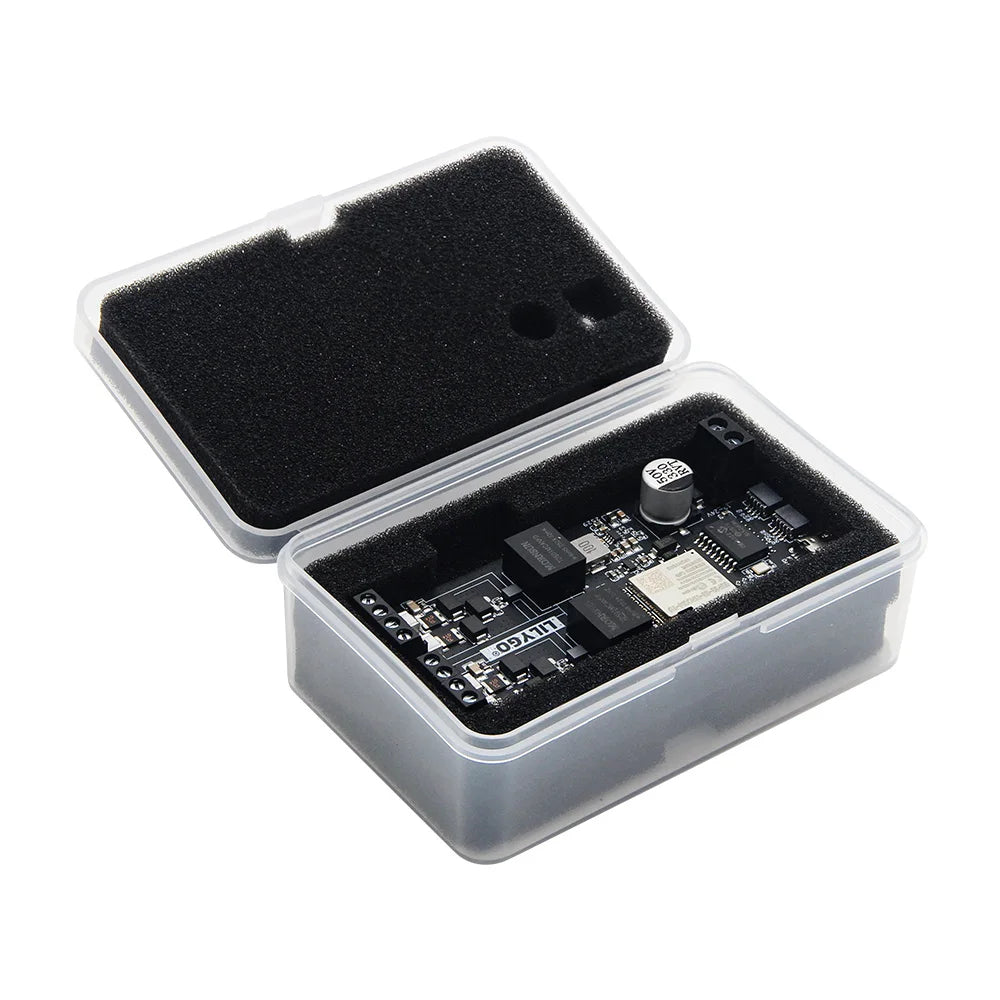

LILYGO T-2CAN dimensions package and application reference 14

LILYGO T-2CAN dimensions package and application reference 15

LILYGO T-2CAN dimensions package and application reference 16

LILYGO T-2CAN dimensions package and application reference 17

LILYGO T-2CAN dimensions package and application reference 18

LILYGO T-2CAN dimensions package and application reference 19
