LILYGO T-Deck Plus ESP32-S3 LoRa Development Platform

T-Deck Plus is a handheld embedded development platform based on the ESP32-S3. It combines a display, keyboard, trackball, LoRa radio, storage and GNSS hardware for portable wireless interfaces and Meshtastic-compatible development.

LILYGO T-Deck Plus specification overview

Integrated Hardware

  • ESP32-S3 microcontroller platform.
  • 2.8-inch ST7789 LCD with 320 x 240 resolution.
  • Semtech SX1262 LoRa radio with the selected 433, 868 or 915 MHz configuration.
  • Physical keyboard, trackball navigation and TF card slot.
  • Integrated microphone hardware and GNSS positioning module.

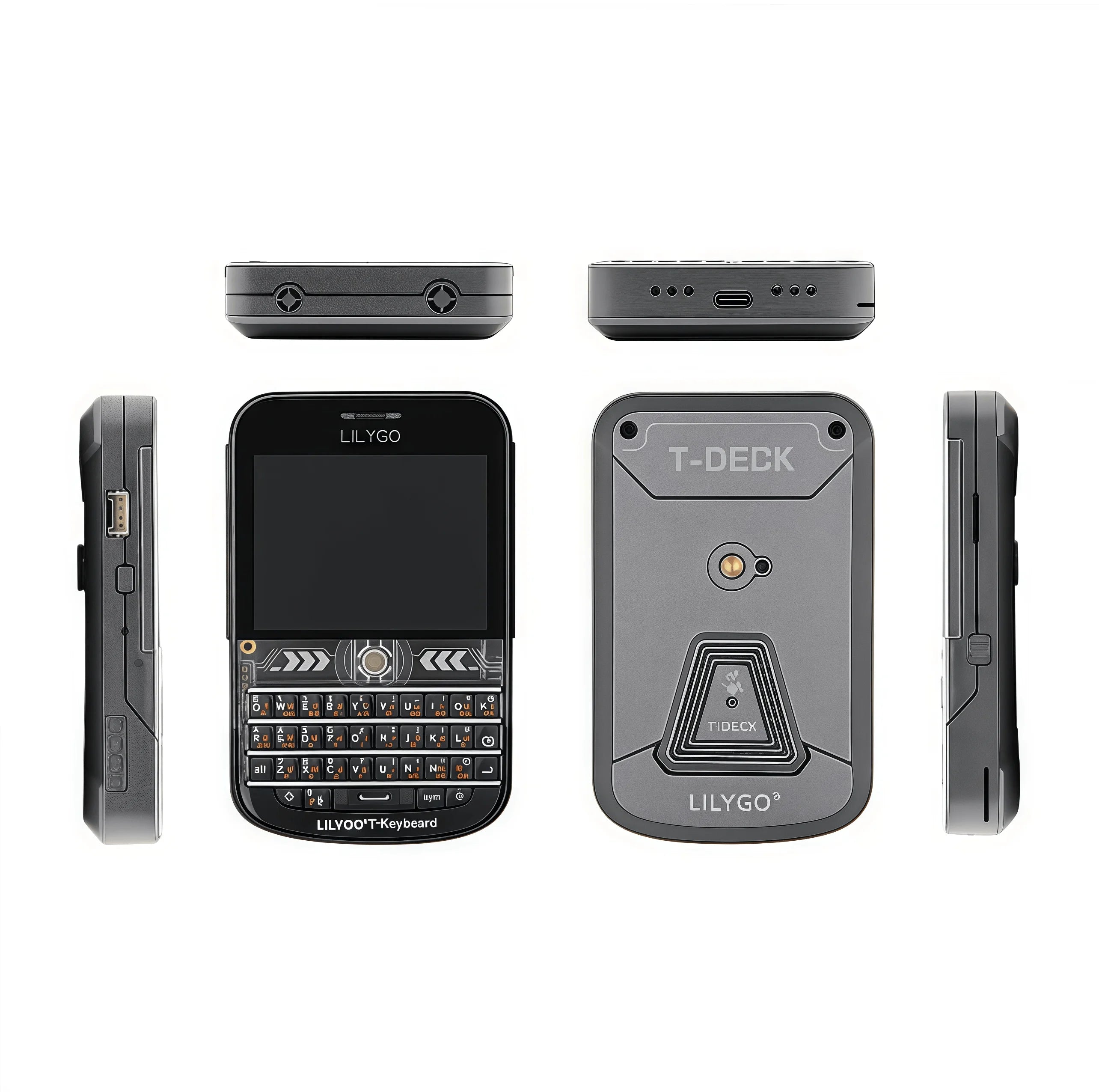

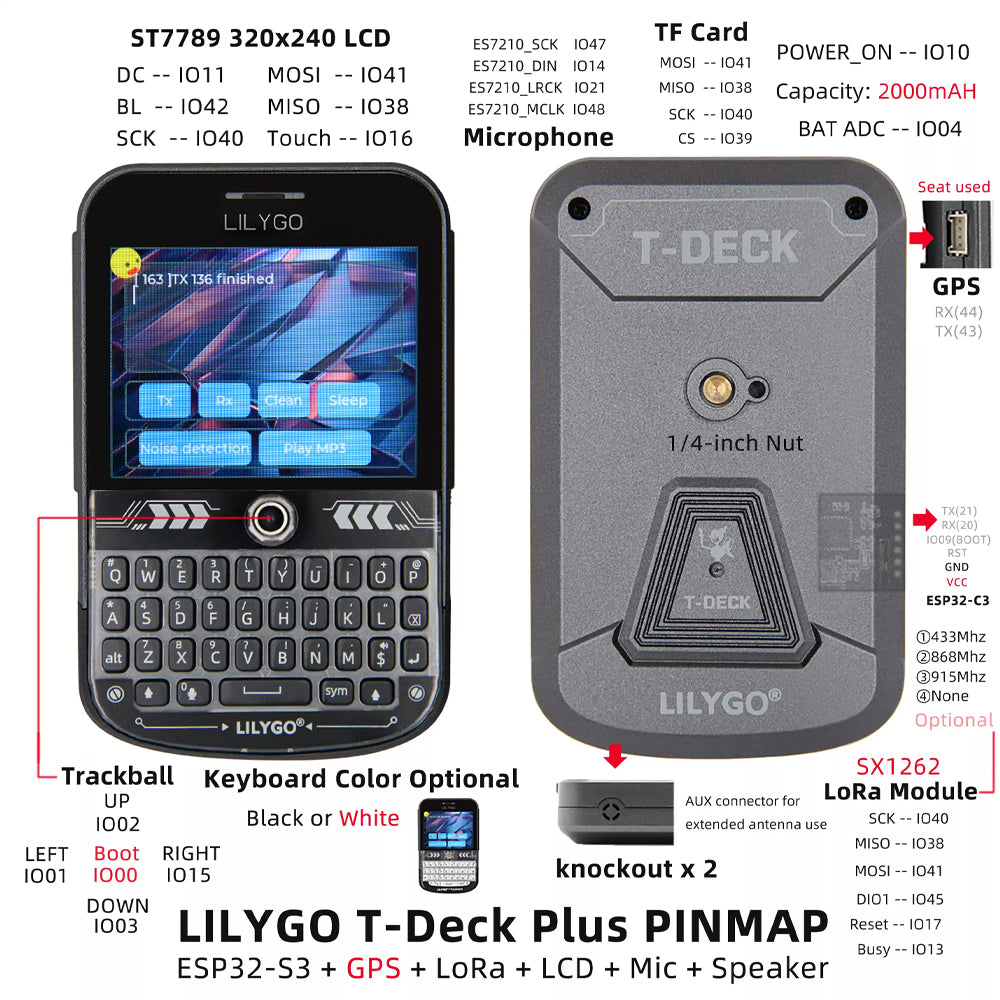

LILYGO T-Deck Plus display keyboard trackball and connector layout

Antenna and Frequency Options

Choose the LoRa frequency that is permitted for the intended region. Built-in and external antenna versions are offered separately; the selected antenna type and frequency must match the delivered hardware and firmware configuration.

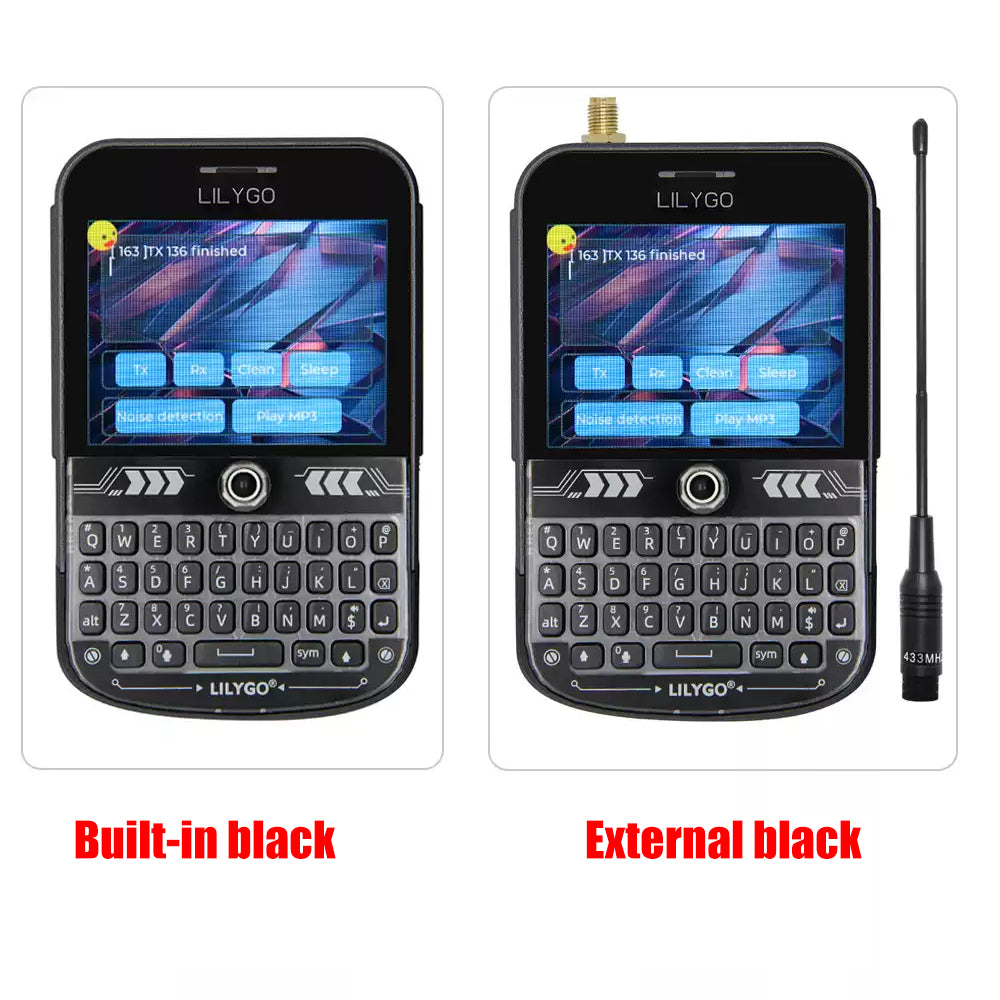

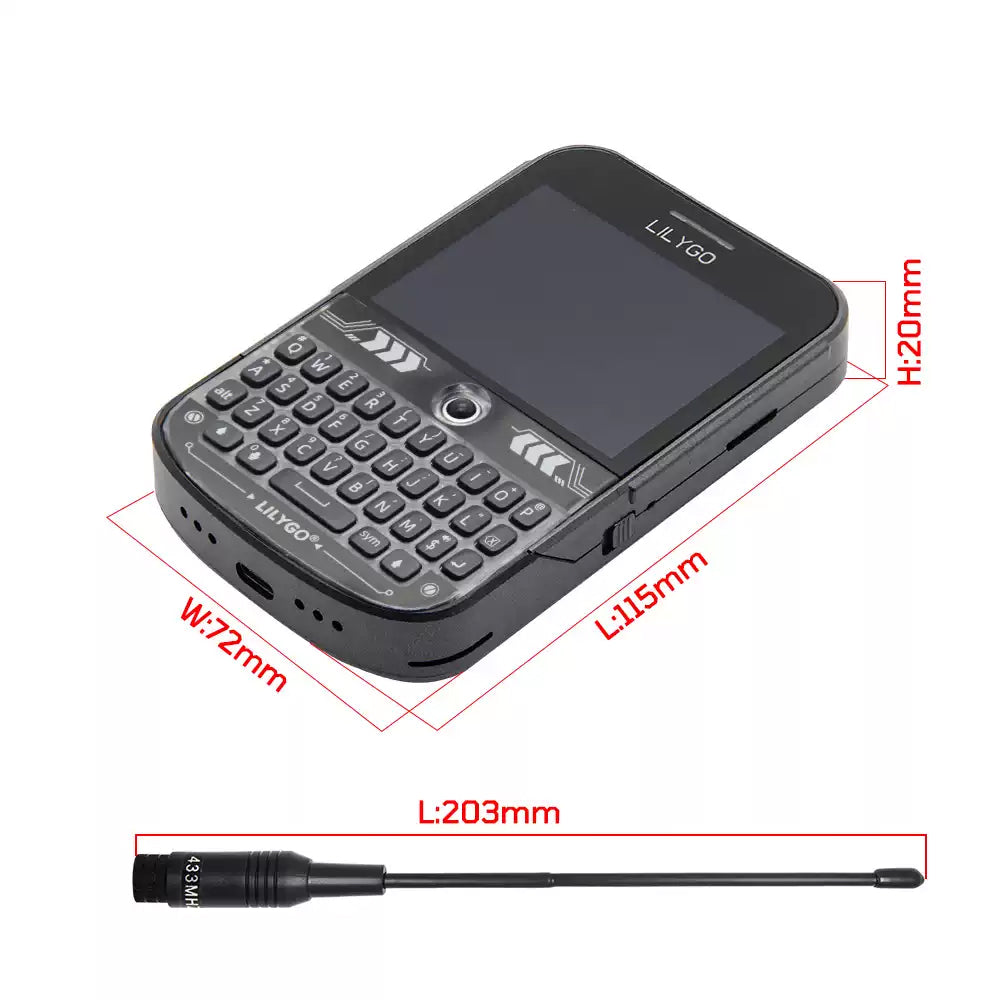

LILYGO T-Deck Plus external LoRa antenna option

Development Notes

  • The Plus version dedicates the former Grove-interface pins to its GNSS module, so they are not available as a general-purpose Grove connector.
  • Use the current LILYGO T-Deck Plus board files, pin map and display initialization sequence.
  • Install or build the firmware required for the intended application; functionality depends on the loaded software.
  • Observe local frequency and transmit-power requirements when using LoRa.

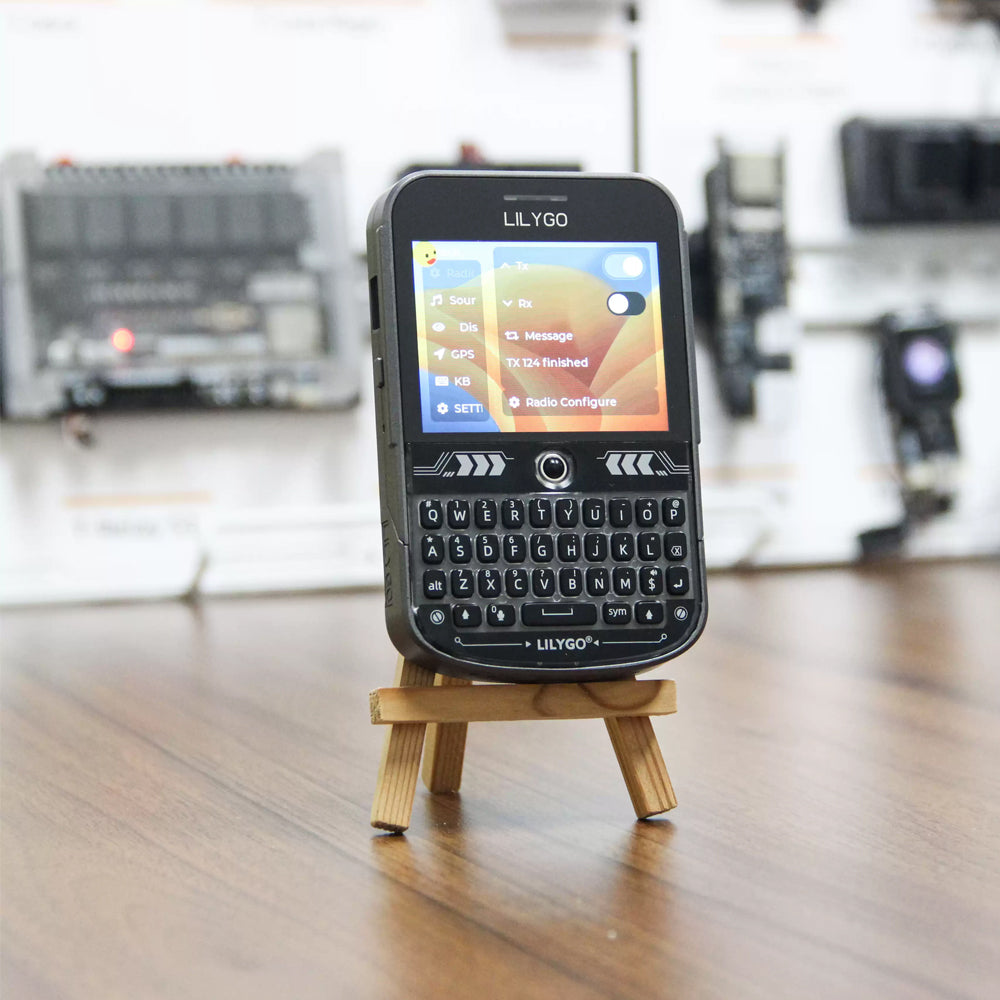

LILYGO T-Deck Plus handheld wireless development platform
