LCR-TC1 1.8-inch TFT Component, Transistor and Zener Diode Tester

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.

Please use 5V battery or USB port to charge.

When the voltage and internal battery are below 3V, please charge before use.

Otherwise, the tester will be burnt down. Burning the tester is the buyer's reason.

Do not test live circuit boards

Do not hook three hooks onto the circuit board for testing

don't test online with electricity

The inductance of the transformer cannot be tested

The capacitor shall not be tested without discharge

Cautions for use:

If the quality problem of the product is found after receiving the express, please do not open the dispute at will. Please contact our after-sales customer service to solve it in a timely manner. Thank you for your support and understanding!

Noted:

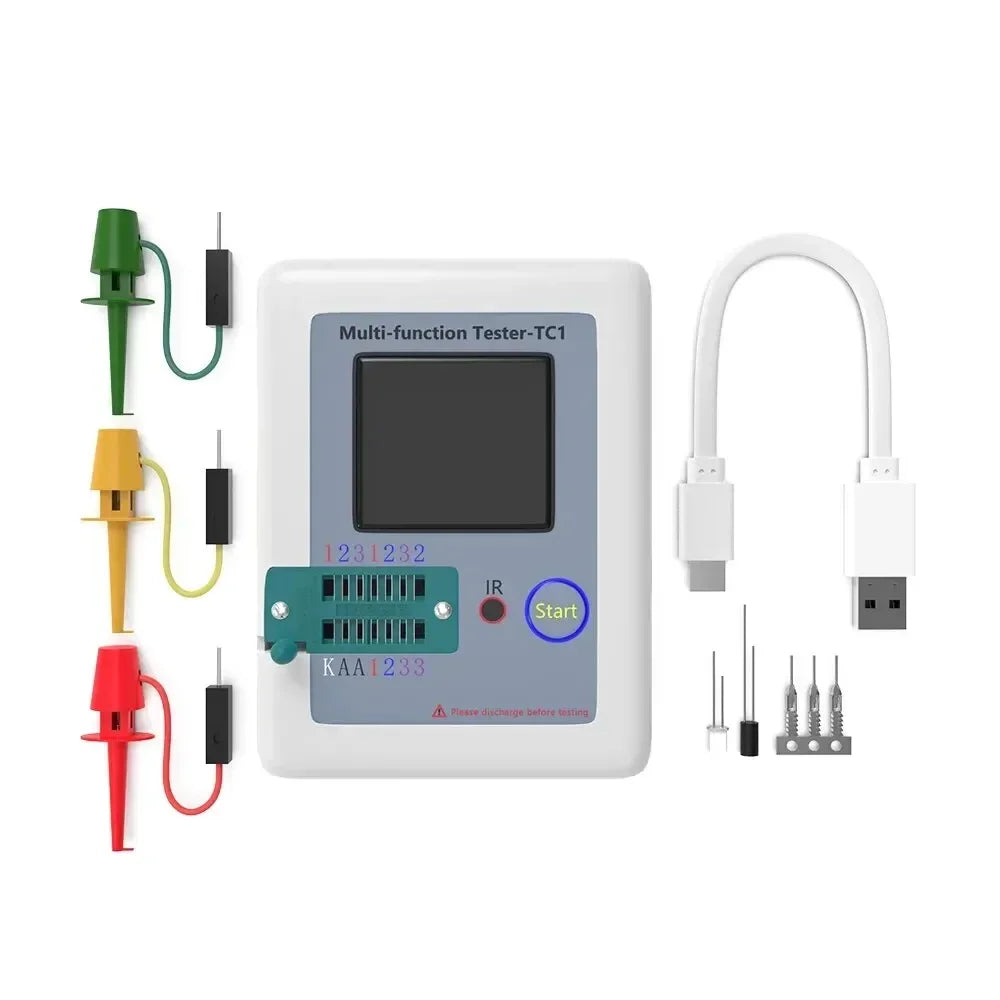

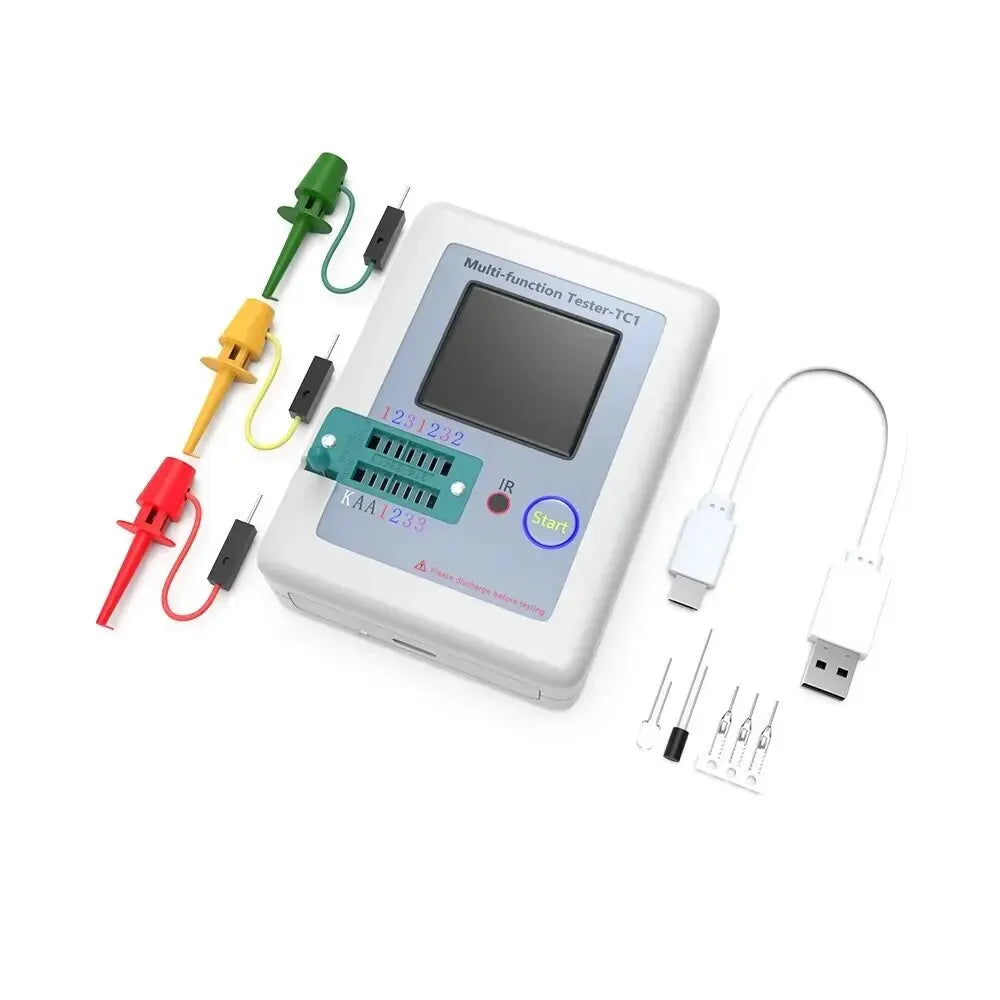

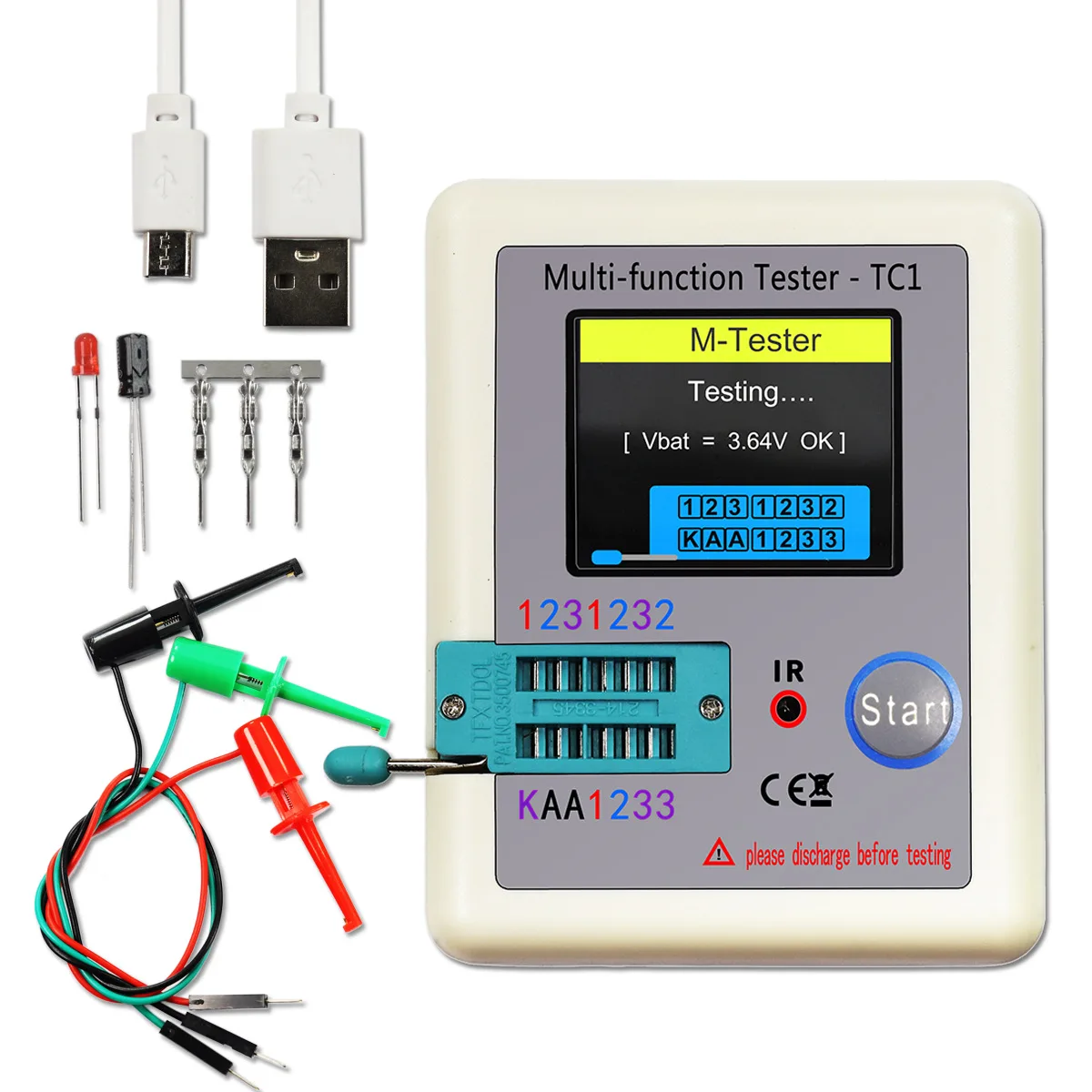

3*Test hook

1*Cable

1*Electronic components set

1* Multifunctional TFT Transistor Tester

Package Included:

Before each component measurement, the built-in lithium battery voltage will be detected and displayed. When the battery voltage is less than 3.1V, it will be forced to shut down. Please charge it at this time.

Battery voltage measurement

Standby power consumption is 0 UA after shutdown.

When the component test is completed or the infrared decoding is completed, and the automatic shutdown time is reached, the tester will automatically shut down (overtime 30 seconds)

Automatic shutdown after timeout

Shutdown

During the calibration process, there is no need to perform other operations except to disconnect the short wire according to the prompts.

Short-circuit three test sockets, short press the multi-function button, and the tester will automatically calibrate.

Automatic calibration

When the device is turned off or the test is completed, put the Zener diode into the Zener diode test area, press the locking handle, and briefly press the multi-function button.

Detect Zener Diode

If the decoding fails or the decoding fails, the user code and data code cannot be displayed. At this time, if you are in the tester interface, you cannot enter the infrared decoding interface. If you are in the infrared decoding interface, the last successful decoding information will still be displayed.
