Product Summary

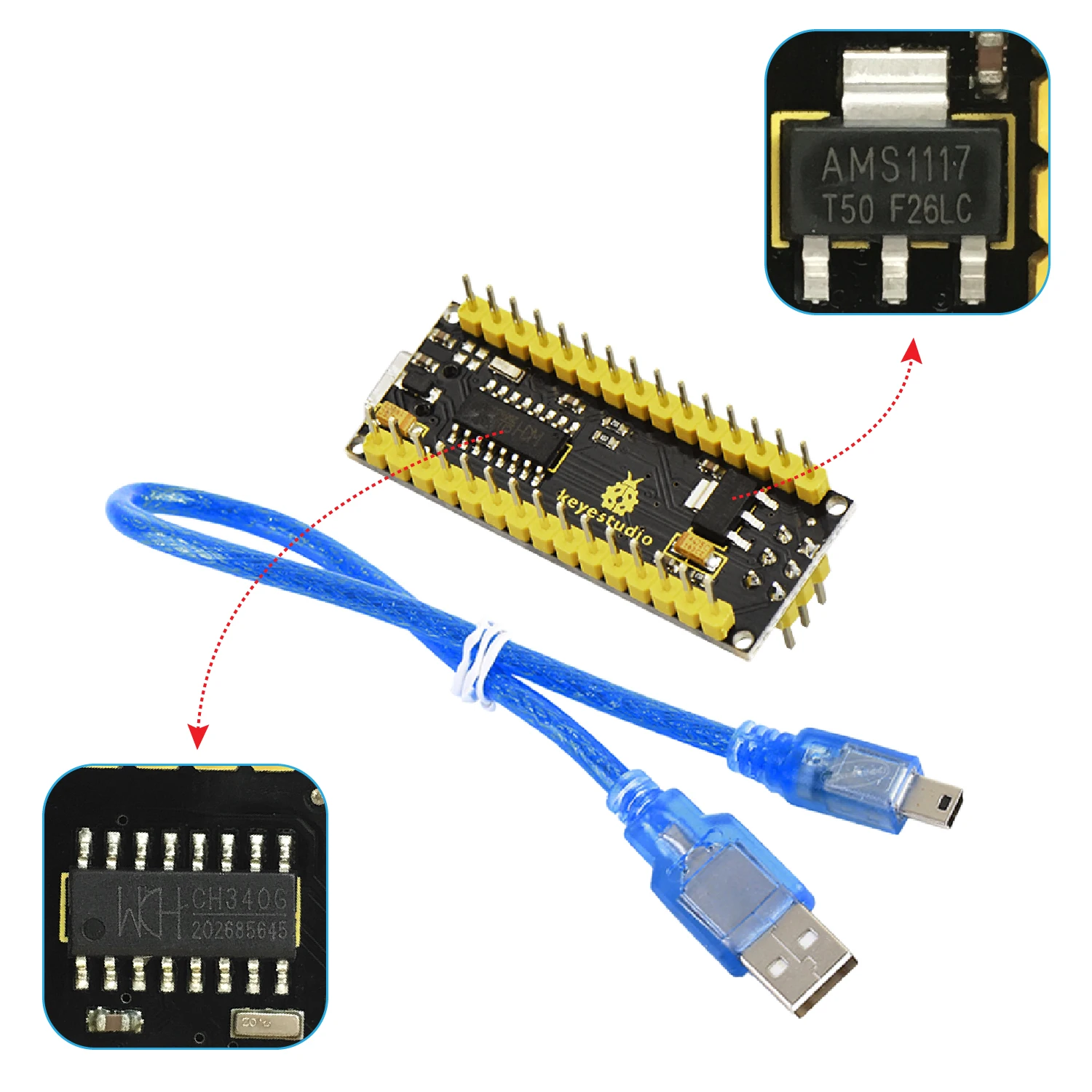

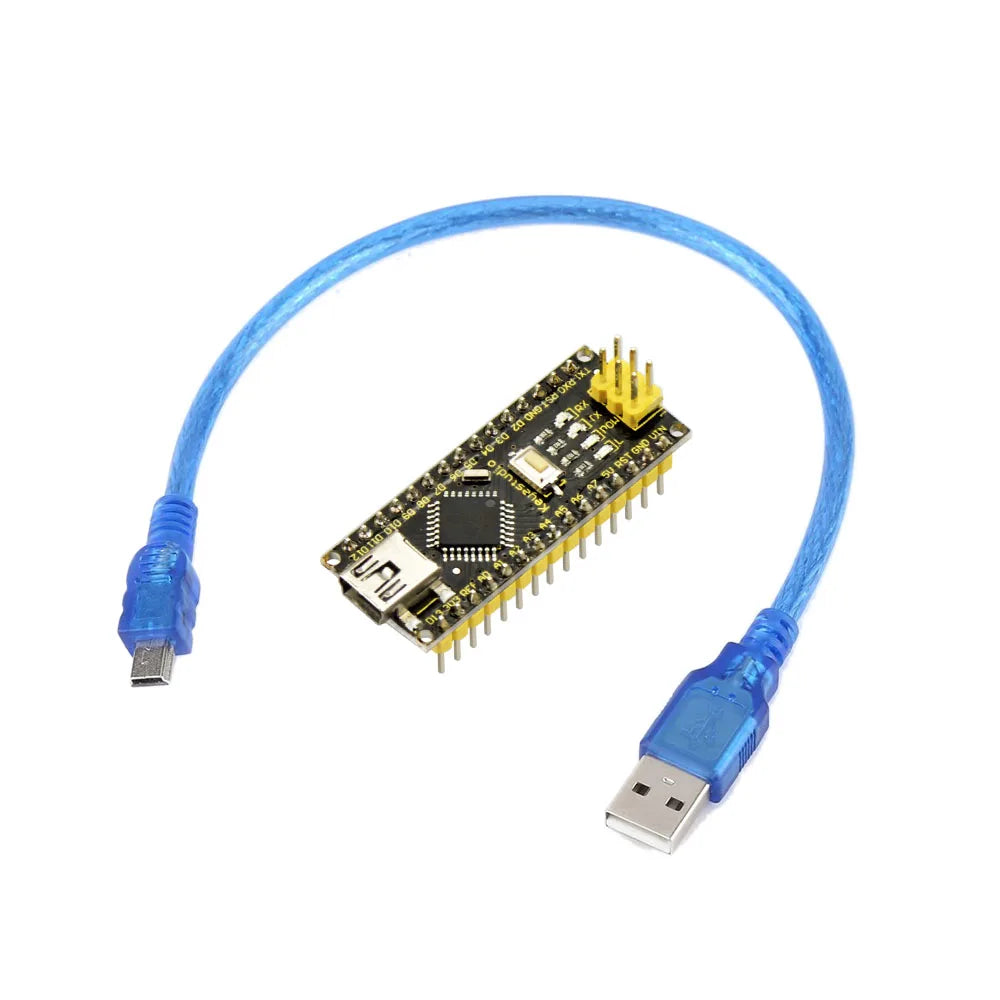

Keyestudio16MHz ATMEGA328P CH340 NANO Development Board With Bootloader+USBCable Compatible is a development board selected for building connected devices, firmware tests and rapid electronics prototypes. It is suitable for makers, embedded developers and IoT prototyping teams who need practical electronics hardware for reliable project work.
Best For
- building connected devices, firmware tests and rapid electronics prototypes
- Arduino, MicroPython, sensors, displays and expansion modules
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for makers, embedded developers and IoT prototyping teams.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Introduction

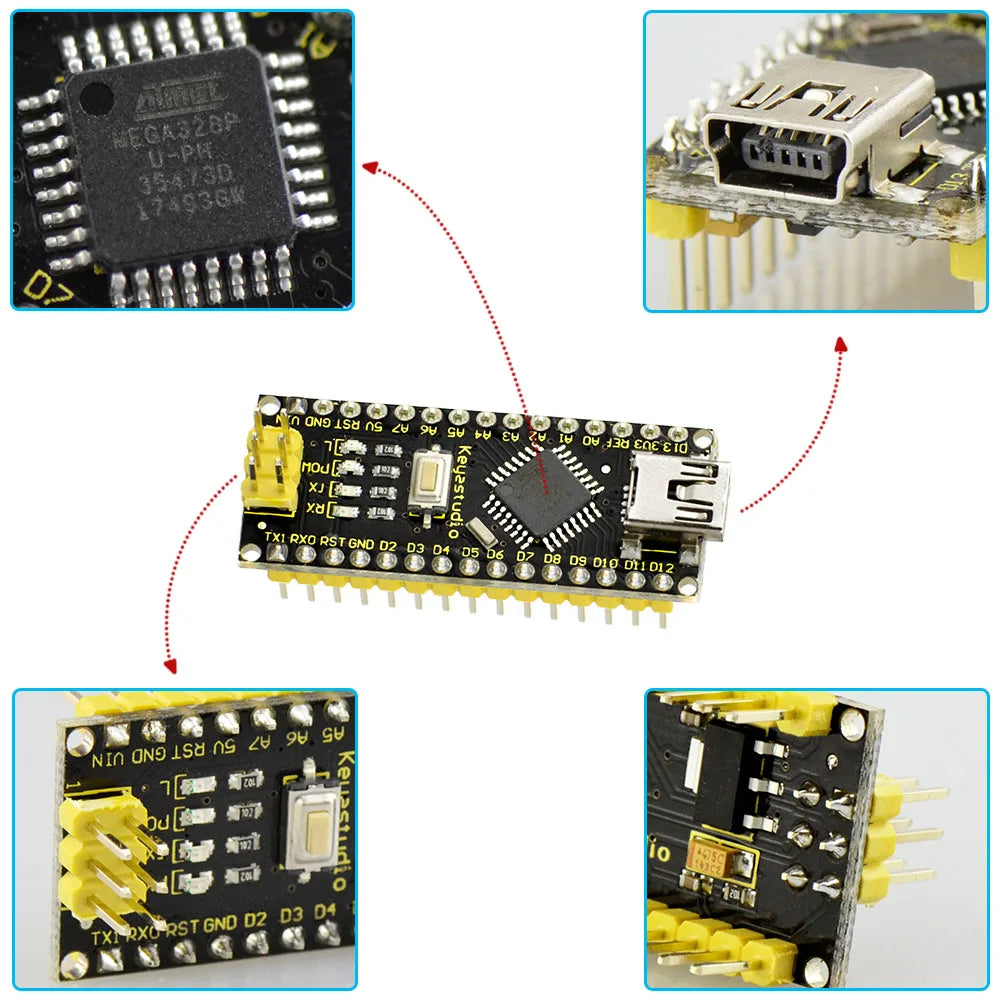

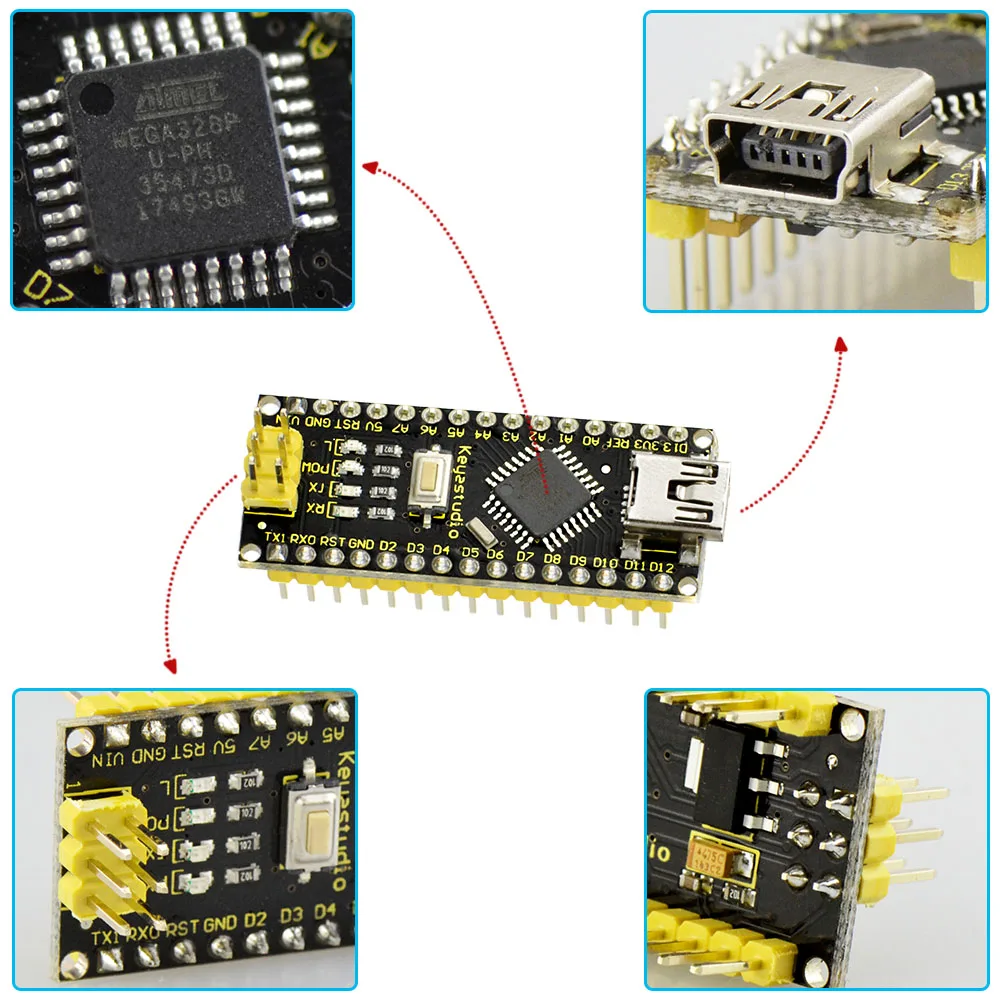

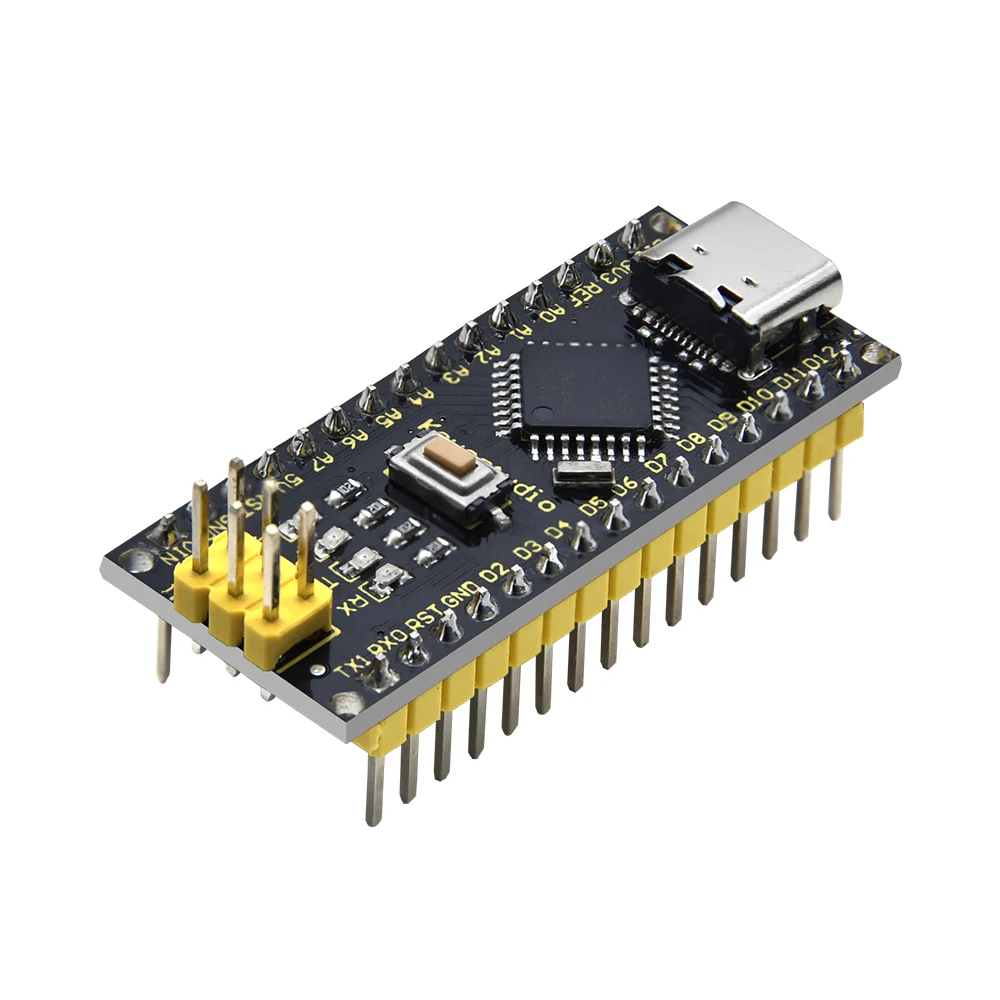

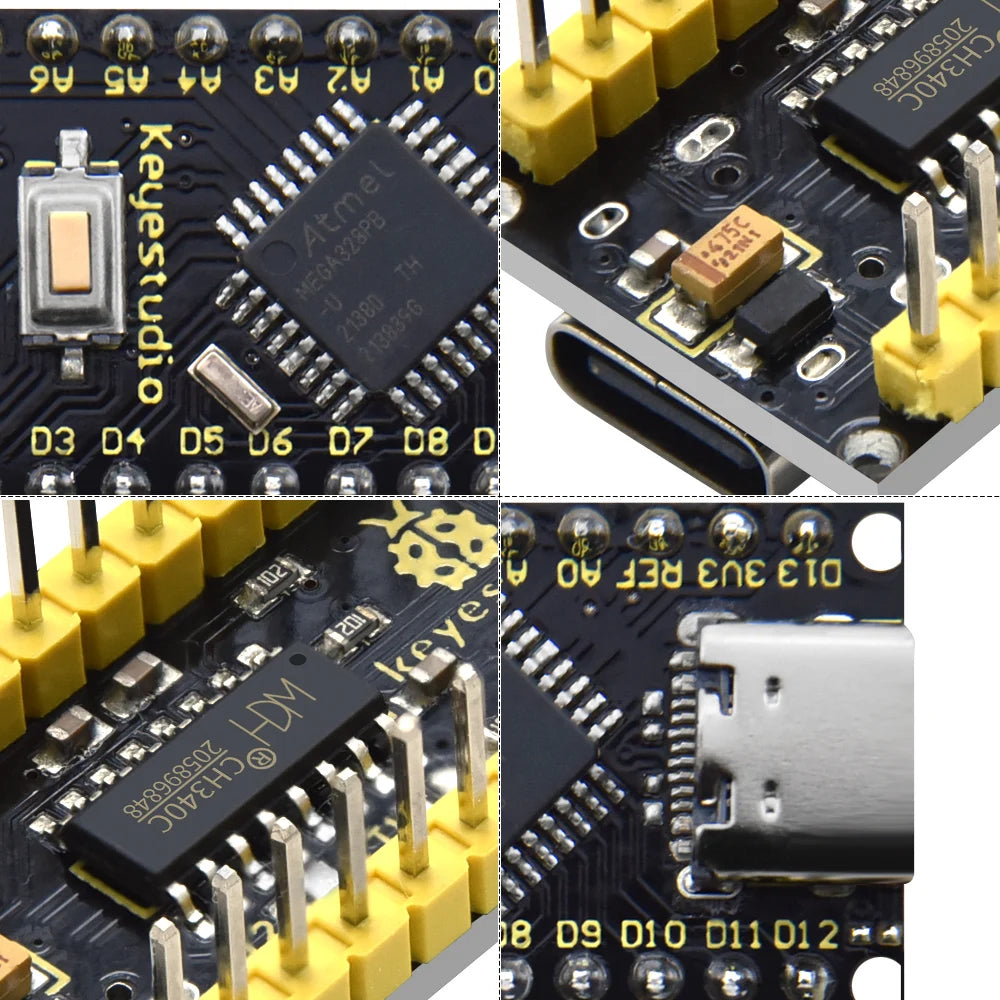

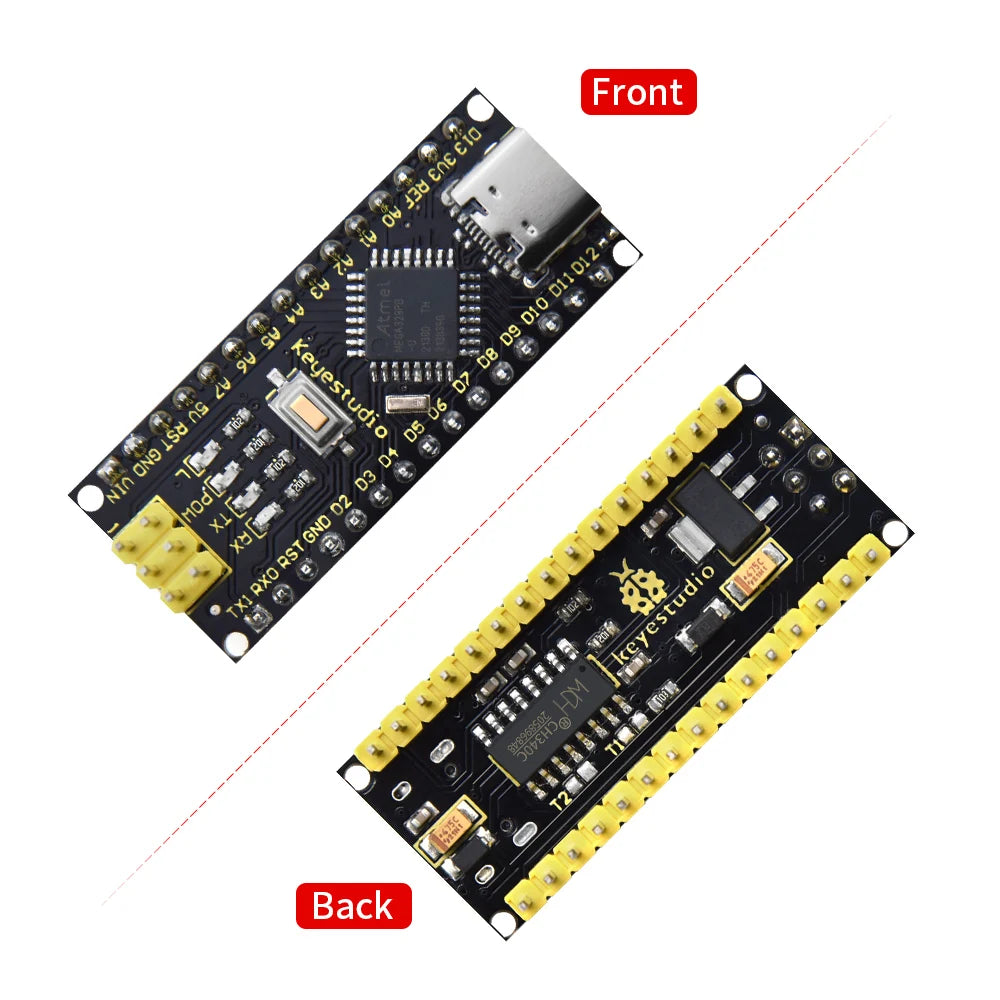

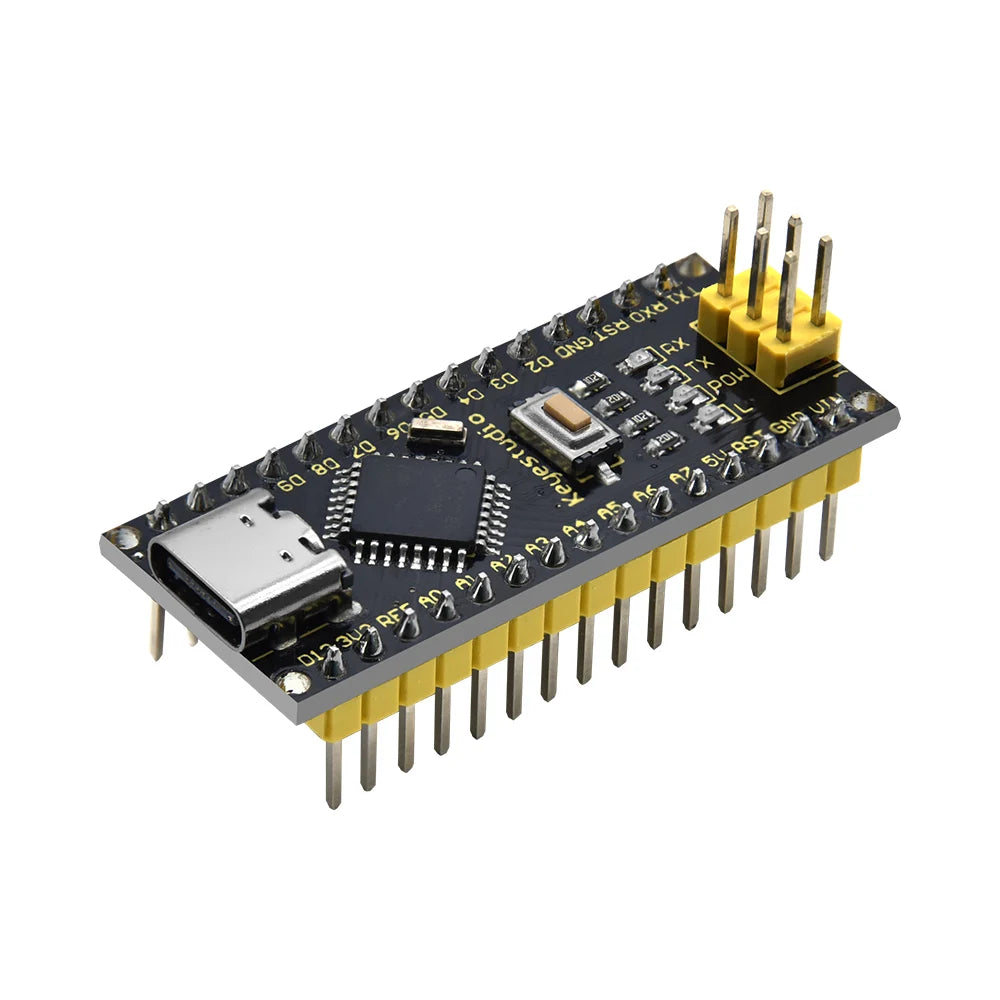

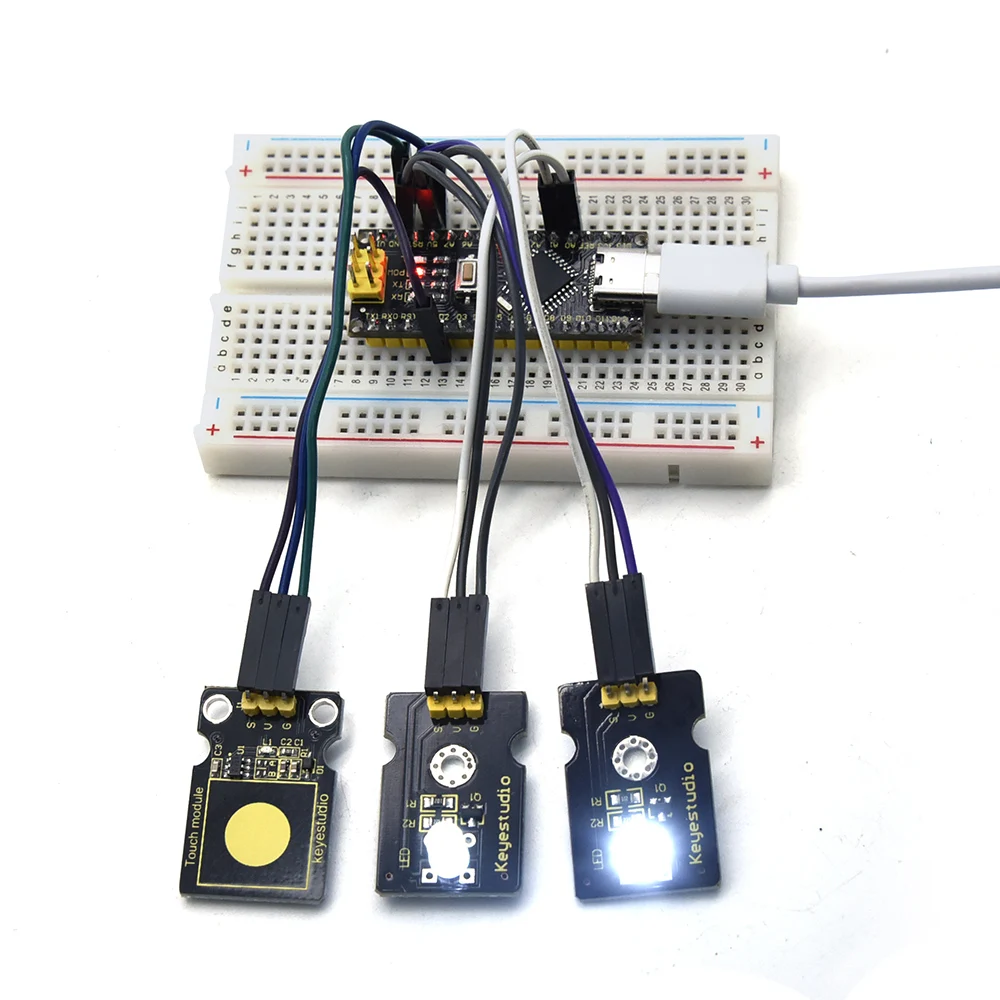

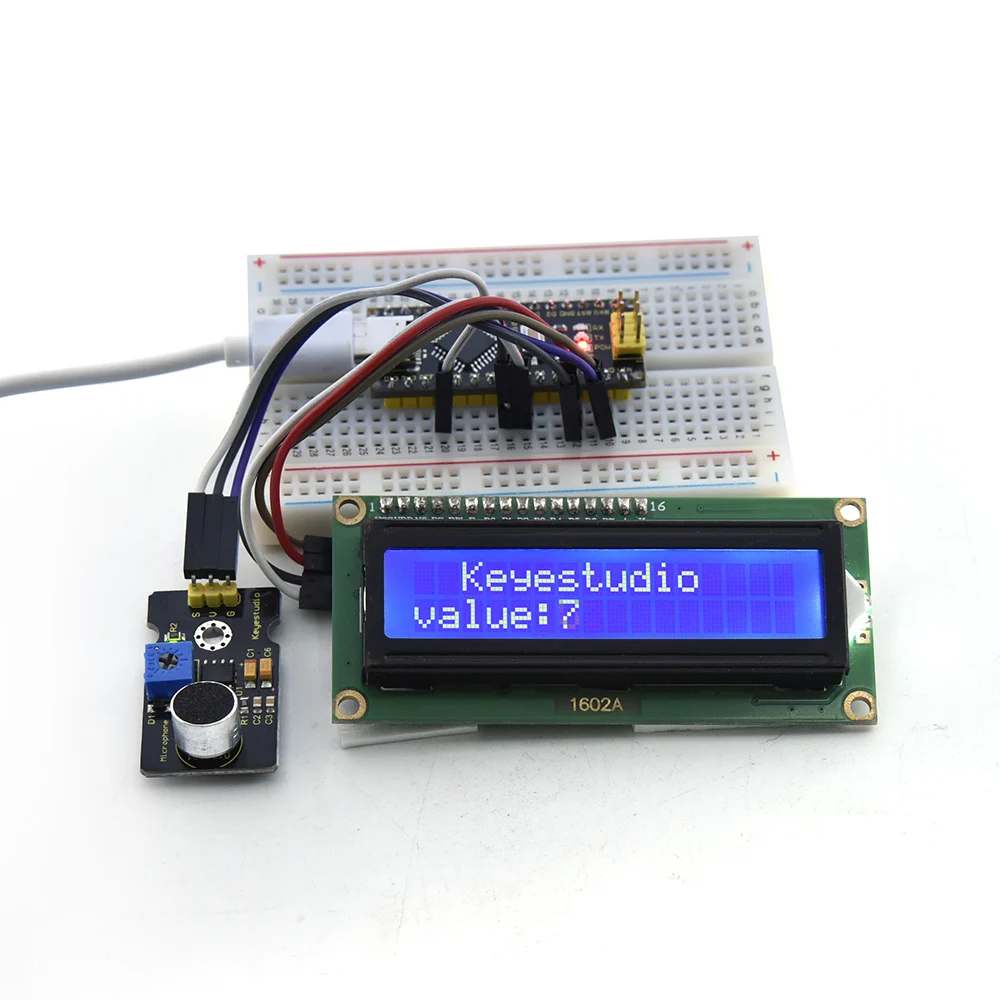

The processor core of Keyestudio Nano CH340 is atmega328p-au. It is as same as the Arduino Nano in addition to driver file and USB to serial chip (CH340G). It also has a 14 digital input / output interfaces (6 of which can be used as PWM output), 8 analog input interfaces, 1 16MHz crystal oscillator, 1 mini USB port, 1 ICSP interface, and a reset button.

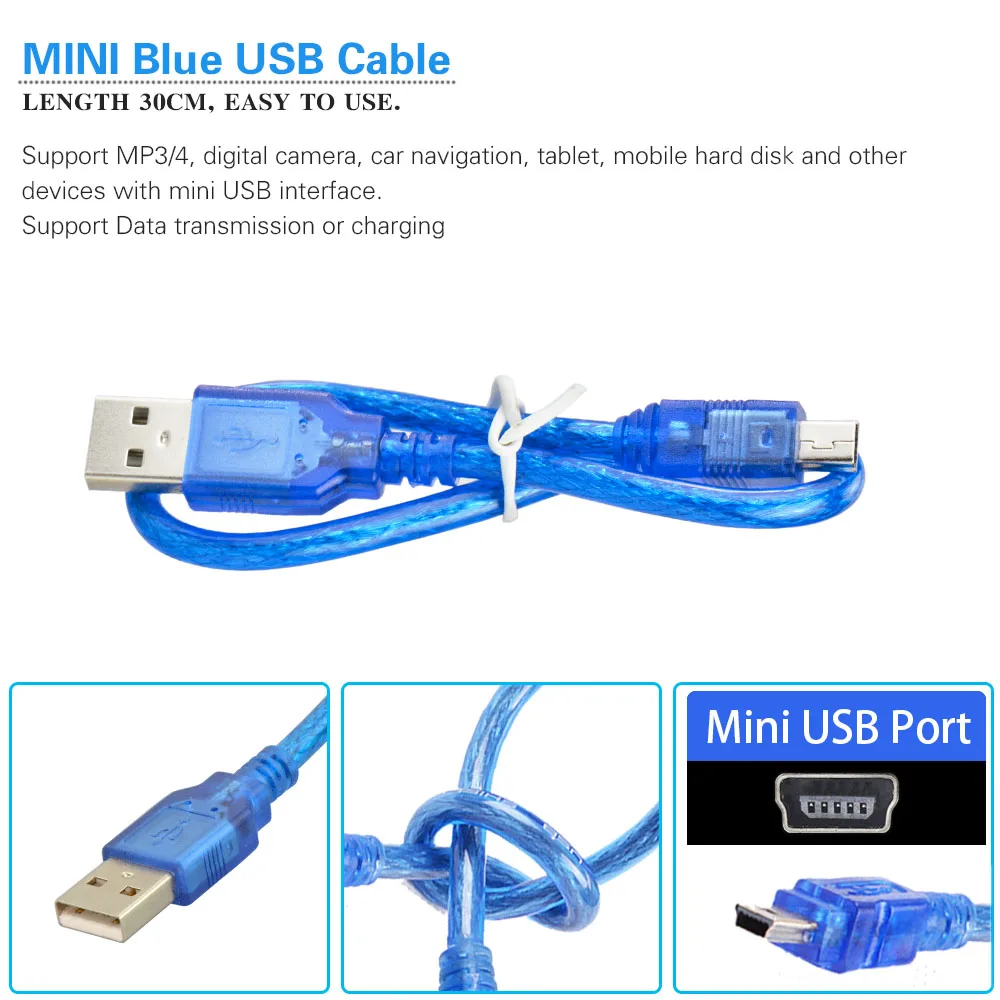

The ICSP interface is used to burn firmware to Atmega328P-Au. Since this chip we burn firmly in front of the factory, it is generally not available. When using the Mini USB cable, we can use the VIN GND (DC 7-12V) to power.
What's more, you can burn the firmware for Atmega328P-Au through the built-in ICSP port. The firmware of this chip is burnt well before delivery, therefore, you don't need to burn the firmware.
The power can be supplied through USB cable, port 5V , GND(DC 5V), as well as Vin GND (DC 7-12V).

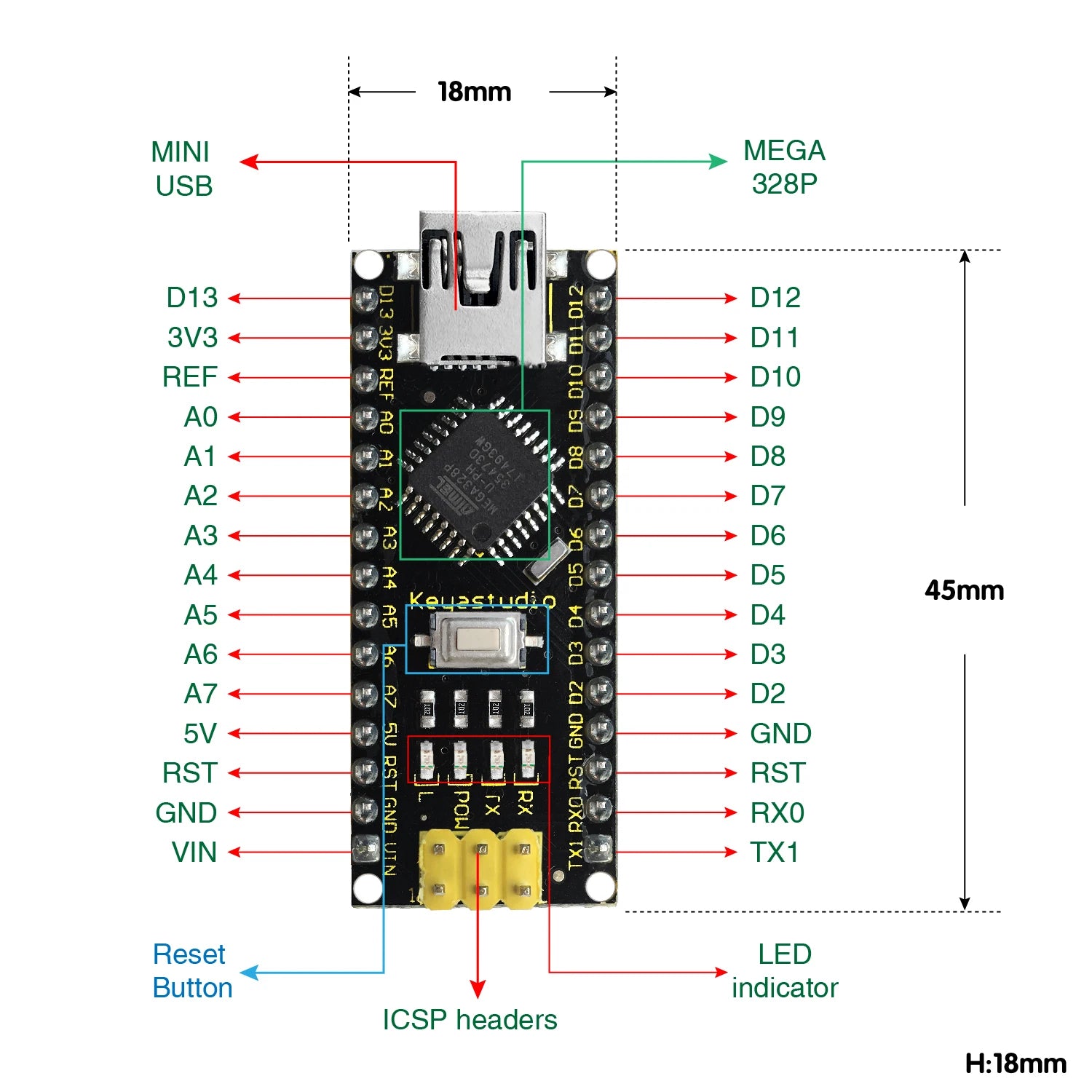

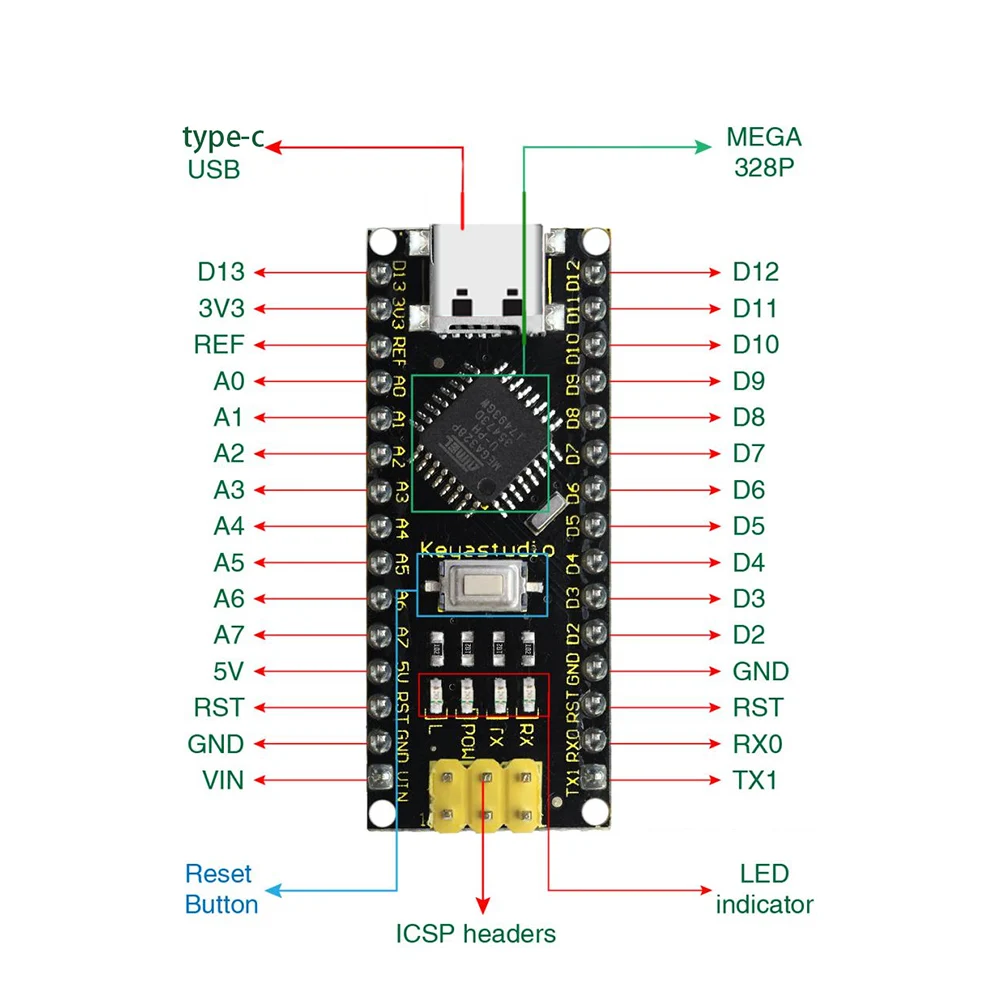

Specification
Microcontroller: ATMEGA328P-AU
Operating Voltage: 5V
Input Voltage (recommended): DC 7-12V
Digital I/O Pins: 14 (D0-D13)
PWM Digital I/O Pins:6 (D3 D5 D6 D9 D10 D11)
Analog Input Pins: 8(A0-A7)
DC Current per I/O Pin: 40 mA
Flash Memory: 32 KB of which 2 KB used by bootloader
SRAM:2 KB
EEPROM: 1 KB
Clock Speed:16 MHz
LED_BUILTIN:D13
Tutorial
https://fs.keyestudio.com/CH340-MAC NANO PLUS Development Board
https://fs.keyestudio.com/KS0173 Nano ch340

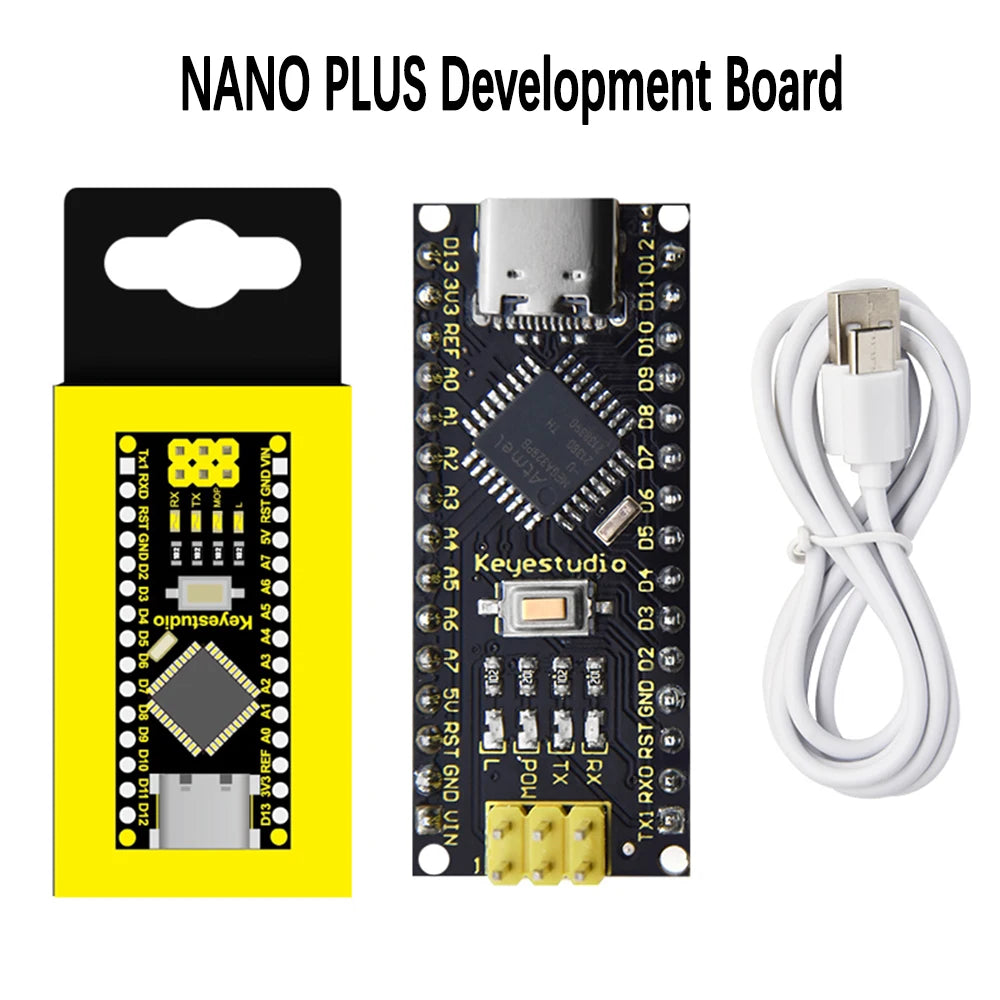

NANO PLUS Development Board

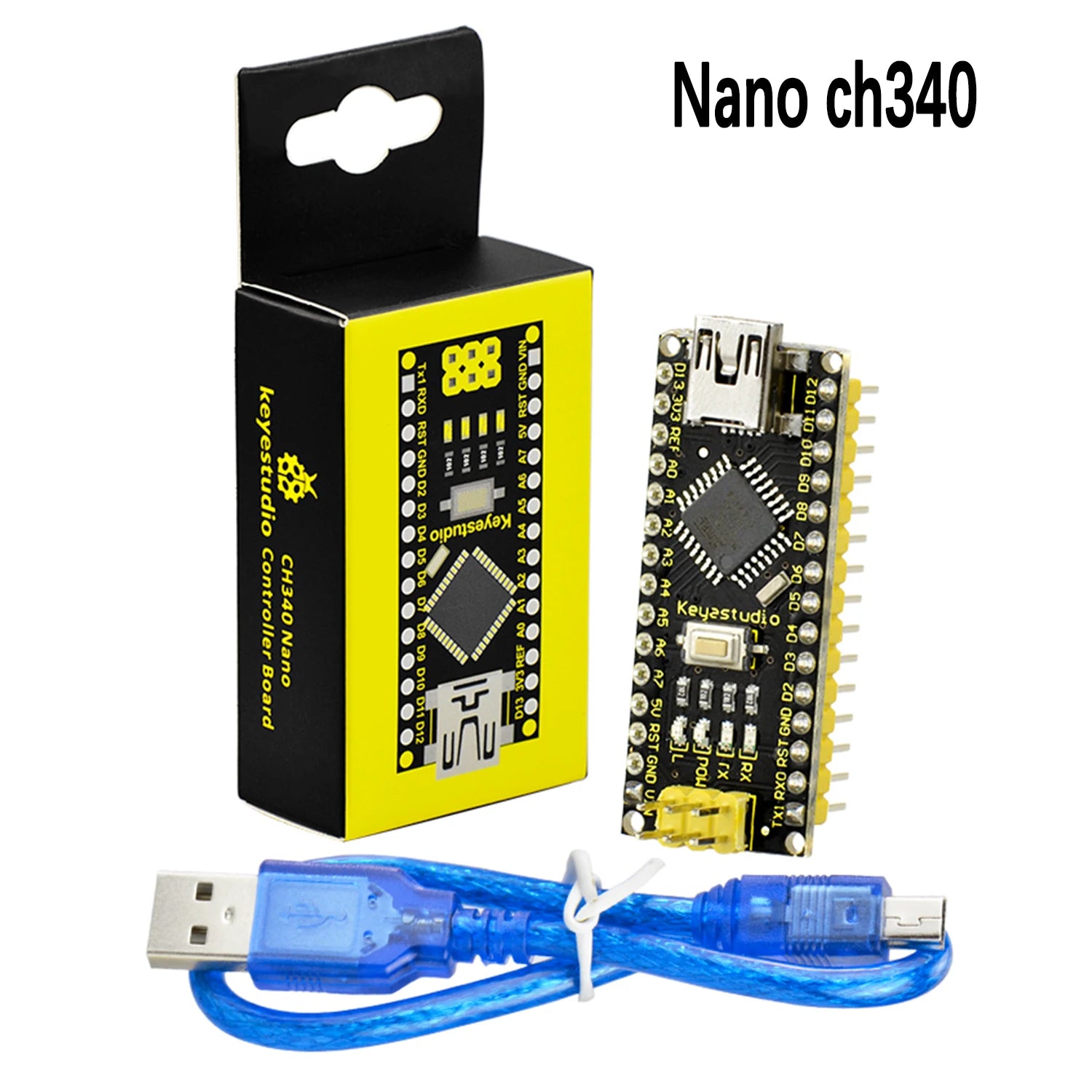

Nano ch340
