JUNTEK Signal Generator PSG9080 80M Programmable Digital Control DDS Dual-Channel Arbitrary is a signal generator selected for generating test waveforms for circuit debugging and calibration. It is suitable for engineers, students and electronics labs who need practical electronics hardware for reliable project work.
Best For
- generating test waveforms for circuit debugging and calibration
- oscilloscopes, amplifiers, filters and analog circuit projects
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for engineers, students and electronics labs.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
JUNTEK Signal Generator PSG9080 80M Programmable Digital Control DDS Dual-Channel Arbitrary Waveform Frequency Meter Function
 |
 |
|

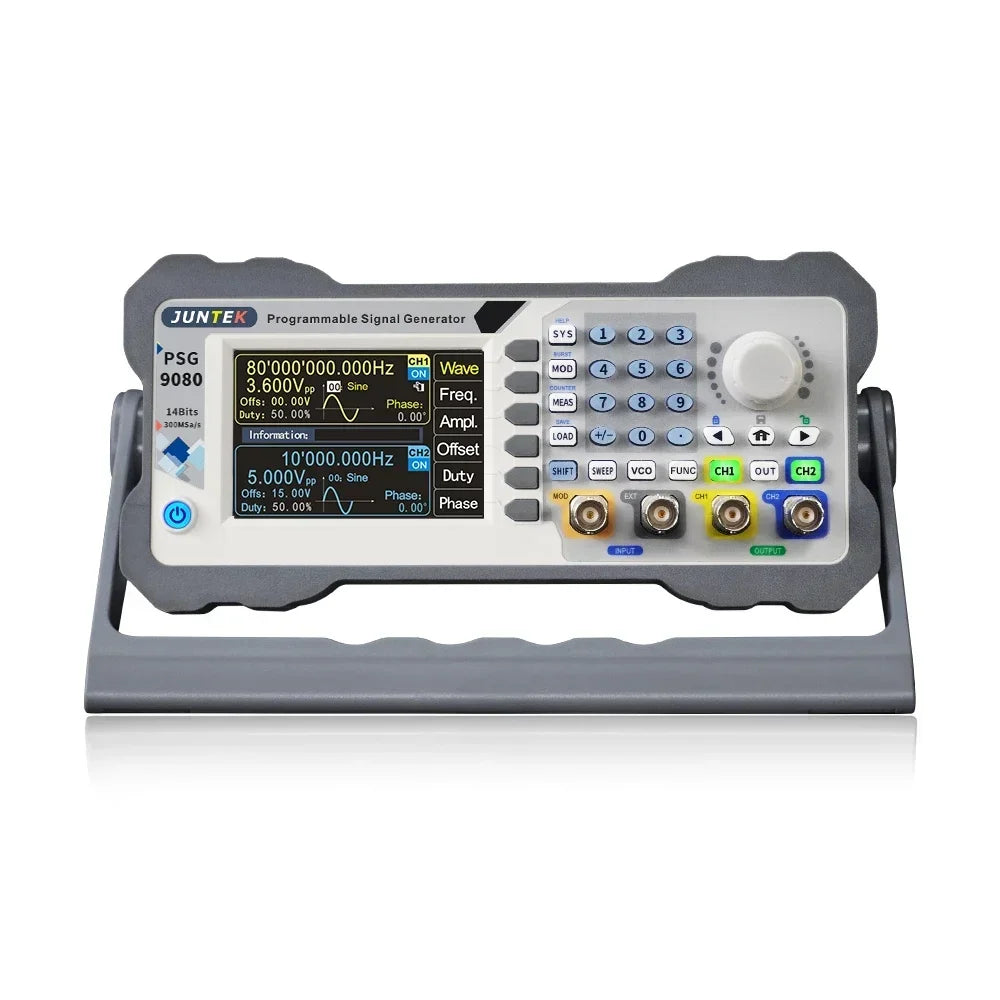

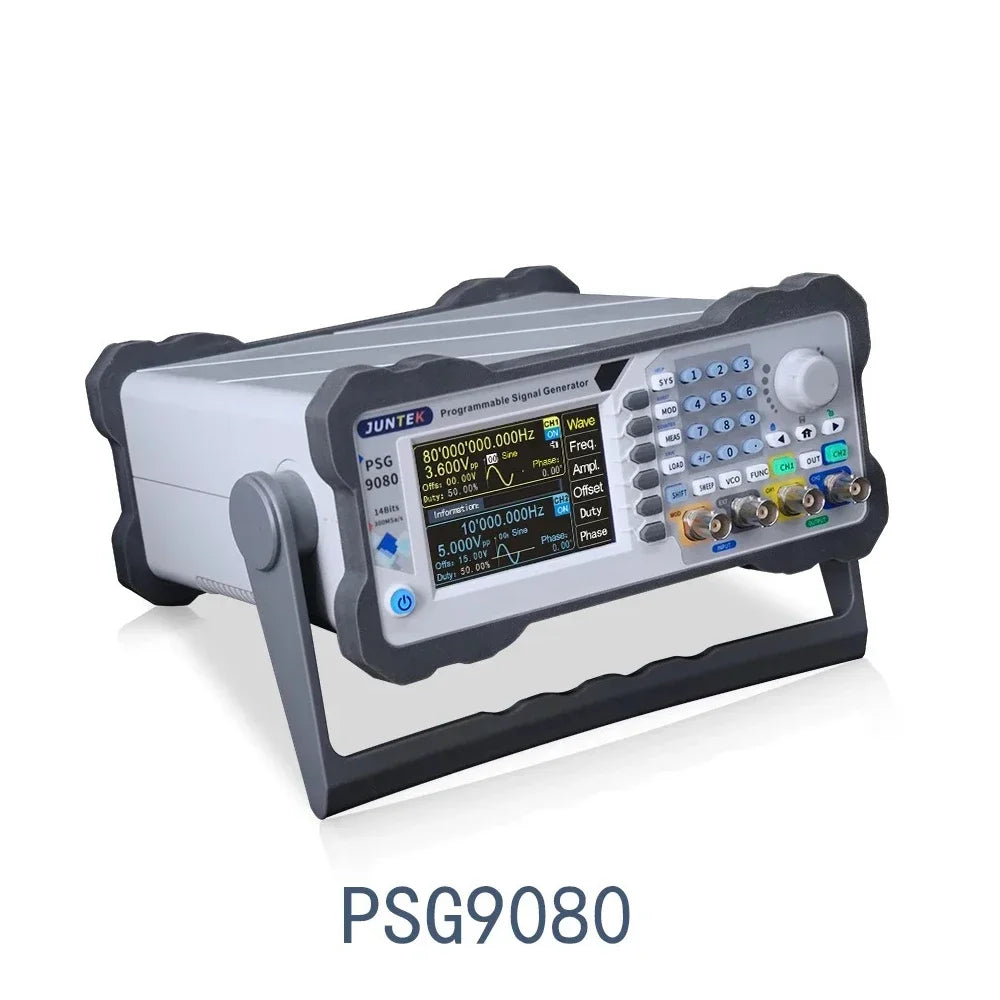

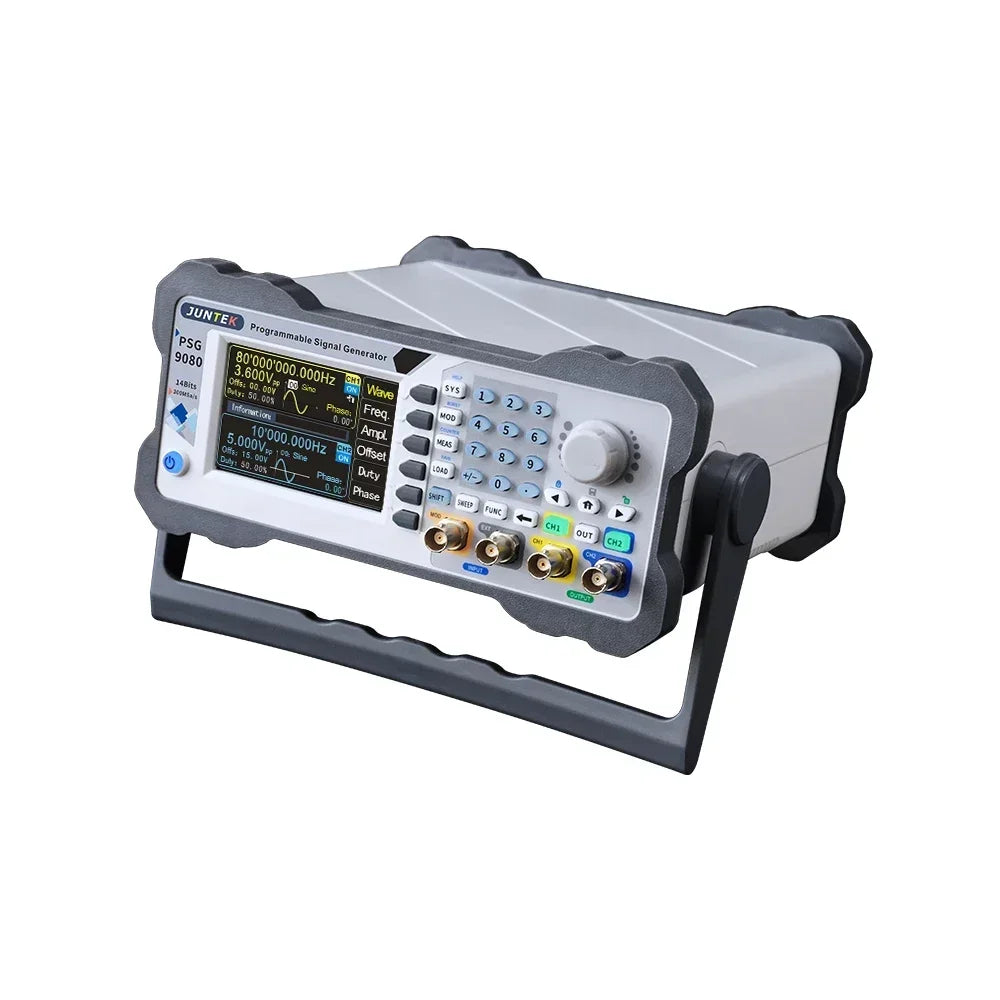

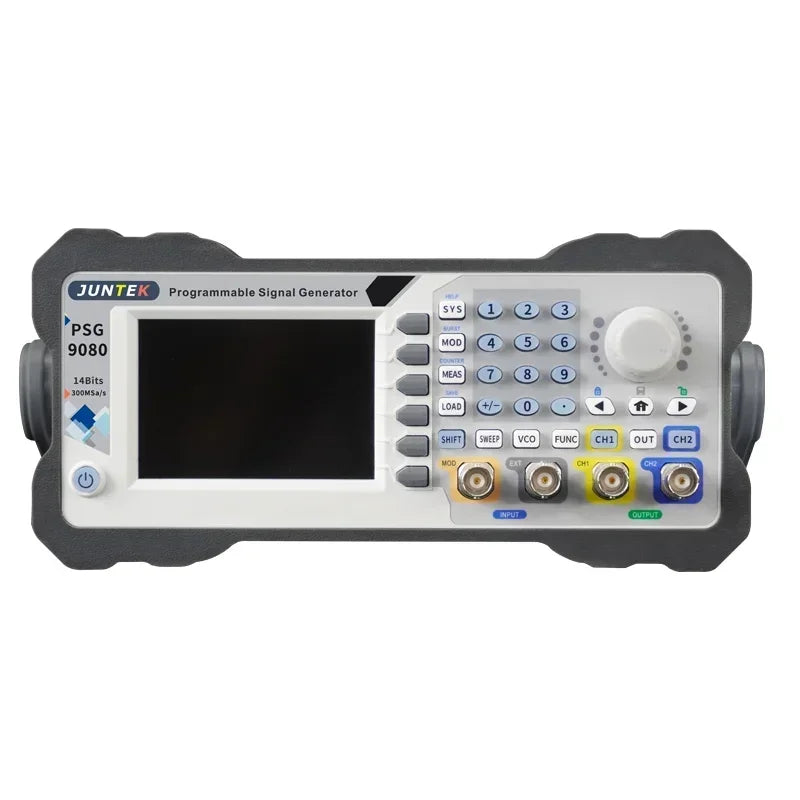

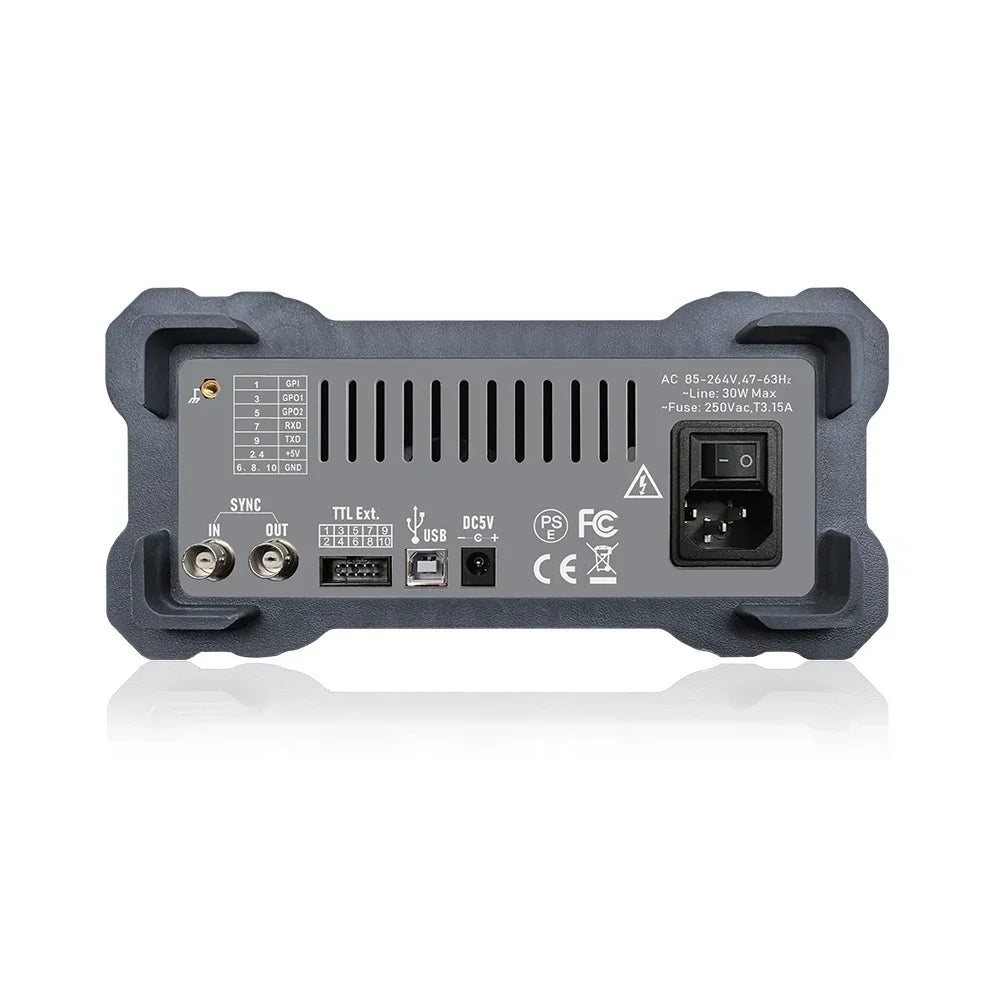

PSG9080 is the programmable function/arbitrary wave signal generator. It can output sine wave, square wave, triangle wave, waveform wave, and arbitrary wave, etc. The frequency range of the instrument is up to 80MHz, with modulation, frequency sweep, measurement signal frequency and programming functions, etc. It can simultaneously display the output signals, amplitude, phase, duty cycle and frequency. This series has excellent amplitude - frequency characteristics, multifunctional, high performance, cost effective, portable and other characteristics provide new options for education, research and development, production, testing and other industries. The instrument is exquisite in appearance and equipped with a 3.5-inch high-resolution color LCD screen to bring a new visual experience. |
►Programmable output:The type of waveform output (such as sine wave, square wave, triangle wave, arbitrary wave, etc.), output time, and output sequence can be freely formulated to realize automatic work.
►Firmware update in real time:Firmware upgrade can be updated at any time to fix bugs, or used for your special customization needs. Press the corresponding soft key to confirm entering the update mode, and perform a one-key firmware upgrade by connecting with the PC software.
►Voltage-controlled adjustment:The frequency, amplitude and duty cycle of the output can be controlled by an external analog voltage signal to achieve voltage-controlled sweeping frequency, sweeping amplitude and sweeping duty cycle, which are widely used in industrial debugging.
►Modulation function:The modulated waveforms can be output in single channel or dual channel. Modulation: The process of adding information from a signal source to the carrier to make it suitable for channel transmission. It is the technology that makes the carrier wave change with the signal.
►High sampling rate :The sampling rate of up to 300MSa/s can obtain more waveform data per unit time, thus making the displayed waveform more accurate.
►Personal color:In order to meet the personalized needs of customers, four color schemes for the system are provided. You can use the numeric keys and knob to select the desired system color, press the soft key save to save the selected color
►Equivalent performance dual channel output:The same or different function signals or arbitrary waveform signals can be output simultaneously; all parameters can be adjusted independently, the phase difference between the two channels is continuously adjustable from 0 to 359.9 degrees; the signal frequency can be up to 80MHz, and the output signal can be within 1MHz Up to 25Vpp.
►Burst function:Sine wave, square wave, saw tooth wave, or arbitrary wave can be used to generate burst signals, the number of periods is continuously adjustable between 1-1,000,000,000
►The waveform width can be adjusted accurately:The waveform width and the waveform period time of the waveform wave are digitally and accurately adjustable, enabling a wide range of waveform waveforms to be accurately set without jitter output.
►Can draw arbitrary waveform:PC software and communication protocol are provided for free, arbitrary waveforms can be drawn using the PC software; using the communication protocol can be secondary development programming; all functions of the instrument can be controlled by the PC software (The instrument can be also finished all operations without connecting to the computer.)
Model |
PSG9080 |
Channel |
2 |
Sine wave frequency |
1nHz-80MHz |
Sampling Rate |
300MSA/S |
Wave length |
8192 points/channel |
Waveform vertical resolution |
14 bits |
Wave type |
Sine wave, square wave, waveform wave (duty ratio, waveform width and cycle time can be precisely set), triangle wave, rising ramp, falling ramp, CMOS wave, DC level, half wave, full wave, positive step wave, Inverse staircase wave, exponential rise, exponential fall, Lorentz waveform wave, multisonic wave, random noise wave, trapezoidal waveform wave, Sinker waveform wave, and 99 sets of user-defined waveforms. |
Square wave |
1nHz-30MHz |
Triangle wave |
1nHz-50MHz |
Frequency resolution |
1nHz |
Rise/Fall Time |
≤10nS |
Amplitude range |
Frequency<1MHz,2mVpp-25Vpp 1MHz≤Frequency<11MHz,2mVpp-10Vpp 11MHz≤Frequency<60MHz,2mVpp-5Vpp 60MHz≤Frequency≤80MHz,2mVpp-3.6Vpp |
Amplitude resolution |
1mVpp |
Amplitude stability |
± 1% ±1mVpp (@ 1kHz,>10mVpp) |
Amplitude flatness |
Frequency≤10MHz:±1%(0.1dB) 10MHz 50MHz |
Offset range |
-9.99V-12.00V |
Offset resolution |
0.01V |
Phase adjustment range |
0 deg -359.9 deg |
Resolution |
0.1 deg |
Output impedance |
50 ohm (typical) |
Modulation type |
AM,FM,PM,ASK,FSK,PSK,PWM |
Trigger source |
Manual burst, CH2 burst, external burst (AC), external burst (DC) |
Measurement function |
Frequency, positive and negative waveform width, period, duty cycle |
Counter range |
0-4294967295 |
Sweep function |
Sweep frequency, sweep amplitude, sweep duty |
Sweep mode |
Linear, logarithmic |
VCO function |
Frequency control, amplitude control, and duty cycle control |
Running mode |
Debugging,normal |
3.BNC male plug test lead 4.USB data cable
5.BNC to alligator clips test lead 6.Quick guide
