Juntek JDS6600 15-60MHz Dual-Channel DDS Function Generator

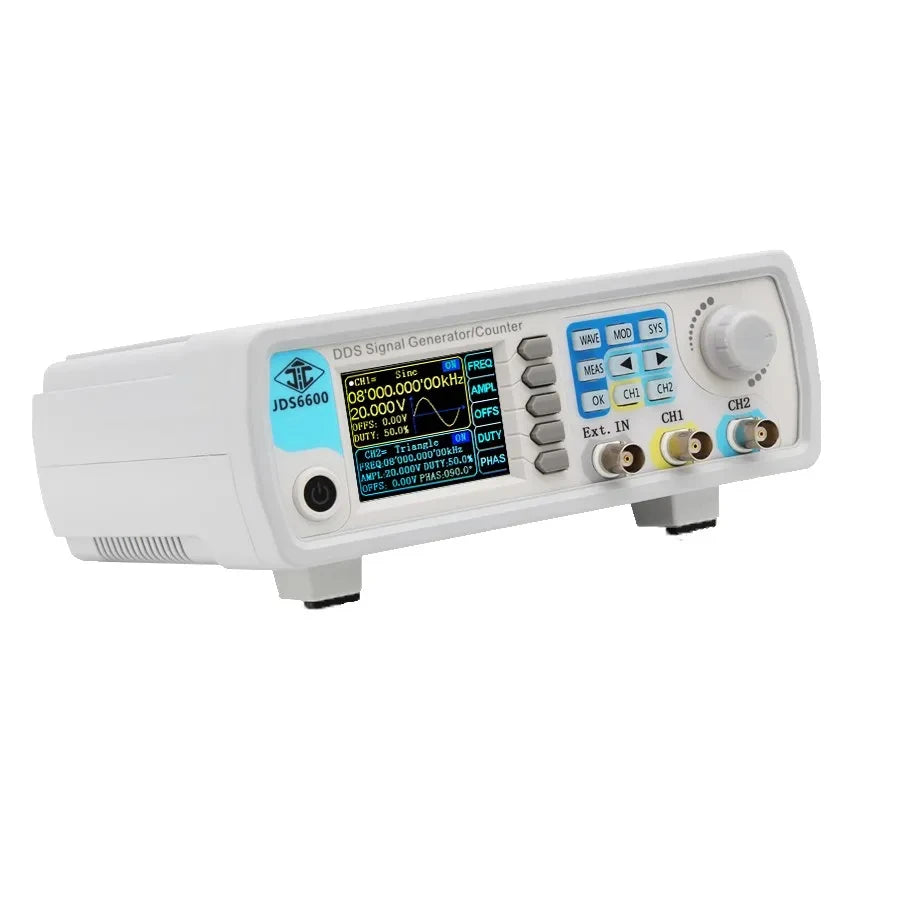

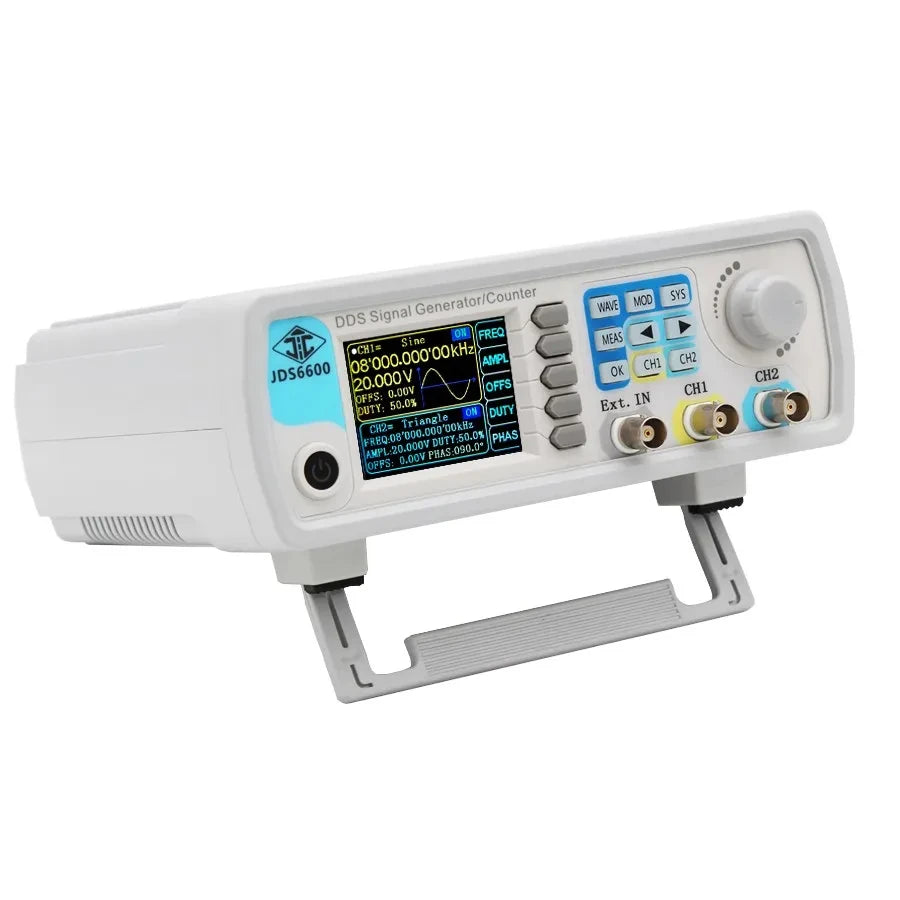

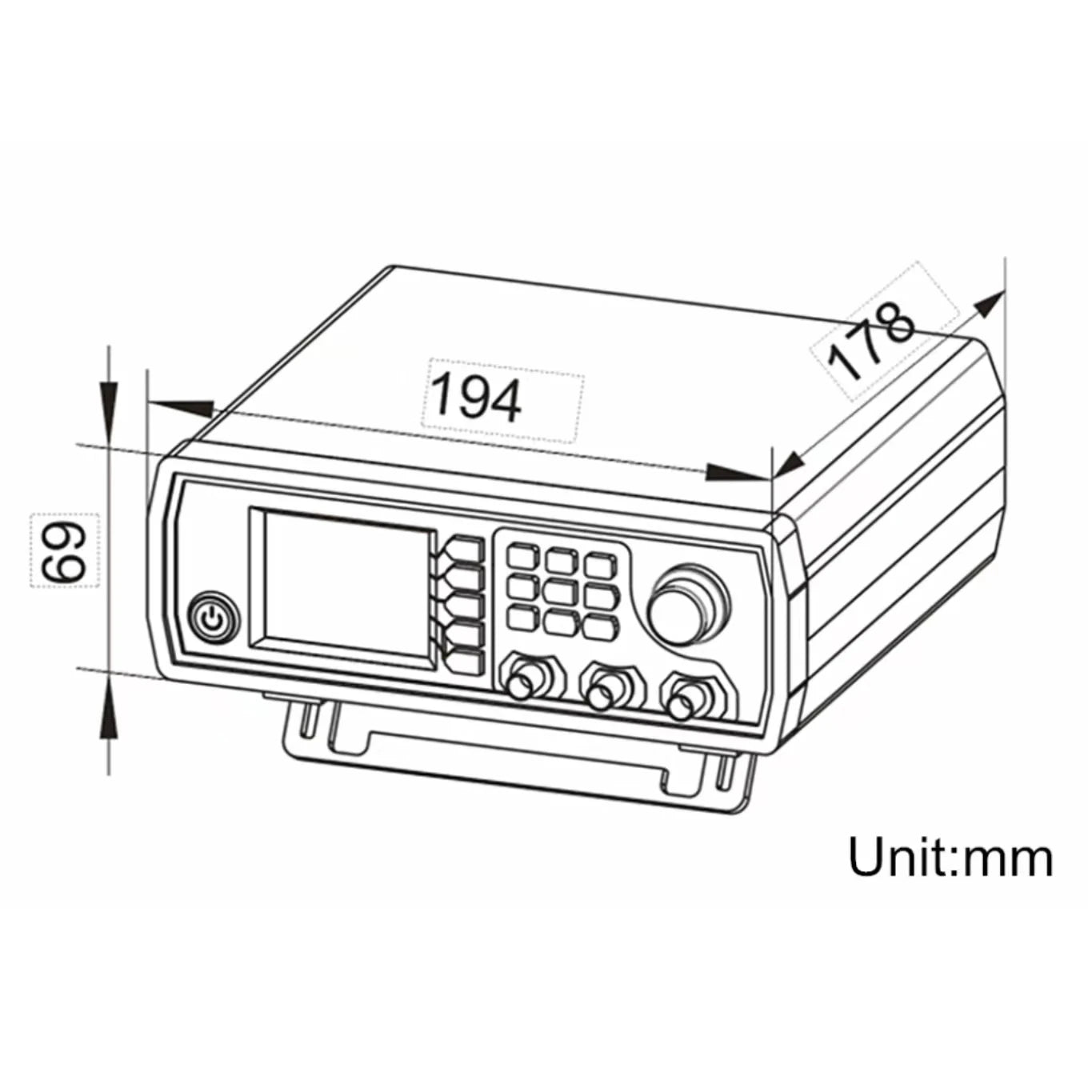

Juntek JDS6600 Dual-Channel DDS Function Generator

The JDS6600 is a dual-channel bench DDS function and arbitrary waveform generator. This listing includes 15M, 30M, 40M, 50M and 60M variants; the selected model determines the maximum sine-wave frequency.

Choose the Correct Frequency Version

• JDS6600-15M: sine output to 15 MHz.
• JDS6600-30M: sine output to 30 MHz.
• JDS6600-40M: sine output to 40 MHz.
• JDS6600-50M: sine output to 50 MHz.
• JDS6600-60M: sine output to 60 MHz.
• Across the series, square-wave output is specified to 15 MHz and pulse output to 6 MHz. Verify the selected variant before checkout.

Signal Capability

• Two independently controlled output channels with sine, square, triangle, pulse, partial sine, CMOS, DC level, ladder, noise, exponential, tone, sinc and Lorentz waveform options.
• 60 user-defined arbitrary-waveform locations, 2048-point waveform length and 12-bit vertical resolution.
• 0.01 microhertz frequency resolution; specified frequency accuracy of plus or minus 20 ppm and stability of plus or minus 1 ppm over 3 hours.
• 50-ohm typical output impedance, adjustable amplitude and DC offset; output level depends on selected frequency range and load.

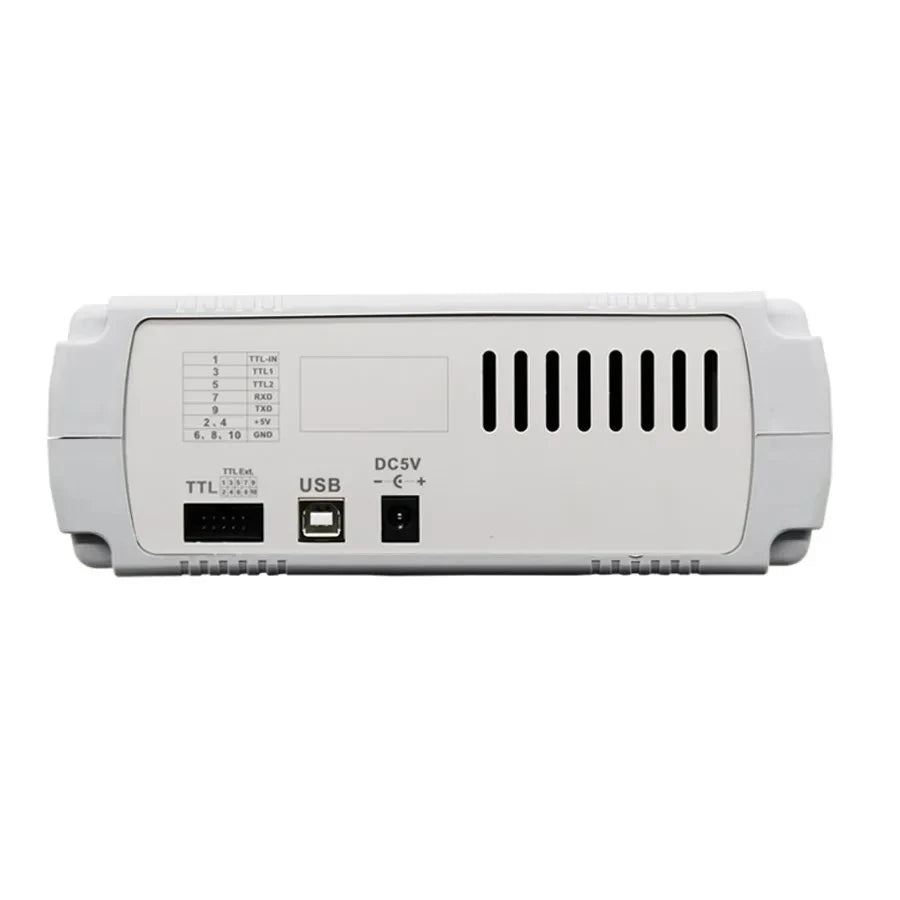

• Built-in frequency meter/counter, sweep, burst and modulation functions; USB-to-serial communication and TTL-level expansion interface.

Bench Use Notes

• Set the output amplitude for the actual circuit load. A high-impedance input and a 50-ohm terminated input will not show the same voltage.
• Check the selected channel, waveform, offset, frequency and amplitude before connecting a circuit under test.
• Use the supplied 5 V power arrangement and normal bench safety practice. This is a low-voltage laboratory signal source, not a mains-power supply or radio transmitter.

Package Note

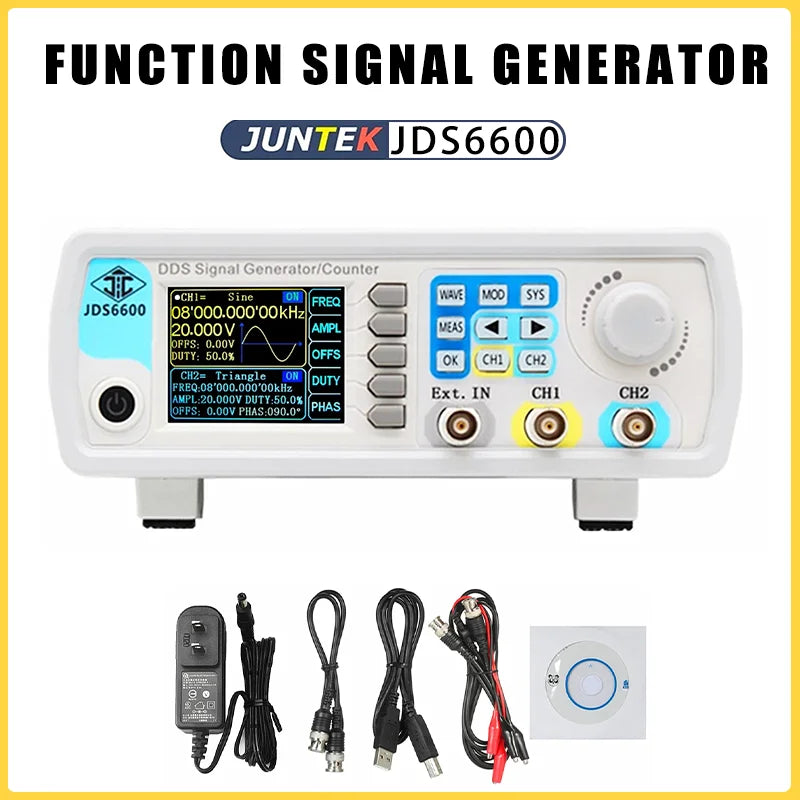

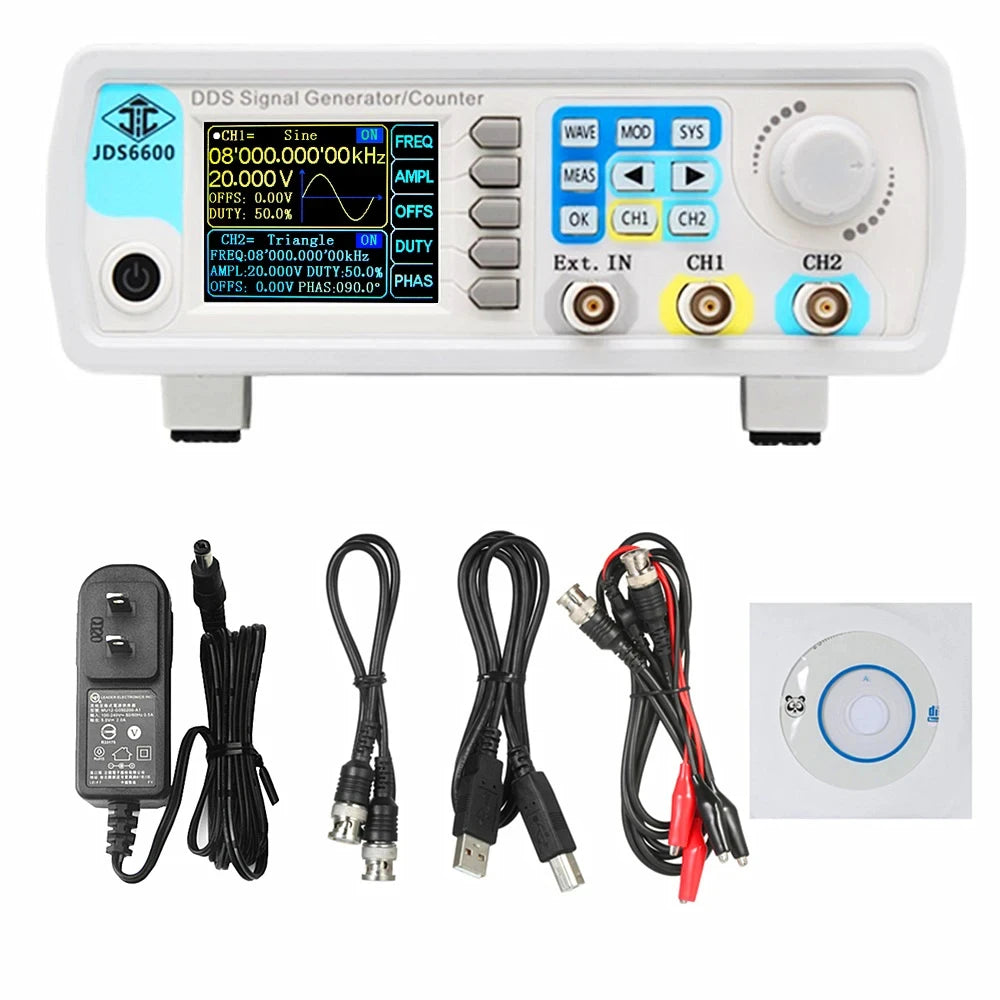

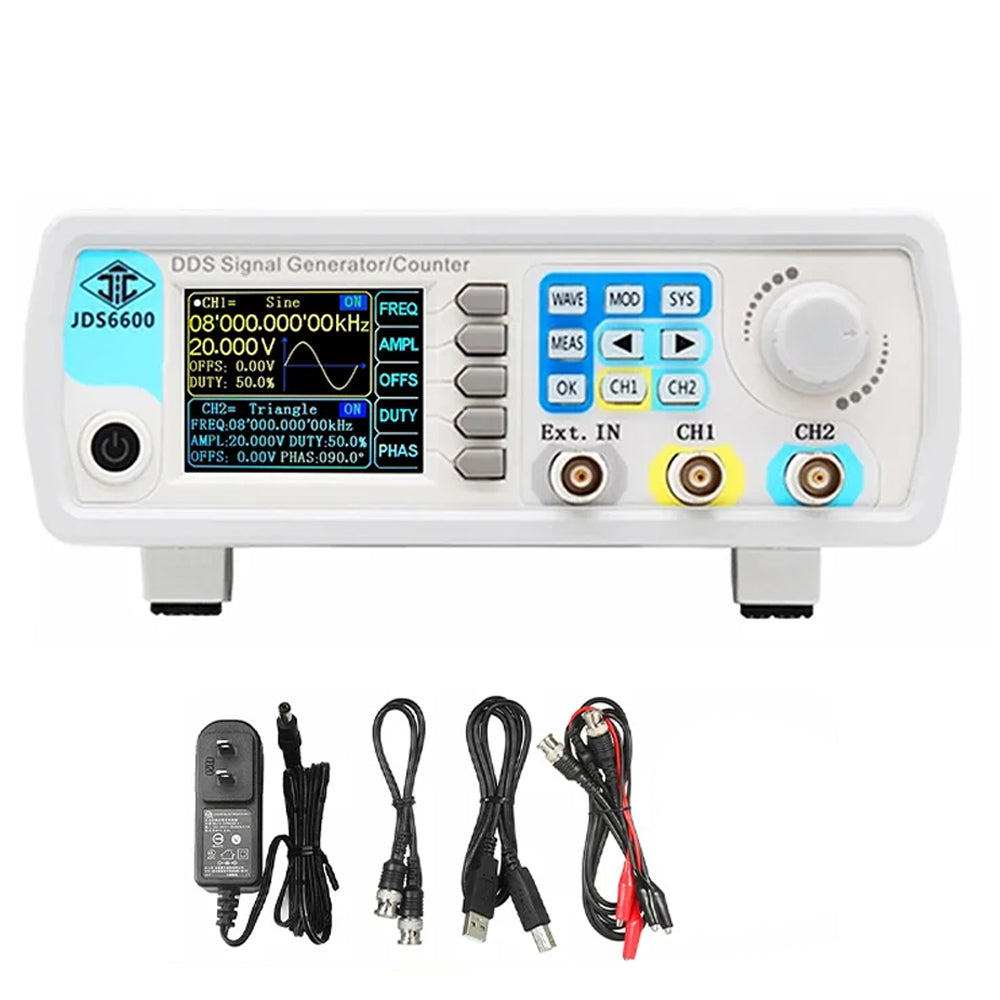

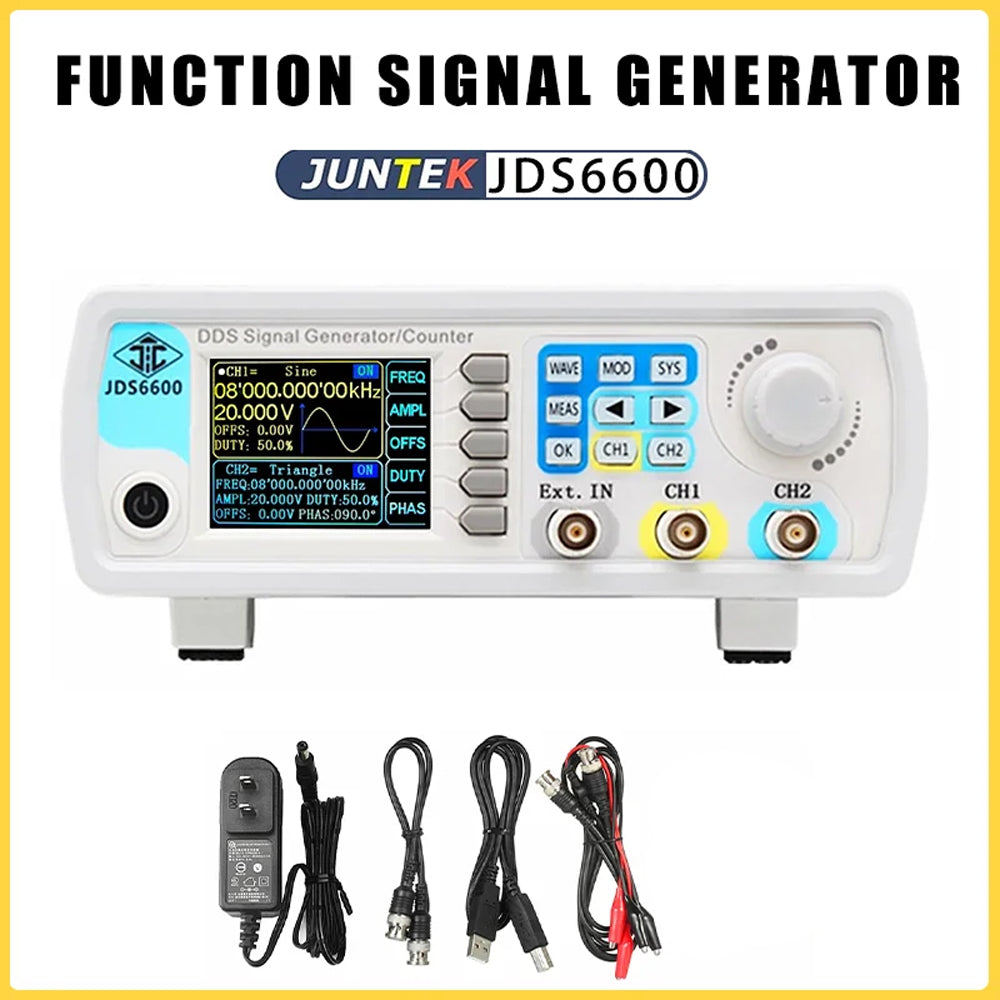

Package contents follow the selected listing and delivered configuration. Confirm included cables and power accessories when a particular bench setup depends on them.
