The HV-1 is a small high-voltage arc generator supplied as either an assembled ignition module or a DIY soldering kit, depending on the selected option. It is intended for controlled electronics experiments and ignition demonstrations by experienced users.
Listed Specifications
- Input voltage: DC 3-5V.
- Input current requirement: up to 3A; listed operating current no more than 2.5A.
- Operating method: self-excited oscillation boost.
- Operating frequency: approximately 20kHz.
- Listed arc length: approximately 5mm.
- Maximum continuous operating time: approximately 10 seconds.

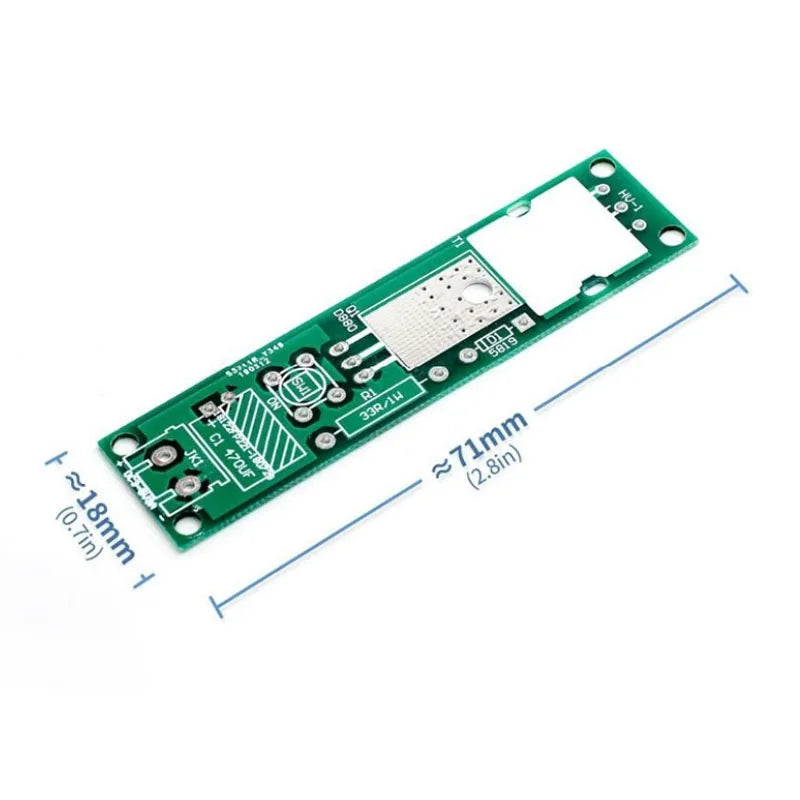

- Module dimensions: approximately 71 x 18 x 12mm.
Selection and Assembly

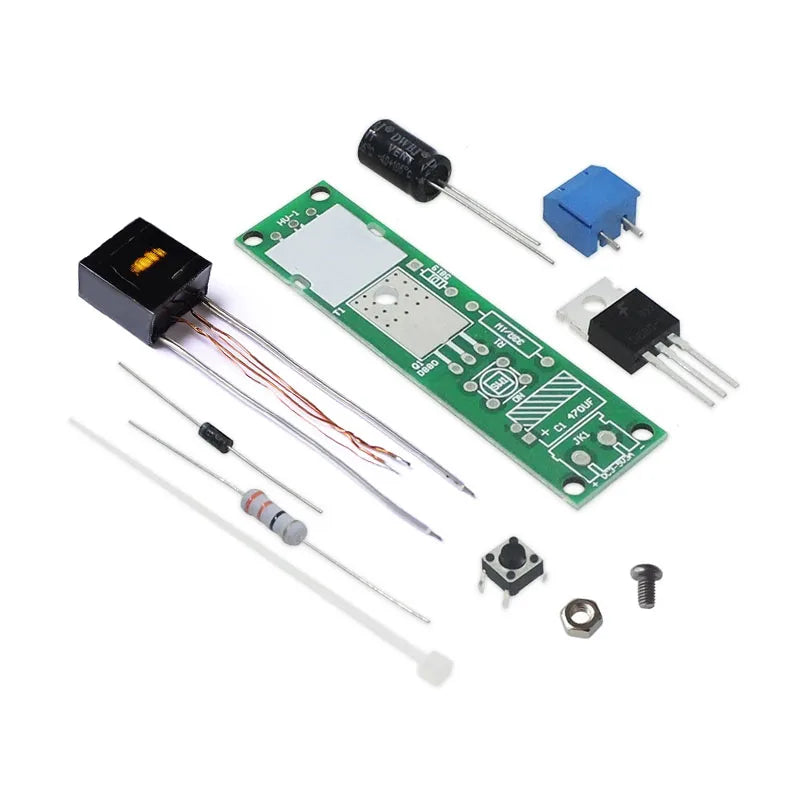

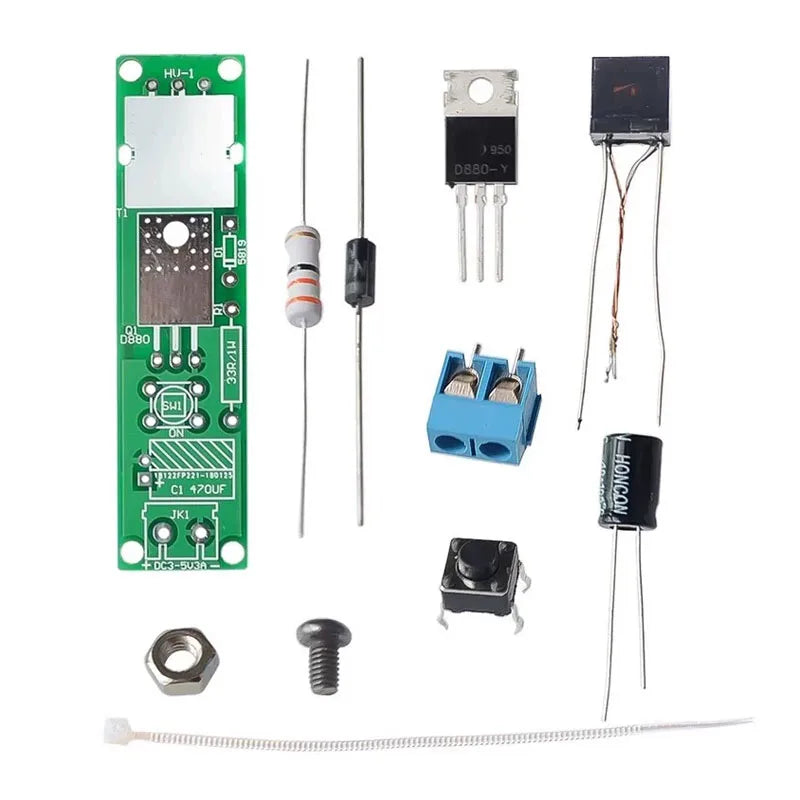

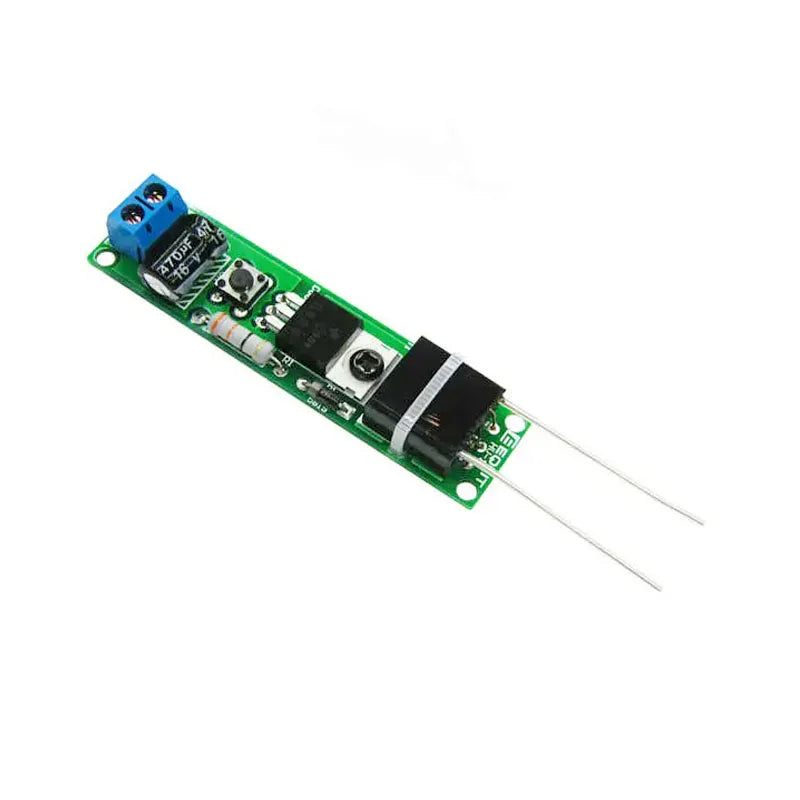

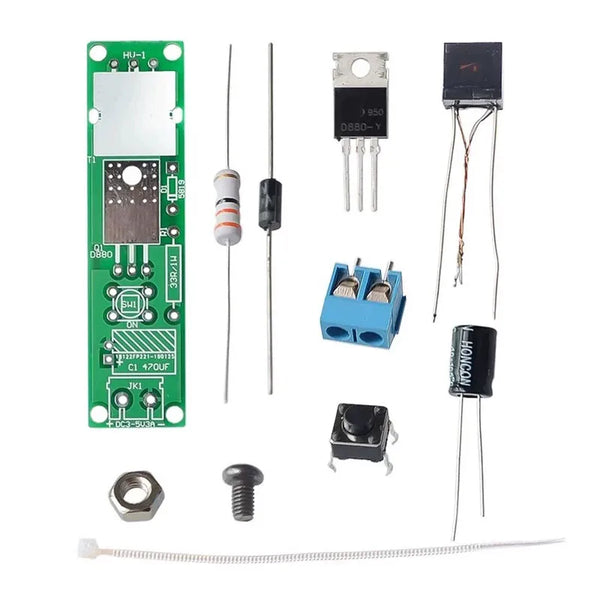

The DIY Kit option requires component identification, soldering, and inspection before power-up. Confirm polarity and use a current-capable 3-5V supply. The Arc Ignition option is the assembled configuration shown in the selected variant.
High-Voltage Safety
The output can cause painful shock, burns, ignition, and damage to nearby electronics. Do not touch the output, operate near flammable materials, use around medical implants, or leave the module energized unattended. Enclose and insulate the high-voltage section before practical use, and allow the module to cool between short operating cycles.
