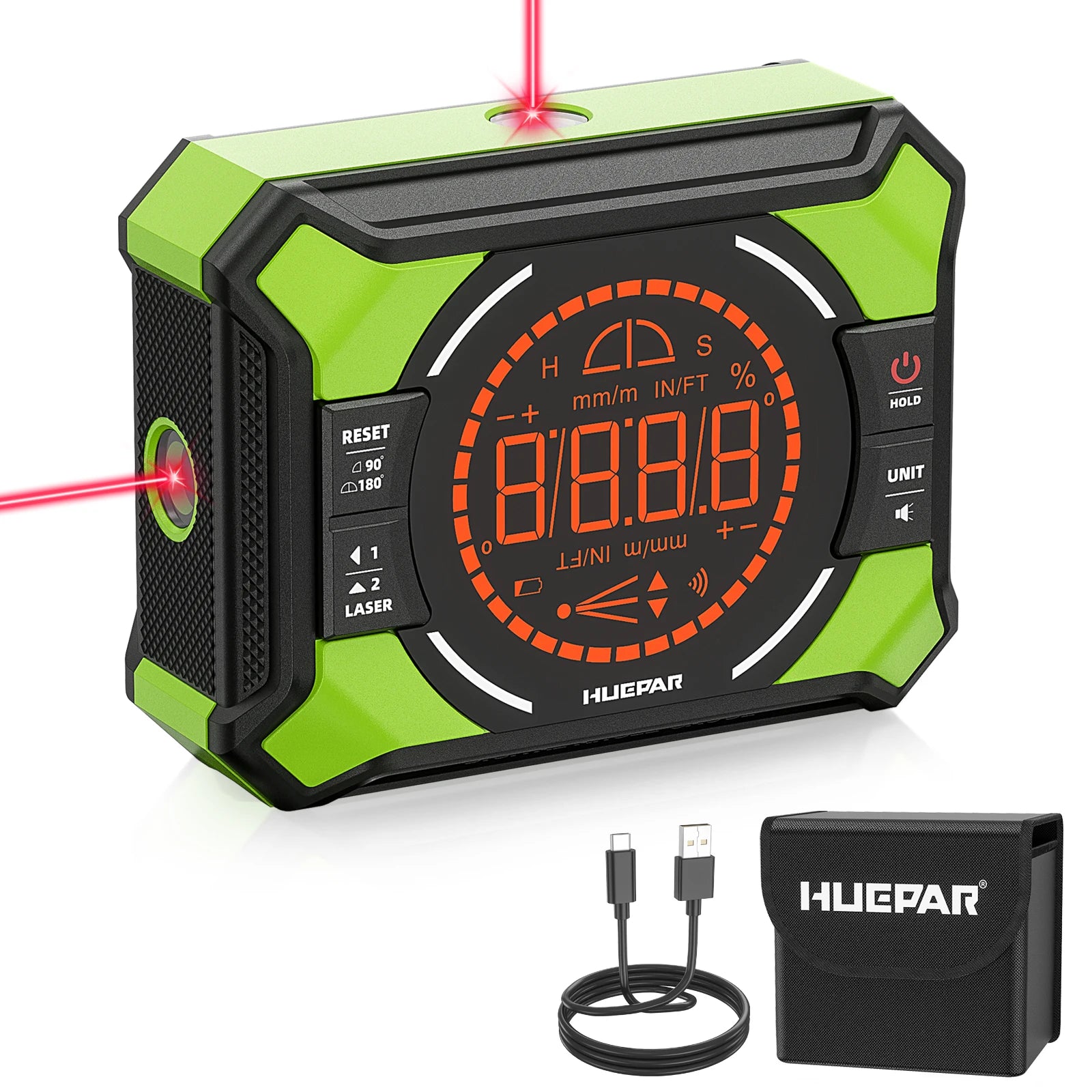

Huepar AG2L Digital Angle Gauge with Line Laser

The Huepar AG2L combines a digital level, angle gauge and two-beam line laser in a compact magnetic tool for setup, alignment, installation and workshop measurement tasks.

Angle Measurement

• Measurement ranges: 4 x 0 to 90 degrees and 2 x 0 to 180 degrees.
• Resolution: 0.05 degrees from 1 to 99.9 degrees; 0.1 degrees from 100 to 180 degrees.
• Angle accuracy: +/- 0.1 degrees at 0, 90 and 180 degrees; +/- 0.2 degrees at other angles.

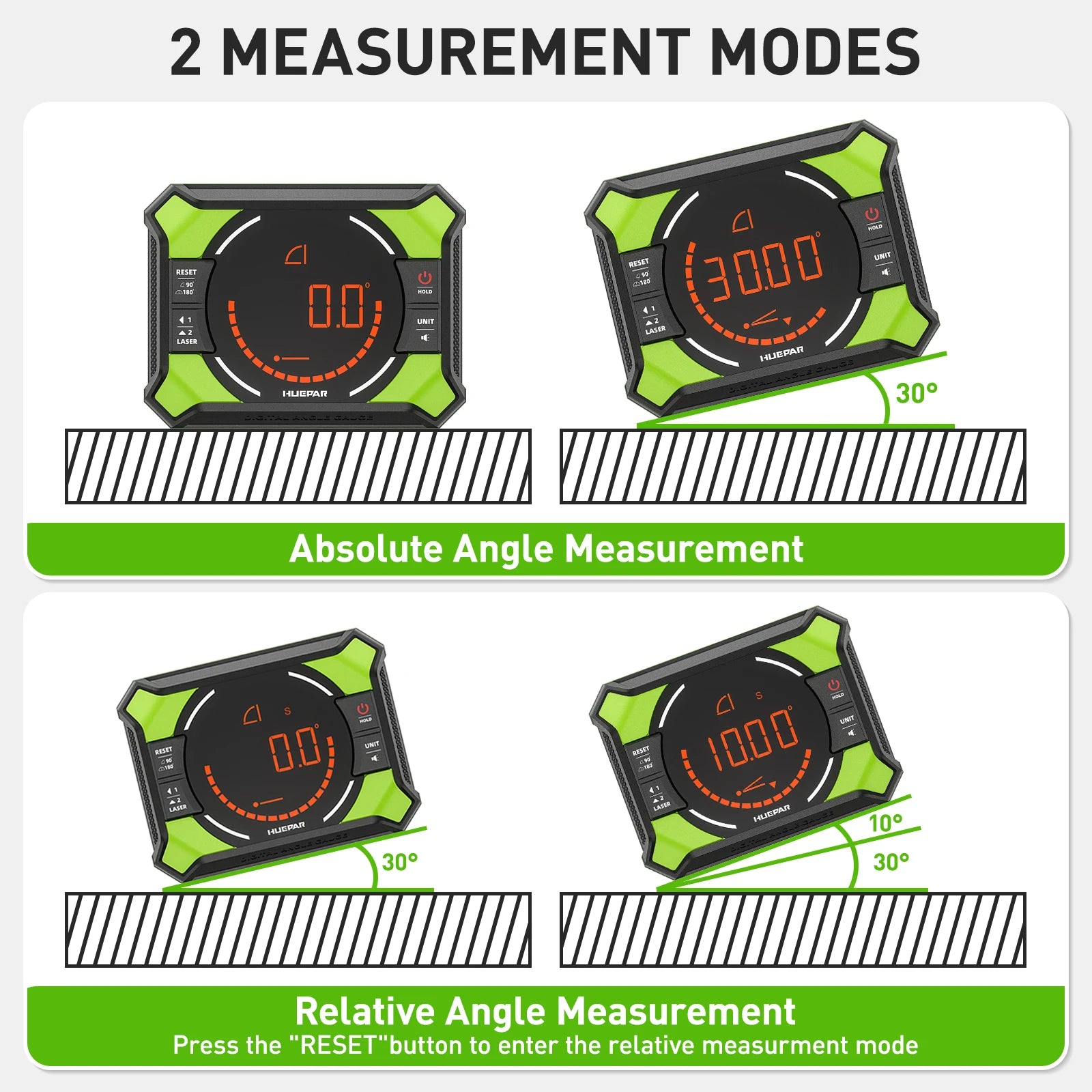

• ABS and REF measurement modes, with hold, unit conversion and calibration functions.
• Audible alert when the tool is within +/- 1 degree of horizontal or vertical.

Laser and Mounting

• Horizontal and vertical line projection; laser accuracy listed as +/- 1 mm/m.
• Class 2 laser, below 1 mW output.

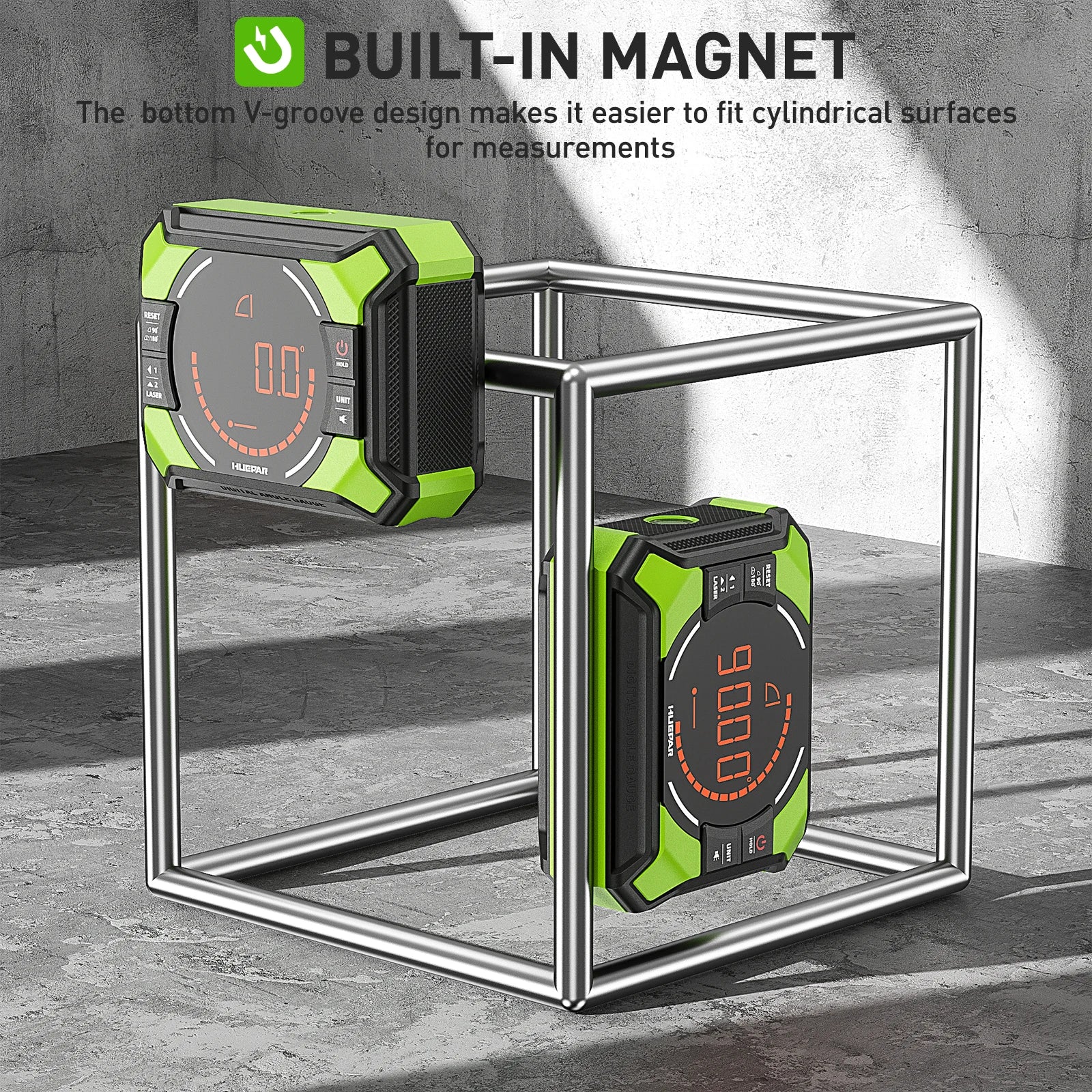

• Strong magnets on the base and back, plus a V-groove for attachment to round pipe.
• Compact format for confined installation and alignment work.

Power and Use Notes

• Built-in 650 mAh rechargeable battery with Type-C charging.
• Listed operating time: up to 14 hours for angle measurement; combined two-line laser and angle measurement can reduce operating time to about 4 hours.
• Listed operating temperature: 0 to 40 C.
• Use normal Class 2 laser safety precautions.
