Heltec Meshtastic T114 V2 Tracker Nordic nRF52840 SX1262 LoRaWAN LoRa Arduino 1.14 Inch Display Devboard Low Power TFTBLE

Heltec Meshtastic T114 V2 Tracker Nordic nRF52840 SX1262 LoRaWAN LoRa Arduino 1.14 Inch Display Devboard Low Power TFTBLE

Details and Specifications

• Who is this product for? It is intended for makers, embedded developers and IoT prototyping teams.
• What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
• Introduction and Operation Video of Mesh Node T114 Development Board
• Why do we need Maker series products?
• Low Power Chracteristics

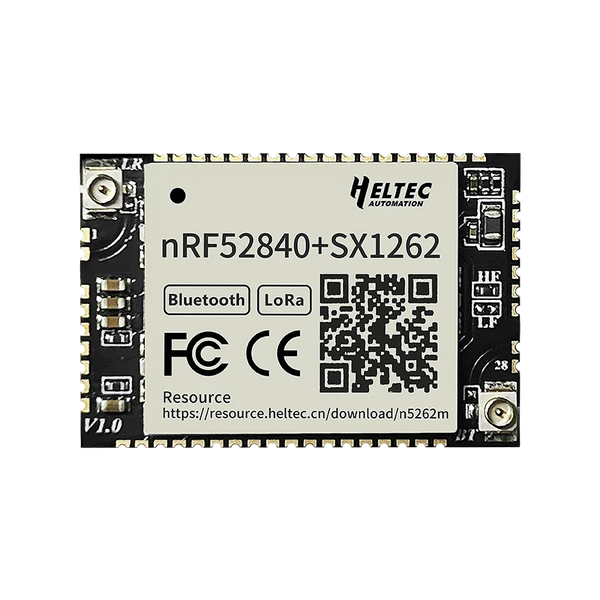

• The Mesh Node T114 features a dual-chip combination of nRF52840 and SX1262, simultaneously
• supporting both LoRa and Bluetooth communication, with optional GPS and display modules; it achieves
• flexible power management via USB, lithium battery, and solar panel interfaces, and exhibits superior
• low-power characteristics compared to the Heltec V3; its six-layer PCB architecture and optimized RF
• circuit design make it especially suitable and durable for LoRa/LoRaWAN applications such as device
• tracking and remote monitoring systems; and finally, the T114 enables development through environment
• like Arduino and PlatformIO, offering full compatibility with well-known open-source projects like
• Meshtastic and MeshCore

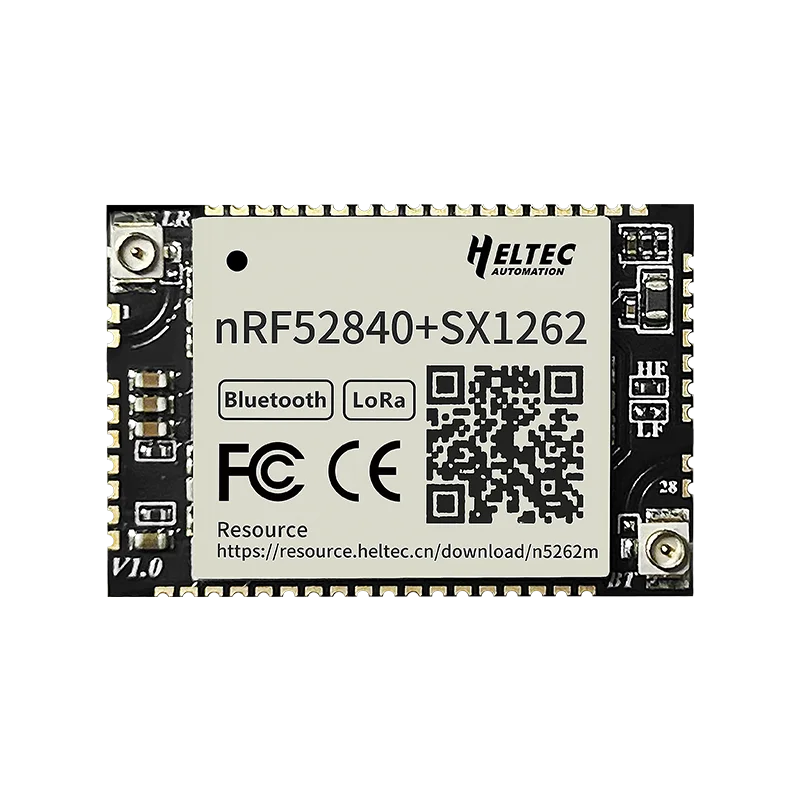

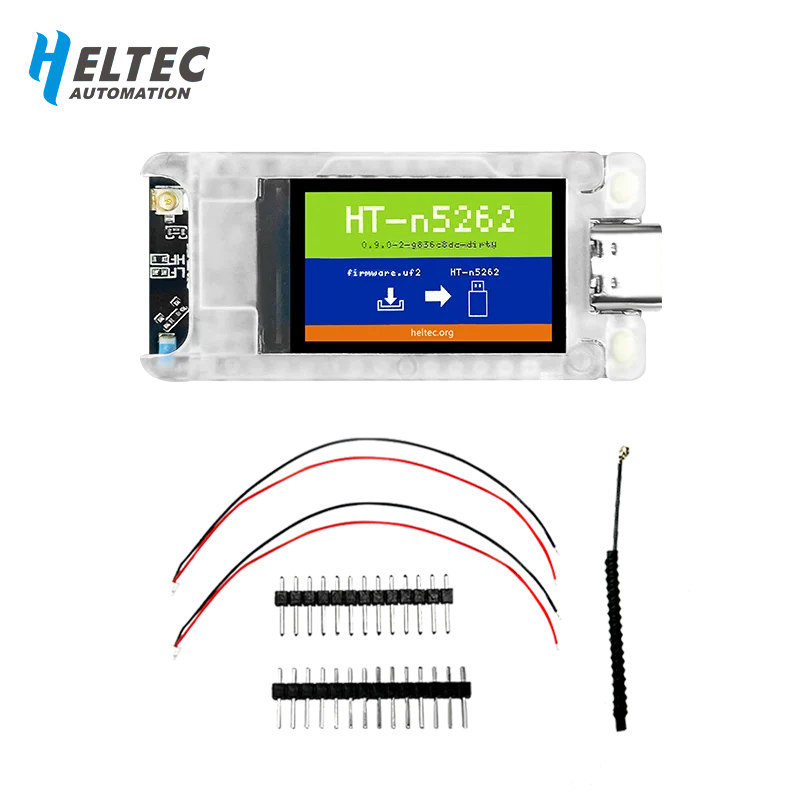

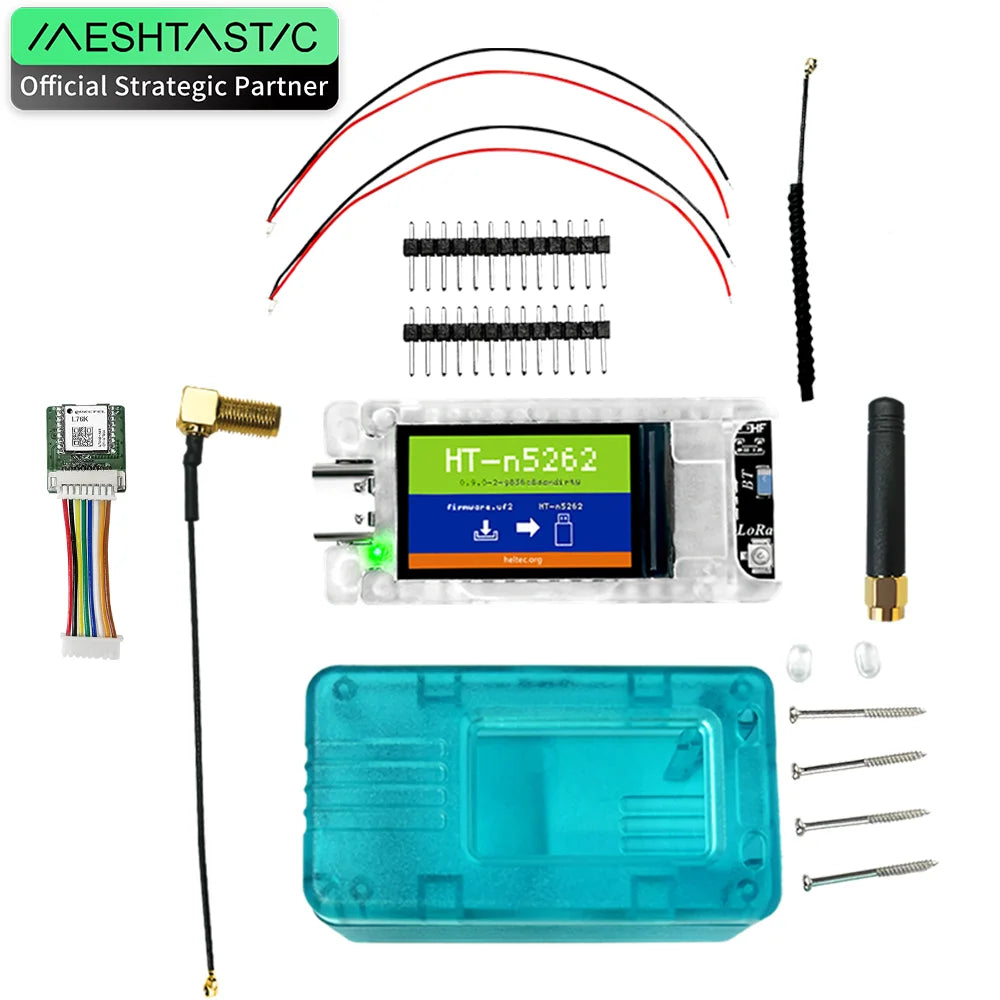

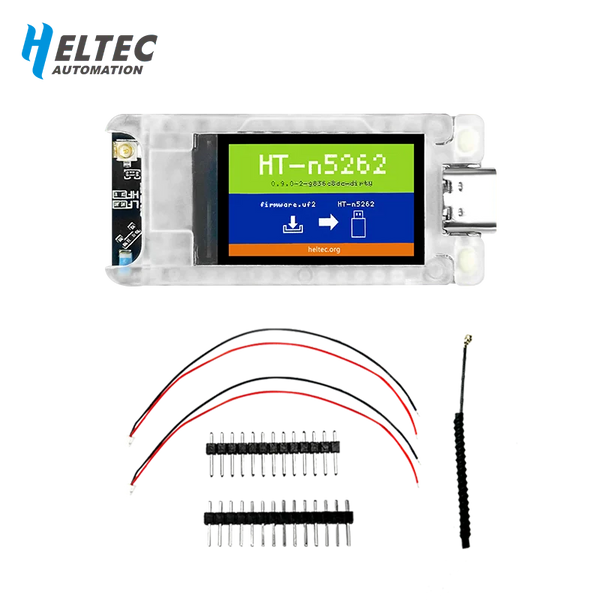

• MCU nRF52840 (Bluetooth), LoRa chipset SX1262.
• Powerful display function (optional), onboard 1.14 inch TFT-LCD display contains 135(H)RGB x240(V) dots and can display up to 262k colors.
• Low power consumption, 11 uA in deep sleep.
• Powerful display function, onboard 1.9-inch TFT-LCD display contains 170 (RGB)X320 dots and can display up to 262k colors.
• Operation condition: -20 - 70 deg C, 90%RH(No condensing).
• Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
• Compatible with Arduino, we provide development frameworks and libraries.

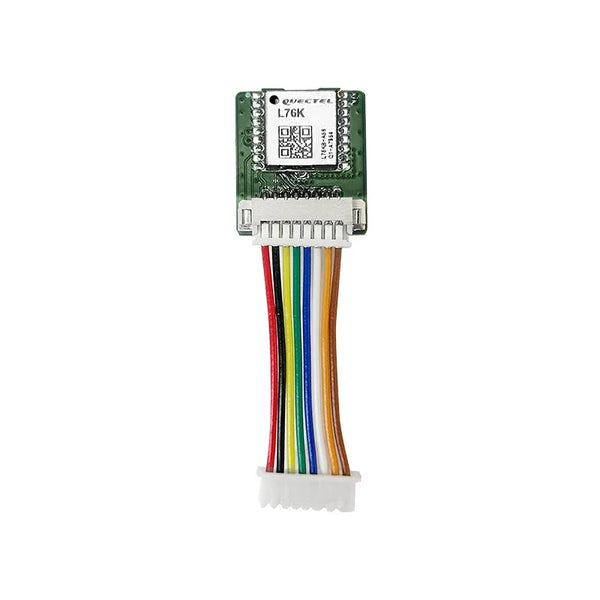

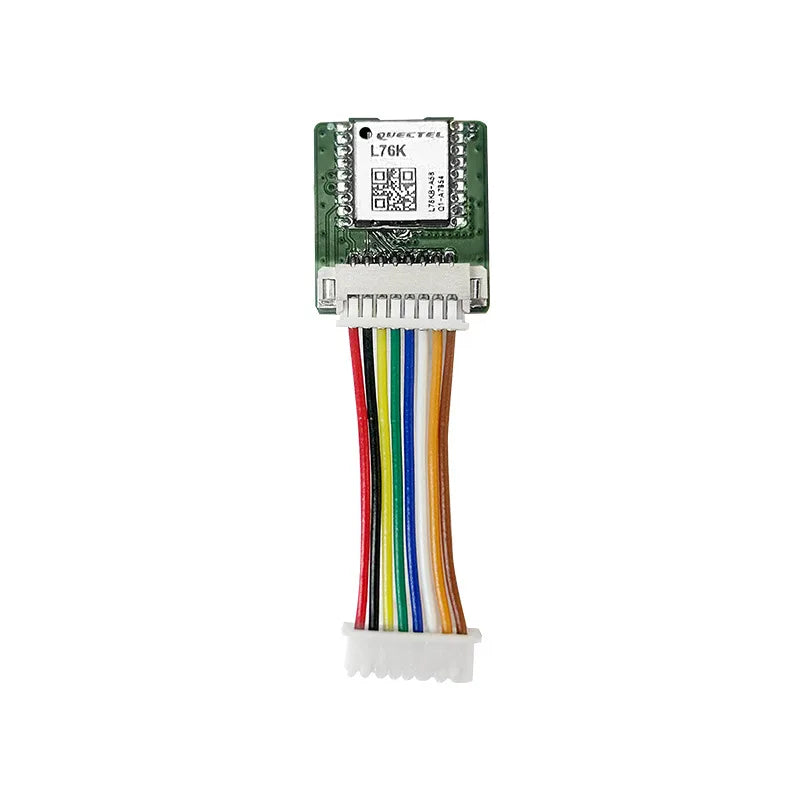

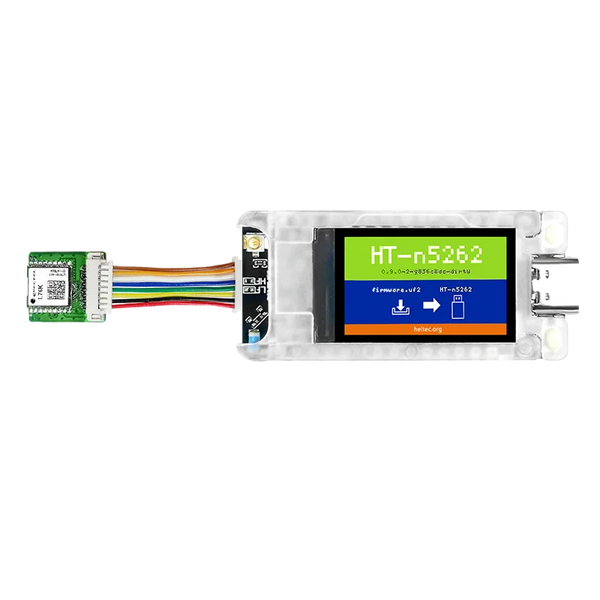

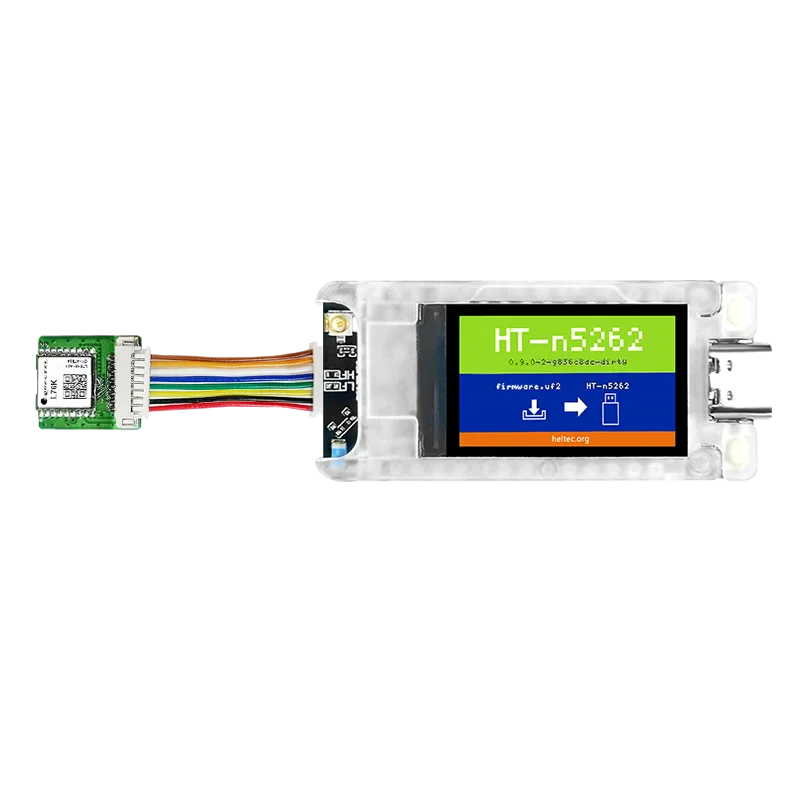

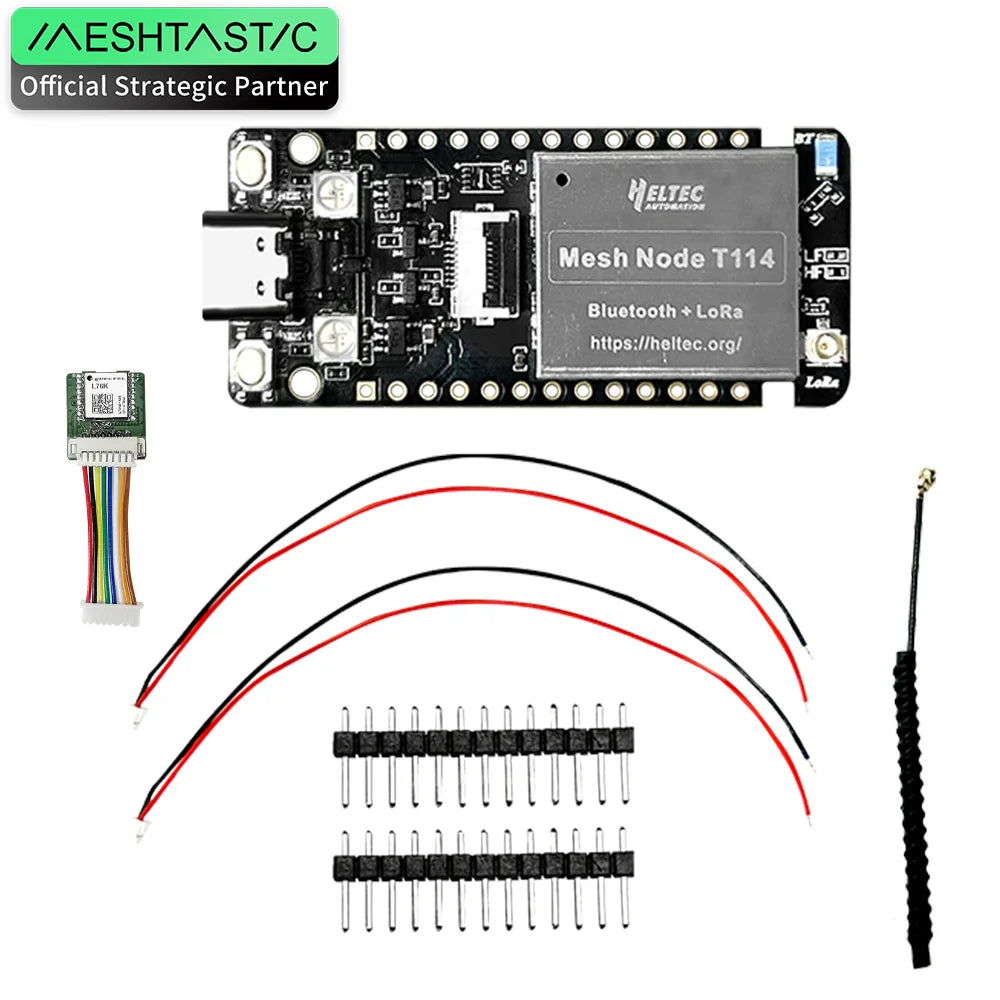

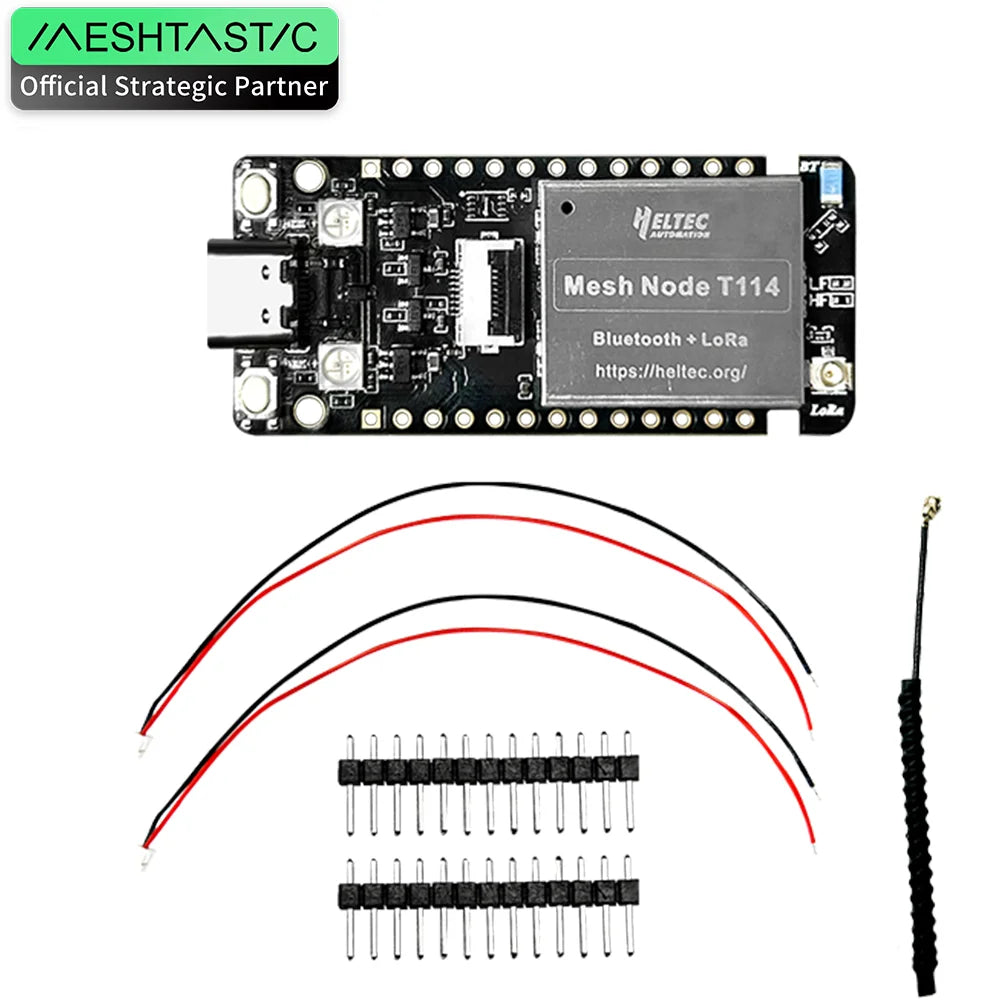

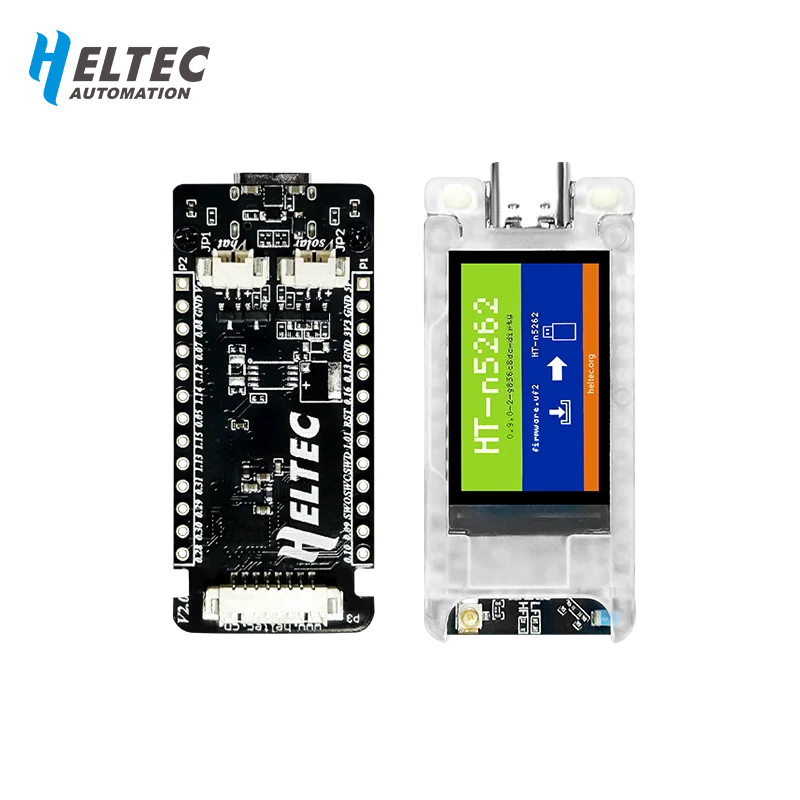

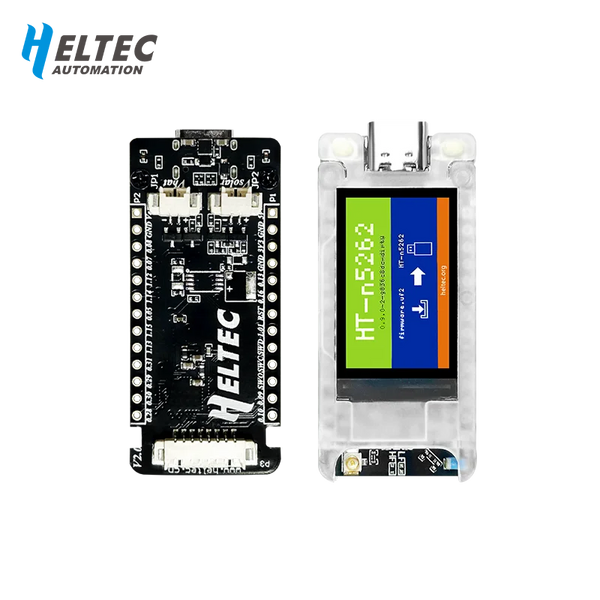

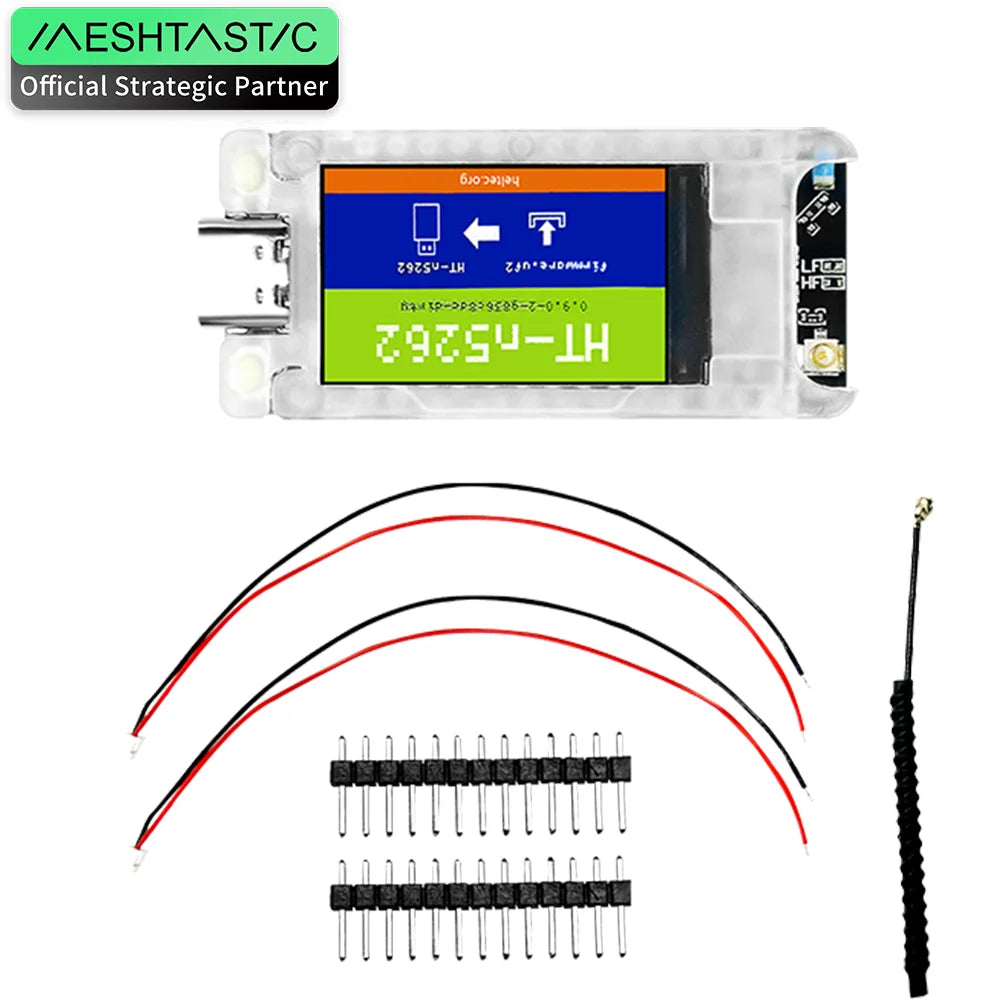

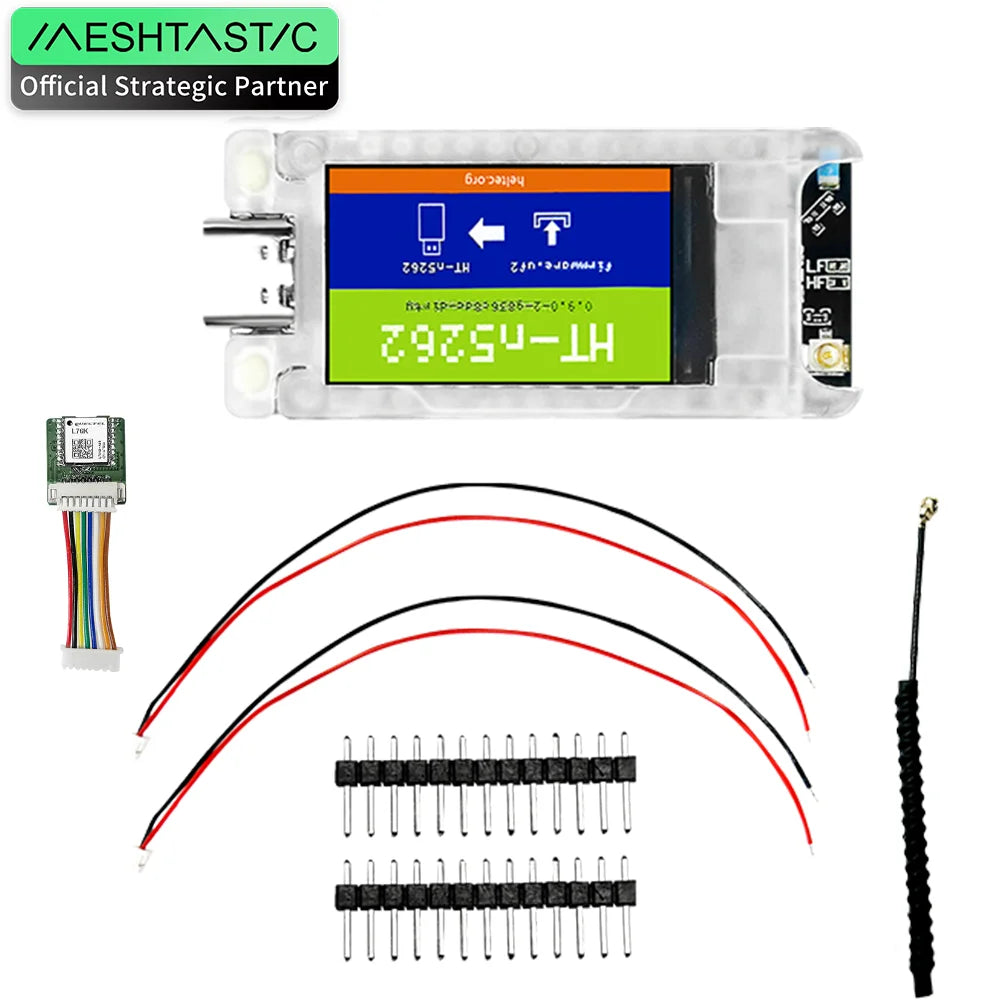

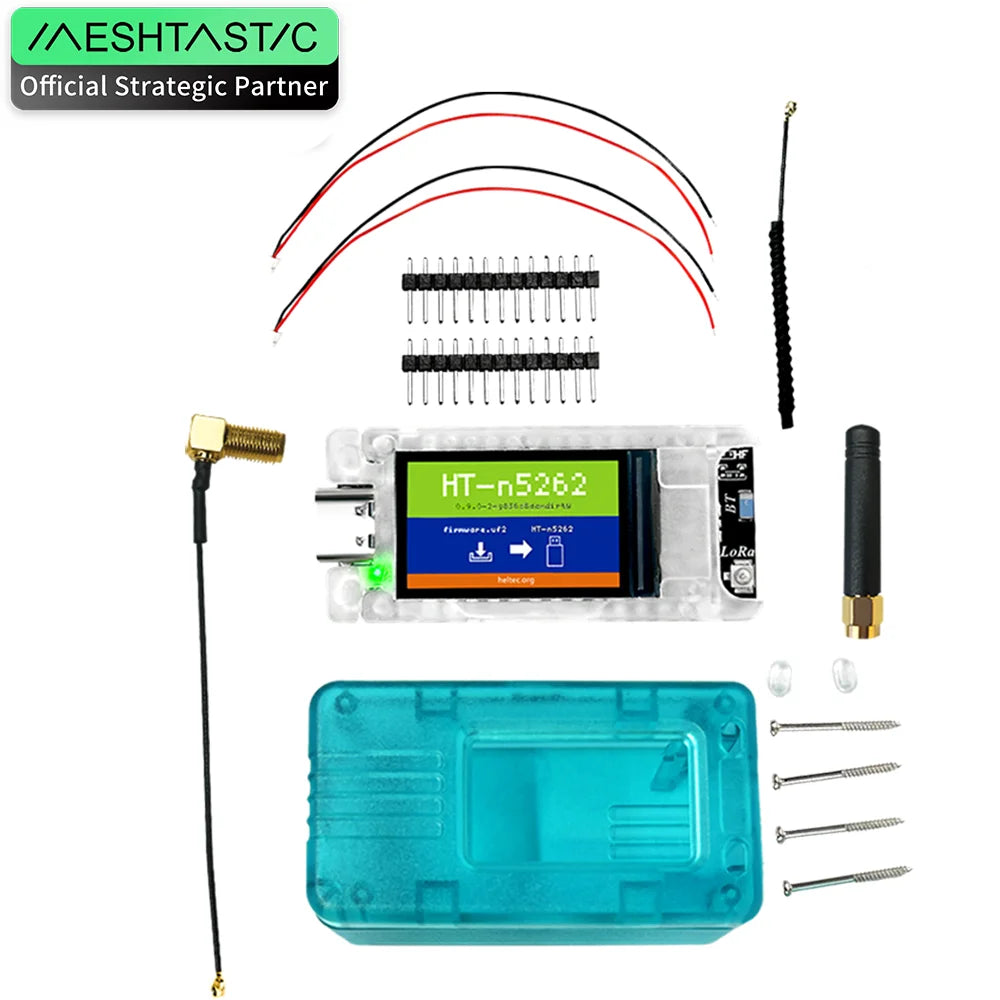

• Various Interfaces: 1.25*2P LiPo connector, 1.25*2P Solar panel connector, 1.25*8P GNSS module connector, which greatly increase the extensibility of the board.
• ·[Resource] -https://github.com/HelTecAutomation/Heltec_nRF52
• ·[Attachment] -https://platform.snapemu.com/user/login
• ·[Attachment] - https://resource.heltec.download/Mesh_Node_T114/MeshNode-
• T114_V2.0_SCH(2).pdf
• ·[Attachment] - https://resource.heltec.download/Mesh_Node_T114/Datasheet.pdf
• ·[Attachment] - https://resource.heltec.download/Mesh_Node_T114/1.14inch%20LH114T-
• IF03%20VER%20C.pdf
• ·[Resource] - https://resource.heltec.download/Mesh_Node_T114
• Dimension
• nRF52840
• LoRa Node Chip
• SX1262
• Frequency
• 470-510MHz,;
• 863-870MHz;
• 902-928MHZ.
• Max. TX Power
• 21±1dBm
• Max. Receiving sensitivity
• -135dBm@SF12 BW=125KHz
• Bluetooth
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• USB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC Etc.
• Memory
• 1M ROM
• 256KB SRAM
• Interface
• Type-C USB
• 2*1.25 lithium battery connector
• 2*1.25 solar panel connector
• LoRa ANT (IPEX1.0)
• 8*1.25 GPS module connector
• 2*13*2.54 Header Pin
• Battery
• 3-4.2V battery power supply and charge.
• Operating Temperature
• -20 - 70 deg C
• 50.80*22.86mm
• Low Power Consumption in Deep Sleep
• 11uA
• Display
• onboard 1.14 inch TFT-LCD display
