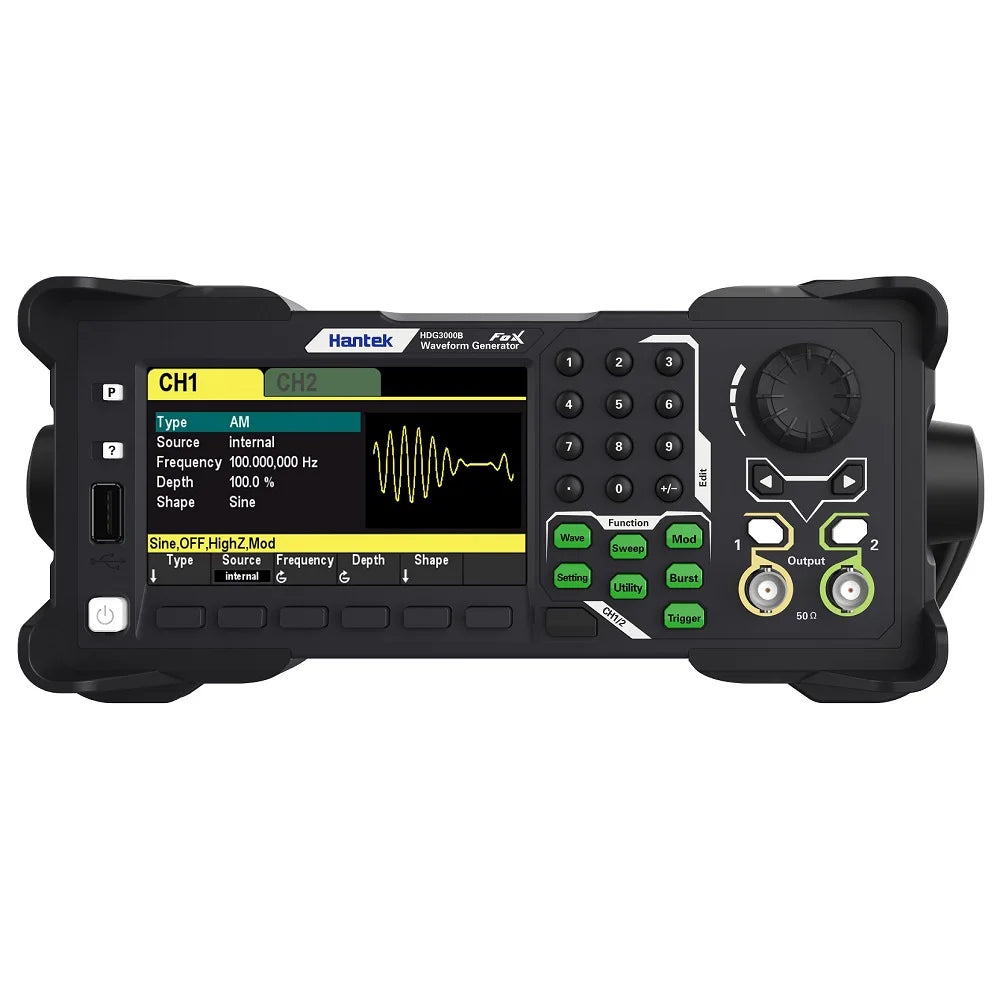

Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + detail image 2

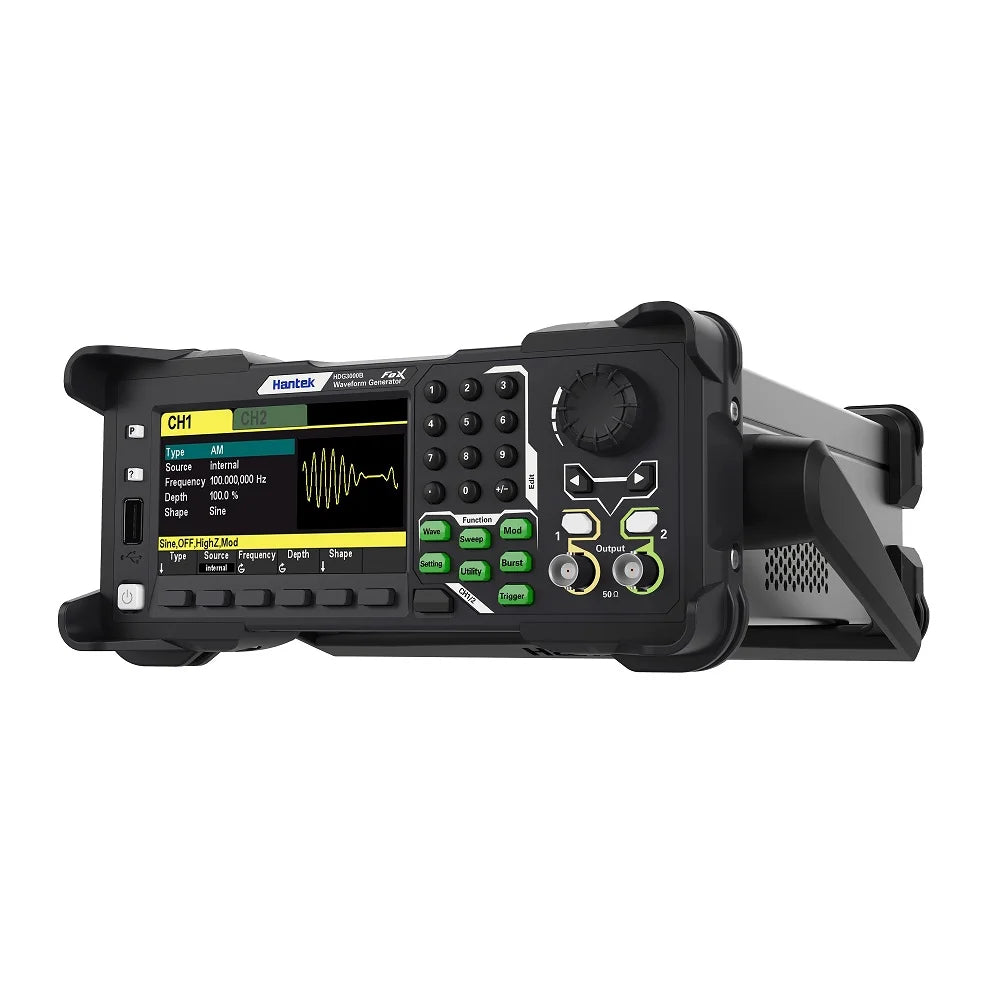

Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + detail image 3

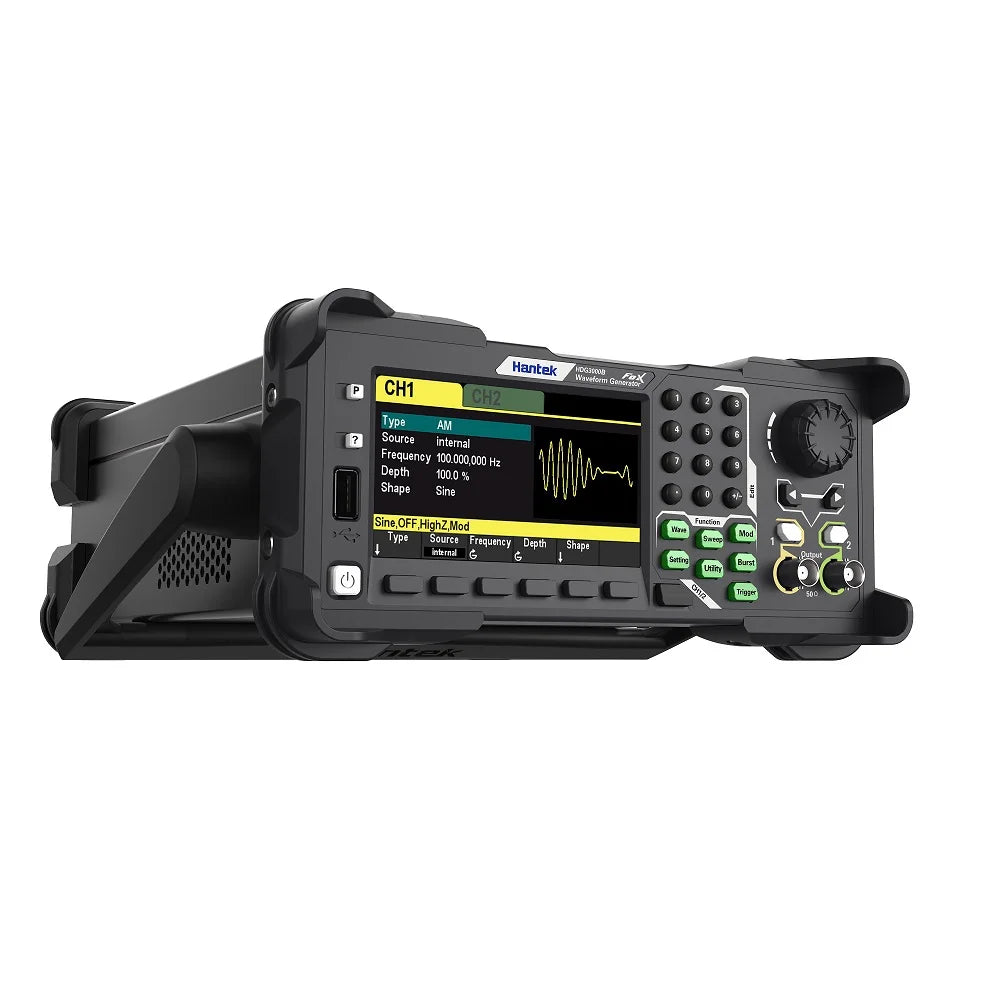

Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + detail image 4
Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + detail image 5

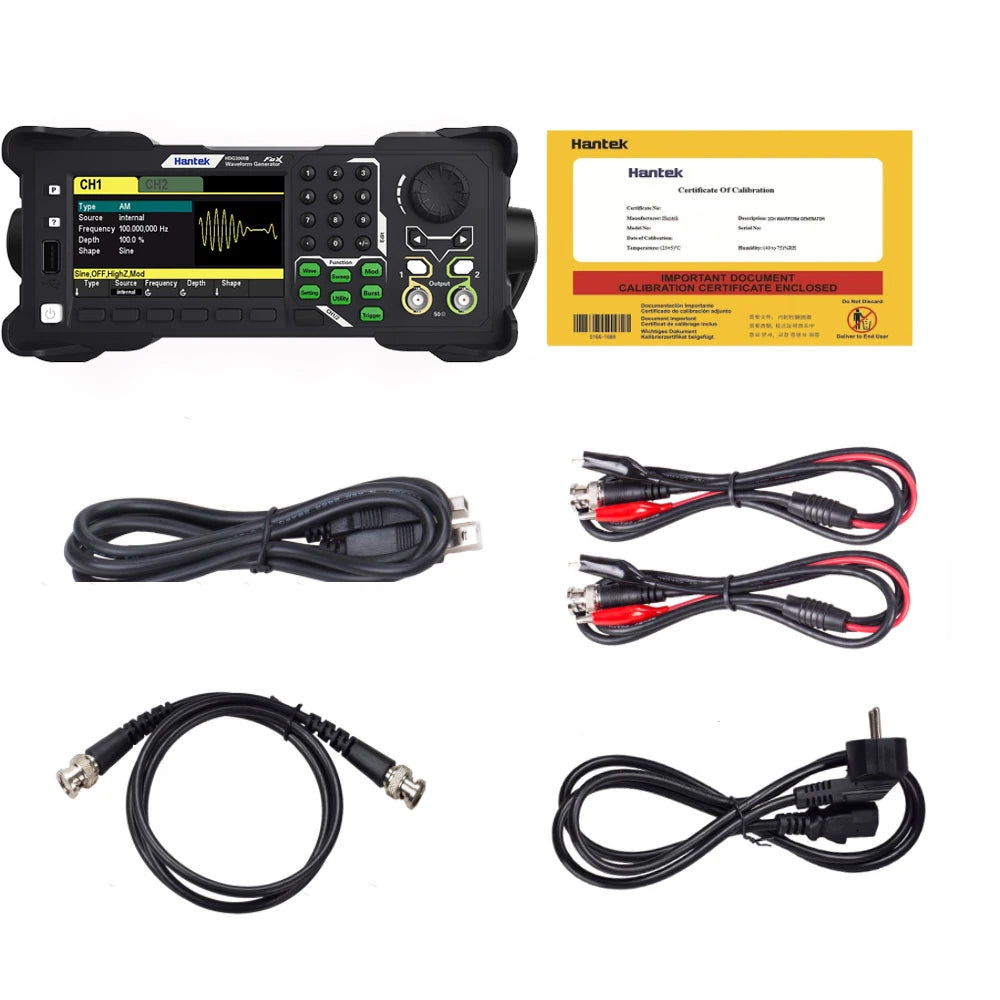

Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + detail image 6
Click image to open expanded view
Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + Harmonic Gener product image
Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + detail image 2
Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + detail image 3
Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + detail image 4
Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + detail image 5
Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + detail image 6

Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + Harmonic Generator + Frequency Meter

Sale price
$283.99
List price
$319.37
You save
$35.38 (12%)

Prices include VAT and any applicable duties.

Color:HDG3012B 15MHZ
Ships From:Standard
In stock, usually dispatched in 2-3 business days.

Product Summary

Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + is a signal generator selected for generating test waveforms for circuit debugging and calibration. It is suitable for engineers, students and electronics labs who need practical electronics hardware for reliable project work.

Best For

  • generating test waveforms for circuit debugging and calibration
  • oscilloscopes, amplifiers, filters and analog circuit projects
  • Electronics testing, repair, prototyping and maker workflows

FAQ

Who is this product for? It is intended for engineers, students and electronics labs.

What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

Hantek HDG3000B sets Digital Arb Waveform Generator 2CH DDS Frequency Meter 300MSa/s Function Signal Generator

Features

1.HDG3000B series integrates5 functionsofarbitrary waveform generator,waveform generator,80MHz frequency meter,function generator and harmonic generator.

2.UsingDDSdirect digital frequency synthesis technology.

3.Up to300MSa/ssampling rate,16bitsvertical resolution to ensure the accuracy of waveform amplitude.

4.Equivalent performance dual-channel as standard,equivalent to two independent signal sources.

5.The storage depth of up to2Mensures the creation of more waveform cycles and the creation of better waveform details.

6.4.3-inch color TFT LCD display,the user interface is clear and intuitive.

7.Rich modulation functions,support AM,DSB-AM,FM,PM,ASK,FSK,PSK,BPSK,QPSK,3FSK,4FSK,OSK and PWM,etc.

8.Exponential rise,exponential fall,bioelectric signal,Gaussian,Haversine,Lorentz,DTMF,DC voltage,etc.A total of more than 160 kinds of arbitrary signals.

  • Frequency range: 1uHz - 100MHz/80MHz/60MHz/40MHz/25MHz/15MHz.

  • Up to 300MSa/s sampling rate, no distortion of analog waveforms.

  • 16-bit vertical resolution ensures the accuracy of waveform amplitude.

  • Equip with dual channels with equal performance, equivalent to two independent signal sources.

  • The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.

  • A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.

  • Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.

  • 1uHz frequency resolution: When the impedance is high, the amplitude range is 2mV-20Vpp. When the impedance is 50 ohm, the amplitude range is 1mV-10Vpp.

  • Built-in 80MHz high-resolution frequency meter.

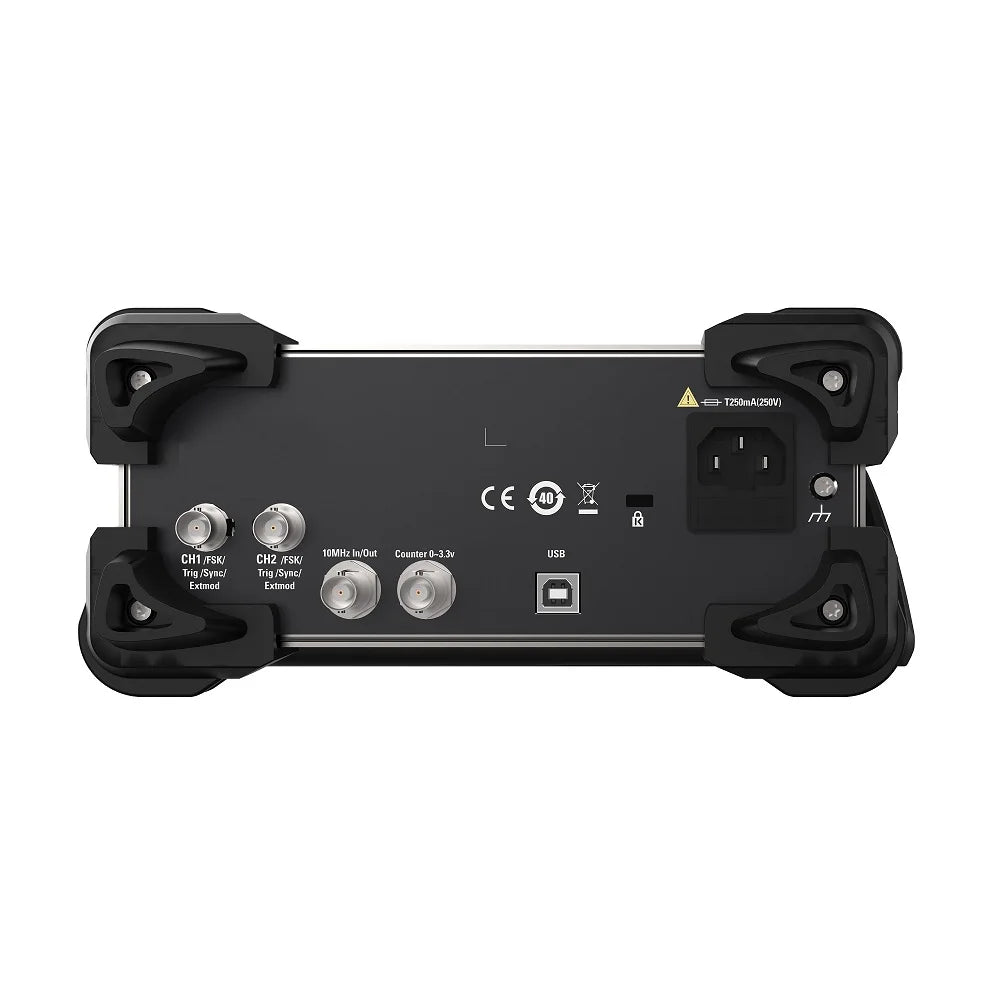

  • Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).

  • More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, bioelectric signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.

  • Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.
