Product Summary
Hantek 6254BE Digital Oscilloscope 4 Independent Channels, 1GSa/S High-Speed Real-Time is a digital oscilloscope selected for checking waveforms, debugging signals and validating circuit behavior. It is suitable for electronics repair technicians, lab users and embedded developers who need practical electronics hardware for reliable project work.
Best For
- checking waveforms, debugging signals and validating circuit behavior
- test leads, probes and bench electronics workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electronics repair technicians, lab users and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Feature
Standard equipped of automotive measurement function;
First analysis: Intake manifold vacuum & ignition,Petrol fumes adjusting valve vacuum & ignition,Idle exhaust ignition, Starting exhaust ignition
Ignition: primary and secondary
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
Bus analysis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
Performer: Petrol/Diesel
Starter and charging circuits
Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
USB 2.0 interface plug and play, and no need extra power supply;
Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 250MHz high bandwidth,
The waveform data could be output to EXCEL,BMP,JPG.
Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display. FFT spectrum analyzer
One computer could connect with multiple oscilloscopes, expand the channel number easily.
Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples

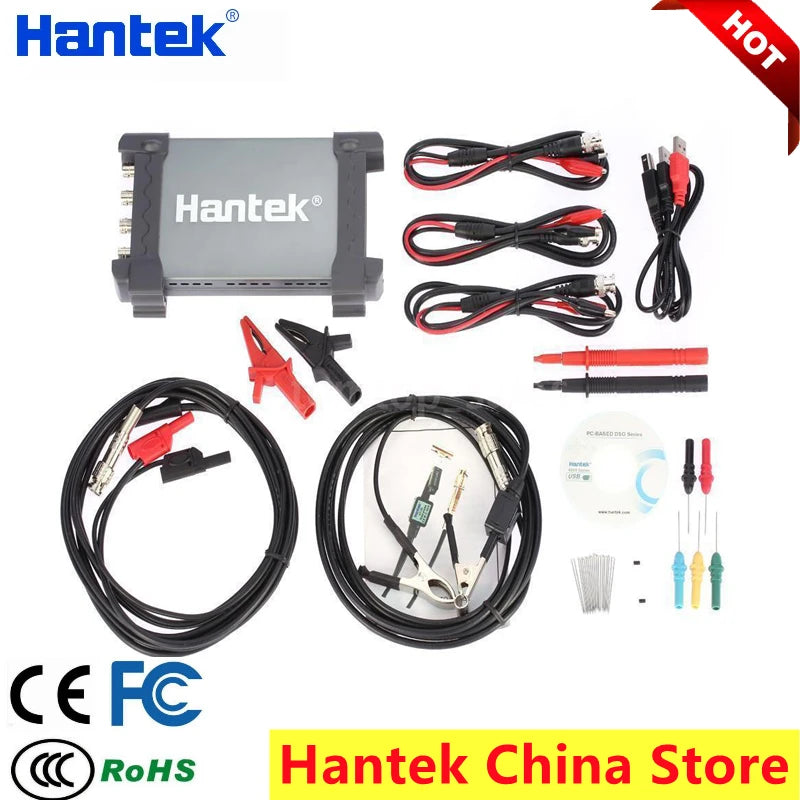

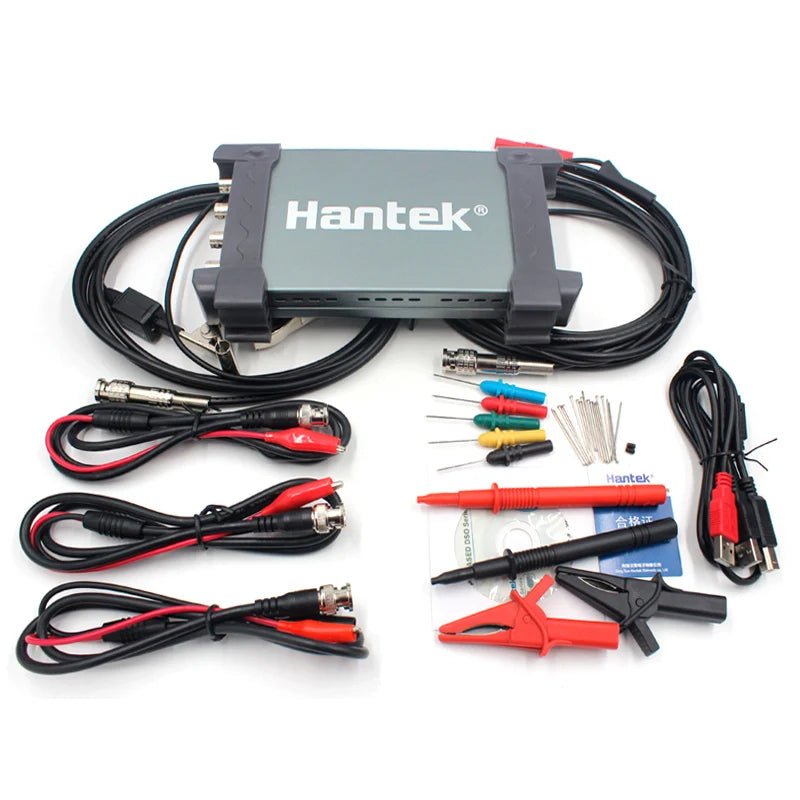

Accessory:
Model |
Hantek6254BE |
Bandwidth |
250MHz |
Channel |
4 CH |
Real-time Sampling Rate |
1GSa/s |
Memory Depth |
64K |
Time Base Precision |
±50ppm |
Time Base Range |
2ns/div-1000s/div (1-2-4 sequences) |
Input Impedance |
1M ohm 25pF |
Input Sensitivity |
2mV/div-10V/div |
Vertical Resolution |
8Bit |
Vertical Displacement Range |
2mV - 10V/div @ x1 probe; 20mV - 100V/div @ x10 probe; |
200mV - 1000V/div @ x100 probe; 2V - 10000V/div @ x1000 probe | |
DC Gain Accuracy |
±3% |
Bandwidth |
20MHz |
Trigger Mode |
Edge, waveform, Video, Alternative |
Trigger Source |
CH1, CH2, CH3,CH4 |
Waveform Signal Process |
+,-,x,÷,FFT, Invert |
Cursors Measurement |
Cross, Trace, Horizontal, Vertical |
Auto Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
Volume |
175mm * 105mm * 25mm |
Weight |
0.9KG |
