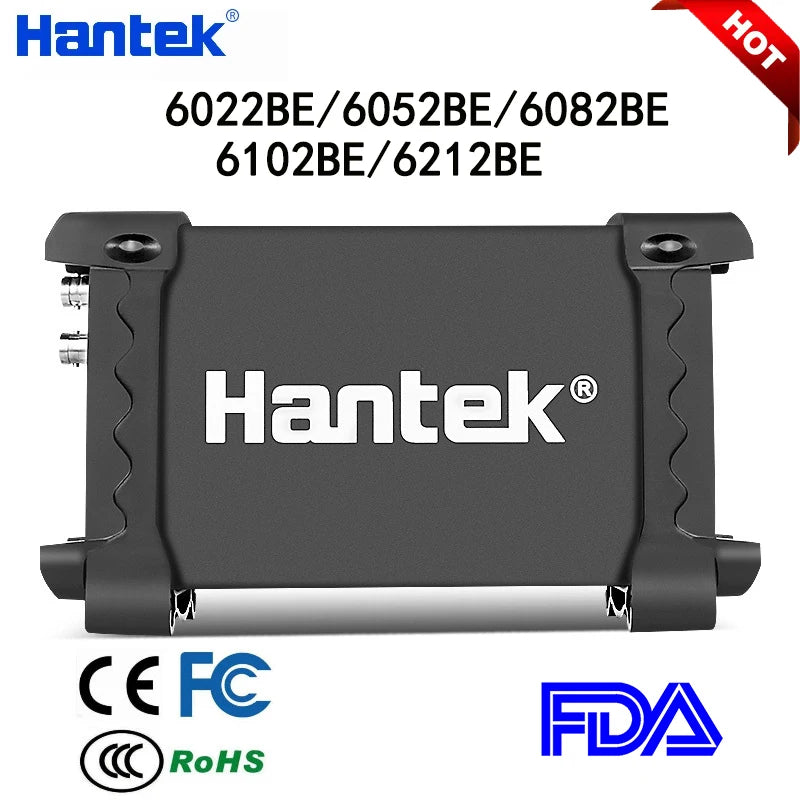

Hantek 6052BE 6022BE 6082BE 6102BE 6212BE 2CH USB Virtual Oscilloscope 20MHZ-200MHZ FFT Spectrum Analysis product image
Hantek 6052BE 6022BE 6082BE 6102BE 6212BE 2CH USB Virtual Oscilloscope 20MHZ-200MHZ FFT detail image 2

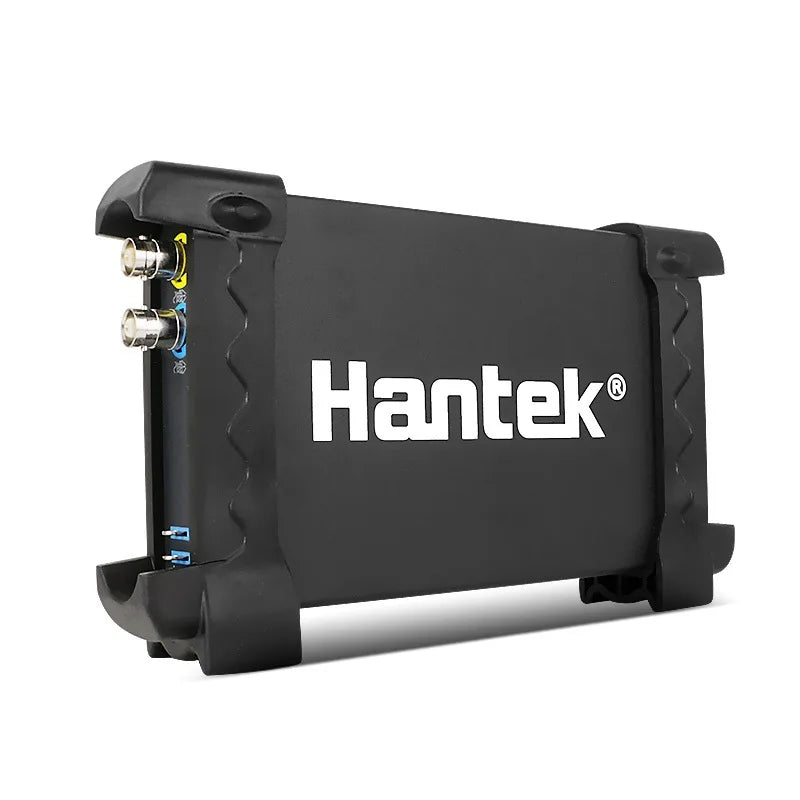

Hantek 6052BE 6022BE 6082BE 6102BE 6212BE 2CH USB Virtual Oscilloscope 20MHZ-200MHZ FFT detail image 3

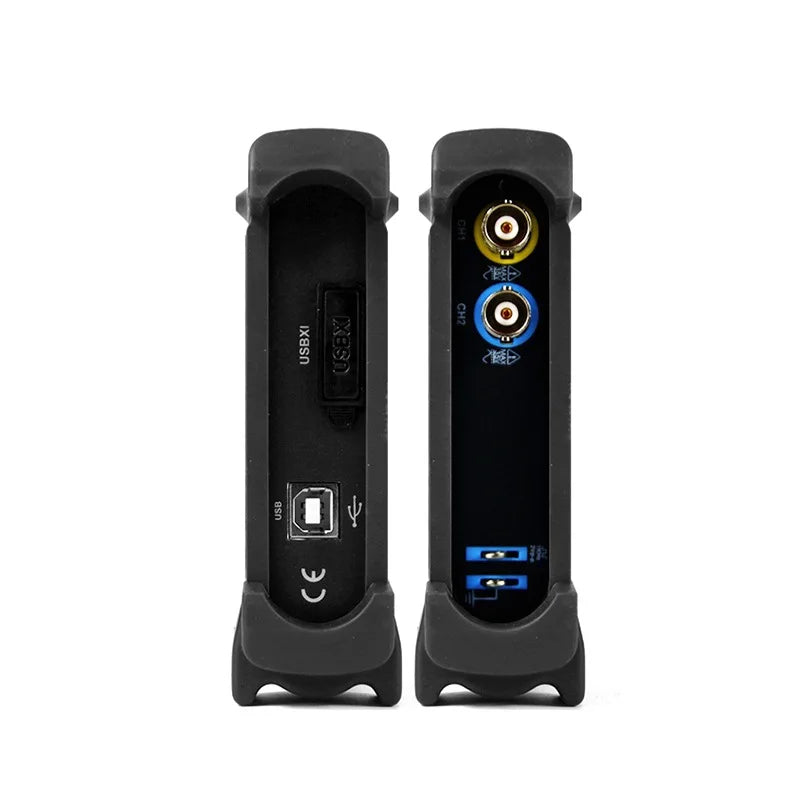

Hantek 6052BE 6022BE 6082BE 6102BE 6212BE 2CH USB Virtual Oscilloscope 20MHZ-200MHZ FFT detail image 4
Hantek 6052BE 6022BE 6082BE 6102BE 6212BE 2CH USB Virtual Oscilloscope 20MHZ-200MHZ FFT detail image 5
Hantek 6052BE 6022BE 6082BE 6102BE 6212BE 2CH USB Virtual Oscilloscope 20MHZ-200MHZ FFT detail image 6

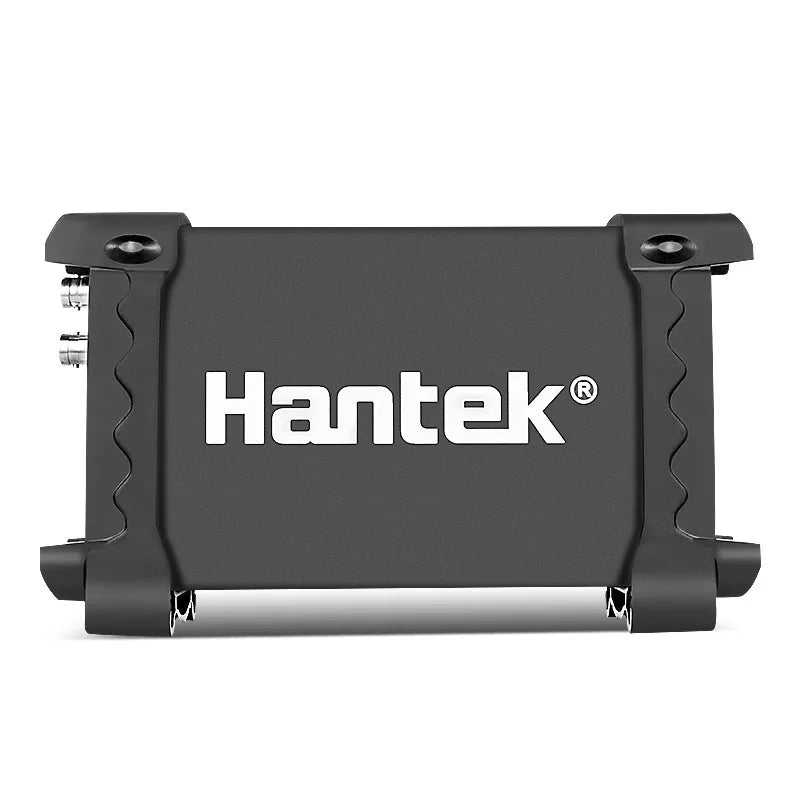

Hantek 6052BE 6022BE 6082BE 6102BE 6212BE 2CH USB Virtual Oscilloscope 20MHZ-200MHZ FFT detail image 7

Hantek 6052BE 6022BE 6082BE 6102BE 6212BE 2CH USB Virtual Oscilloscope 20MHZ-200MHZ FFT Spectrum Analysis Secondary Development

Sale price
$101.29
List price
$101.83
You save
$0.54 (1%)

Prices include VAT and any applicable duties.

Color:6022BE
In stock, usually dispatched in 2-3 business days.

Product Summary

Hantek 6052BE 6022BE 6082BE 6102BE 6212BE 2CH USB Virtual Oscilloscope 20MHZ-200MHZ FFT is a digital oscilloscope selected for checking waveforms, debugging signals and validating circuit behavior. It is suitable for electronics repair technicians, lab users and embedded developers who need practical electronics hardware for reliable project work.

Best For

  • checking waveforms, debugging signals and validating circuit behavior
  • test leads, probes and bench electronics workflows
  • Electronics testing, repair, prototyping and maker workflows

FAQ

Who is this product for? It is intended for electronics repair technicians, lab users and embedded developers.

What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

Features

  • Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

  • Standard USBXITMinterface, easily inserts into USBXITMhousing to make up a combination instrument.

  • USB2.0 interface, no external power source required, easy to use.

  • Be suitable for notebook computer, product line maintenance, be used easily on business.

  • Dimensions (mm):205(L) x120(W) x35(H), be carried easily.

  • High performance, 250MS/s real-time sampling, 20MHz-80MHz bandwidth.

  • Operating System: Windows 10, Windows 8, Windows 7, Windows NT, Windows XP, VISTA.

  • 23 measurement functions, PASS/FAIL Check, be suitable for technical application.

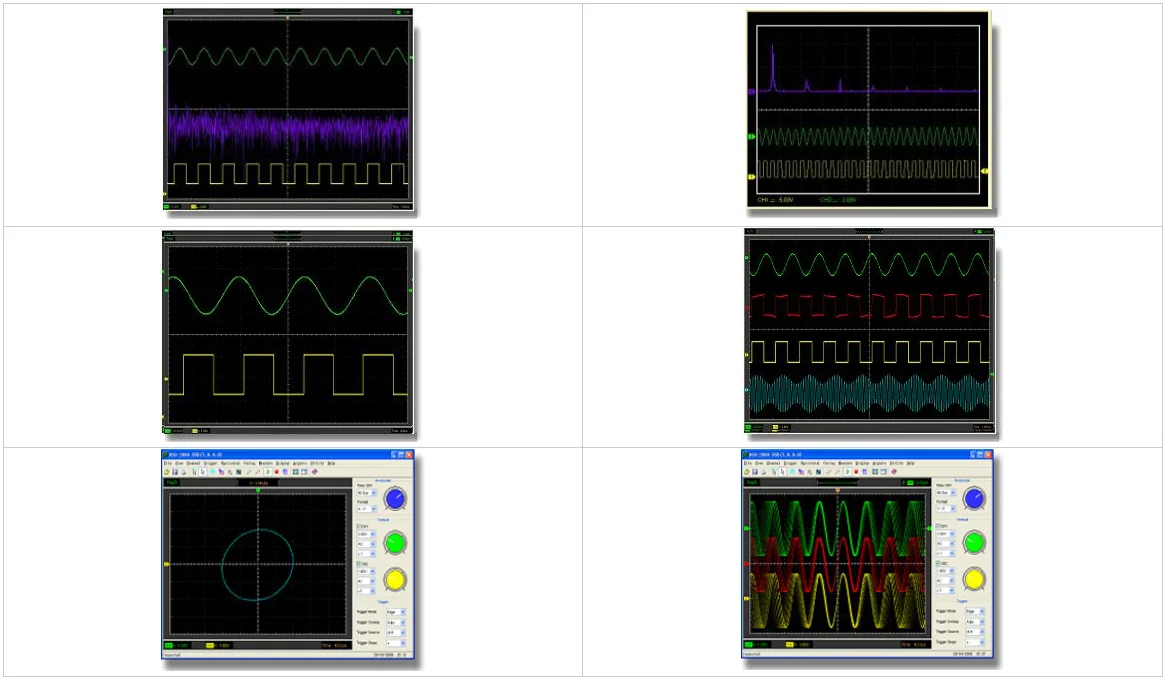

  • Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.

  • Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.

  • FFT

  • One computer can connect many DSO, extend channel easily.

  • Labview\VB\VC Second Design instance.

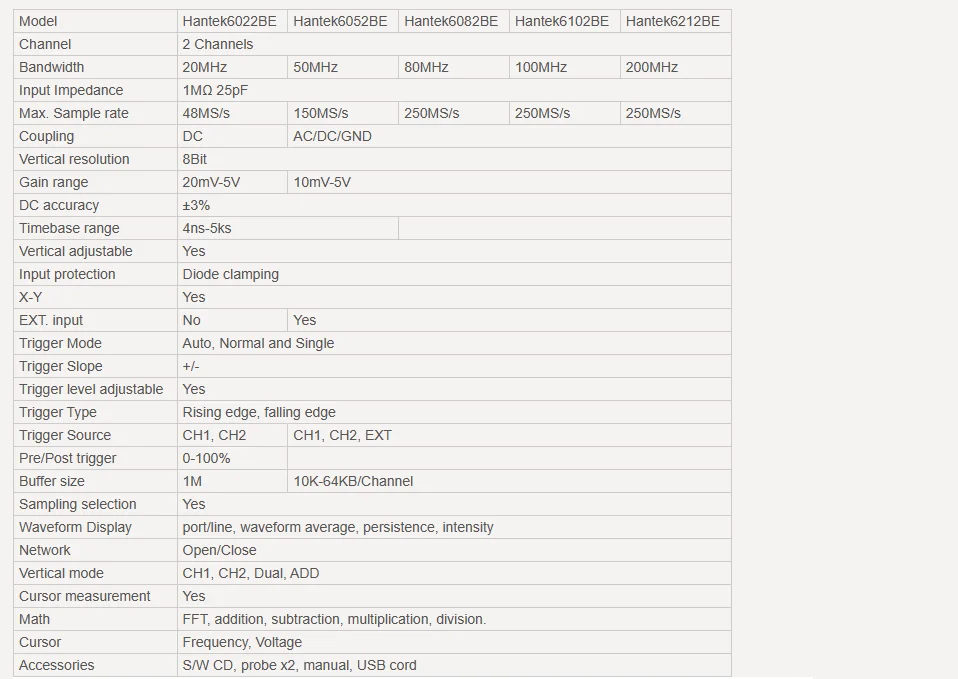

Model

Hantek6022BE

Hantek6052BE

Hantek6082BE

Hantek6102BE

Hantek6212BE

Channel

2 Channels

Bandwidth

20MHz

50MHz

80MHz

100MHz

200MHz

Input Impedance

1M ohm 25pF

Max. Sample rate

48MS/s

150MS/s

250MS/s

250MS/s

250MS/s

Coupling

DC

AC/DC/GND

Vertical resolution

8Bit

Gain range

20mV-5V

10mV-5V

DC accuracy

±3%

Timebase range

4ns-5ks

Vertical adjustable

Yes

Input protection

Diode clamping

X-Y

Yes

EXT. input

No

Yes

Trigger Mode

Auto, Normal and Single

Trigger Slope

+/-

Trigger level adjustable

Yes

Trigger Type

Rising edge, falling edge

Trigger Source

CH1, CH2

CH1, CH2, EXT

Pre/Post trigger

0-100%

Buffer size

1M

10K-64KB/Channel

Sampling selection

Yes

Waveform Display

port/line, waveform average, persistence, intensity

Network

Open/Close

Vertical mode

CH1, CH2, Dual, ADD

Cursor measurement

Yes

Math

FFT, addition, subtraction, multiplication, division.

Cursor

Frequency, Voltage

Accessories

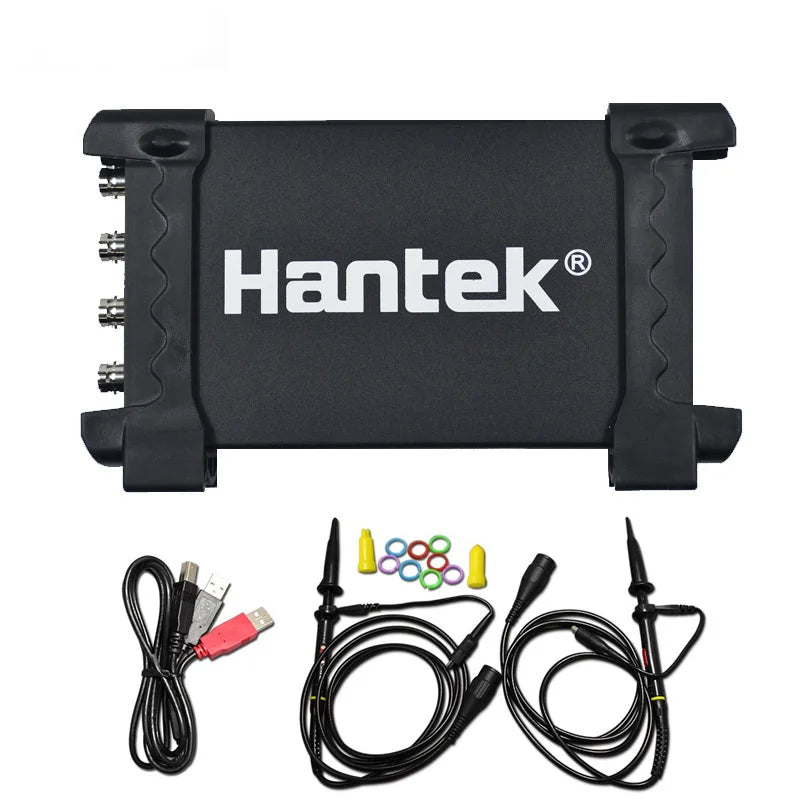

S/W CD, probe x2, manual, USB cord
