Product Summary

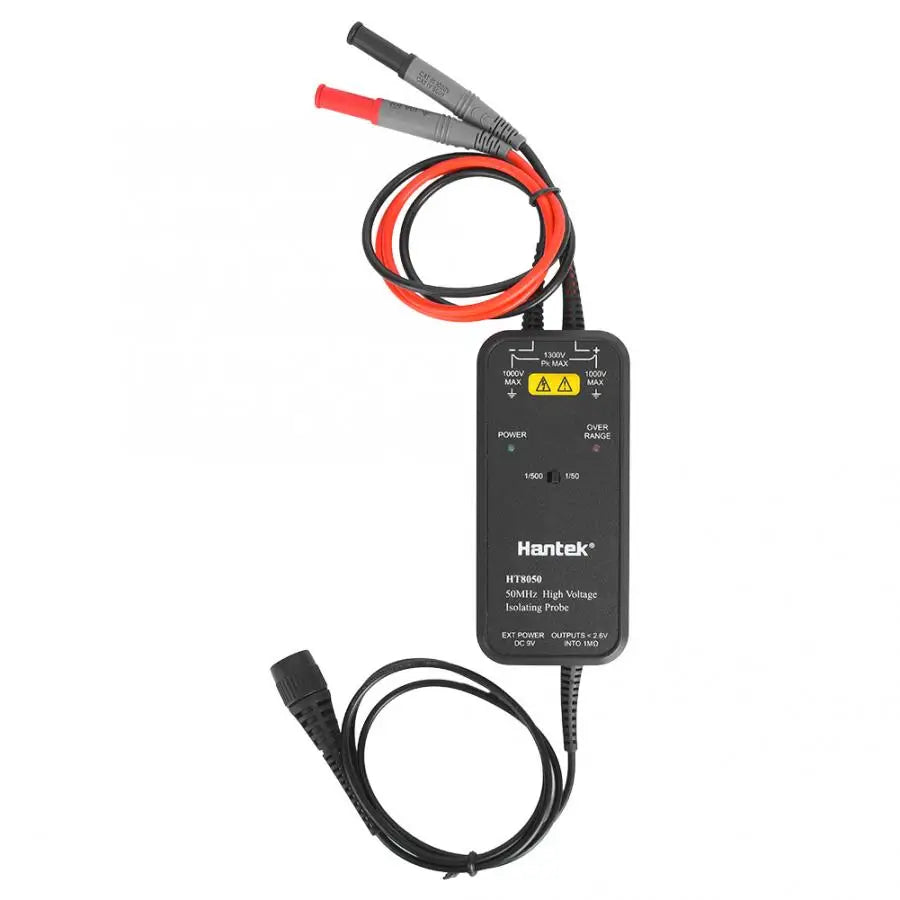

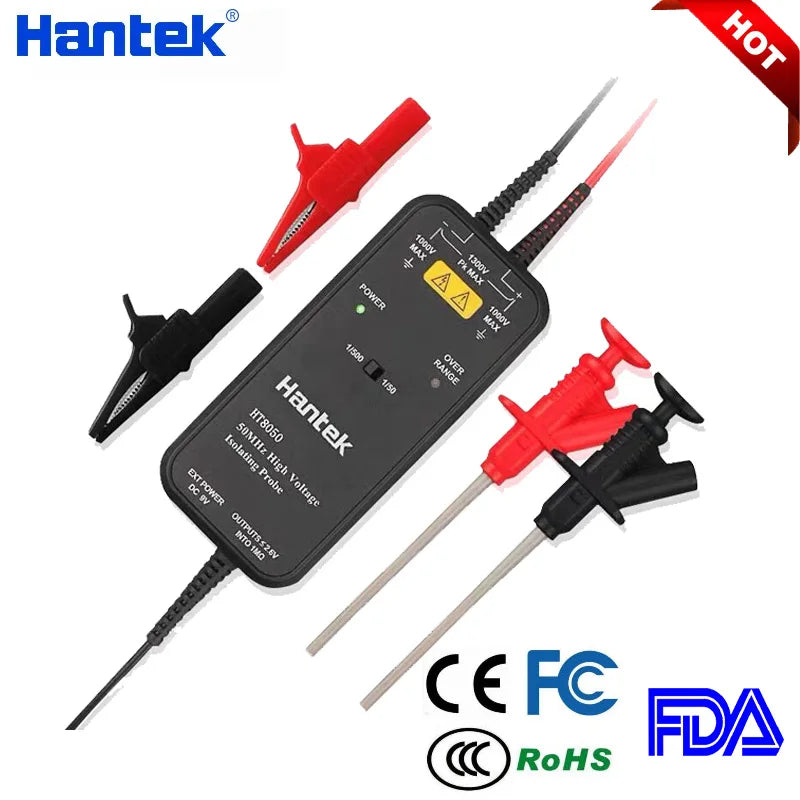

Hantek 100MHZ Oscilloscope HT8050/HT8100 High Voltage Differential Probe Isolation Probe LED is a digital oscilloscope selected for checking waveforms, debugging signals and validating circuit behavior. It is suitable for electronics repair technicians, lab users and embedded developers who need practical electronics hardware for reliable project work.
Best For
- checking waveforms, debugging signals and validating circuit behavior
- test leads, probes and bench electronics workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electronics repair technicians, lab users and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
The HT8050/HT8100 oscilloscope high-voltage differential probe has stability, reliability and accuracy.
Feature:

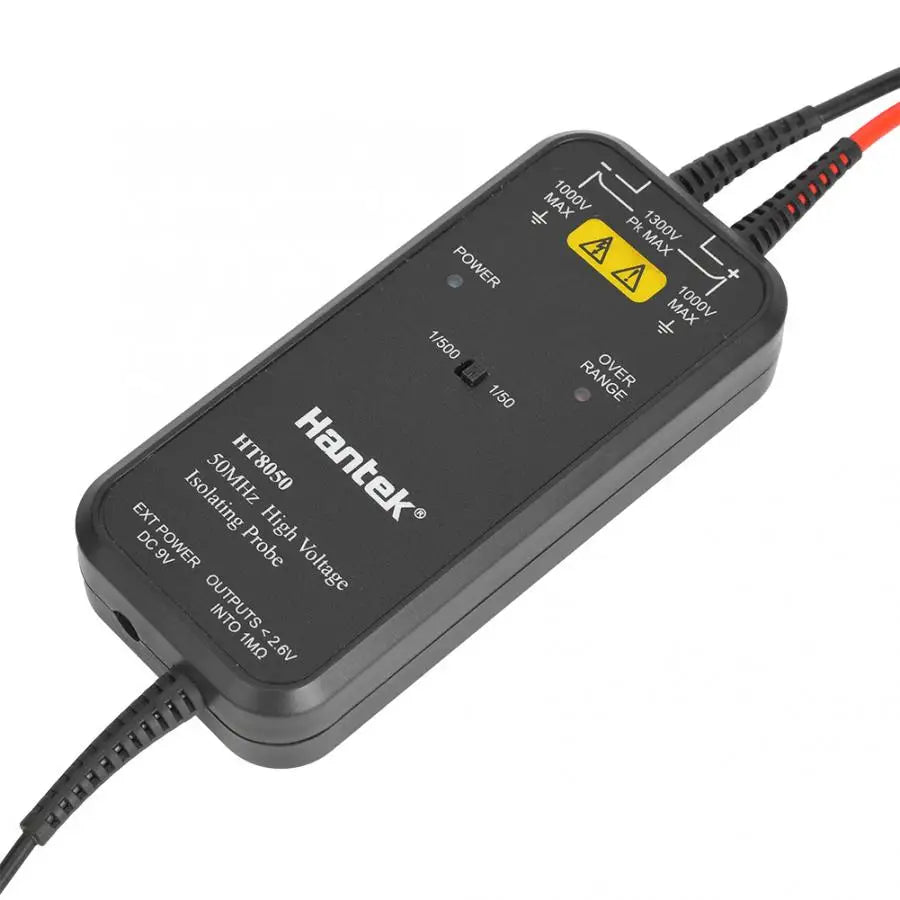

1. The high-voltage isolation probe has an over-range alarm function and is indicated by a red LED for easier use.
2. The high-voltage isolation probe is small in size, beautiful in shape, firm in structure, durable in use.
3. This oscilloscope differential probe offers high stability, long service life, reliability and precision.
4. The high-voltage isolation probe uses a differential input mode and is primarily used in locations where high-voltage floating measurements are required.
5. With 1/50 and 1/500 attenuation, the differential mode measurement range is 130V (DC+peakAC) and 1300V (DC+peakAC).
Specification
Condition: 100% Brand New
Item Type: Oscilloscope Probe
Material: ABS

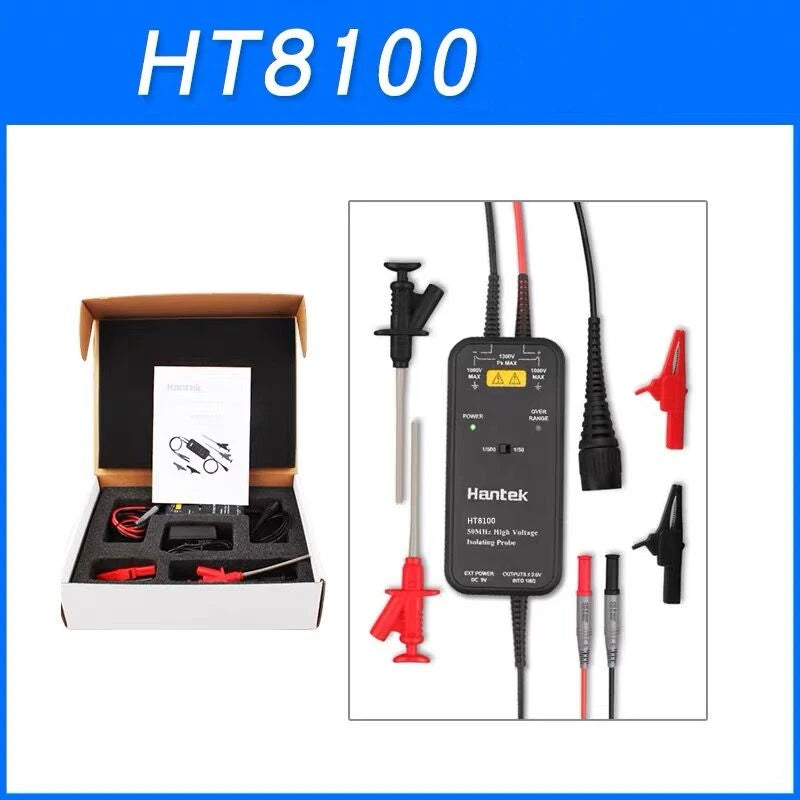

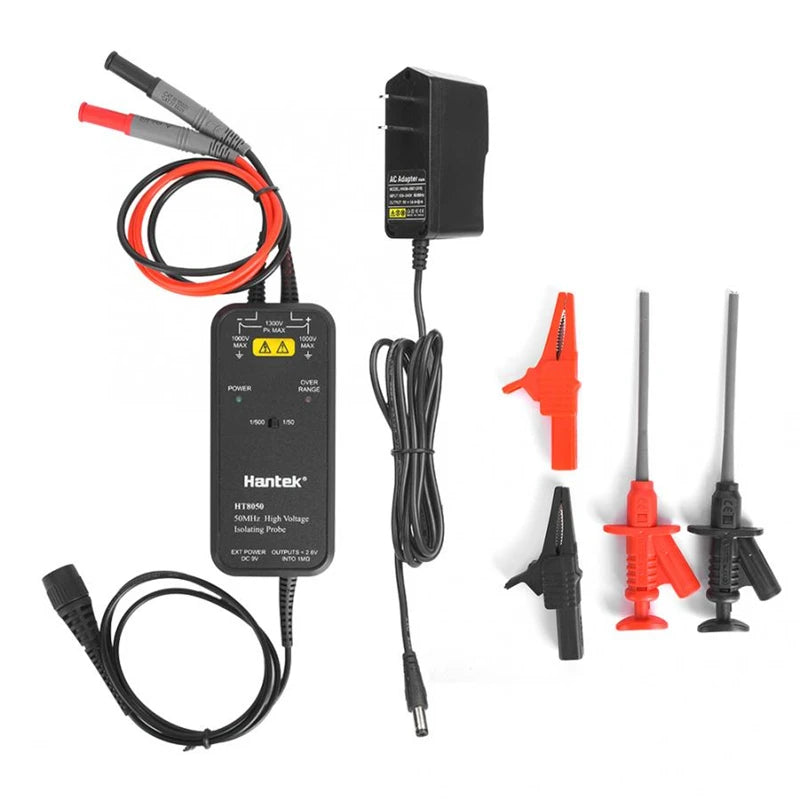

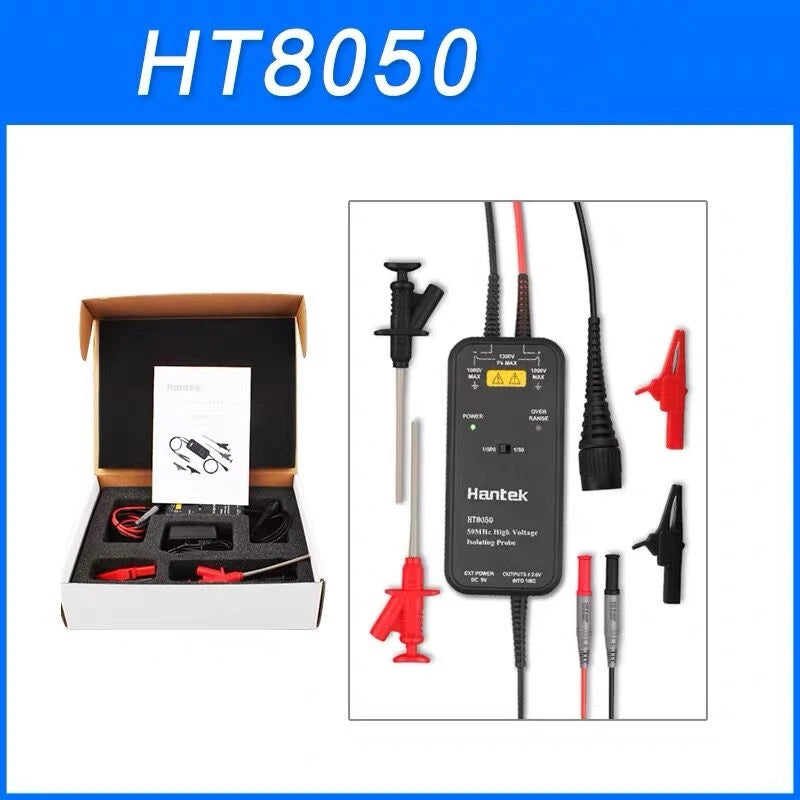

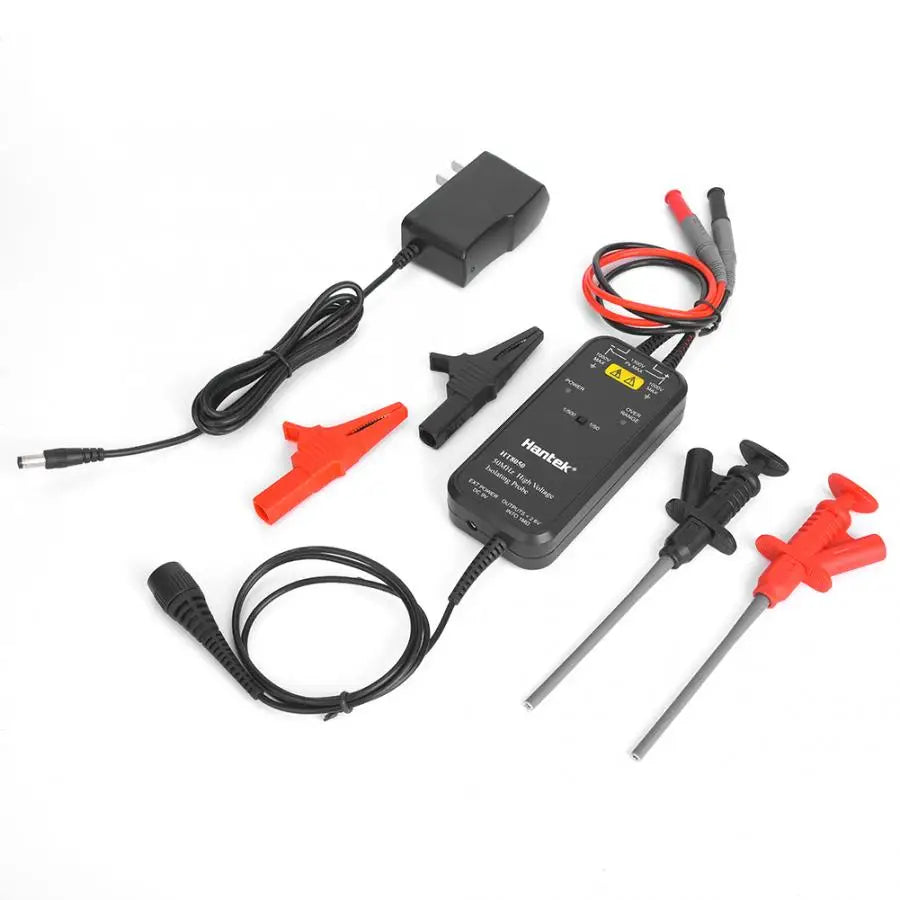

Package List:
1 x Probe
2 x Clip
2 x Probe Hook
1 x Adapter
1 x English User Manual
Specification:
Electrical Performance | ||
Model Number |
HT8050 |
HT8100 |
Bandwidth(-3dB) |
50MHz |
100MHz |
Rise time |
7ns |
3.5ns |
Accuracy |
±2% |
|
Attenuation Ratio |
1/50,1/500 |
|
Imput Impedance |
Single-ended to ground:4M ohm |
|
Imput Capacitance |
Single-ended to ground:7pF |
|
Maximum Difference Measurement Voltage |
1/50:130V(DC+peakAC) |
|
Maximum Common Mode Input Voltage |
1000Vrms,CATII |
|
Noise |
1/50:≤1.5mVrms |
|
Linearity |
±1% |
|
Delay Time |
20ns±1ns |
|
CMRR |
DC:≥80dB |
|
Over Range Warning |
1/50:140V±4V(DC+peakAC) |
|
Power Adapter |
DC9V,1000mA |
|
Power Adapter |
AC100-240V,50-60Hz |
|
Machinery Specification | ||
Length of Input Cable |
About 60cm |
About 30cm |
Length of Output Cable |
About 90cm |
|
Gator Clip |
About 85*40*13(mm) |
|
Finger Pin |
About 160*45*13(mm) |
|

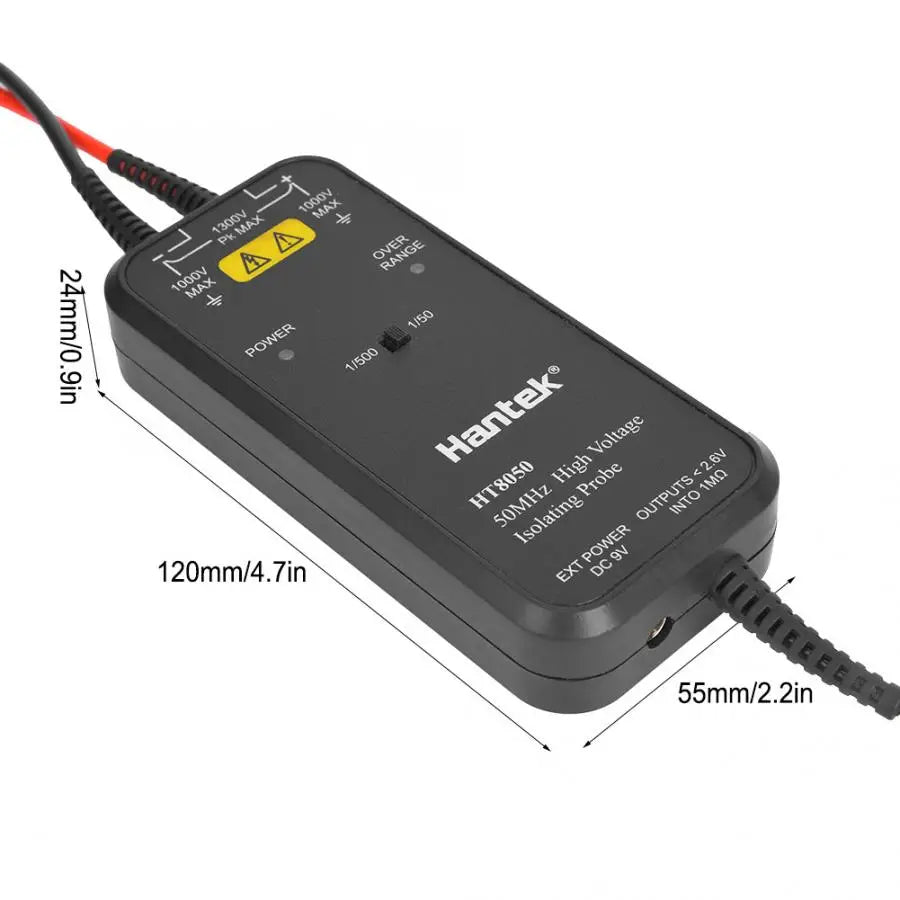

Probe Body |
120*55*24(mm) |
|
Weight |
160g |
|
Environmental Characteristics | ||
Working Temperature |
0-40 deg C |
|
Storage Temperature |
-10-45 deg C |
|
Working Humidity |
85%RH |
|
Storage Humidity |
90%RH |
|
Working Altitude |
3000m |
|
Storage Altitude |
12000m |
|
