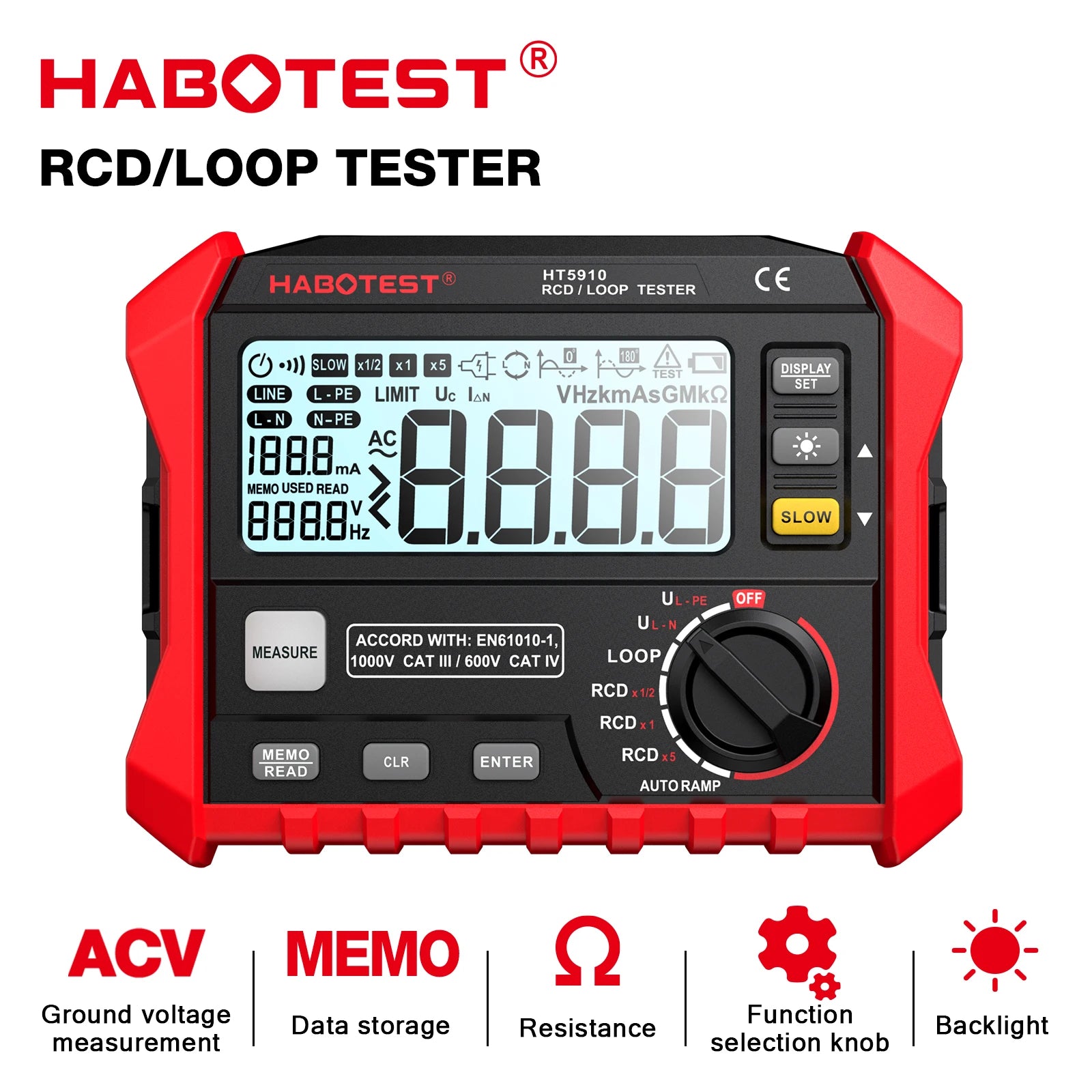

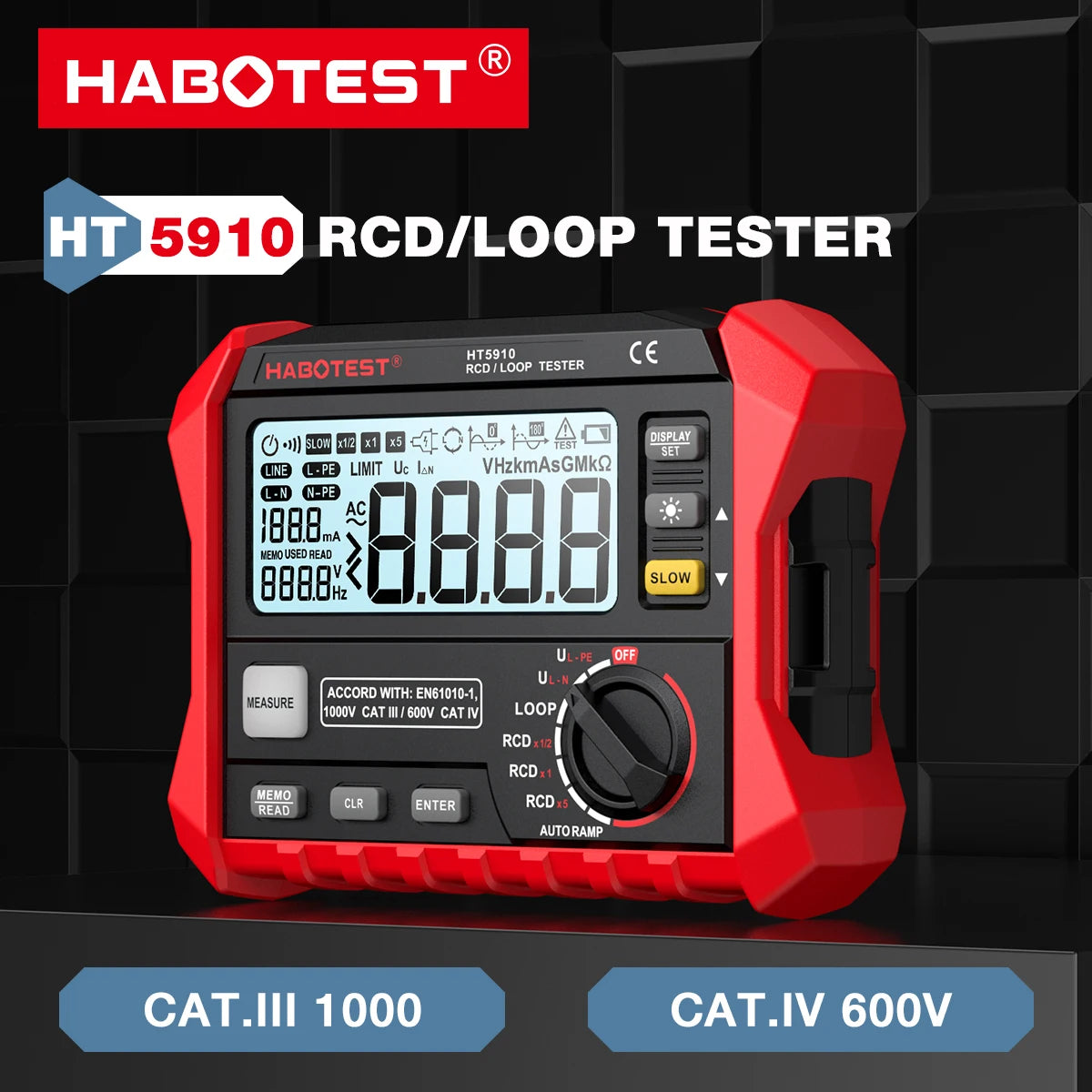

HABOTEST HT5910 RCD and Loop Tester

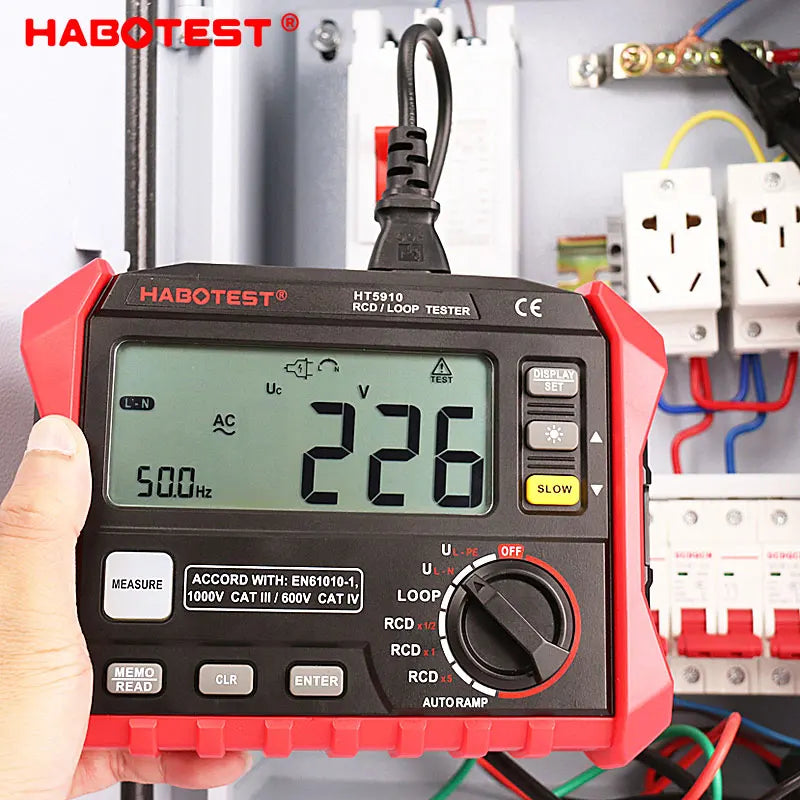

The HT5910 is designed for checking residual-current devices and loop conditions in electrical installations. It combines RCD operating tests, loop resistance measurement, contact-voltage measurement and AC phase-voltage measurement in one handheld instrument.

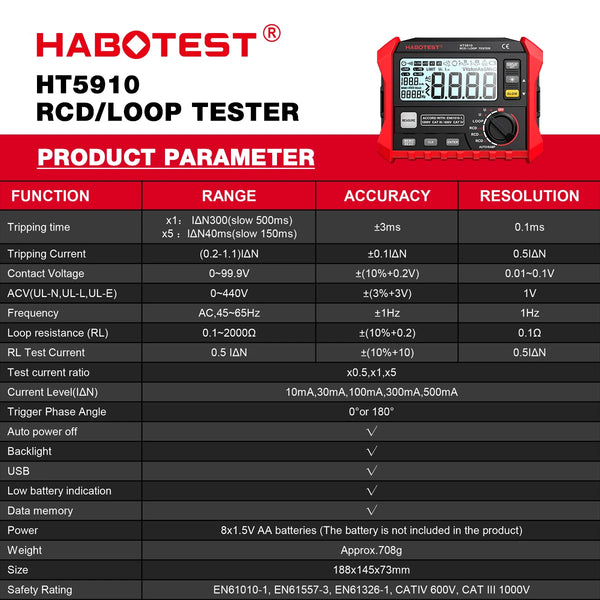

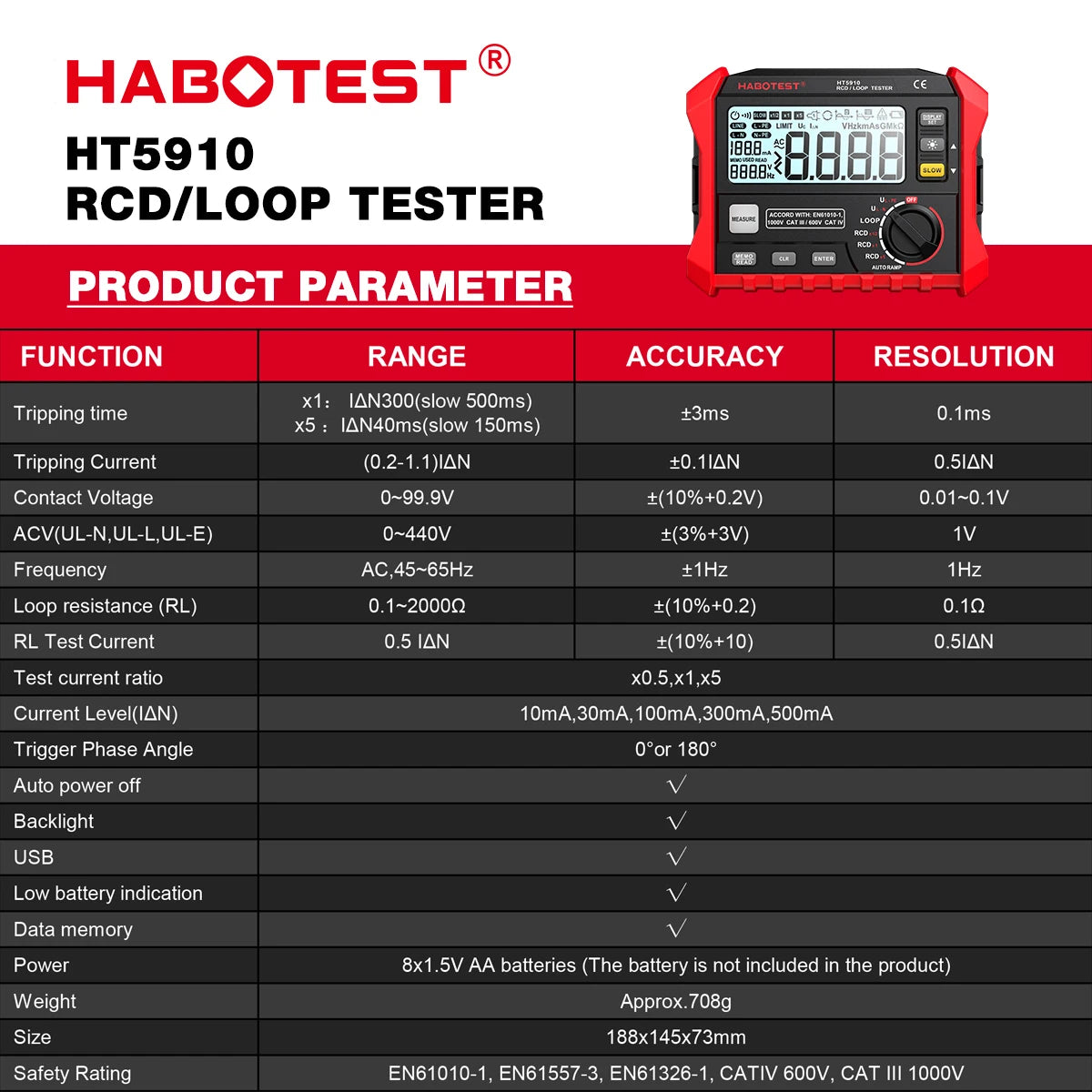

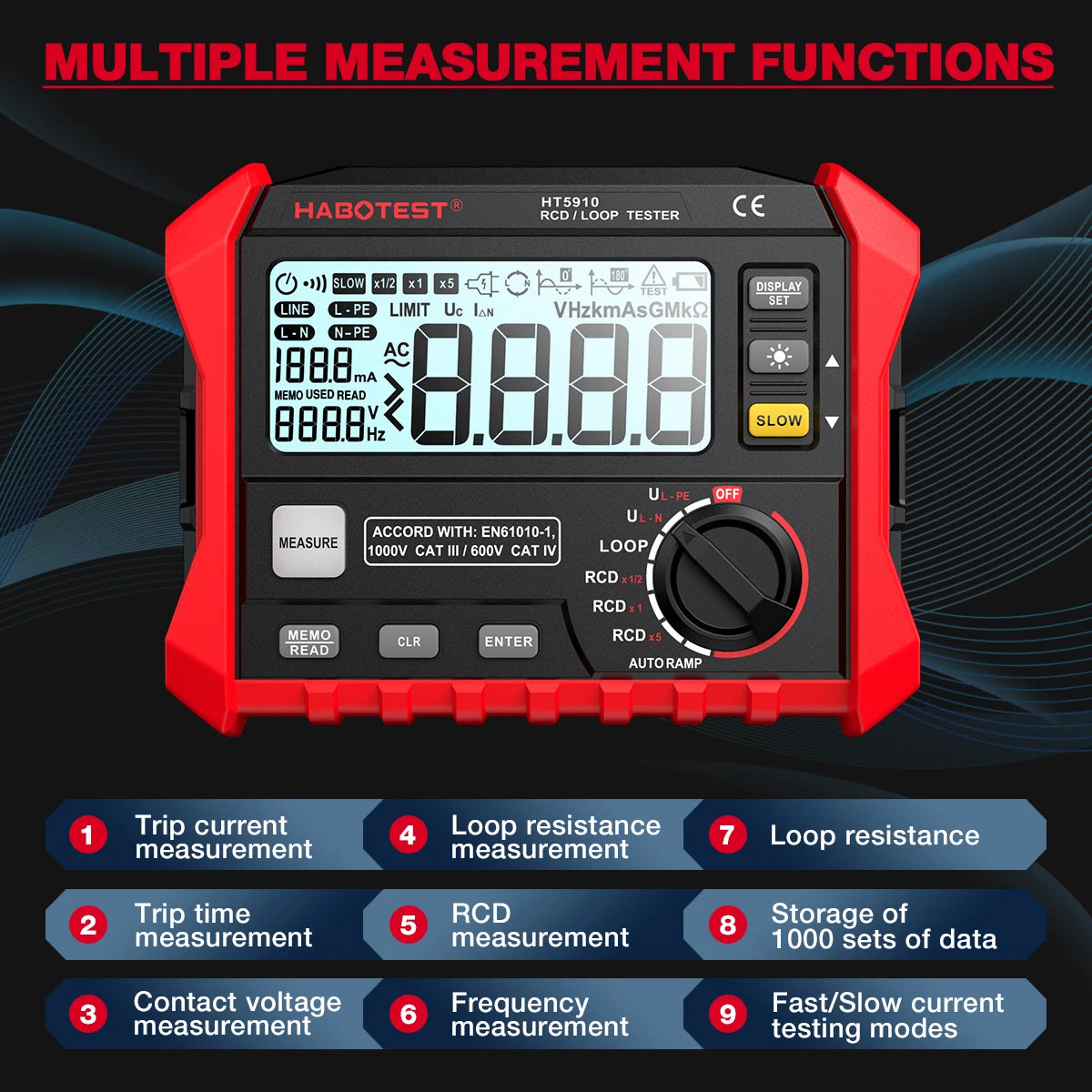

Measurement Functions

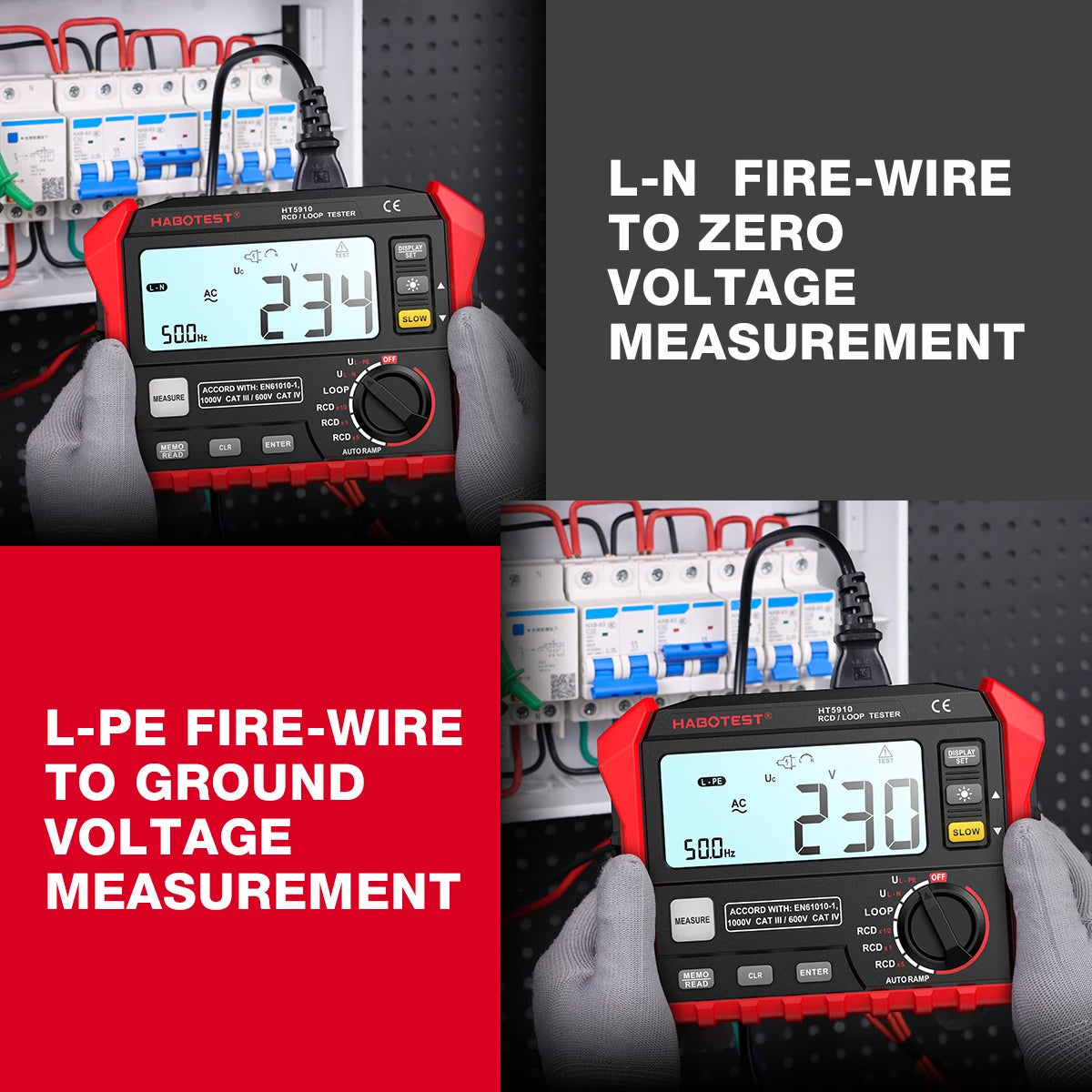

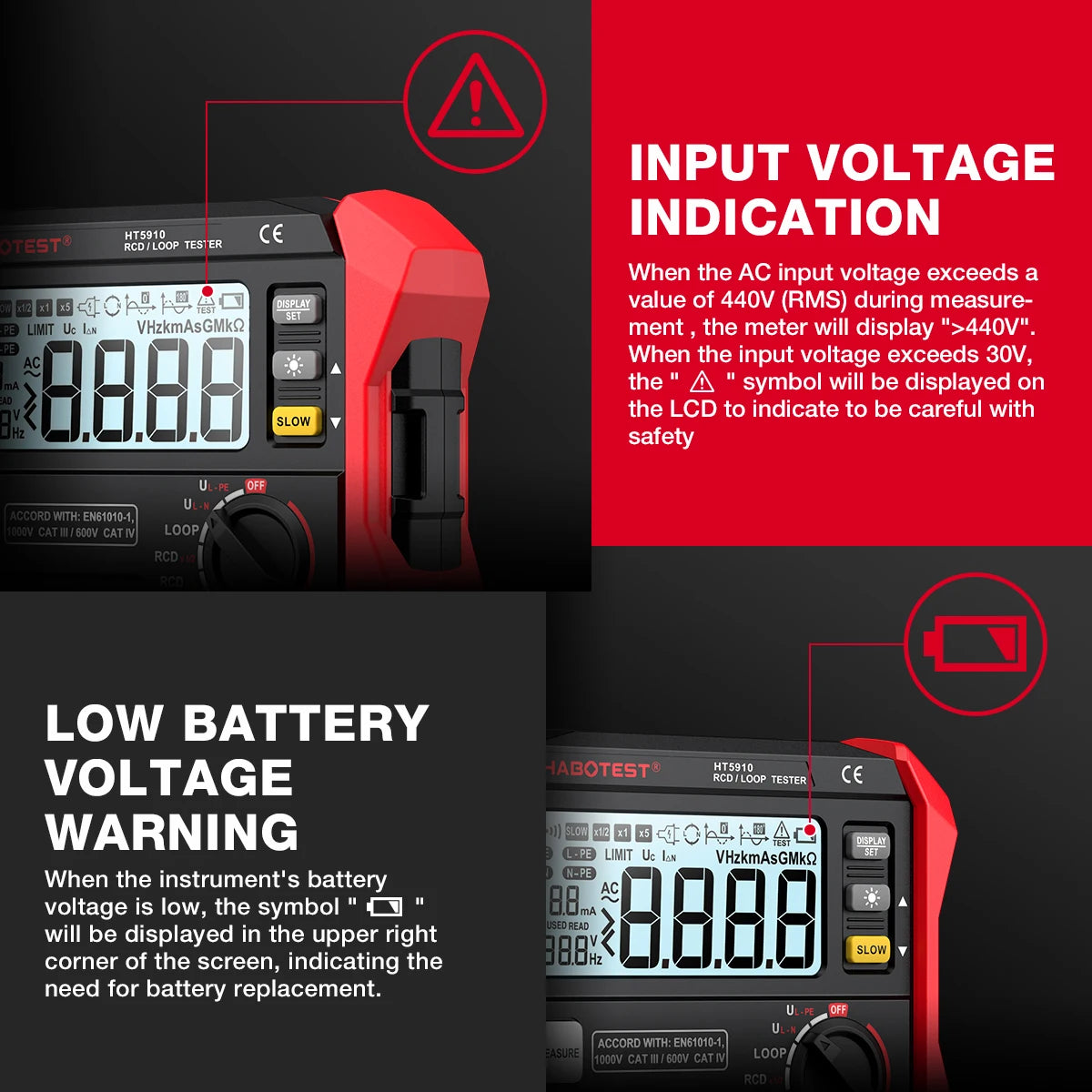

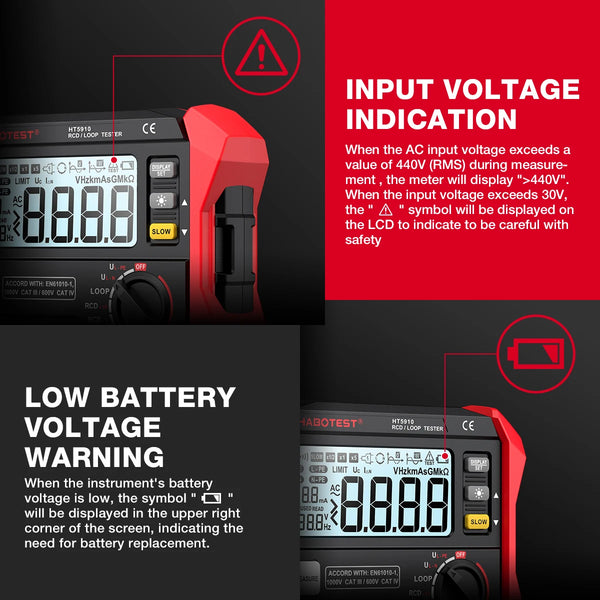

• AC phase voltage: 0-440 V
• Frequency: 45-65 Hz
• Contact voltage: 0-99.9 V
• Loop resistance: 0.1-2000 Ω
• Selectable RCD test-current stages: 10, 30, 100, 300 and 500 mA
• Test-current multipliers: 0.5x, 1x and 5x
• Selectable trigger phase: 0° or 180°

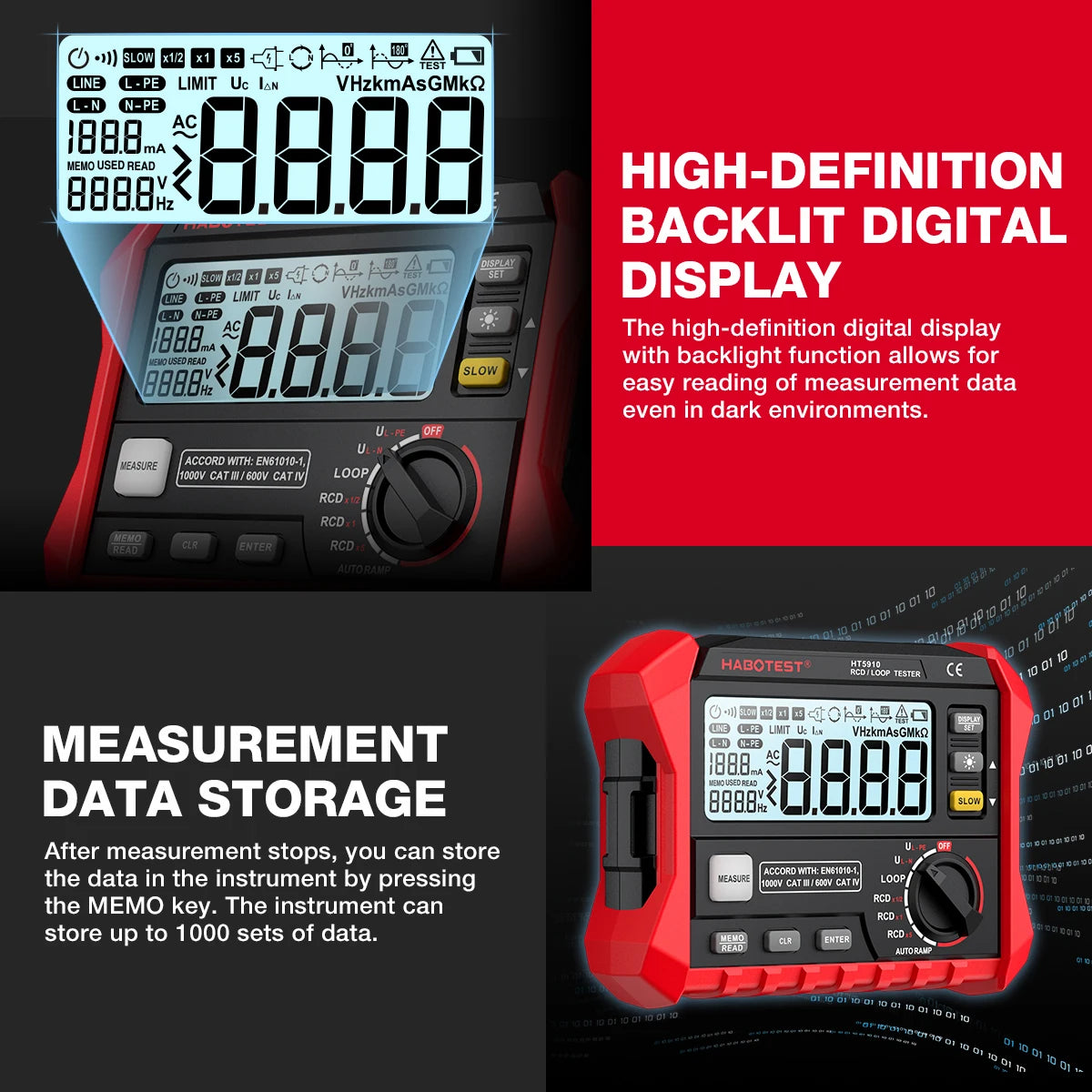

• Automatic range selection, backlit LCD and storage for up to 1000 records

Typical Applications

Suitable for electricians and maintenance technicians checking RCD operation, loop impedance and installation conditions. Use the instrument only within its rated limits and follow the supplied manual and local electrical-safety procedures.

Package Information

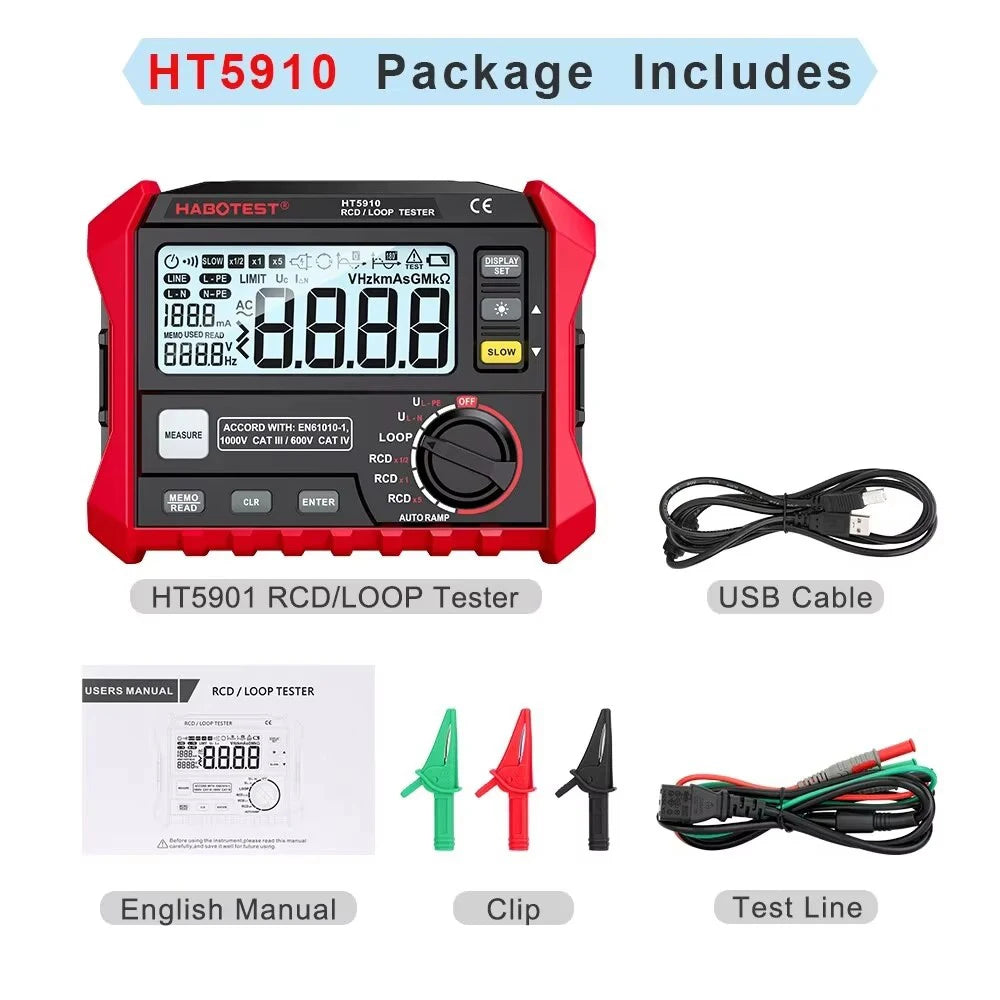

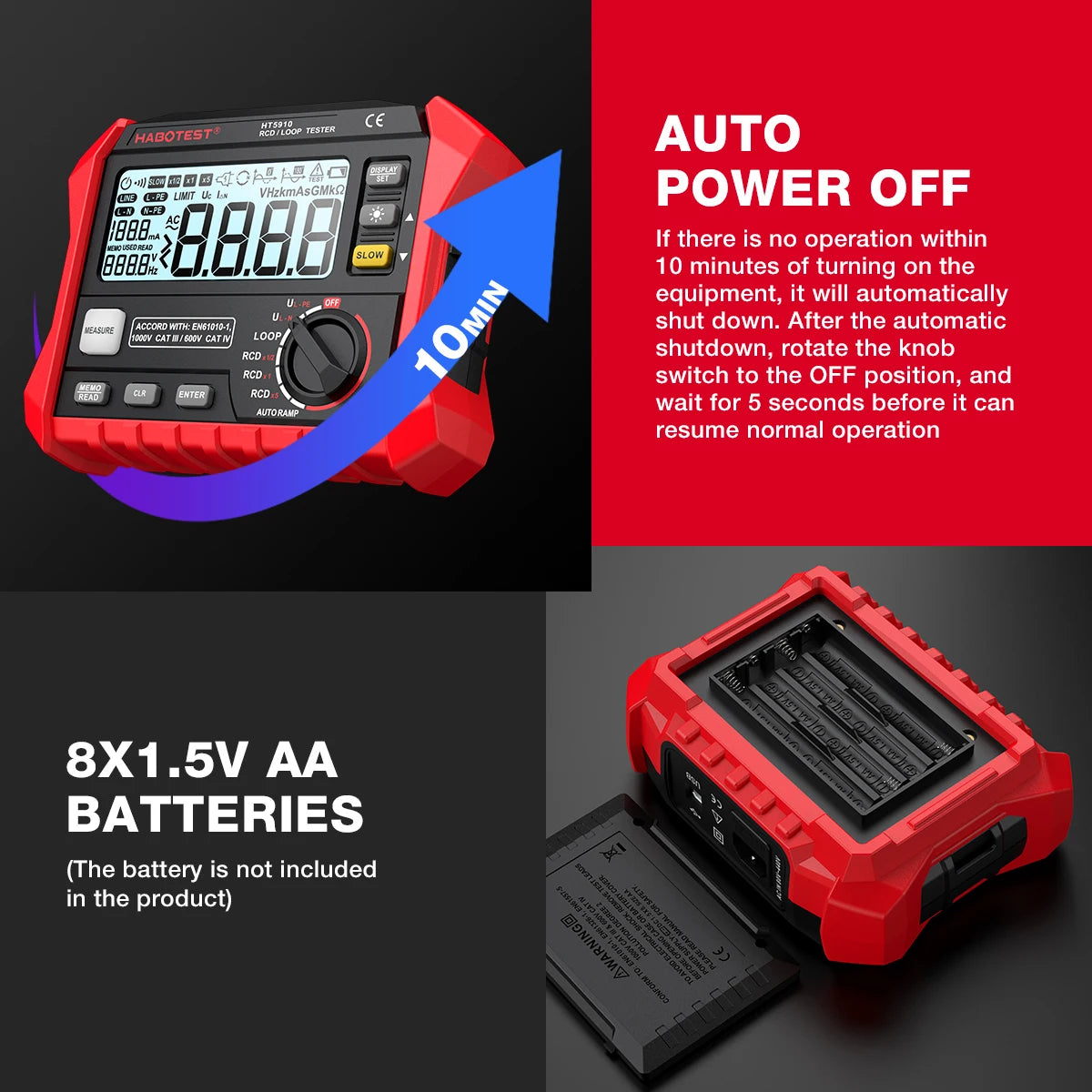

The supplier package is shown with the HT5910 tester, test leads, alligator clips, USB data cable, documentation/software media and a protective carry case. Batteries are not included. Check the product images for the exact supplied configuration.
