DESHIBO GA-800 10kHz-159MHz Active Loop Receiving Antenna with USB-C

Sale price
$116.10
List price
$165.85
You save
$49.75 (30%)

Prices include VAT and any applicable duties.
Delivery estimate Estimated arrival is calculated for your delivery market.
Ships in 1-3 business days. Remote areas or special items may take longer.

GA-800 Wideband Active Loop Receiving Antenna

The DESHIBO GA-800 is a compact active loop antenna for shortwave, scanner and SDR reception. Its split loop and powered amplifier cover a wide receiving range while keeping the antenna practical for indoor desks, balconies and portable listening setups.

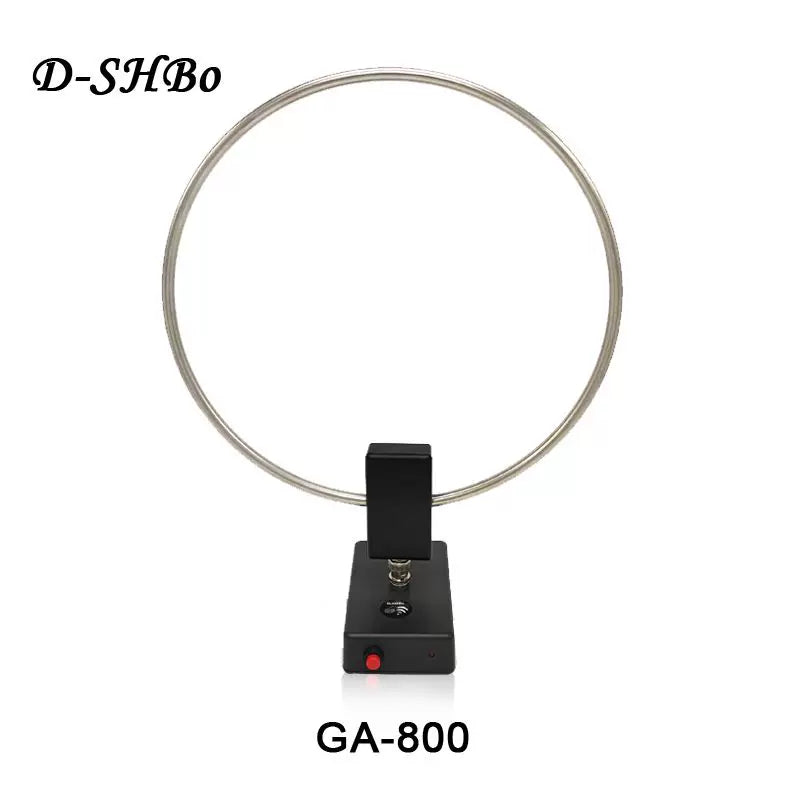

DESHIBO GA-800 active loop receiving antenna kit

Key Features

  • Wide 10kHz-159MHz receiving range
  • Active amplifier with gain up to 20dB
  • Approximately 260mm diameter stainless-steel loop
  • 50-ohm RF system for use with compatible receivers and SDR equipment
  • Built-in rechargeable 18650 battery in the controller
  • USB-C charging from a 5V power source
  • Compact split-loop construction for storage and portable use

GA-800 active loop antenna frequency range and controller

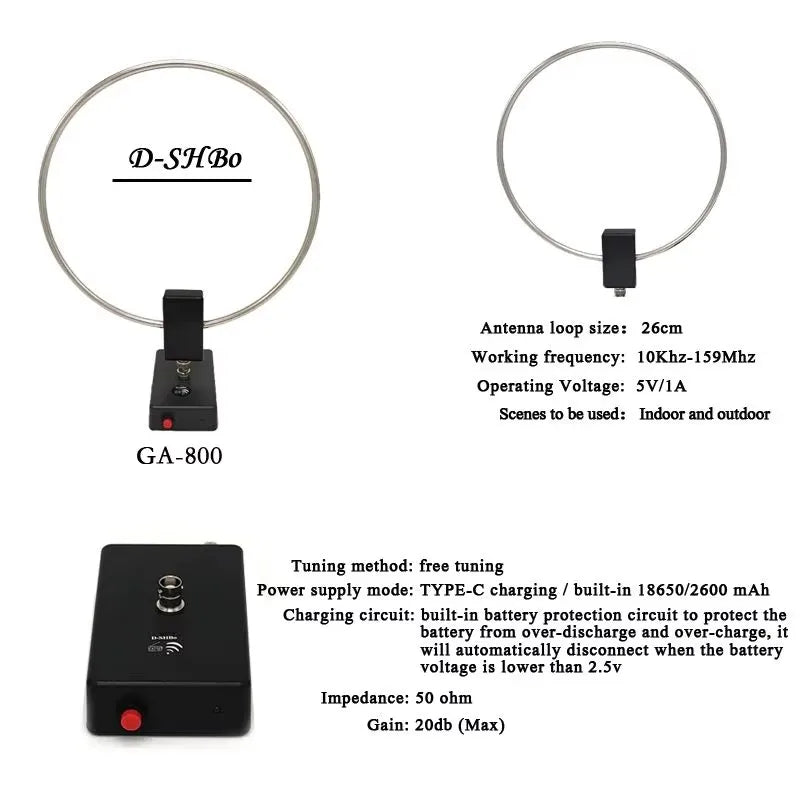

Specifications

  • Frequency coverage: 10kHz-159MHz
  • Maximum listed gain: 20dB
  • Impedance: 50 ohms
  • Charging input: 5V / 1A via USB-C
  • Battery: rechargeable 18650 cell installed in the controller
  • Loop diameter: approximately 260mm
  • Primary use: radio and SDR signal reception

GA-800 active antenna specifications and connection layout

Setup Notes

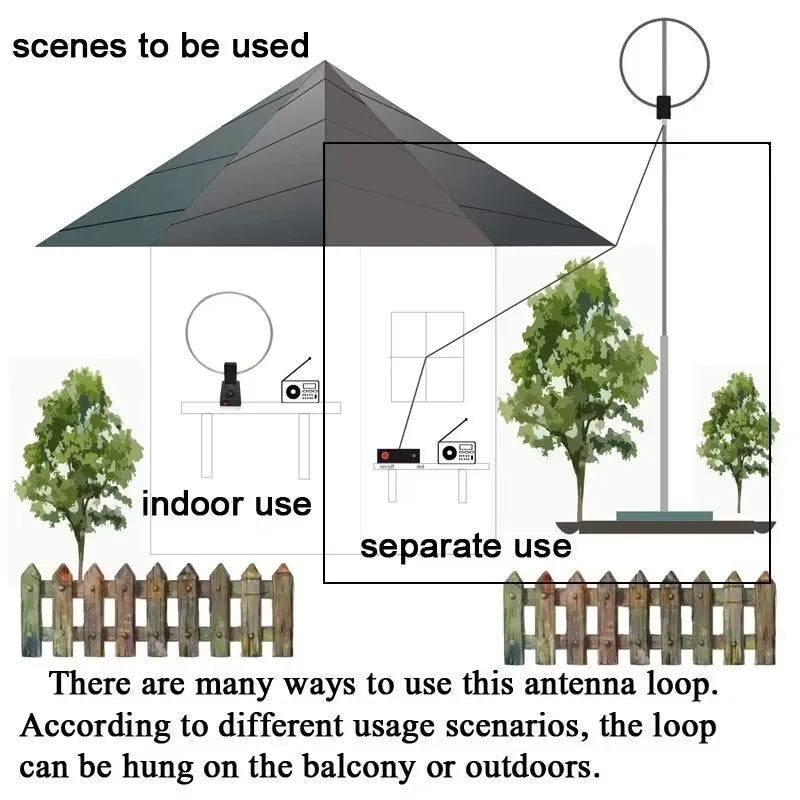

Connect the loop to the controller, connect the controller output to a compatible receiver, and position or rotate the loop for the best signal-to-noise ratio. Indoor electrical noise, nearby displays and switching power supplies can affect reception, so test several locations.

This is a receiving antenna and is not intended for RF transmission. A receiver, SDR or radio shown in application images is not included unless explicitly listed in the selected package.

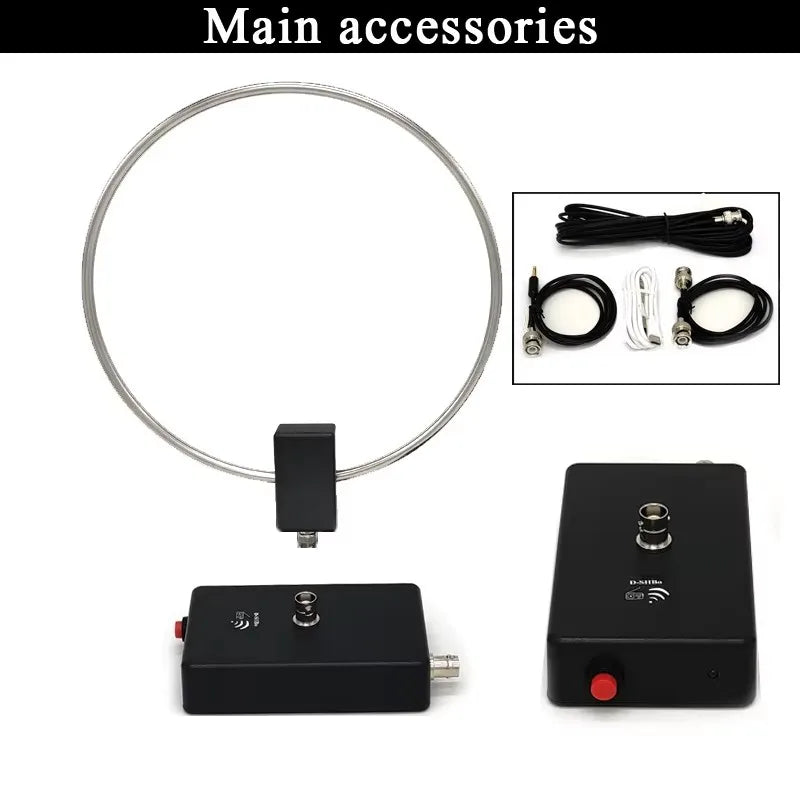

GA-800 loop antenna components and included cables
